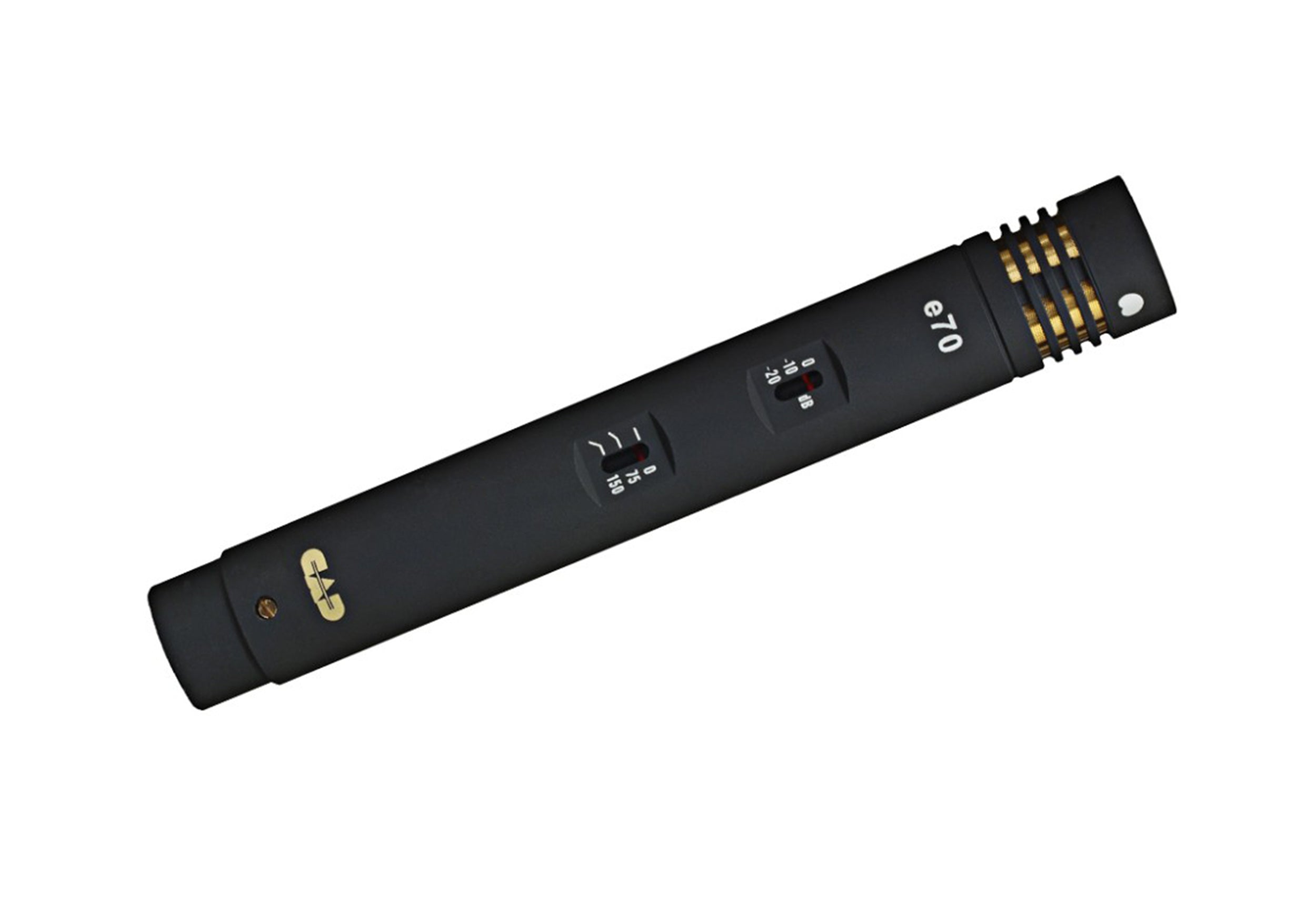

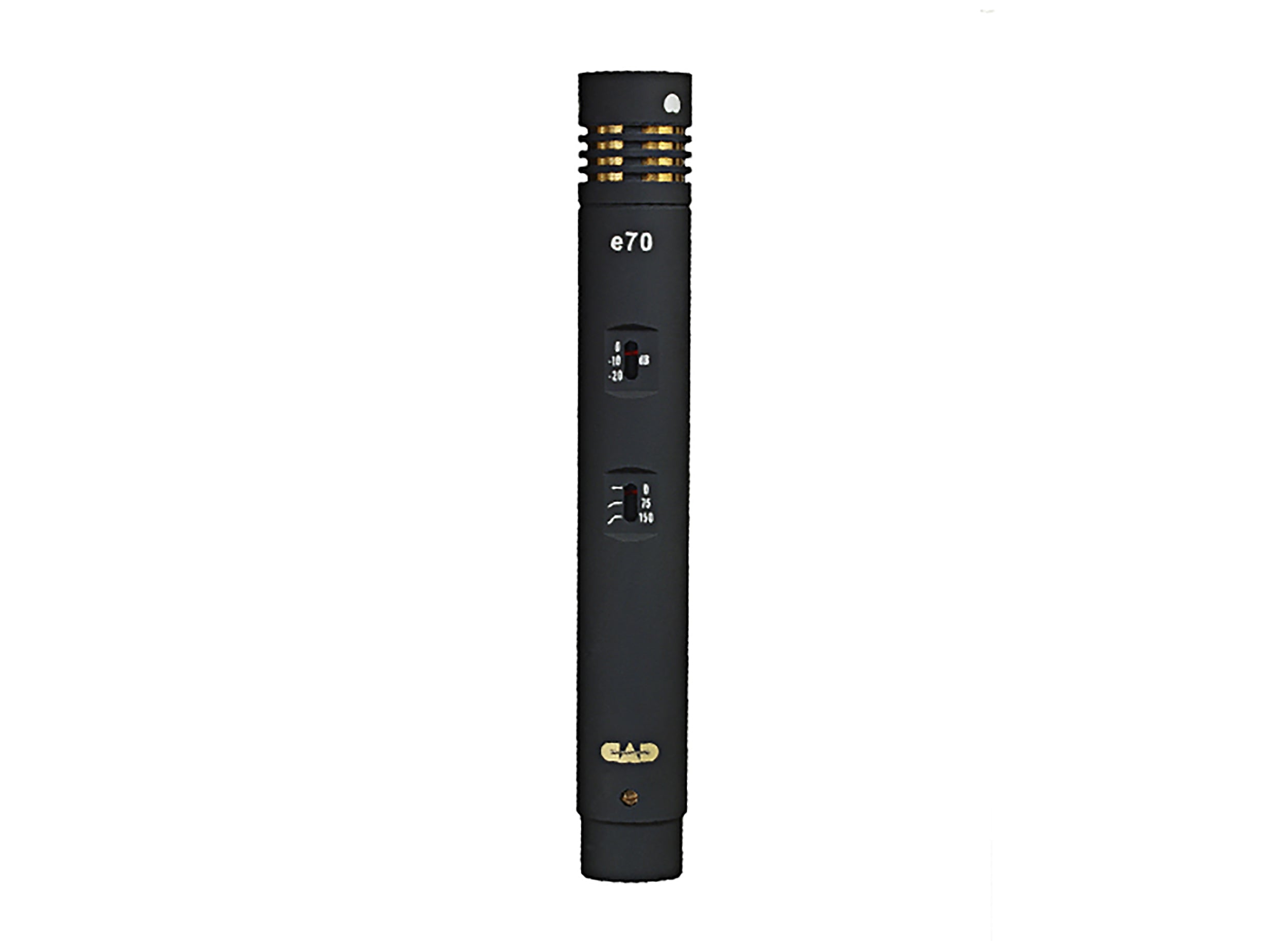

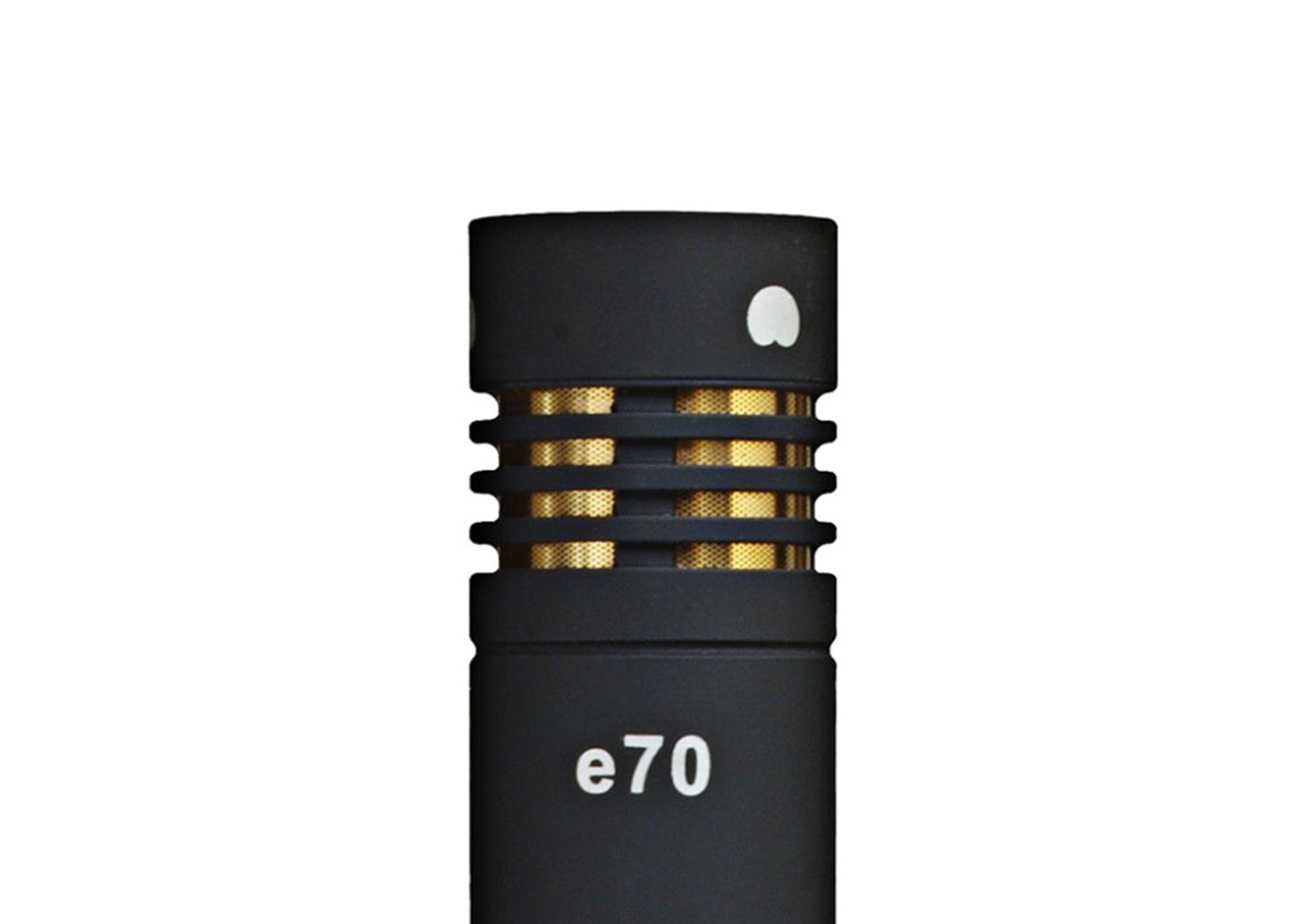

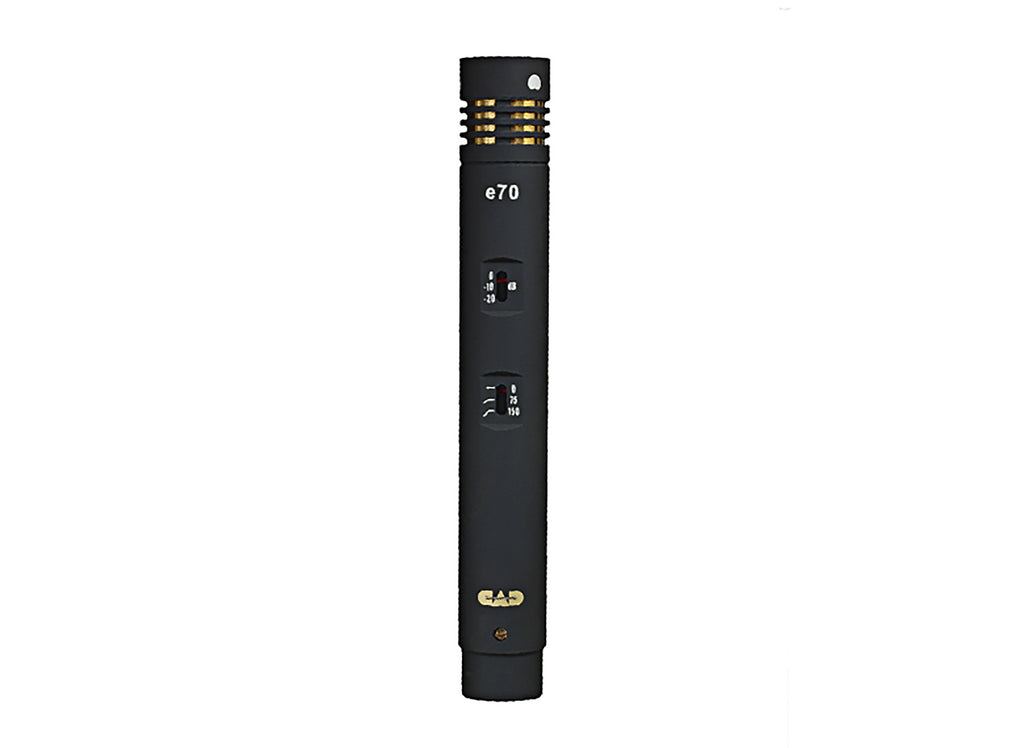

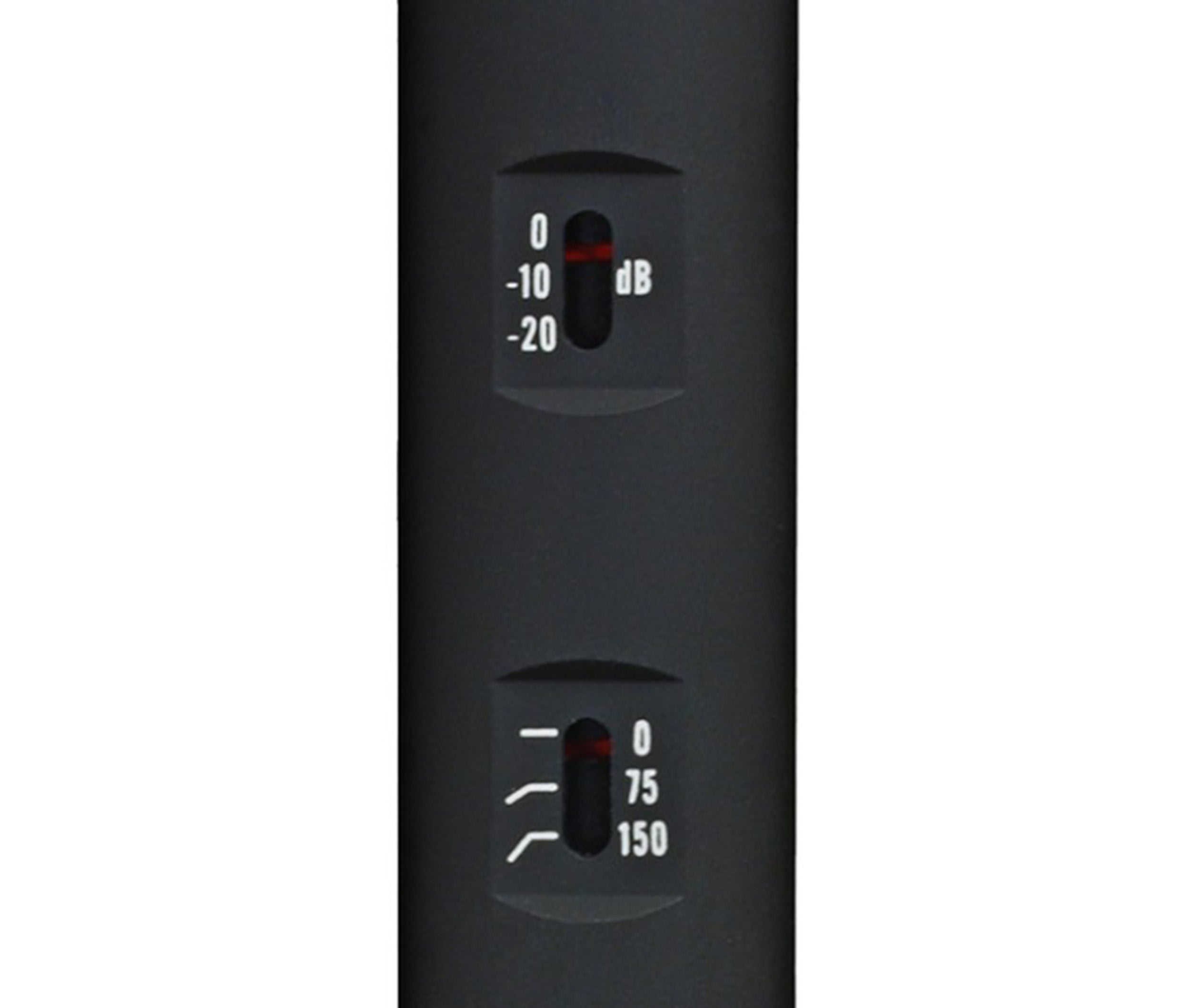

The CAD Audio Equitek E70 Modular Dual-capsule Condenser Microphone is designed for transparent and accurate sound capture. Equipped with interchangeable cardioid and omnidirectional capsules, it provides maximum flexibility for both studio and live applications. Its low-mass 1/2" gold-sputtered diaphragm captures high-frequency detail and transient-rich sources such as cymbals, acoustic guitar, piano, woodwinds, and strings with clarity. The transformer less design minimizes distortion, while the 3-position hi-pass filter and 3-position pad enhance versatility. Compact, durable, and highly accurate, the E70 is a valuable tool for professional recording and performance.
Product Specification:
Frequency Response: 20Hz – 20kHz
Type: End address condenser with interchangeable capsules
Impedance: 85 ohms
Cardioid Capsule:
Sensitivity: -40 dBV (10mV) @ 1Pa
Self-Noise: 23 dB (A-weighted)
Max SPL: 155 dB (20dB pad engaged)
Omnidirectional Capsule:
Sensitivity: -36 dBV (16mV) @ 1Pa
Self-Noise: 19 dB (A-weighted)
Max SPL: 154 dB (20dB pad engaged)
Power Requirements: 48V Phantom power, 2mA
Connector: 3-pin XLR
Weight: 1 lbs.
Shipping Dimensions: 9" × 5" × 3"
Shipping Weight: 1.5 lbs.
