CAD WX1400GN 4 Channel Wireless Gooseneck Mic System - 550-590 MHz

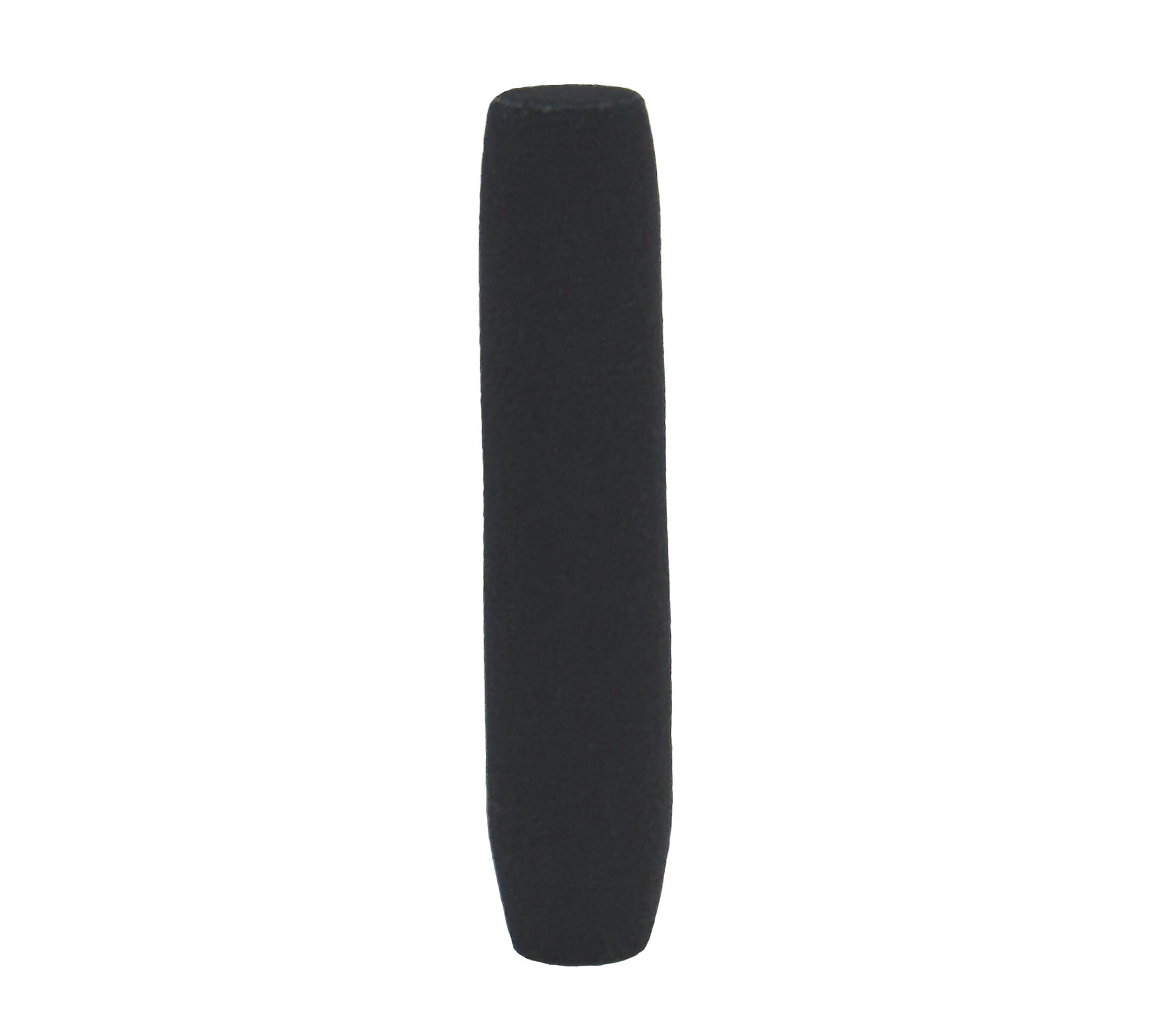

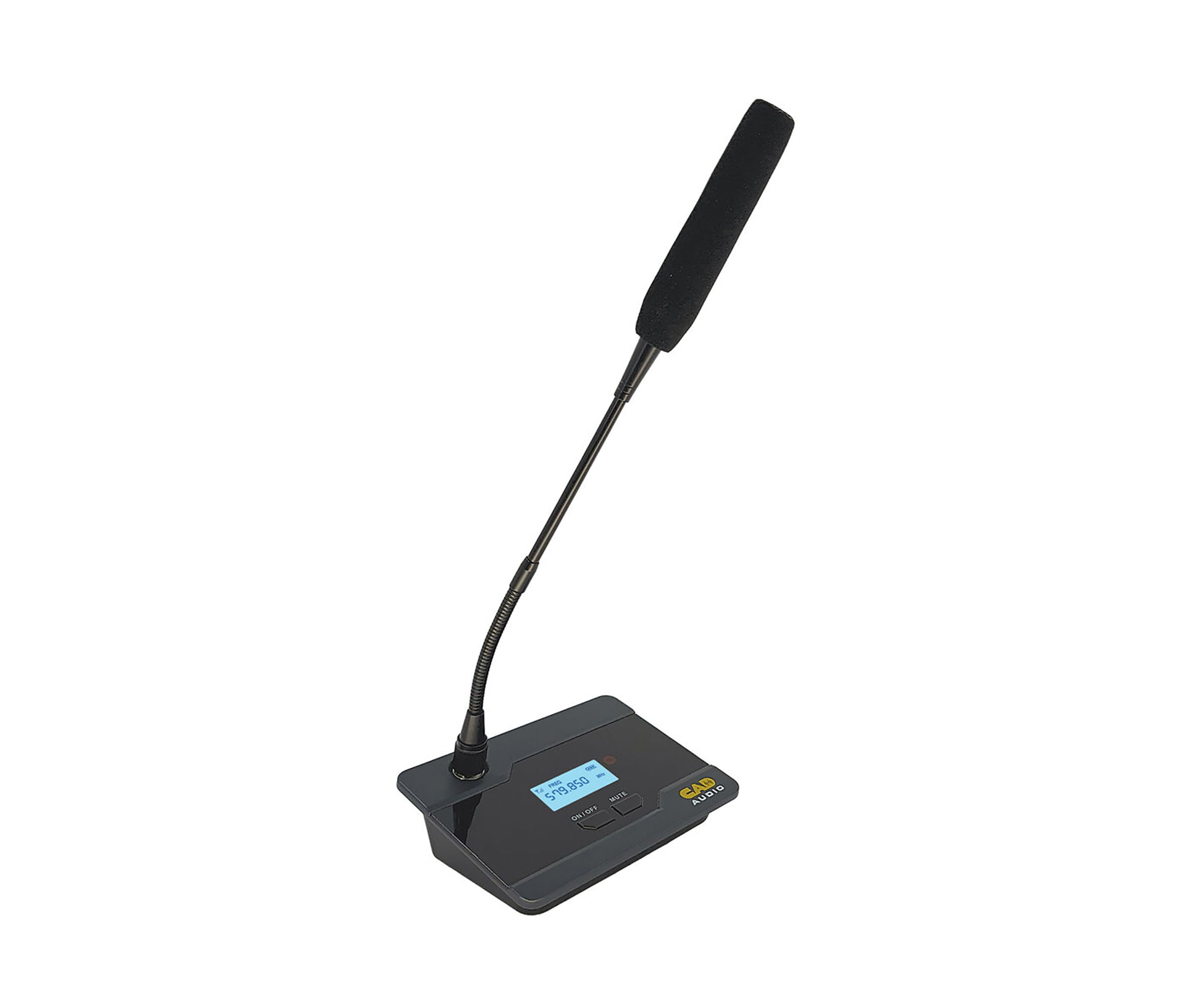

The CAD Audio WX1400GN is a Frequency Agile UHF Gooseneck Microphone System which operates in the 550-590mHz frequency band and includes 4 Gooseneck transmitters. features 100 channels for optimum clarity of signal. Auto-scan and IR sync functions make set up and channel-changing a breeze. Enjoy up to 8 hours of run time using two AA batteries, with a battery level indicator on the transmitter, so you’ll know when you need to replace them. The transmitter can also be powered by the on-board USB-C input, which can also recharge compatible batteries. Included gooseneck microphone features a red “active” indicator to avoid unwanted “hot mic” situations. Sturdy construction and included rack mounting hardware help ensure your equipment will stand up to even the toughest conditions.  System includes receiver, transmitter, detachable gooseneck microphone with windscreen, and rack mounting supplies.

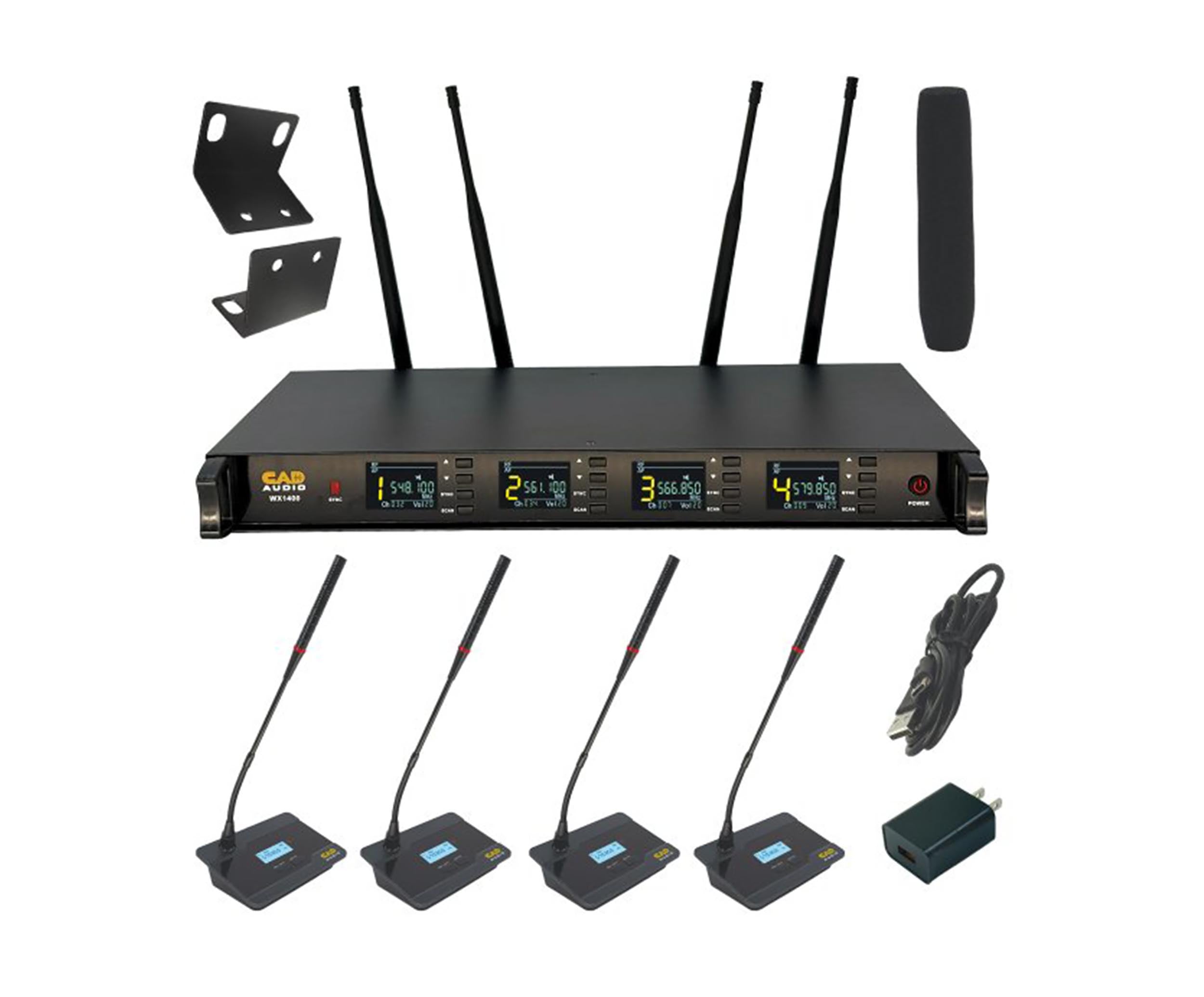

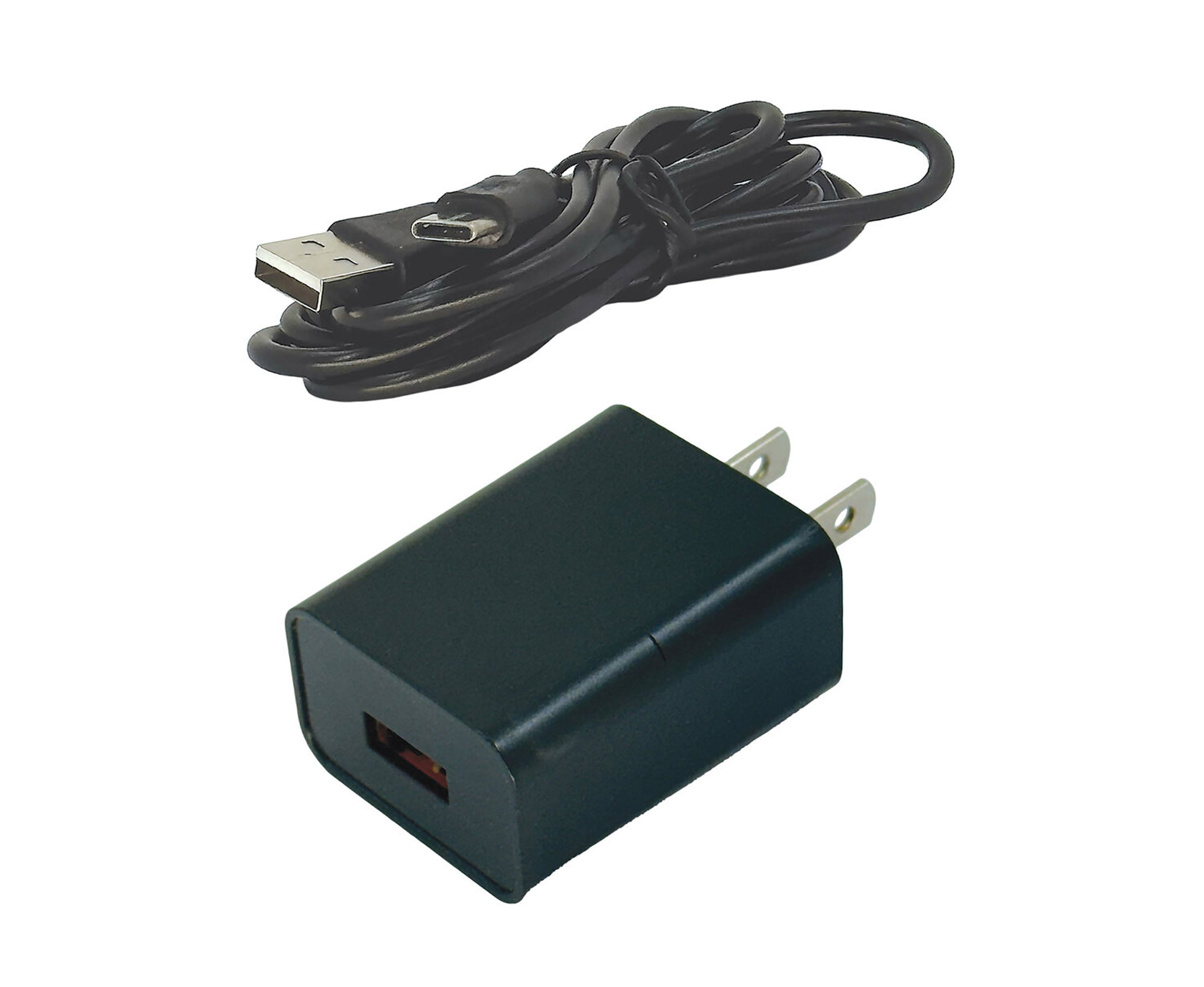

The WX1400GN system provides up to a 396' wireless range. You can combine up to five systems at once when larger engagements call for it. Synchronization between transmitters and receiver is simple thanks to wireless IR sync technology. Each gooseneck mic transmitter features a low-battery indicator, a red Active light indicator to avoid hot mic situations, and both an on/off and mute button. Each mic transmitter is powered by two AA batteries and offers up to eight hours of operation. The receiver is powered by an AC adapter. The WX1400GN includes a receiver, four gooseneck mic transmitters, windscreens, a rack mounting kit, an antenna relocation kit, and an AC power adapter.

Product Specifications:

Wireless Technology: Analog UHF

Diversity: Non-Diversity

Max Operating Range: 396' / 120.7 m

Receiver Type: 1x Tabletop/Rack-Mountable

Number of Audio Channels: 4

Included Transmitters: 4x Gooseneck Base

Microphone Type: 4x Gooseneck (Non-Instrument)

Included Charging Case: No

System:

Wireless Technology: Analog UHF

Diversity: Non-Diversity

RF Frequency Band: 550 to 590 MHz

Number of RF Channel Frequencies: 50

Max Operating Range: 396' / 120.7 m

Max Transmitters per Band: 20

Encryption: No

Built-In Recorder: No

Timecode Support: No

Mobile App Compatible: No

Receiver:

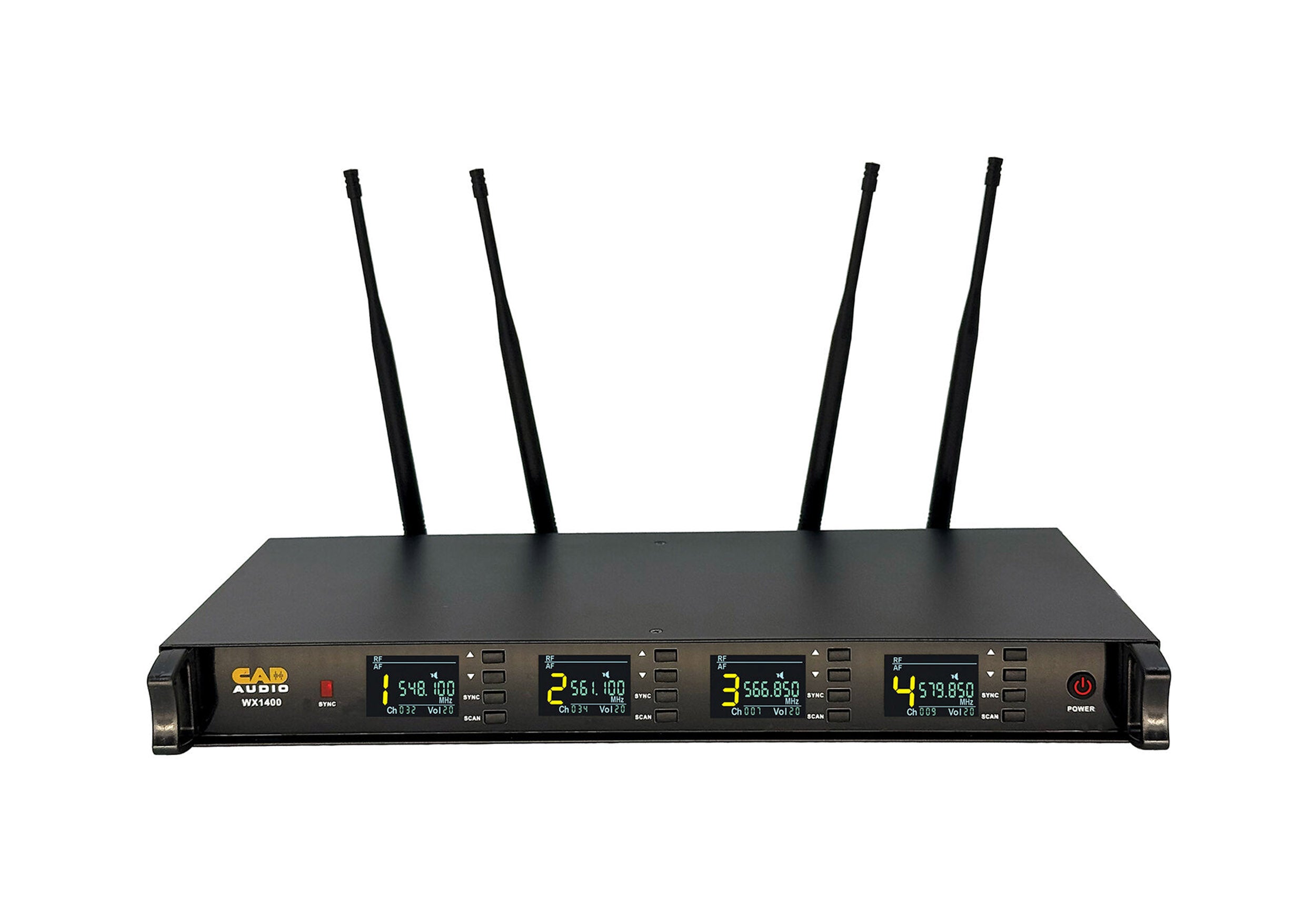

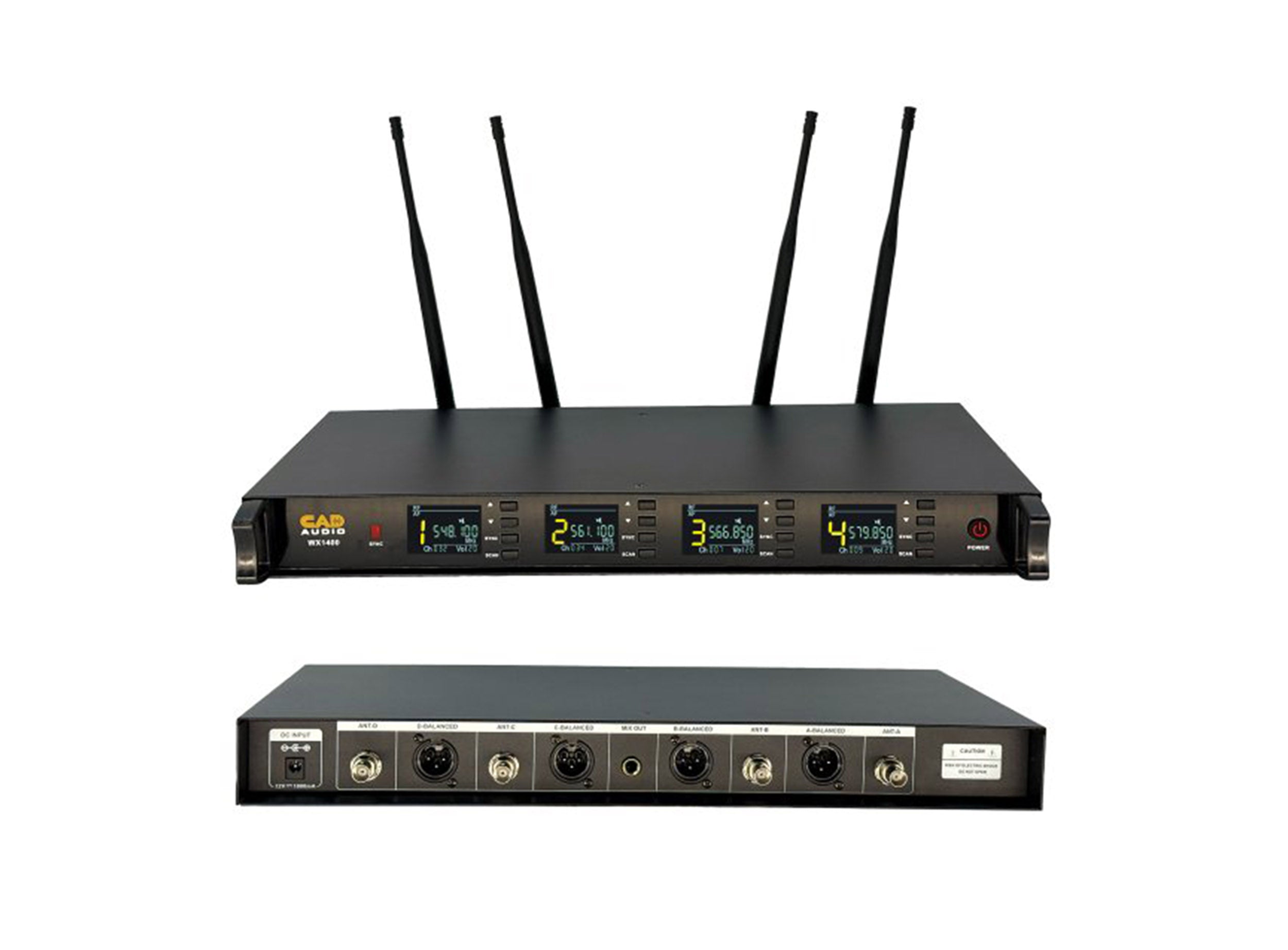

Receiver Type: 1x Tabletop/Rack-Mountable

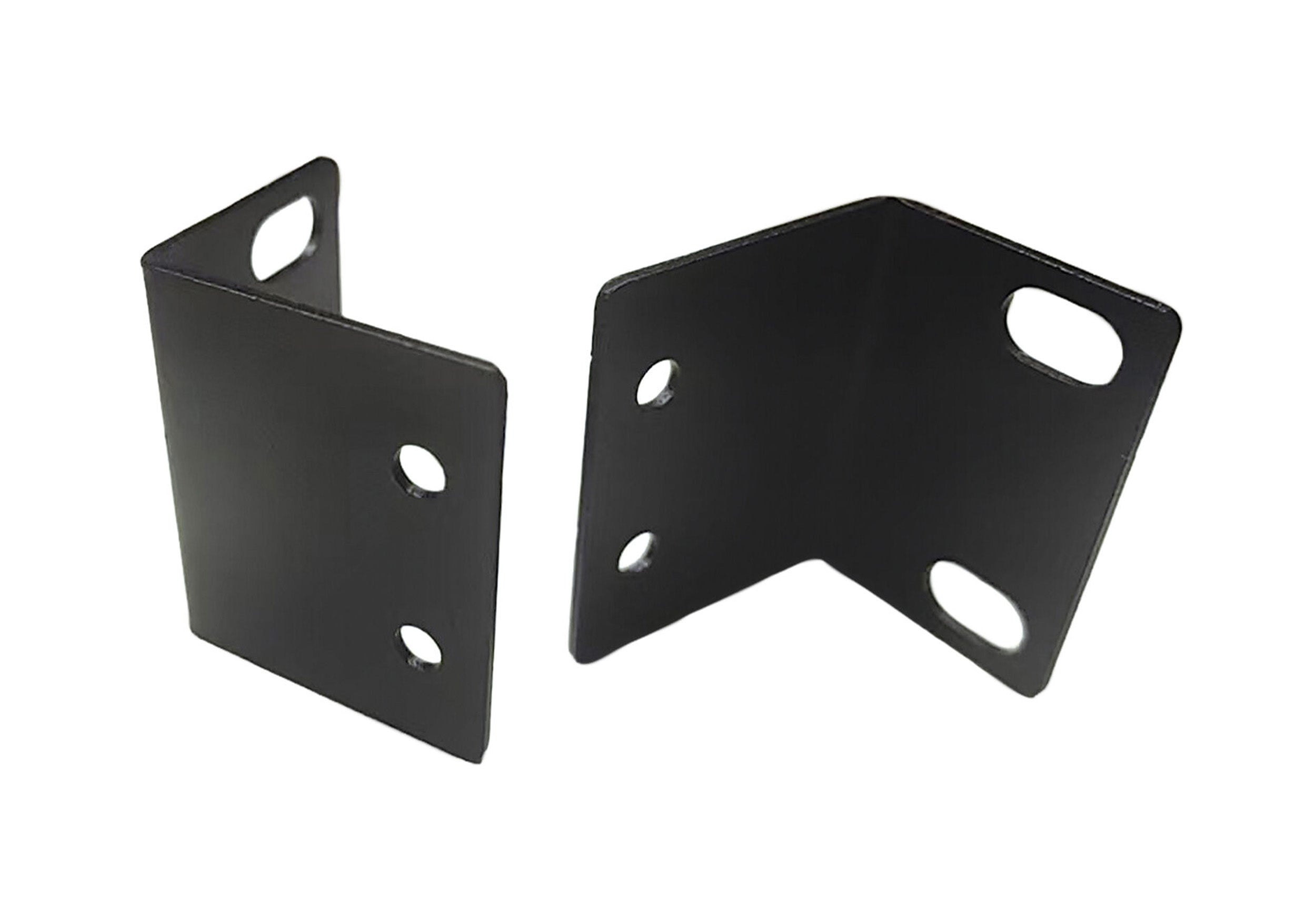

Mounting Options: Rackmount (with Included Hardware, 1 U)

Antenna: 4x Removable BNC

Number of Audio Channels: 4

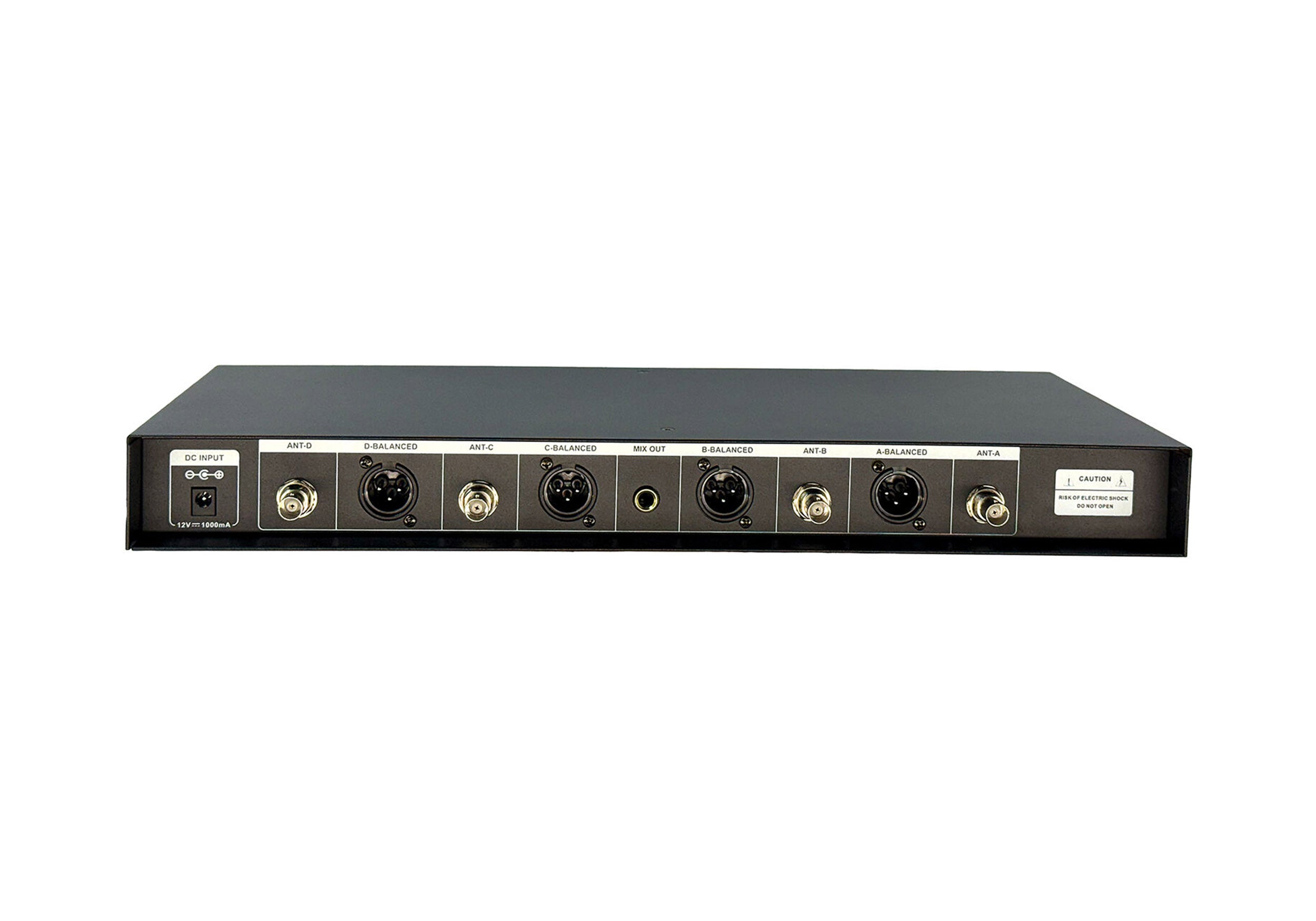

Audio I/O: 4x XLR 3-Pin Balanced Line Output

Network I/O: No

USB/Lightning Connectivity: No

Display: Backlit LCD

Power Requirements: AC/DC Power Adapter

Transmitters:

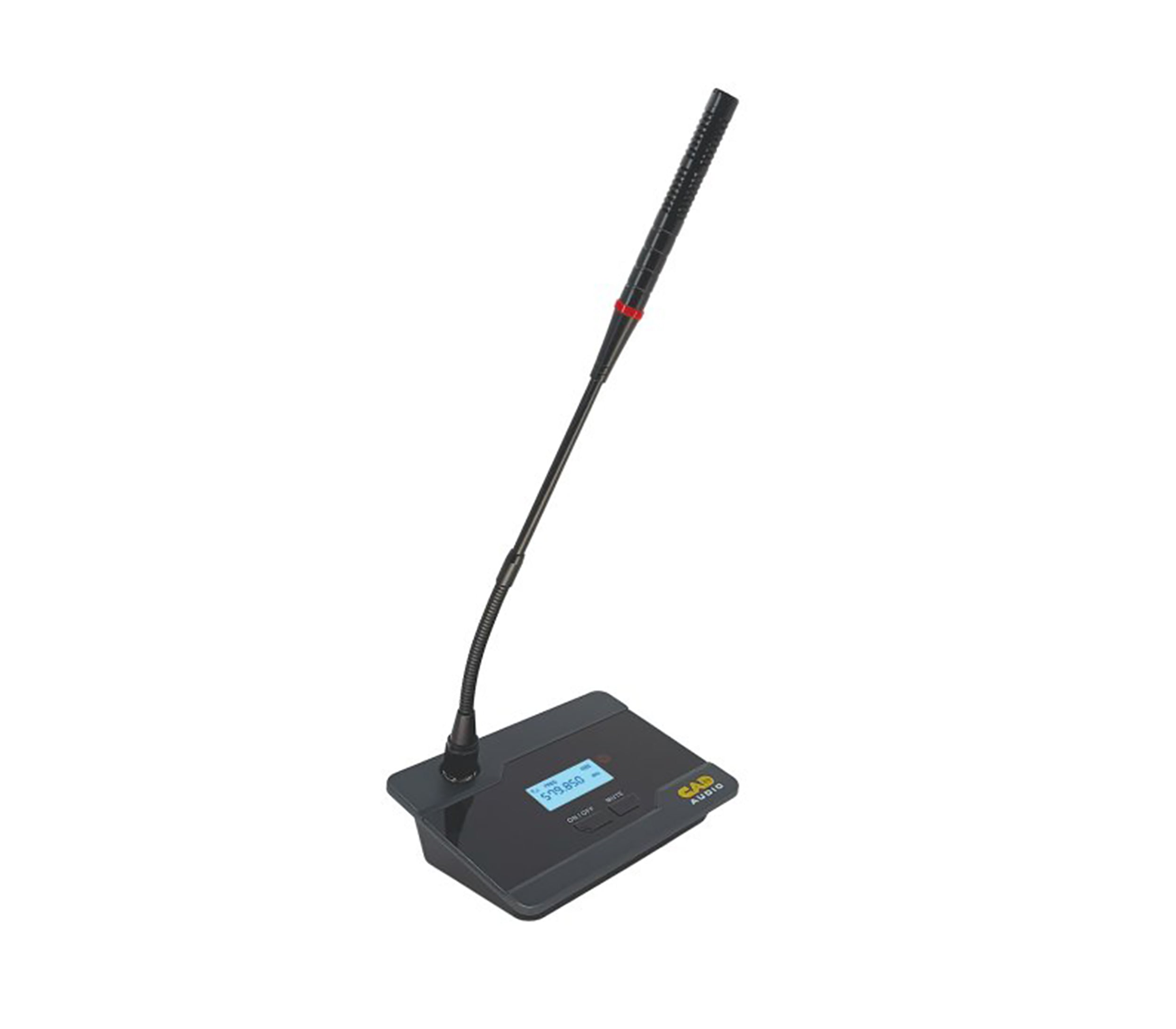

Included Transmitters: 4x Gooseneck Base

Antenna: Internal

Input Level: Microphone

Audio I/O: No

Bias/Plug-In & Phantom Power:

N/A: No External Mic Support

USB I/O: 1x USB-C (Charging)

Muting: Mute Switch

Auto-Level/Gain: No

Sync Method: IR

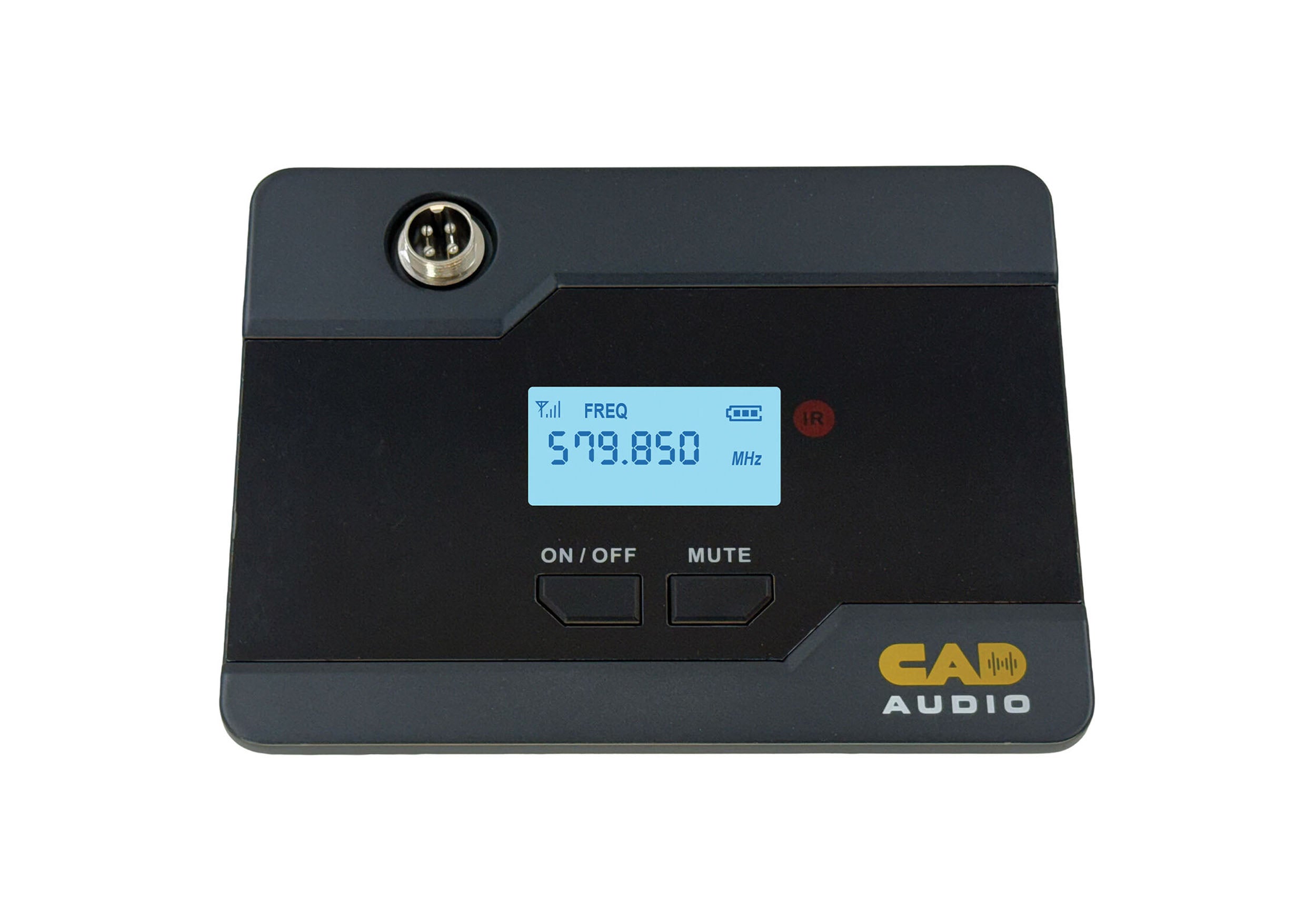

Display: Alphanumeric LED

Microphones:

Microphone Type: 4x Gooseneck (Non-Instrument)

Color: Black

Power:

Transmitter Battery Type: 2x AA

Transmitter Battery Life: 8 Hours

Included Charging Case: No

AC/DC Power Adapter: Included

Physical:

Environmental Resistance: No

Shipping Weight: 9.5 lbs

Shipping Dimensions: 22 × 14 × 6 inches
