Description
The CHAUVET DJ 4BAR Quad ILS is a complete portable wash lighting system designed for stages, events, mobile DJs, and live entertainment. Its four individually adjustable heads provide flexible coverage across rooms and performance areas. Each pod uses quad-color RGBA LEDs to produce vibrant washes and creative lighting effects. The system combines multiple lighting functions into a convenient, transportable package. Its compact design makes it practical for both mobile and permanent event applications.
RGBA Color Mixing
The 4BAR Quad ILS features 28 quad-color RGBA LEDs with a 3.5W rating per LED for powerful and versatile illumination. The RGB and amber LED combination produces a broad spectrum of colors while helping create natural-looking color temperatures. Punchy amber LEDs enhance warm color reproduction and add depth to mixed-color effects. Each pod delivers 2,353 lux at 2 meters for strong visual impact. The 14° beam angle and 23° field angle provide controlled yet effective coverage.

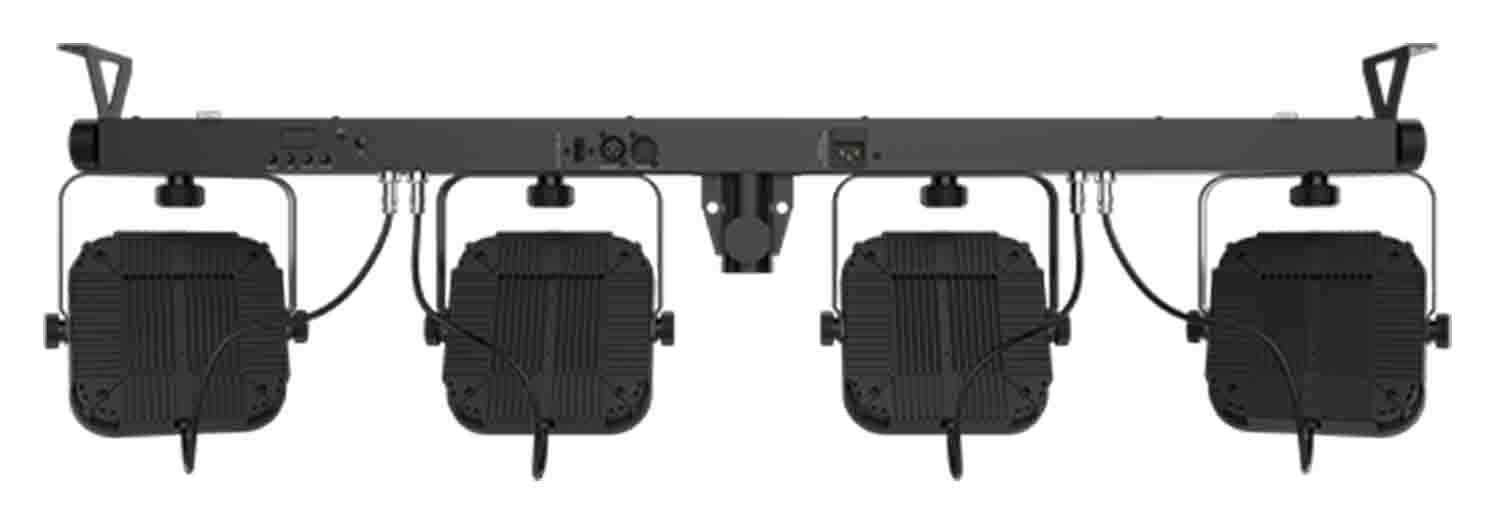

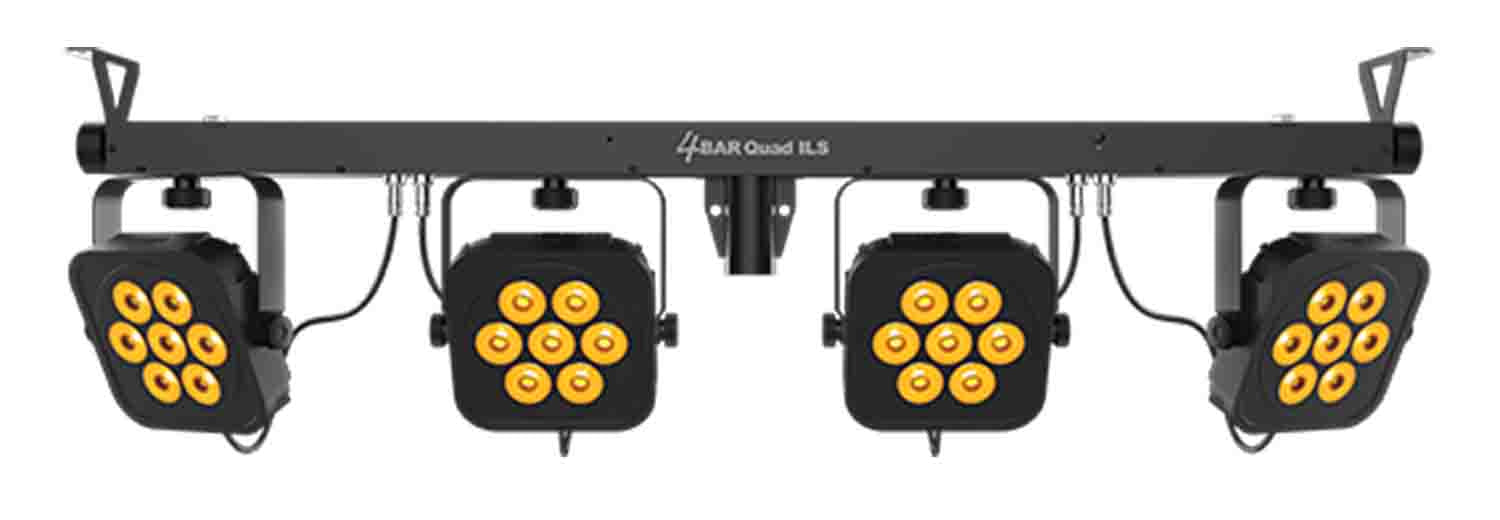

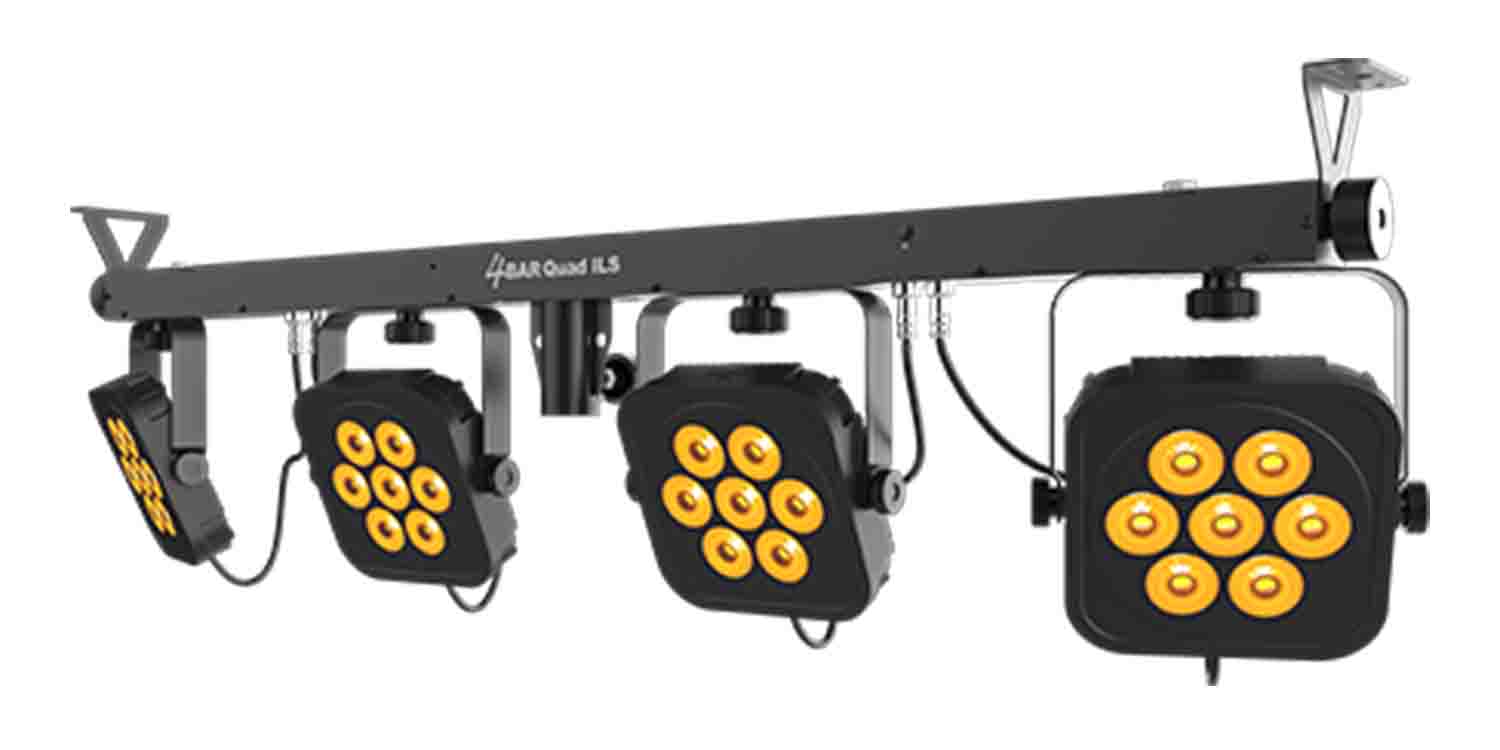

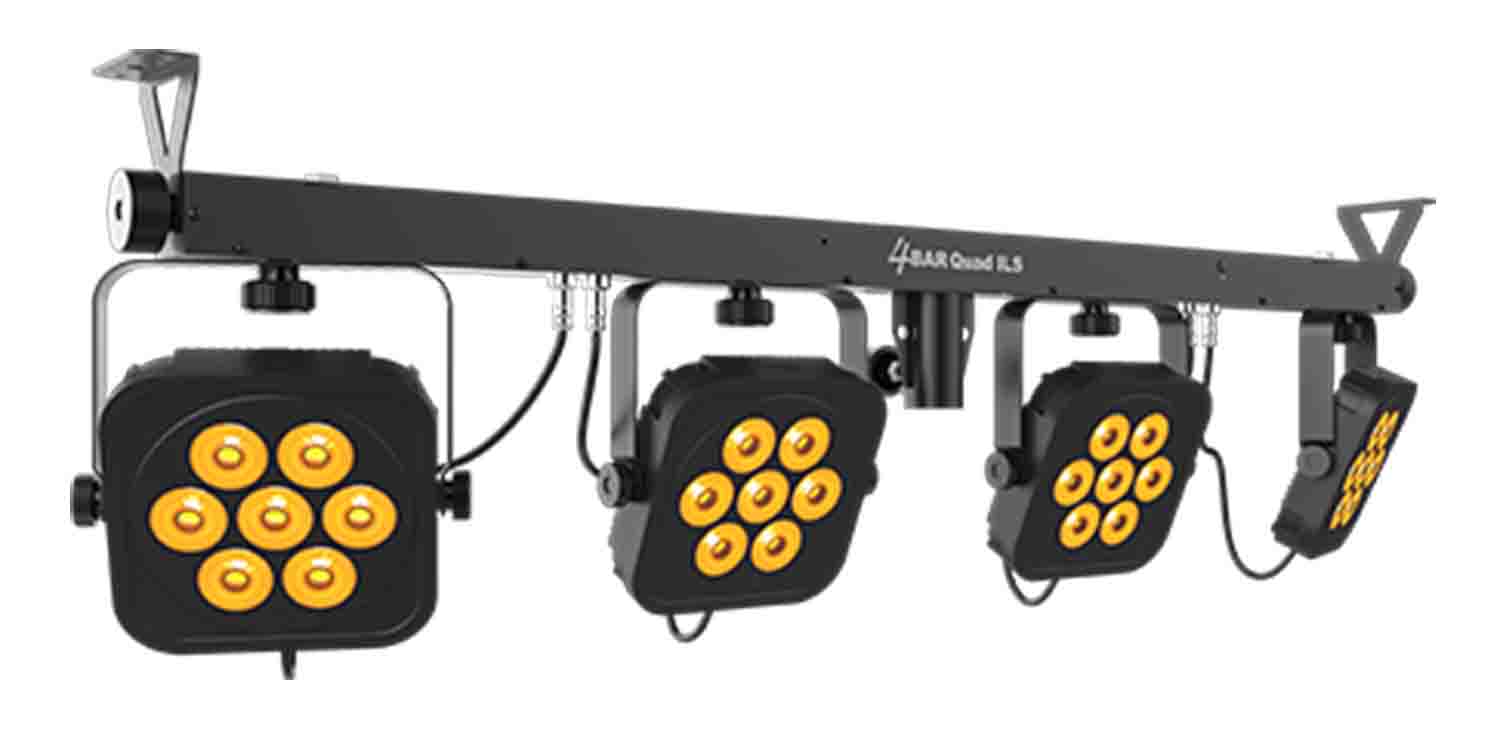

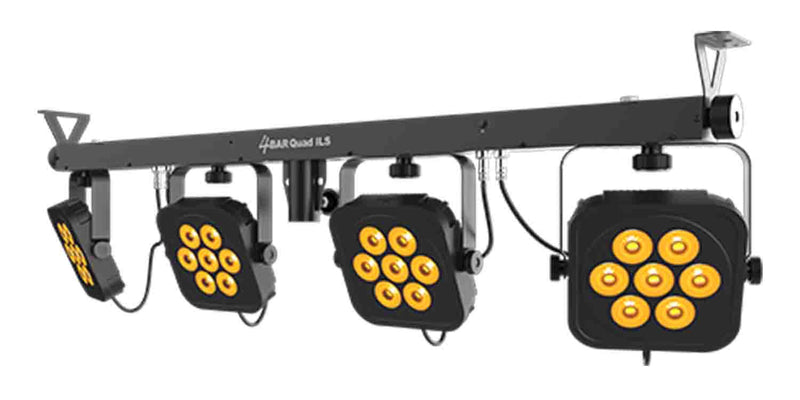

Four Adjustable Lighting Heads
Four individually adjustable heads allow users to direct light exactly where it is needed. The separate pods can be positioned to cover different areas of a stage, dance floor, venue, or performance space. This flexible design allows the fixture to create broad room coverage or more focused lighting effects. The heads can be adjusted independently to create different lighting arrangements. This makes the 4BAR Quad ILS suitable for a wide variety of event and production setups.
ILS and Wireless Control
The 4BAR Quad ILS is fully compatible with the ILS ecosystem for coordinated control with compatible CHAUVET DJ fixtures. D-Fi USB compatibility enables wireless Master,Slave or DMX control when the optional D-Fi USB accessory is used. The included wireless footswitch provides convenient control without requiring a wired DMX controller. An optional IRC-6 controller provides an additional wireless control option. These control methods make the system flexible for both simple and advanced lighting applications.

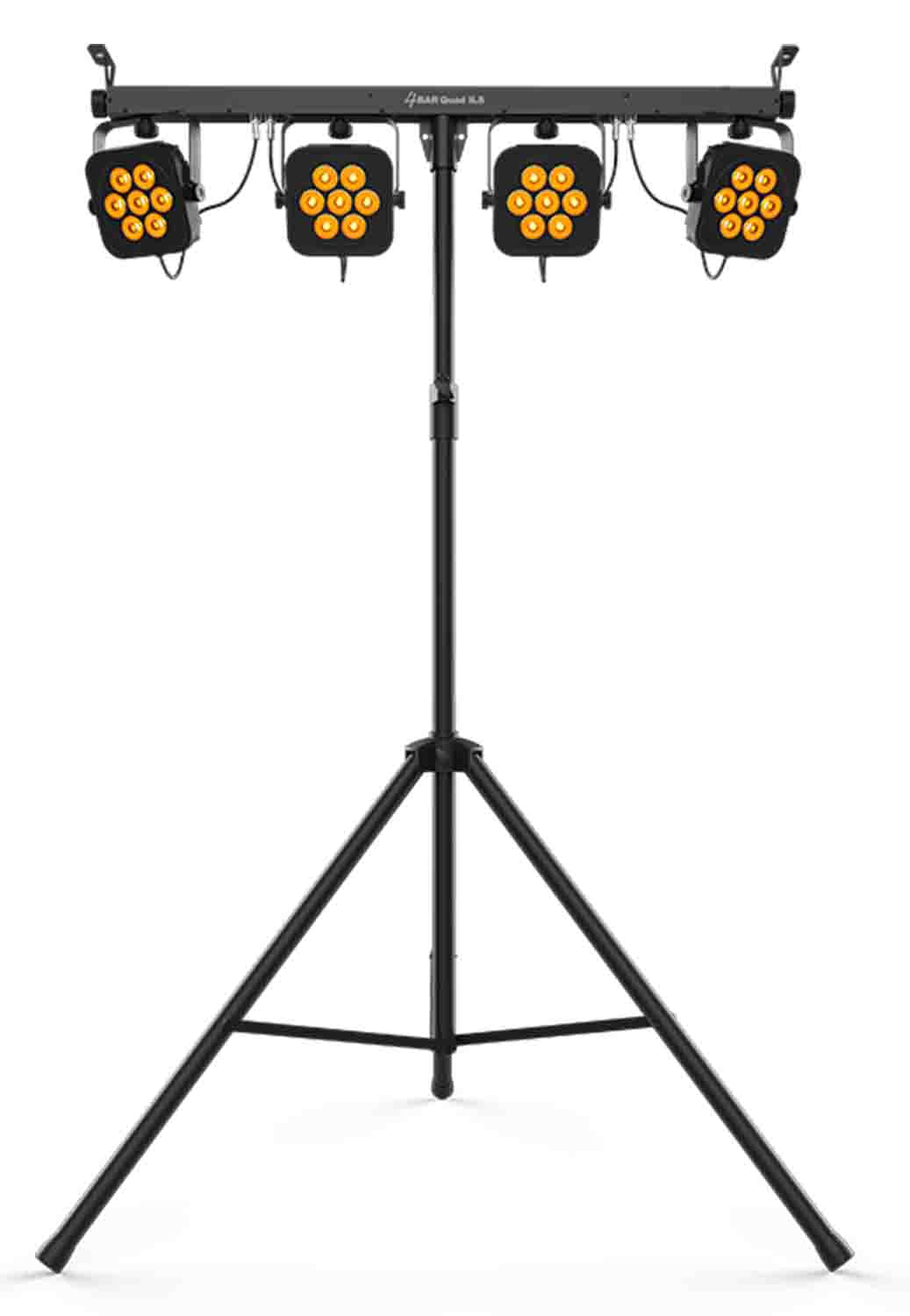

Fast Setup and Portability
The 4BAR Quad ILS includes a tripod stand and carrying bags to simplify transportation and setup. The stand reaches a height of 7 feet 4 inches, providing elevated positioning for broader lighting coverage. The system can be assembled and taken down quickly for mobile events and touring applications. Its portable design reduces the need for complicated mounting equipment. This makes it particularly useful for DJs, bands, event companies, and small production teams.
Flexible Mounting Options
In addition to the included tripod system, the 4BAR Quad ILS can be securely mounted to truss using its built-in mounting bolts. The M10 mounting hole provides a professional mounting point for compatible installations. This gives users additional flexibility when floor or tripod placement is not suitable. The fixture can therefore be adapted to stages, trusses, mobile setups, and permanent event environments. Its multiple mounting options make it a practical all-purpose wash lighting system.

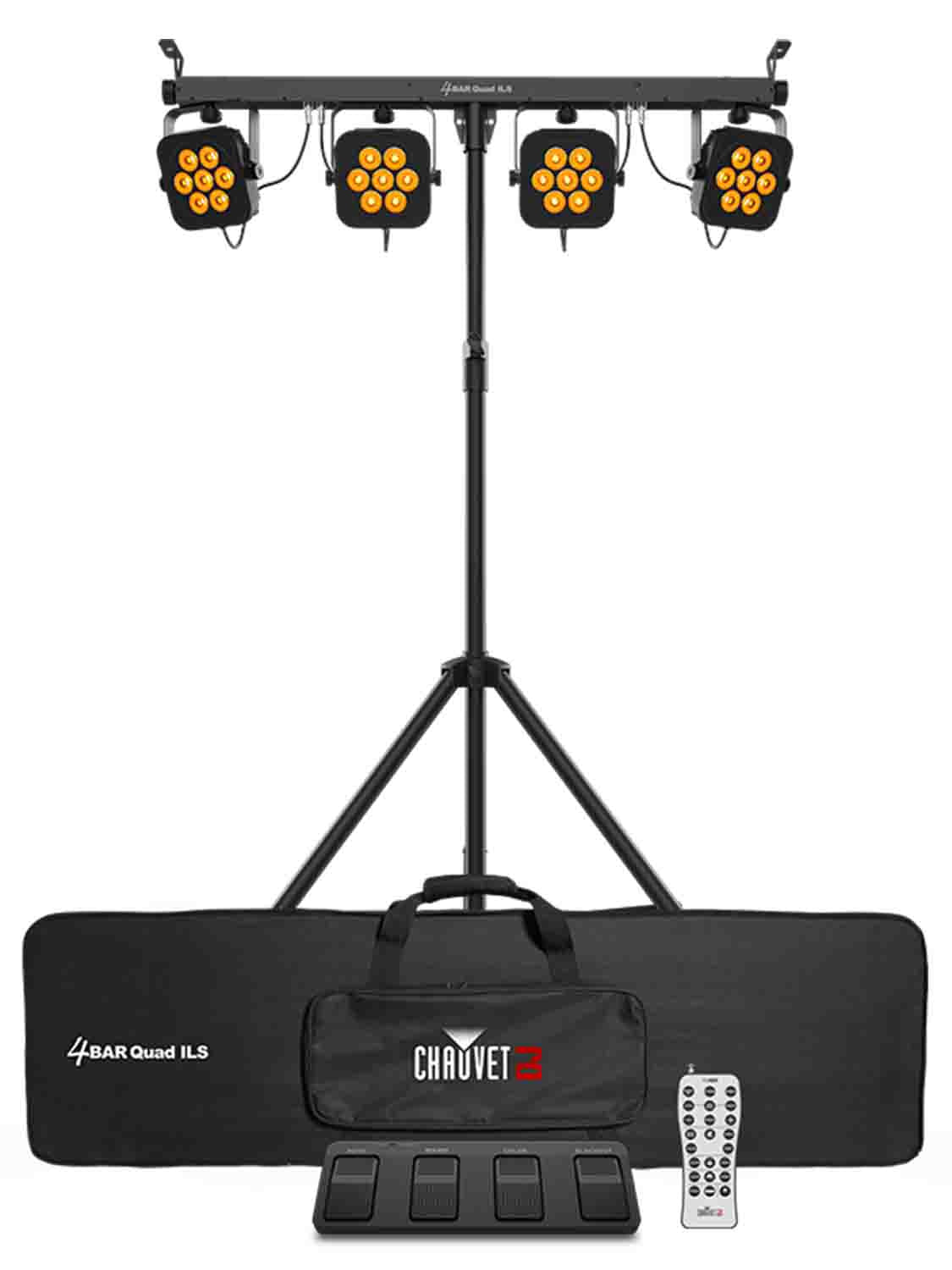

What’s in the Box:
- 4BAR Quad ILS
- Power cord
- Carrying bag
- Tripod
- Tripod Carry bag
- Wireless Footswitch
- L-brackets (x2)
- Quick Reference Guide
Product Specifications:
Product Type: LED Wash Lighting System
Light Source: 28 Quad-Color RGBA LEDs
LED Power: 3.5 W Per LED
LED Life Expectancy: 50,000 Hours
Color System: RGBA
DMX Channels: 4, 6, or 19
DMX Connectors: 3-Pin XLR
Strobe Rate: 0 to 20 Hz
Beam Angle: 14°
Field Angle: 23°
Illuminance: 2,353 lux @ 2 m Per Pod
Control Modes: DMX, ILS, Wireless, Master,Slave
ILS Compatibility: Yes
D-Fi Compatibility: Yes
Operating Frequency, D-Fi: 2.412 to 2.484 GHz
Footswitch Frequency: 433 MHz
Footswitch Wireless Range: 100 ft, 30.5 m
Footswitch Battery: 9 V
Input Voltage: 100 to 240 VAC
Input Frequency: 50,60 Hz
Power Consumption: 80 W @ 120 V, 78 W @ 230 V
Current Draw: 1.2 A @ 120 V, 0.6 A @ 230 V
Adjustable Heads: 4
Stand Height: 7 ft 4 in, 2.2 m
Compatible Tripod Size: 1.5 in, 36.80 mm
Bracket Mounting Hole: M10, 1.5 mm Pitch
Included Controller: Wireless Footswitch
Optional Controllers: IRC-6, D-Fi USB
Controller Weight: 1.2 lbs.
Controller Dimensions (L × W × H): 16.5" × 5.2" × 1.5"
Approvals: CE, RoHS, UKCA
Product Weight: 12.2 lbs.
Product Dimensions (L × W × H): 45.7" × 2" × 12"
Shipping Weight: 16 lbs.
Shipping Dimensions (L × W × H): 50" × 10" × 16"
