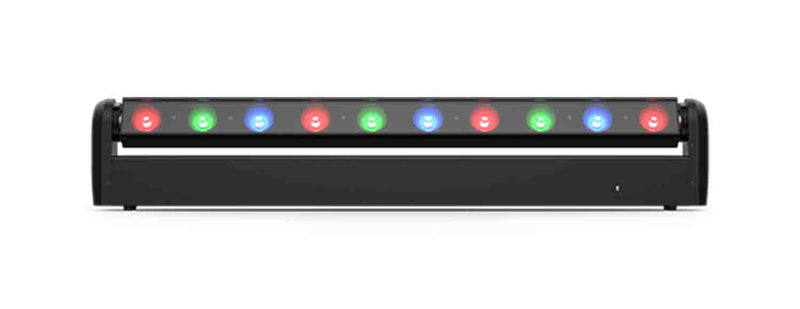

Chauvet DJ COLORband PiX-M ILS Moving LED Wash Light (RGB)

The Chauvet DJ COLORband PiX-M ILS (COLORBANDPIXMILS) is a motorized LED strip light for mobile DJs, clubs and event stages that sweeps, pixel maps, blinds and washes walls. It has 10 individually controllable tri-color RGB LEDs, tilts 245° on built-in motors, and measures 31 in (785 mm) long at 8.2 lb (3.7 kg).

Individual LED control lets you build animations and video-style effects across the bar, or you can simply tilt it to aim light where you need it. Control options include a built-in RF receiver for the optional RFC or RFC-XL remotes, ILS compatibility, D-Fi USB (sold separately) for wireless master/slave or DMX, and onboard 3- and 5-pin DMX connectors. powerCON in and out lets you power-link up to 12 units at 120 V.

COLORband PiX-M ILS specifications

Type	Motorized pixel-mappable LED strip light (RGB)
Light source	10 tri-color RGB LEDs, 6 W (2 A), 50,000-hour rated life
Movement	245° motorized tilt
Beam angle	15°
Field angle	27°
Illuminance	7,441 lux at 2 m
Strobe rate	0 to 29 Hz
DMX channels	5, 6, 8, 10, 17, 32 or 36
DMX connectors	3-pin and 5-pin XLR
Wireless control	Built-in RF receiver (RFC, RFC-XL remotes optional), ILS compatible, D-Fi USB compatible (sold separately)
Input voltage	100 to 240 VAC, 50/60 Hz, auto-ranging
Power and current	86 W, 1.2 A at 120 V, 60 Hz; 84 W, 0.7 A at 230 V, 50 Hz
Power linking	12 units at 120 V; 20 units at 230 V (powerCON in and out)
Bracket mounting hole	13 mm
Dimensions	31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
Weight	8.2 lb (3.7 kg)
Approvals	CE, UKCA, RoHS
In the box	COLORband PiX-M ILS, power cord, Quick Reference Guide

What can the COLORband PiX-M ILS do?

It works as a sweeping moving effect, a pixel-mapping effect, a blinder or a wall washer. Each of the 10 LEDs can be controlled on its own, and the motorized 245° tilt moves the whole bar.

Do I need a DMX controller?

No. It runs with the optional RFC or RFC-XL wireless remote through its built-in RF receiver, syncs with other fixtures through ILS, and also takes DMX by cable or wirelessly with D-Fi USB.

How many can I run from one outlet?

Up to 12 units at 120 V can be power-linked through the powerCON connectors (20 at 230 V).

COLORband PiX-M ILS or COLORband PiX ILS?

The PiX-M ILS moves: it has motorized 245° tilt, 10 RGB LEDs, a 15° beam with 7,441 lux at 2 m, and a 31 in body at 8.2 lb. The COLORband PiX ILS has no moving parts, 12 RGB LEDs, a 14° beam with 4,142 lux at 2 m, up to 41 DMX channels and a longer 38.9 in body at 7 lb. Pick the PiX-M for sweeping effects, the PiX for a fixed pixel bar. For motorized pixel bars with warm white, see the COLORband Spectra ILS, and browse all DJ light bars.
