Chauvet DJ COLORband Spectra ILS Motorized RGB+WW Pixel Strip Light

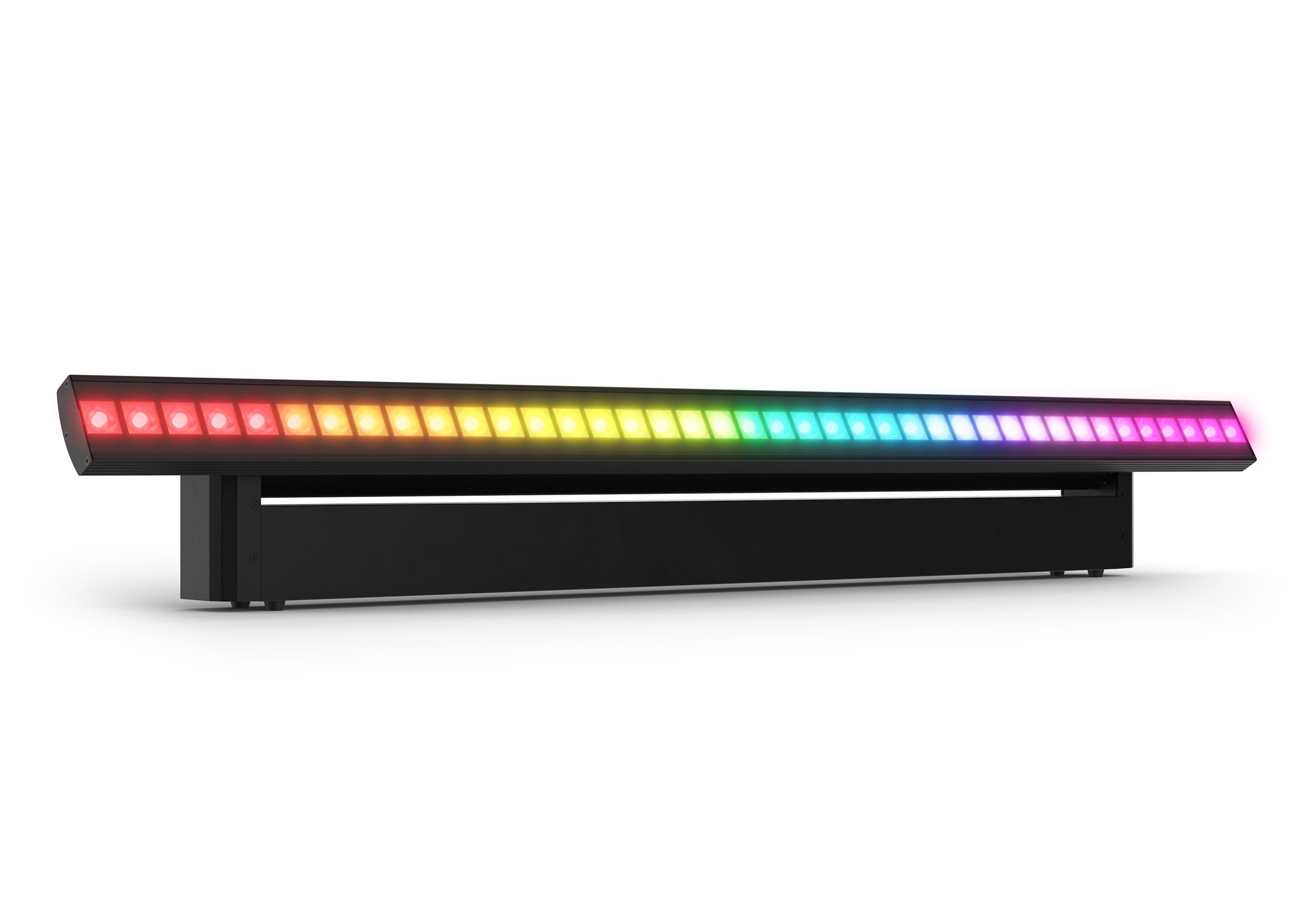

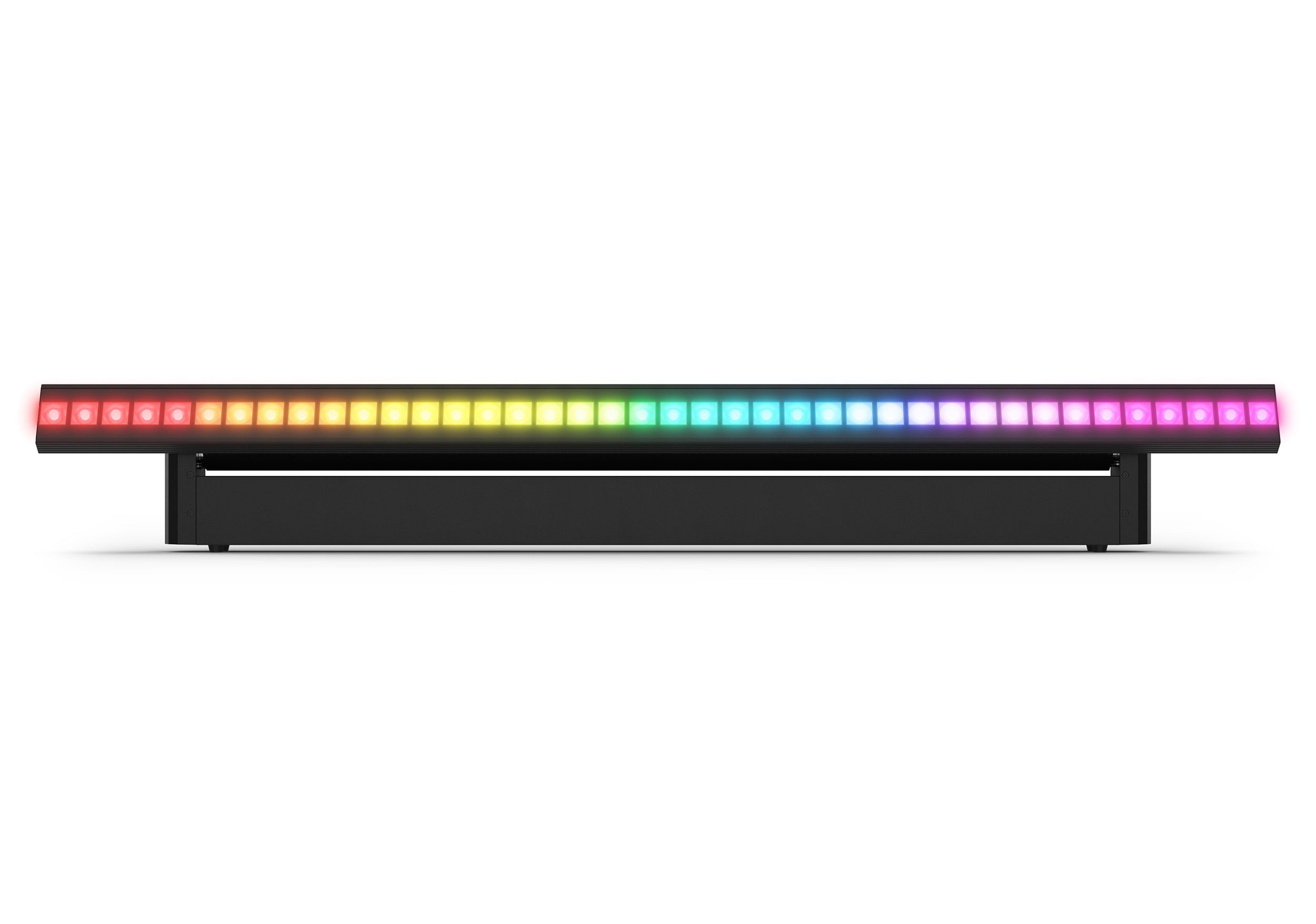

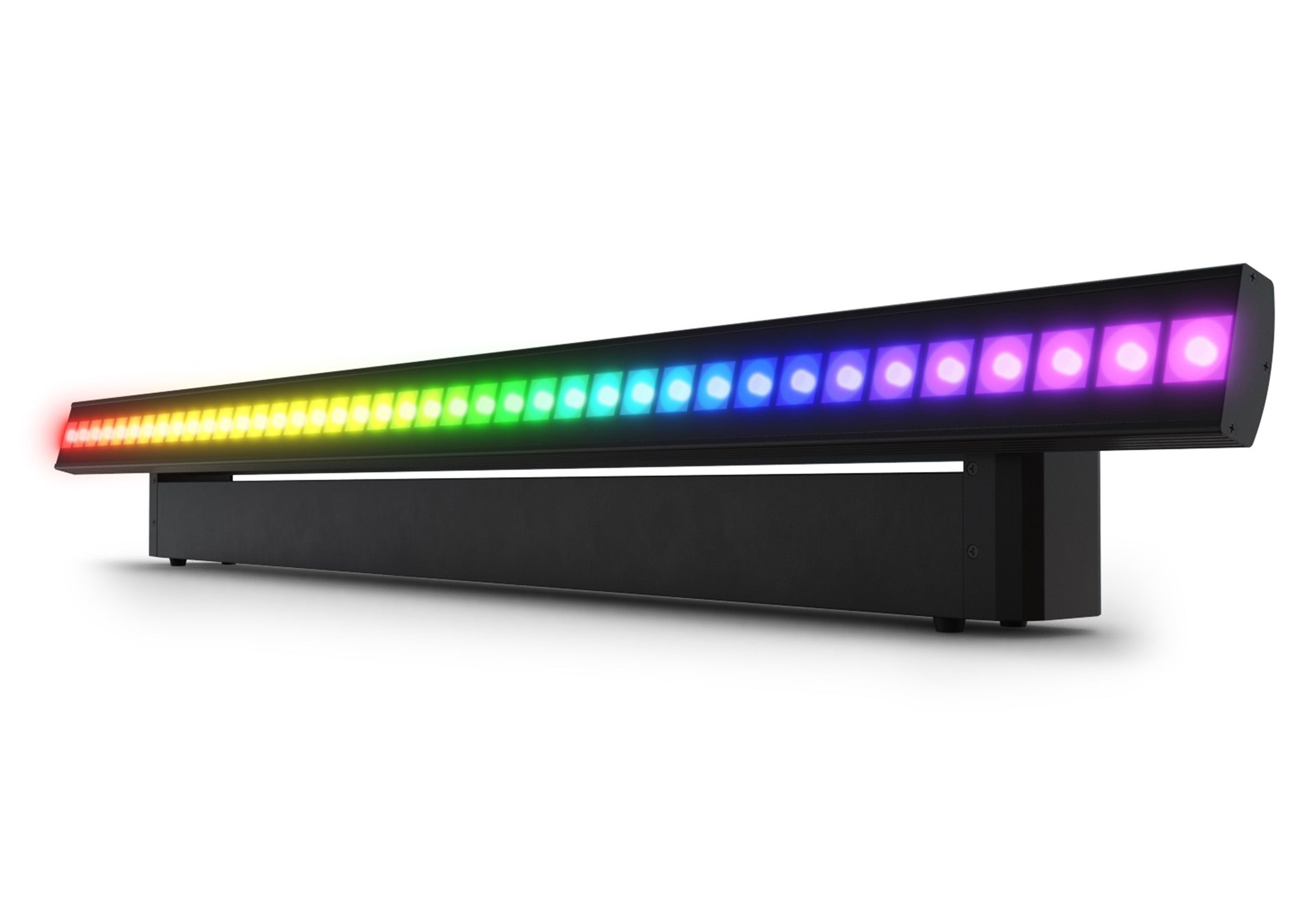

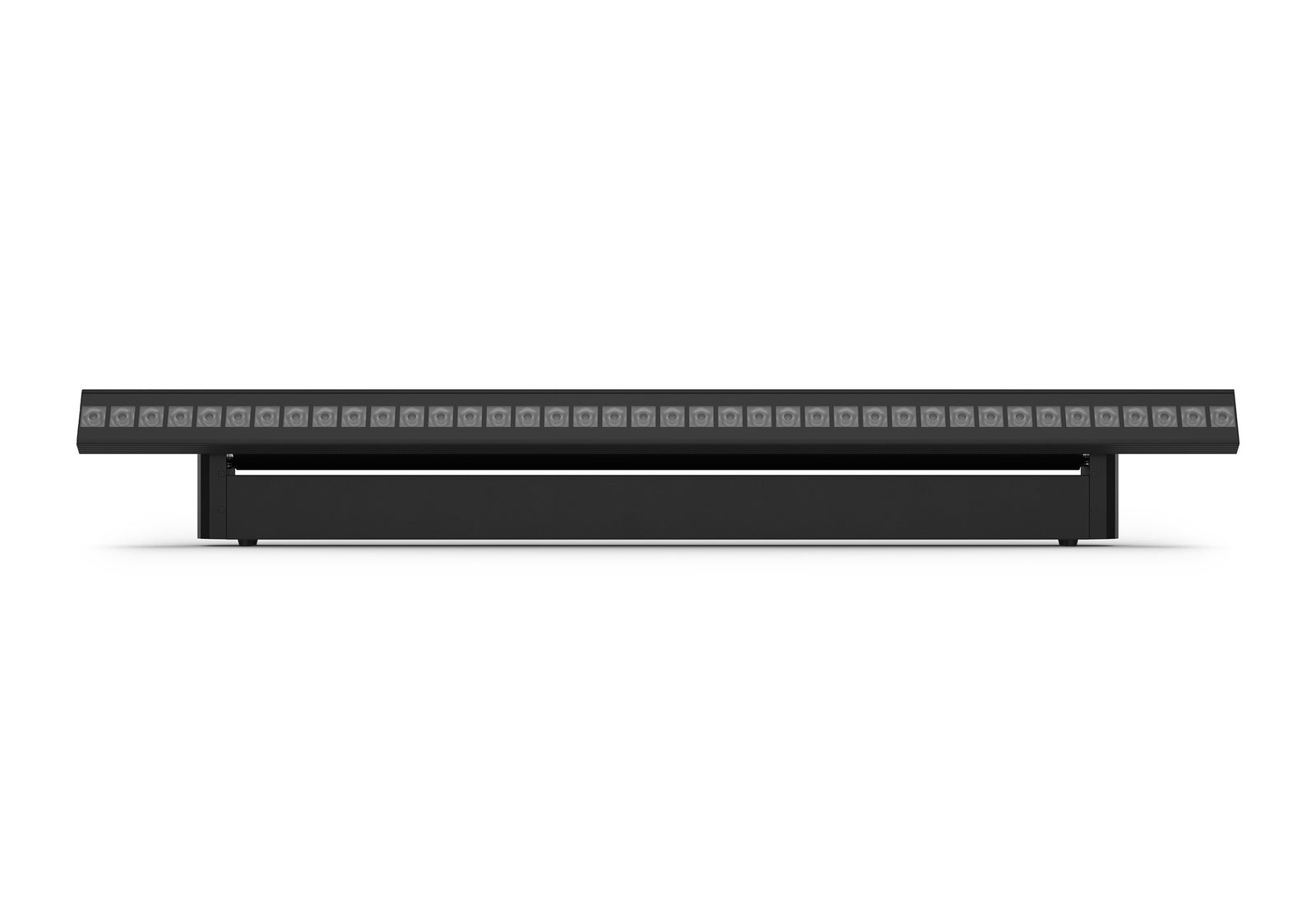

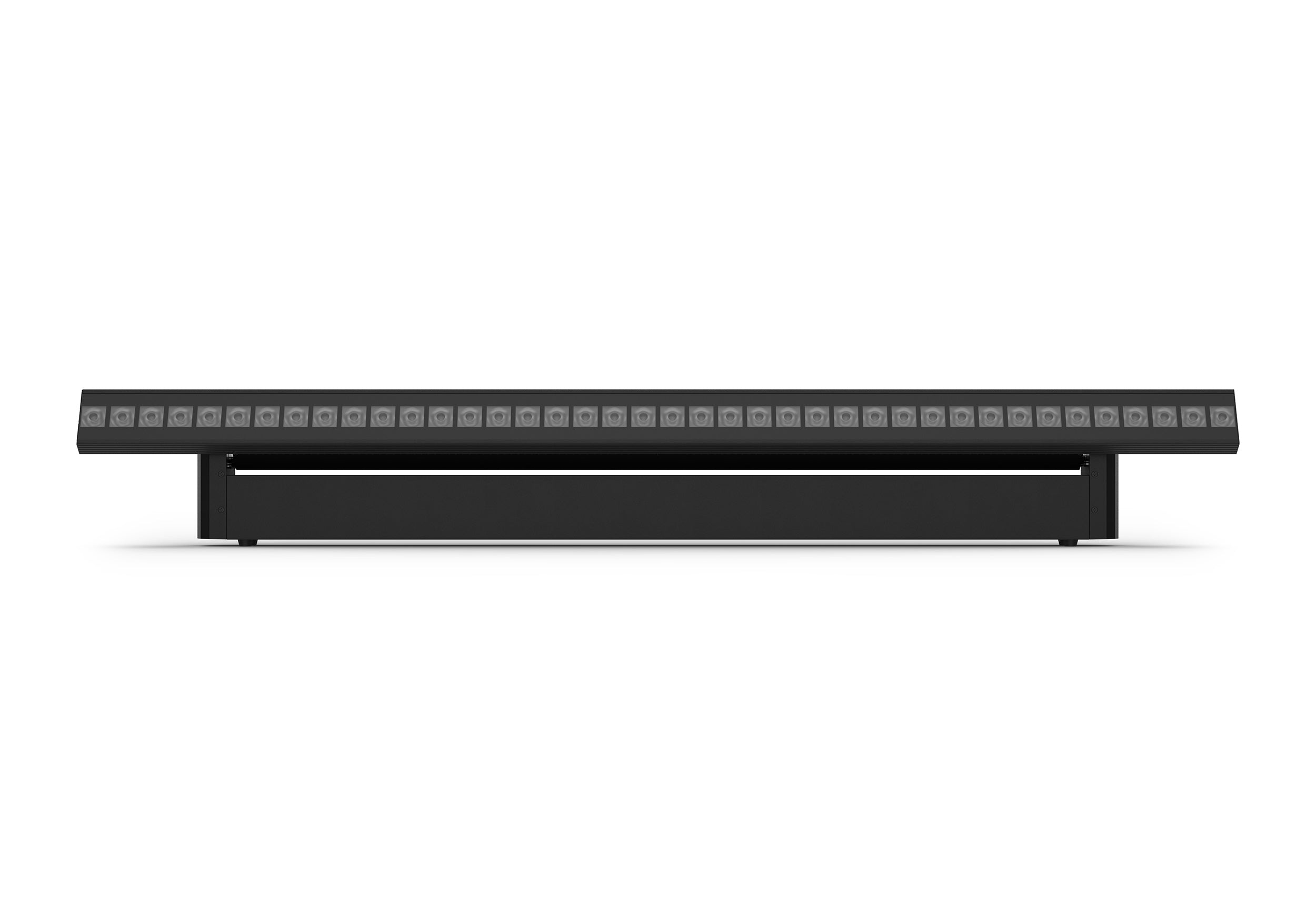

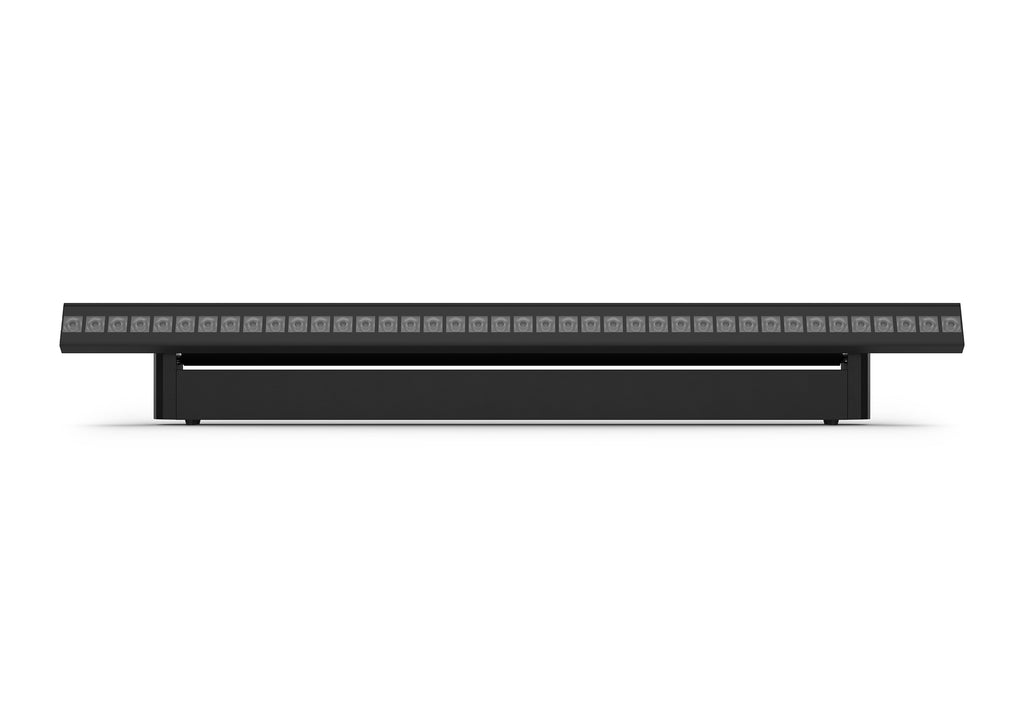

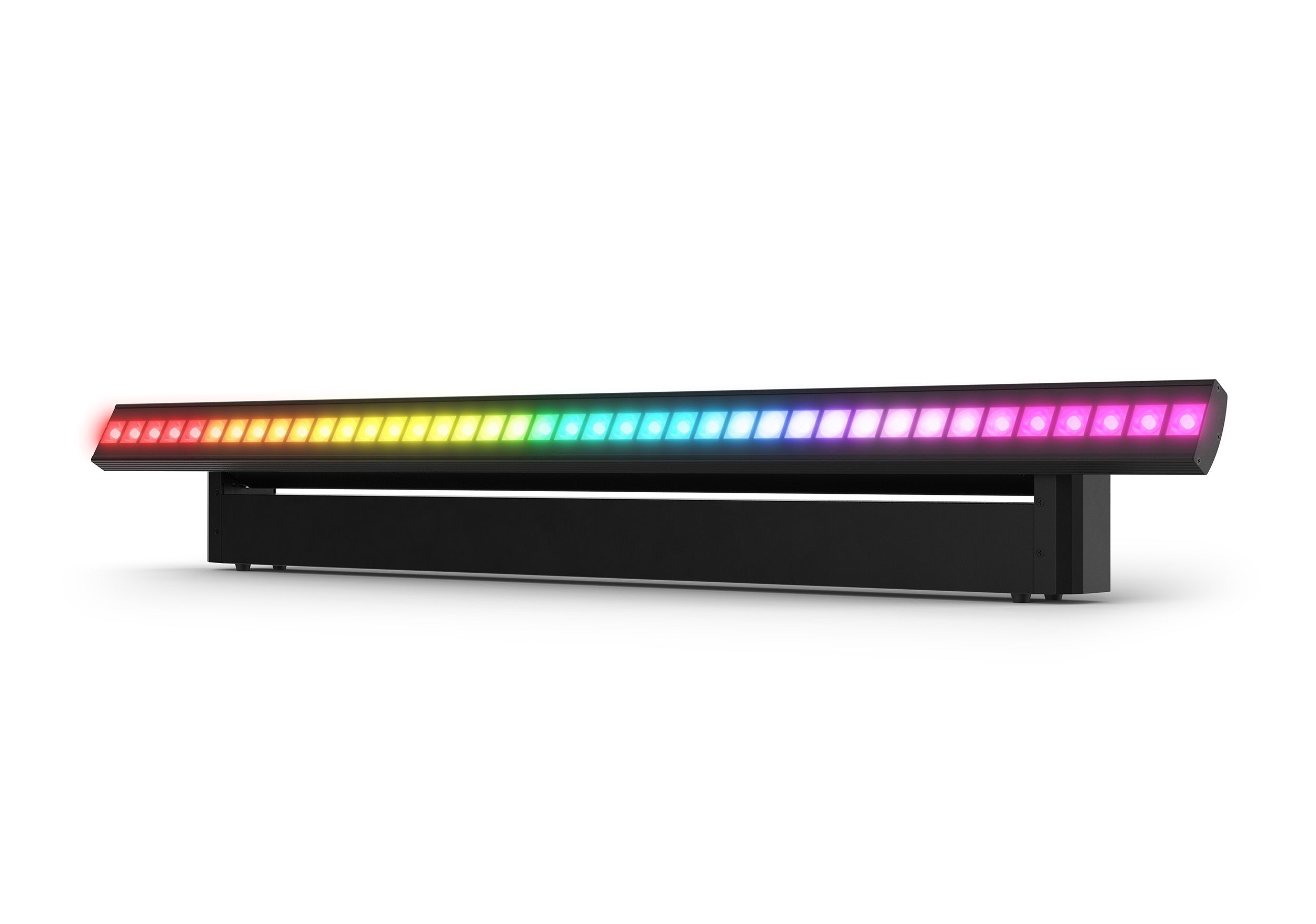

The Chauvet DJ COLORband Spectra ILS (COLORBANDSPECTRAILS) is a motorized pixel strip light for mobile DJs, clubs, weddings and stages that works as a sweeping moving effect, pixel-mapped chase, blinder or wall washer. It puts 40 individually controllable RGB+WW LEDs in a 39.4-inch low-profile bar with 180 degrees of motorized tilt, and puts out 1,938 lumens with a tunable white range of 3,000K to 14,000K.

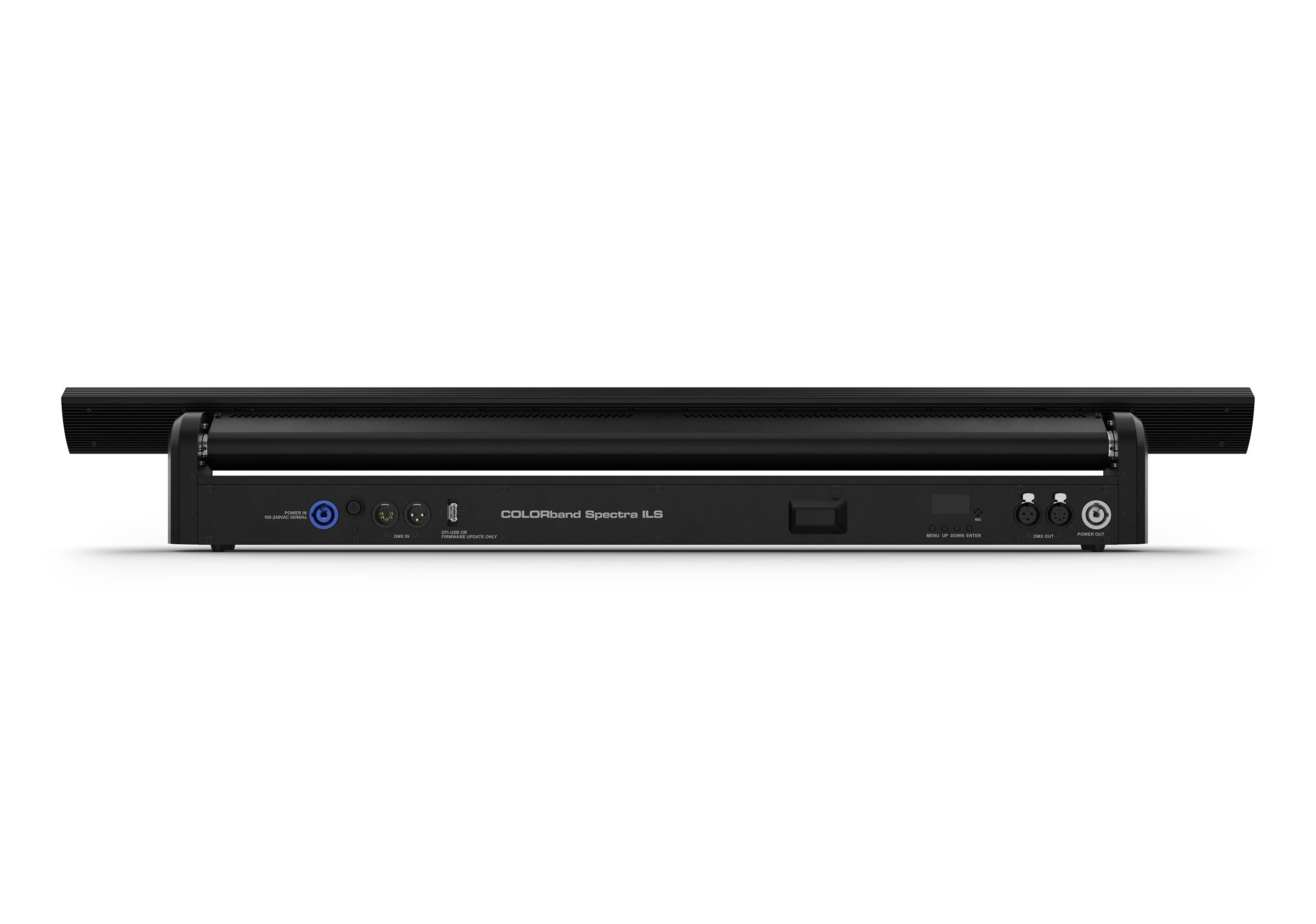

It runs from DMX over 3-pin or 5-pin XLR, from Chauvet's ILS wireless system, from an RF remote or in master/slave mode, and it is D-Fi USB compatible for wireless DMX or master/slave without data cables. powerCON-compatible power in and out lets you link up to 9 units on one 120V circuit.

COLORband Spectra ILS specifications

Type	Motorized RGB+WW pixel strip light (moving sweep, pixel effect, blinder, wall washer)
Light source	40 quad-color RGB+WW LEDs, 4 W (0.7 A) each, 50,000-hour rated life
Movement	180 degrees of motorized tilt
Beam and field angle	15 degree beam, 26 degree field
Output	1,938 lumens; 3,872 lux at 2 m
Color temperature	3,000K to 14,000K
Strobe	0 to 20 Hz
DMX channels	6, 11, 17, 19 or 164
DMX connectors	3-pin and 5-pin XLR in and out
Control modes	DMX, ILS, RF, master/slave; D-Fi USB compatible for wireless DMX or master/slave
Optional controllers	RFC, RFC-XL, ILS Command
Power	100 to 240 VAC, 50/60 Hz auto-ranging; 86 W, 1.3 A at 120 V; 72 W, 0.8 A at 230 V
Power linking	powerCON-compatible in and out; 9 units at 120 V, 16 units at 230 V
Dimensions	39.4 x 2.4 x 5.6 in (1000 x 60 x 142 mm)
Weight	10 lb (4.6 kg)
Approvals	CE, RoHS
In the box	COLORband Spectra ILS, power cable, powerCON to bare end cable (EU only), Omega bracket, Quick Reference Guide

What makes the COLORband Spectra ILS different from a regular LED strip light?

It moves. Built-in motors tilt the bar through 180 degrees, so one fixture can sweep across a room, then hold still as a pixel chase, a blinder or a wall wash, all from the same 40 individually controlled LEDs.

Can it do warm and cool white as well as color?

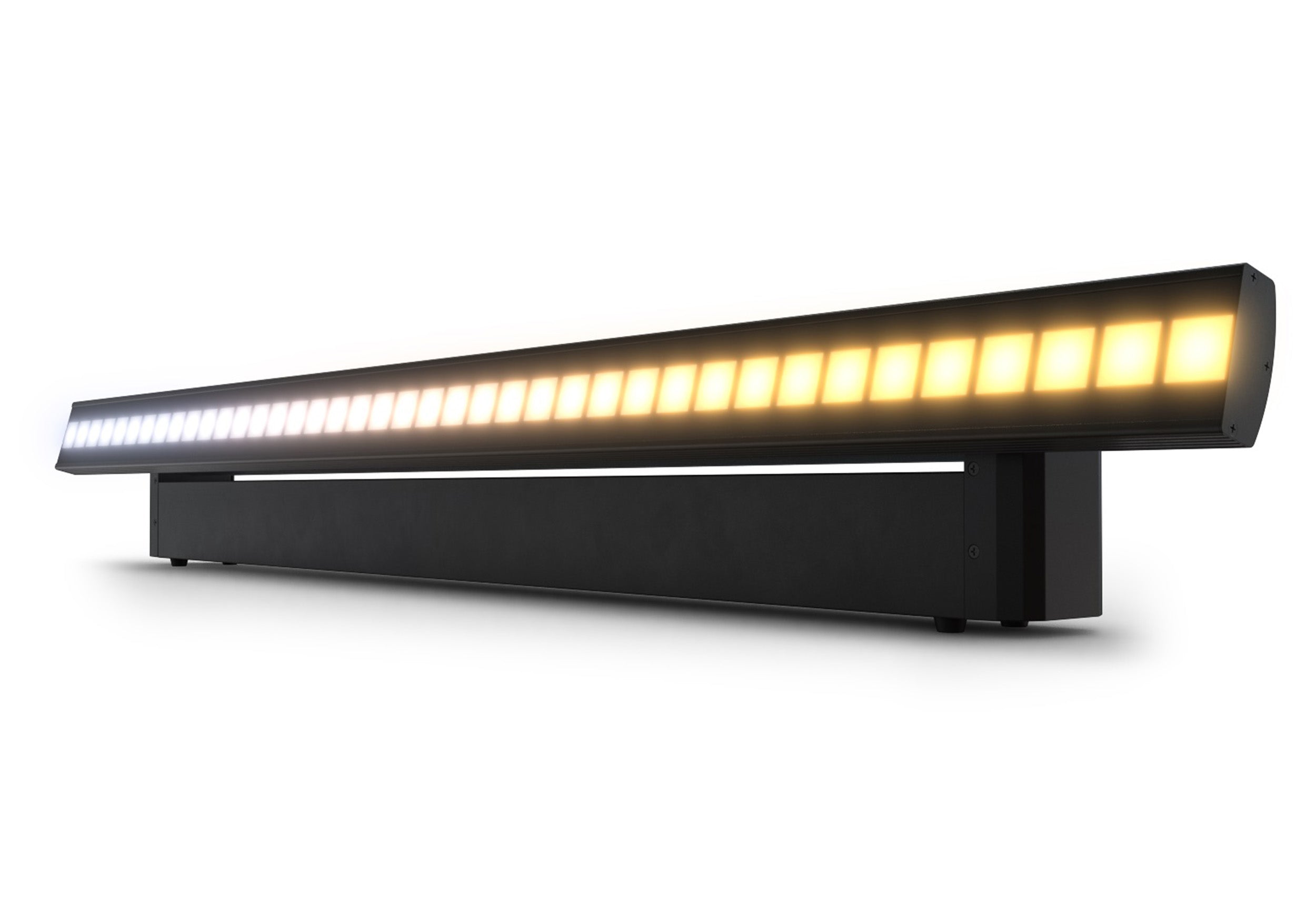

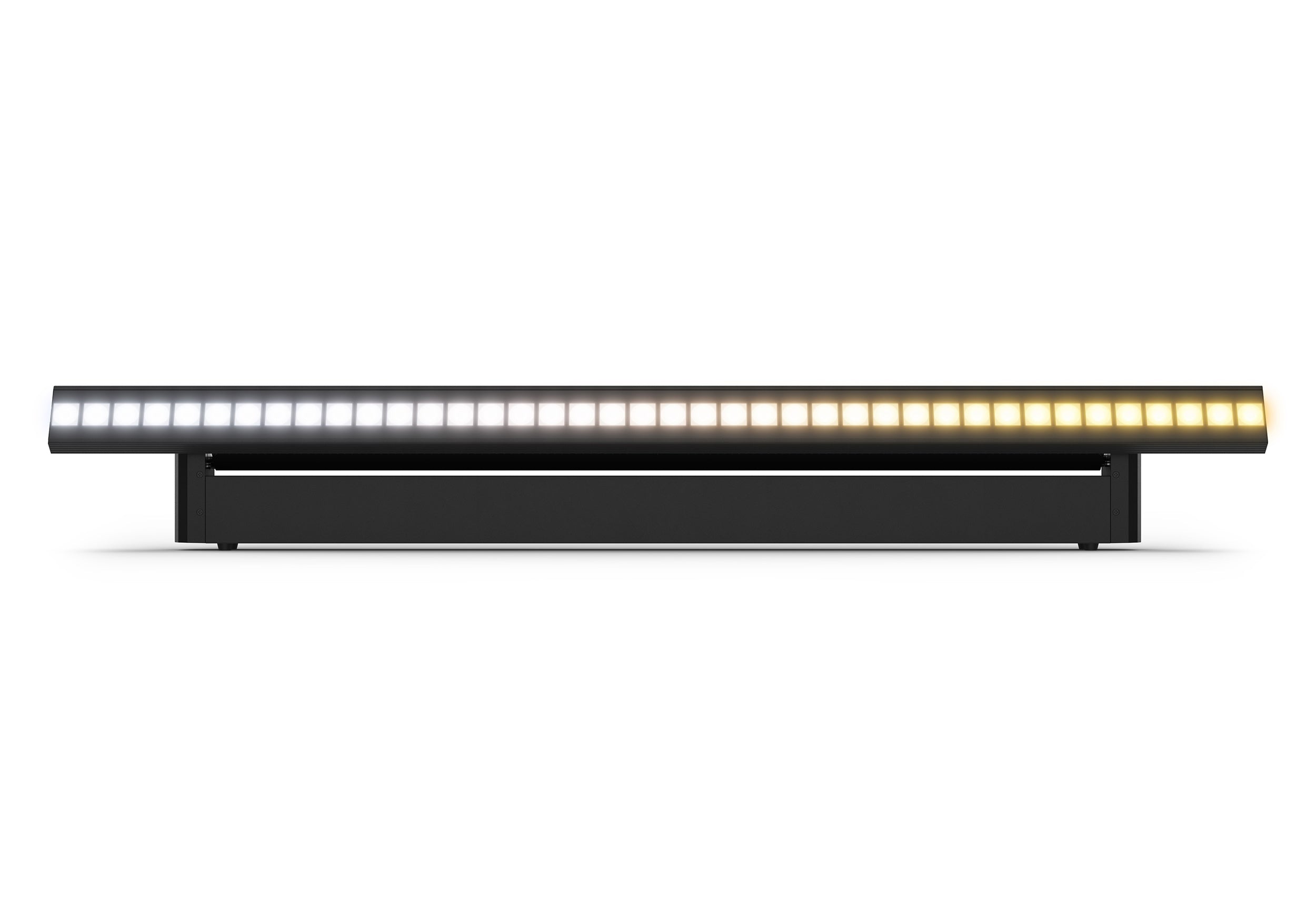

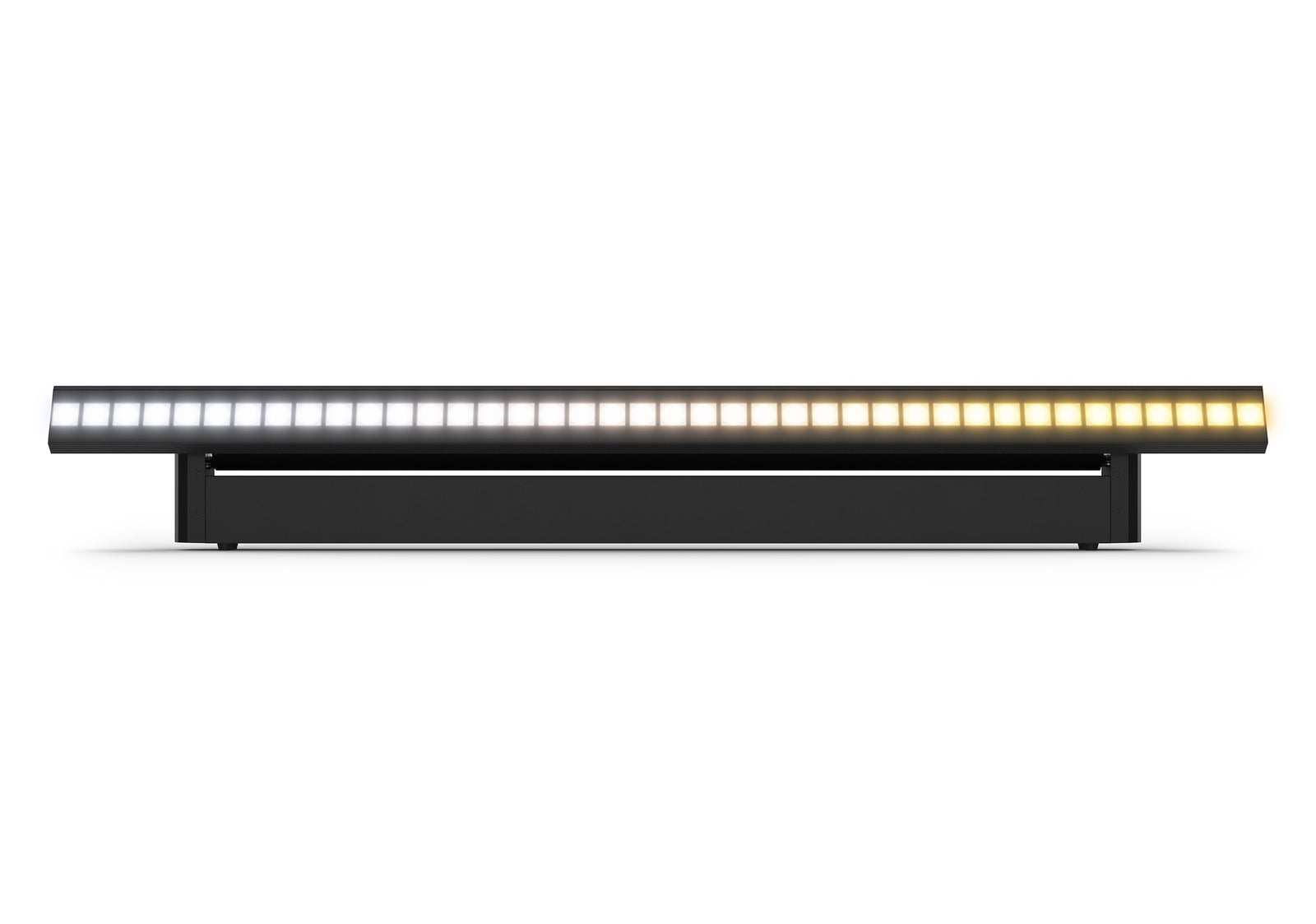

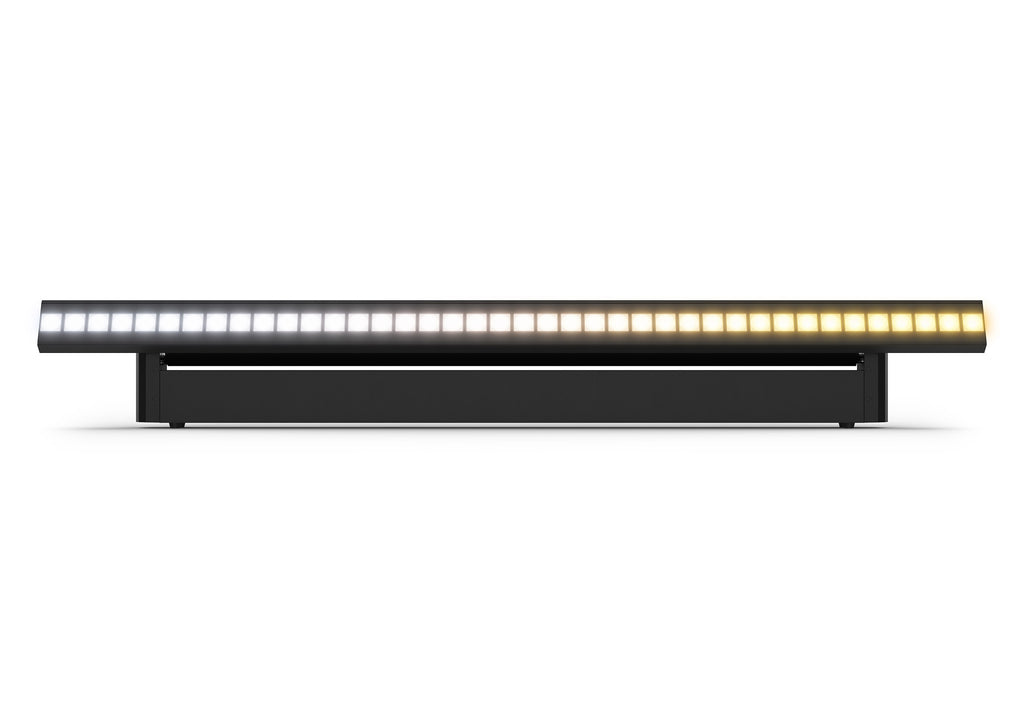

Yes. Each LED adds a warm white chip to red, green and blue, and the white output tunes from 3,000K to 14,000K, so it can wash a wedding head table in warm white and switch to saturated color on the dance floor.

Do I need a DMX controller to run it?

No. It runs in master/slave mode or from an RFC or RFC-XL remote, and it joins an ILS show with other ILS fixtures. Full pixel control is available over DMX, with up to 164 channels, from a desk or the optional ILS Command.

How many can I power from one outlet?

Up to 9 units at 120 V, or 16 at 230 V, daisy-chained through the powerCON-compatible input and output. Each unit draws 86 W at 120 V.

COLORband Spectra ILS or COLORband PiX-M ILS?

Both are motorized strip lights. The Spectra ILS has 40 RGB+WW LEDs, 1,938 lumens, tunable white from 3,000K to 14,000K, 180 degrees of tilt and a 39.4-inch, 10 lb body. The COLORband PiX-M ILS uses 10 RGB LEDs with no white chip, tilts 245 degrees, reaches 7,441 lux at 2 m and is shorter and lighter at 31 inches and 8.2 lb. Pick the Spectra ILS for finer pixel effects and white light, the PiX-M ILS for a punchier RGB beam and wider tilt. For a static strip, see the COLORband PiX ILS.

How do I carry and mount it?

It ships with an Omega bracket for mounting, and it fits the CHS-60 VIP Gear Bag for transport.
