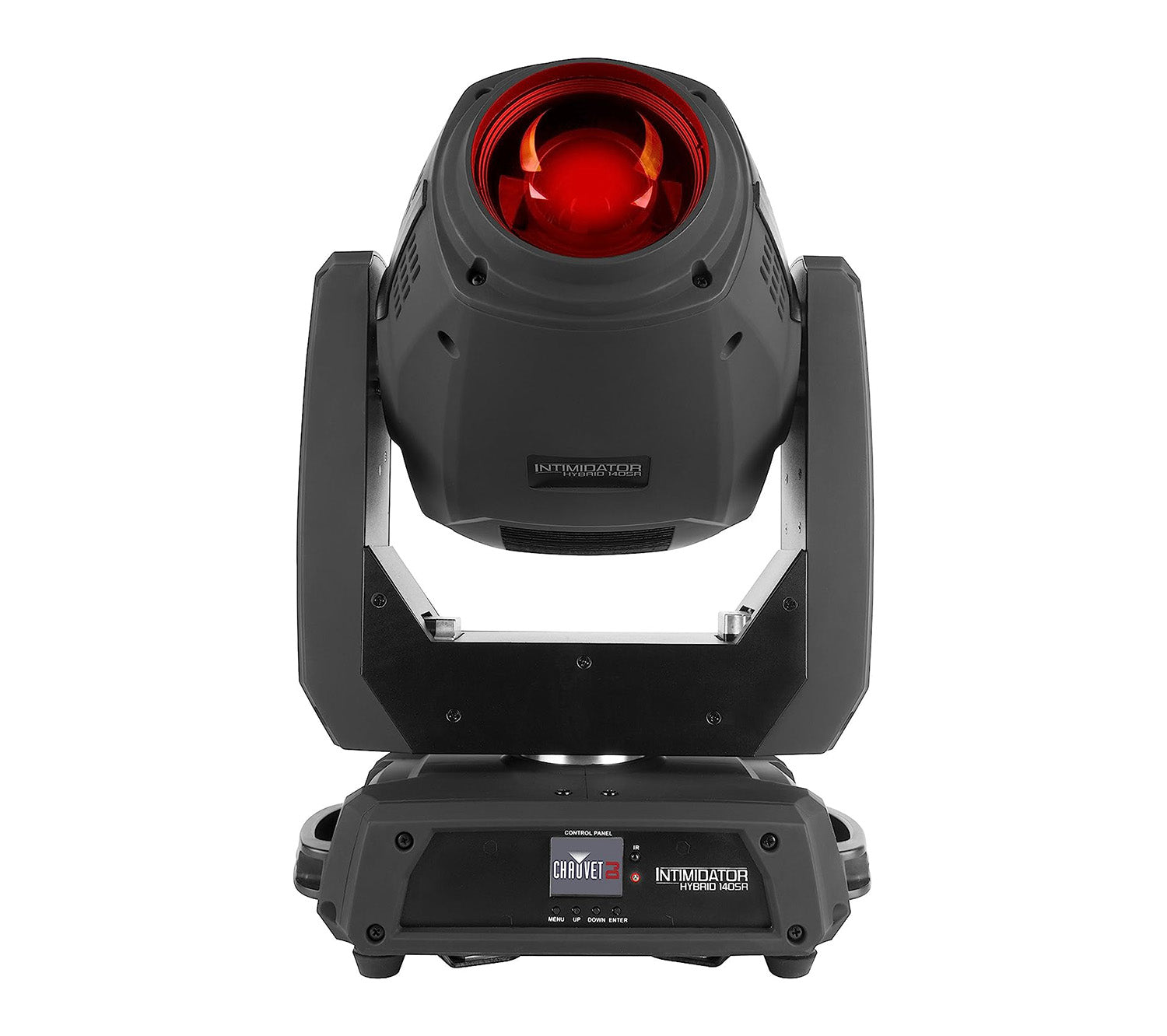

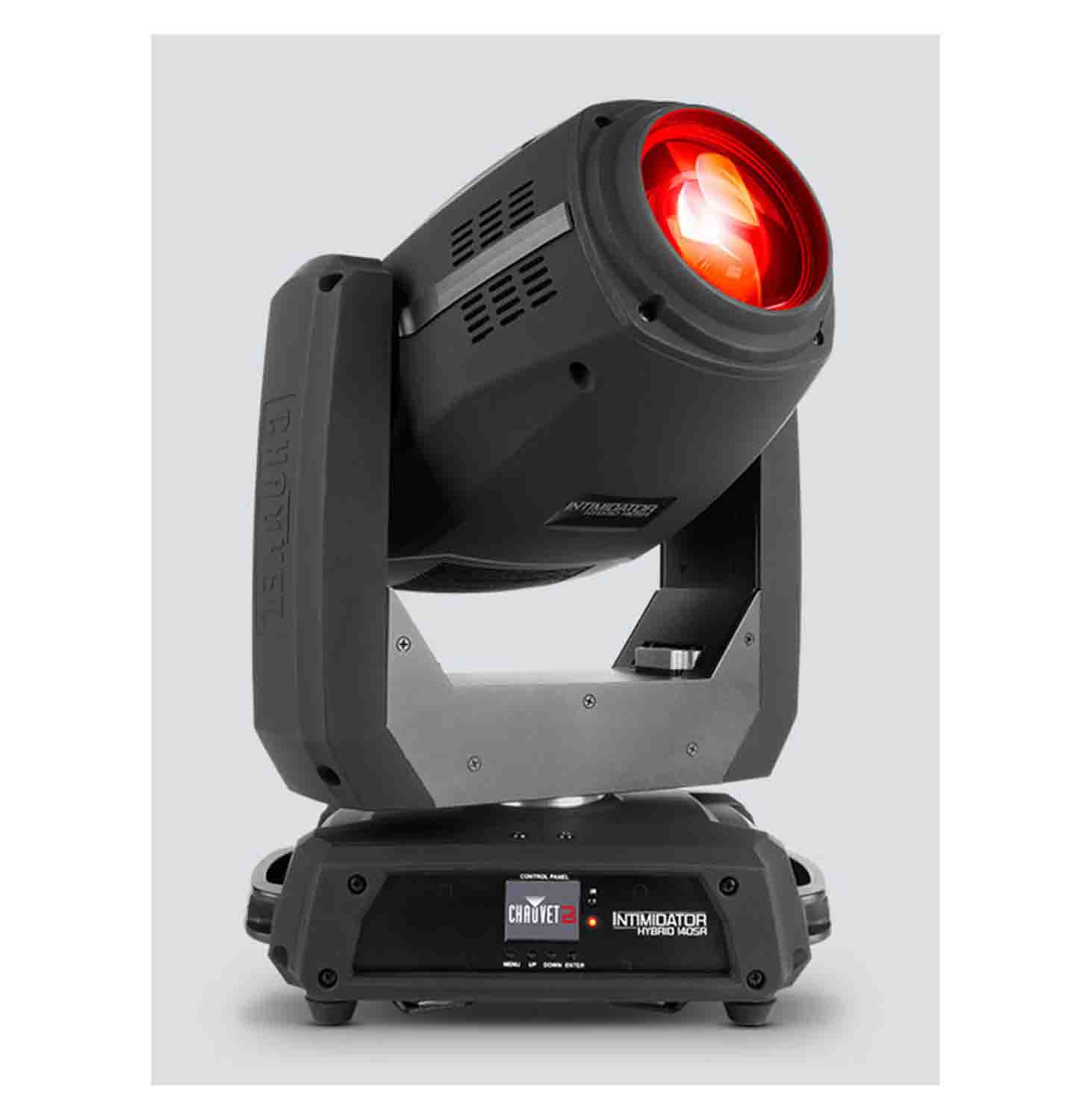

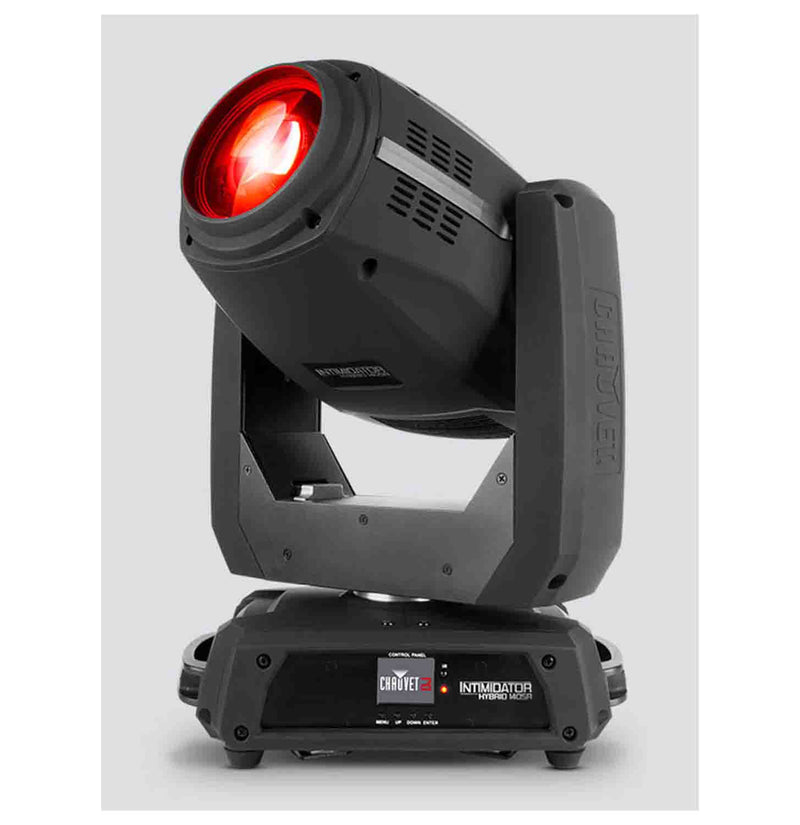

Chauvet DJ INTIMHYBRID140SR Intimidator Beam 140SR Cutting Edge Moving Head

The Chauvet DJ Intimidator Hybrid 140SR is a powerful all-in-one moving head fixture that morphs from SPOT to BEAM to WASH effortlessly. Fitted with an intense 140 W discharge light engine and motorized focus, it projects crisp beams and gobos at almost any distance. Two overlapping independently controlled prisms create dynamic beam effects. Dual gobo wheels allow for gobo morphing and amazing mid-air projections. The motorized zoom works in beam, spot, and wash modes for ultimate light control. Control is easy with the full-color display, IRC-6 compatibility, totem mode, and onboard memory for storing a scene. Power linking saves time running cables. Fits best in the Intimidator Road Case S35X.

Product Specification:

DMX Channels: 13 or 19

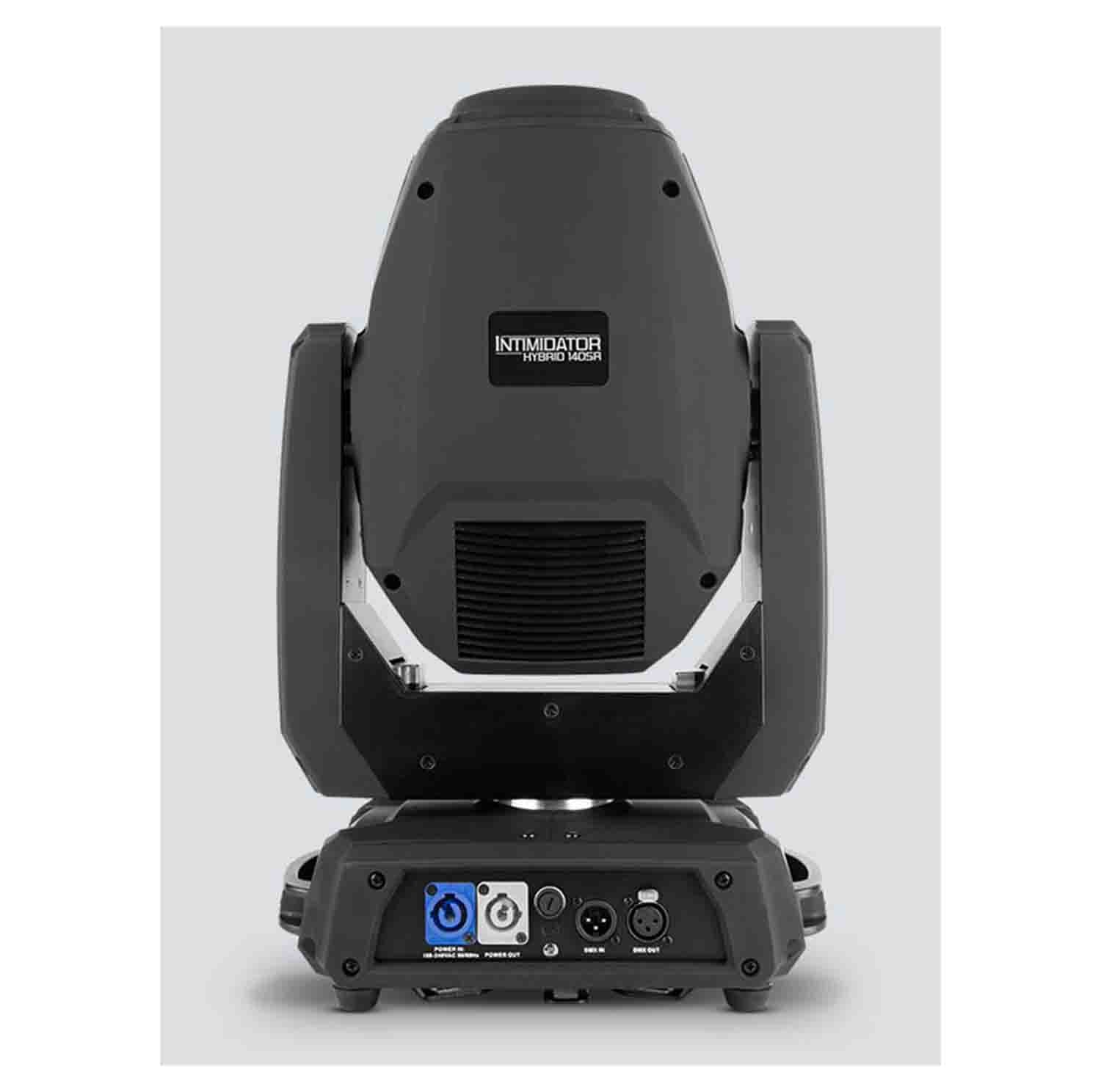

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt

Colors: 12 + white, split colors, continuous scroll at variable speeds

Gobos: wheel (1): 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
wheel (2): 17 + open, aluminum, continuous scroll at variable speeds

Light Source: (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
(optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)

Strobe Rate: 0 to 20 Hz

Zoom Angle: (beam): 3° to 11°
(spot): 7° to 21°
(wash): 14° to 28°

Illuminance: (3° beam): 382,000 lux @ 5 m
(7° spot): 104,700 lux @ 5 m
(14° wash): 4,680 lux @ 5 m

Power Linking: 3 units @ 120 V; 6 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 260 W, 2.5 A @ 120 V, 60 Hz
254 W, 1.3 A @ 230 V, 50 Hz

Gobo Size: (rotating): 13.7 mm outside, 11 mm image, 1 mm max thickness

Weight: 33.4 lb (15.2 kg)

Size: 12.6 x 8.6 x 20.2 in (322 x 220 x 513 mm)

Approvals: CE, MET

Gobo wheel: (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
(2): 17 + open, metal, continuous scroll at variable speeds

Optional Controllers: IRC - 6

Prism: (1): 8-facet round, bidirectional rotation at variable speeds

Prism: (2): 6-facet linear, bidirectional rotation at variable speeds
