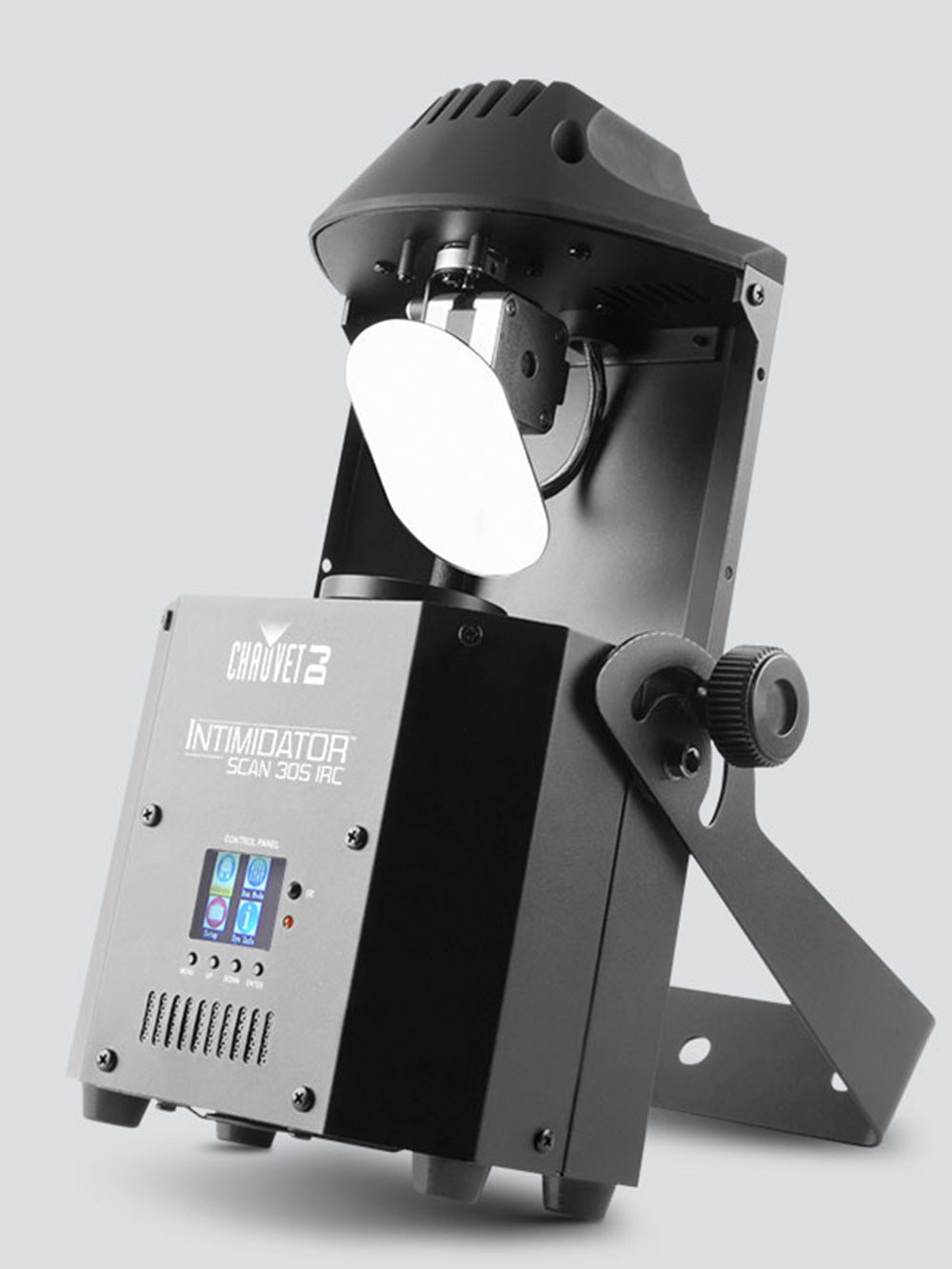

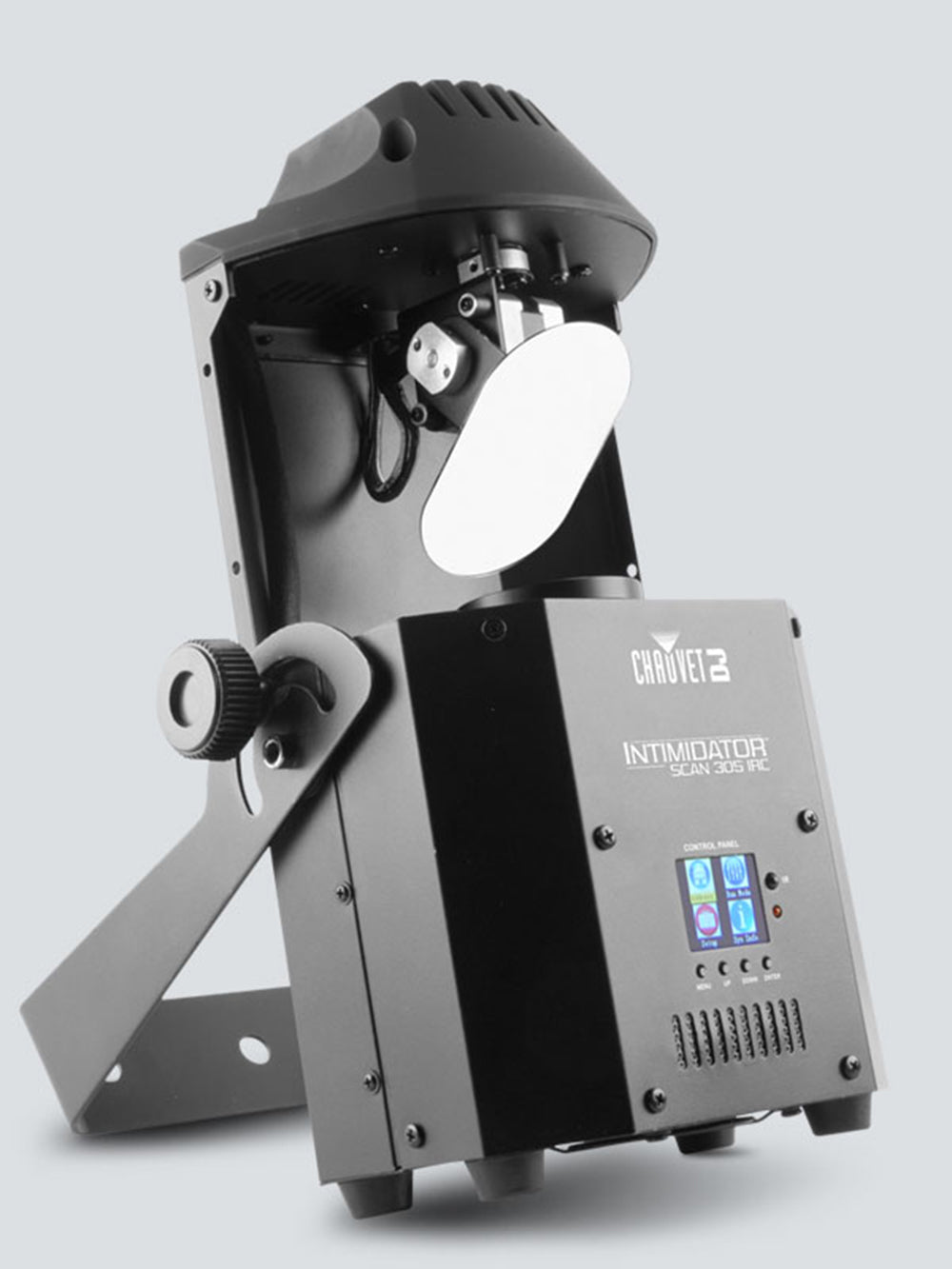

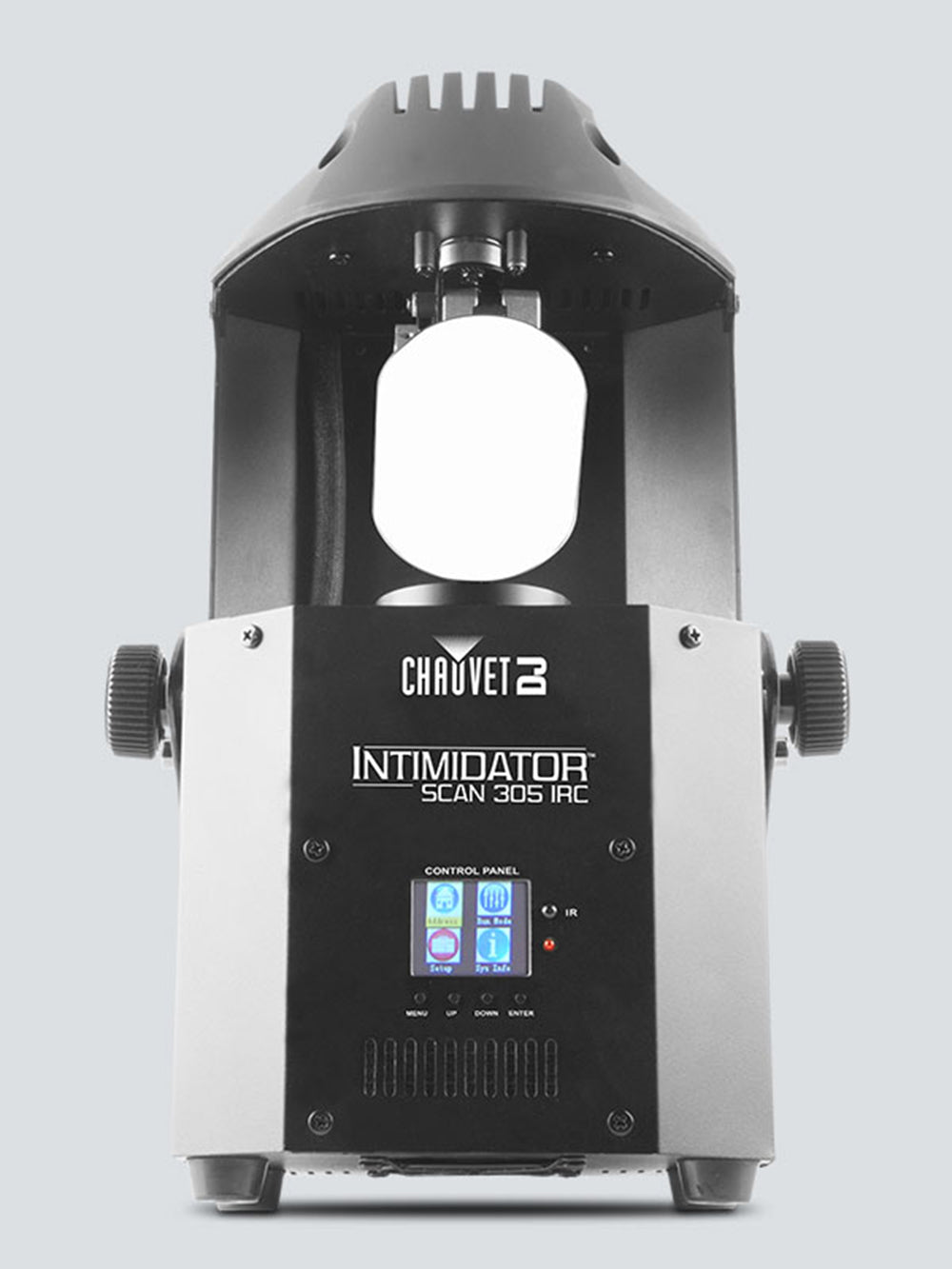

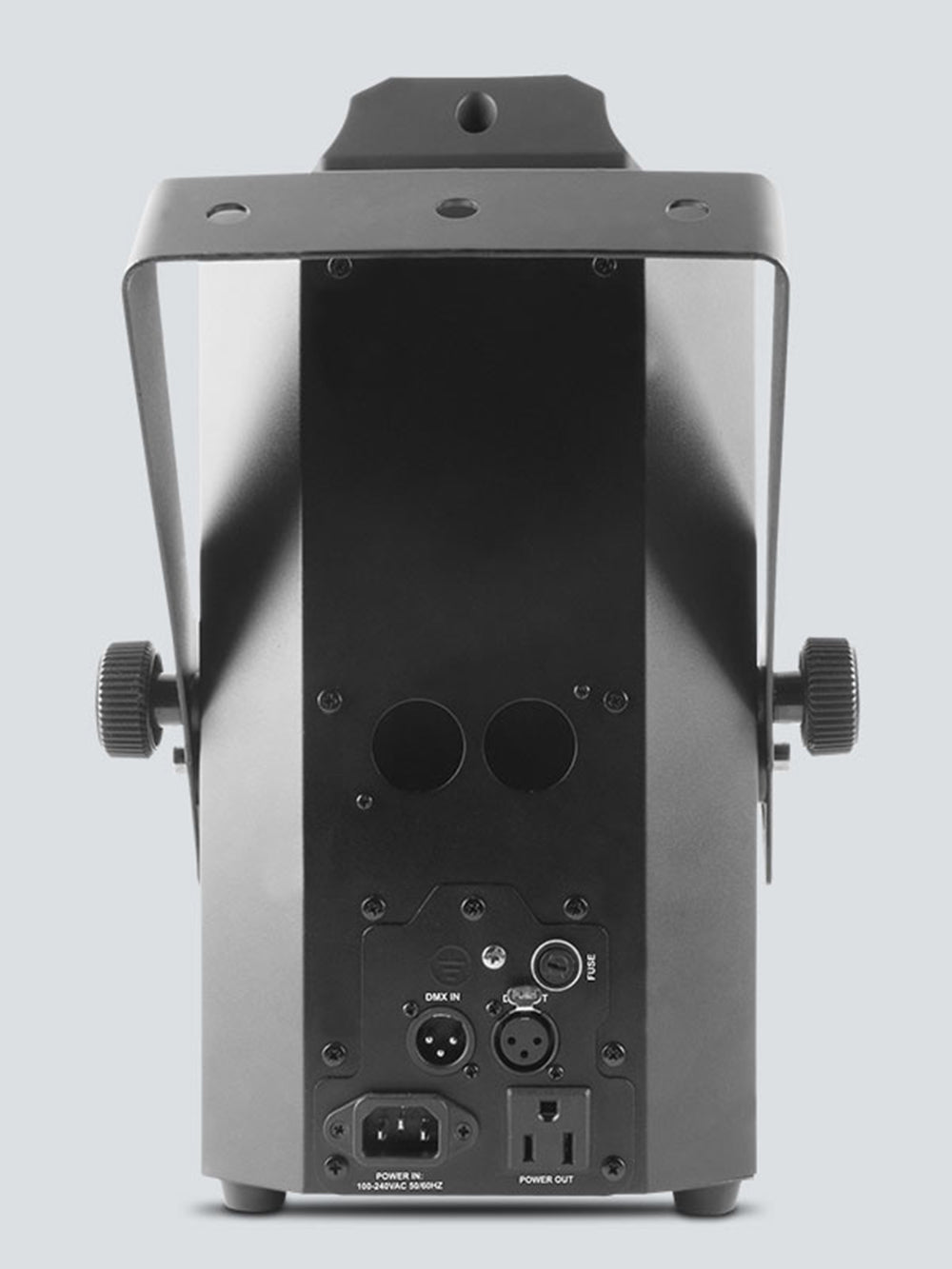

Chauvet DJ Intimidator Scan 305 IRC

The Intimidator Scan 305 IRC is a compact LED scanner with a 60 W light source that shines through any environment. Its crisp 3 facet prism allows you to cover larger areas when you split the beam and non-DMX operation is convenient and easy with the optional IRC-6 remote. Link up to 4 fixtures to create eye-catching synchronized shows in automated, sound-active or master slave modes.

Minimize programming time by using the built in movement macros and move-in-black features. Achieve flicker free video operation with high frequency LED dimming and save time running cables and extension cords by power-linking multiple units together. The Intimidator Scan 305 IRC fits best in the CHS-40 VIP Gear Bag.

Product Specifications:

DMX Channels: 7 or 11

DMX Connectors: 3-pin XLR

Pan and Tilt: 180°/90°

Colors: 8 + white, split colors, continuous scroll at variable speeds

Gobos: 7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds

Light Source: 1 (white) 60 W (2.3 A), 50,000 hours life expectancy

Strobe Rate: 0 to 35 Hz

PWM Frequency: 1,200 Hz

Beam Angle: 15°

Illuminance: 9,110 lux @ 2 m

Power Linking: 5 units @ 120 V; 10 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 104 W, 1.5 A @ 120 V, 60 Hz, 102 W, 0.8 A @ 230 V, 50 Hz

Gobo Size: 23.9mm outside, 20.5 mm image, 1 mm max thickness

Weight: 10 lb (4.6 kg)

Size: 16.9 x 10 x 5.7 in (430 x 255 x 147 mm)

Approvals: CE

Series: Intimidator

Primary Use: DJ/Mobile, Bands/Stages, Events, Clubs, Party

Optional Controllers: IRC-6

Prism: 3-facet round, static

Included: Power cord, Hanging bracket with mounting hardware, Warranty card, Quick Reference Guide
