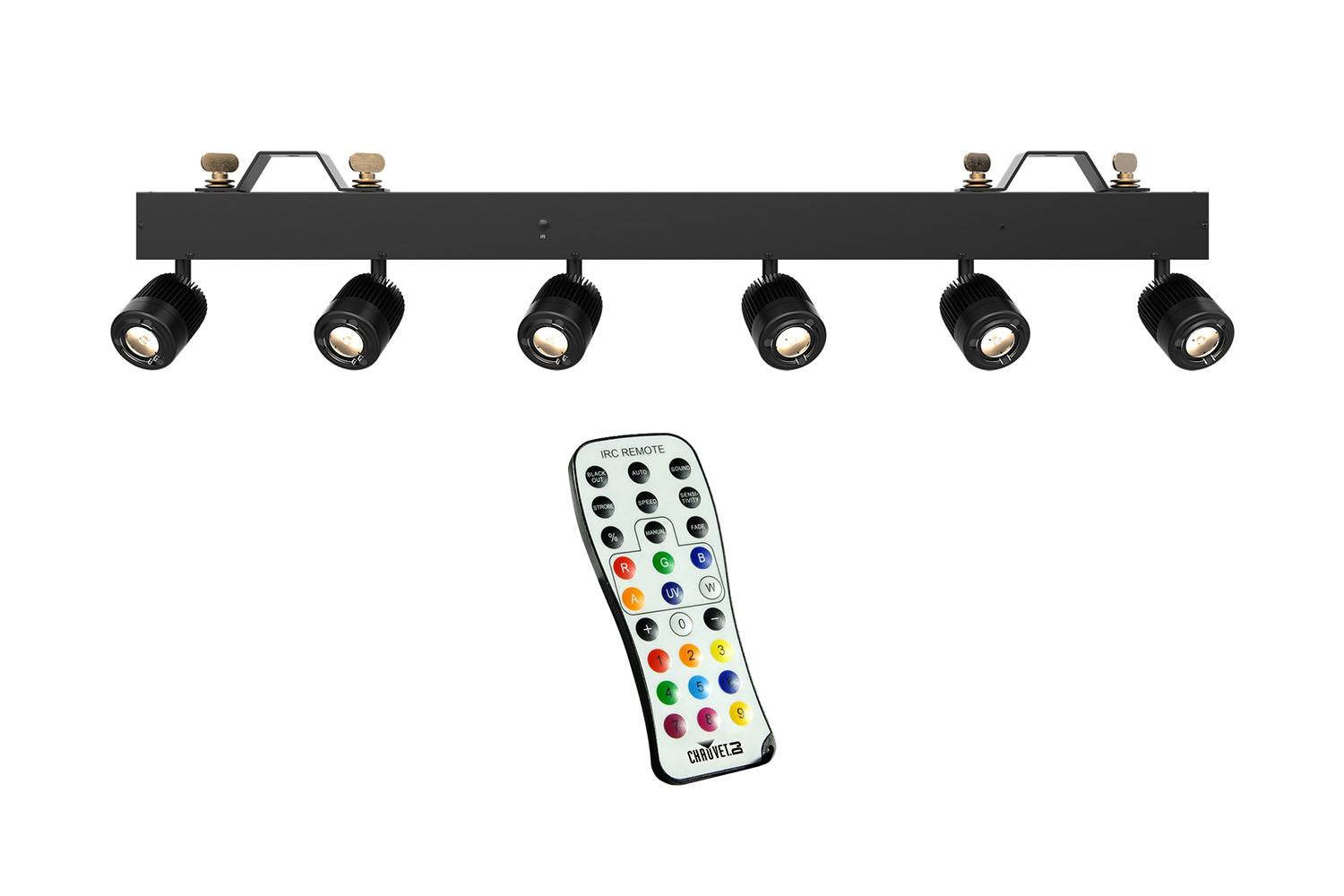

Chauvet DJ PINSPOT BAR High-Output Bar 6 Independent Pinspots Lights With IRC-6 Remote Control

Save 29%

Sale price$461.27 Regular price$646.21
In stock (33 units), ready to be shipped

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.


From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness pin spotting power with Pin spot Bar. Pin spot Bar is a high-output bar with 6 independent pin spots designed to replicate traditional incandescent lamps.

Independent control of each head offers true flexibility and programming capabilities. Achieve a clean and elegant look for any upscale event with only a single PowerCon-compatible power input. No messy cables along with power linking capabilities that save time running cables to other fixtures.

Pin spot Bar includes various beam diffusers and CTO filters to help achieve your desired look. A pair of included Omega brackets allow for multiple mounting options including pipe and drape. Control Pin spot Bar via the on-board digital display, DMX, wireless IRC-6 remote, or D-Fi USB dongle.

Product Specifications:

DMX Channels: 1, 6 and 11.

DMX Connectors: 3- and 5-pin XLR.

Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy.

PWM Frequency: 1000 Hz.

Beam Angle: 5°.

Field Angle: 11°.

Illuminance: 7,707 lux @ 2 m (per pod).

Power Linking: 8 units @ 120 V; 13 units @ 230 V.

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging).

Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz 191 W, 0.8 A @ 230 V, 50 Hz.

Weight: 9.4 lb (4.3 kg).

Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm).

Approvals: CE, RoHS.

Color Temperature: 4000 K.

CRI: 81.

Bracket Mounting Hole: 13 mm.

Optional Controllers: IRC-6, D-Fi USB.


IRC-6 is an easy-to-use infrared remote control (IRC) for IRC compatible lighting fixtures. It provides instant access to pre-programmed scenes, color mixing options and on-the-fly speed adjustments. This compact and lightweight remote has an approximate range of 30 feet (9 m).

Product Specifications:

Input Voltage: 3 VDC lithium battery (CR2025)

Weight: 0.7 oz (20 g)

Size: 3.9 x 1.8 x 0.3 in (100 x 47 x 7 mm)

Approvals: CE
