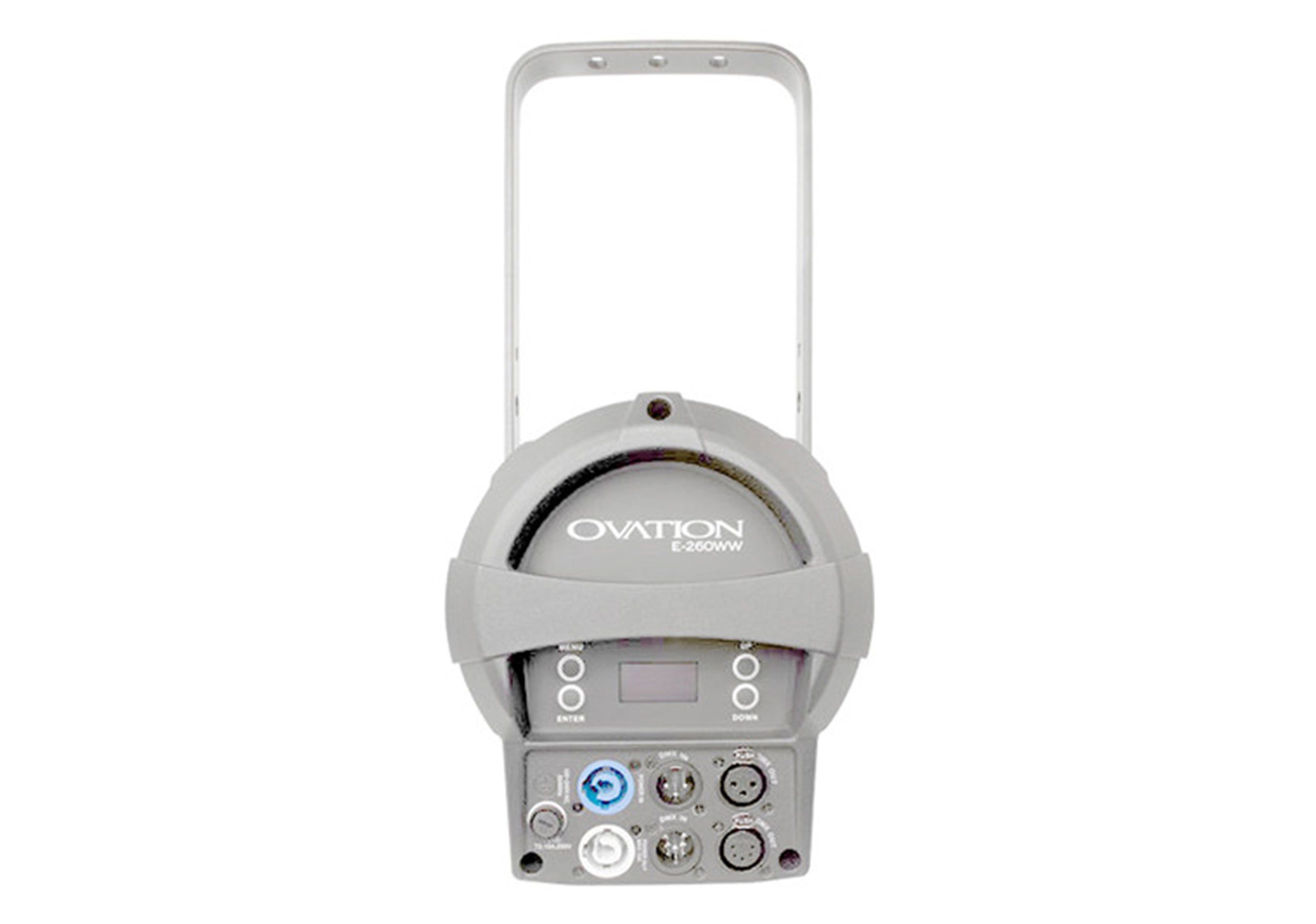

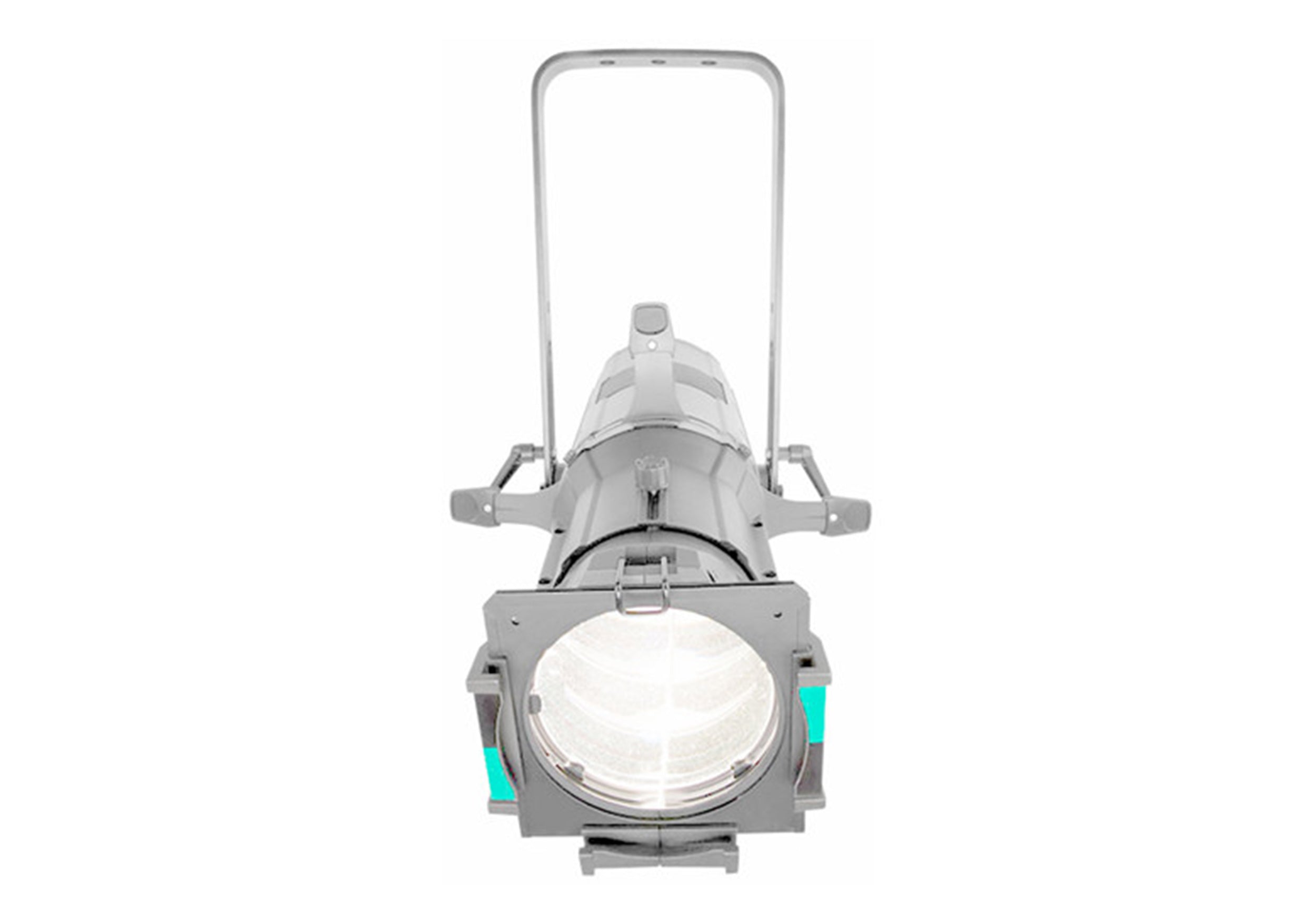

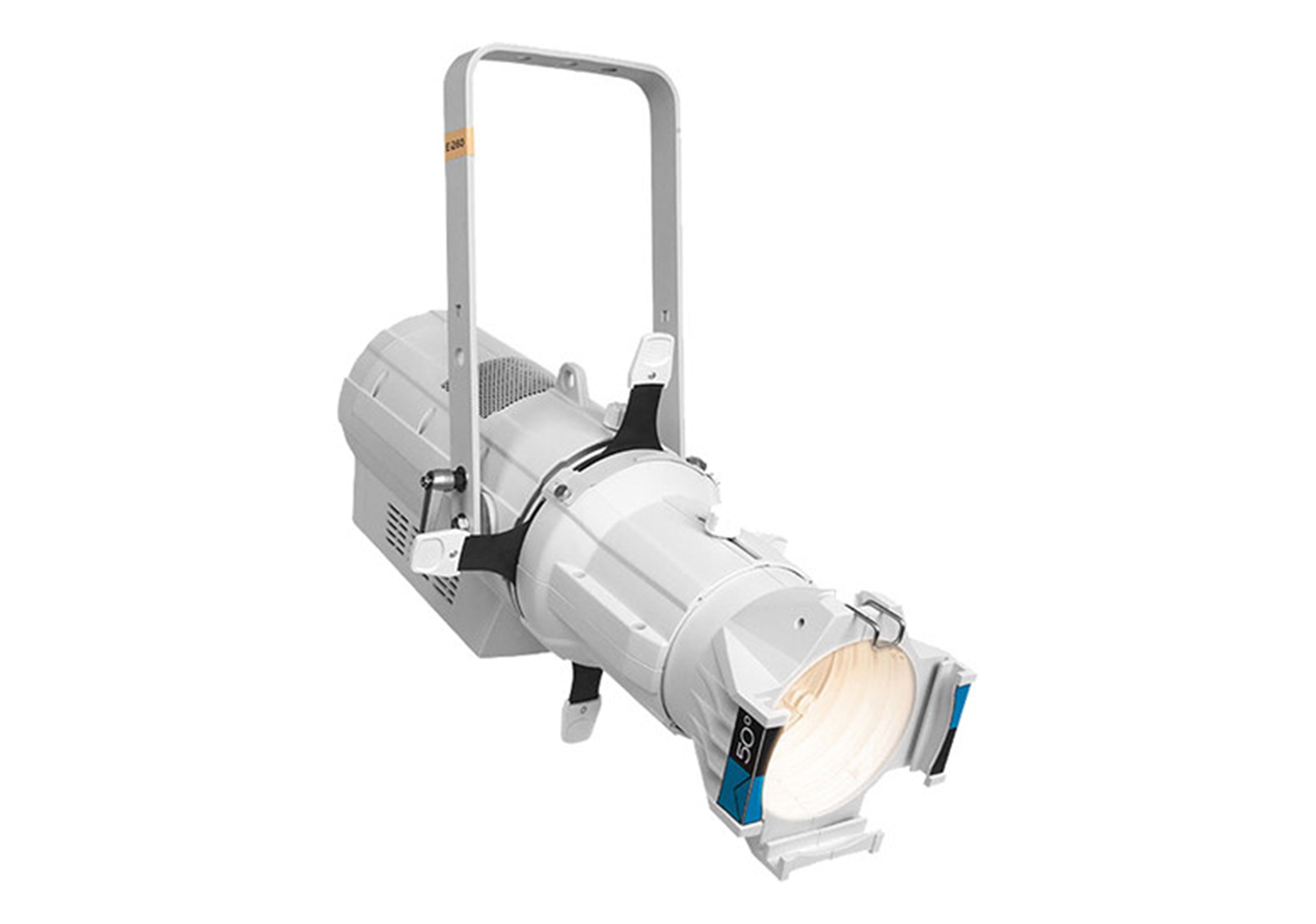

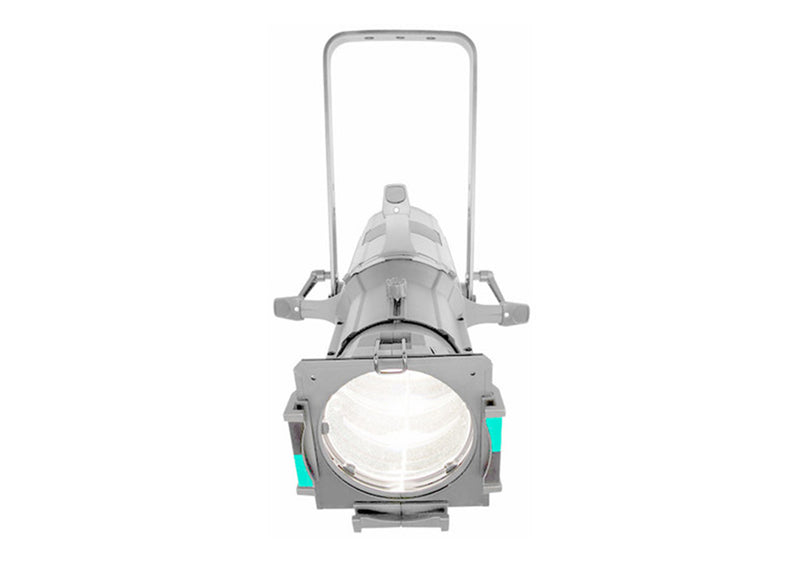

Chauvet Professional OVATION-E-260WWWHT IP Warm White LED ERS Fixture - White

The Chauvet OVATION-E-260WWWHT IP Warm White LED ERS Fixture - White with Smooth Dimming and RDM Control - White brings the powerful performance of the Ovation E-260WW to outdoor environments. This IP65-rated ERS-style fixture delivers a warm white output that surpasses a traditional 750W tungsten source, making it perfect for both indoor and outdoor applications.

Featuring smooth 16-bit dimming, multiple onboard dimming curves, and adjustable PWM for flicker-free operation on camera, it ensures professional-grade lighting control. The flat, even field provides exceptional gobo projection, while RDM compatibility adds setup flexibility.

With standard Ovation beam-shaping shutters and lenses, the E-260WW IP offers a familiar design, effortless operation, and outstanding performance in any weather condition.

Product Specifications:

Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy

Color Temperature (at full): 3149 K

CRI: 96

Beam Angle (w/5° lens): 5°

Beam Angle (w/10° lens): 7°

Beam Angle (w/14° lens): 12°

Beam Angle (w/19° lens): 14°

Beam Angle (w/26° lens): 16°

Beam Angle (w/36° lens): 20°

Beam Angle (w/50° lens): 31°

Beam Angle (w/15°–30° lens)(Narrow): 12°

Beam Angle (w/15°–30° lens)(Wide): 14°

Beam Angle (w/25°–50° lens)(Narrow): 21°

Beam Angle (w/25°–50° lens)(Wide): 26°

Field Angle (w/5° lens): 8°

Field Angle (w/10° lens): 11°

Field Angle (w/14° lens): 15°

Field Angle (w/19° lens): 19°

Field Angle (w/26° lens): 26°

Field Angle (w/36° lens): 35°

Field Angle (w/50° lens): 52°

Field Angle (w/15°–30° lens)(Narrow): 15°

Field Angle (w/15°–30° lens)(Wide): 29°

Field Angle (w/25°–50° lens)(Narrow): 26°

Field Angle (w/25°–50° lens)(Wide): 46°

Dimming Modes: 4

Lumens (w/5° lens): 9,605

Lumens (w/10° lens): 10,047

Lumens (w/14° lens): 11,308

Lumens (w/19° lens): 10,546

Lumens (w/26° lens): 12,455

Lumens (w/36° lens): 12,793

Lumens (w/50° lens): 12,258

Lumens (w/15°–30° lens)(Narrow): 11,300

Lumens (w/15°–30° lens)(Wide): 11,836

Lumens (w/25°–50° lens)(Narrow): 13,220

Lumens (w/25°–50° lens)(Wide): 13,632

Illuminance (w/5° lens): 42,658 lux @ 5 m

Illuminance (w/10° lens): 23,747 lux @ 5 m

Illuminance (w/14° lens): 12,648 lux @ 5 m

Illuminance (w/19° lens): 7,983 lux @ 5 m

Illuminance (w/26° lens): 5,817 lux @ 5 m

Illuminance (w/36° lens): 3,755 lux @ 5 m

Illuminance (w/50° lens): 1,613 lux @ 5 m

Illuminance (w/15°–30° lens)(Narrow): 13,155 lux @ 5 m

Illuminance (w/15°–30° lens)(Wide): 5,884 lux @ 5 m

Illuminance (w/25°–50° lens)(Narrow): 6,535 lux @ 5 m

Illuminance (w/25°–50° lens)(Wide): 2,554 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Color Temperature Presets: No

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)

Dimensions (w/5° lens extended): 43.58 x 14.17 x 14.48 in (1107 x 360 x 368 mm)

Dimensions (w/10° lens extended): 34.88 x 12.16 x 12.48 in (886 x 309 x 317 mm)

Dimensions (w/14° lens extended): 28.7 x 11.14 x 18.42 in (790 x 342 x 506 mm)

Dimensions (w/26° lens extended): 23.5 x 13.46 x 19.92 in (597 x 342 x 506 mm)

Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)

Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)

Weight (fixture only): 20.2 (9.2 kg)

Weight (w/5° lens): 26 lb (11.9 kg)

Weight (w/10° lens): 24 lb (11 kg)

Weight (w/14° lens): 25.6 lb (11.6 kg)

Weight (w/26° lens): 24.4 lb (11 kg)

Weight (w/15°–30° lens): 34.2 lb (15.5 kg)

Weight (w/25°–50° lens): 31.8 lb (14.4 kg)

Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)

Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)

Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)

Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)

Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)

Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)

Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)

Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

Connections:

Power Connection: Edison (local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR

Cable Length (power): 5 ft (1.5 m)

Control:

Control Protocol: DMX, RDM

DMX Channels: 2, 3, 4 or 7

Modes/Personalities: 4 personalities (2, 3, 4, 7)

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 6 units @ 100 V; 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V; 13 units @ 240 V

Power and Current: 230 W, 2.30A @ 100 V

Power and Current: 221 W, 1.95 A @ 120 V, 60 Hz

Power and Current: 215 W, 1.05 A @ 208 V, 60 Hz

Power and Current: 213 W, 1.03 A @ 230 V, 50 Hz

PO Certifications/Qualifications:

CE, MET, FCC

IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

What's Included:

Ovation E-260WW IP

Seetronic Powerkon IP65 power cord

Required Accessories:

Lens Tube: 19°, 26°, 36°, 50°

Optional Accessories:

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3-pin or 5-pin DMX Cables

Color Blending Filters: DF60X1D, DF20D

RDM2go

Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550

Gobo Holder: Ovation GR-1IP, Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos

Shipping Weight: 24 lbs.

Shipping Dimensions: 27 x 14 x 13”
