Description

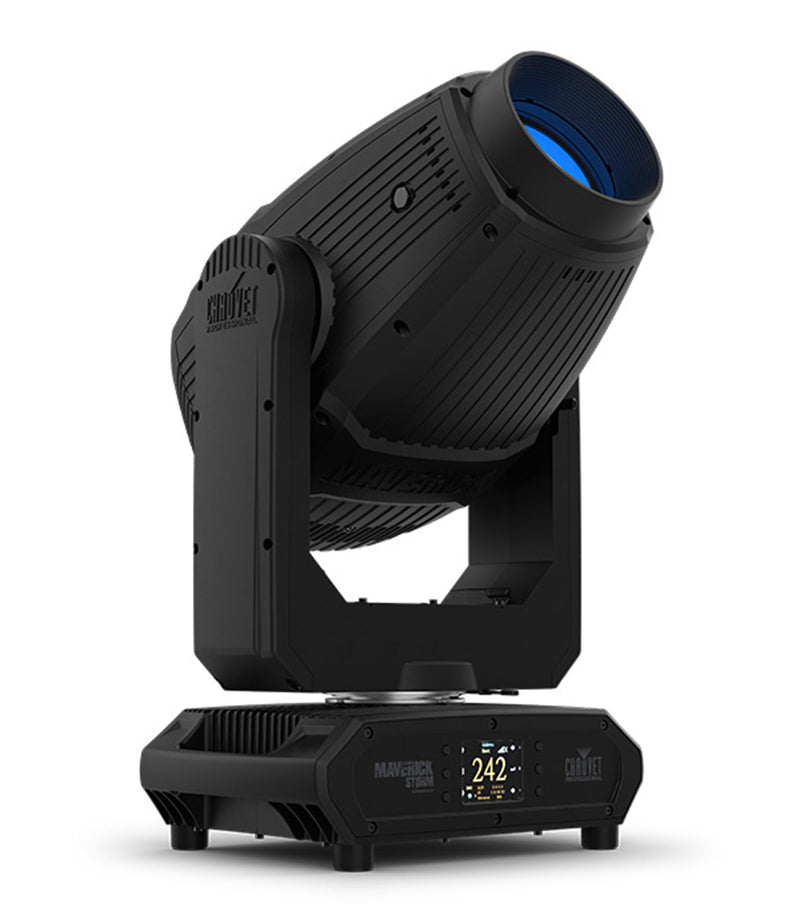

The Chauvet Pro Maverick Storm 2 Profile Led Wash Light fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,00 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5-degree beam, and freely create with a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weather the storm and welcomes the sunshine with Sunshield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.
Product Specifications:
Optical
Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy
Color Temperature (at full): 6963 K
CRI: 71.3
CRI with CRI Filter: 89.1
Front Lens Diameter: 127 mm
Beam Angle: 6.3° to 42.6°
Field Angle: 7.9° to 54.7°
Cutoff Angle 8.2° to 58.6°
Zoom Range: 5.5° to 58.6°
Lumens – Source: 35,000
Lumens – Output: 28,534
Illuminance (6.3°) 71,933 lux @ 5 m
Illuminance (58.6°) 2,580 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: CMY flags, CTO flag
Gobos (2): 9 + open (glass), continuous scroll at variable speeds
Framing Shutter rotation: +/- 60° rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
Construction / Physical
Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
Weight: 67.0 lb (30.4 kg)
Exterior Color: Black
Connections
Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 32 or 48
Art-Net Channels: 32 or 48
Modes/Personalities: 2 personalities (32, 48)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
Breaker Size: F15 A, 250 V
Certifications / Qualifications
CE, MET, FCC
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Maverick Storm 2 Profile
Seetronic Powerkon IP65 power cord to Edison
Omega bracket with mounting hardware
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
IP Rated Seetronic Powerkon Extensions
UPLOAD 08 software uploader
Micro T-1 TRX G5 WDMX Transceiver
Flight Case TBA
