Description

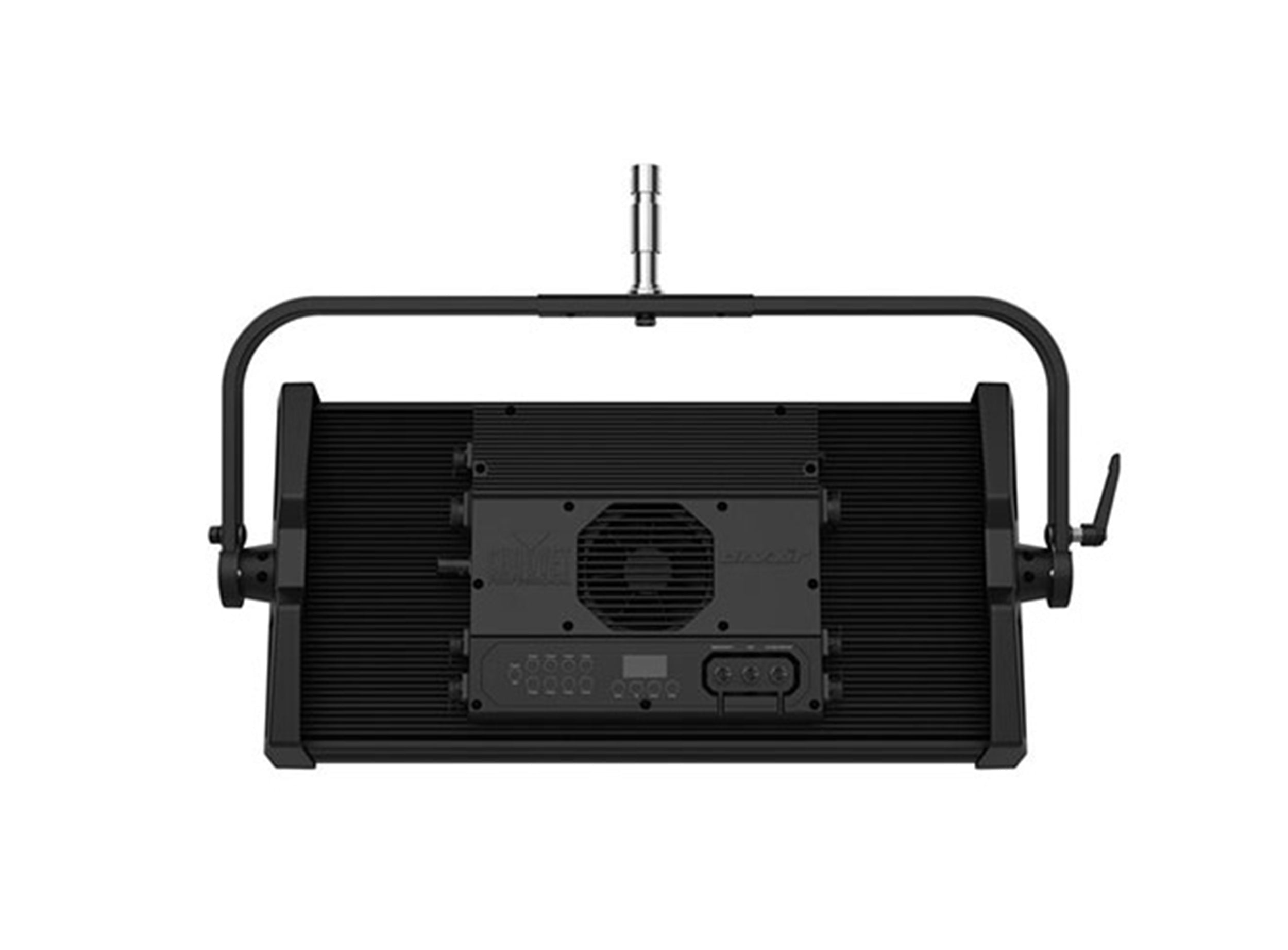

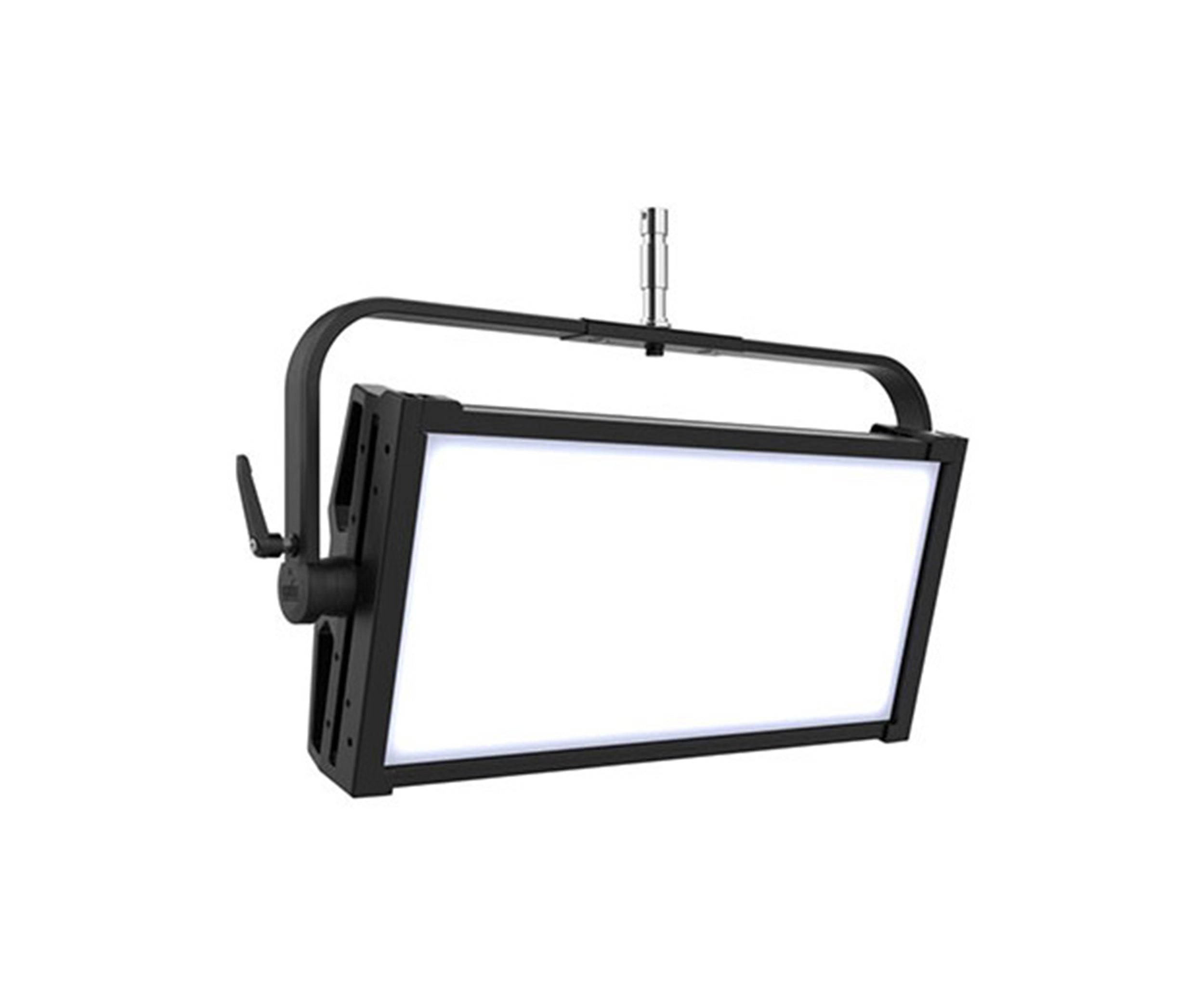

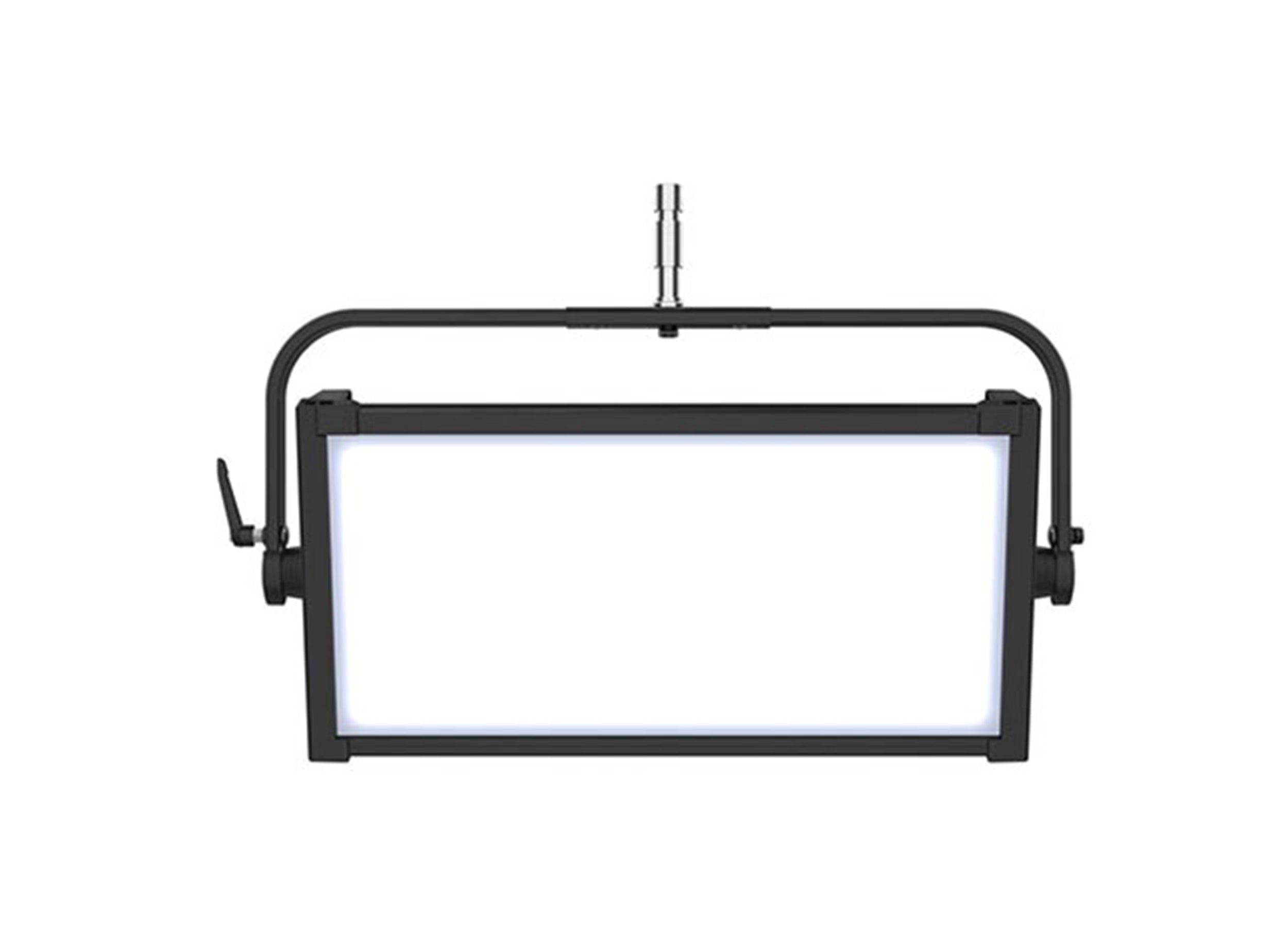

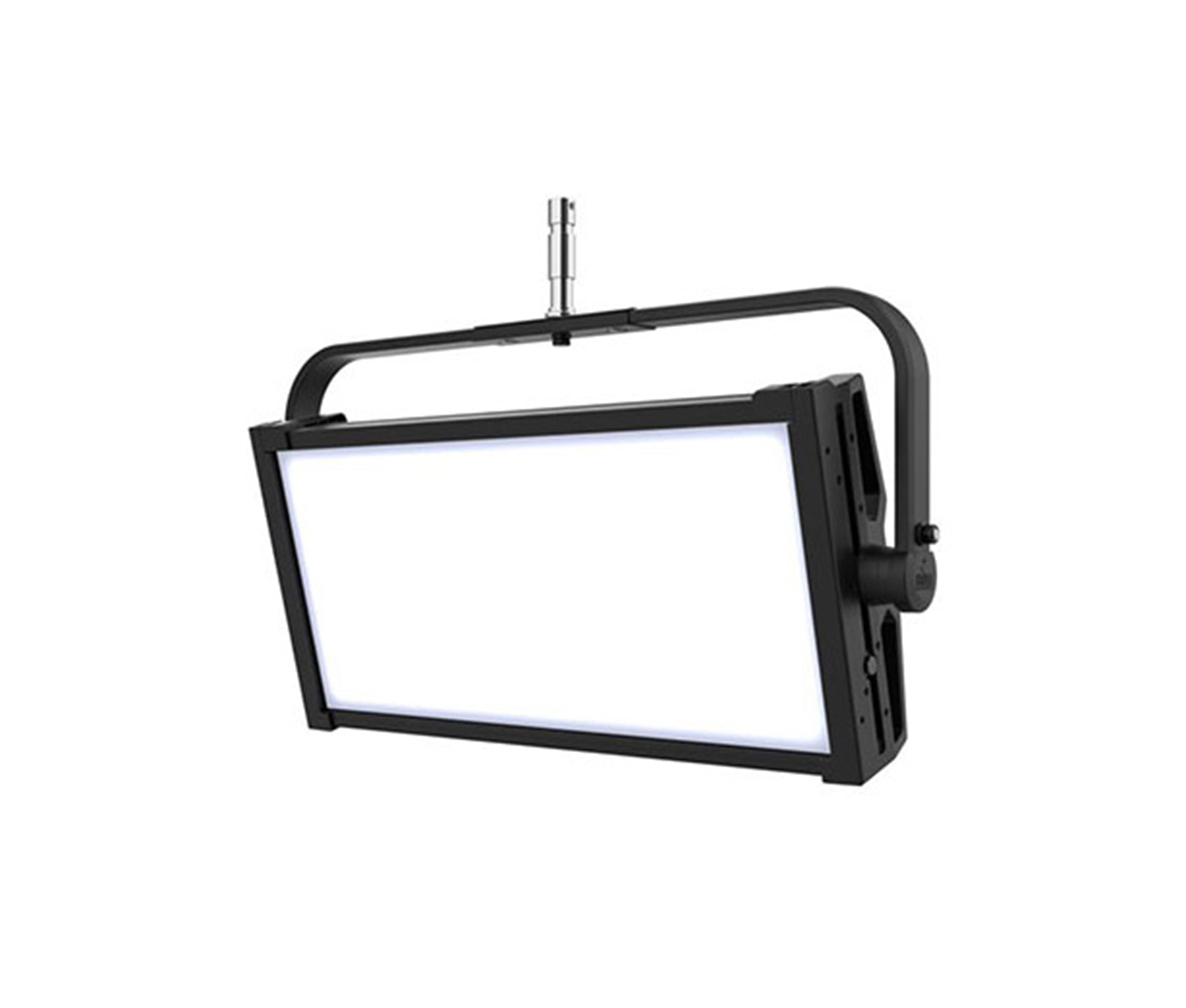

The Chauvet Pro OnAir Panel 2 IP Led soft light is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.
Product Specifications:
Optical
Light Source: 448 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
Light Source: 448 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy. Color Temperature (range): 2800 to 8000 K
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 7220 K
CRI: 95
Beam Angle: 100.2°
Field Angle: 157°
Lumens: 22,508
Illuminance: 349 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 33.4 x 5.4 x 21.6 in (849 x 139 x 553 mm)
Weight: 37.9 lb (17.1 kg)
Exterior Color: Black
Housing Material: Aluminum alloy
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Power Input: 28 VDC, 3-pin IP65 XLR
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible Cable Length (power): 5 ft (1.5 m)
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Control
Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V, 8 units @ 240 V
Power and Current: 372 W, 3.104 A @ 120 V, 60 Hz
Power and Current: 371 W, 1.774 A @ 208 V, 60 Hz
Power and Current: 370 W, 1.608 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC,
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
onAir Panel 2 IP
Seetronic Powerkon IP65
Omega bracket with mounting hardware
Optional Accessories
onAir Panel 2 IP Barndoor
onAir Panel 2 IP 60° Honeycomb
onAir Panel 2 IP Diffusion Filter Pack
onAir Panel 2 IP Intensifier
onAir Panel 2 IP Pole Yoke
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin DMX Cables
Ethernet Cables
