Description

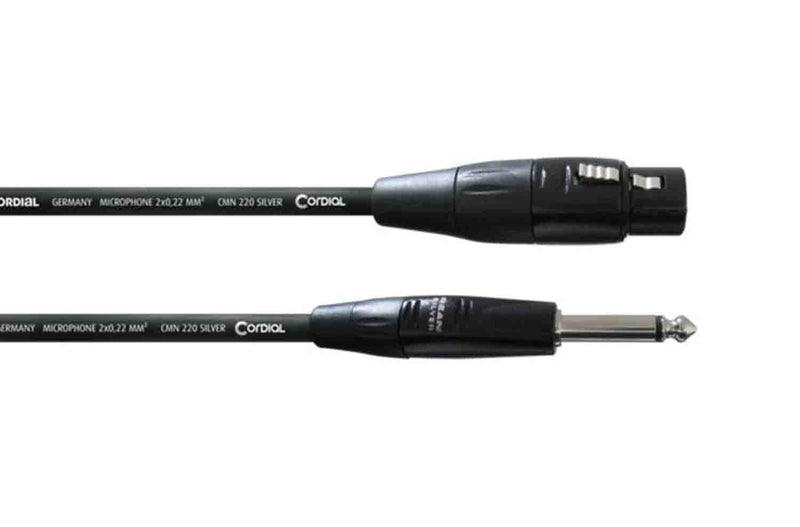

The Cordial CIM FP is an Unbalanced XLR to Mono Jack Cable. The CIM FP mono audio cable is usually used to transmit unbalanced signals from a microphone to audio workstations or mixers with mono inputs. Pin 1 and 3 of the XLR plug are soldered together. Its REAN SILVER by NEUTRIK XLR female and 6.3 mm male plugs are designed in discreet black, developed exclusively for CORDIAL. Based on our Essentials Cable 1 bulk cable, it offers a conductor area of 0.22 mm² (AWG 24) and a spiral shield made of bare copper wires.
The composition of conductors (28 x 0.10 mm) makes it very flexible and easy to be reeled. The CIM FP is in many points the cheaper alternative to the CPM FP, but it got a much higher conductor/conductor capacity, so that attenuations in the signal are possible, especially over longer distances.
Product Specifications:
Cable: Essentials Cable 1
Jacket: PVC
Cable Assign: FP
Connector Brand: REAN SILVER
Plugs:
1 XLR female 3-pole
1 1/4" Plug mono
Conductor Area: 0.22 mm²
AWG: AWG 24
Composition of Conductor: 28 x 0.10 mm
Material: Bare copper
Conductor Resistance: < 80 Ohm/km
Shielding: Spiral shield (90% coverage)
Capacity cond.-cond. (pF/m): < 80 pF/m
Category: Microphone
Diameter: 5.9 ± 0.2 mm
Conductor Isolation: LDPE
