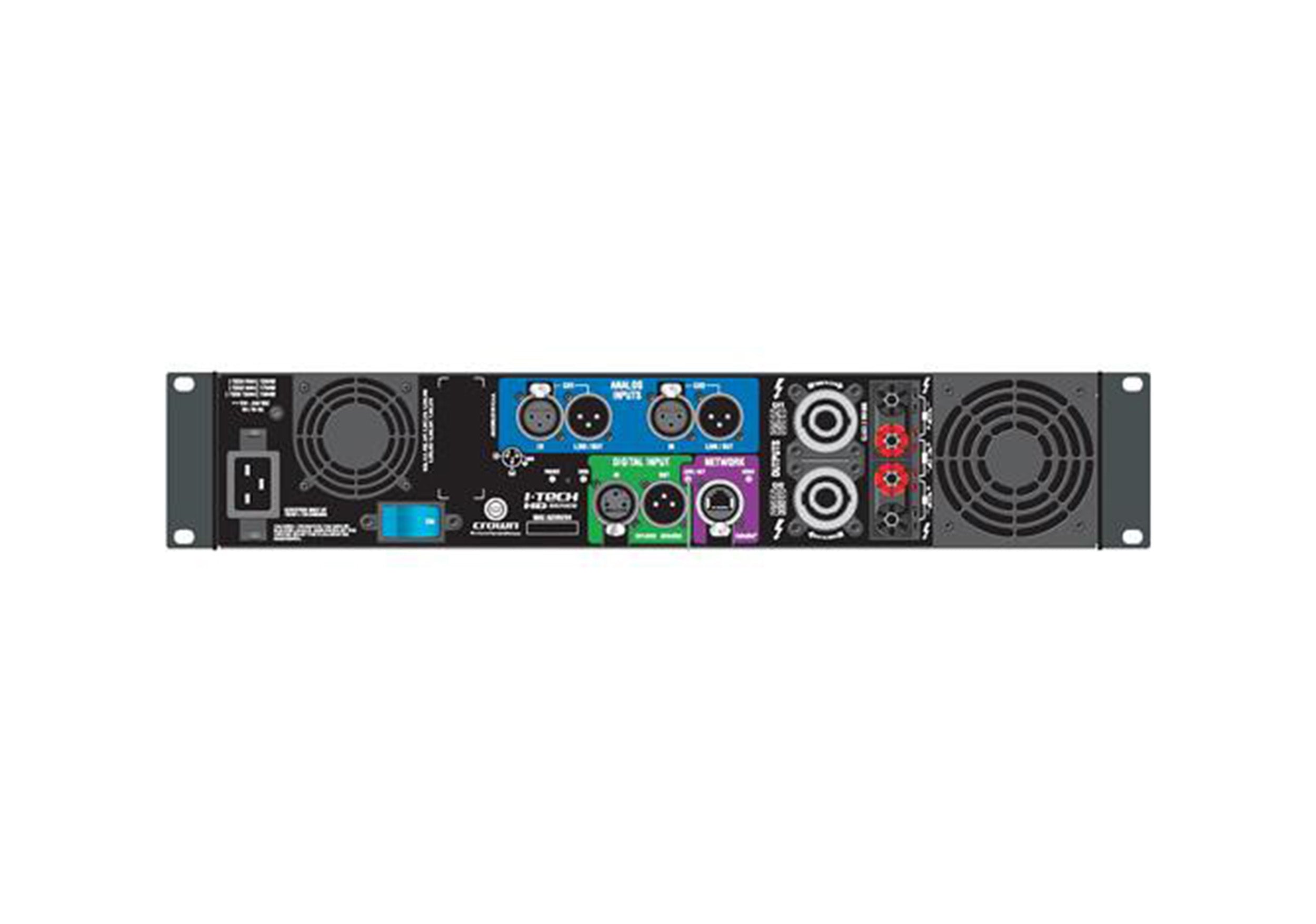

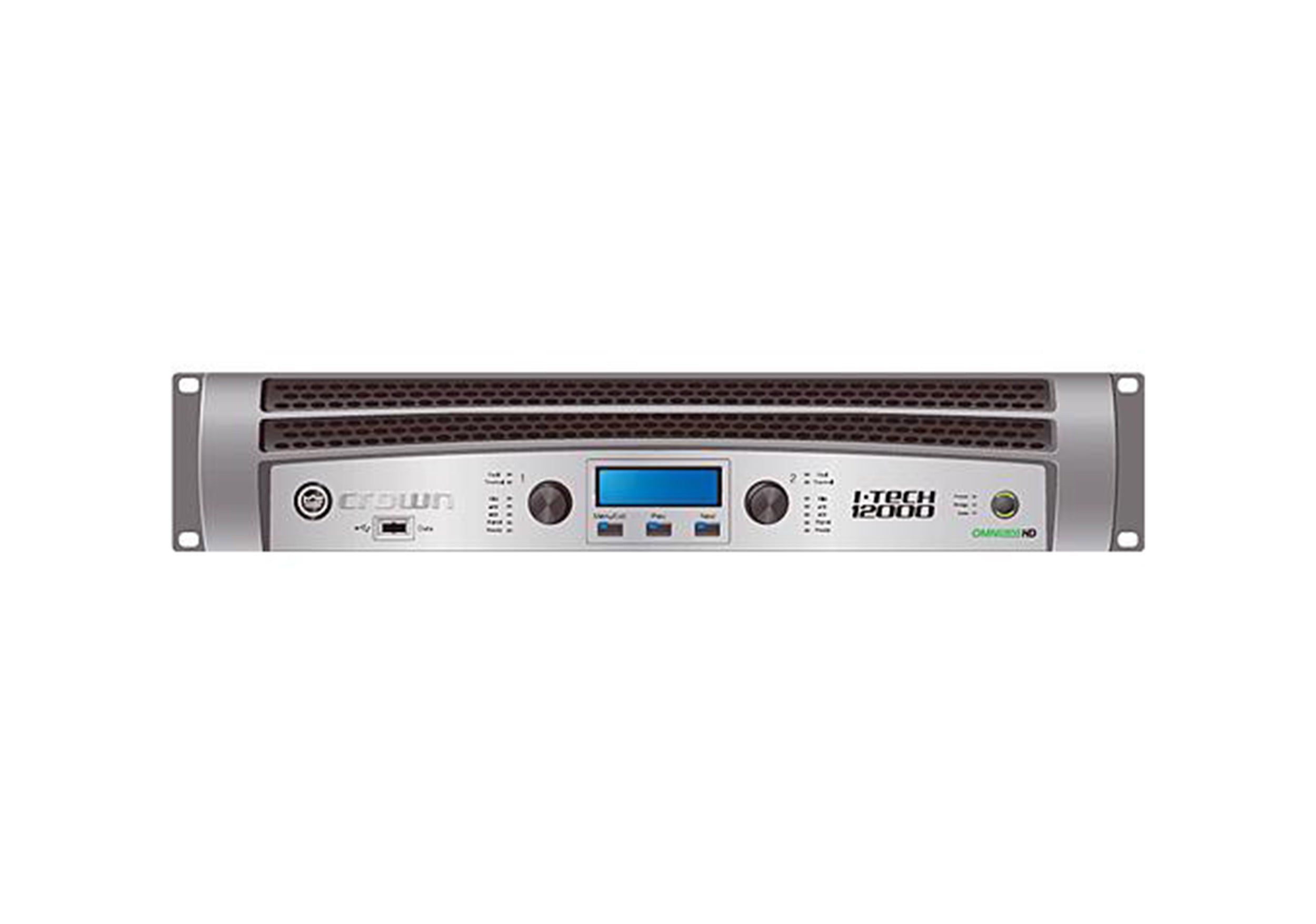

Crown Audio I-T12000HD, Rackmount Stereo Power Amplifier

The Crown Audio I-T12000HD Rackmount Stereo Power Amplifier is a high-performance power amplifier designed for professional applications. The amplifier has a sleek rackmount enclosure packed with innovative technologies that provide world-class performance and ease-of-use. Patented Class-I circuitry provides efficient use of power to keep current draw low while still providing powerful audio output.

Onboard OmniDrive HD DSP processing is built-in and uses 24-bit/192kHz Cirrus Logic A/D and D/A converters, along with FIR and IIR filters for a high level of audio performance. A front-panel USB port allows you to easily transfer DSP settings from a computer to the amplifier. For connection to virtually any sound system, the amp sports analog and digital XLR inputs and outputs, as well as Speakon and Binding Post outputs. An Ethernet port supports TCP/IQ, HiQnet, and CobraNet, and is compatible with standard 100Mb Ethernet hardware.

The amplifier is kept cool by variable-speed fans with a front-to-back airflow to keep system components running reliably. Other useful features of the amplifier include Sweep Load Monitoring with system-level diagnostics, a bright LCD screen for easy navigation, and a true global power supply, allowing you to operate at full power no matter where you go.

Rackmount Design

The sleek rackmount chassis fits into any standard equipment rack for easy installation

Class-I Circuitry

Patented 5th-generation Class-I circuitry provides terrific efficiency for strong performance with a low power draw

OmniDrive HD DSP

Built-in BSS OmniDrive HD DSP processing and 24-bit/192kHz Cirrus Logic SHARC converters, along with FIR and IIR filters provide ultra-smooth performance

USB

A front-panel USB connector lets you connect a USB drive to quickly transfer DSP settings that were created in a computer

Analog and Digital I/O

The amplifier has analog XLR inputs and outputs, as well as AES/EBU digital XLR inputs and outputs. Speakon and Binding Post outputs are also provided

Ethernet

An Ethernet port supports TCP/IQ, HiQnet, and CobraNet, and is compatible with standard 100Mb Ethernet hardware

Cooling Fans

Front-to-rear cooling fans have true tachometer feedback for precision control of thermal performance

Diagnostics

Sweep Load Monitoring (SLM) technology provides system-level diagnostics

LCD Display

The bright LCD display allows you to quickly set up and monitor the amplifier

Global Power

The global power supply insures your ability to have peak performance anywhere in the world.

Product Specifications:

Power Rating:

2100W/Channel (8 Ohm Dual)

4500W/Channel (4 Ohm Dual)

3750W/Channel (2 Ohm Dual)

9000W (8 Ohm Bridge)

7500W (4 Ohm Bridge)

Damping Factor: > 5000

Input Sensitivity: 1.4 - 7.75V (Adjustable)

Frequency Response: 20Hz - 20kHz

Signal-to-Noise Ratio: > 112dB

Total Harmonic Distortion (THD): < 0.1%

Input Connectors:

2 x XLR Inputs

1 x AES/EBU Digital XLR Input

1 x USB Port

1 x Ethernet Port

1 x Power Input

Output Connectors:

2 x XLR Outputs

1 x AES/EBU Digital XLR Output

2 x Speakon Outputs

2 x Binding Post Outputs (4 Posts Total)

Controls:

1 x Power Switch

2 x Volume Knobs

Indicators: LEDs for Bridge, Ready, Signal, Clip, Thermal, Fault, Network Data, Power, and AC Mains

Cooling: Continuously Variable Speed Fans, Front-to-Back Airflow

Power Requirements: 100-240VAC, 50/60Hz

Product Weight: 28 lbs. (12.7kg)

Product Dimensions: 19 x 3.5 x 16.2" (483 x 89 x 411mm)

Shipping Weight: 33.9 lbs.

Shipping Dimensions (LxWxH): 23.2 x 23.2 x 7.1 Inches
