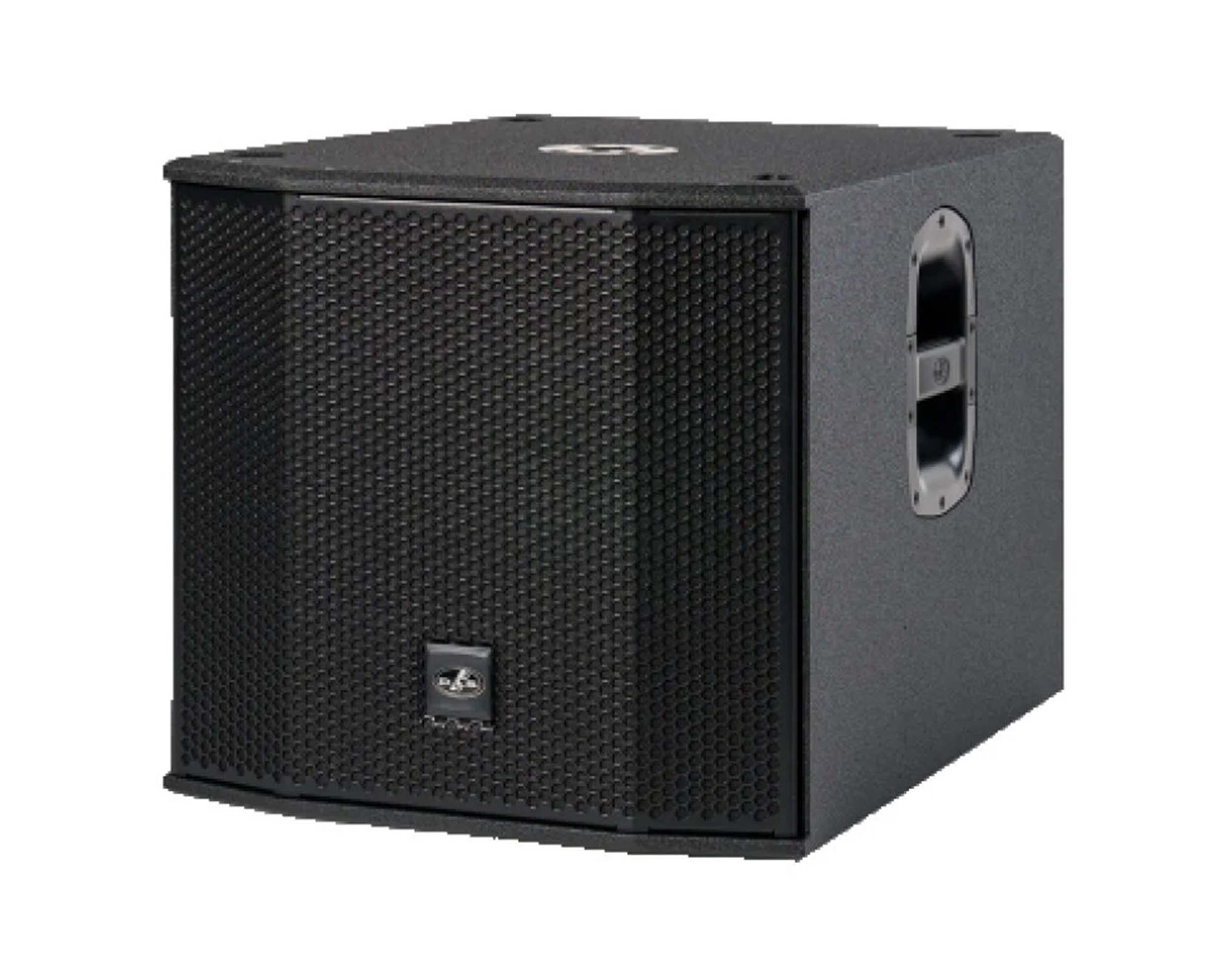

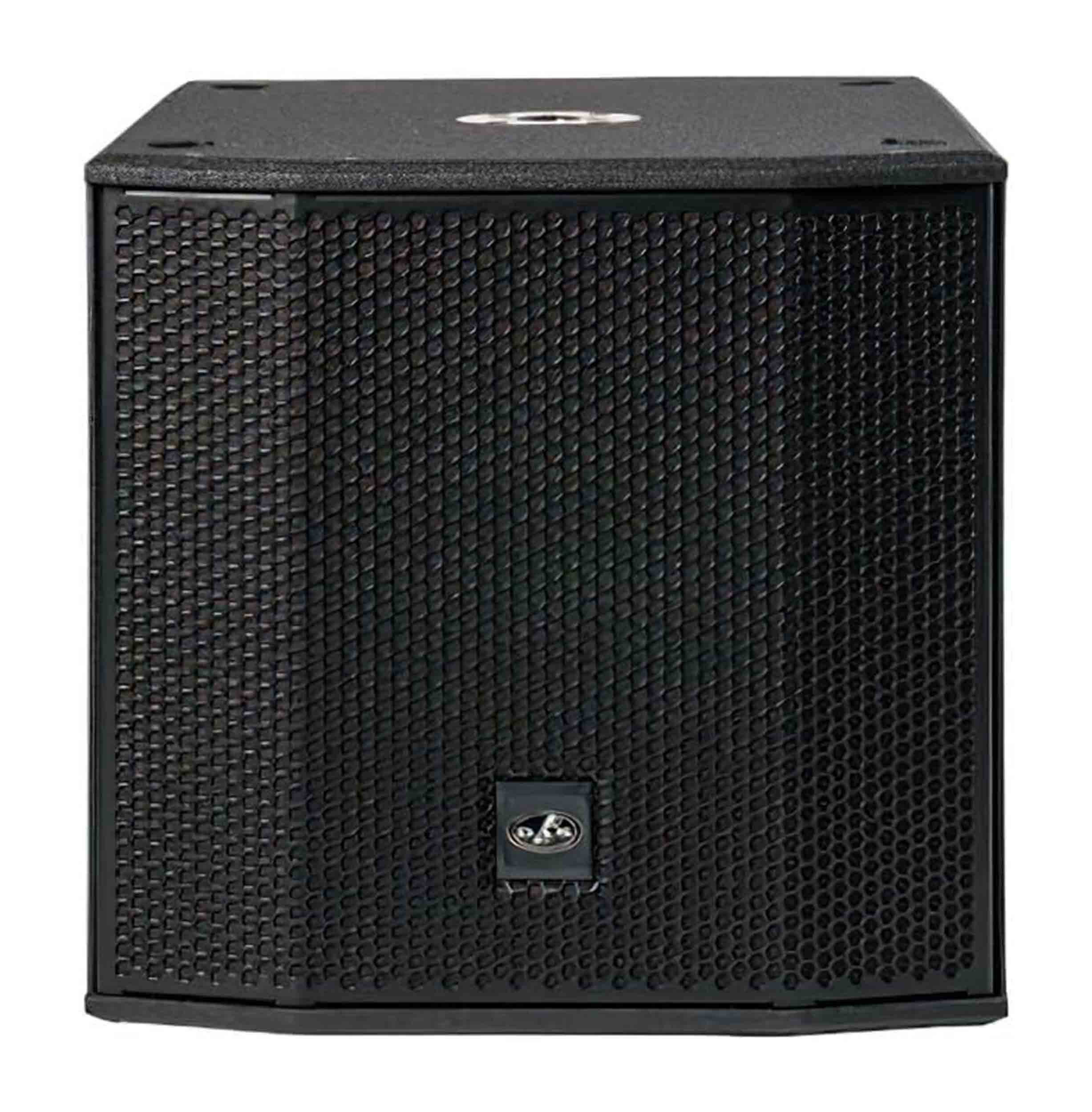

DAS Audio ALTEA-S15A, 15-Inch Powered Class D Subwoofer - Black

The DAS Audio ALTEA-S15A (ALTEA S15A) is a compact 15-inch powered bass-reflex subwoofer for portable PA, DJ and live sound systems. A Class D amplifier delivers 600 W RMS (1200 W peak) to a DAS 15FW4 woofer, for up to 131 dB maximum SPL and a 40 Hz to 125 Hz frequency range.

The 15FW4 woofer has a 3-inch voice coil and a die-cast aluminum basket for high excursion and is rated at 600 W AES. An optimized ventilation system lets it run at a high sustained load with very little power compression. The amplifier uses a wide-range switching power supply.

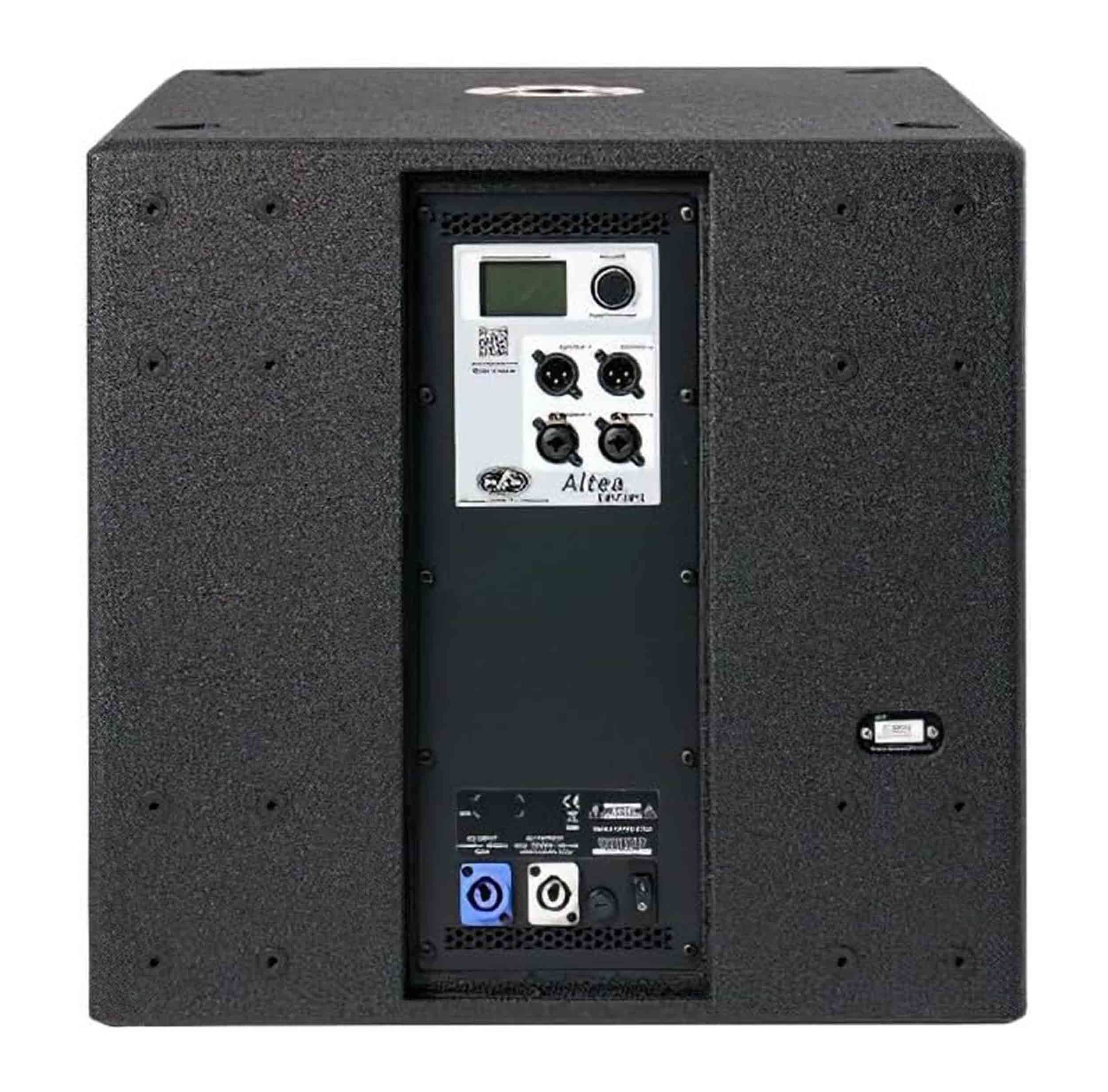

The integrated DSP is set from the DAScontrol LCD display and encoder on the rear panel. It offers adjustable crossover frequencies, two sound presets (deep and loud), and cardioid presets that let several ALTEA-S15A units work together to cut the bass energy sent to the rear. Two XLR inputs with two XLR loop-thru outputs feed your tops, and powerCON in and out links AC power.

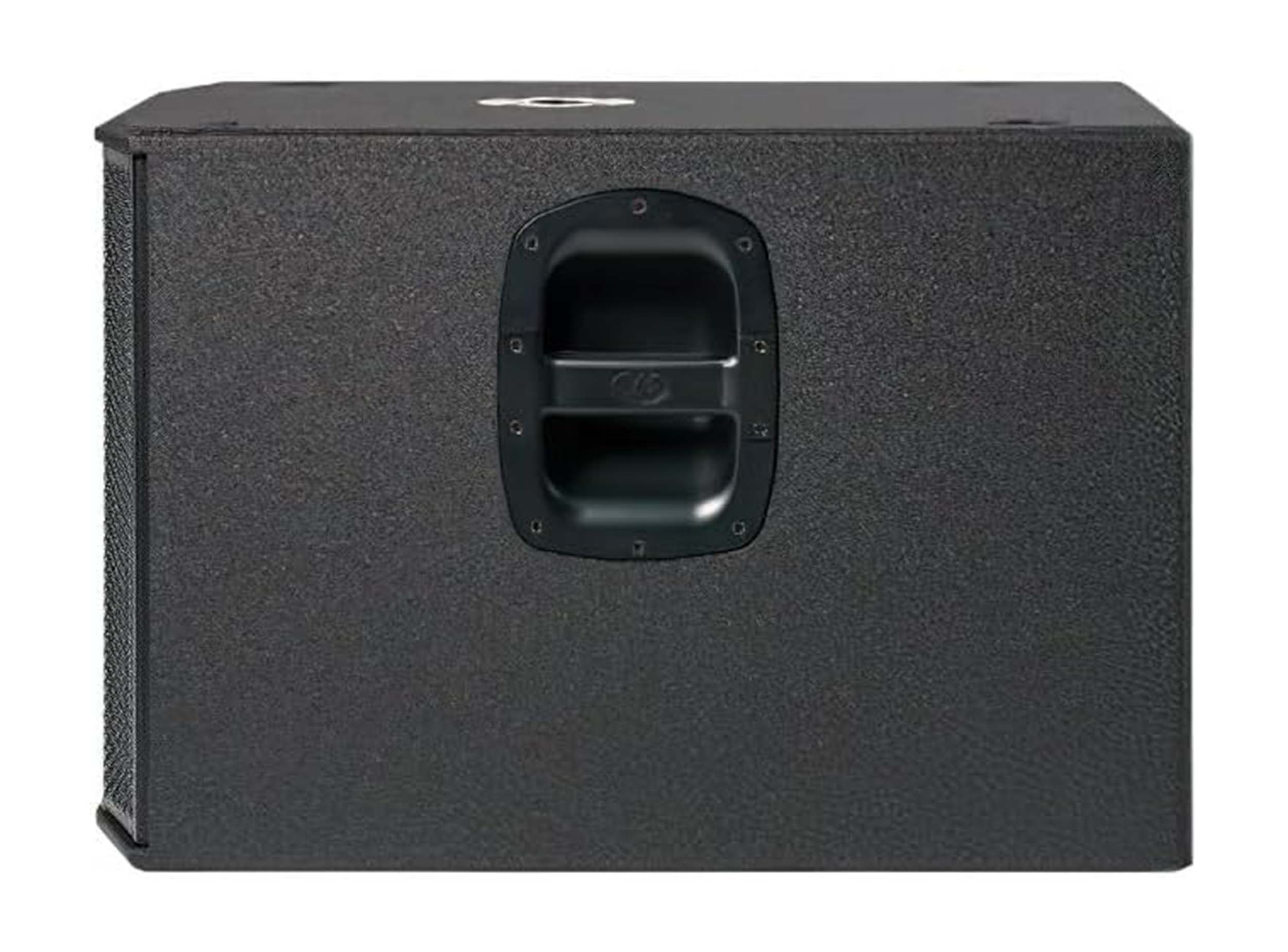

The cabinet is birch plywood finished in DAS's rugged ISOflex PU coating, with a powder-coated front grille. Two side handles make it easy to carry, and the cabinet is prepared for mounting rear wheels.

ALTEA-S15A specifications

Type	Powered bass-reflex subwoofer
Woofer	15-inch DAS 15FW4, 3-inch voice coil, die-cast aluminum basket, 600 W AES
Frequency range (-10 dB)	40 Hz to 125 Hz
Maximum peak SPL at 1 m	131 dB
Amplifier power	600 W continuous (RMS), 1200 W peak, Class D
Processing	Integrated DSP with DAScontrol LCD display and encoder: adjustable crossover, deep and loud presets, cardioid presets
Input	Balanced, 20 kohms, 1.95 V (+8 dBu) sensitivity
Signal connectors	2 x female XLR input, 2 x male XLR loop-thru
AC connectors	powerCON NAC3MPA input, powerCON NAC3MPB output
Current draw	2.8 A at 115 V, 1.4 A at 230 V
Enclosure	Birch plywood, rectangular, ISO-flex paint, black, powder-coated grille
Dimensions (H x W x D)	18.5 x 19.1 x 27.0 in (470 x 485 x 685 mm)
Net weight	66.0 lb (30.0 kg)
Carton (H x W x D)	20.3 x 20.7 x 28.2 in (515 x 525 x 716 mm)
Shipping weight	77.0 lb (35.0 kg)

How loud and how low does the ALTEA-S15A go?

It reaches 131 dB maximum peak SPL at 1 m and covers 40 Hz to 125 Hz (-10 dB), driven by 600 W RMS and 1200 W peak.

Can I set up ALTEA-S15A subs in a cardioid array?

Yes. The DSP includes cardioid presets, so a group of ALTEA-S15A units can be set up to reduce the sound energy sent behind the subs.

Can I adjust the crossover to match my tops?

Yes. The crossover frequency is adjustable from the DAScontrol display, alongside two sound presets, deep and loud.

How do I put a speaker on top of the ALTEA-S15A?

DAS lists the TRD-6 35 mm ring lock pole mount as an accessory for this sub, for use between the sub and a satellite speaker such as the ALTEA-712A or ALTEA-715A. The XLR loop-thru outputs pass signal on to the tops.

ALTEA-S15A, EVENT-115A or ALTEA-718A?

The ALTEA-S15A and the EVENT-115A share the 15FW4 woofer, 600 W continuous (1200 W peak), 40 Hz to 125 Hz and 131 dB. The ALTEA-S15A is the lighter ground-stack sub at 66.0 lb, while the EVENT-115A weighs 81.5 lb and adds captive rigging so it can fly with EVENT-26A line arrays. The ALTEA-718A moves up to an 18-inch 18FW4 woofer for 134 dB and 45 Hz to 138 Hz, at 92.6 lb with an IEC power input. Pick the ALTEA-S15A when weight and size matter most. See every model in DAS subwoofers.
