DAS Audio EVENT-26A, Powered 2-Way Compact Line Array Module - Black

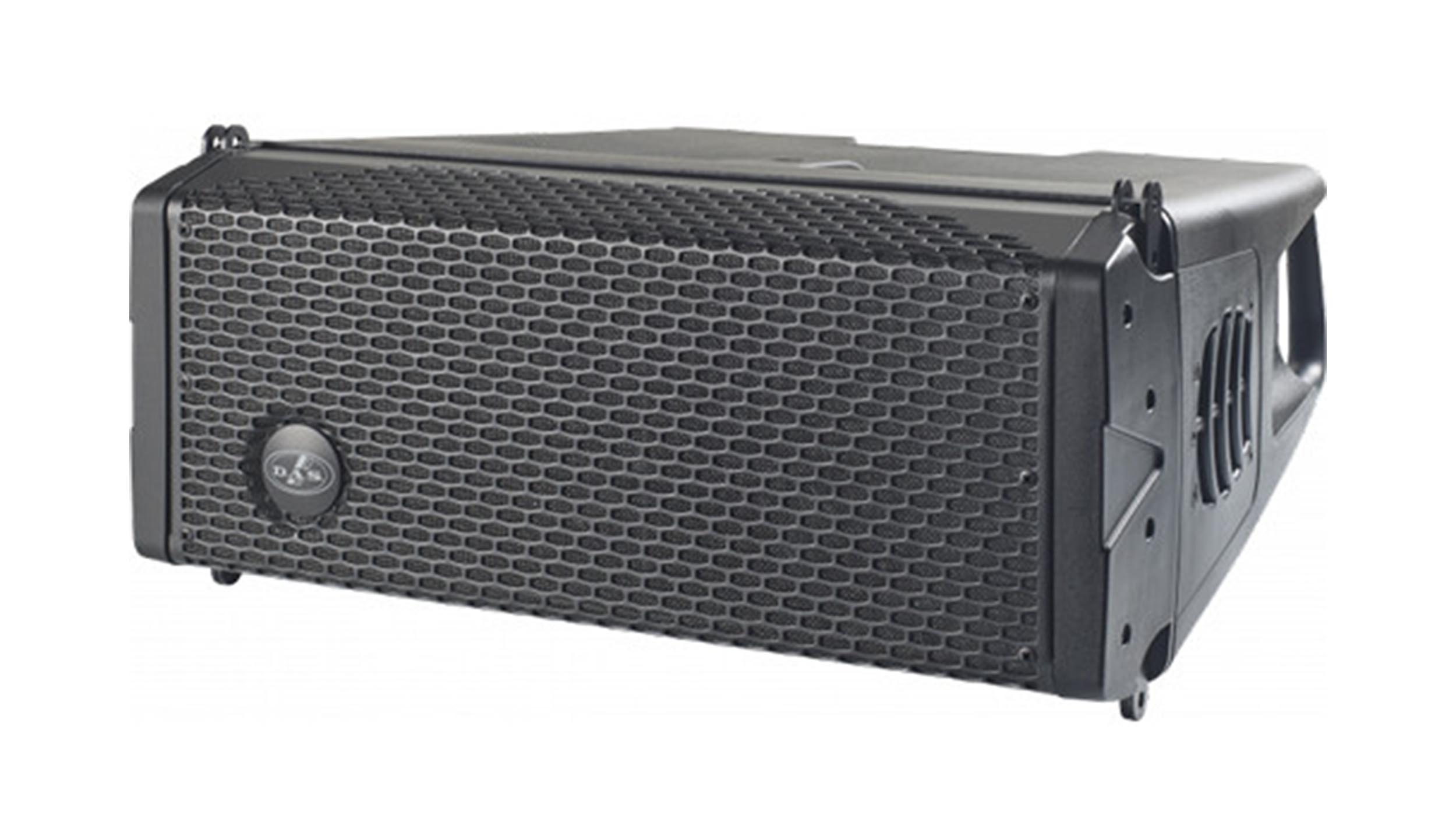

The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric «V» shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

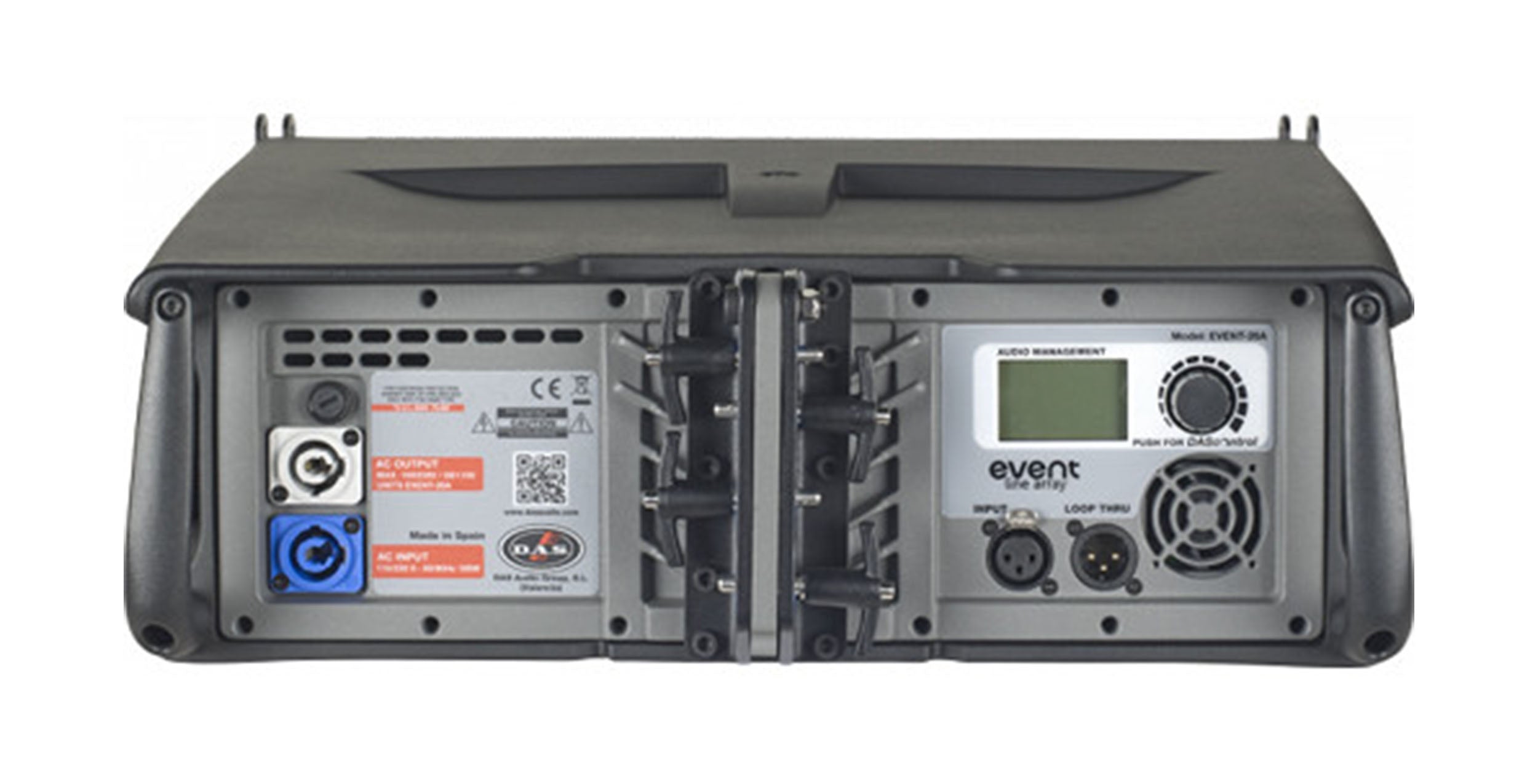

Powered by a two-channel Class D amplifier providing 800 W peak power, the amp´s rear panel includes quality Neutrik XLR and powerCON connectors. The DAScontrol interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

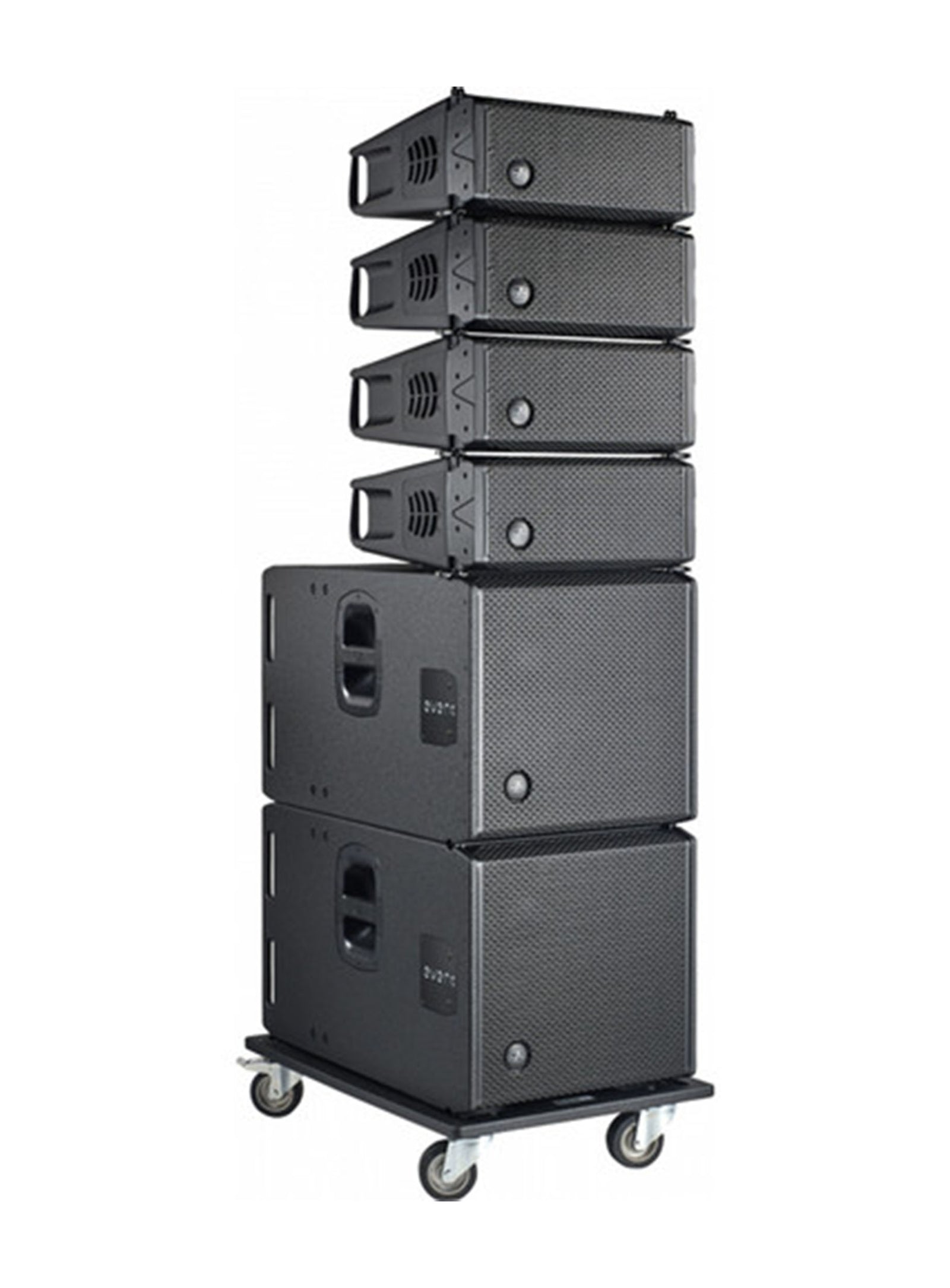

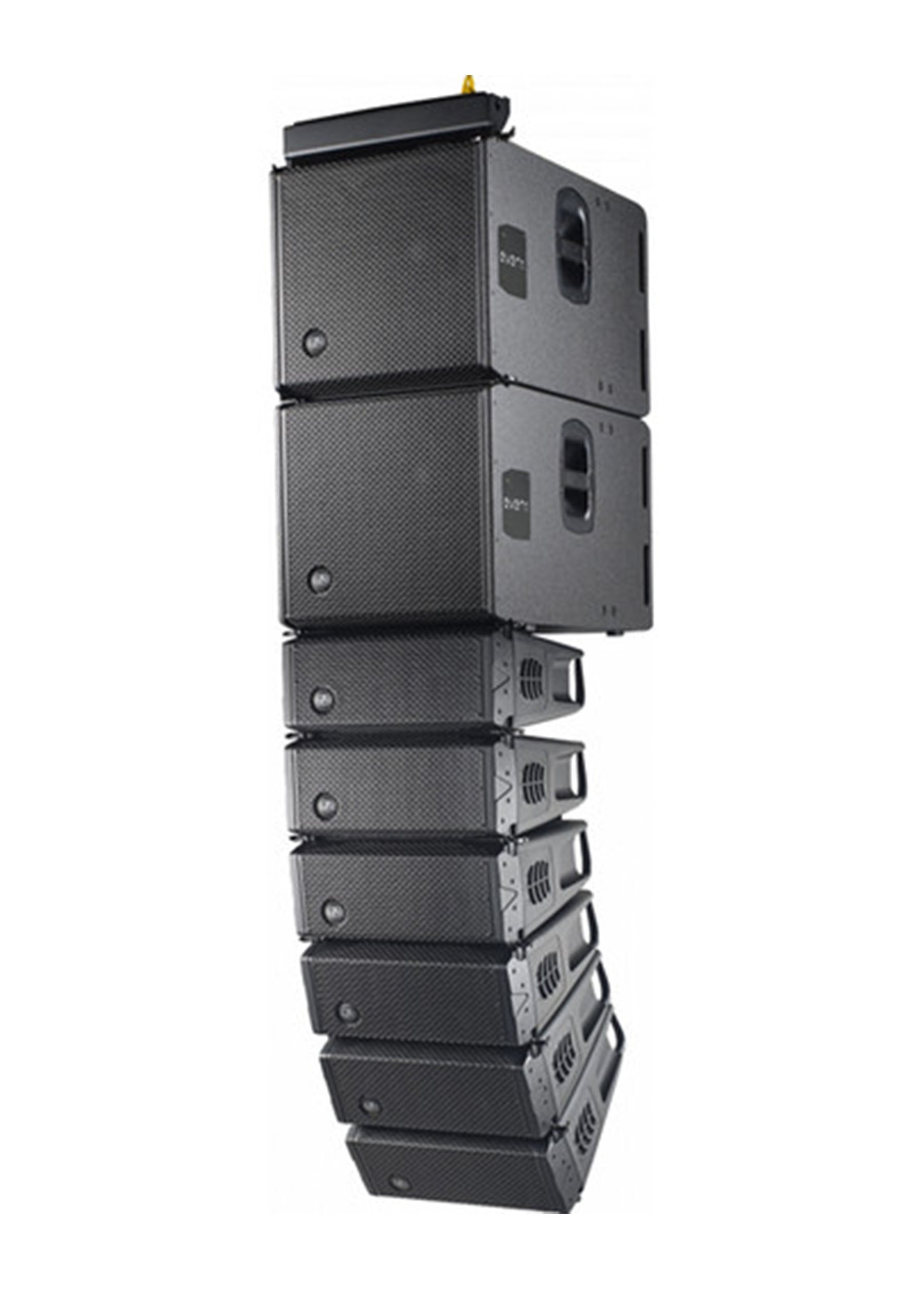

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º. Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

Product Specifications:

Frequency Range (-10 dB): 76 Hz – 19 kHz

Horizontal Coverage (-6 dB): 100º

Vertical Coverage: Splay Dependent

Maximum Peak SPL at 1 m: 131 dB

Nominal Amplifier Power (continuous): 400 W

Nominal Amplifier Power (peak): 800 W

Input Type: Balanced

Input Impedance: 20 Kohms

Input Sensitivity: 6.2 V (+18 dBu)

Audio Signal Input Connector: 1 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

AC Output Connector: powerCON NAC3MPB

Current Draw 230 V / 115 V: 0.8 A/1.6 A

Enclosure Construction: Polypropylene

Enclosure Geometry: Trapezoidal

Rigging: Captive Rigging System

Color: Black

Dimensions (H x W x D): 8,9 x 18,9 x 19,1 in"

Net Weight: 16,5 kg (36,4 lb)

Components:

LF Driver: 6MI

HF Driver: M-60

Carton Dimensions (H x W x D): 22,2 x 22,2 x 11,4 in"
