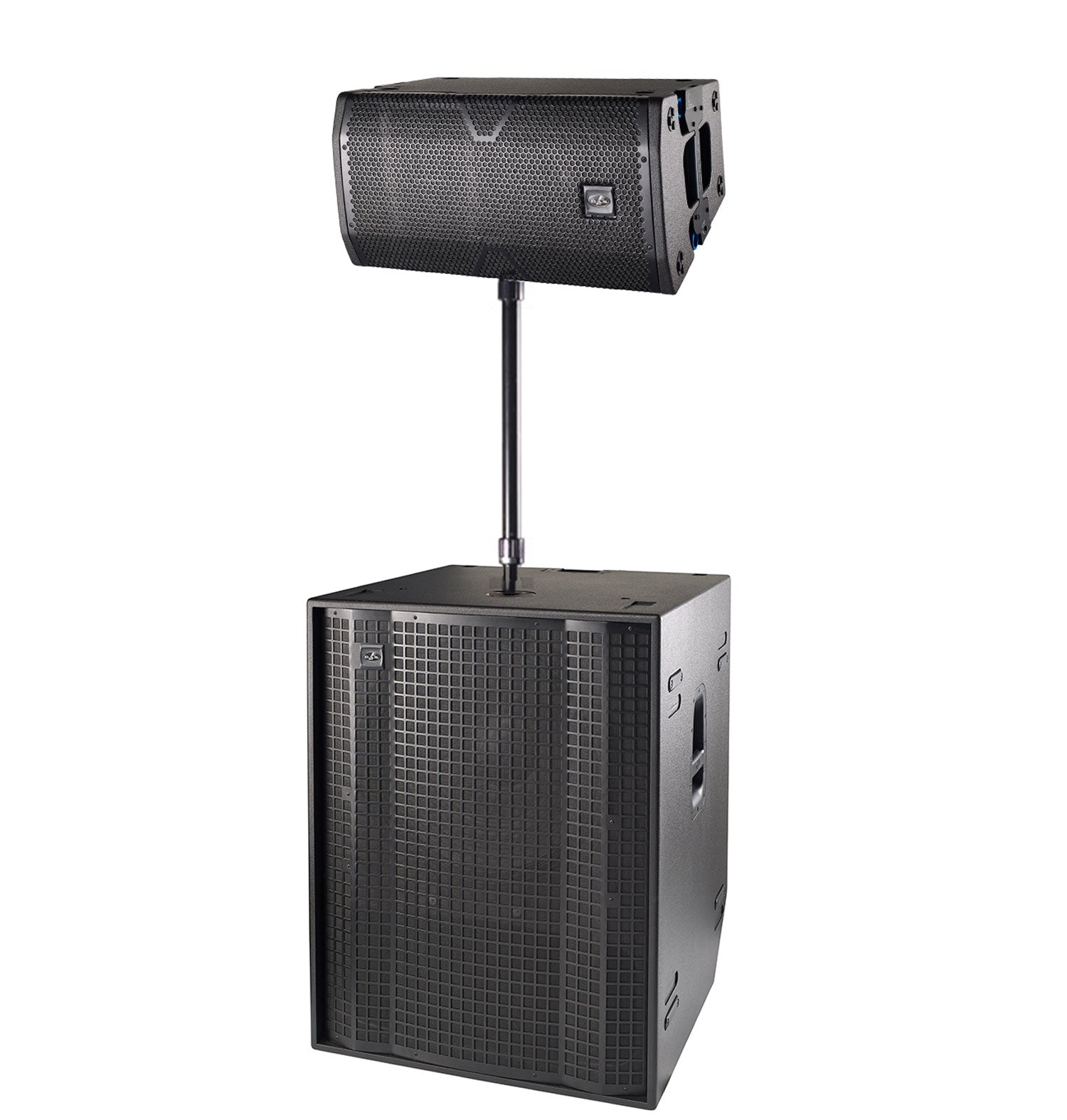

DAS Audio Powered Vantec 20A Speakers DJ Package with Powered Subwoofer and Pole Mount

Unleash powerful sound with the DAS Audio DJ Package! This premium bundle includes the DAS Audio VANTEC-20A Active 2-Way Powered Curved Source Array, delivering crisp, clear audio with its advanced design and powerful performance. Paired with the DAS Audio EVENT-121A 3200 Watt, 21-Inch Powered Subwoofer, you’ll experience deep, thunderous bass that will captivate any audience. To complete the setup, the package includes the DAS Audio TRD-6 Fixed Height Steel Ring Lock Satellite Pole with a standard pole mount, ensuring secure and optimal positioning of your speakers. Perfect for DJs, event planners, and venues, this package provides everything you need for a professional-grade sound system that will make every event unforgettable. Elevate your performances with the DAS Audio DJ Package!

DAS Audio Package Includes,

• 1 DAS Audio VANTEC-20A Active 2-Way Powered Curved Source Array Subwoofer – Black
• 1 DAS Audio EVENT-121A 3200 Watt, 21-Inch Powered Subwoofer – Black
• 1 DAS Audio TRD-6 Fixed Height Steel Ring Lock Satellite Pole with Standard Pole Mount

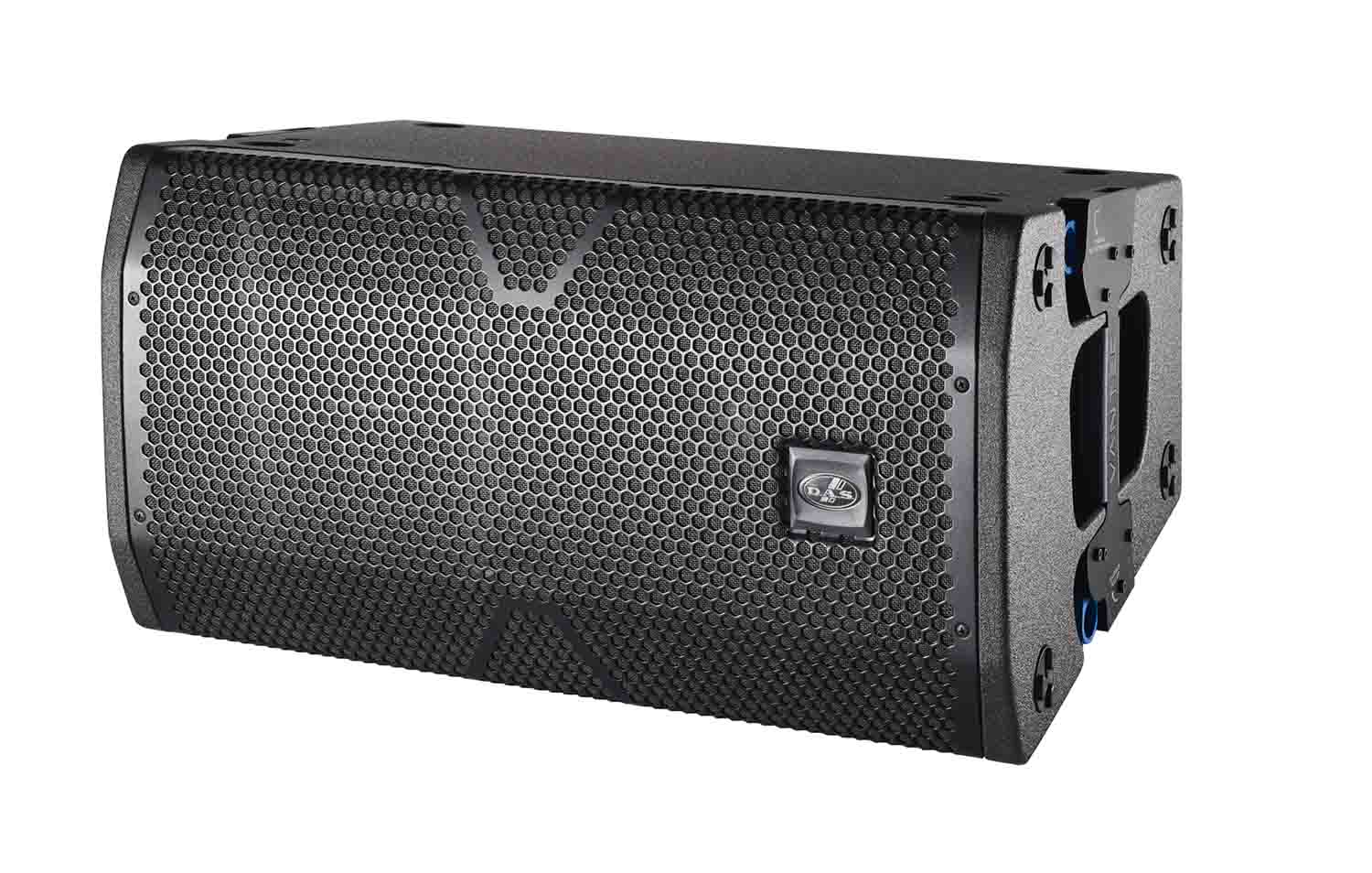

1 DAS Audio VANTEC-20A Active 2-Way Powered Curved Source Array Subwoofer – Black

The VANTEC-20A is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by today is sound hire professionals. Whether it be stacked on the VANTEC-118A companion subwoofer, flown in a compact array, or used alone on a speaker stand, the VANTEC-20A can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation.

Designed for use in arrays of up to 5 units, the VANTEC-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A. Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5º up or down tilt.

The DAScontrolTM interface allows users to easily configure the VANTEC-20A systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A  active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A is used individually, the DASlinkAPP can be used to stream music in high definition stereo and remotely control the functions of the system.

The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 W peak Class D amplifier in a bi-amplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.

Product Specifications:

Frequency Range (-10 dB): 63 Hz – 20 kHz

Horizontal Coverage (-6 dB): 90º

Vertical Coverage: 15º

Maximum Peak SPL at 1 m: 135 dB

Nominal Amplifier Power (continuous): 750 W

Nominal Amplifier Power (peak): 1500 W

Input Impeadance: 20 kohms

Input Sensitivity: Line: 3 V (+12 dBu)

Audio Signal Input Connector: 2 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

Control: DASlink, DAScontrol

AC Input Connector: powerCon NAC3FCA

AC Output Connector: powerCON NAC3FCB

Operating Range: 90-250 VAC

Current Draw 115 V: 3.0 A

Current Draw 230 V: 1.5 A

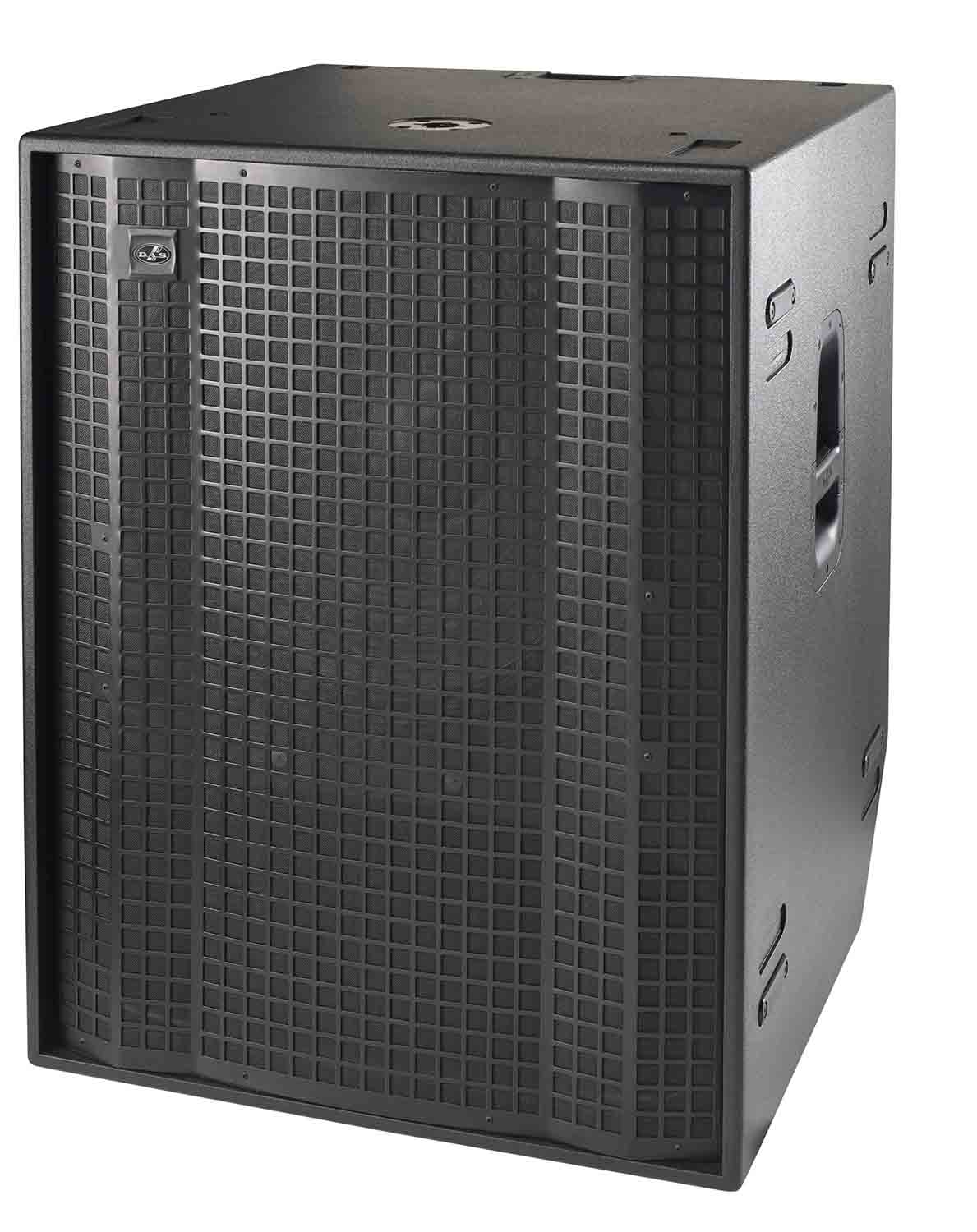

1 DAS Audio EVENT-121A 3200 Watt, 21-Inch Powered Subwoofer – Black

The EVENT-121A is a direct radiating rear-loaded powered subwoofer system that incorporates a single 21-inch neodymium loudspeaker providing earth-moving low-frequency reproduction for the Event Series line arrays. The combination of direct radiation and rear-loading provides a high output, tight and accurate sub-bass response.

The EVENT-121A employs the new DAS 21LFN loudspeaker which offers impressive features such as a 4″ sandwich split winding voice coil, a powerful FEA optimized neodymium magnet assembly and an FEA optimized suspension system with double silicon spider. The result is a loudspeaker with exceptional sensitivity, high power handling capacity and a quality suspension design capable of withstanding the stress and mechanical fatigue of today´s high-power pro audio systems. An aluminum demodulating ring benefits lower distortion and effective forced ventilation of the voice coil gap provides for a high thermal rating and reduced power compression.

The EVENT-121A electronics package includes a 3200 W peak Class D amplifier and 24-bit high-end DSP for top quality audio reproduction. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 63 Hz to 100 Hz. A unique “cardioid preset” button simplifies the use of subs in cardioid configurations, making the setup of two to three units a snap without the need for an external DSP.

The EVENT-121A is phase response coherent with the EVENT-208A, EVENT-210A and EVENT-212A active tops offering precise alignment. Two balanced inputs with stereo filtered outputs which can be switched to pass-through connections are provided.

Product Specifications:

Frequency Range (-10 dB): 30 Hz – 125 Hz

Maximum Peak SPL at 1 m: 141 dB

Nominal Amplifier Power (continuous): 1600 W

Nominal Amplifier Power (peak): 3200 W

Input Type: Balanced

Input Impedance: 20 kohms

AC Input Connector: powerCon NAC3FCA

AC Output Connector: powerCON NAC3FCB

Operating Range: 90-250 VAC

Current Draw 115 V: 7.2 A

Current Draw 230 V: 3.6 A

Dimensions (H x W x D): (965 x 740 x 755) mm, (38,0 x 29,1 x 29,7) in

Net Weight: 78,5 kg (173,1 lb)

1 DAS Audio TRD-6 Fixed Height Steel Ring Lock Satellite Pole with Standard Pole Mount

“Ring lock” pole mount. Dimensions H: 750 mm, expanding mandrel system: ø 35-37 x 102 mm

Product Specifications:

Tubes - steel, powder-coated, color black

Screws - steel, galvanized

Ring lock - aluminum
