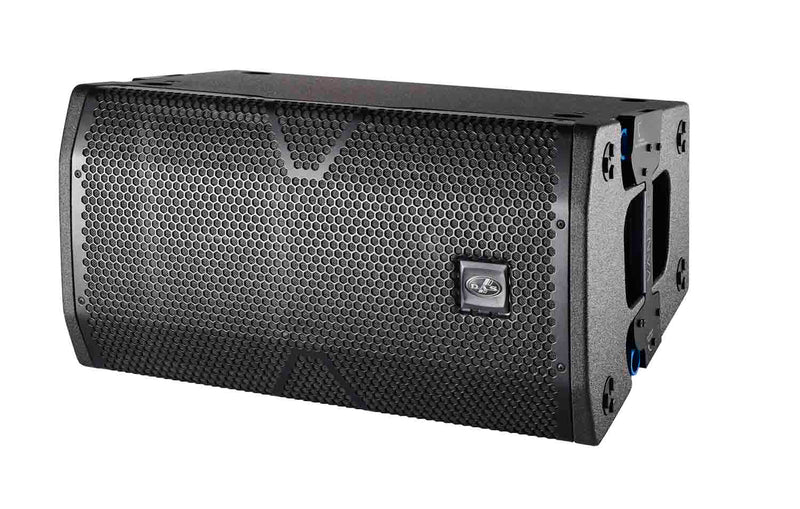

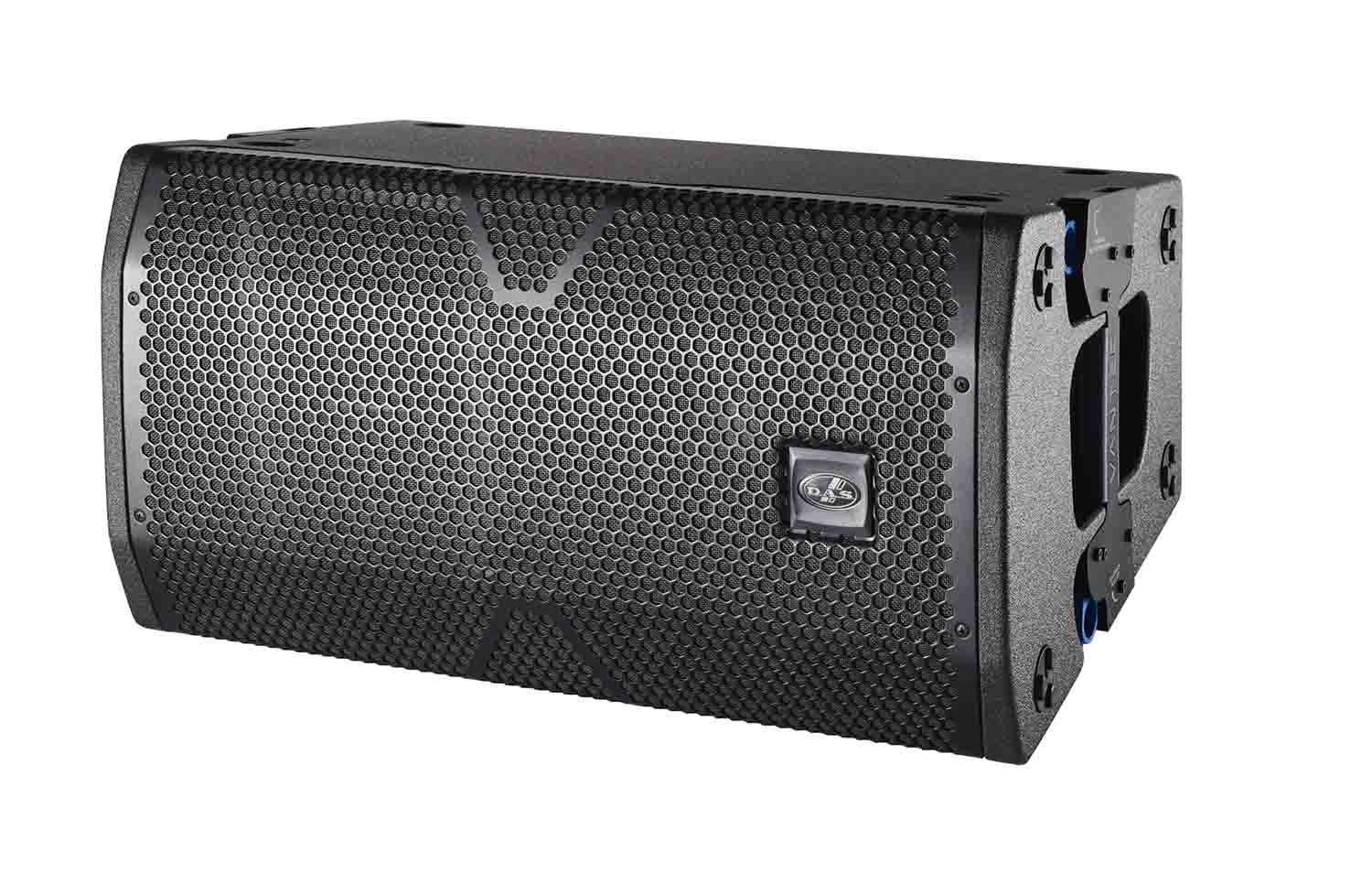

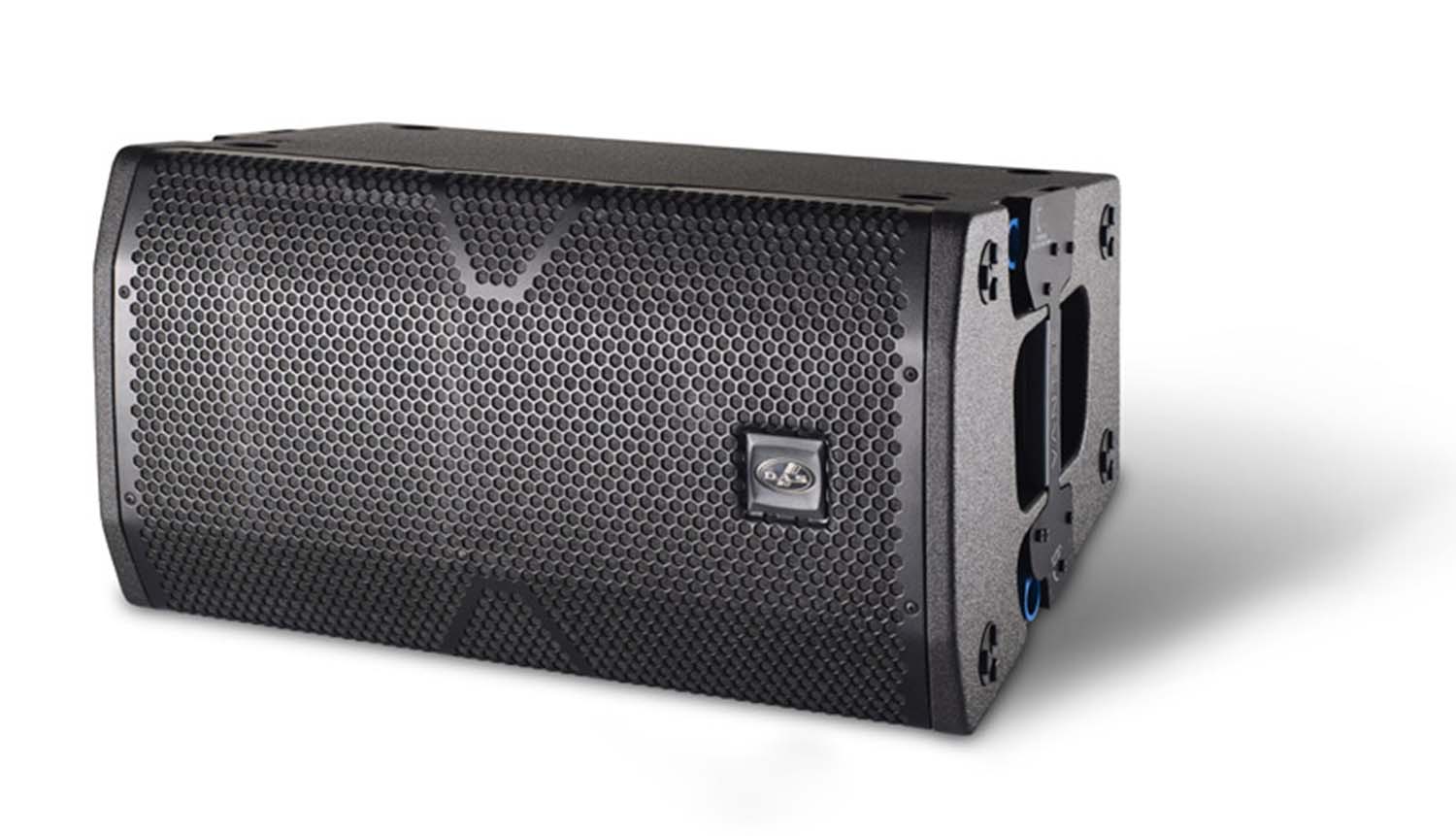

The VANTEC-20A is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by today is sound hire professionals. Whether it be stacked on the VANTEC-118A companion subwoofer, flown in a compact array, or used alone on a speaker stand, the VANTEC-20A can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation.

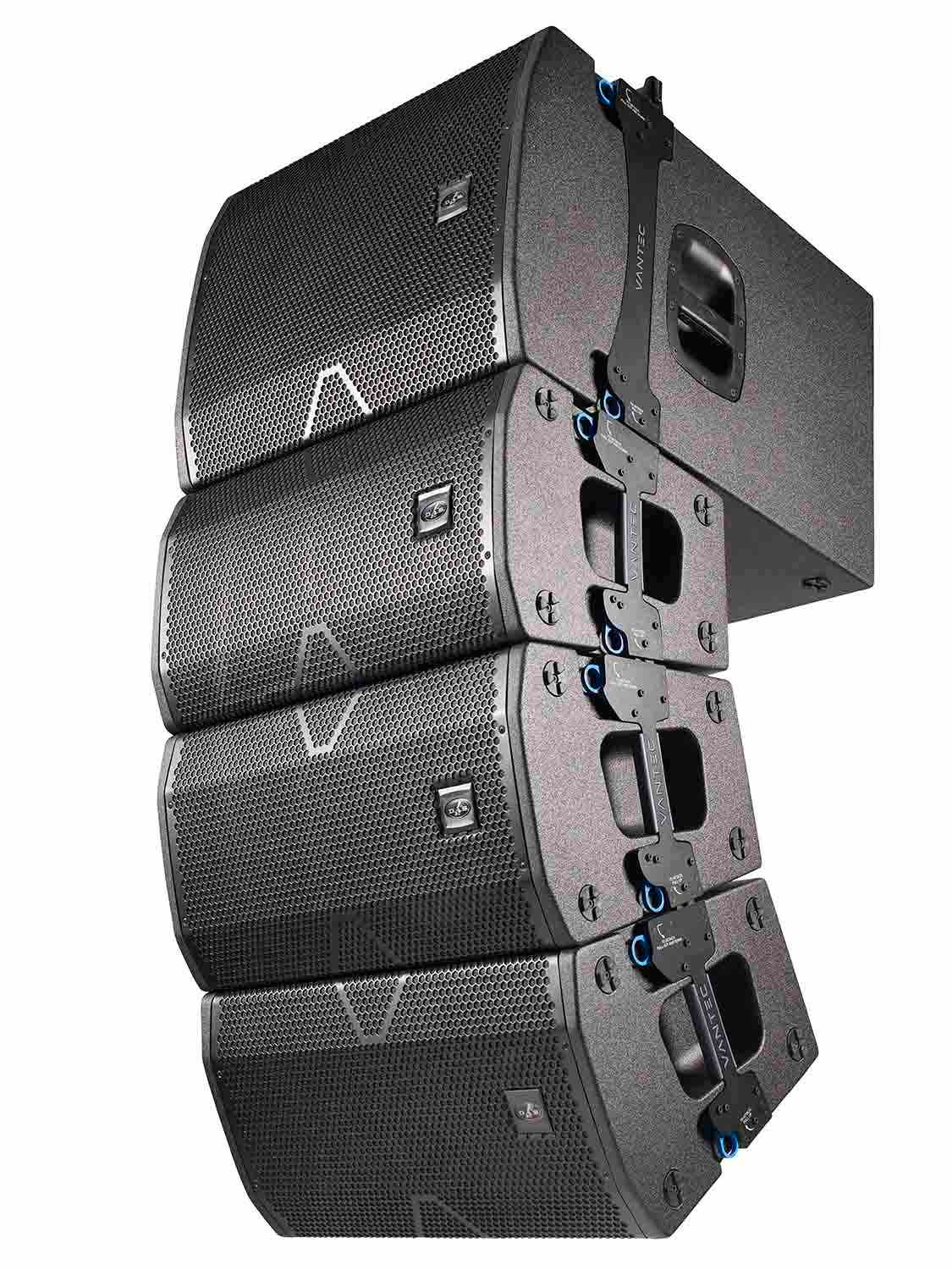

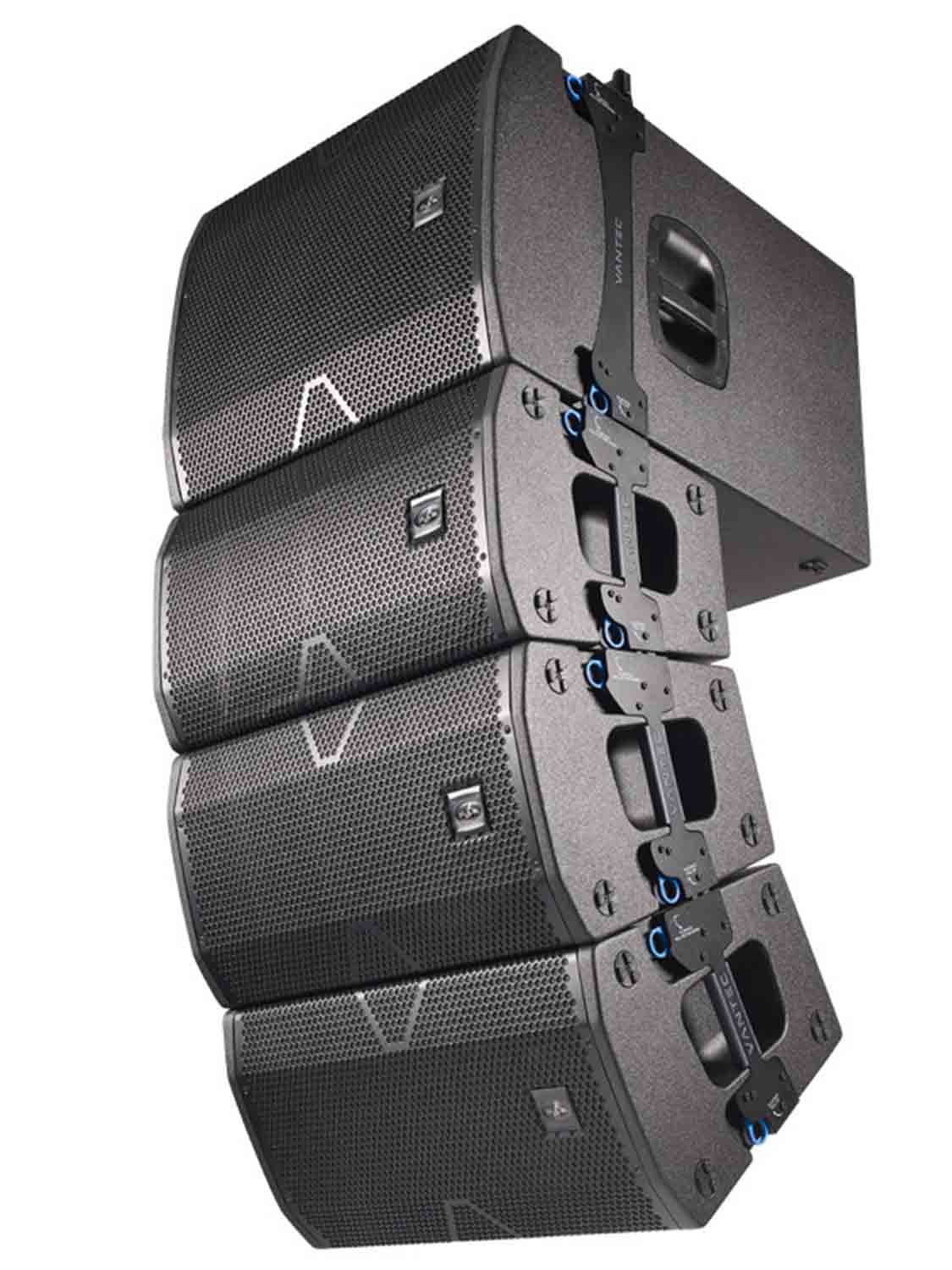

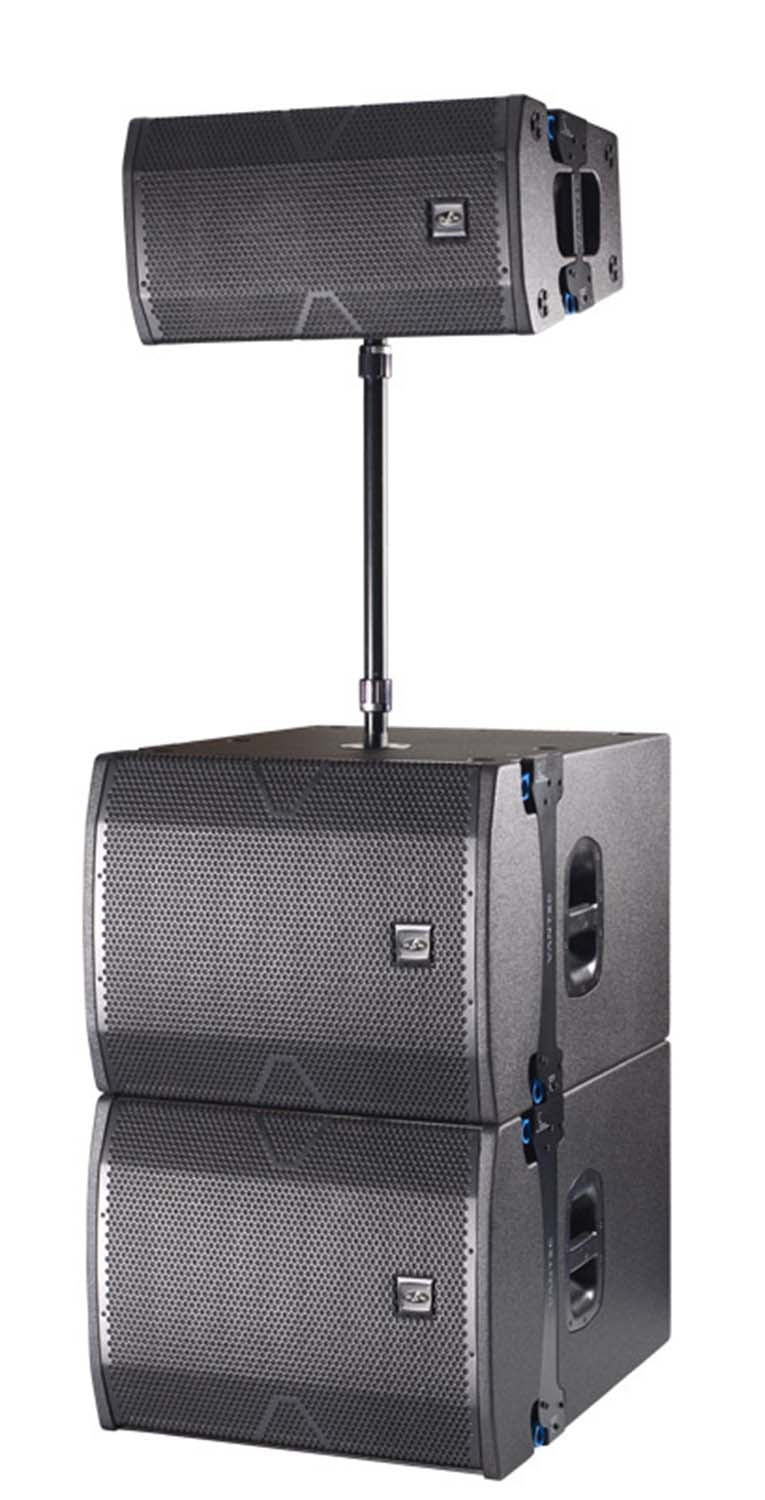

Designed for use in arrays of up to 5 units, the VANTEC-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A. Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5º up or down tilt.

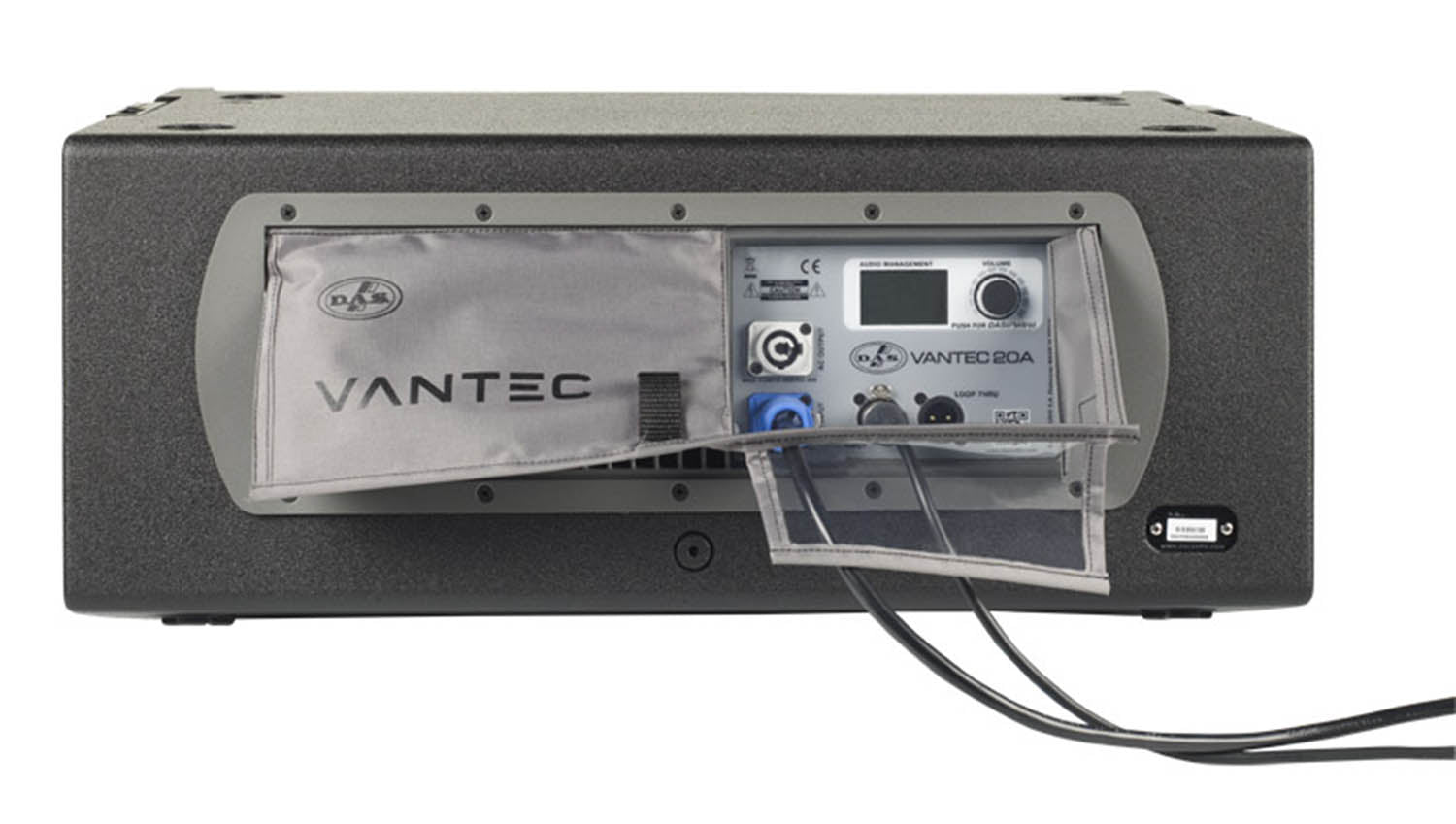

The DAScontrolTM interface allows users to easily configure the VANTEC-20A systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A is used individually, the DASlinkAPP can be used to stream music in high definition stereo and remotely control the functions of the system.
The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 W peak Class D amplifier in a bi-amplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.
Frequency Range (-10 dB): 63 Hz – 20 kHz
Horizontal Coverage (-6 dB): 90º
Vertical Coverage: 15º
Maximum Peak SPL at 1 m: 135 dB
Nominal Amplifier Power (continuous): 750 W
Nominal Amplifier Power (peak): 1500 W
Input Impeadance: 20 kohms
Input Sensitivity: Line: 3 V (+12 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
Control: DASlink, DAScontrol
AC Input Connector: powerCon NAC3FCA
AC Output Connector: powerCON NAC3FCB
Operating Range: 90-250 VAC
Current Draw 115 V: 3.0 A
Current Draw 230 V: 1.5 A
