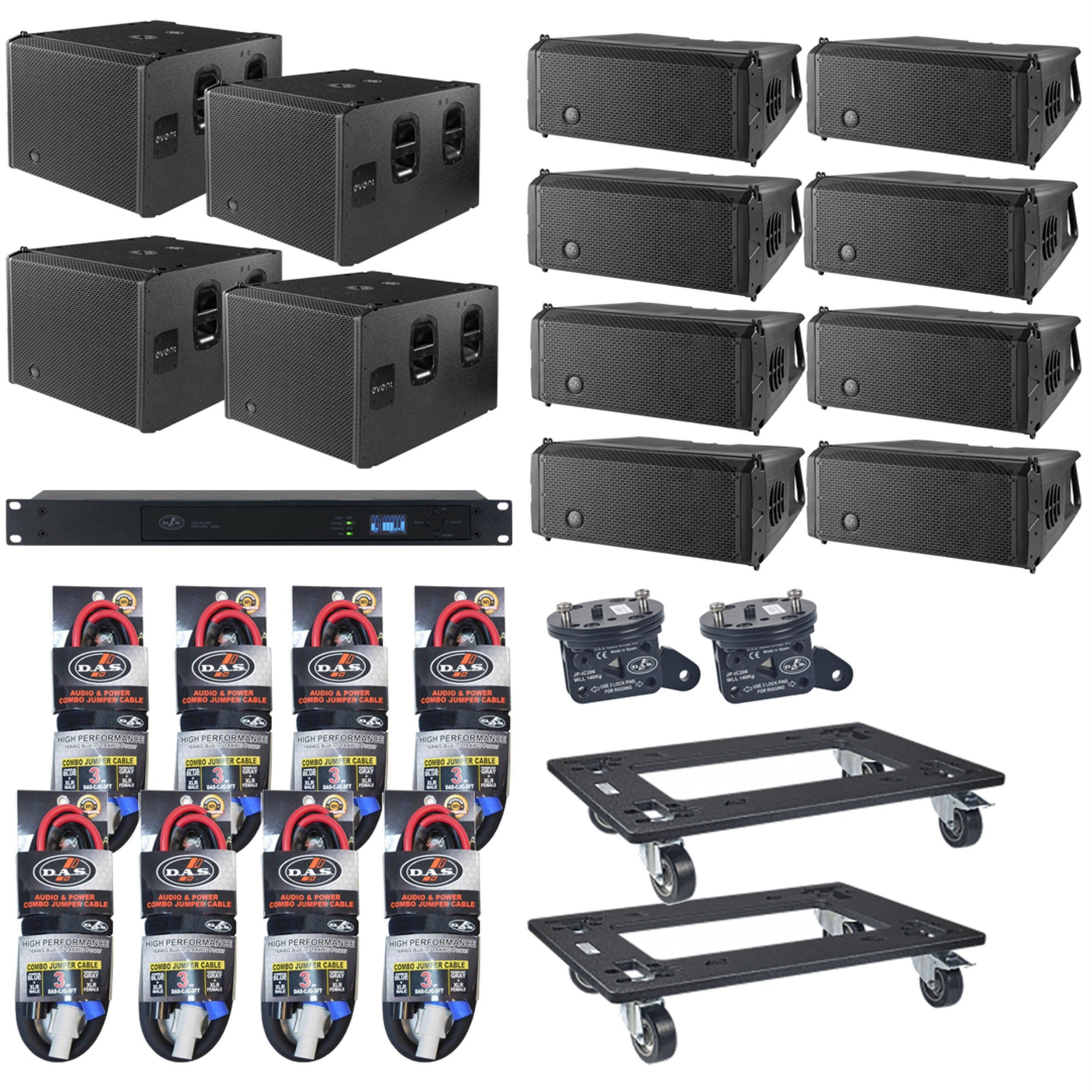

DAS Audio Event 28A Powered Line Array Speakers w/ Event 118A - Kit

Package Includes:

• 8 DAS Audio EVENT-28A, Active 2x8" Line Array Module - Black
• 4 DAS Audio EVENT-118A, 1 x 18″ Active Front-Loaded Subwoofer System
• 8 DAS Audio DAS-CJC-3FT, 3 Feet Audio Combo Jumper Cable
• 2 DAS JP-EV28 Joining plate for 8 units of EVENT-28A with EVENT-118A
• 1 DAS Audio INTEGRAL-M26X, 1U Rack-Mount Digital Signal Processor
• 2 DAS Audio PL-EV118S, Wooden Transport Dolly for EVENT-118A - Black

This Speaker package includes the DAS Audio EVENT-28A Active 2x8" Line Array Module with 1300 Wpeak Class D amplification, FIR filtering and FSS rigging for precise, powerful coverage combined with the EVENT-118A Powered 18" Subwoofer delivering 2000 Wpeak deep bass with cardioid presets and matching rigging, along with the DAS-CJC-3FT Combo Jumper Cable for quick power and audio linking and the JP-EV28 Joining Plate for secure array-to-subwoofer connections, paired with the INTEGRAL-M26X 1U DSP Processor featuring advanced EQ, delay and remote control via ALMA software, and completed with the PL-EV118S Wooden Transport Dolly for easy subwoofer mobility.

8 DAS Audio EVENT-28A, Active 2x8" Line Array Module - Black

The DAS Audio EVENT-28A, Active 2x8" Line Array Module is an advanced two-way powered line array system, designed for exceptional performance and user-friendly operation. Its portable polypropylene cabinet is stylish, durable, and suitable for small to mid-size rental and installation applications. The system incorporates two 8" neodymium transducers and a single M-60 compression driver in a robust yet lightweight polymer cabinet, ensuring efficient sound projection and superior low-frequency response. The symmetric "V" shaped configuration delivers consistent 100º horizontal coverage down to 200 Hz. Powered by a two-channel Class D amplifier with 1300 Wpeak power, it features high-quality Neutrik XLR and powerCON connectors, DAScontrol interface for preset selection, and onboard DSP for crossover, EQ, delay, and limiter functions.

The EVENT-28A's FIR filtering technology maintains constant phase response, providing transparent sound and exceptional clarity. Installation is streamlined with the Fast Set Splay (FSS) rigging system, supporting flown arrays of up to 16 units.

Product Specifications:

Frequency Range (-10 dB): 70Hz – 20kHz

Horizontal Coverage (-6 dB): 100th

Vertical Coverage: Splay Dependent

Maximum Peak SPL at 1 m: 133 dB

Nominal Amplifier Power (continuous): 650W

Nominal Amplifier Power (peak): 1300W

Nominal Amplifier Power LF (continuous): 500W

Nominal Amplifier Power LF (peak): 1000W

Nominal Amplifier Power HF (continuous): 150W

Nominal Amplifier Power HF (peak): 300W

Input Type: Balanced

input impedance: 20 kOhms

Input Sensitivity: 6.2 V (+18 dBu)

Audio Signal Input Connector: 1 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

Recommended Signal Processing: INTEGRAL-M26X

AC Output Connector: powerCON NAC3MPB

Current Draw 230V / 115V: 1.2 A / 2.4 A

Enclosure Construction: Polypropylene

Enclosure Geometry: Trapezoidal

Rigging: Captive Rigging System

Color: Black

Dimensions (H x W x D): 280 x 635 x 525 mm

11.0 x 25.0 x 20.7 in

Net Weight: 20.5 kg (44.1 lb)

HF Driver: M-60

Carton Dimensions (H x W x D): 715 x 600 x 335 mm

28.2 x 23.6 x 13.2 in"

4 DAS Audio EVENT-118A, 1 x 18″ Active Front-Loaded Subwoofer System

The EVENT-118A is a robust powered subwoofer system that incorporates a front-loaded 18” low-frequency transducer developed by DAS, designed to deliver profound and accurate bass reinforcement. As the companion subwoofer for the EVENT-28A, it shares a compatible rigging system, allowing for seamless integration whether the EVENT-28A is flown from or stacked above the EVENT-118A.

The 18FWN 18″ loudspeaker, engineered by DAS, is central to the EVENT-118A’s powerful performance. Optimized using Finite Element Analysis (FEA) and equipped with neodymium magnets for reduced weight, the 18FWN offers an extended 3″ voice coil for high efficiency and long excursion. This design allows for a power handling capacity of 2000 Wpeak, ensuring the subwoofer delivers deep, impactful bass. Efficient cooling is achieved through the vented pole piece and numerous apertures in the speaker’s back plate, which significantly reduce power compression and enable high acoustic output over extended periods.

The system is driven by a cutting-edge 2000 Wpeak Class D amplifier, providing ample power for any setting. Quality Neutrik XLR input connectors and stereo “loop thru” outputs on the rear panel provide signal continuity for the EVENT-28A systems or other components in a larger setup. Digital presets accessible via the DAScontrol interface on the rear of the cabinet simplify system configuration, making setup quick and user-friendly. The EVENT-118A also offers a simple selection of cardioid presets when used in pairs or groups of three units, effectively minimizing rearward sound radiation and optimizing bass coverage.

Constructed from Birch plywood, the EVENT-118A’s enclosure is robust and designed for longevity. The cabinet is finished with DAS ISO-flex protective coating, enhancing durability and making it suitable for both installation and touring applications. The rigging hardware is fully compatible with the EVENT-28A, allowing various configurations, whether flown or stacked. Additionally, a pole mount socket on the top of the unit supports combo configurations with the EVENT-28A or other compatible full-range systems.

Product Specifications:

Frequency Range (-10 dB): 35 Hz – 125 Hz

Maximum Peak SPL at 1 m: 134 dB

Nominal Amplifier Power (continuous): 1000 W

Nominal Amplifier Power (peak): 2000 W

Input Type: Balanced

Input Impedance: 20 kOhms

Input Sensitivity: 1.95 V (+8 dBu)

Audio Signal Input Connector: 2 x Female XLR

Audio Signal Loop Thru Connector: 2 x Male XLR

Control: DAScontrol

AC Output Connector: powerCON NAC3MPB

Current Draw 230 V / 115 V: 2.1 A/4.2 A

Enclosure Construction: Birch Plywood

Enclosure Geometry: Rectangular

Rigging: Captive Rigging System

Finish: ISO-flex Paint

Color: Black

Dimensions ( H x W x D ): 510 x 635 x 840 mm

20,0 x 25,0 x 33,0 in

Net Weight: 43,0 kg ( 94,8 lbs )

Shipping Dimensions ( H x W x D ): 560 x 690 x 920 mm

22,0 x 27,2 x 36,2 in

Shipping Weight: 49,0 kg ( 108,0 lbs )

8 DAS Audio DAS-CJC-3FT, 3 Feet Audio Combo Jumper Cable

The 3-Feet D.A.S. Combo Jumper Cable is a specialty interconnect cable allowing you to quickly and easily pass power and audio signals between speakers. The jumper features a 14 AWG power cable with PowerCon connectors and a 16 AWG audio cable with XLR connectors.

Product Specifications:

Connectors: 2 x PowerCon, 2 x XLR

Cable Length: 3.0' / 0.9 m

Weight: 0.70 lbs

2 DAS JP-EV28 Joining plate for 8 units of EVENT-28A with EVENT-118A

The DAS Audio JP-EV28 Joining Plate is designed for securely assembling EVENT-28A line array speakers with EVENT-118A subwoofers. Built from durable materials with a black finish, it ensures a stable and precise connection for professional sound setups.

Product Specifications:

Type: Joining plate

Compatibility: EVENT-28A / EVENT-118A

Color: Black

1 DAS Audio INTEGRAL-M26X, 1U Rack-Mount Digital Signal Processor

The D.A.S. Audio INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.

Remote control and monitoring are possible via ALMA software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54″ OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.

The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers. External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA software.

Product Specifications:

Frequency Response: 20 Hz-30 kHz (+0 -0.5 dB)

Max Input Level: +22 dBu

Max. Output Level: +22 dBu

Controls: Power On/Off, Navigation Buttons

Sampling Rate: 48 kHz

Display OLED: 1.54″

Cooling: Side-Right-to-Left

LED Indicators: On, Comms, Signal, Limit

AC Input Connector: IEC 15A

Power Supply: Universal Mains Switch Mode

Operating Range: 90 – 250 VAC

Analog Input Channels: 2

Analog Output Channels: 6

AD Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range

DA Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range

Internal Precision: 32 Bit, 64 Bits Double Precission

Latency: 1 ms

Delay: 50ms per input / 135ms per output

Equalizer: Bell, Lo/Hi-Shelving, Hos

Crossover: Linkwitz-Riley, Butterworth, Bessel

High and Low Pass Filters: Up to 48 dB/oct

Limiters: RMS

Dimensions (H x W x D): 44 x 483 x 210 mm

1,7 x 19,0 x 8,3 in

Net Weight: 2,5 kg (5,5 lbs)

2 DAS Audio PL-EV118S, Wooden Transport Dolly for EVENT-118A - Black

The DAS Audio PL-EV118S is a wooden transport dolly specifically designed for the EVENT-118A subwoofer. It functions as a platform to aid in the easy movement and positioning of the subwoofer during events or setups.

Product Specifications:

Type: For EVENT-118A

Material: Wood

Shipping Weight: 24 lbs

Shipping Dimensions: 32 x 28 x 7 in
