Description

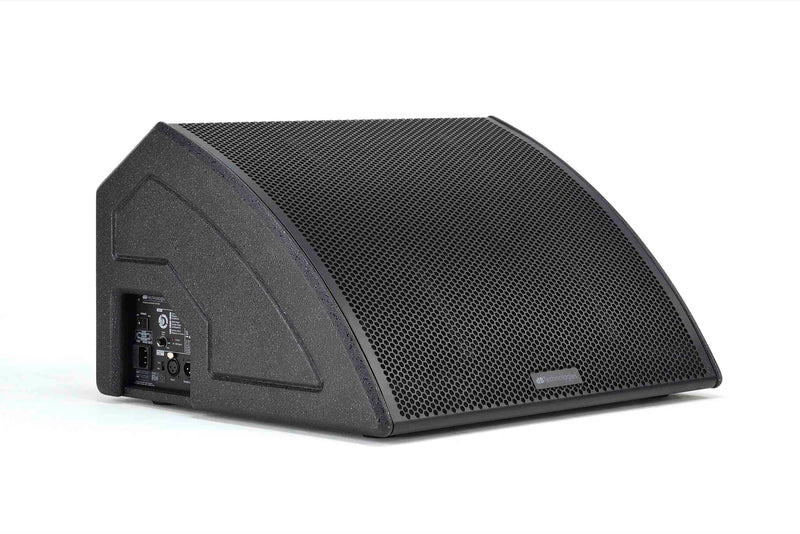

The dB Technologies FMX 15 (FMX15) is a 15-inch, 2-way active coaxial stage monitor with a Class D amplifier rated at 1200 W peak (600 W RMS), 128 dB max SPL and a 46 Hz to 19,000 Hz range (-10 dB). It is the deepest-reaching wedge in the FMX series, for bands, singers and DJs who want more low end in the monitor mix, and its rotatable horn switches coverage between 60 x 90 and 90 x 60 degrees.
The coaxial driver layout, the custom horn and DSP with linear phase FIR filters give an even, intelligible sound across the wedge's coverage. Eight onboard presets adjust the EQ for different uses. The plywood cabinet has a front-rear grille, one handle built into the bottom and a 36 mm pole mount on the side panel.
FMX 15 specifications
| Type | 2-way active coaxial stage monitor |
|---|---|
| Amplifier | Class D, 1200 W peak (600 W RMS) |
| Max SPL | 128 dB |
| Frequency response (-10 dB) | 46 Hz to 19,000 Hz |
| HF | 1 in, 1.3 in voice coil |
| LF | 15 in, 2 in voice coil |
| Directivity | 60 x 90 degrees, rotatable horn (90 x 60) |
| Processing | DSP 28/56-bit, 24-bit / 48 kHz AD/DA, FIR filters |
| Presets | 8 |
| Limiter | Peak, RMS, thermal |
| Crossover | 1740 Hz, 24 dB/octave |
| Cabinet | Plywood, multifunctional design, front-rear grille |
| Handle | 1, integrated on the bottom side |
| Pole mount | 36 mm, on the side panel |
| Dimensions (W x H x D) | 22.83 x 13.38 x 19.68 in (580 x 340 x 500 mm) |
| Weight | 37.2 lb (16.9 kg) |
Can I change the FMX 15's coverage pattern?
Yes. Rotate the horn to switch between 60 degrees horizontal by 90 vertical and 90 degrees horizontal by 60 vertical, to suit how the performer moves on stage.
Can the FMX 15 go on a speaker pole?
Yes. It has a 36 mm pole mount on the side panel, so it can work on a stand as well as on the floor as a wedge.
Does the FMX 15 have EQ presets?
Yes. It has 8 onboard presets that adjust the EQ for different needs, running on 28/56-bit DSP with linear phase FIR filters.
How heavy is the FMX 15?
37.2 lb (16.9 kg), with one handle built into the bottom of the cabinet.
FMX 15, FMX 12 or FMX 10?
The FMX 15 has a 15-inch woofer, 1200 W peak, 128 dB max SPL and reaches down to 46 Hz. The FMX 12 has the same amplifier, max SPL and 1.3-inch HF voice coil with a 12-inch woofer, reaching 52 Hz at 30.6 lb (13.9 kg). The FMX 10 is the compact option: 10-inch woofer, 800 W peak (400 W RMS), 125 dB, 57 Hz and 24.9 lb (11.3 kg). See all stage monitors.
