Denon Professional DN-300Z Audio Recording and Playback Media Player

Media PlayerThe Denon DN-300Z Audio Recording and Playback Media Player is an all-in-one audio player you can count on when the whole room is listening. Ideal for front-of-house, education, music and rehearsal studios, houses of worship, restaurants and more, it has an answer to every request all consolidated into a compact 1RU design. Extending Denon Professional’s dedication to powerful solutions that are easy-to-use, the DN-300Z plays the media of both today and tomorrow, in formats easily accessible to any user.

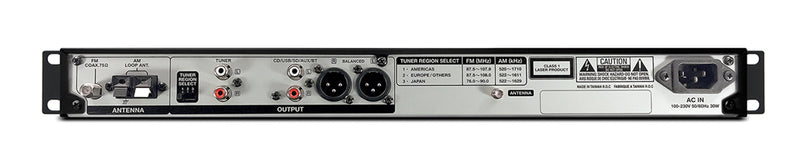

It really does expect the unexpected. Go ahead, throw anything you want at it: Front-loading media slots (CD w/single-play mode, USB, SD/SDHC) deliver intuitive playback of today’s familiar mass-storage mediums. Or, go wireless with long-range Bluetooth audio connectivity (up to 100 feet) and instant recall of up to 8 devices such as smartphones and tablets. With support for CD-DA, MP3, WAV, and AAC file formats, the DN-300Z is the master-of-all-trades player that excels when the unpredictable occurs. The 300Z features both RCA audio outputs and balanced XLR outputs. The balanced outputs are a much-needed feature in the professional/commercial sector, since they enable long connection cable runs without any increase in stray noise pickup.

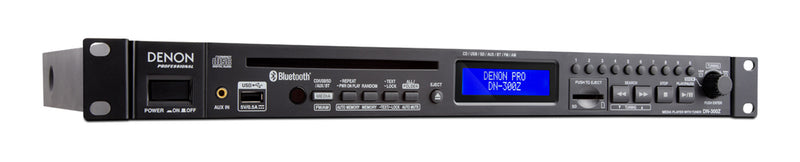

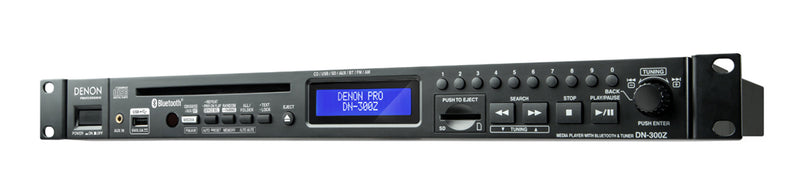

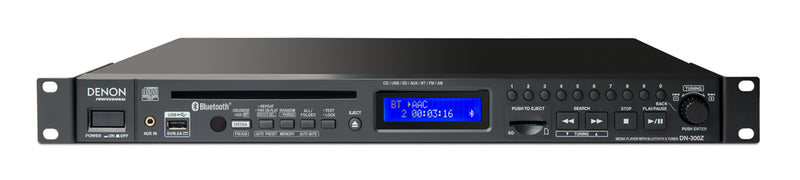

The front panel’s backlit LCD screen provides at-a-glance status of playback modes and content, providing clear readouts to even the most novice user. Designed to adapt to any scenario, switching formats on the fly has never been easier. Media categories and their respective controls are grouped together so users will never have to wrestle with deep menus or use the instruction manual to perform basic functions. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content.

An IEC-weighted AC power port means space-saving connection to power sources—no bulky transformers or “wall warts” required. When installed into a client’s rack, the DN-300Z provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package.

Product Specifications:

Playable File Formats:

CD: CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD

USB: FAT16, FAT32

SD/SDHC: FAT16, FAT32

Supported Formats & Resolutions:

Supported WAV Format

Extension: WAV

Bitrate: 16–bit

Sampling Frequency: 44.1 kHz

Supported AAC Format

Extension: M4A

Compression Method: AAC-LA

Bitrates: 32 to 320 kbps and VBR

Sampling Frequency: 44.1 kHz

Supported MP3 Format

Extension: MP3

Bitrates: 32 to 320 kbps and VBR

Sampling Frequency: 44.1 kHz

Number of Channels: 2 (stereo), 1 (mono)

Frequency Response: 10 Hz to 20 kHz (±1.0dB)

Signal to Noise Ratio: >95 dB (A-weighted)

THD: <0.01%

Dynamic Range: >85 dB

Channel Separation: >80 dB

Bluetooth:

Version 3.0

Output Class 2

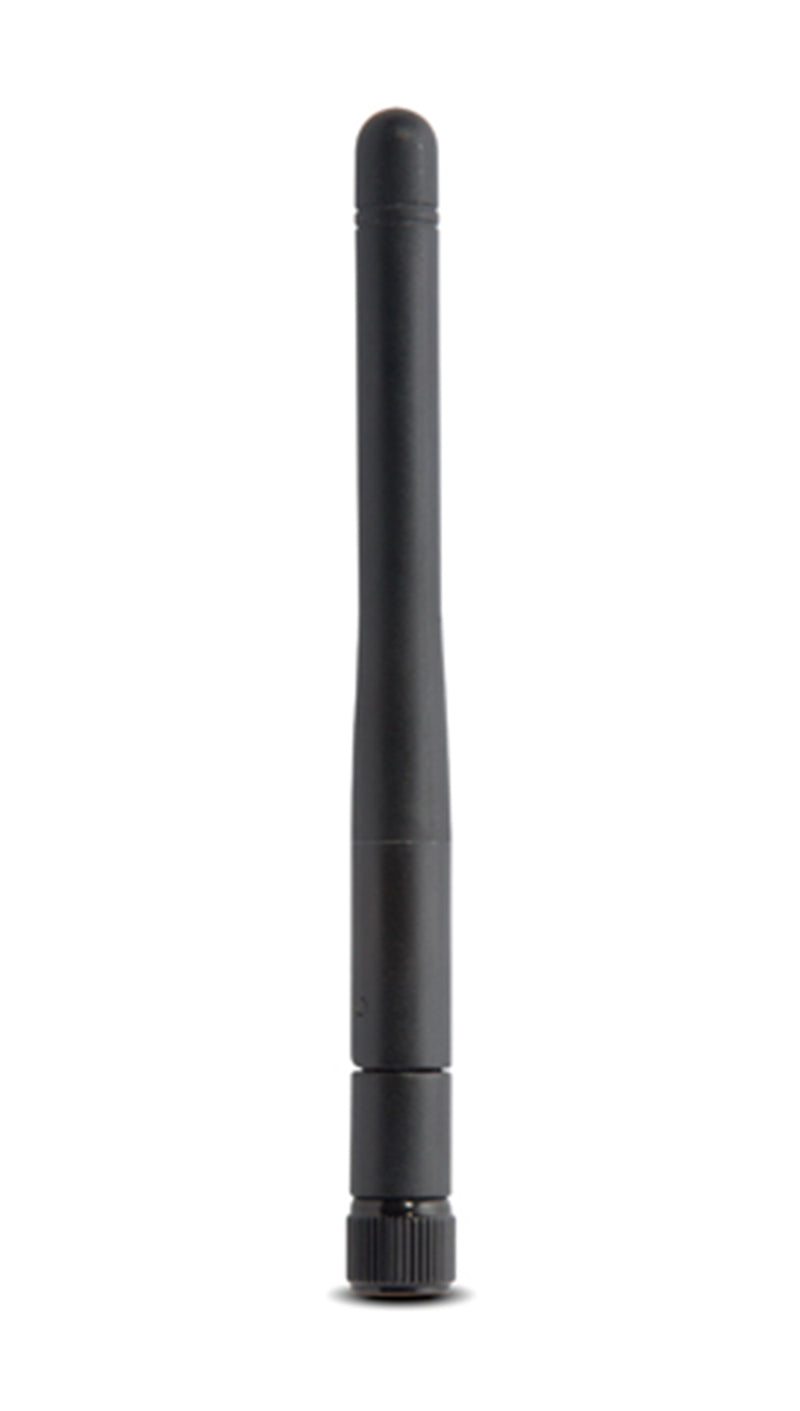

Range: Up to 100 feet (33m) with included antenna

Supported Codec: SBC, MP3, AAC, aptX

Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP

Device Memory: Recall up to 8 pairings instantly"

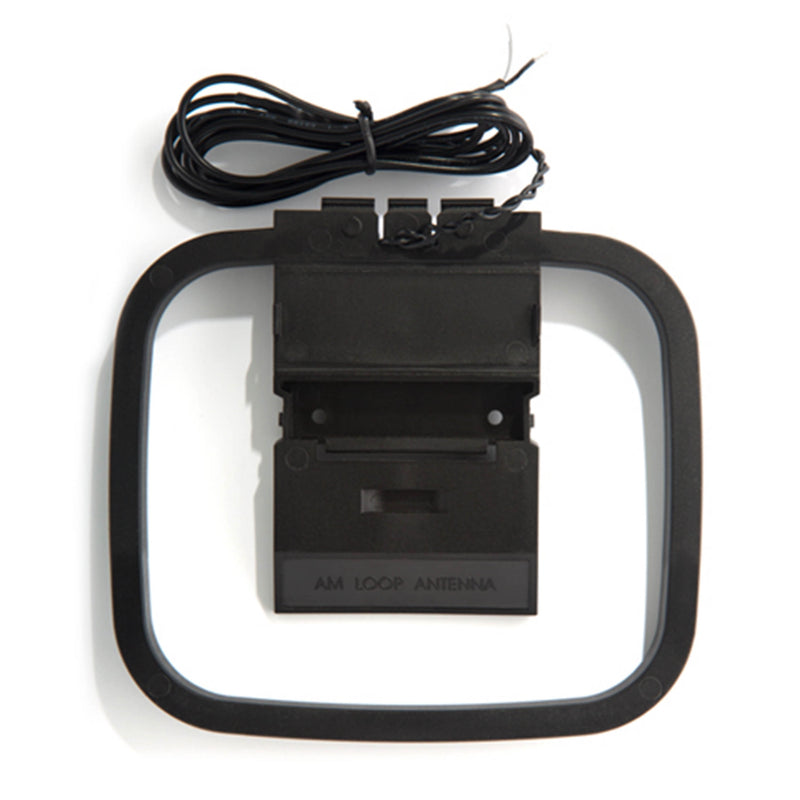

AM/FM Tuner:

FM Receiving Range: 87.5 MHz to 107.9 MHz

AM Receiving Range: 520 kHz to 1710 kHz

Tuner (EU and Asia Pacific)

FM Receiving Range: 87.5 MHz to 108.0 MHz

AM Receiving Range: 520 kHz to 1611 kHz

Outputs:

Analog RCA terminals

Load Impedance: Over 10 kOhms

Output Level: 2 Vrms at 10 kOhms

Inputs:

Aux In: TRS (3.5mm)

Input Impedance: Over 10 kOhms

Maximum Input Level: 1 Vrms

Maximum Output Level: 3 Vrms

Storage: Max Storage Capacity:

Up to 2 TB

Max File Size: 2 GB

Max Number of Files Per Folder: 999

Max Number of Folders: 999

Max Folder Hierarchies: 8

Max File/Folder Name Length: 255 characters

Power Supply:

120 VAC, 60 Hz

EU, UK, APAC: 230 VAC, 50/60 Hz

Japan: 100 VAC, 50/60 Hz

Power Consumption: 30 W

Operating Environment:

Operating Temperature: 41 to 95°F / 5 to 35°C

Operating Humidity: 25 to 85%, no condensation

Weight: 7.9 lbs

Package Weight: 12 lbs

Box Dimensions (LxWxH): 26 x 19 x 6"
