Description
The DiGiCo MOD-DMI-DANTE2 is a professional Dante audio networking interface designed to provide high-capacity audio connectivity over standard IP networks. It provides 64 input and 64 output channels at both 48 kHz and 96 kHz. Dante technology allows uncompressed, low-latency, multi-channel digital audio to be transported over existing network infrastructure. This makes the card suitable for systems where audio needs to travel across distributed network connections. Its high channel capacity provides extensive digital audio routing for professional applications. The MOD-DMI-DANTE2 offers a flexible solution for integrating compatible DiGiCo systems with Dante networks.
Flexible Network Connections

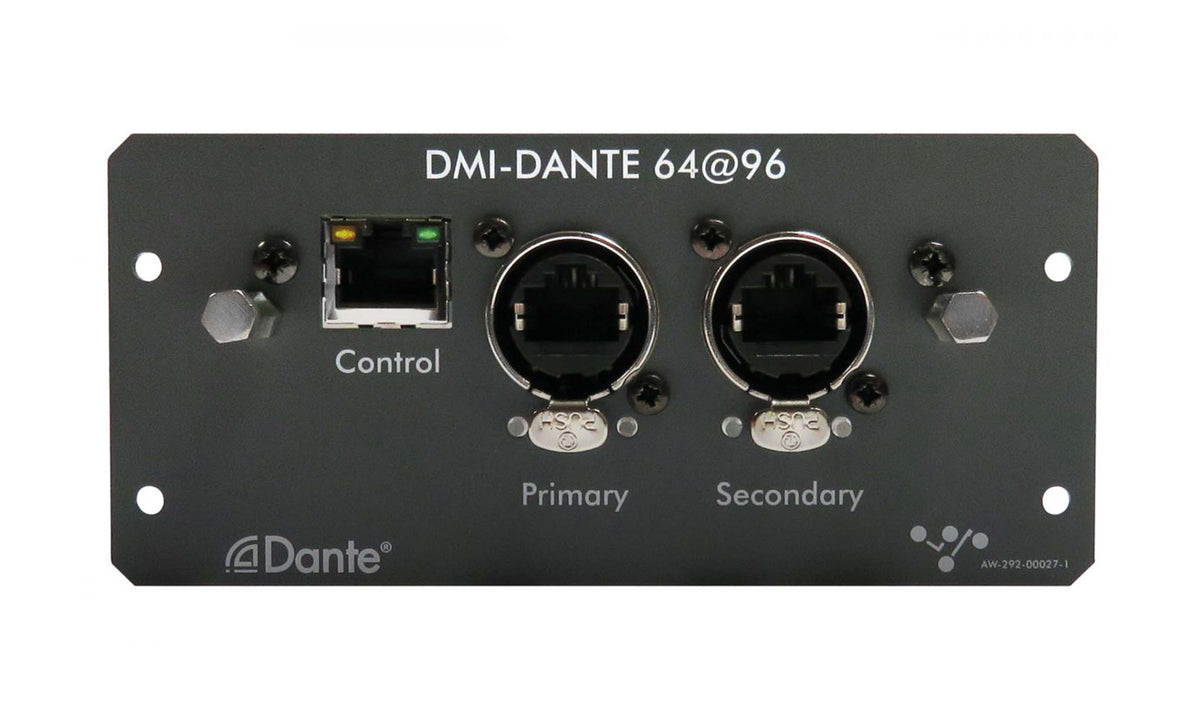

The MOD-DMI-DANTE2 features two EtherCON network ports designated as Primary and Secondary, along with an RJ45 Control port. These connections provide flexible options for connecting the card to Dante network infrastructure and managing its configuration. EtherCON connectors provide a robust physical connection suitable for professional live sound and installation environments. The additional RJ45 control connection provides access for Dante network management and configuration. The three network connections can be configured according to the selected operating mode. This makes the card adaptable to different network architectures and system requirements.
Switched Network Mode
In Switched Mode, the three network ports are internally switched together to provide flexible network connectivity. This configuration allows connected devices to communicate through the integrated network switching architecture. It can simplify cabling for smaller or distributed Dante systems by reducing the need for additional network hardware in suitable configurations. The switched configuration provides a straightforward approach to connecting the card within a Dante network. Engineers can select this mode through Dante Controller according to their system requirements. This makes the MOD-DMI-DANTE2 practical for streamlined network audio installations.
Redundant Network Mode
The MOD-DMI-DANTE2 also supports a redundant operating mode for applications where network reliability is critical. In Redundant Mode, the Control and Primary ports operate together as one network path while the Secondary port provides a separate redundant connection. The primary and secondary network paths use separate IP addresses to maintain independent connections. If the primary network connection fails, the secondary connection can take over to maintain audio network communication. This provides additional reliability for demanding live sound and professional installation systems. Dante Controller can be used to configure the card for the required network operating mode.
Sample Rate Conversion and AES67
The MOD-DMI-DANTE2 includes built-in sample rate conversion to support integration between 48 kHz and 96 kHz digital audio systems. This provides greater flexibility when connecting equipment operating at different sample rates. The card also supports AES67 compatibility for integration with compatible standards-based network audio systems. Built-in SRC helps simplify system design by allowing audio sources and destinations with different supported sample rates to work together. These capabilities make the card suitable for complex professional network audio environments. The combination of Dante, AES67, and sample rate conversion provides broad digital audio integration options.
Professional System Compatibility
The MOD-DMI-DANTE2 is designed for integration with a range of DiGiCo professional audio systems. It is compatible with DiGiCo S-Series consoles, Quantum Range systems, SD12, Orange Box, and 4REA4. Its high channel capacity, flexible network ports, and redundant operating mode make it suitable for demanding audio applications. The card can be used for live sound, touring, broadcast, installation, recording, and distributed audio systems. Its modular design provides an efficient way to add Dante connectivity to compatible DiGiCo equipment. The MOD-DMI-DANTE2 provides a scalable and reliable solution for professional audio-over-IP applications.
Product Specifications:
Product Type: MOD-DMI-DANTE2 Dante Audio Network Interface Card
Network Protocol: Dante
Input Channels: 64
Output Channels: 64
Total Audio Channels: 128
Sample Rates: 48 kHz / 96 kHz
Network Ports: 2 x EtherCON
Control Port: 1 x RJ45
Primary Port: EtherCON
Secondary Port: EtherCON
Network Modes: Switched / Redundant
Switched Mode: Three Network Ports Switched Together
Redundant Mode: Primary and Secondary Redundant Network Paths
Sample Rate Conversion: Built-In SRC Between 48 kHz and 96 kHz
AES67 Compatibility: Supported
Network Configuration: Dante Controller
Console Compatibility: DiGiCo S-Series, Quantum Range, SD12
Additional Compatibility: Orange Box and 4REA4
Primary Applications: Live Sound, Touring, Broadcast, Events and Stage I/O Expansion
Product Weight: 0.55 lbs.
Product Dimensions (L x W x H): 6.94" x 4.98" x 2.28"
