Description

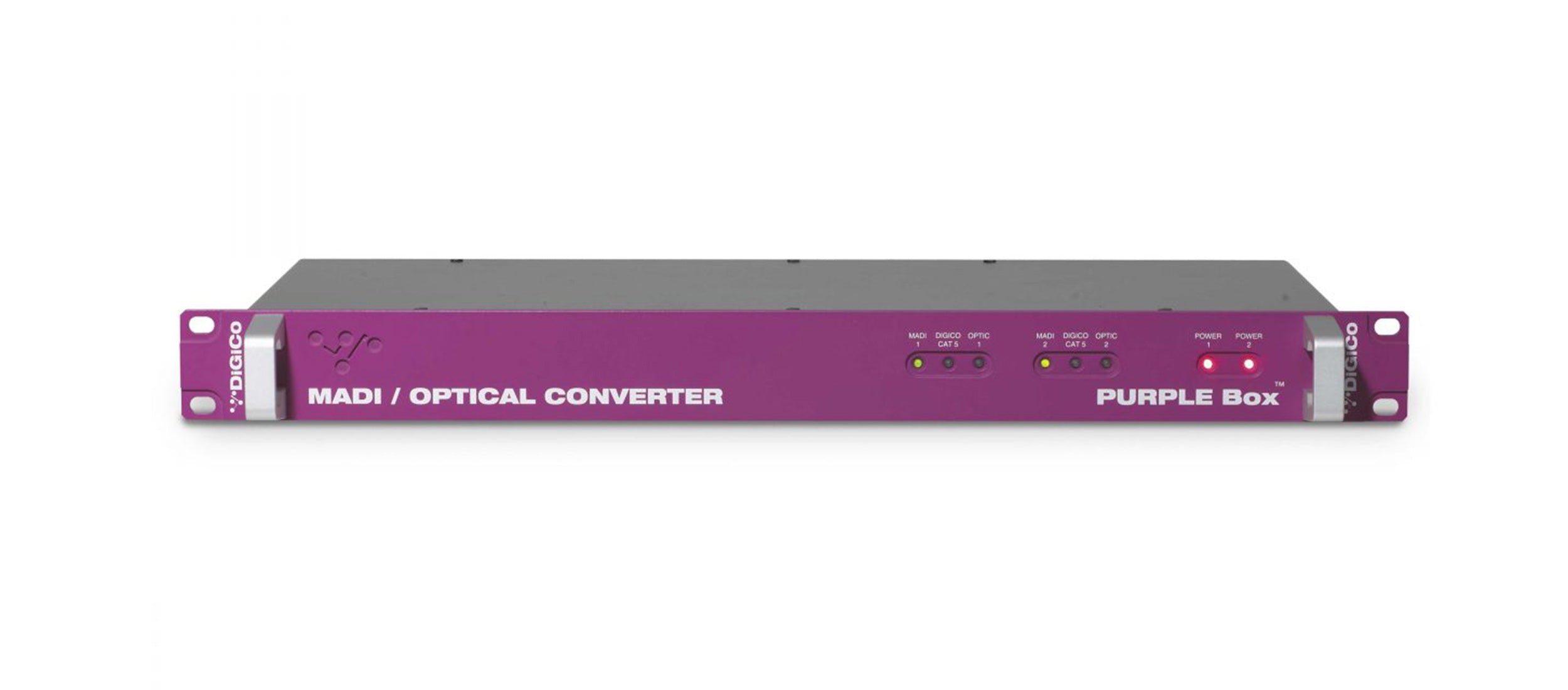

The DiGiCo X-PB-SMOP Purple Box is engineered for professional CAT5/MADI to single-mode fiber conversion in demanding audio environments. It converts MADI-based digital audio into optical signals, enabling reliable transmission across extremely long distances. Single-mode fiber minimizes signal loss while maintaining exceptional audio quality. This makes the unit ideal for stadiums, broadcast facilities, and large-scale touring productions. Its compact 1U design allows easy integration into professional equipment racks.
Dual Independent Signal Conversion
The Purple Box features two completely independent conversion engines capable of operating simultaneously. Each converter processes its own MADI or D-Rack stream without affecting the other, allowing maximum routing flexibility. Engineers can transport any combination of two MADI or D-Rack streams over a single unit. This independent architecture simplifies large audio networks while maintaining dependable performance.
HMA Optical Connector

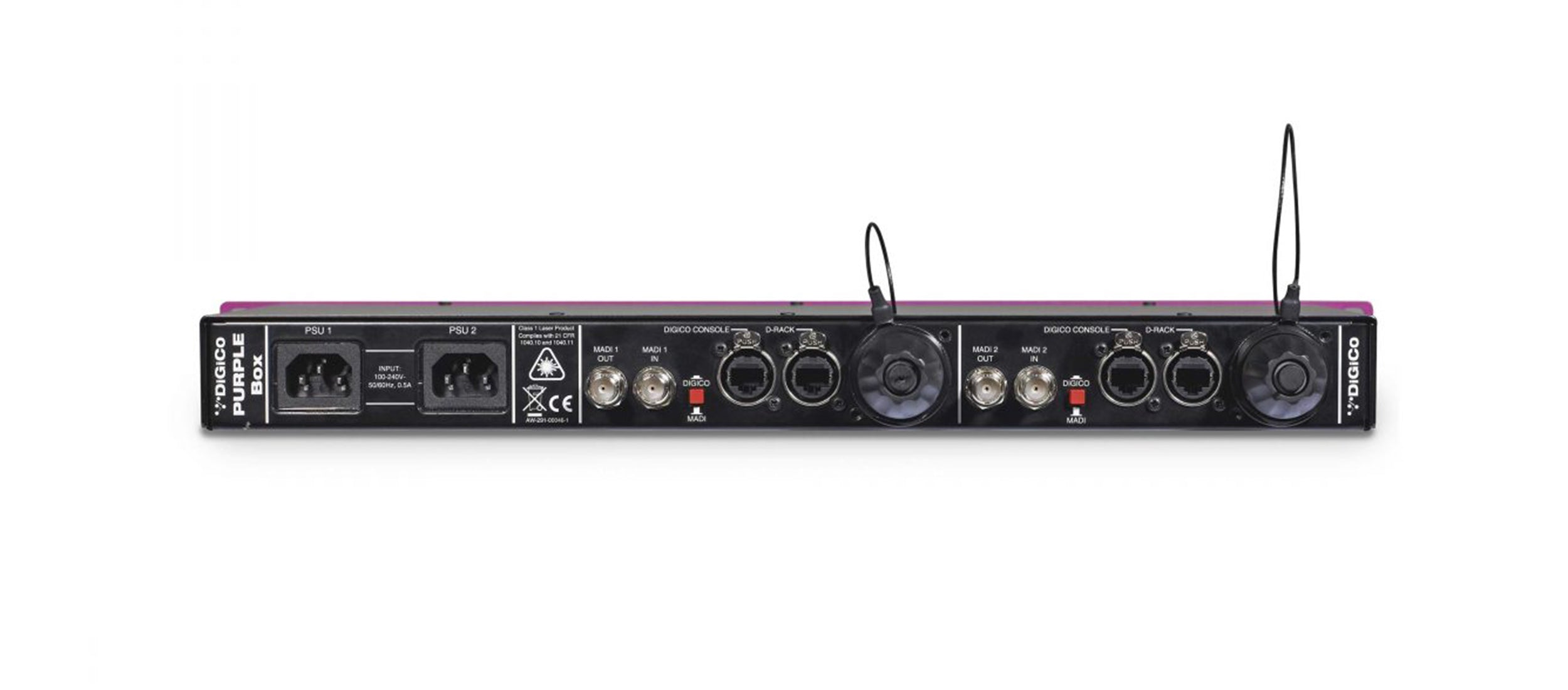

This model is equipped with an HMA optical connector specifically designed for rugged fiber installations. HMA connectors provide excellent durability and secure fiber connections in harsh touring and outdoor environments. They are widely used in broadcast, military, and large-scale live production systems where reliability is essential. The robust connector design protects fiber connections from dust, moisture, and physical stress. It ensures stable optical performance throughout demanding applications.
Reliable Redundant Operation
For maximum reliability, the X-PB-SMOP includes dual internal redundant power supplies. If one power supply experiences a failure, the second automatically maintains uninterrupted operation. This redundancy is critical for live events and broadcast productions where continuous audio transport is essential. Combined with independent conversion paths, the Purple Box delivers dependable performance during mission-critical operations.
Seamless DiGiCo Integration
Designed specifically for DiGiCo systems, the Purple Box integrates seamlessly with SD Series consoles, S-Series consoles, D-Rack, and D2-Rack stage racks. It extends digital audio networks while preserving low latency and excellent signal integrity. Installation is simple thanks to its standard 1U rack-mount form factor. Whether deployed in touring, houses of worship, theaters, or broadcast facilities, it provides reliable single-mode fiber connectivity.
Product Specifications:
Product Type: CAT5/MADI to Single-Mode Fiber Converter.
Fiber Connector: HMA optical connector.
Fiber Type: Single-mode fiber.
Rack Size: 1U rack-mount chassis.
Channel Capacity: Supports up to 128 MADI audio channels.
Conversion: Converts CAT5 or MADI signals to single-mode optical fiber.
Dual-Channel Operation: Simultaneously converts two independent MADI or D-Rack streams.
Input Formats: CAT5 and MADI.
Output Format: Single-mode optical fiber.
Transmission Distance: Designed for ultra-long-distance MADI transmission over fiber.
Compatibility: Compatible with DiGiCo SD Series and S-Series digital mixing consoles.
Rack Compatibility: Supports DiGiCo D-Rack and D2-Rack stage racks.
Independent I/O Paths: Two completely independent signal conversion paths.
Power Supply: Dual redundant internal power supplies.
Redundancy: Independent converters with redundant PSU protection.
Audio Capacity: Supports any combination of two MADI or D-Rack streams simultaneously.
Signal Integrity: Low-latency, high-reliability digital audio transmission.
Installation: Standard 19-inch rack-mount enclosure.
Application: Ideal for live sound, broadcast, touring, and large-scale fixed installations.
Product Weight: 8.8 lbs. (4.0 kg).
Product Dimensions (L x W x H): 19.0" x 9.3" x 1.75"
