Description

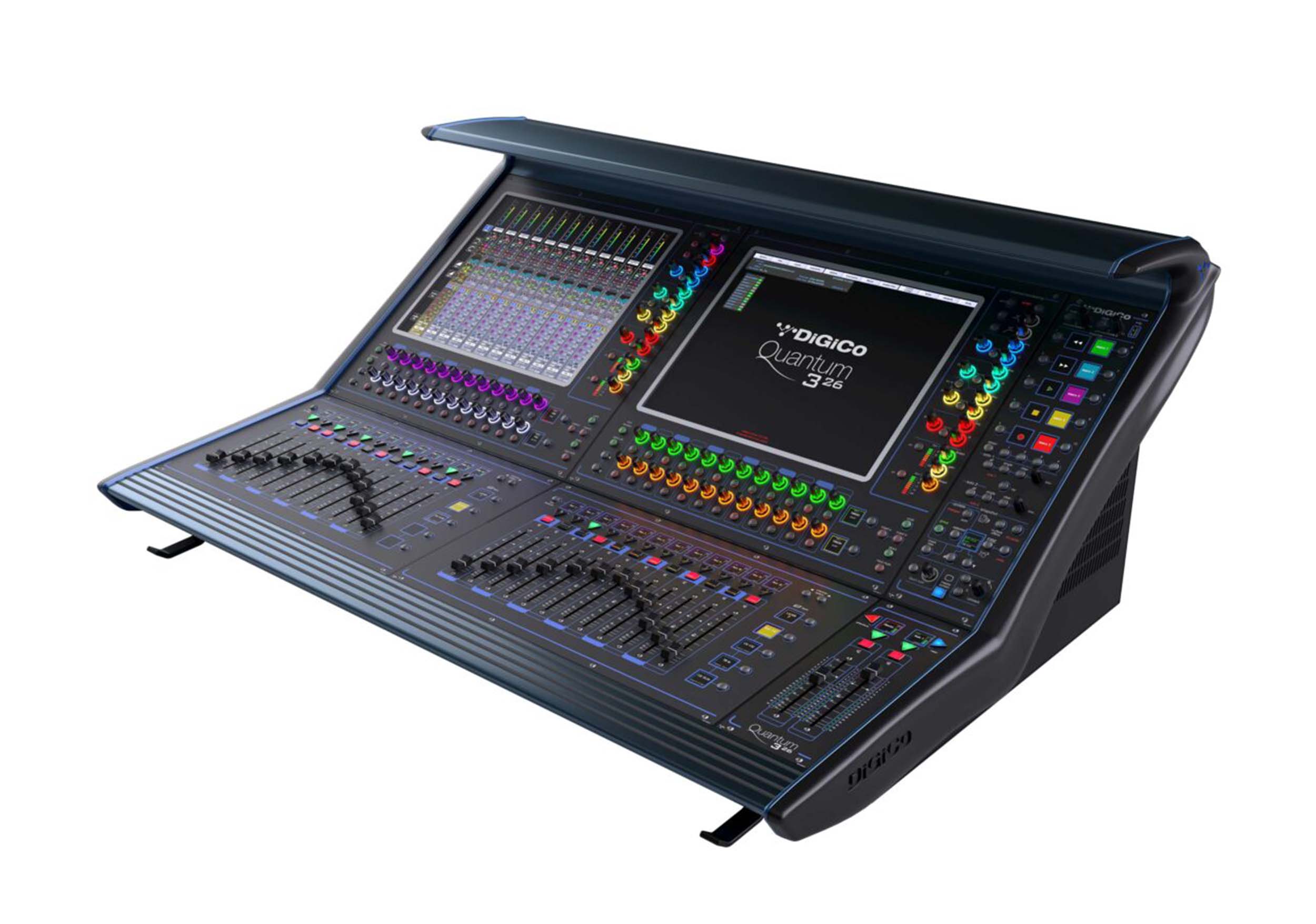

The DiGiCo X-Q326-W-OP-EX-ULT combines the advanced Quantum processing engine with Ultimate Stadius technology to deliver outstanding sound quality and ultra-low latency. Built around DiGiCo's seventh-generation FPGA architecture, it offers exceptional processing power for demanding live productions. The compact control surface is ideal for touring, broadcast, theaters, and corporate events. Engineers benefit from a fast, intuitive workflow with extensive processing resources. The console is designed for professional performance in every environment.
Ultimate Stadius Audio Quality
This model features Ultimate Stadius 32-bit microphone preamps and converters, providing superior analog-to-digital and digital-to-analog performance. The enhanced conversion delivers greater dynamic range, lower noise, and exceptional sonic clarity across every input and output. Every signal retains outstanding detail from source to destination. Combined with Quantum processing, it produces premium audio quality for critical applications. It is built for engineers who demand uncompromising performance.
Waves SoundGrid & OpticalCON
Integrated Waves SoundGrid enables direct access to industry-leading Waves plugins with extremely low latency. The OpticalCON Optocore connector provides rugged fiber connectivity for secure long-distance audio networking in demanding touring environments. Together they deliver powerful processing and reliable communication between stage and front of house. This combination simplifies system integration while maintaining maximum performance. It is an ideal solution for large-scale professional productions.
Fast and Intuitive Workflow

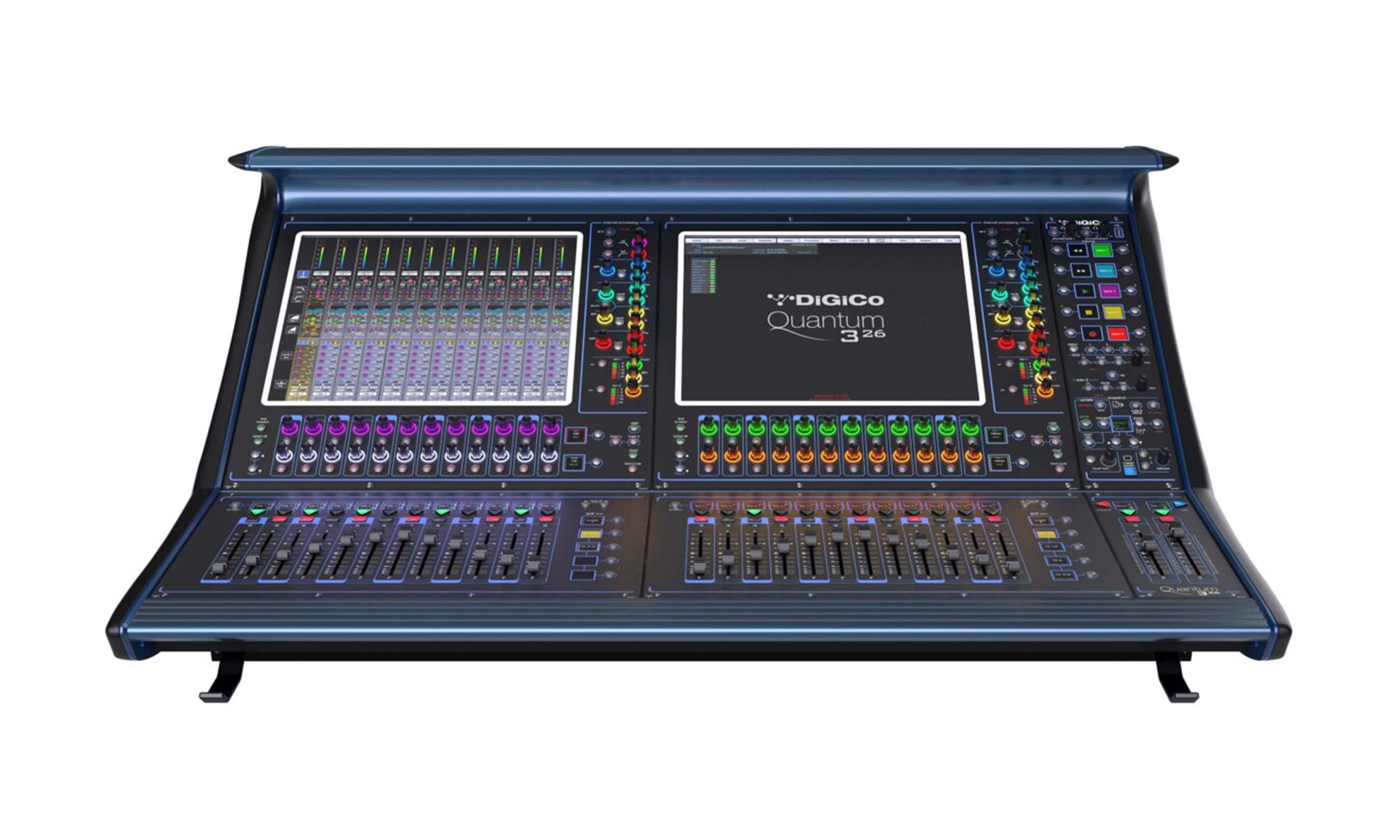

The Quantum 326 features 26 touch-sensitive motorized faders, dual 17-inch high-resolution multi-touch displays, and 51 individual TFT channel displays. Engineers can quickly access routing, snapshots, processing, and monitoring functions through an intuitive interface. The floating chassis provides excellent ergonomics during long mixing sessions. Clear visual feedback speeds up operation in live environments. Every control is designed for maximum efficiency.
Powerful Built-In Processing
Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console easily handles complex productions. Built-in Mustard Processing, Spice Rack FPGA plugins, Nodal Processing, dynamic EQ, and premium internal effects provide extensive creative flexibility. The powerful Quantum engine maintains smooth operation under heavy processing loads. Engineers can create sophisticated mixes without relying on external hardware. This makes the console suitable for the most demanding live productions.
Built for Professional Applications
Designed for touring companies, rental providers, broadcast facilities, theaters, and houses of worship, the X-Q326-W-OP-EX-ULT offers exceptional reliability and flexibility. Its rugged construction, advanced networking, and Ultimate Stadius technology ensure dependable operation show after show. Combined with Waves SoundGrid and OpticalCON connectivity, it integrates seamlessly into professional Optocore systems. The result is a complete flagship mixing solution for modern audio engineers.
What’s in the Box:

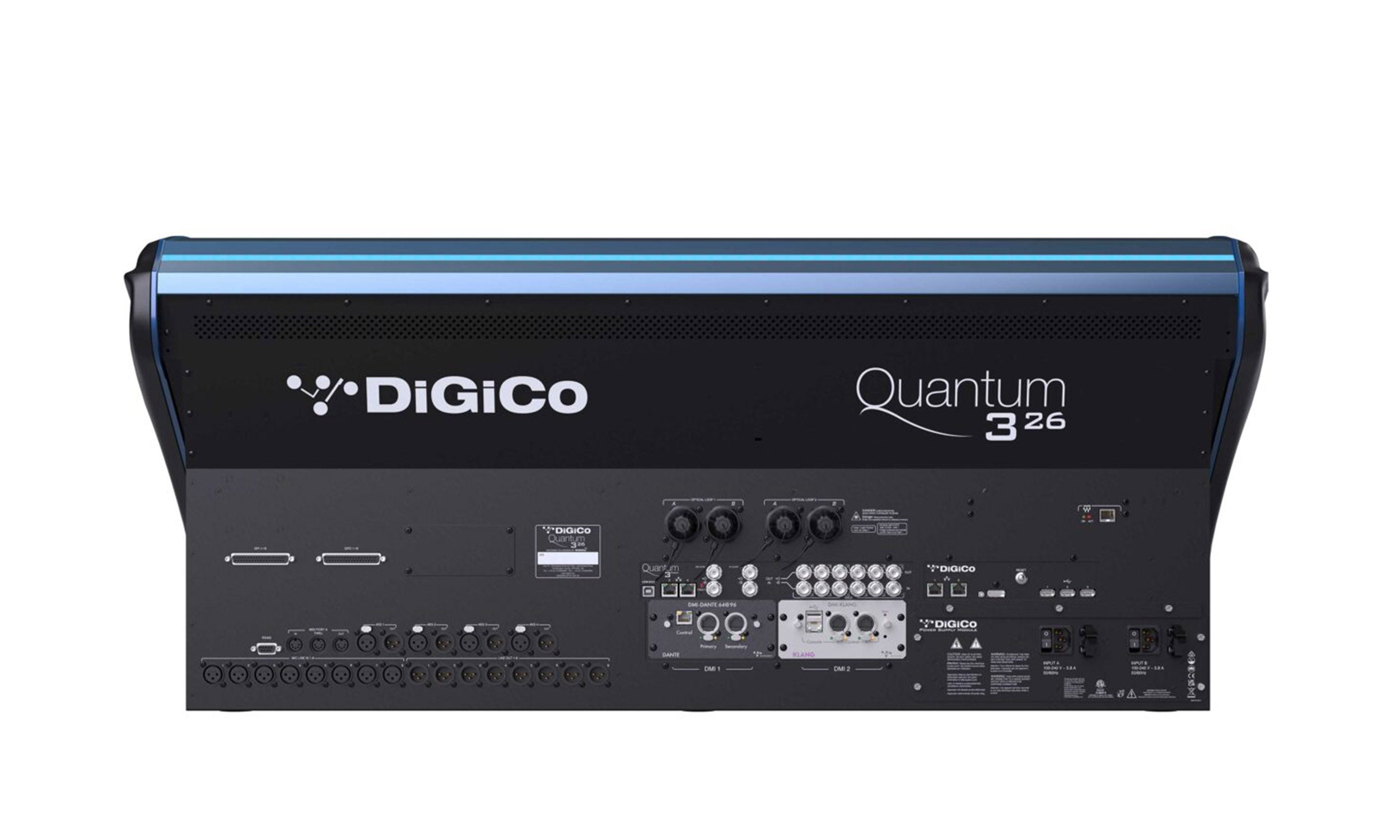

- One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
- Ultimate Stadius' 32-Bit Mic Pre Amp & 32-Bit Output Package
- HMA Optics cable 150M on spool (492 ft.) x 2
- Connections: MADI x 6, Optics x 1
- Internal Waves Card, UB-MADI
- DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
Connector: OpticalCON (OP) Connector.
Integrated Networking: Waves SoundGrid
Local I/O: Ultimate Stadius 32-bit Local I/O
Faders: 26 × 100 mm Touch-Sensitive Motorized
Display Screens: Dual 17" High-Brightness LCD Touchscreens
Input Channels: 128
Aux/Group Busses: Up to 64 (Mono, Stereo, LCR, LCRS, 5.1)
Matrix: 24 × 24 with Full Processing
Control Groups: Up to 24
Internal Effects: Up to 24 Stereo FX Engines
Spice Rack: 8 Mono / 4 Stereo Rack Slots
Mustard Processing: 36 Processing Strips
Nodal Processing: 64 Nodal Processors
Mic/Line Converters: 32-bit
MADI Interface: 6 × 48 kHz or 3 × 96 kHz (BNC)
Optocore Interface: Optional Dual Loop
DMI Slots: 2 × DiGiCo Multichannel Interface
Sampling Rates: 48 kHz / 96 kHz
GPI/GPO: 16
Waves Support: Optional
External Sync: Word Clock, AES, MADI, Optocore
Frequency Response: ±0.15 dB (20 Hz–20 kHz)
THD: <0.002% @ Unity Gain
Channel Separation: Better Than 120 dB
Residual Output Noise: <100 dBu
Microphone Input Noise: Better Than -128 dB EIN
Maximum Input Level: +22 dBu
Maximum Output Level: +22 dBu
Processing Delay: 1 ms Typical @ 96 kHz
Internal Processing: Up to 40-bit Floating Point
A/D & D/A Conversion: 32-bit
Input Gain: -20 dB to +60 Db
Digital Trim (Input): -40 dB to +40 dB
Output Trim: -20 dB to +60 dB
Channel Delay: Up to 1.3 Seconds
Output Delay: Up to 1.3 Seconds
HPF/LPF: 20 Hz–20 kHz, 24 dB/Octave
Input EQ: 4-Band Parametric/Dynamic EQ
Output EQ: 8-Band Parametric/Dynamic EQ
EQ Gain: ±18 dB
EQ Frequency Range: 20 Hz–20 kHz
Dynamic EQ: Supported
Compressor Types: Single-Band & 3-Band Multiband
Gate/Ducker: Yes
De-Esser: Yes
DiGiTuBe Processing: Drive & Bias Controls
Insert Points: Dual (Pre & Post EQ/Dynamics)
Fader Level: ∞ to +10 dB
Mustard Processing: Tube & Amp Emulation, Vintage Compressors, Optical Compressor, FET Limiter
Power Requirements: 100–240 VAC, 50/60 Hz, 295 VA
Product Weight: 114.6 lb
Product Weight (With Flight Case): 330.7 lb
Product Dimensions (L × W × H): 44.3" × 31.7" × 19.0"
Flight Case Dimensions (L × W × H): 49.3" × 25.4" × 45.3"
