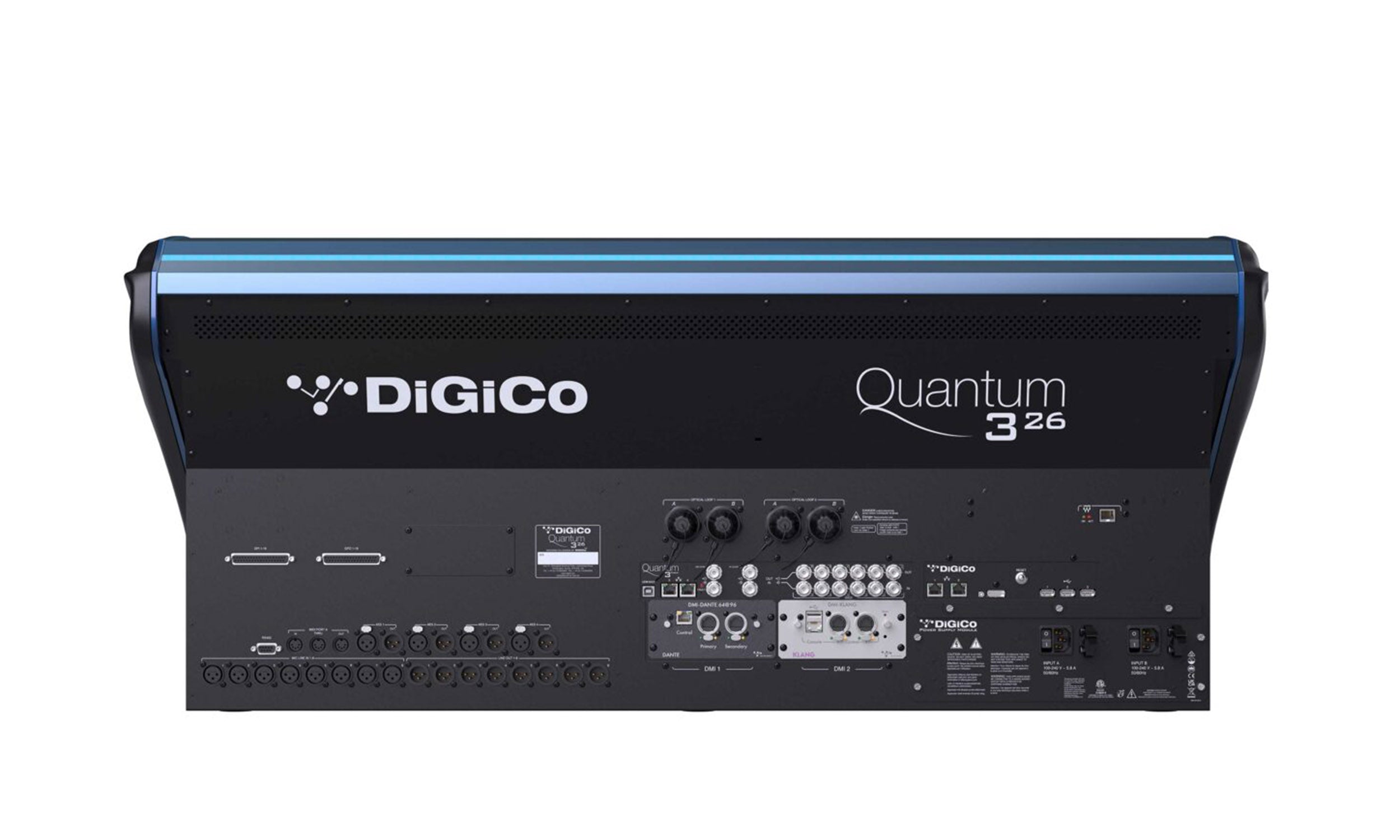

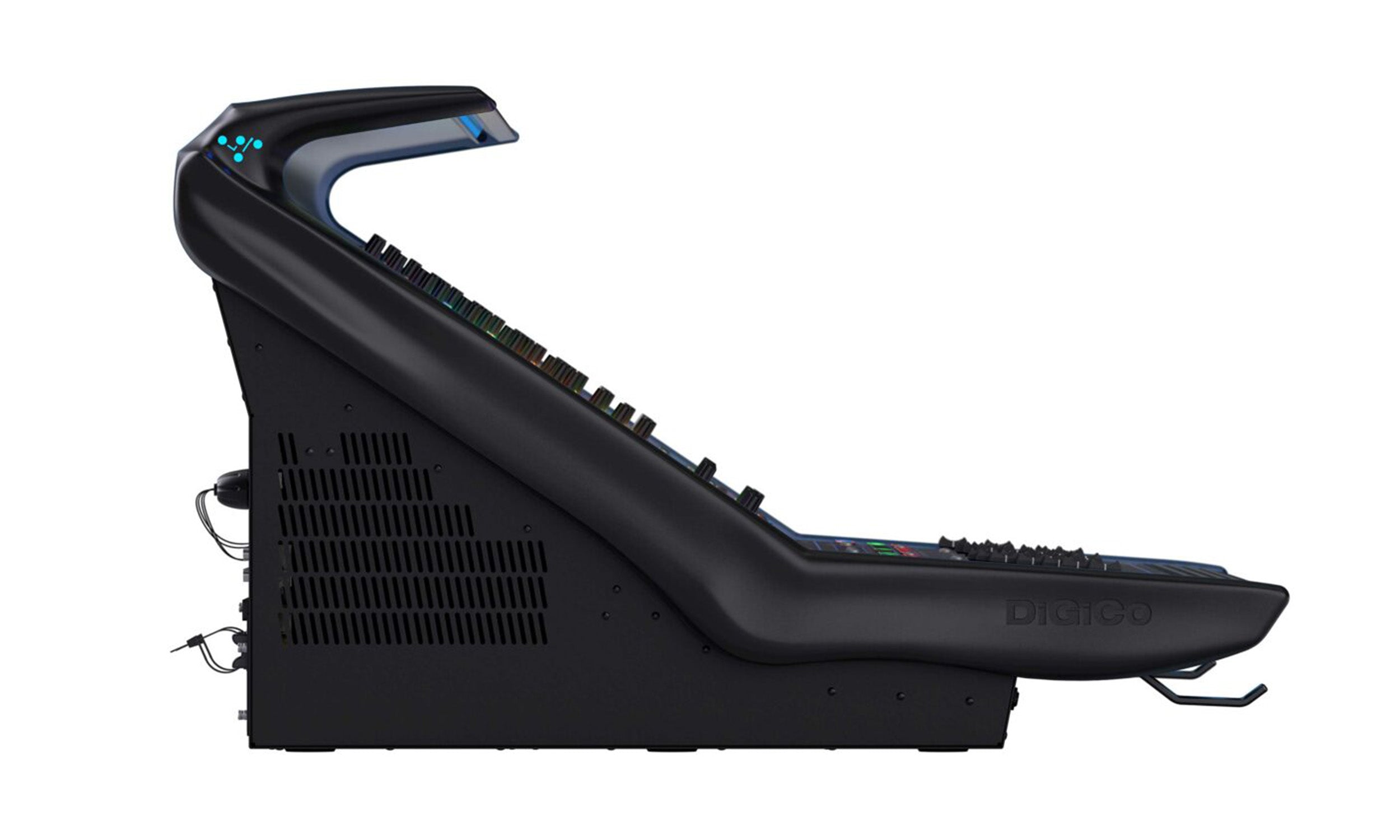

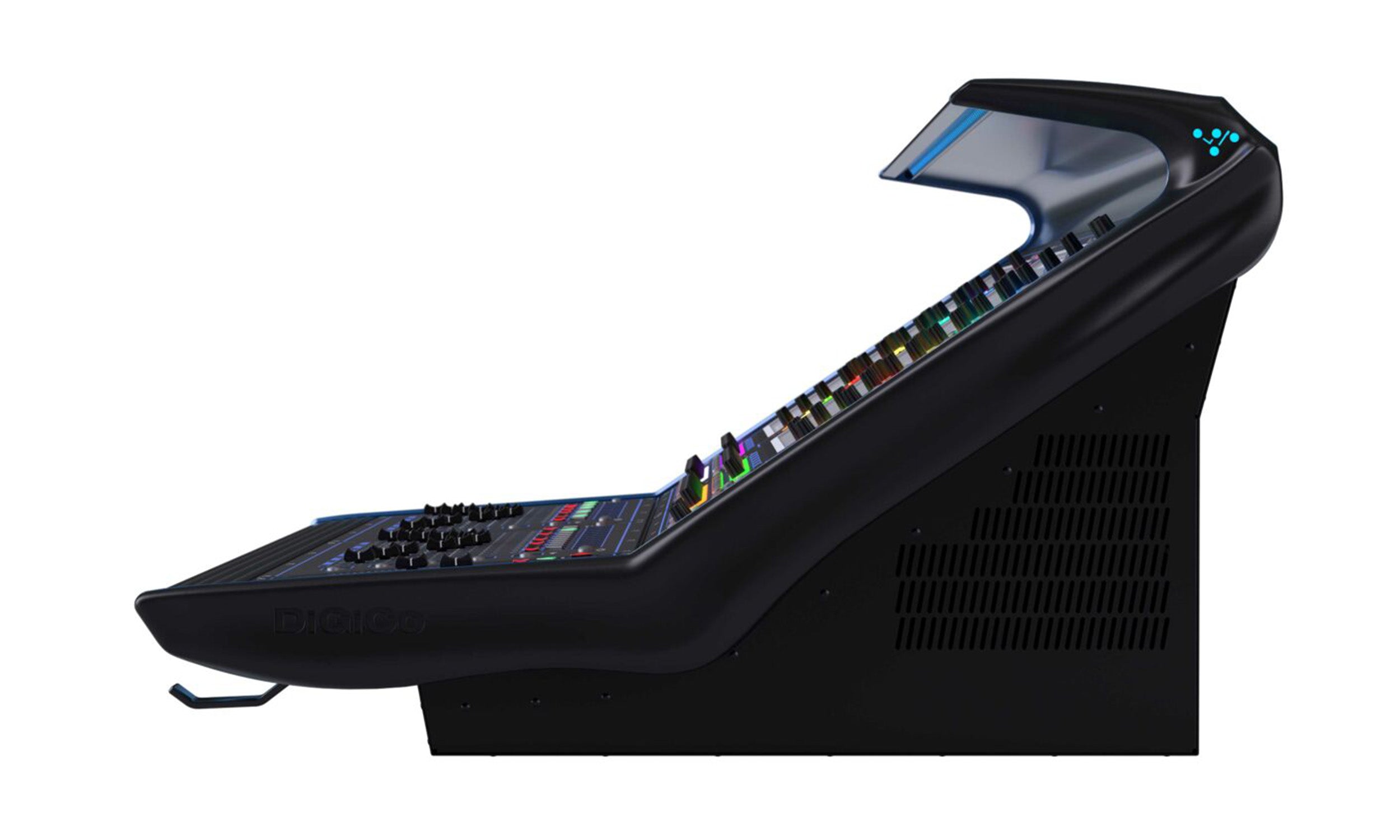

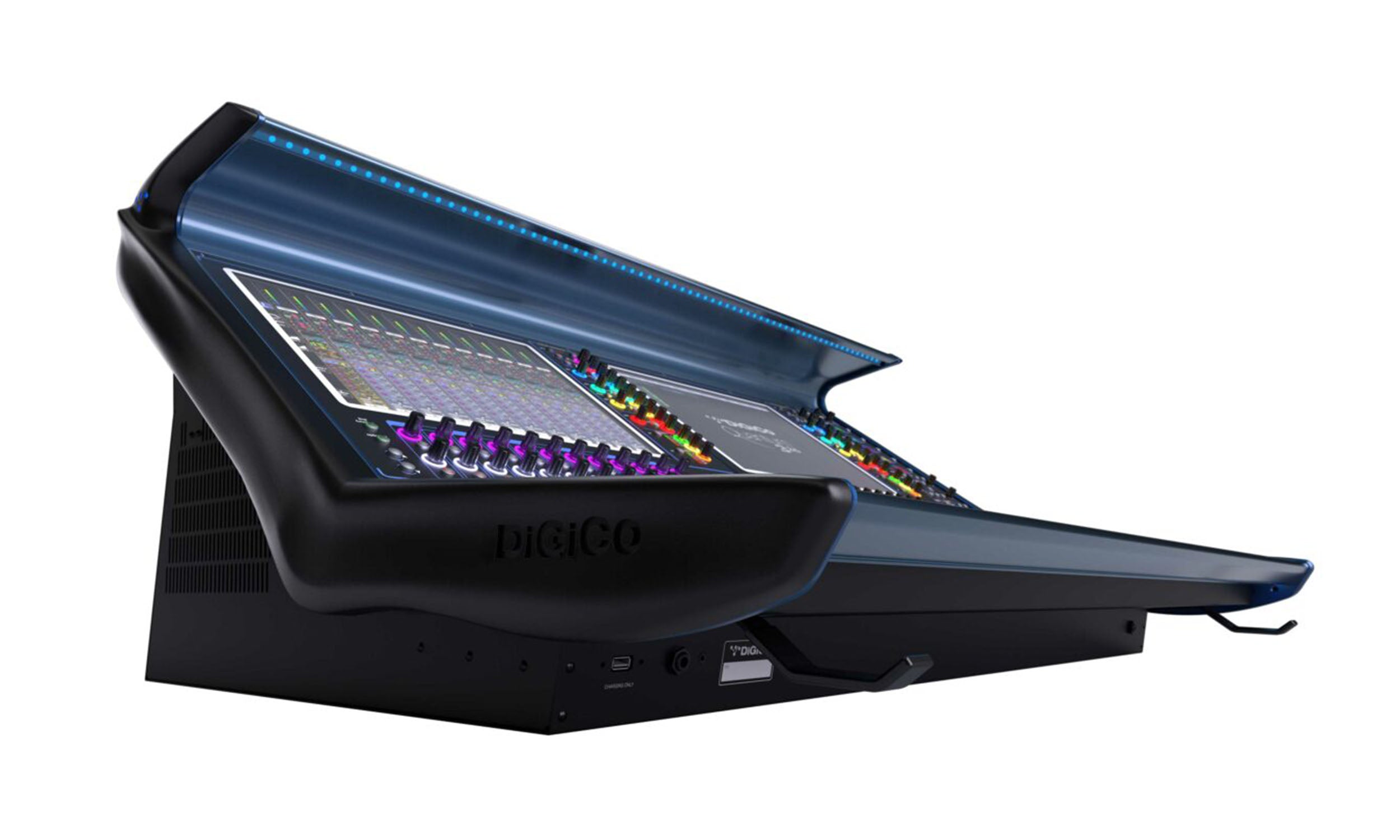

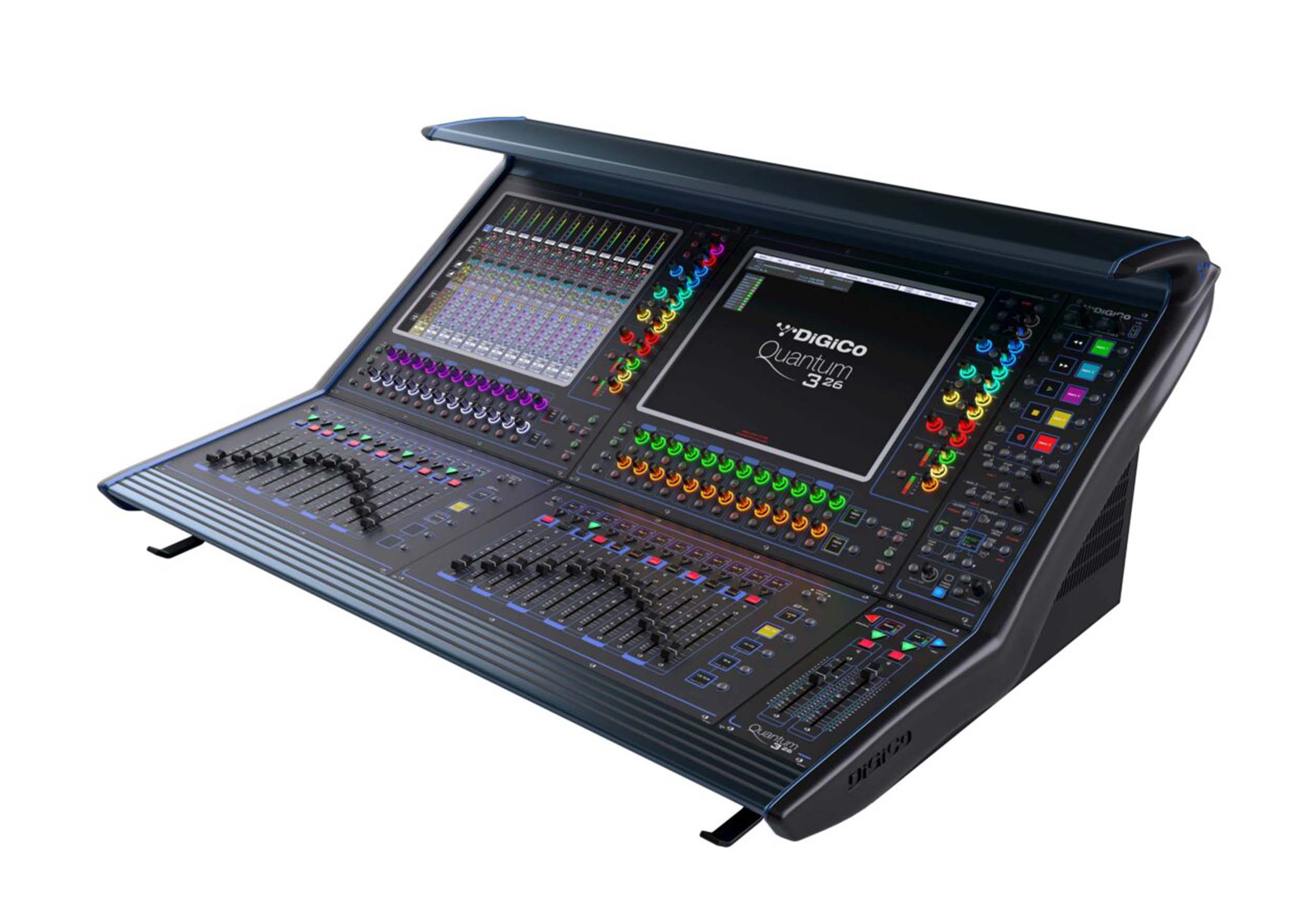

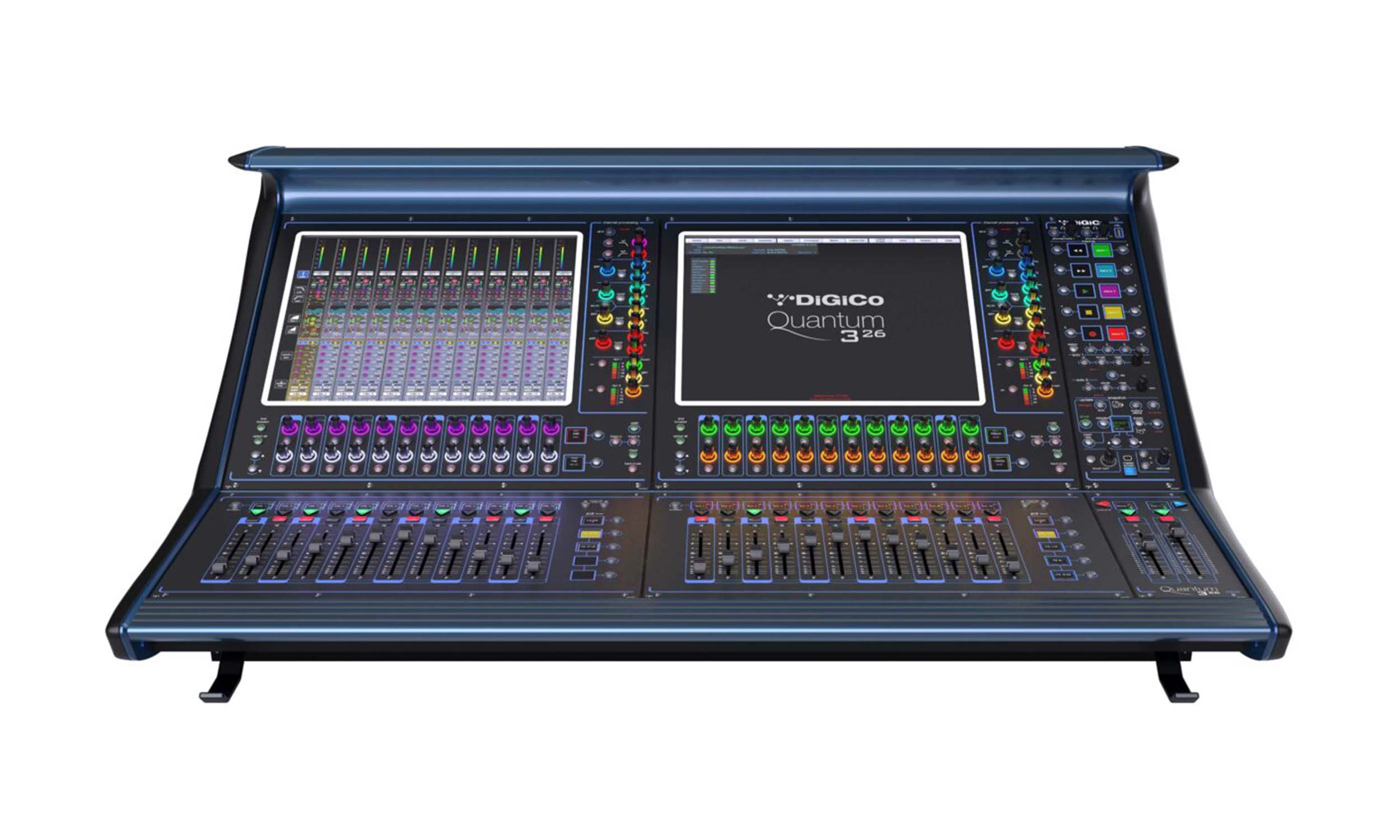

DiGiCo X-Q326-W-PREM-WS Digital Mixing Console with Waves SoundGrid - MADI only

The DiGiCo X-Q326-W-PREM-WS delivers the advanced performance of the Quantum 326 platform with integrated Waves SoundGrid in a MADI-only configuration. Powered by seventh-generation FPGA technology, it provides exceptional processing power, ultra-low latency, and outstanding reliability for touring, broadcast, theatre, and installed audio applications. Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console is designed to manage complex productions while maintaining DiGiCo's fast and intuitive workflow. Its compact footprint makes it an ideal solution for professional environments where space and performance are equally important.

Integrated Waves SoundGrid

Built-in Waves SoundGrid connectivity allows engineers to access industry-leading Waves plugins with extremely low latency for professional live productions. When paired with a compatible Waves SoundGrid DSP Server, the console supports premium EQs, compressors, reverbs, and other studio-quality effects directly from the Quantum interface. This integration expands processing capabilities while maintaining fast operation, making it ideal for demanding live sound, broadcast, and theatrical productions.

Professional Control Surface

The Quantum 326 features two ultra-bright 17-inch, 1000-nit multitouch displays that provide exceptional visibility in all lighting conditions. Fifty-one dedicated TFT channel displays complement the 26 motorized 100mm touch-sensitive faders and two assignable user faders, giving engineers instant access to channel information and precise control. The ergonomic layout, integrated metering, customizable workflow, and dark-mode interface help maximize efficiency throughout every production.

Ultimate Stadius Audio Quality

Ultimate Stadius 32-bit analog-to-digital and digital-to-analog converters deliver exceptional sonic performance with remarkable clarity, wide dynamic range, and ultra-low distortion. Eight local microphone/line inputs and eight local line outputs preserve signal integrity from input to output, while DiGiCo's FPGA processing maintains transparent audio quality across every channel, bus, and matrix. This premium audio architecture ensures consistent, professional-grade performance for every application.

MADI-Only Professional Connectivity

This MADI-only configuration is designed for users who rely on MADI infrastructure instead of Optocore networking. The console supports up to six MADI interfaces at 48 kHz or three redundant MADI connections, dual DMI expansion slots, four stereo AES/EBU inputs and outputs, and a built-in UB MADI USB recording interface. These flexible connectivity options provide seamless integration with digital stage racks, recording systems, and broadcast facilities while maintaining compatibility with Waves SoundGrid workflows.

Complete FPGA Processing Suite

The X-Q326-W-PREM-WS includes DiGiCo's complete FPGA-based processing package. Mustard Processing delivers premium channel EQ and dynamics, Spice Rack provides powerful FPGA-native effects with virtually zero additional latency, Nodal Processing enables advanced routing and system management, and True Solo ensures accurate monitoring throughout the signal path. Combined with Waves SoundGrid integration and Ultimate Stadius 32-bit conversion, this console delivers a comprehensive professional mixing solution for the most demanding live audio productions.

What’s in the Box:

• Connections: MADI x 6
• Internal Waves Card
• UB-MADI, DMI Port x 2
• Connectors: BNC

Product Specifications:

Waves Integration: Built-in Waves SoundGrid Networking

MADI Connectivity: Up to 6 MADI I/O at 48 kHz or 3 Redundant MADI Connections

Digital Audio Protocol: MADI (Multichannel Audio Digital Interface)

Faders: 26 × 100 mm Touch-Sensitive Motorized

Display Screens: Dual 17" High-Brightness LCD Touchscreens

Input Channels: 128

Aux/Group Busses: Up to 64 (Mono, Stereo, LCR, LCRS, 5.1)

Matrix: 24 × 24 with Full Processing

Control Groups: Up to 24

Internal Effects: Up to 24 Stereo FX Engines

Spice Rack: 8 Mono / 4 Stereo Rack Slots

Mustard Processing: 36 Processing Strips

Nodal Processing: 64 Nodal Processors

Mic/Line Converters: 32-bit

MADI Interface: 6 × 48 kHz or 3 × 96 kHz (BNC)

Optocore Interface: Optional Dual Loop

DMI Slots: 2 × DiGiCo Multichannel Interface

Sampling Rates: 48 kHz / 96 kHz

GPI/GPO: 16

Waves Support: Optional

External Sync: Word Clock, AES, MADI, Optocore

Frequency Response: ±0.15 dB (20 Hz–20 kHz)

THD: <0.002% @ Unity Gain

Channel Separation: Better Than 120 dB

Residual Output Noise: <100 dBu

Microphone Input Noise: Better Than -128 dB EIN

Maximum Input Level: +22 dBu

Maximum Output Level: +22 dBu

Processing Delay: 1 ms Typical @ 96 kHz

Internal Processing: Up to 40-bit Floating Point

A/D & D/A Conversion: 32-bit

Input Gain: -20 dB to +60 dB

Digital Trim (Input): -40 dB to +40 dB

Output Trim: -20 dB to +60 dB

Channel Delay: Up to 1.3 Seconds

Output Delay: Up to 1.3 Seconds

HPF/LPF: 20 Hz–20 kHz, 24 dB/Octave

Input EQ: 4-Band Parametric/Dynamic EQ

Output EQ: 8-Band Parametric/Dynamic EQ

EQ Gain: ±18 dB

EQ Frequency Range: 20 Hz–20 kHz

Dynamic EQ: Supported

Compressor Types: Single-Band & 3-Band Multiband

Gate/Ducker: Yes

De-Esser: Yes

DiGiTuBe Processing: Drive & Bias Controls

Insert Points: Dual (Pre & Post EQ/Dynamics)

Fader Level: ∞ to +10 dB

Mustard Processing: Tube & Amp Emulation, Vintage Compressors, Optical Compressor, FET Limiter

Power Requirements: 100–240 VAC, 50/60 Hz, 295 VA

Product Weight: 114.6 lb

Product Weight (With Flight Case): 330.7 lb

Product Dimensions (L × W × H): 44.3" × 31.7" × 19.0"

Flight Case Dimensions (L × W × H): 49.3" × 25.4" × 45.3"
