Description

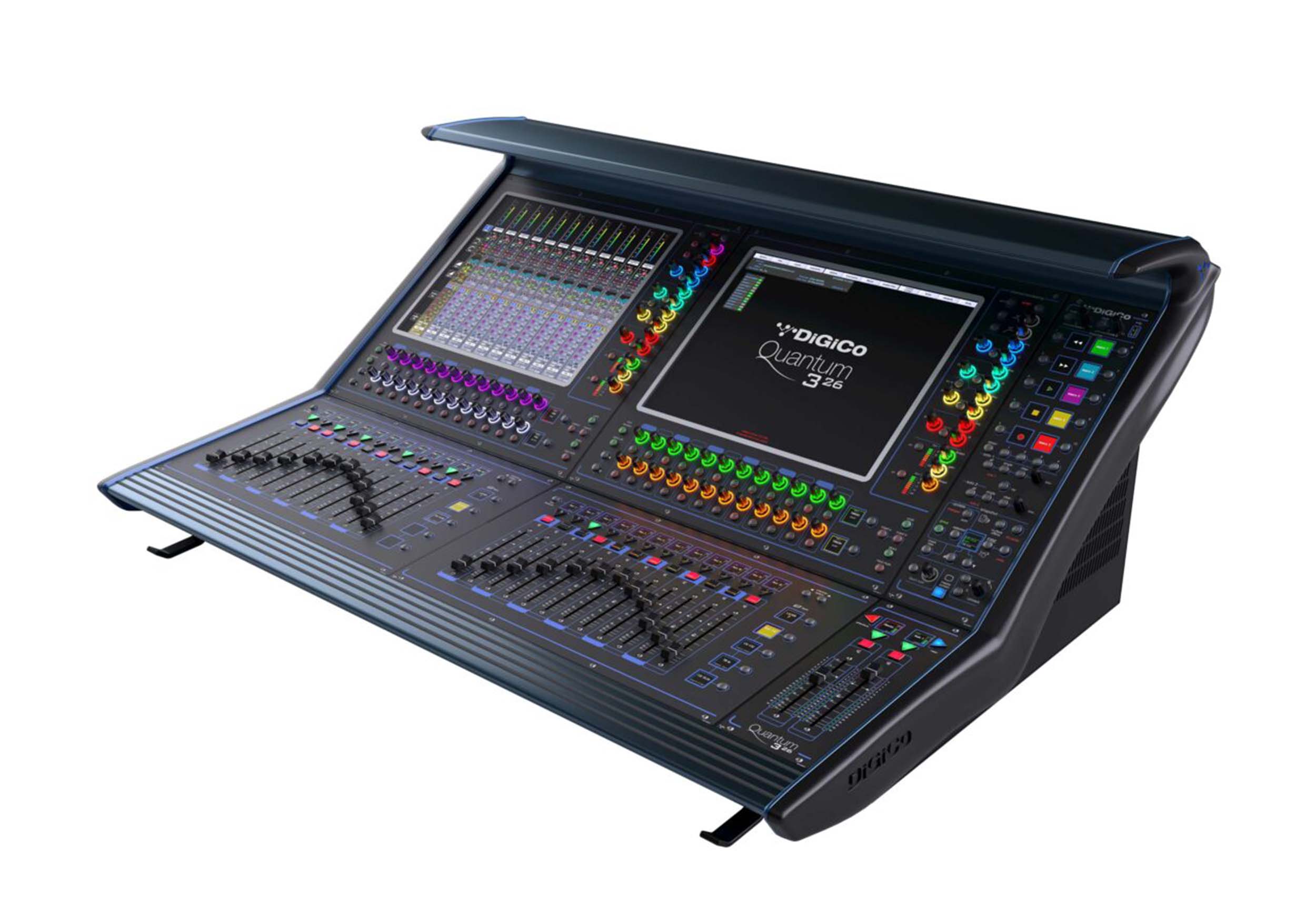

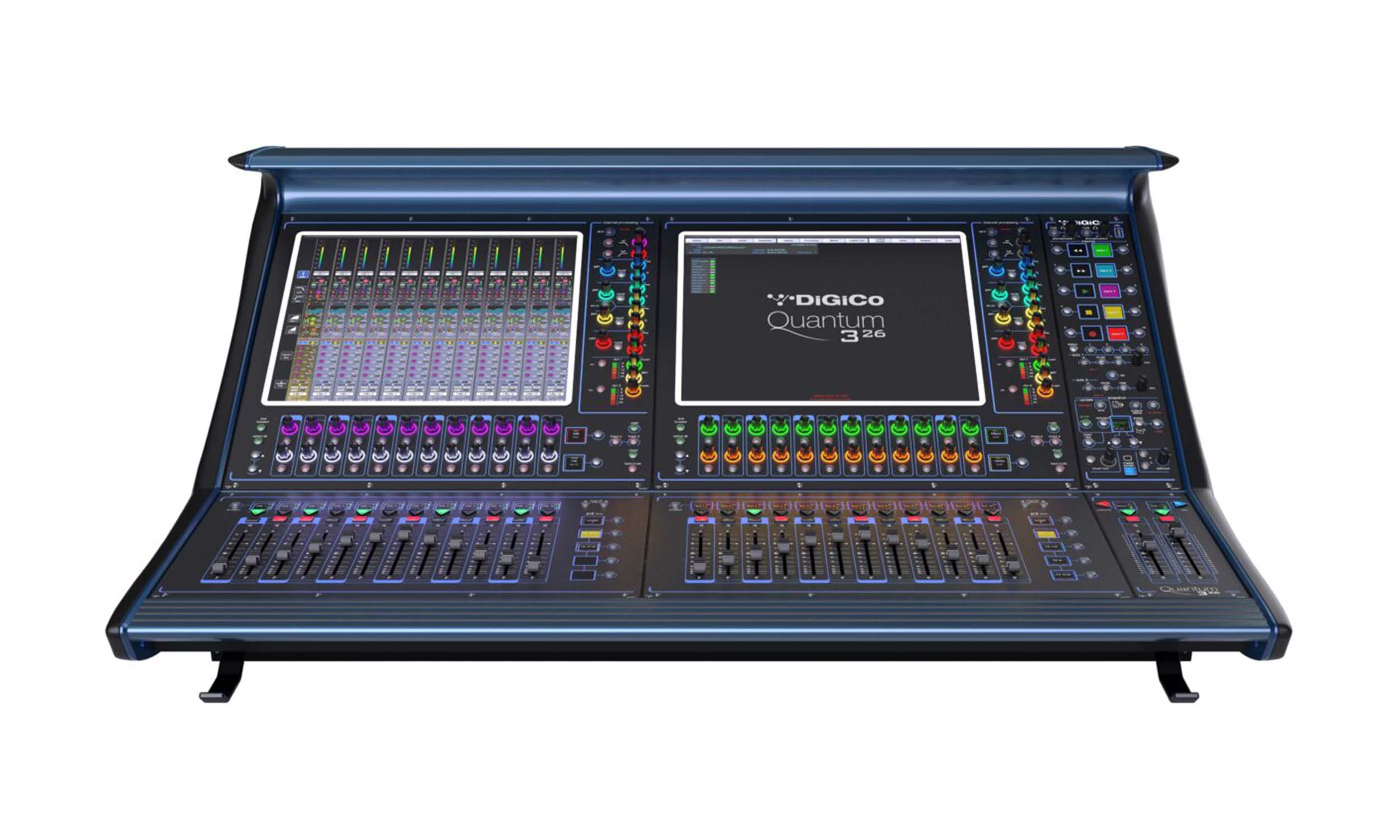

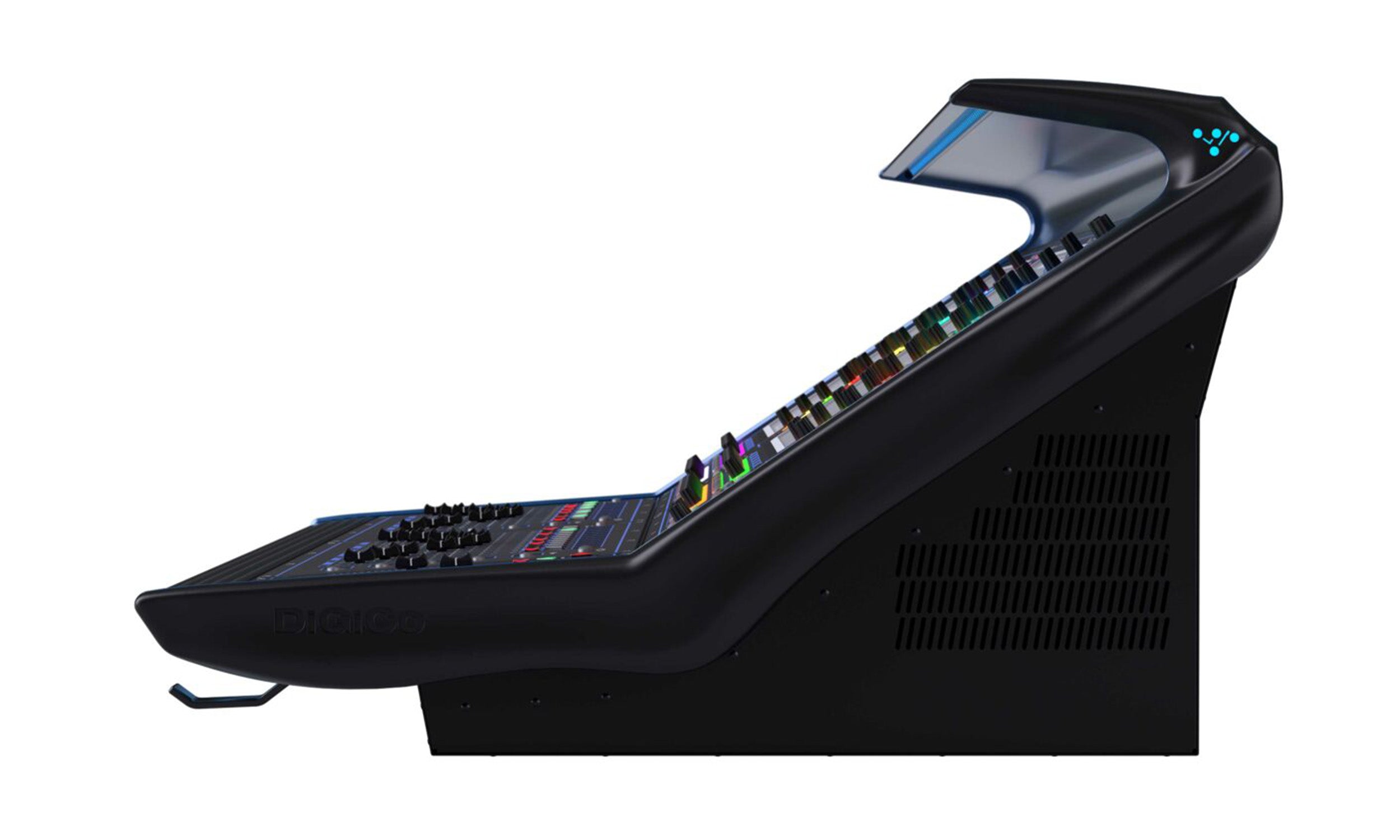

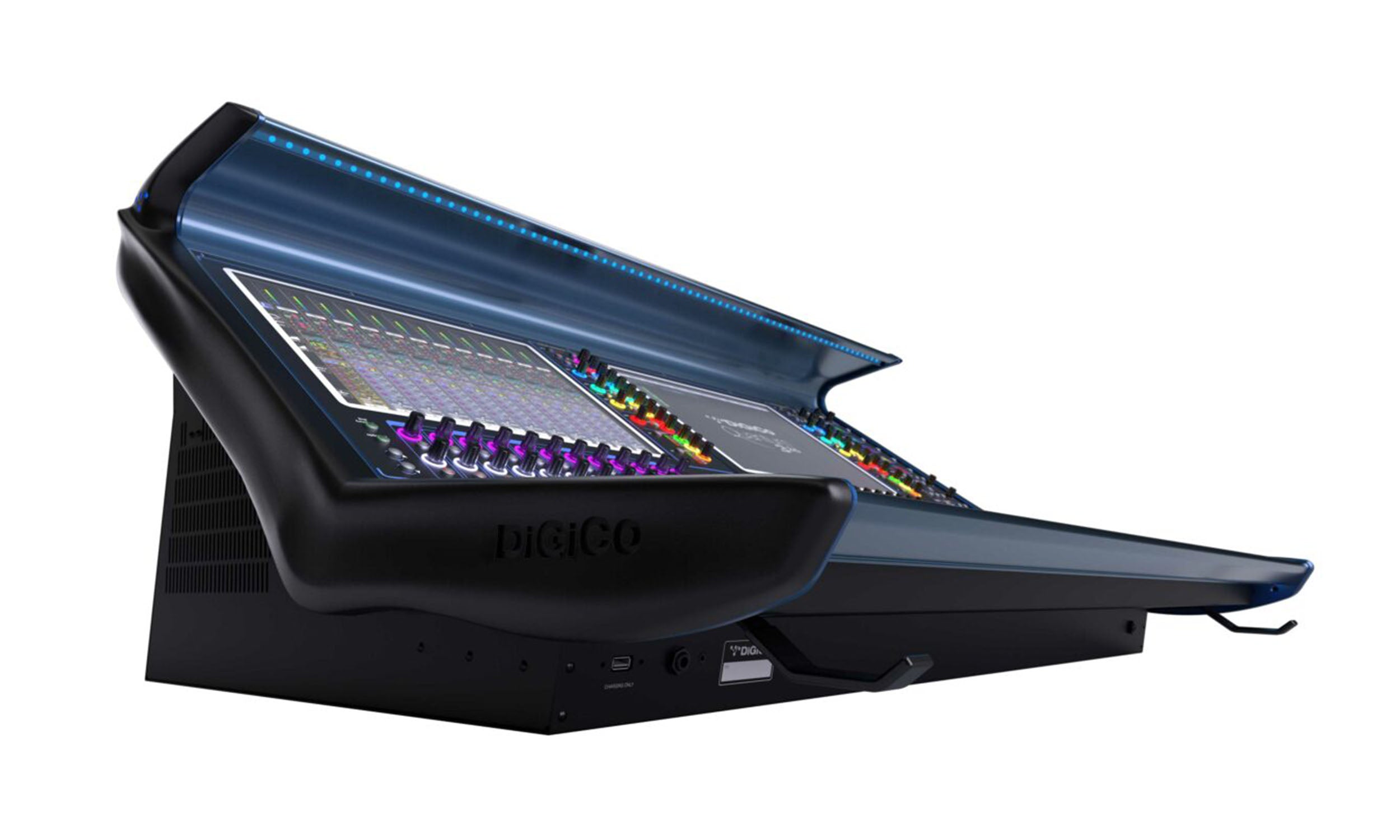

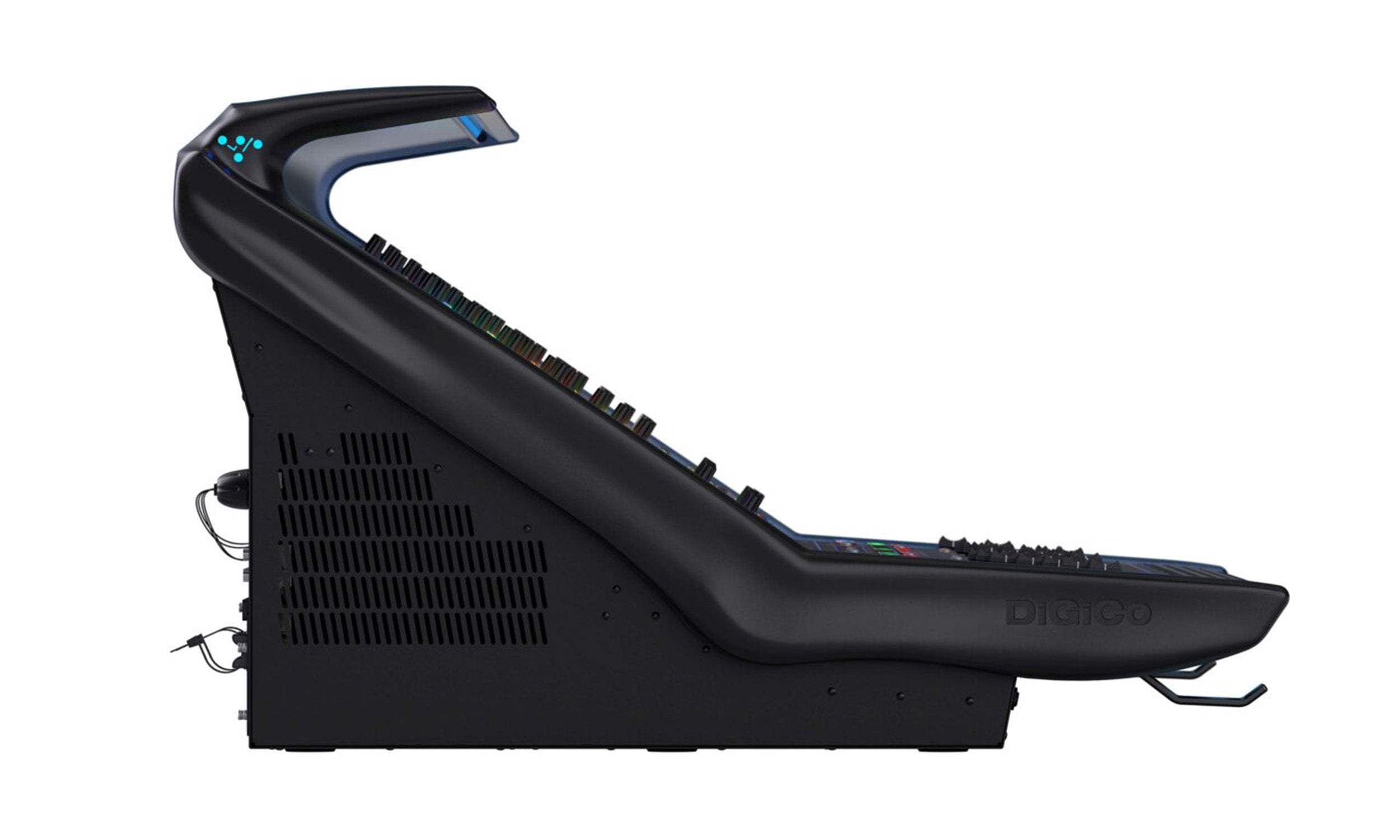

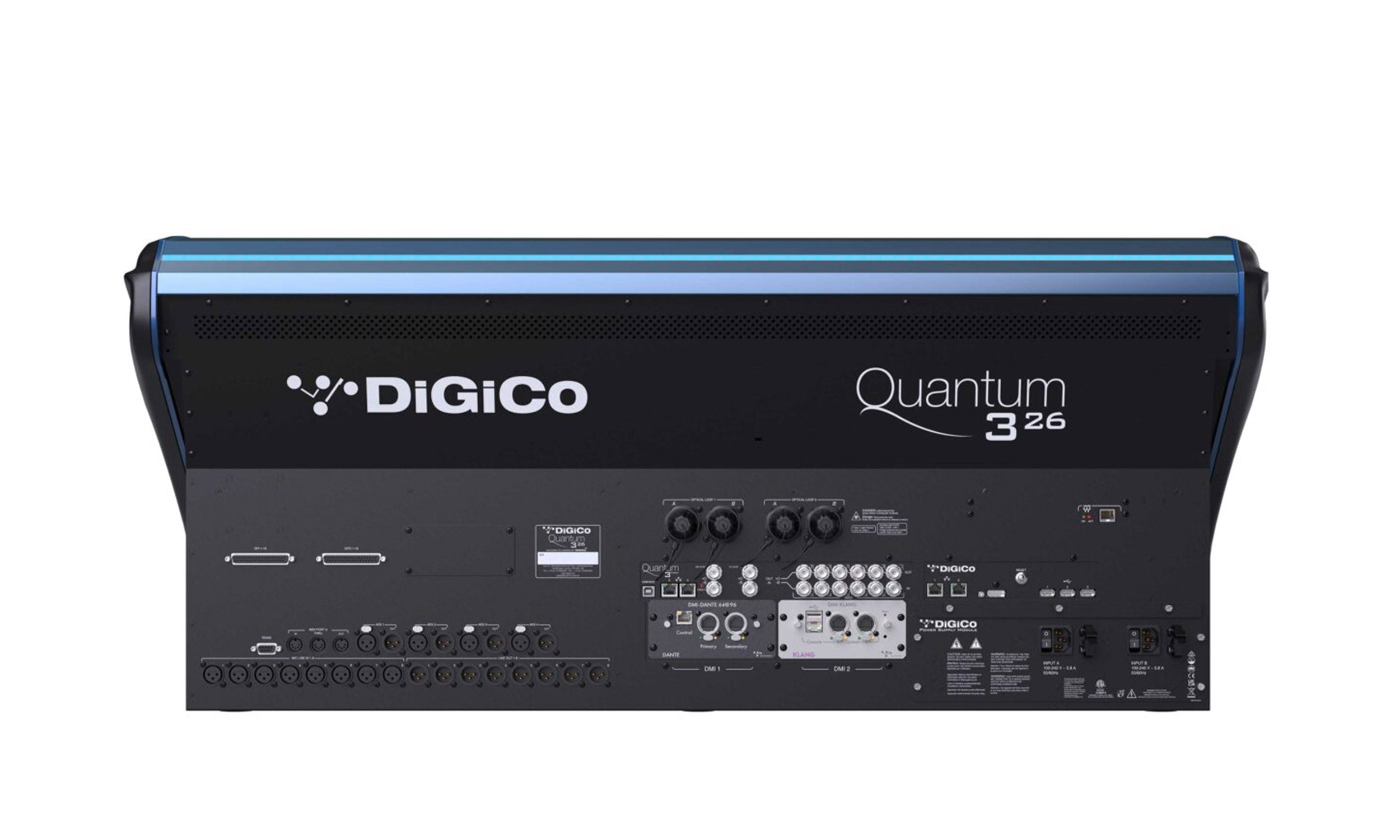

The DiGiCo X-Q326-WS-OP is designed to deliver exceptional mixing performance in a compact Quantum platform. It combines powerful FPGA-based processing with an intuitive workflow for demanding live productions. Engineers benefit from fast operation and extensive channel capacity. The console maintains excellent sound quality even in complex show environments. It is ideal for touring, broadcast, theater, and house of worship applications. Every feature is built for professional reliability.
Waves SoundGrid Integration
This model includes integrated Waves SoundGrid connectivity for real-time plugin processing. Users can run premium Waves effects with ultra-low latency during live performances. It expands creative possibilities with studio-quality EQ, dynamics, and effects. The SoundGrid interface integrates smoothly into professional production workflows. Engineers gain greater processing flexibility without compromising console performance. This makes it suitable for demanding live and broadcast environments.
OpticalCON Optocore Connectivity
The WS-OP version features a rugged OpticalCON Optocore connector for secure fiber networking. OpticalCON provides protected fiber connections that are ideal for touring and permanent installations. It supports reliable long-distance audio transport with minimal signal loss. The connection integrates seamlessly with DiGiCo Optocore systems and compatible stage racks. Its durable locking design improves reliability in demanding production environments. This ensures stable performance throughout every event.
Professional Control Surface
The console is equipped with 26 touch-sensitive motorized faders for smooth and accurate operation. Dual 17-inch high-brightness multitouch screens provide fast access to every function. Individual TFT displays keep channel information visible at all times. The ergonomic surface allows engineers to work quickly during live productions. Logical controls help reduce setup time and improve workflow efficiency. Every control is optimized for professional mixing.
Flexible Audio Processing
Supporting up to 128 input channels and extensive bus configurations, the X-Q326 adapts easily to productions of every size. Advanced routing simplifies complex audio systems while maintaining excellent performance. Ultimate Stadius conversion delivers outstanding clarity and dynamic range. Powerful onboard processing minimizes the need for external hardware. Engineers can confidently manage concerts, corporate events, broadcast, and theater productions. The result is flexible and dependable audio control.
Built for Live Production
The Quantum 326 is engineered for professionals who require performance and reliability every day. Its compact footprint saves valuable space while providing flagship-level capabilities. Rugged construction withstands the demands of touring and rental applications. Waves SoundGrid and OpticalCON Optocore connectivity prepare the console for advanced networked audio systems. The console delivers the speed, flexibility, and sound quality expected from DiGiCo. It is an excellent solution for modern live production workflows.
What’s in the Box:
- MADI x 6, Optics x 1
- UB-MADI
- DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
Connector: OpticalCON Optocore Connector
Integrated Networking: Waves SoundGrid
Local I/O: Ultimate Stadius 32-bit Local I/O
Faders: 26 × 100 mm Touch-Sensitive Motorized
Display Screens: Dual 17" High-Brightness LCD Touchscreens
Input Channels: 128
Aux/Group Busses: Up to 64 (Mono, Stereo, LCR, LCRS, 5.1)
Matrix: 24 × 24 with Full Processing
Control Groups: Up to 24
Internal Effects: Up to 24 Stereo FX Engines
Spice Rack: 8 Mono / 4 Stereo Rack Slots
Mustard Processing: 36 Processing Strips
Nodal Processing: 64 Nodal Processors
Mic/Line Converters: 32-bit
MADI Interface: 6 × 48 kHz or 3 × 96 kHz (BNC)
Optocore Interface: Optional Dual Loop
DMI Slots: 2 × DiGiCo Multichannel Interface
Sampling Rates: 48 kHz / 96 kHz
GPI/GPO: 16
Waves Support: Optional
External Sync: Word Clock, AES, MADI, Optocore
Frequency Response: ±0.15 dB (20 Hz–20 kHz)
THD: <0.002% @ Unity Gain
Channel Separation: Better Than 120 dB
Residual Output Noise: <100 dBu
Microphone Input Noise: Better Than -128 dB EIN
Maximum Input Level: +22 dBu
Maximum Output Level: +22 dBu
Processing Delay: 1 ms Typical @ 96 kHz
Internal Processing: Up to 40-bit Floating Point
A/D & D/A Conversion: 32-bit
Input Gain: -20 dB to +60 Db
Digital Trim (Input): -40 dB to +40 dB
Output Trim: -20 dB to +60 dB
Channel Delay: Up to 1.3 Seconds
Output Delay: Up to 1.3 Seconds
HPF/LPF: 20 Hz–20 kHz, 24 dB/Octave
Input EQ: 4-Band Parametric/Dynamic EQ
Output EQ: 8-Band Parametric/Dynamic EQ
EQ Gain: ±18 dB
EQ Frequency Range: 20 Hz–20 kHz
Dynamic EQ: Supported
Compressor Types: Single-Band & 3-Band Multiband
Gate/Ducker: Yes
De-Esser: Yes
DiGiTuBe Processing: Drive & Bias Controls
Insert Points: Dual (Pre & Post EQ/Dynamics)
Fader Level: ∞ to +10 dB
Mustard Processing: Tube & Amp Emulation, Vintage Compressors, Optical Compressor, FET Limiter
Power Requirements: 100–240 VAC, 50/60 Hz, 295 VA
Product Weight: 114.6 lb
Product Weight (With Flight Case): 330.7 lb
Product Dimensions (L × W × H): 44.3" × 31.7" × 19.0"
Flight Case Dimensions (L × W × H): 49.3" × 25.4" × 45.3"
