Description

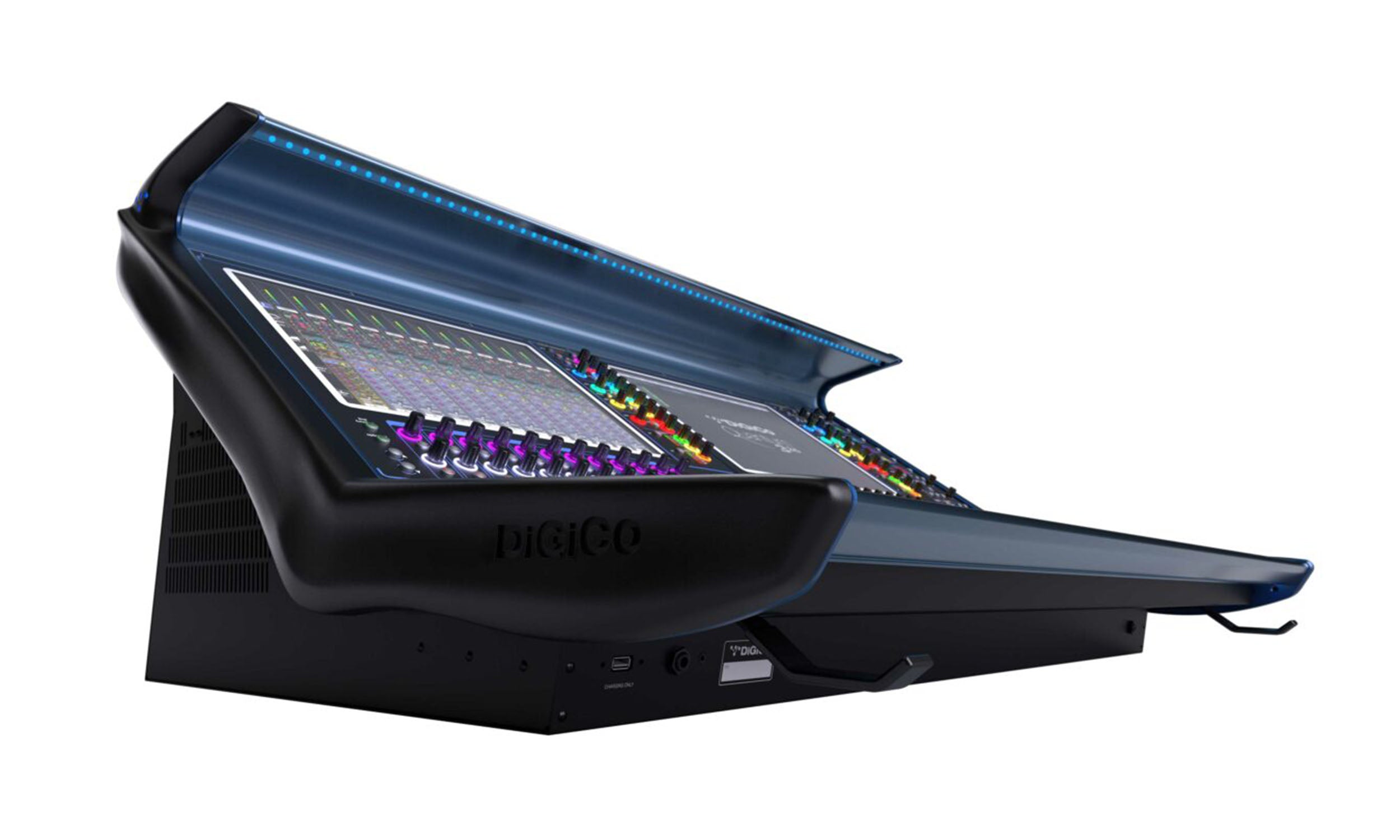

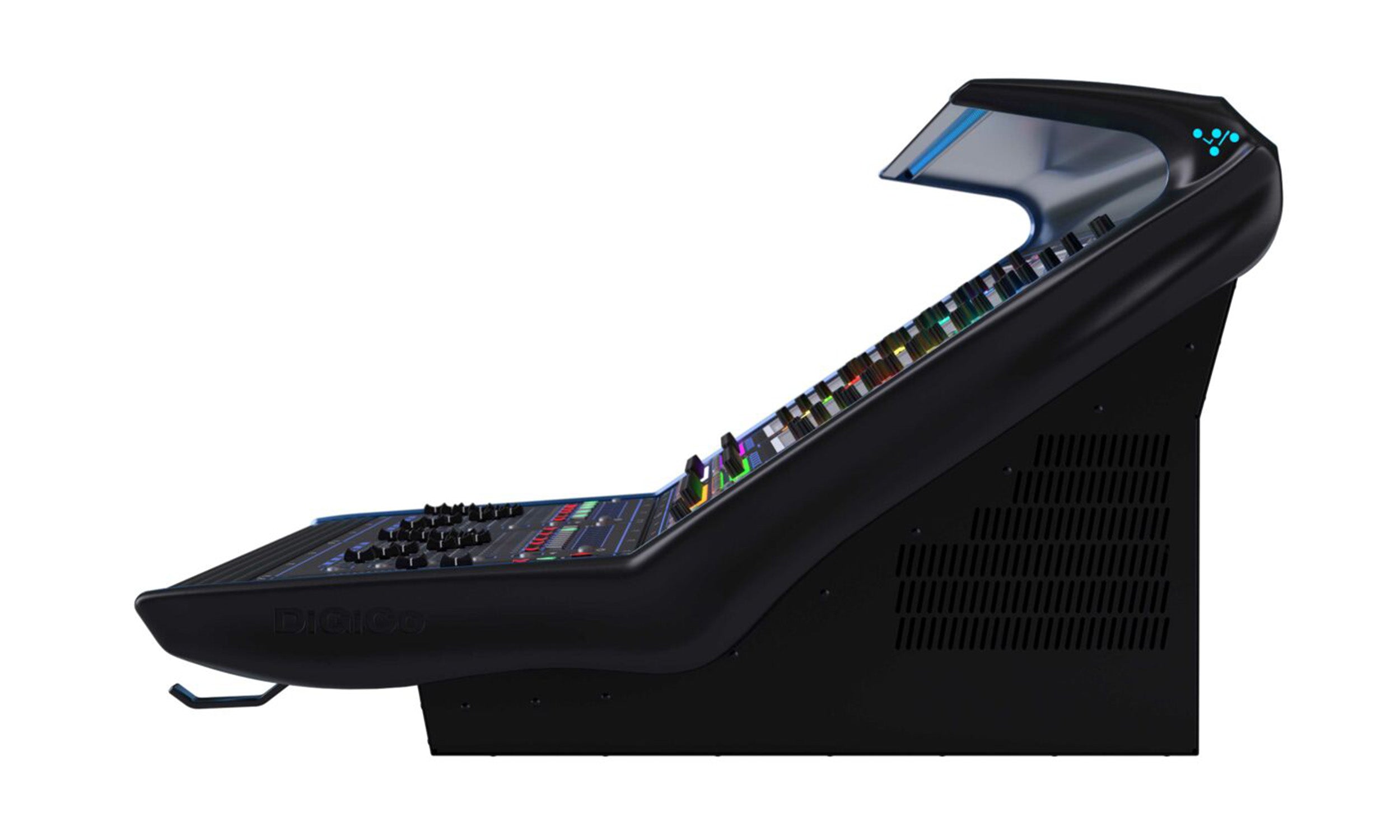

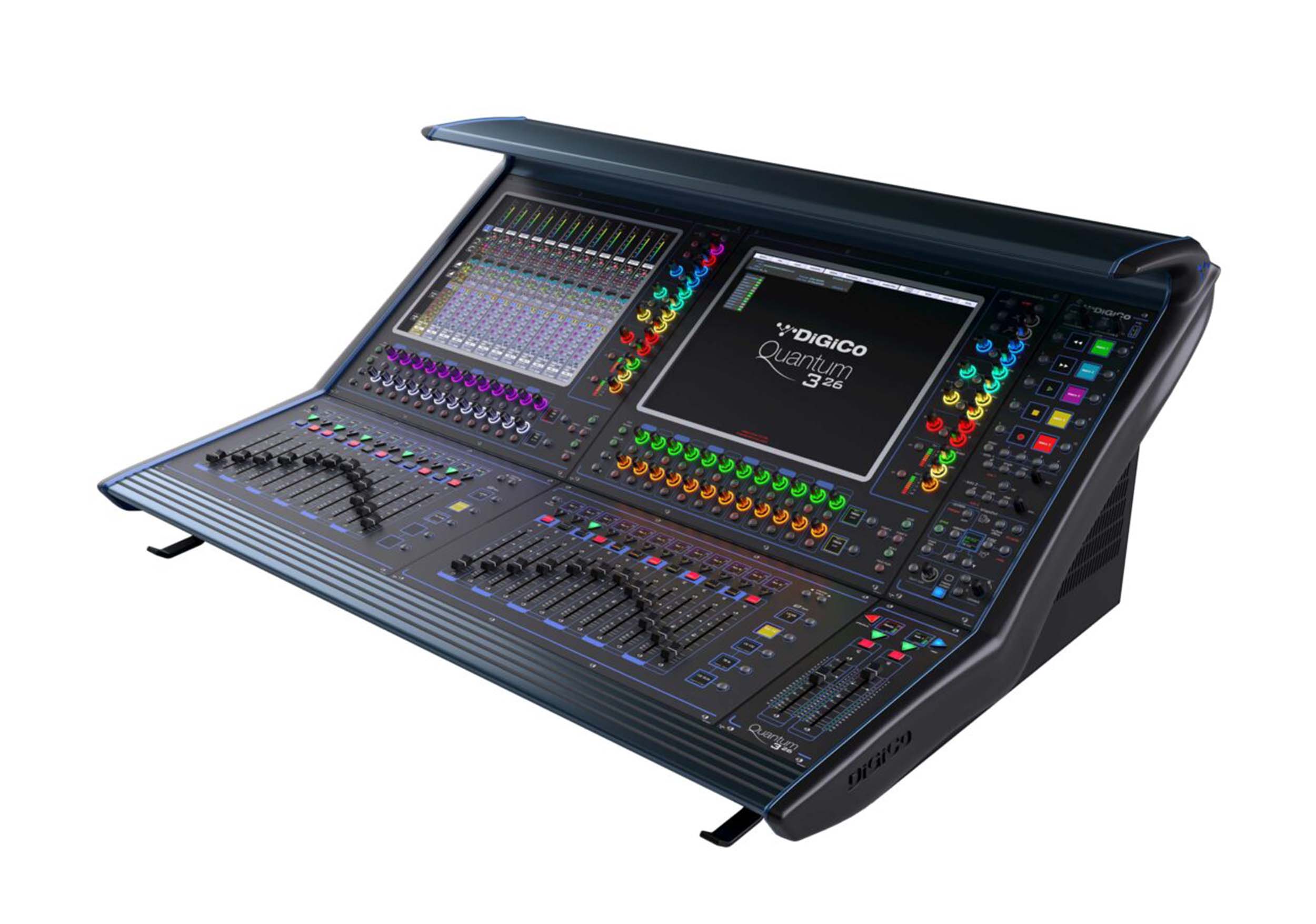

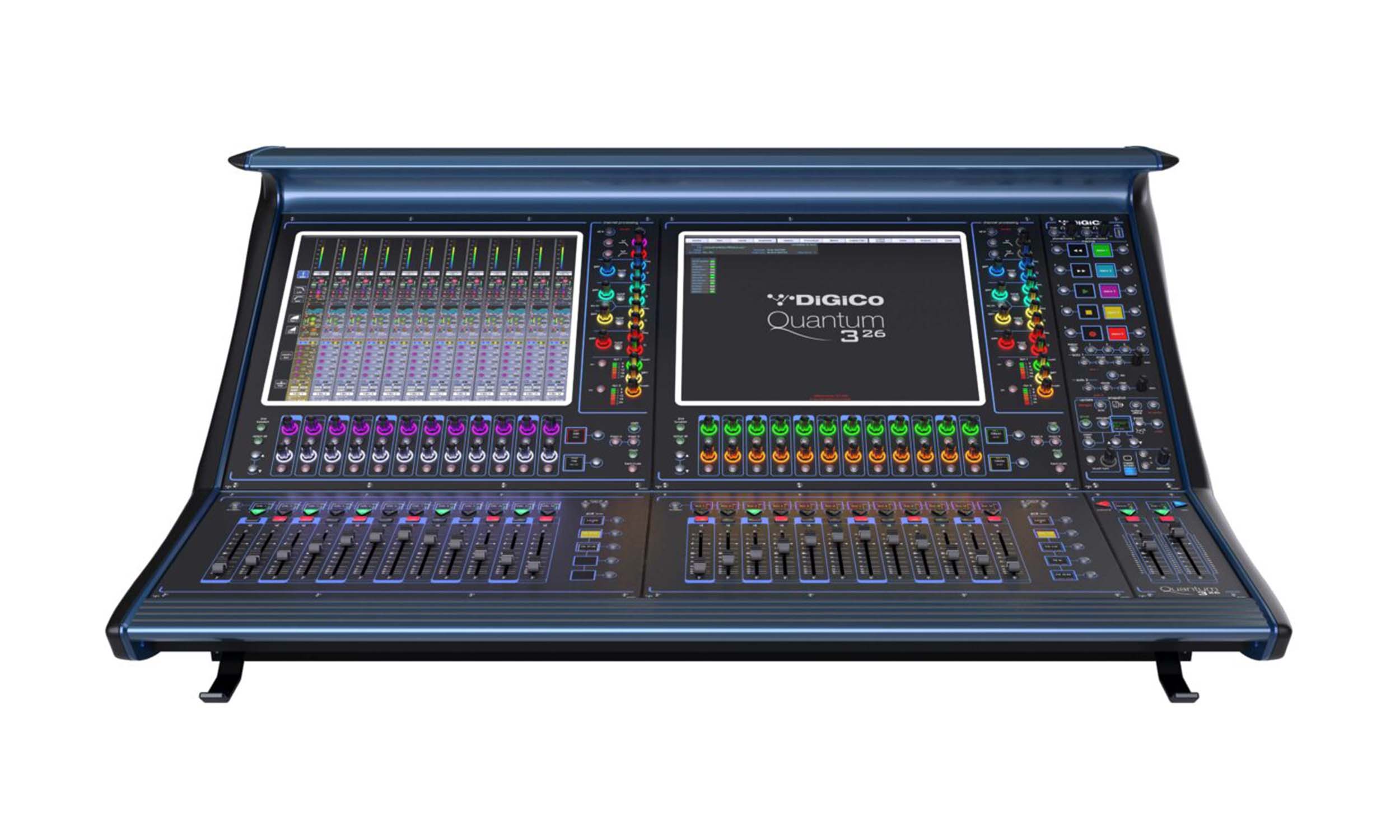

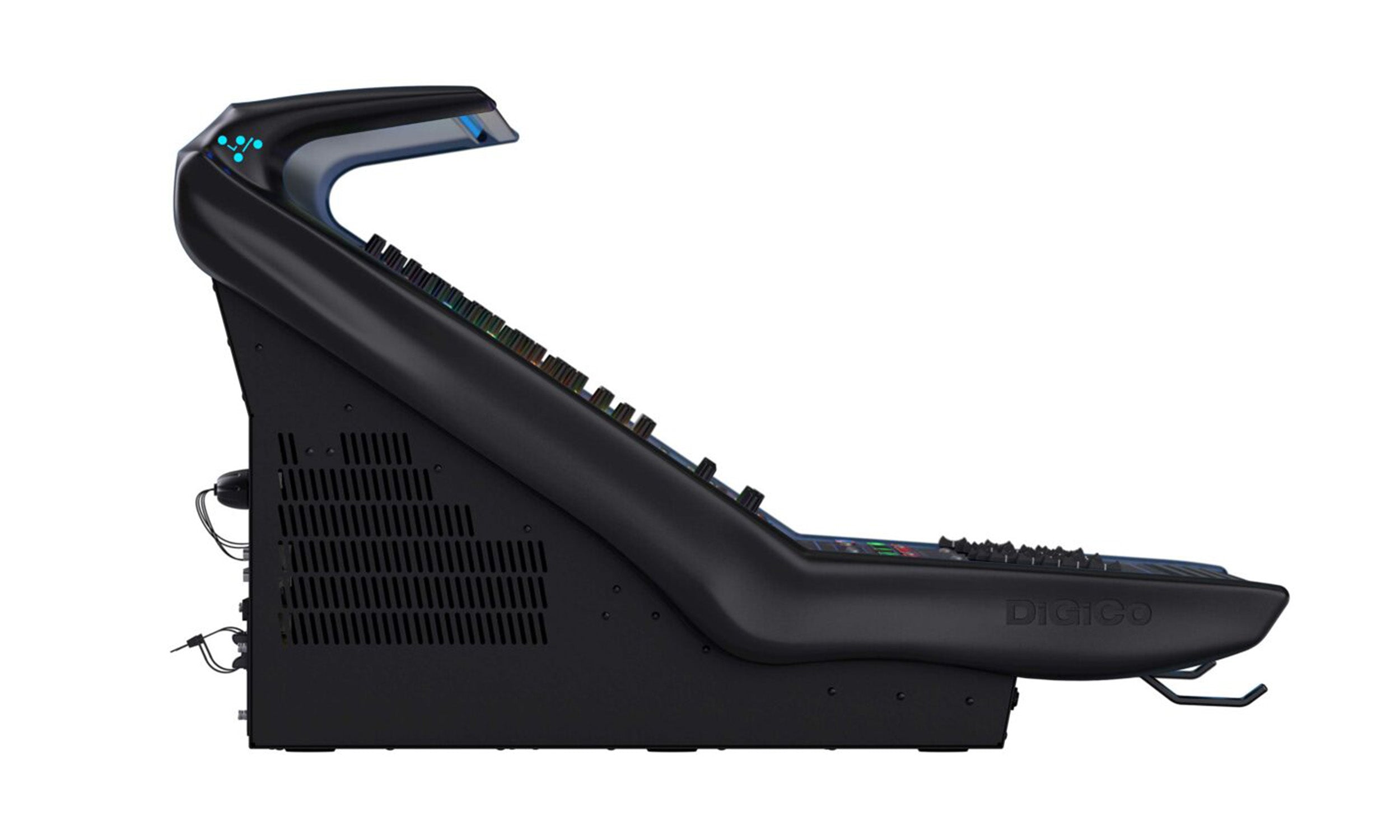

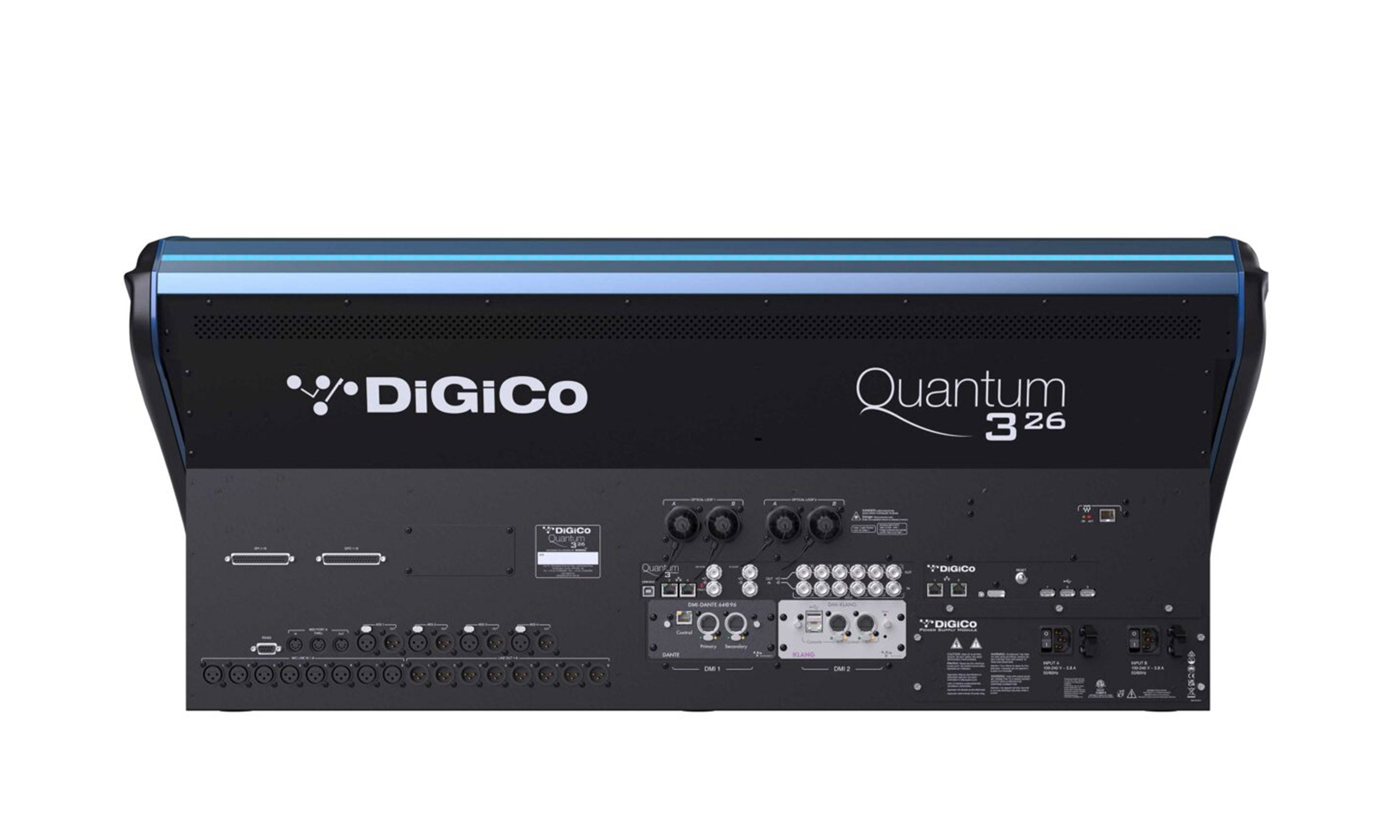

The DiGiCo X-Q326-WS-PREM-ST combines Quantum processing power with an efficient control surface designed for professional live sound. Built around DiGiCo's advanced FPGA architecture, it delivers outstanding audio quality, ultra-low latency, and fast workflow. Its compact footprint makes it suitable for touring, theaters, broadcast, and permanent installations. Engineers benefit from responsive control and exceptional processing power. The console is built to handle demanding productions with confidence.
Integrated Waves SoundGrid
Built-in Waves SoundGrid connectivity allows direct integration with industry-leading Waves plugins for live processing. Engineers can utilize premium EQs, compressors, reverbs, and mastering tools with extremely low latency. This expands creative possibilities while minimizing external hardware requirements. SoundGrid also provides flexible networking for modern production systems. The result is studio-quality sound in any live environment.
Standard ST Fiber Connectivity
This version features Standard (ST) fiber connectors for Optocore networking, providing stable, high-speed fiber communication between compatible devices. ST connectors are widely used in fixed installations and professional touring systems. They support reliable long-distance signal transmission while maintaining excellent audio integrity. The secure fiber connection minimizes interference in demanding production environments. This ensures dependable operation throughout every performance.
Fast and Intuitive Workflow
The console is equipped with 26 touch-sensitive motorized faders and dual 17-inch high-resolution touchscreens. Fifty-one TFT channel displays provide instant visual feedback for every channel. Engineers can quickly access routing, processing, snapshots, and monitoring functions through an intuitive interface. The ergonomic layout reduces operating time during complex productions. This workflow keeps engineers focused on the mix instead of menu navigation.
Advanced Processing Capability
Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 processing matrix, the console easily manages complex live productions. Built-in Mustard Processing, Spice Rack, Nodal Processing, and internal effects provide extensive creative flexibility. Every channel includes professional-grade EQ, dynamics, delay, and routing functions. The powerful processing engine maintains consistent performance even with demanding sessions.
Professional Touring Solution
Designed for modern production environments, the X-Q326-WS-PREM-ST delivers the reliability expected from DiGiCo's Quantum Series. Its robust construction, advanced networking, and premium audio performance make it ideal for concerts, festivals, broadcast, houses of worship, and corporate events. Combined with Waves SoundGrid and ST fiber connectivity, it provides a complete mixing solution for professional engineers. The console is engineered for years of dependable service.
What’s in the Box:
- MADI x 6, Optics x 1
- UB-MADI
- DMI Port x 2
- Connectors: BNC, ST
Product Specifications:
Connector: Standard (ST) Connector
Waves Integration: Built-in Waves SoundGrid Networking
Faders: 26 × 100 mm Touch-Sensitive Motorized
Display Screens: Dual 17" High-Brightness LCD Touchscreens
Input Channels: 128
Aux/Group Busses: Up to 64 (Mono, Stereo, LCR, LCRS, 5.1)
Matrix: 24 × 24 with Full Processing
Control Groups: Up to 24
Internal Effects: Up to 24 Stereo FX Engines
Spice Rack: 8 Mono / 4 Stereo Rack Slots
Mustard Processing: 36 Processing Strips
Nodal Processing: 64 Nodal Processors
Mic/Line Converters: 32-bit
MADI Interface: 6 × 48 kHz or 3 × 96 kHz (BNC)
Optocore Interface: Optional Dual Loop
DMI Slots: 2 × DiGiCo Multichannel Interface
Sampling Rates: 48 kHz / 96 kHz
GPI/GPO: 16
Waves Support: Optional
External Sync: Word Clock, AES, MADI, Optocore
Frequency Response: ±0.15 dB (20 Hz–20 kHz)
THD: <0.002% @ Unity Gain
Channel Separation: Better Than 120 dB
Residual Output Noise: <100 dBu
Microphone Input Noise: Better Than -128 dB EIN
Maximum Input Level: +22 dBu
Maximum Output Level: +22 dBu
Processing Delay: 1 ms Typical @ 96 kHz
Internal Processing: Up to 40-bit Floating Point
A/D & D/A Conversion: 32-bit
Input Gain: -20 dB to +60 dB
Digital Trim (Input): -40 dB to +40 dB
Output Trim: -20 dB to +60 dB
Channel Delay: Up to 1.3 Seconds
Output Delay: Up to 1.3 Seconds
HPF/LPF: 20 Hz–20 kHz, 24 dB/Octave
Input EQ: 4-Band Parametric/Dynamic EQ
Output EQ: 8-Band Parametric/Dynamic EQ
EQ Gain: ±18 dB
EQ Frequency Range: 20 Hz–20 kHz
Dynamic EQ: Supported
Compressor Types: Single-Band & 3-Band Multiband
Gate/Ducker: Yes
De-Esser: Yes
DiGiTuBe Processing: Drive & Bias Controls
Insert Points: Dual (Pre & Post EQ/Dynamics)
Fader Level: ∞ to +10 dB
Mustard Processing: Tube & Amp Emulation, Vintage Compressors, Optical Compressor, FET Limiter
Power Requirements: 100–240 VAC, 50/60 Hz, 295 VA
Product Weight: 114.6 lb
Product Dimensions (L × W × H): 44.3" × 31.7" × 19.0"
