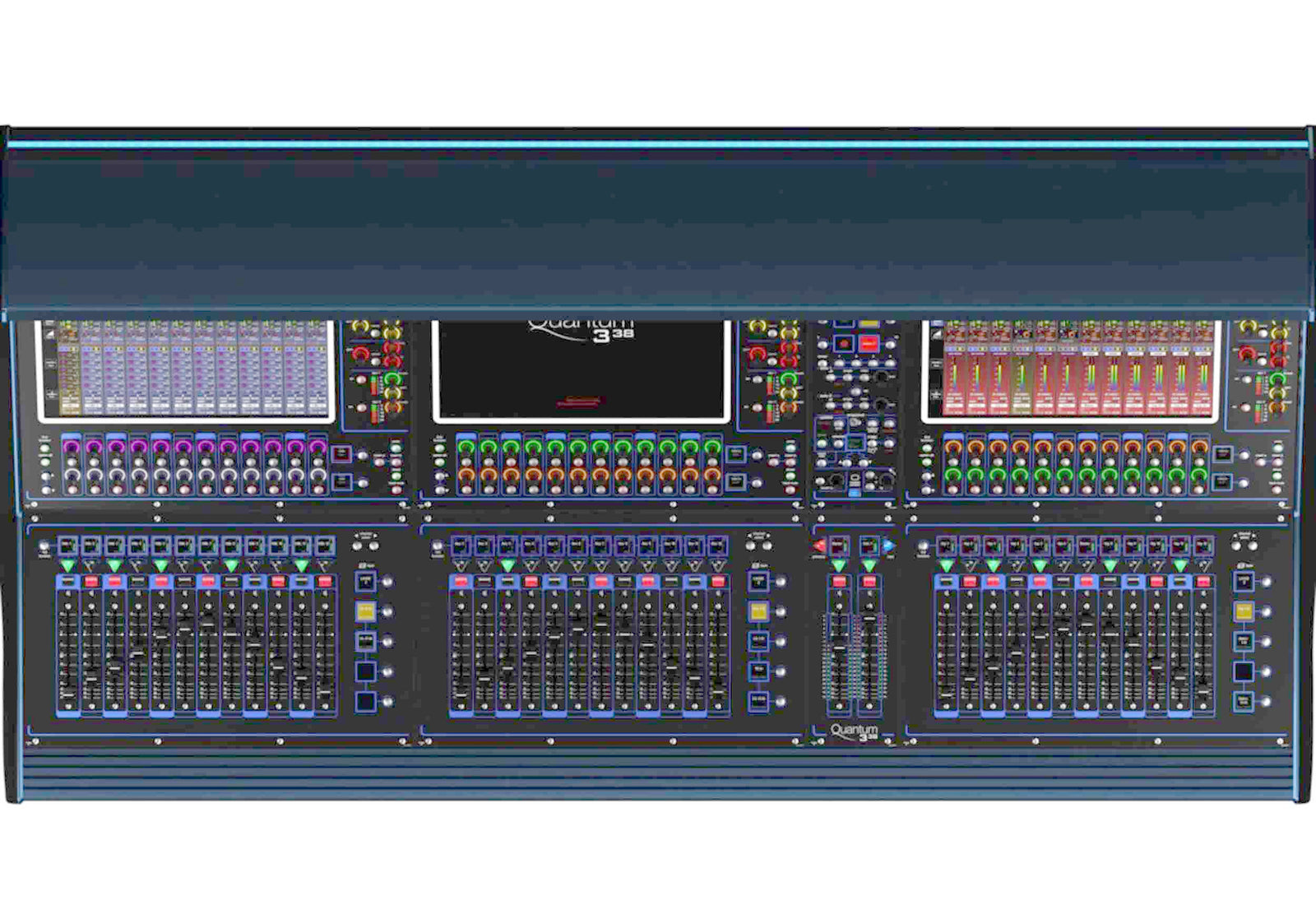

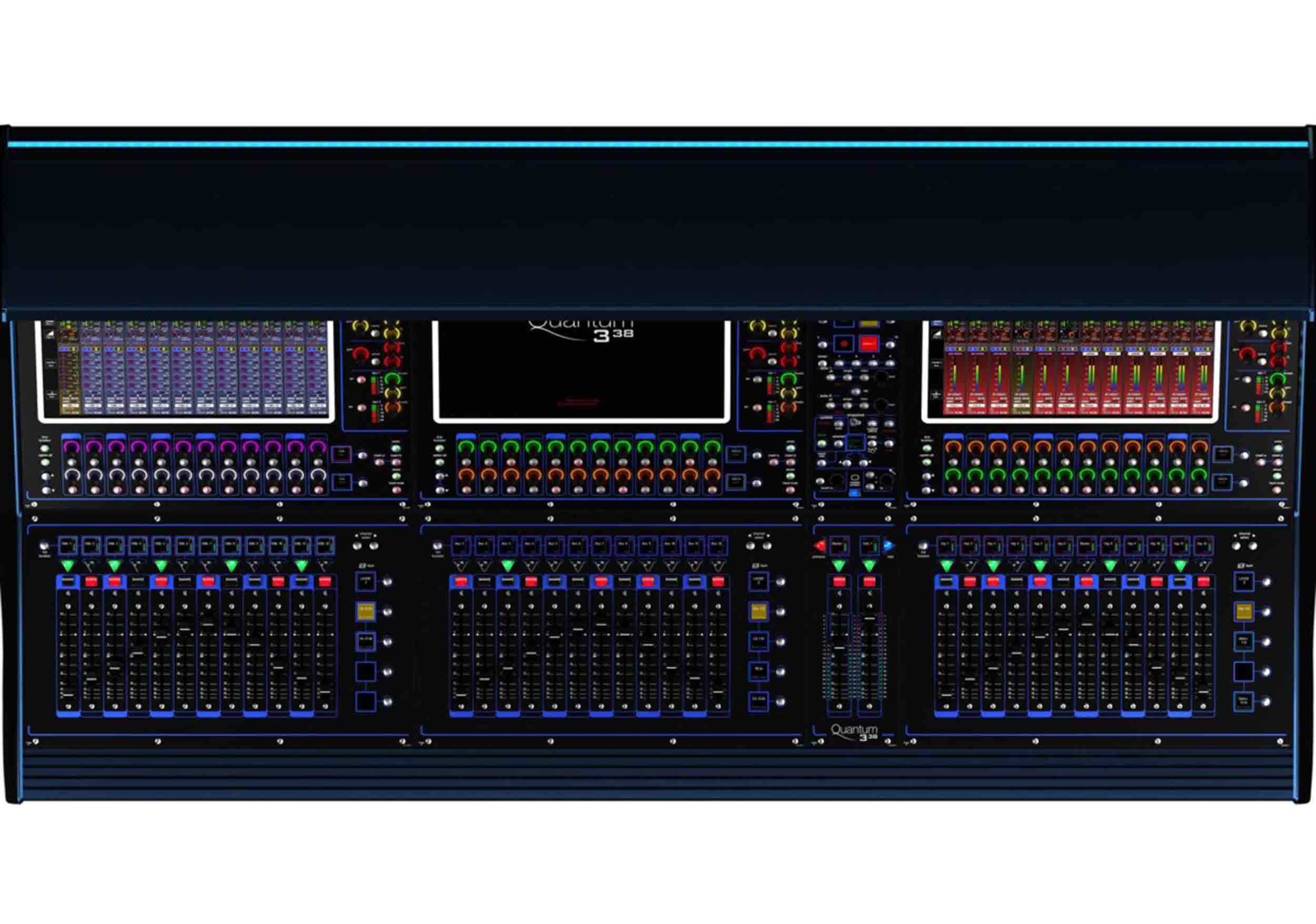

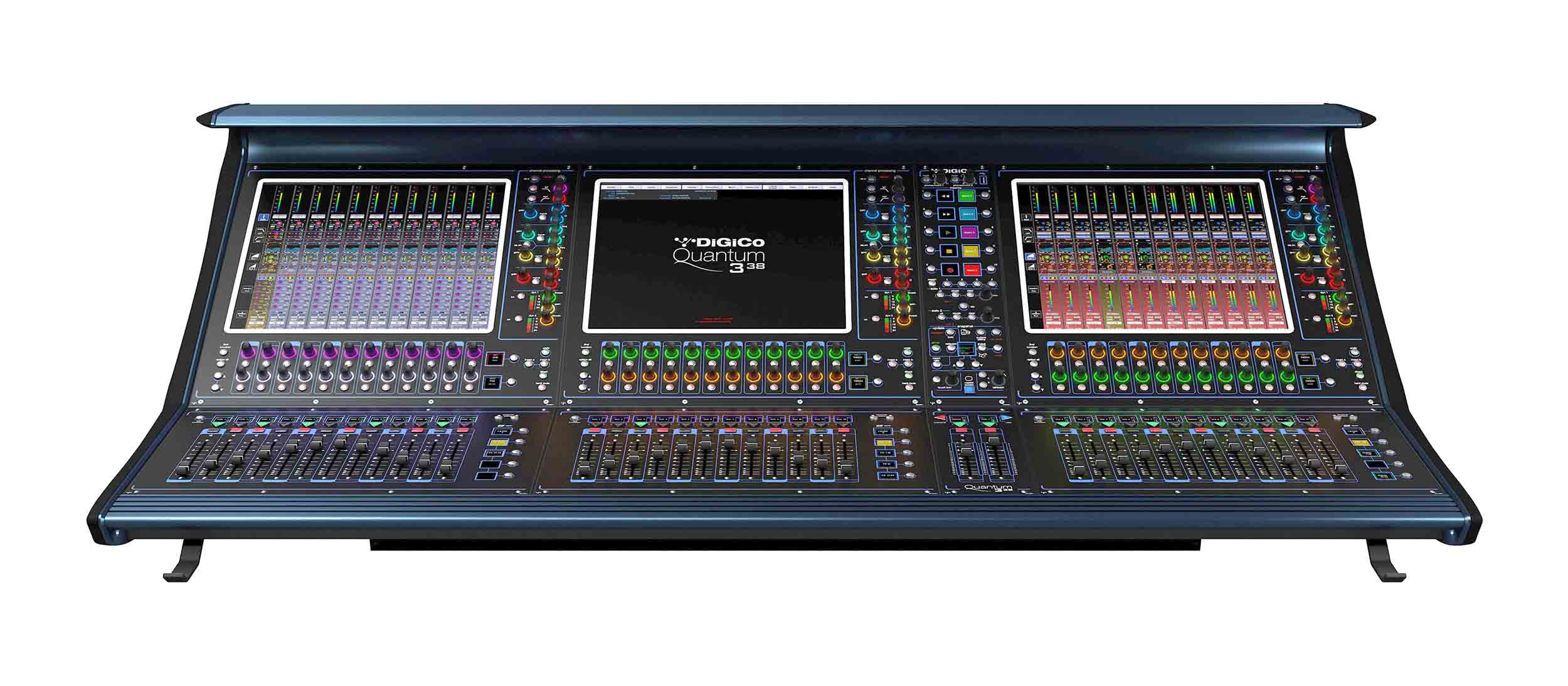

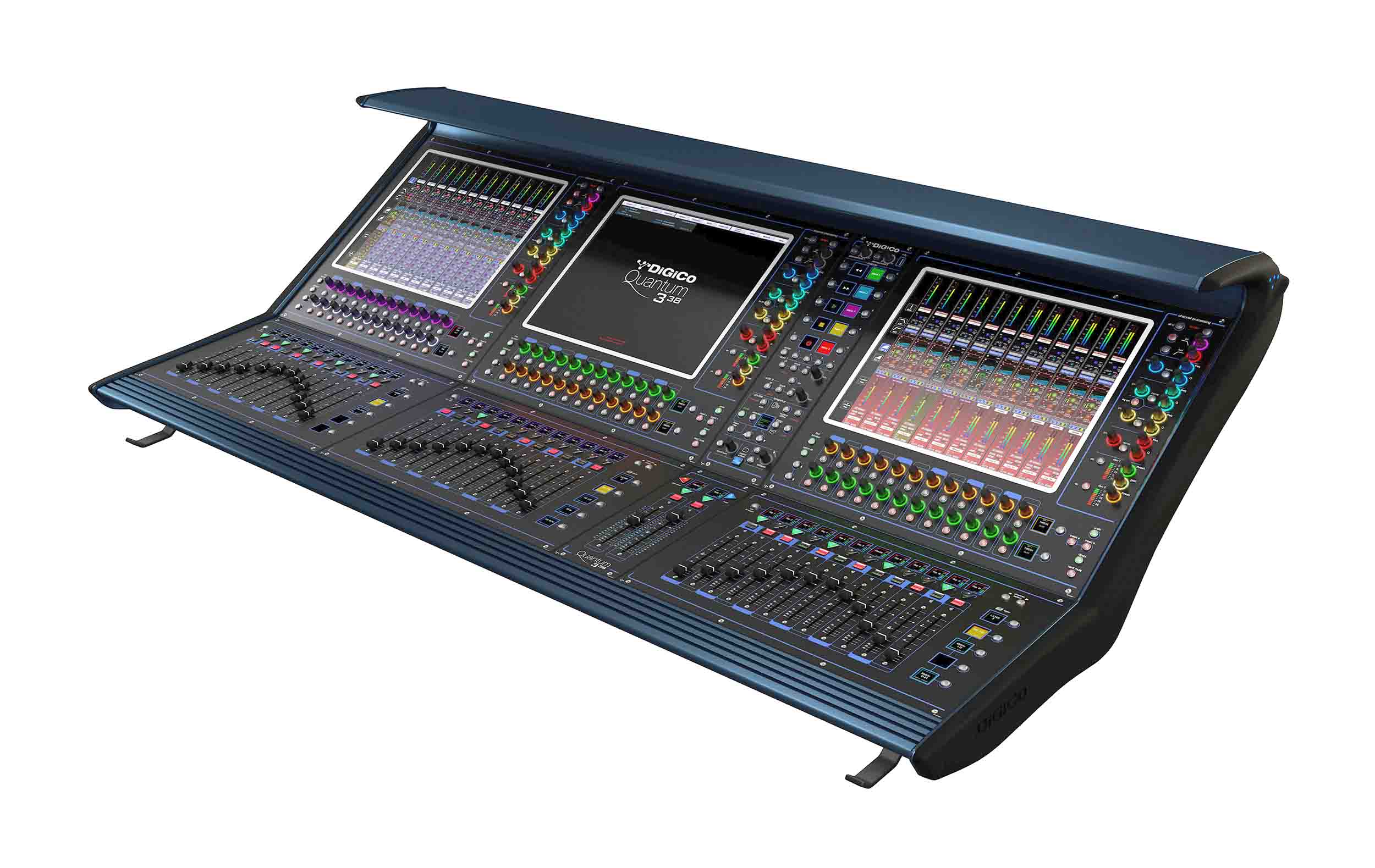

DiGiCo X-Q338-W-OP-EX-ULT Quantum 338 Ultimate Digital Mixing Console with OpticalCON Connector

The DiGiCo X-Q338-W-OP-EX-ULT is a premium Quantum Series digital mixing console designed for world-class live sound, touring, broadcast, and theater productions. Powered by DiGiCo's seventh-generation FPGA processing engine, it delivers exceptional audio quality, ultra-low latency, and impressive processing capacity. The Ultimate Stadius platform enhances every input and output with superior 32-bit conversion. Engineers benefit from fast workflow, powerful features, and dependable performance during demanding productions. The console is built to exceed the expectations of modern audio professionals.

Ultimate Stadius Audio Engine

Equipped with Ultimate Stadius technology, the console provides premium 32-bit analog-to-digital and digital-to-analog conversion on its local I/O. This delivers improved dynamic range, lower noise, and outstanding sonic accuracy. Every signal maintains exceptional clarity from input to output. Combined with Quantum FPGA processing, the console produces pristine audio quality for the most demanding applications. It is engineered for productions where every detail matters.

OpticalCON Fiber Connectivity

This version includes OpticalCON Optocore connectivity for rugged, professional fiber networking. The OpticalCON connector provides secure locking connections while protecting the fiber cable in touring environments. Long-distance signal transport remains stable with minimal interference and maximum reliability. It is ideal for large venues, stadiums, broadcast facilities, and festival productions. The robust connection ensures dependable communication throughout every event.

Advanced Mixing Workflow

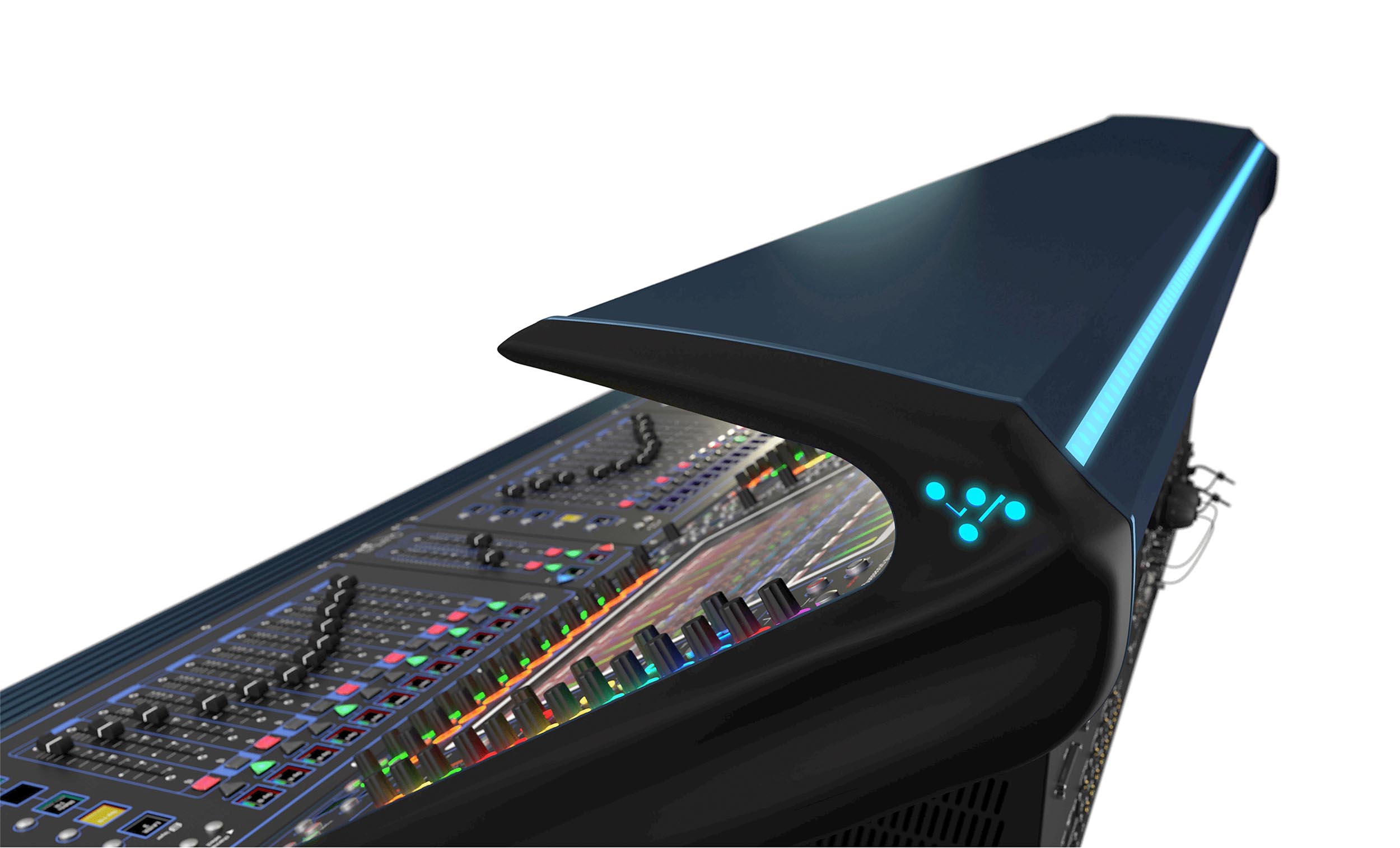

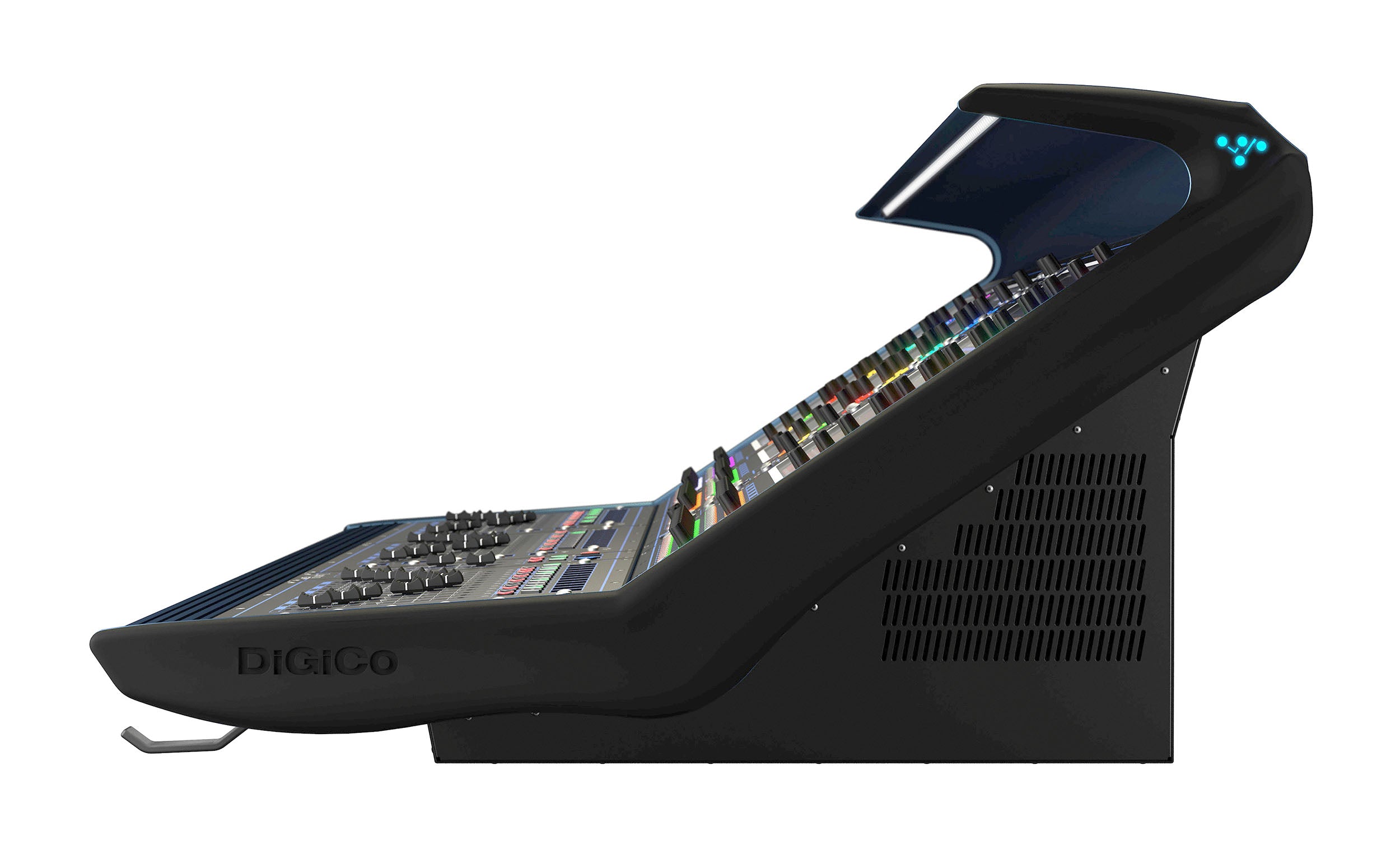

The Quantum 338 features 38 touch-sensitive motorized faders arranged across three banks with three high-resolution 17-inch multi-touch displays. Seventy individual TFT channel displays provide constant channel visibility for faster operation. Engineers can quickly access routing, processing, snapshots, and monitoring without interrupting the workflow. The floating Quantum chassis offers excellent ergonomics for long mixing sessions. Every control is designed to maximize efficiency during live productions.

Powerful Built-In Processing

Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console easily handles large-scale productions. Mustard Processing, Spice Rack FPGA plugins, Nodal Processing, True Solo, dynamic EQ, and premium internal effects provide comprehensive mixing capabilities. These advanced processing tools eliminate the need for extensive external equipment. Engineers can create sophisticated mixes while maintaining outstanding performance. The system remains responsive even during the most complex productions.

Built for Professional Productions

Designed for touring companies, rental providers, broadcast facilities, theaters, and major live events, the X-Q338-W-OP-EX-ULT offers exceptional reliability and flexibility. Its robust construction, Ultimate Stadius technology, and OpticalCON connectivity make it suitable for the most demanding environments. The console integrates seamlessly into professional Optocore systems while delivering industry-leading sound quality. It is a complete flagship solution for engineers who require uncompromising performance.

What’s in the Box:

• One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
• Ultimate Stadius' 32-Bit Mic Pre Amp & 32-Bit Output Package
• HMA Optics cable 150M on spool (492 ft.) x 2
• Connections: MADI x 6, Optics x 1
• Internal Waves Card
• UB-MADI, DMI Port x 2
• Connectors: BNC, HMA

Product Specifications:

Connector: OpticalCON fiber only.

Faders: 38 x 100mm touch-sensitive, motorized

Screens: 3 x 17” LCD high – brightness, high – resolution touch screens

Input Channels: 128

Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1

Matrix: Up to 24 Input / 24 Outputs with full processing

Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group

Graphic Eq: 24 x 32-band, Gain +/- 12dB

Spice Rack: 8 mono / 4 stereo Rack Slots

Mustard Proc: 36 Processing Strips

Nodal Proc: 64 Nodal Processors

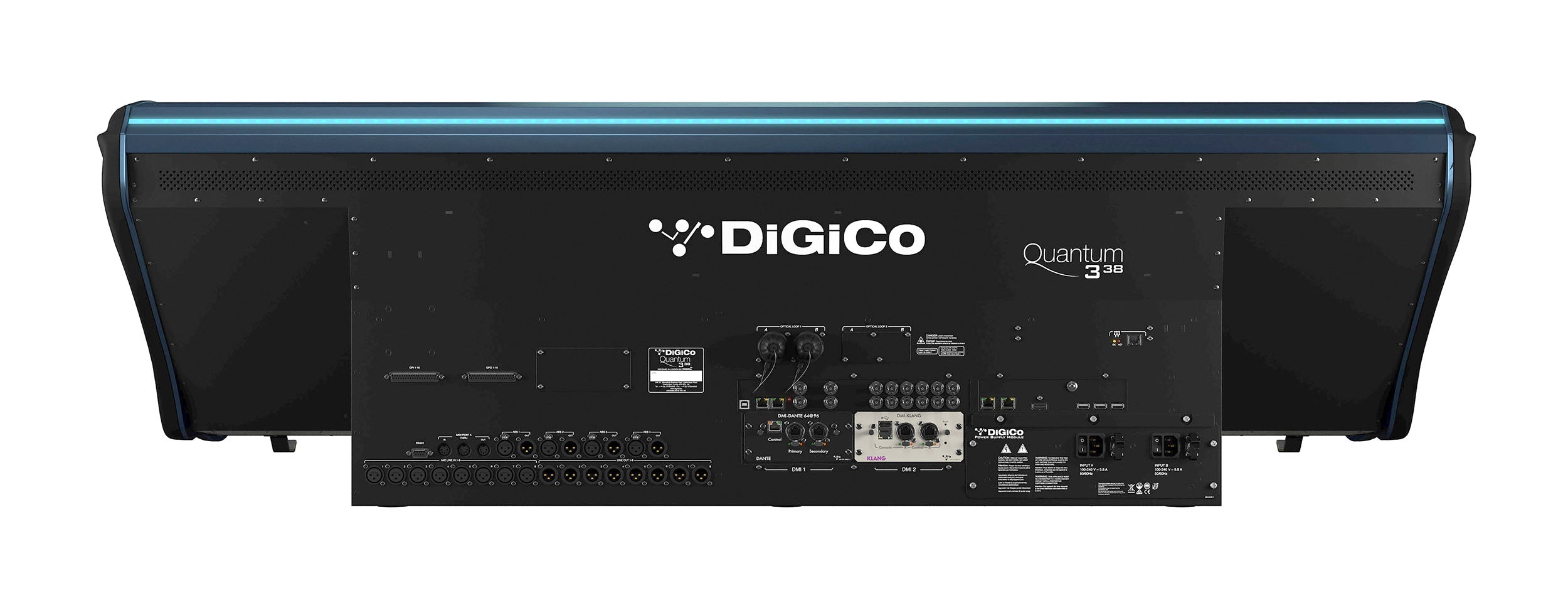

Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O

MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity

Optocore Interface: Optional (dual loop available)

Sampling rates: 48kHz / 96kHz

GPI/GPO: 16

DMI: 2 x DiGiCo Multichannel Interface

Waves: Optional

Ext Sync: Word clock, AES, MADI, Optocore

Power Requirements: 100V-240V, 50-60Hz, 295VA

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Dynamics 1: Single or Multiband (3-band) Compressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Threshold: 20us – 20ms

Release: 1ms – 100ms

Ratio: 1:1 – 50:1

Ess-Band: Listen On/Off

Ess-Band Filter Freq/Width: 20Hz – 20kHz

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel/Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

S/C Source: Any source

S/C Listen: On/Off

S/C Filter Freq/Width: 20Hz – 20kHz

Insert B: (Post EQ/Dyn) On/Off

EQ/Dyn Order: EQ/Dyn or Dyn/EQ

Mute: Channel Mute / Hard Mute

Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo

Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe

Output Routing: Outputs, Insert A, Insert B, FX

Fader: 100mm Motorized Fader ∞ to +10dB

Preamplifier Tubes:

Variable Drive

Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets

Variable Output Gain

Preamplifier Amp:

Variable Drive

Odd/Even 1st stage harmonics

Bias & Saturate control

Off/Odd/Even 2nd stage harm

Variable HF Boost

Variable Output Gain

Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter

Dynamics 2: Gate / Ducker

Quantum 338 Dimensions: 62.80 in (W) × 31.69 in (D) × 18.98 in (H)

Quantum 338 Weight: 154lbs (437 lbs. with flight case)

Quantum 338 Flight case: 67.60 in (W) × 25.28 in (D) × 45.04 in (H)
