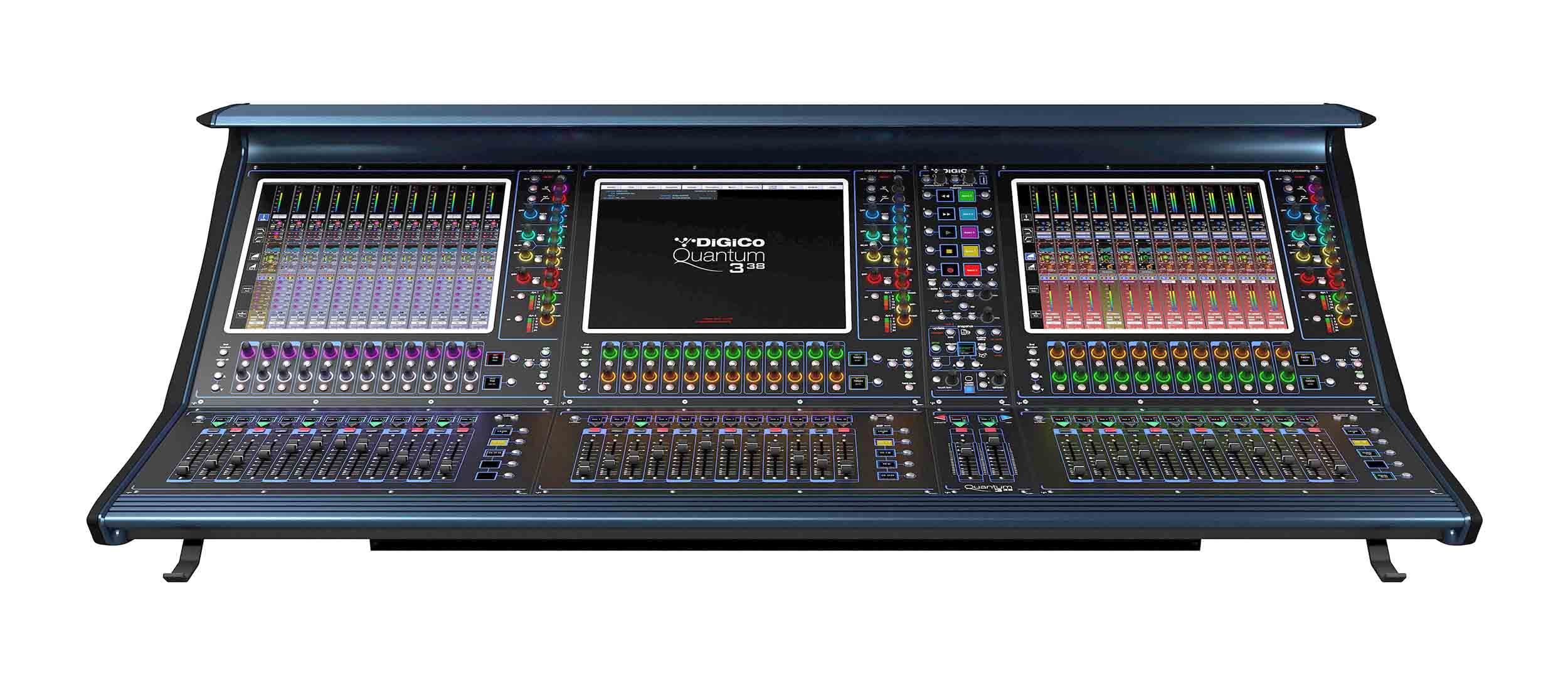

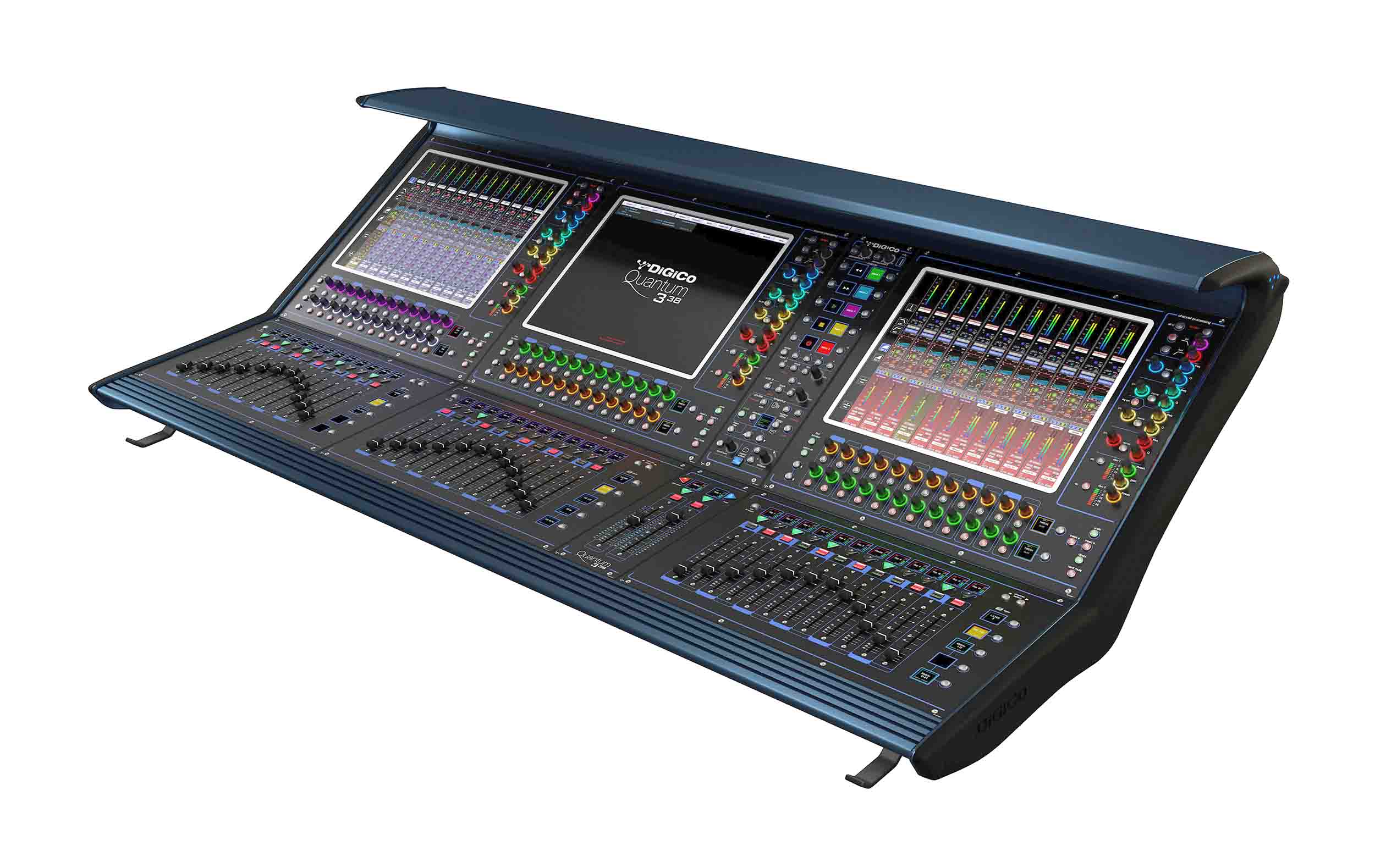

DiGiCo X-Q338-W-WS-OP Digital Mixing Console Waves-Ready Package with Waves Soundgrid and OpticalCON Connector

The DiGiCo X-Q338-W-WS-OP combines the power of the Quantum processing platform with integrated Waves SoundGrid and OpticalCON connectivity. Built on DiGiCo's seventh-generation FPGA architecture, it delivers exceptional sound quality, ultra-low latency, and fast processing for demanding live productions. The console is ideal for touring, broadcast, theaters, festivals, and large-scale installations. Its intuitive workflow helps engineers work efficiently under pressure. Every performance benefits from reliable, professional-grade audio.

Integrated Waves SoundGrid

Integrated Waves SoundGrid provides seamless access to professional Waves plugins for live mixing applications. Engineers can use premium EQs, compressors, reverbs, and dynamic processors with extremely low latency. The SoundGrid interface simplifies system integration while reducing the need for external processing hardware. It delivers studio-quality sound in live environments and supports complex production workflows. This makes the console an excellent choice for modern audio professionals.

OpticalCON Fiber Connectivity

This model features a rugged OpticalCON connector for Optocore networking, providing secure and reliable fiber connections in demanding touring environments. OpticalCON protects the fiber cable while maintaining excellent signal integrity over long distances. It minimizes interference and ensures dependable communication between connected devices. The locking connector design is trusted by professionals for large venues and live events. It offers reliable performance show after show.

Efficient Control Surface

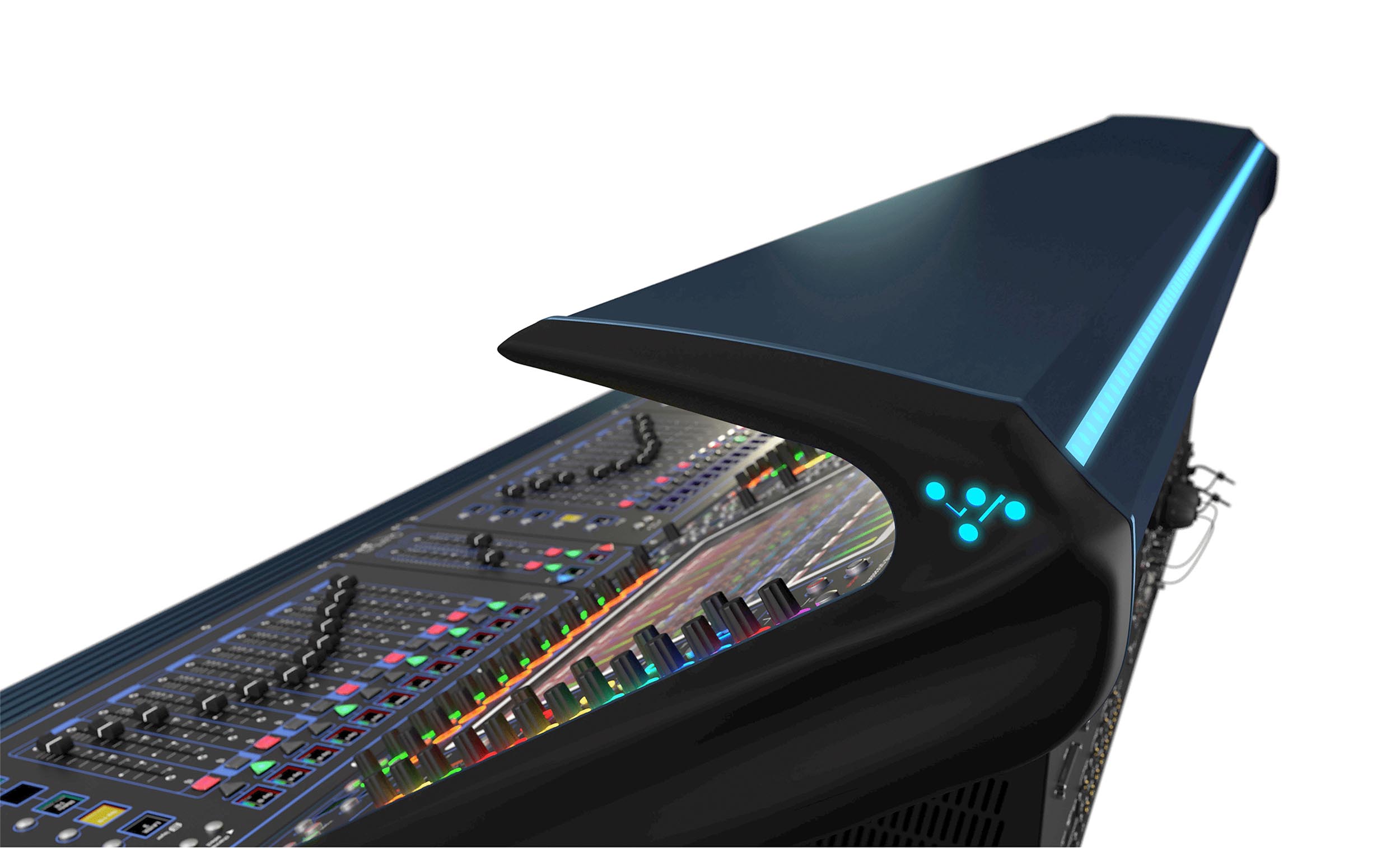

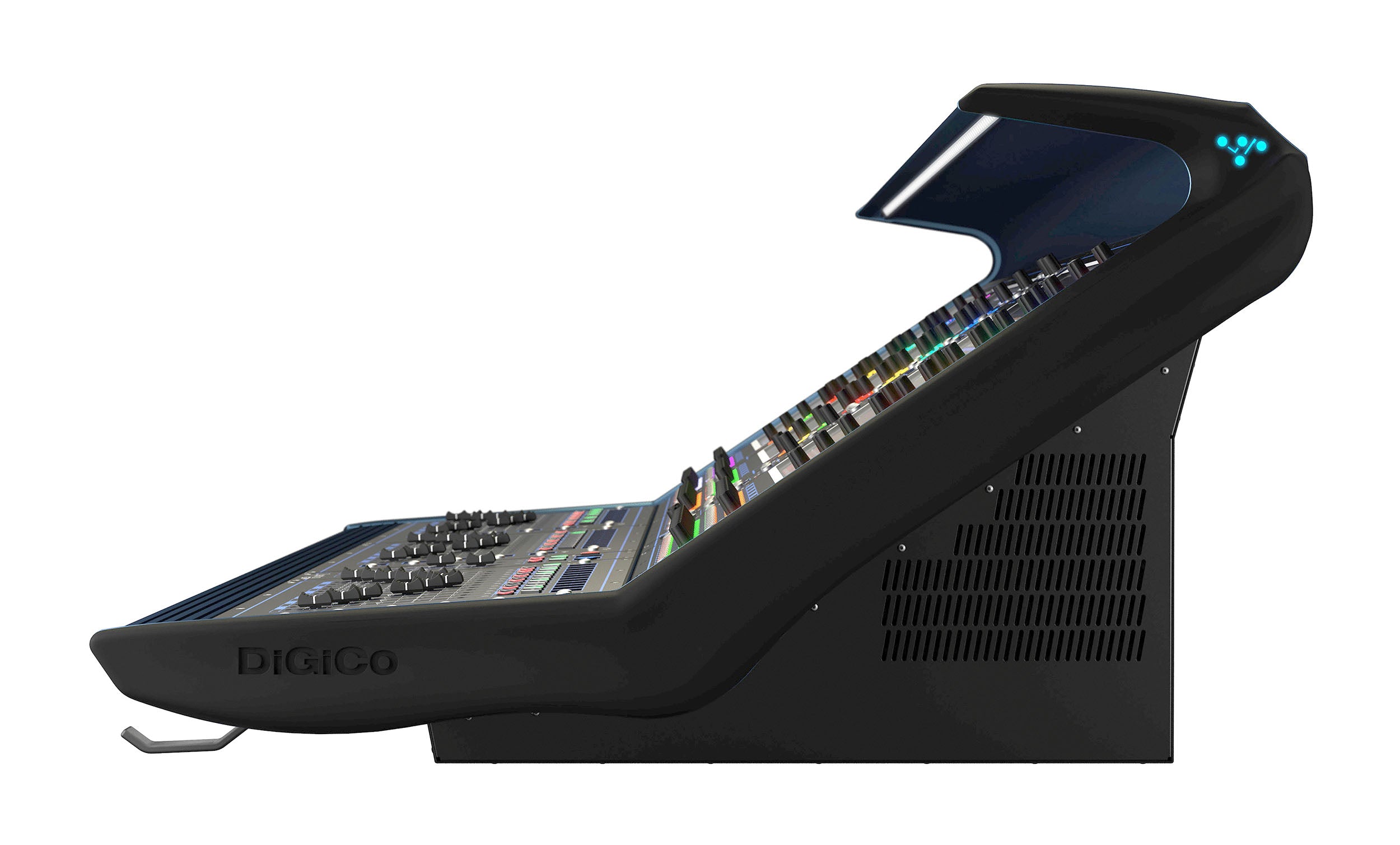

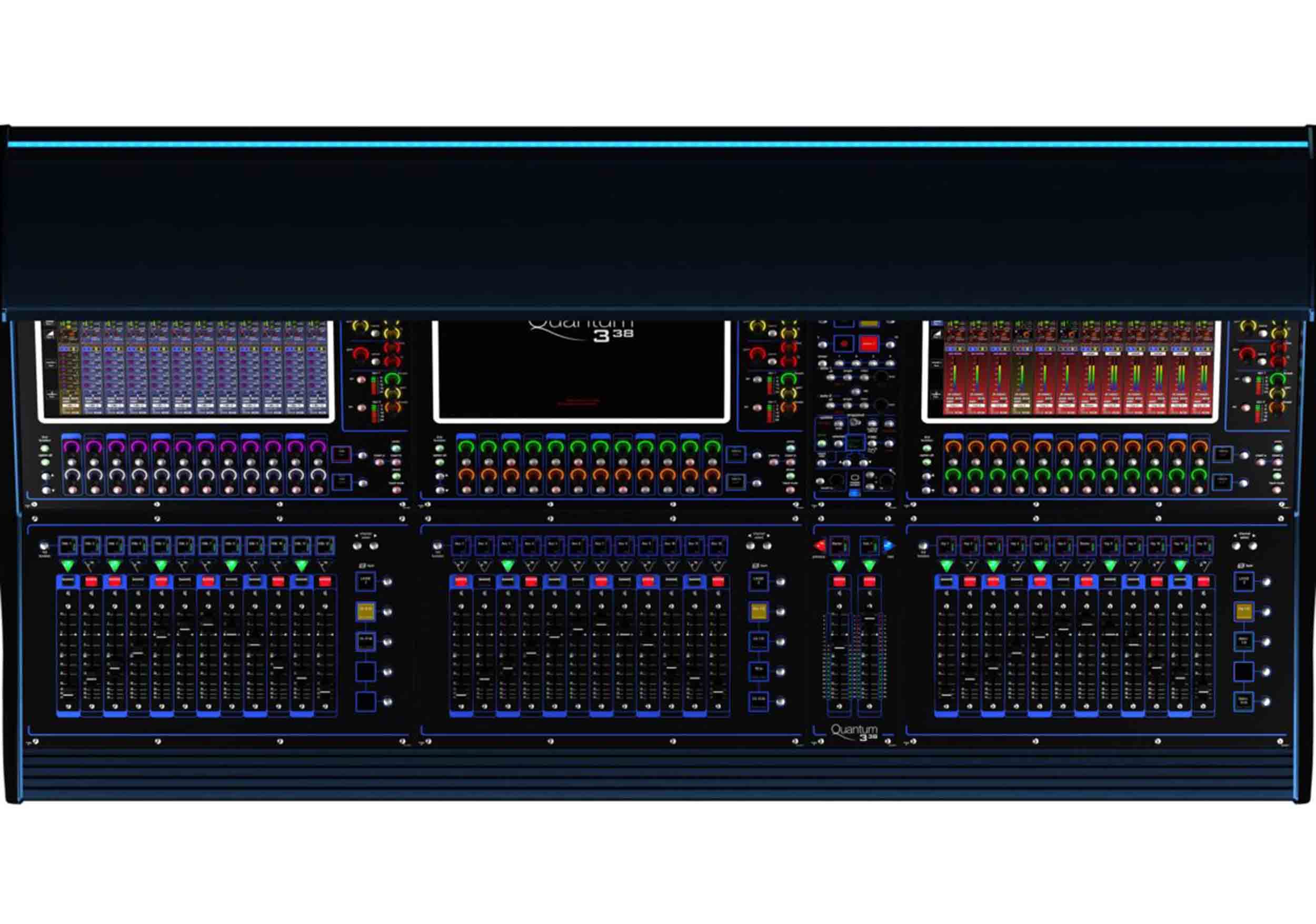

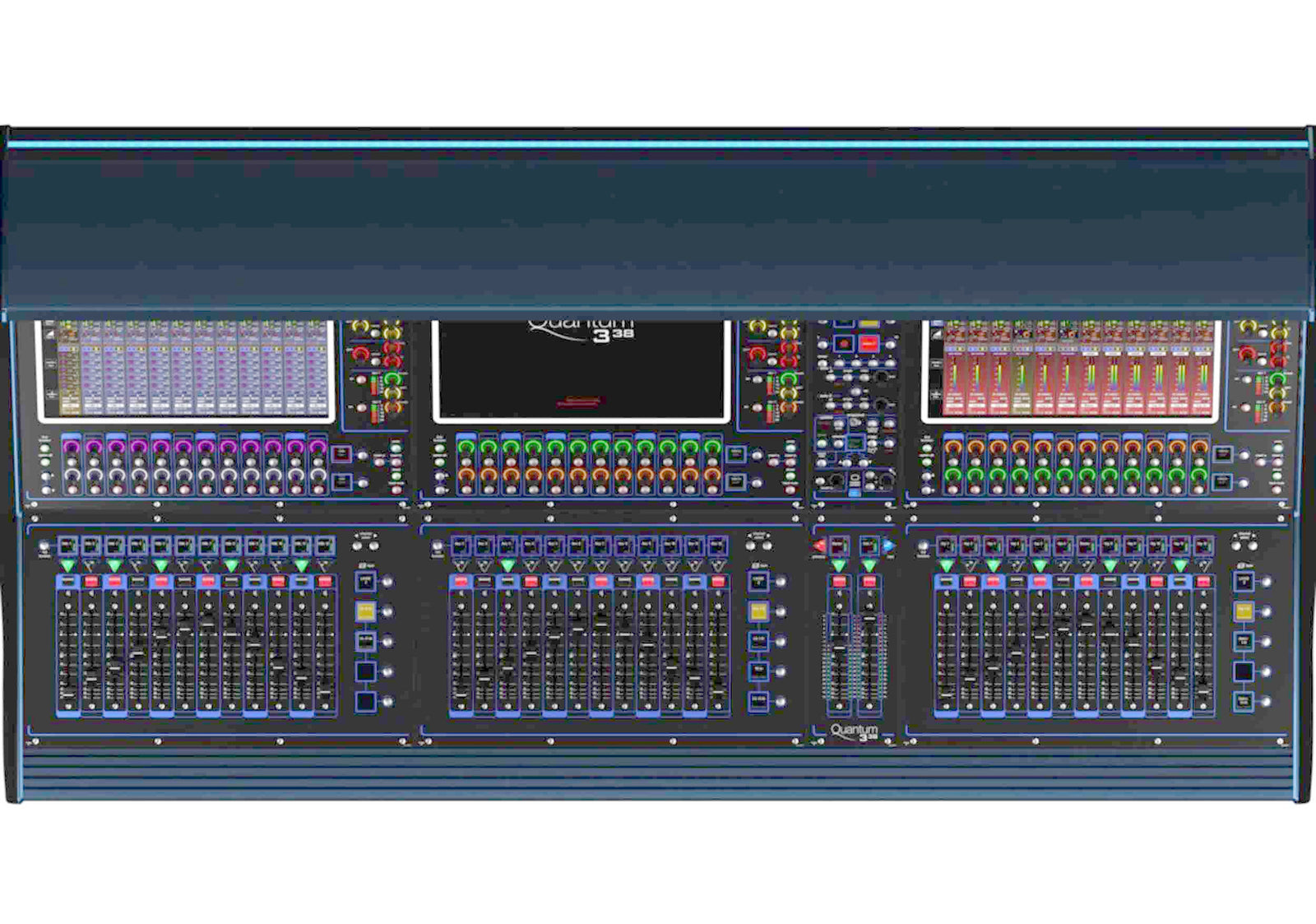

The Quantum 338 is equipped with 38 touch-sensitive motorized faders, three 17-inch multi-touch displays, and 70 individual TFT channel displays. This layout gives engineers immediate access to channels, routing, snapshots, and processing functions. The ergonomic floating chassis improves comfort during long productions. Every control is positioned to maximize speed and efficiency. The result is a smooth and intuitive mixing experience.

Powerful Built-In Processing

Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console easily handles large productions. Built-in Mustard Processing, Spice Rack FPGA processing, Nodal Processing, dynamic EQ, and premium effects provide comprehensive mixing tools. Extensive onboard processing reduces the need for external equipment while maintaining outstanding performance. Engineers have complete creative control over every mix. The Quantum engine remains responsive even during demanding sessions.

Professional Live Production

Designed for professional touring, broadcast, houses of worship, theaters, and corporate events, the X-Q338-W-WS-OP delivers exceptional reliability and flexibility. Its rugged construction, advanced networking, and premium processing capabilities make it suitable for the most demanding applications. Combined with Waves SoundGrid and OpticalCON connectivity, it integrates seamlessly into modern production systems. The console is built for consistent performance at every event.

What’s in the Box:

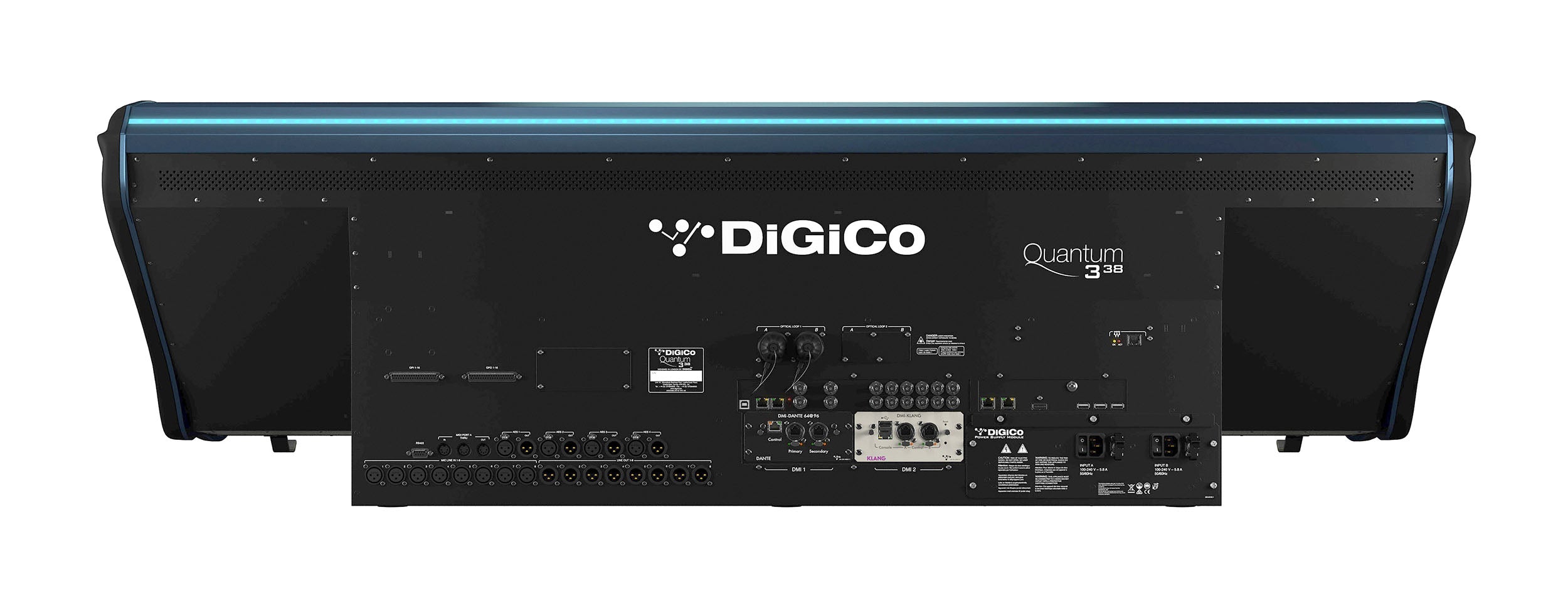

• Connections: MADI x 6, Optics x 1
• Internal Waves Card
• UB-MADI, DMI Port x 2
• Connectors: BNC, HMA

Product Specifications:

Integrated Networking: Waves SoundGrid

Connector: OpticalCON Connector.

Faders: 38 x 100mm touch-sensitive, motorized

Screens: 3 x 17” LCD high – brightness, high – resolution touch screens

Input Channels: 128

Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1

Matrix: Up to 24 Input / 24 Outputs with full processing

Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group

Graphic Eq: 24 x 32-band, Gain +/- 12dB

Spice Rack: 8 mono / 4 stereo Rack Slots

Mustard Proc: 36 Processing Strips

Nodal Proc: 64 Nodal Processors

Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O

MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity

Optocore Interface: Optional (dual loop available)

Sampling rates: 48kHz / 96kHz

GPI/GPO: 16

DMI: 2 x DiGiCo Multichannel Interface

Waves: Optional

Ext Sync: Word clock, AES, MADI, Optocore

Power Requirements: 100V-240V, 50-60Hz, 295VA

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Dynamics 1: Single or Multiband (3-band) Compressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Threshold: 20us – 20ms

Release: 1ms – 100ms

Ratio: 1:1 – 50:1

Ess-Band: Listen On/Off

Ess-Band Filter Freq/Width: 20Hz – 20kHz

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel/Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

S/C Source: Any source

S/C Listen: On/Off

S/C Filter Freq/Width: 20Hz – 20kHz

Insert B: (Post EQ/Dyn) On/Off

EQ/Dyn Order: EQ/Dyn or Dyn/EQ

Mute: Channel Mute / Hard Mute

Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo

Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe

Output Routing: Outputs, Insert A, Insert B, FX

Fader: 100mm Motorized Fader ∞ to +10dB

Preamplifier Tubes:

Variable Drive

Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets

Variable Output Gain

Preamplifier Amp:

Variable Drive

Odd/Even 1st stage harmonics

Bias & Saturate control

Off/Odd/Even 2nd stage harm

Variable HF Boost

Variable Output Gain

Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter

Dynamics 2: Gate / Ducker

Quantum 338 Dimensions: 62.80 in (W) × 31.69 in (D) × 18.98 in (H)

Quantum 338 Weight: 154lbs (437 lbs. with flight case)

Quantum 338 Flight case: 67.60 in (W) × 25.28 in (D) × 45.04 in (H)
