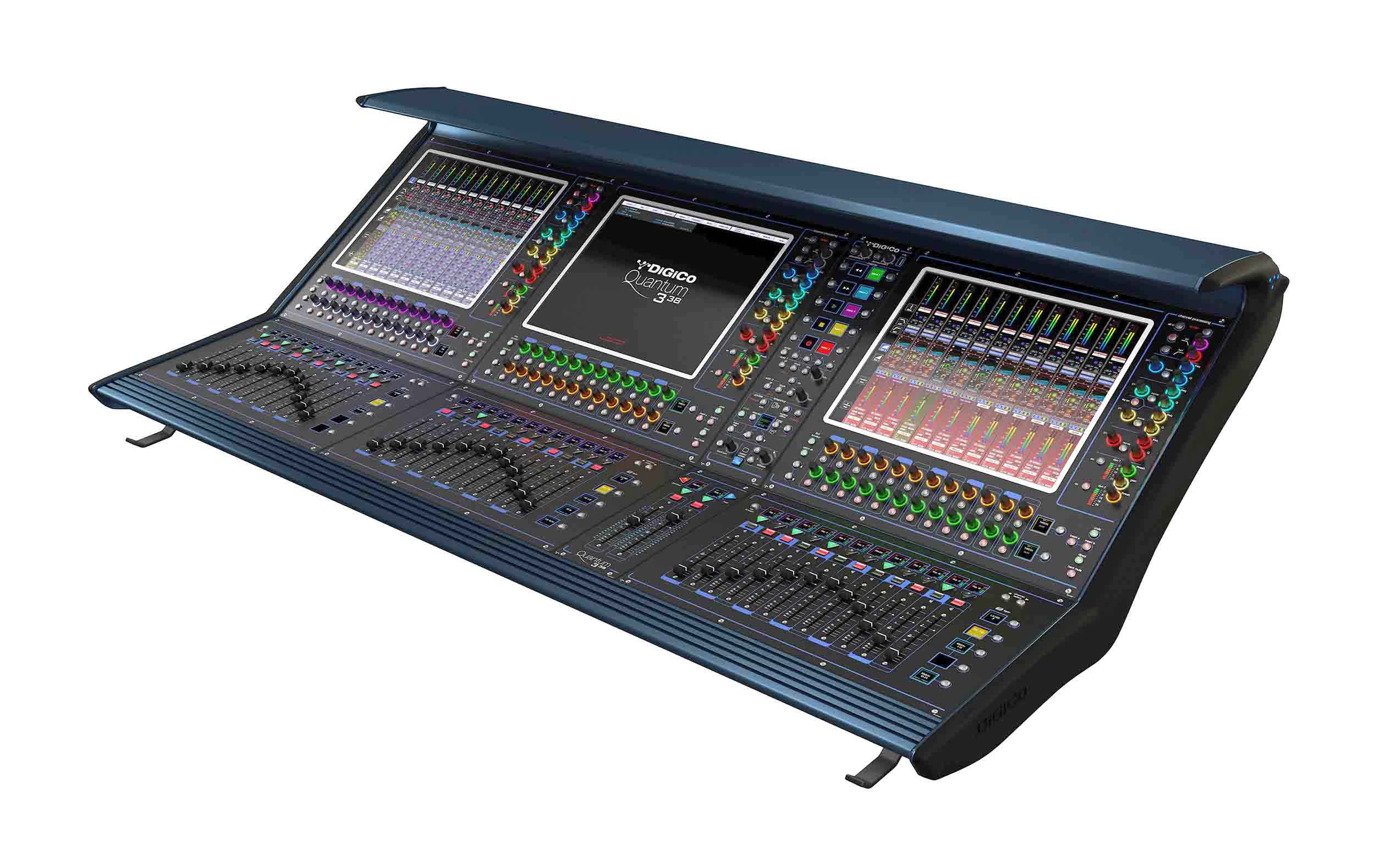

DiGiCo X-Q338-WS-OP Digital Mixing Console with Waves SoundGrid and OpticalCON Connector

The DiGiCo X-Q338-WS-OP delivers the advanced performance of the Quantum platform in a compact and highly capable control surface. Powered by DiGiCo’s seventh-generation FPGA processing engine, it provides exceptional audio quality, ultra-low latency, and fast response for demanding live productions. The console is designed for touring, broadcast, theater, houses of worship, and large-scale events. Its intuitive workflow allows engineers to work quickly and confidently. Every production benefits from reliable, professional-grade performance.

Integrated Waves SoundGrid

This model includes built-in Waves SoundGrid connectivity for direct integration with industry-leading Waves plugins. Engineers can use premium EQs, compressors, reverbs, and dynamic processors with extremely low latency during live performances. The integrated SoundGrid interface reduces the need for external processing hardware and simplifies system setup. It brings studio-quality processing directly to the live environment. This makes the console ideal for modern professional audio workflows.

OpticalCON Fiber Connectivity

The OpticalCON connector provides a rugged and secure fiber connection for Optocore networking. It protects the fiber cable while ensuring reliable long-distance audio transmission with minimal interference. The locking connector design is widely trusted in touring and broadcast applications where dependable operation is essential. OpticalCON allows FOH positions to be located far from the stage without compromising signal integrity. It is a proven solution for demanding production environments.

Fast and Intuitive Workflow

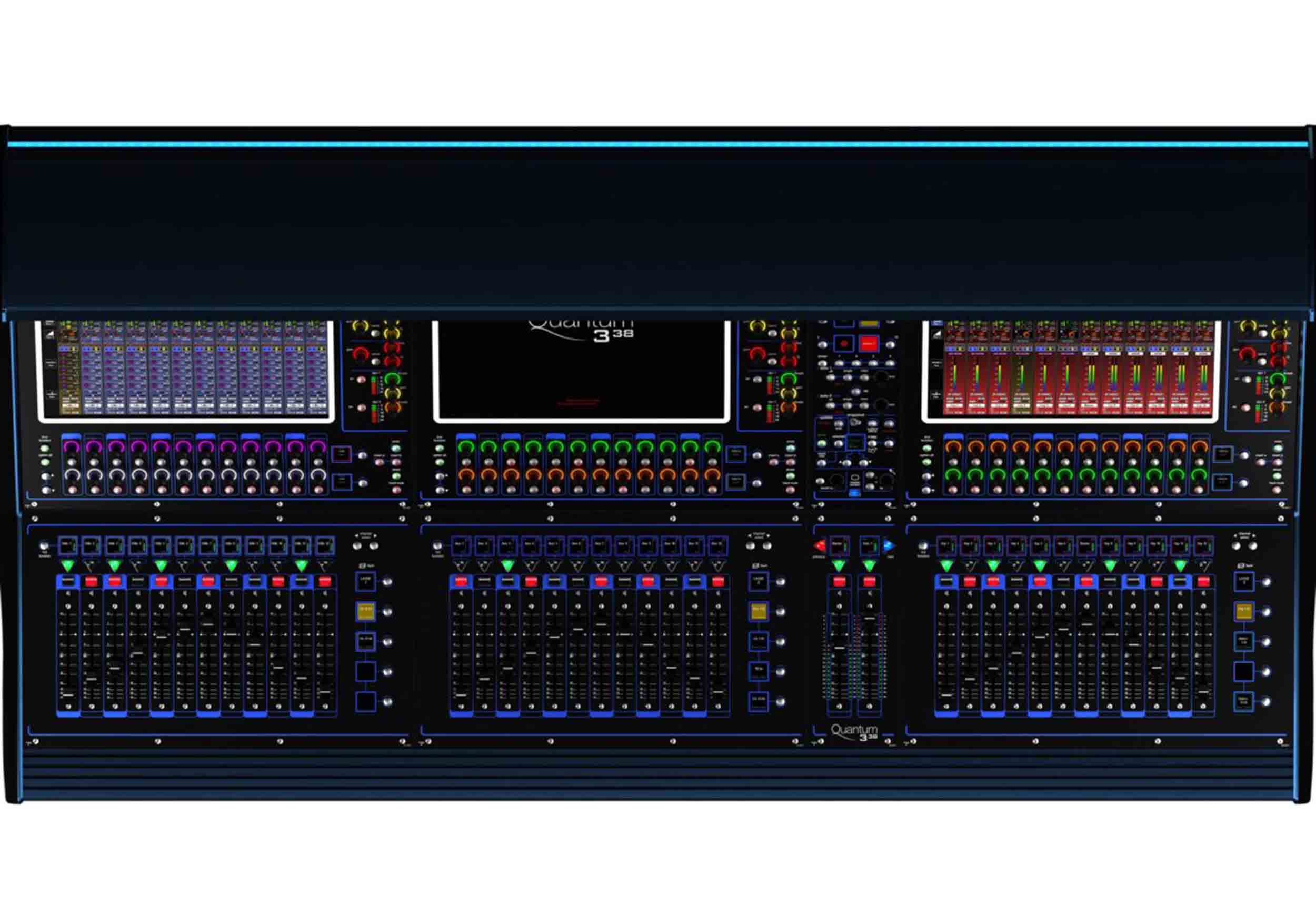

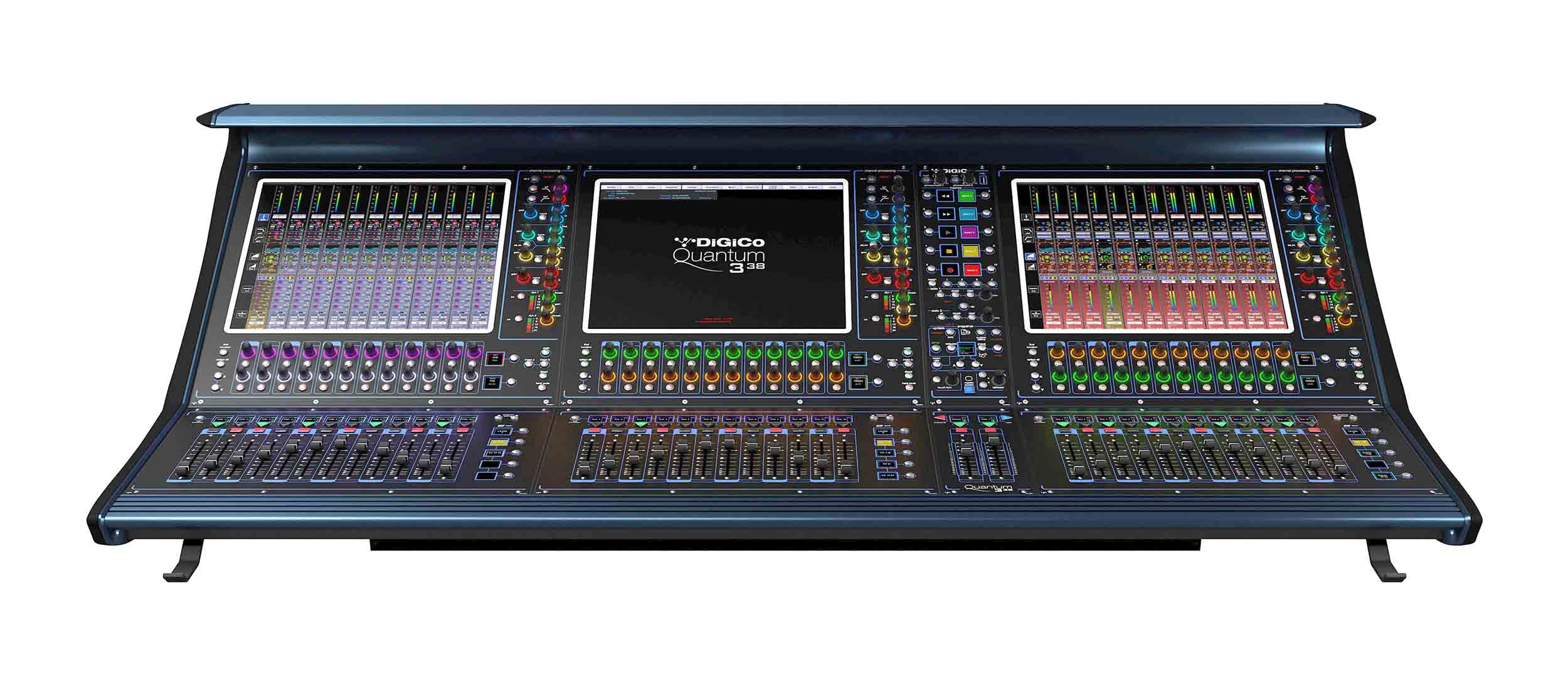

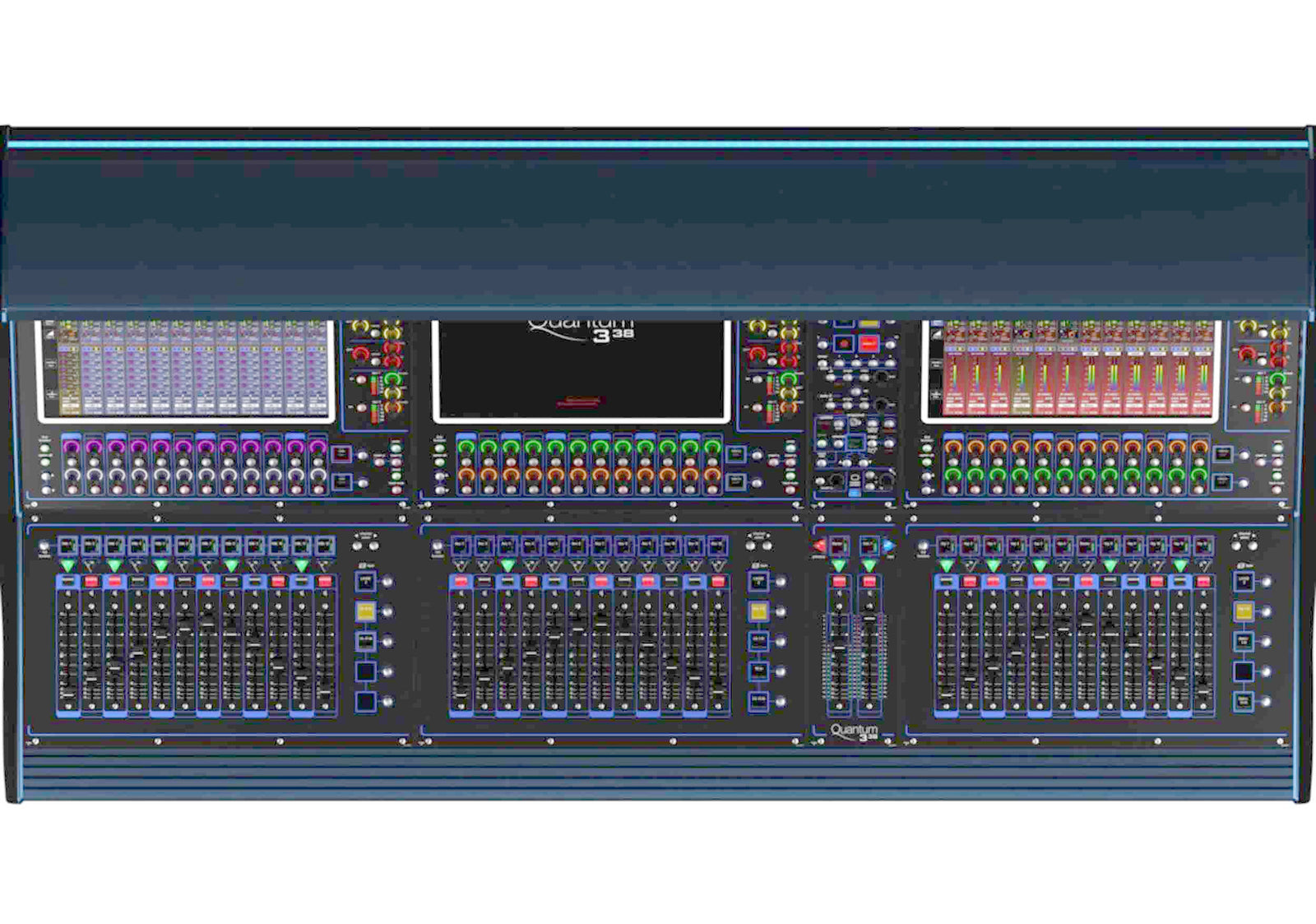

The Quantum 338 features 38 touch-sensitive motorized faders, three 17-inch multi-touch displays, and 70 individual TFT channel displays. This layout gives engineers immediate access to channels, routing, snapshots, and processing functions. The ergonomic floating chassis improves comfort during extended mixing sessions. Visual feedback is clear and easy to follow, even in challenging lighting conditions. The result is a fast and efficient mixing experience.

Advanced Built-In Processing

Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console is ready for complex productions. Built-in Mustard Processing, Spice Rack FPGA processing, Nodal Processing, dynamic EQ, and premium internal effects provide comprehensive mixing tools without extensive external hardware. The powerful FPGA architecture maintains smooth performance even during demanding sessions. Engineers have complete creative control over every mix. This flexibility makes the console suitable for virtually any professional application.

Professional Touring Solution

Designed for rental companies, touring engineers, broadcast facilities, theaters, and permanent installations, the X-Q338-WS-OP offers outstanding reliability and flexibility. Its rugged construction, advanced networking, and powerful processing capabilities ensure dependable operation show after show. Combined with Waves SoundGrid and OpticalCON connectivity, it integrates seamlessly into modern Optocore-based production systems. The console is built to deliver consistent, world-class performance in the most demanding environments.

What’s in the Box:

• Connections: MADI x 6, Optics x 1
• UB-MADI
• DMI Port x 2
• Connectors: BNC, HMA

Product Specifications:

Integrated Networking: Waves SoundGrid

Connector: OpticalCON Optocore Connector.

Faders: 38 x 100mm touch-sensitive, motorized

Screens: 3 x 17” LCD high – brightness, high – resolution touch screens

Input Channels: 128

Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1

Matrix: Up to 24 Input / 24 Outputs with full processing

Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group

Graphic Eq: 24 x 32-band, Gain +/- 12dB

Spice Rack: 8 mono / 4 stereo Rack Slots

Mustard Proc: 36 Processing Strips

Nodal Proc: 64 Nodal Processors

Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O

MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity

Optocore Interface: Optional (dual loop available)

Sampling rates: 48kHz / 96kHz

GPI/GPO: 16

DMI: 2 x DiGiCo Multichannel Interface

Waves: Optional

Ext Sync: Word clock, AES, MADI, Optocore

Power Requirements: 100V-240V, 50-60Hz, 295VA

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Dynamics 1: Single or Multiband (3-band) Compressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Threshold: 20us – 20ms

Release: 1ms – 100ms

Ratio: 1:1 – 50:1

Ess-Band: Listen On/Off

Ess-Band Filter Freq/Width: 20Hz – 20kHz

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel/Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

S/C Source: Any source

S/C Listen: On/Off

S/C Filter Freq/Width: 20Hz – 20kHz

Insert B: (Post EQ/Dyn) On/Off

EQ/Dyn Order: EQ/Dyn or Dyn/EQ

Mute: Channel Mute / Hard Mute

Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo

Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe

Output Routing: Outputs, Insert A, Insert B, FX

Fader: 100mm Motorized Fader ∞ to +10dB

Preamplifier Tubes:

Variable Drive

Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets

Variable Output Gain

Preamplifier Amp:

Variable Drive

Odd/Even 1st stage harmonics

Bias & Saturate control

Off/Odd/Even 2nd stage harm

Variable HF Boost

Variable Output Gain

Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter

Dynamics 2: Gate / Ducker

Quantum 338 Dimensions: 62.80 in (W) × 31.69 in (D) × 18.98 in (H)

Quantum 338 Weight: 154lbs (437 lbs. with flight case)

Quantum 338 Flight case: 67.60 in (W) × 25.28 in (D) × 45.04 in (H)
