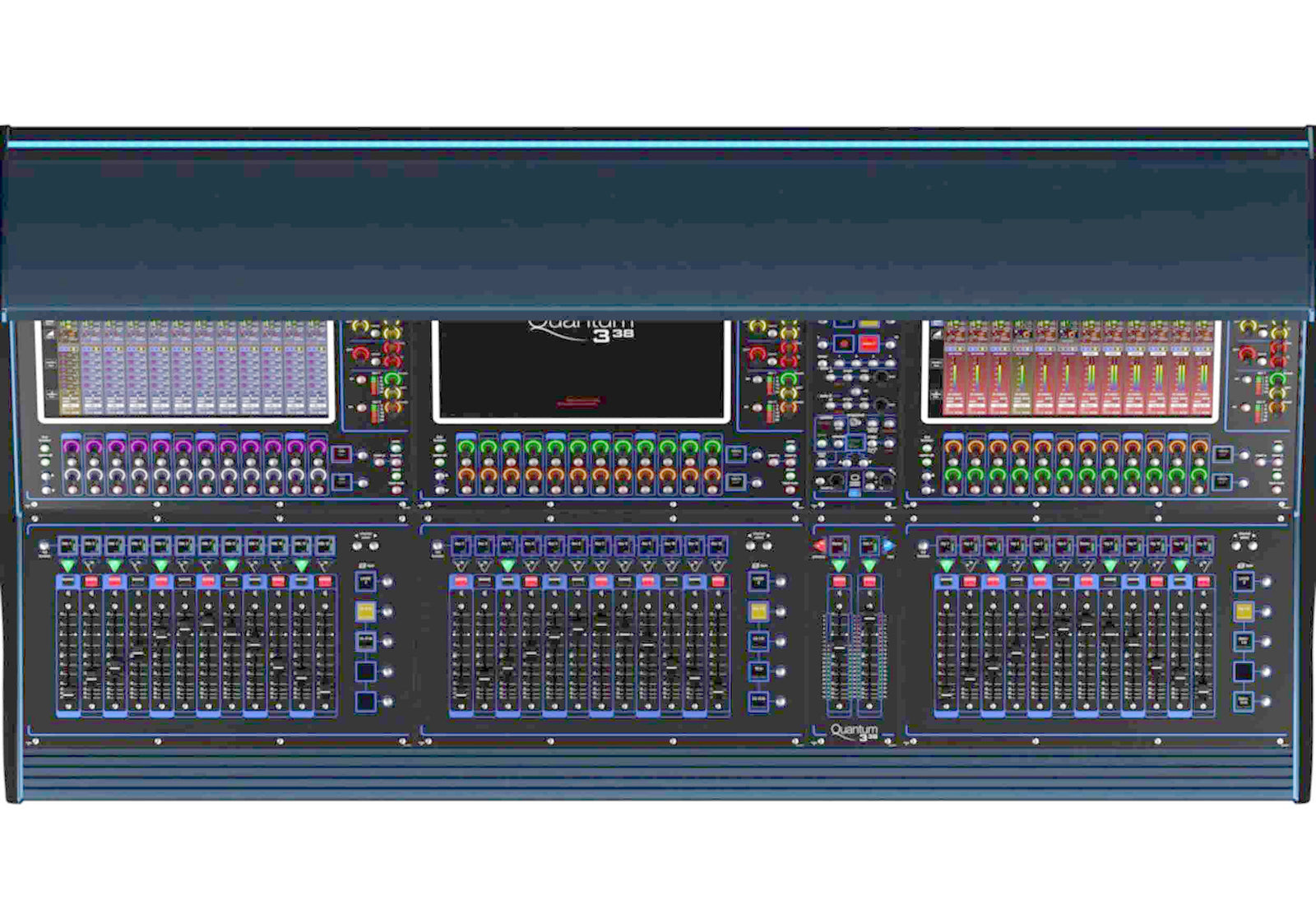

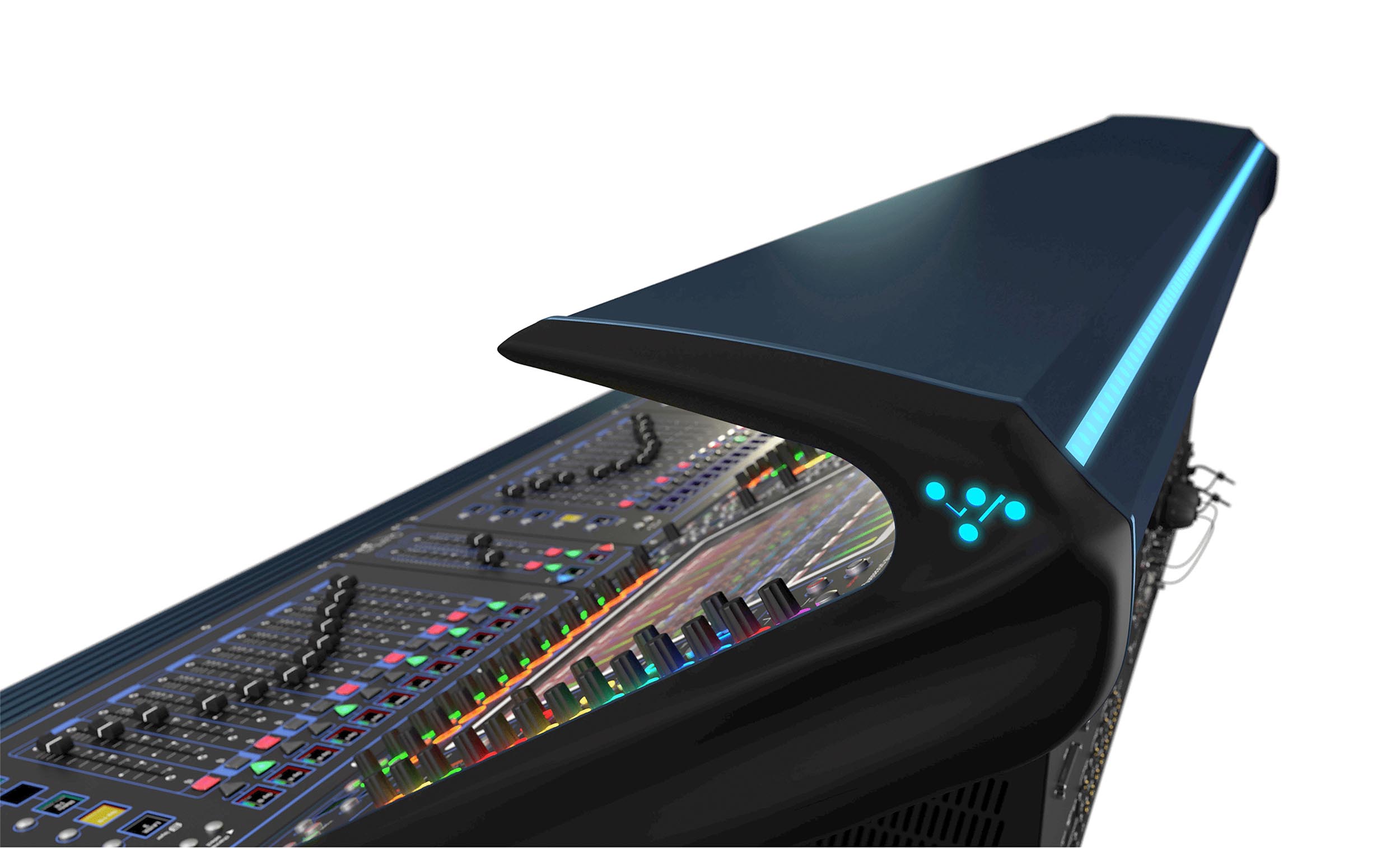

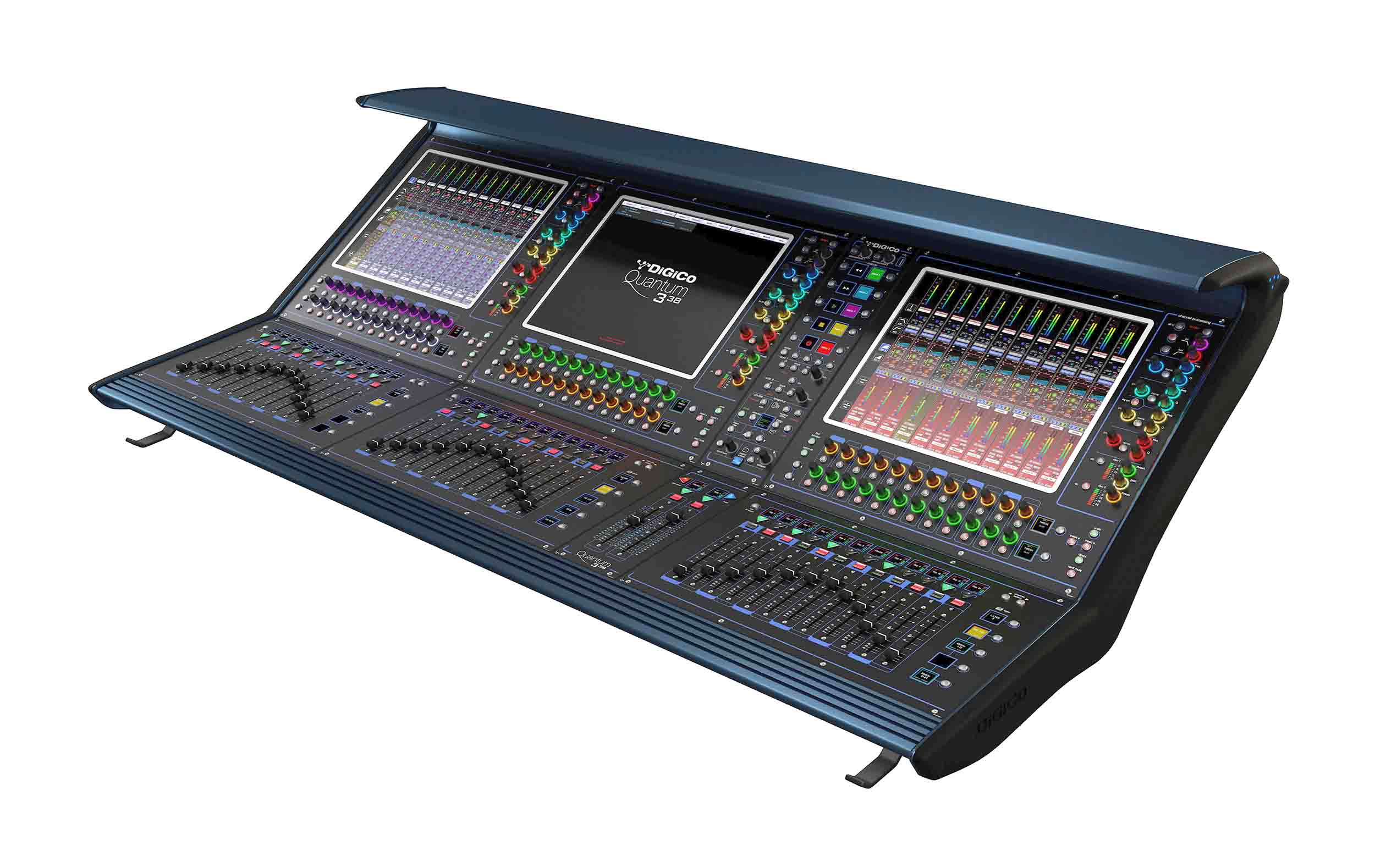

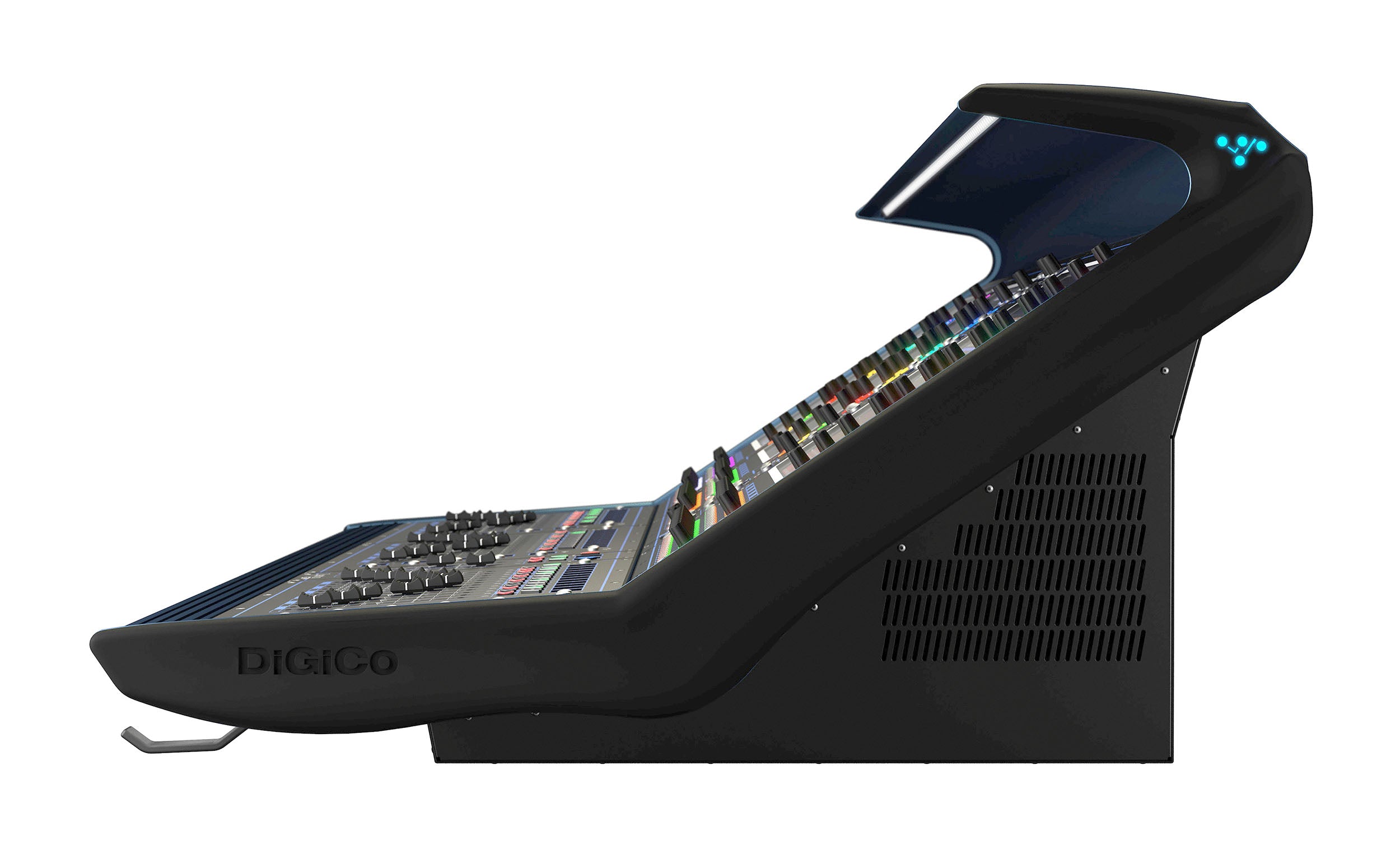

DiGiCo X-Q338-WS-ST Digital Mixing Console with Waves SoundGrid and Standard (ST) Connector

The DiGiCo X-Q338-WS-ST combines the power of the Quantum platform with integrated Waves SoundGrid connectivity for demanding live productions. Powered by DiGiCo's seventh-generation FPGA processing engine, it delivers exceptional audio quality, ultra-low latency, and fast system response. Its compact footprint is ideal for touring, broadcast, theaters, and houses of worship. Engineers benefit from a smooth, intuitive workflow that keeps every production under control. The console is built for professional performance in every environment.

Integrated Waves SoundGrid

Built-in Waves SoundGrid provides direct access to industry-leading Waves plugins for live sound applications. Premium EQs, compressors, reverbs, and dynamic processors can be used with extremely low latency. The integrated SoundGrid interface simplifies system integration while reducing the need for external processing hardware. Engineers can achieve studio-quality sound in demanding live environments. It is an ideal solution for modern production workflows.

Standard (ST) Fiber Connectivity

This version features Standard (ST) fiber connectors for Optocore networking, providing stable and secure long-distance digital audio transmission. ST fiber connectors are widely used in touring systems and permanent installations where reliable communication is essential. They deliver excellent signal integrity while minimizing interference over extended cable runs. The proven ST connection ensures dependable operation throughout every production. It is trusted by professionals worldwide.

Fast and Intuitive Workflow

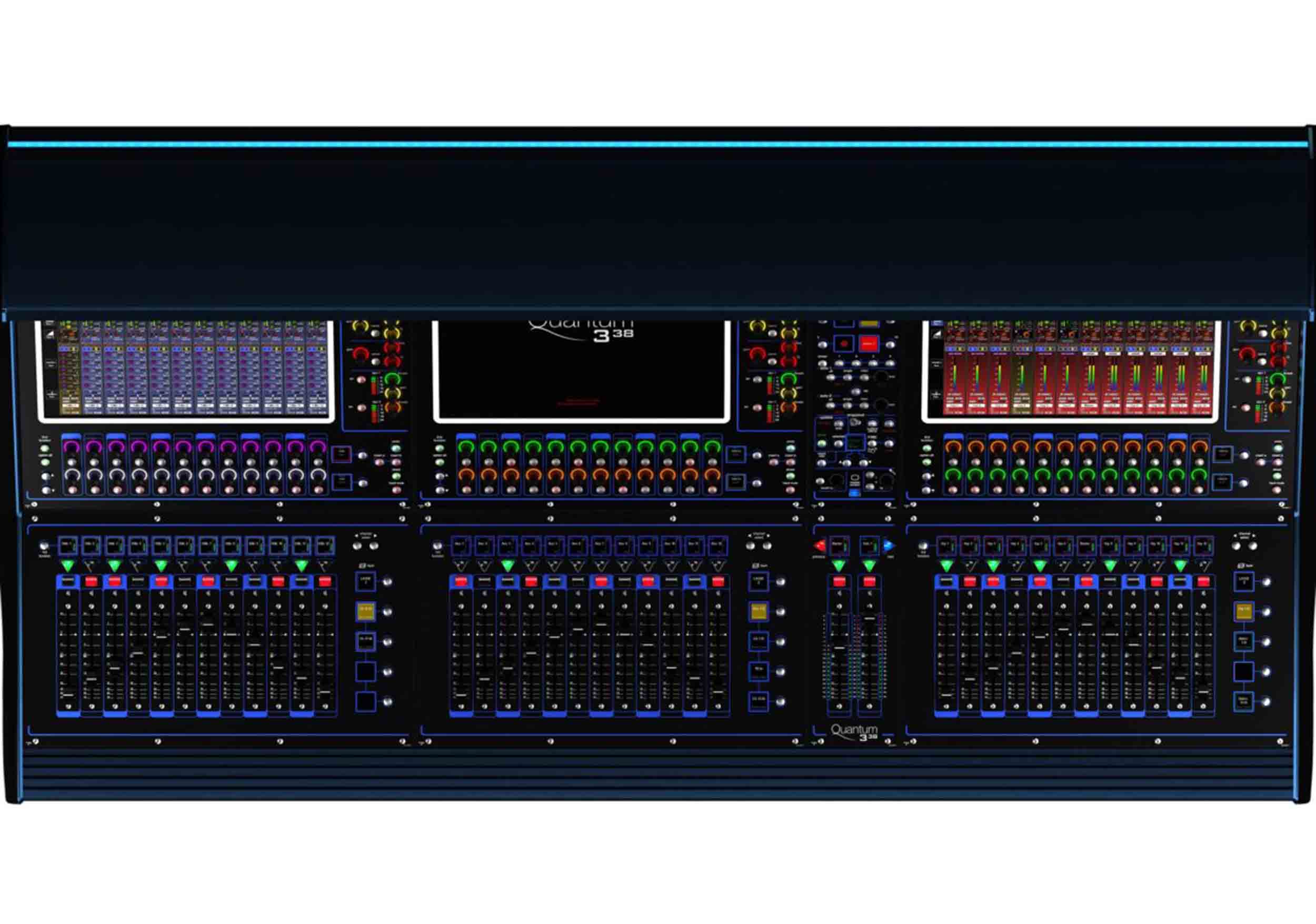

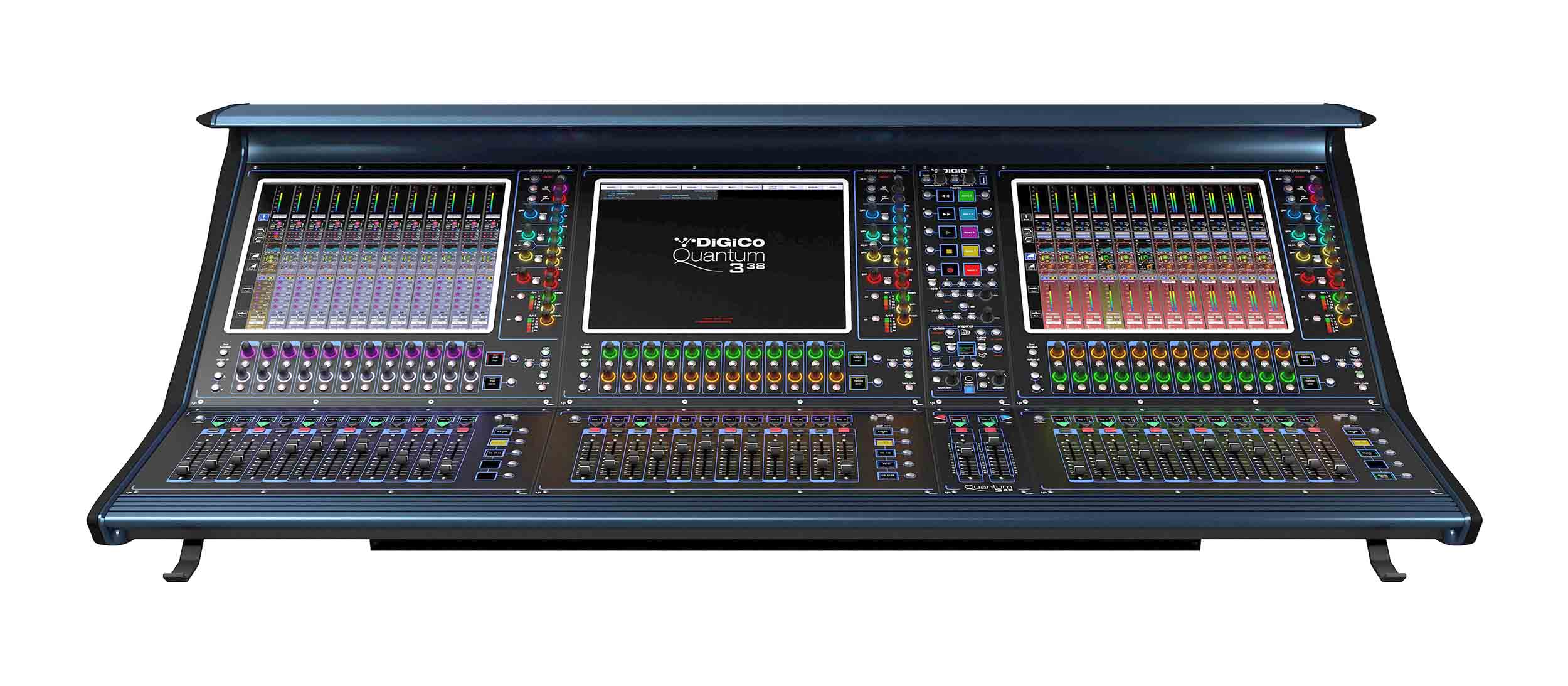

The Quantum 338 is equipped with 38 touch-sensitive motorized faders, three 17-inch high-resolution multi-touch displays, and 70 TFT channel displays. Engineers can quickly access routing, snapshots, monitoring, and processing functions without slowing down. The floating chassis provides excellent ergonomics for extended mixing sessions. Clear visual feedback allows faster decision-making during live performances. This efficient workflow helps maximize productivity.

Powerful Built-In Processing

Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console easily handles complex productions. Built-in Mustard Processing, Spice Rack FPGA plugins, Nodal Processing, dynamic EQ, and premium internal effects provide extensive creative flexibility. The advanced Quantum engine maintains smooth performance even under heavy processing loads. Engineers have complete control over every mix. This makes the console suitable for the most demanding applications.

Professional Live Production

Designed for touring companies, rental providers, broadcast facilities, theaters, and corporate events, the X-Q338-WS-ST delivers outstanding reliability and flexibility. Its rugged construction and advanced networking capabilities ensure dependable operation show after show. Combined with Waves SoundGrid and Standard ST fiber connectivity, it integrates seamlessly into professional Optocore systems. The console provides a complete solution for modern live sound production.

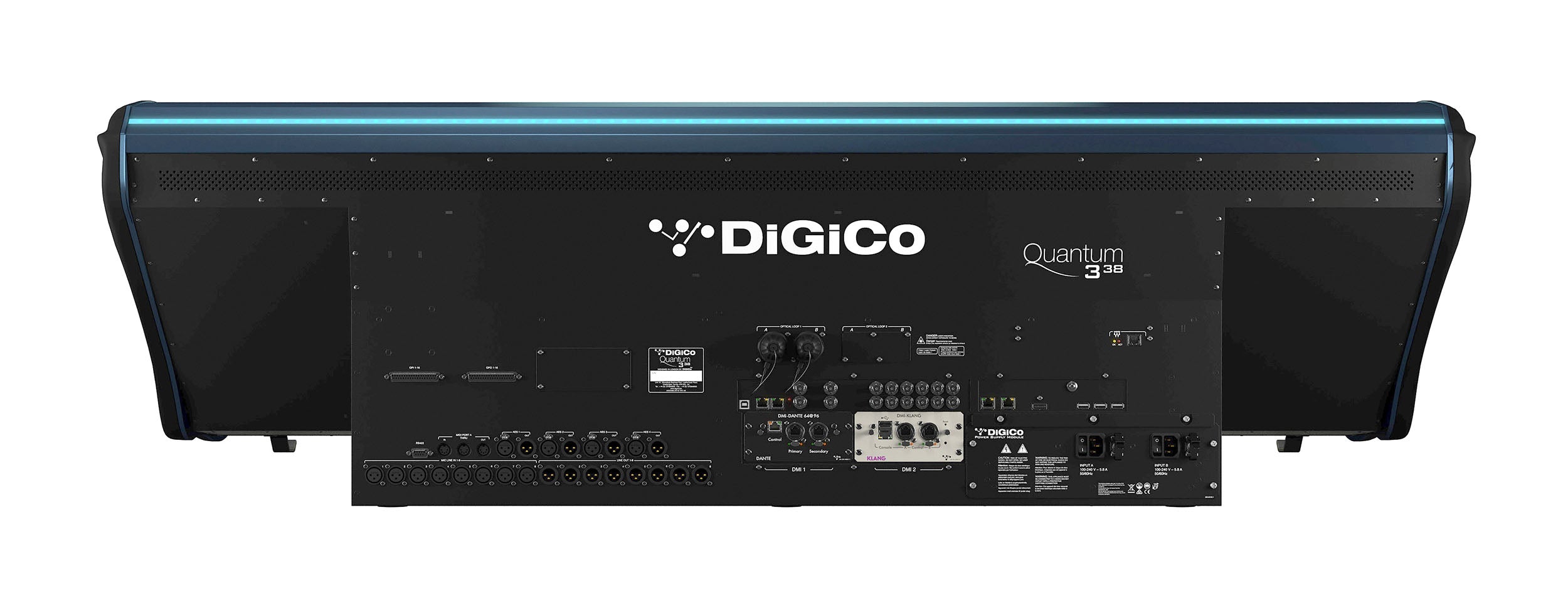

What’s in the Box:

• Connections: MADI x 6, Optics x 1
• UB-MADI
• DMI Port x 2
• Connectors: BNC, ST

Product Specifications:

Integrated Networking: Waves SoundGrid

Connector: Standard (ST) Connector.

Faders: 38 x 100mm touch-sensitive, motorized

Screens: 3 x 17” LCD high – brightness, high – resolution touch screens

Input Channels: 128

Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1

Matrix: Up to 24 Input / 24 Outputs with full processing

Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group

Graphic Eq: 24 x 32-band, Gain +/- 12dB

Spice Rack: 8 mono / 4 stereo Rack Slots

Mustard Proc: 36 Processing Strips

Nodal Proc: 64 Nodal Processors

Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O

MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity

Optocore Interface: Optional (dual loop available)

Sampling rates: 48kHz / 96kHz

GPI/GPO: 16

DMI: 2 x DiGiCo Multichannel Interface

Waves: Optional

Ext Sync: Word clock, AES, MADI, Optocore

Power Requirements: 100V-240V, 50-60Hz, 295VA

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Dynamics 1: Single or Multiband (3-band) Compressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel / Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

Threshold: 20us – 20ms

Release: 1ms – 100ms

Ratio: 1:1 – 50:1

Ess-Band: Listen On/Off

Ess-Band Filter Freq/Width: 20Hz – 20kHz

Dynamics 2: On/Off Gate / Ducker:

Threshold; -60 – 0dB

Attack; 50us – 100ms

Hold; 2ms – 2s

Release; 5ms – 5s

Range; 0 – 90dB

Key; Any Source

Key Listen

Freq/Width; 20 – 20kHzCompressor:

On/Off

Threshold; -60 – 0dB

Attack; 500us – 100ms

Release; 10ms – 10s

Ratio; 1:1 – 50:1

Gain; 0 to +40dB with Autogain Option

Link; Any Channel/Buss

Hi Crossover; 20Hz – 20kHz

Lo Crossover; 20Hz – 20kHz

S/C Source: Any source

S/C Listen: On/Off

S/C Filter Freq/Width: 20Hz – 20kHz

Insert B: (Post EQ/Dyn) On/Off

EQ/Dyn Order: EQ/Dyn or Dyn/EQ

Mute: Channel Mute / Hard Mute

Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo

Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe

Output Routing: Outputs, Insert A, Insert B, FX

Fader: 100mm Motorized Fader ∞ to +10dB

Preamplifier Tubes:

Variable Drive

Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets

Variable Output Gain

Preamplifier Amp:

Variable Drive

Odd/Even 1st stage harmonics

Bias & Saturate control

Off/Odd/Even 2nd stage harm

Variable HF Boost

Variable Output Gain

Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter

Dynamics 2: Gate / Ducker

Quantum 338 Dimensions: 62.80 in (W) × 31.69 in (D) × 18.98 in (H)

Quantum 338 Weight: 154lbs (437 lbs. with flight case)

Quantum 338 Flight case: 67.60 in (W) × 25.28 in (D) × 45.04 in (H)
