Description
The DiGiCo X-SD12-96-D2M-RP delivers exceptional digital mixing performance with a complete D2M Rack Package and MADI connectivity solution. Designed around the advanced SD12 96 platform, it provides 96 input channels with powerful processing capabilities for demanding productions. The Super FPGA technology and Core 2 software architecture ensure outstanding audio quality, fast operation, and reliable performance. Engineers can manage complex live sound environments with extensive routing, processing, and control options.
D2M Rack Package Integration

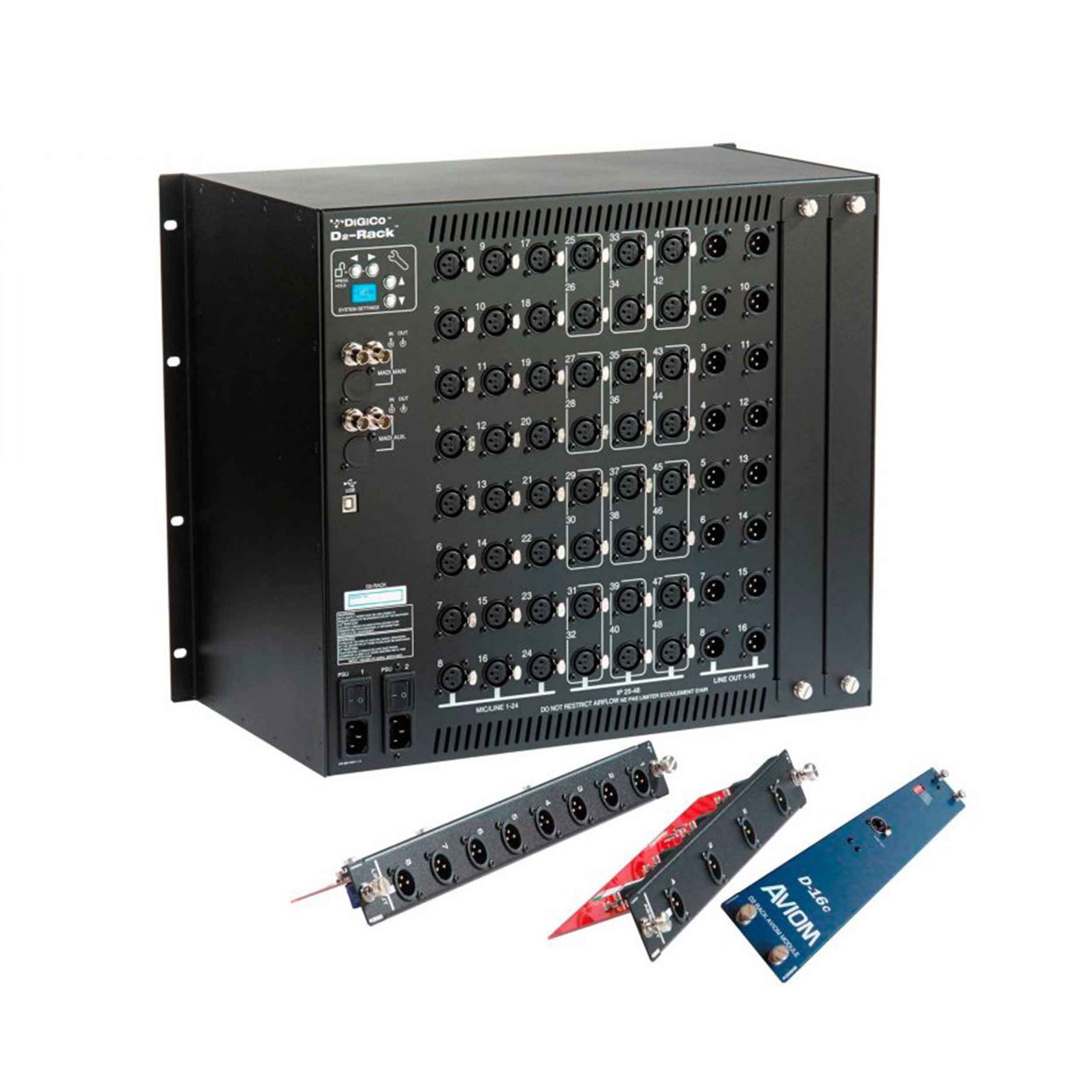

The D2M Rack Package provides a professional MADI-connected rack solution designed for flexible system expansion and reliable audio distribution. The D2-Rack offers high-performance connectivity with expandable input and output configurations for demanding applications. It features dual MADI ports that support efficient audio transmission and integration with compatible DiGiCo systems. Redundant power supplies provide enhanced reliability for critical live productions. The rack design allows engineers to build scalable systems while maintaining consistent audio performance.
MADI Interface Connectivity
The integrated MADI interface provides dependable digital audio connectivity for professional production systems. It enables high-channel-count audio transmission with low latency and excellent signal stability. MADI connectivity allows integration with compatible racks, recording systems, and other digital audio equipment. The D2M Rack Package uses MADI communication to deliver efficient console-to-rack operation.
SD12 96: A True Sonic Powerhouse

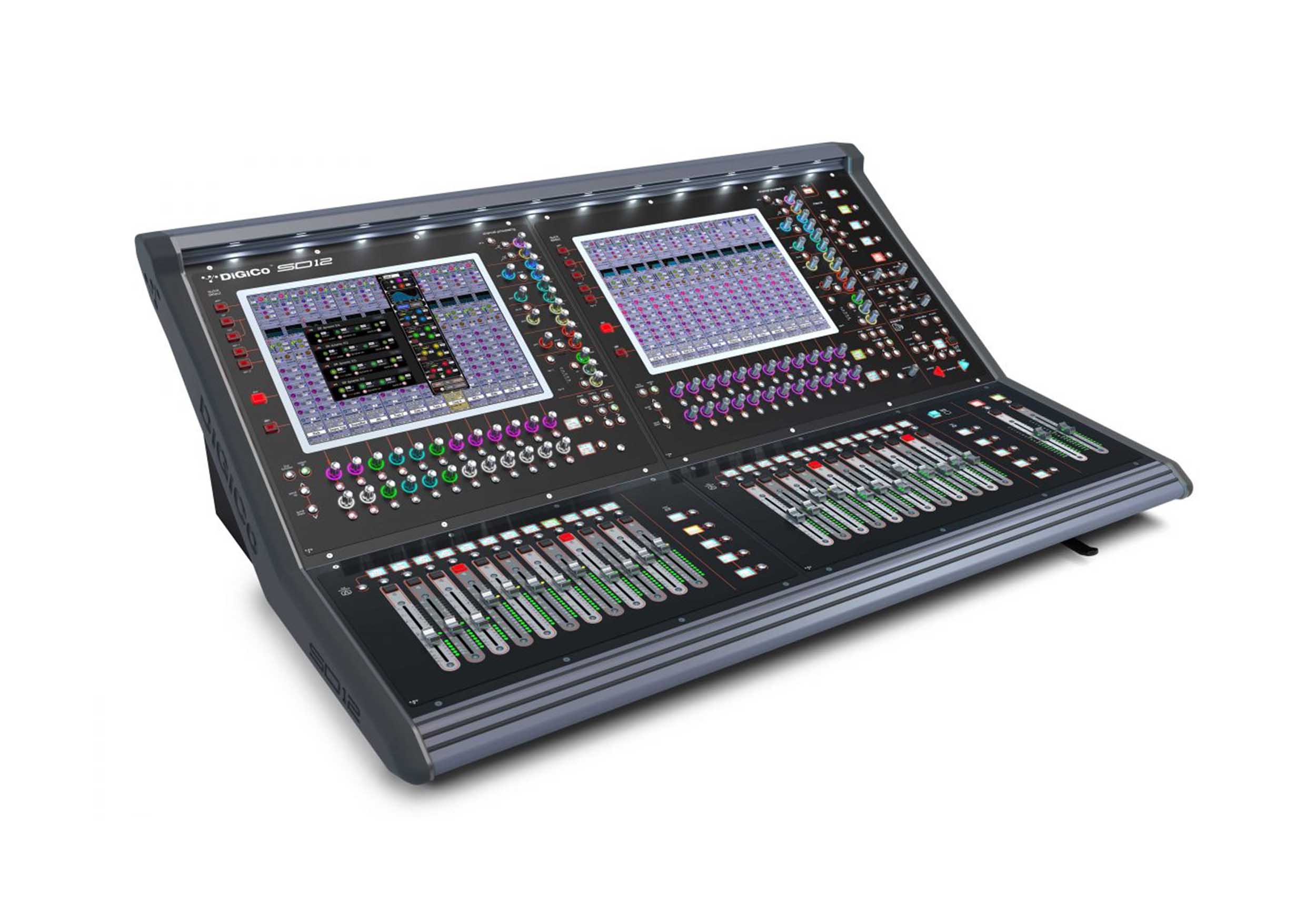

Compact in size but big on features, the SD12 96 raises the bar as a multi-application digital console at an exceptionally affordable price point. Not only is the SD12 96 a true sonic powerhouse, it is the first in the SD-Range to feature an integrated recording interface which makes virtual sound checking a snap.
Designed to provide optimum performance in live touring, corporate, install, house of worship, theatre and broadcast environments, the SD12 96 incorporates the latest generation Super FPGA technology and Core 2 software to deliver unrivalled power and connectivity in a compact frame.

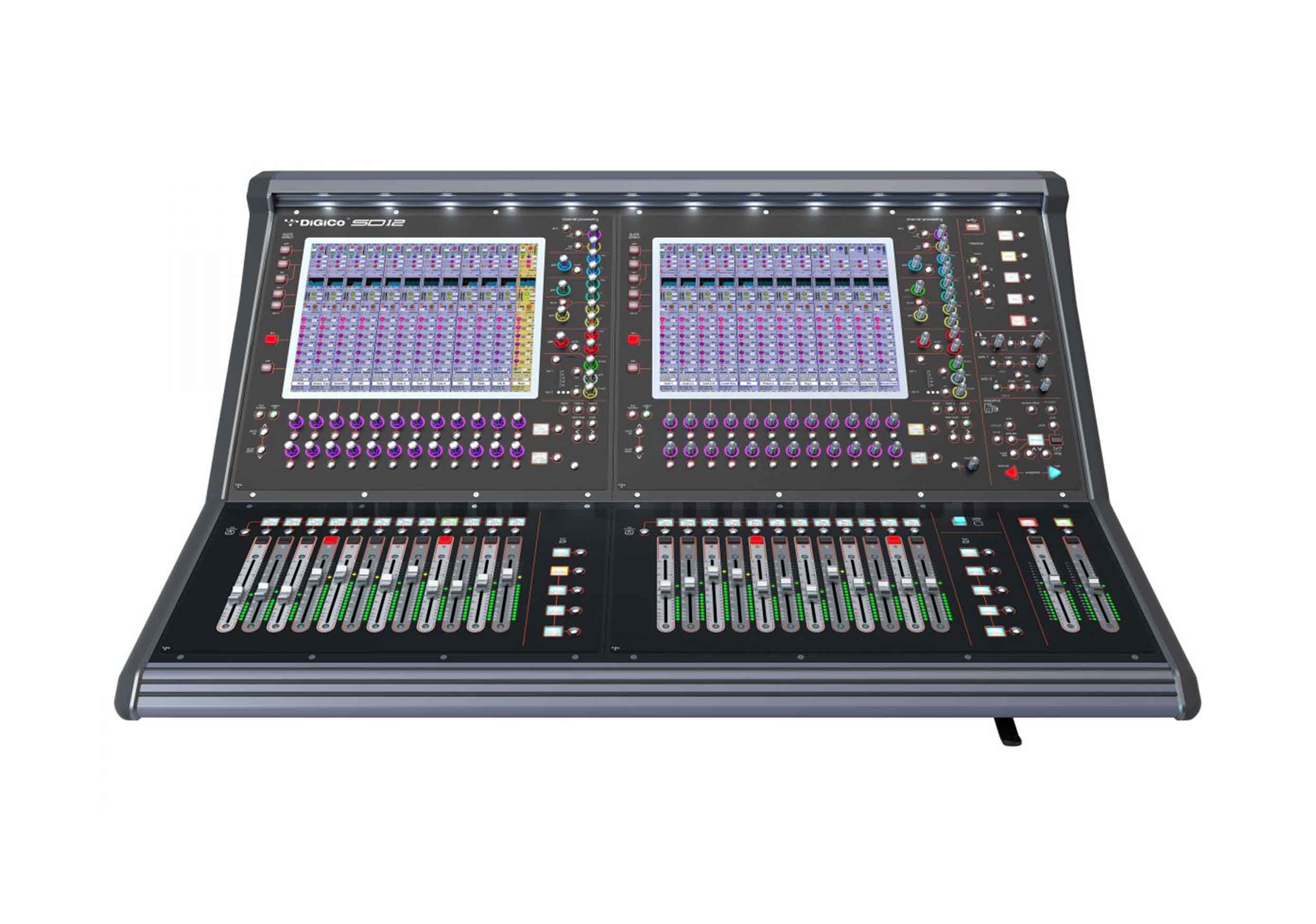

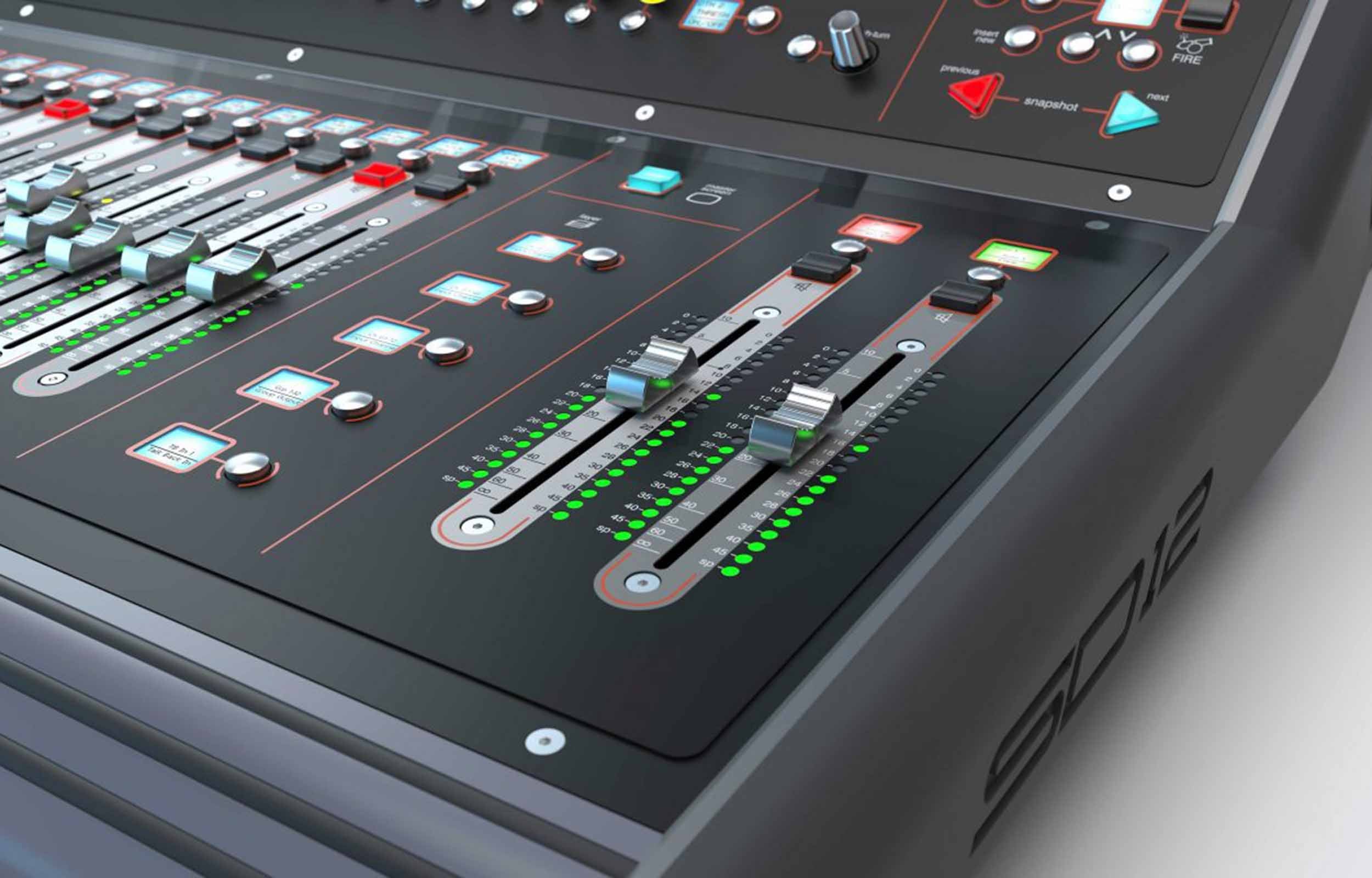

Designed for even easier operation, the SD12 96’s new DVI display output provides an overview of the console, while brighter LED meters and a DiGiCo Lightbar ensure optimum visibility. Dual 15-inch touchscreens, two assignable master faders and advanced surface connectivity is provided in the form of optional DMI cards.
Under The Hood

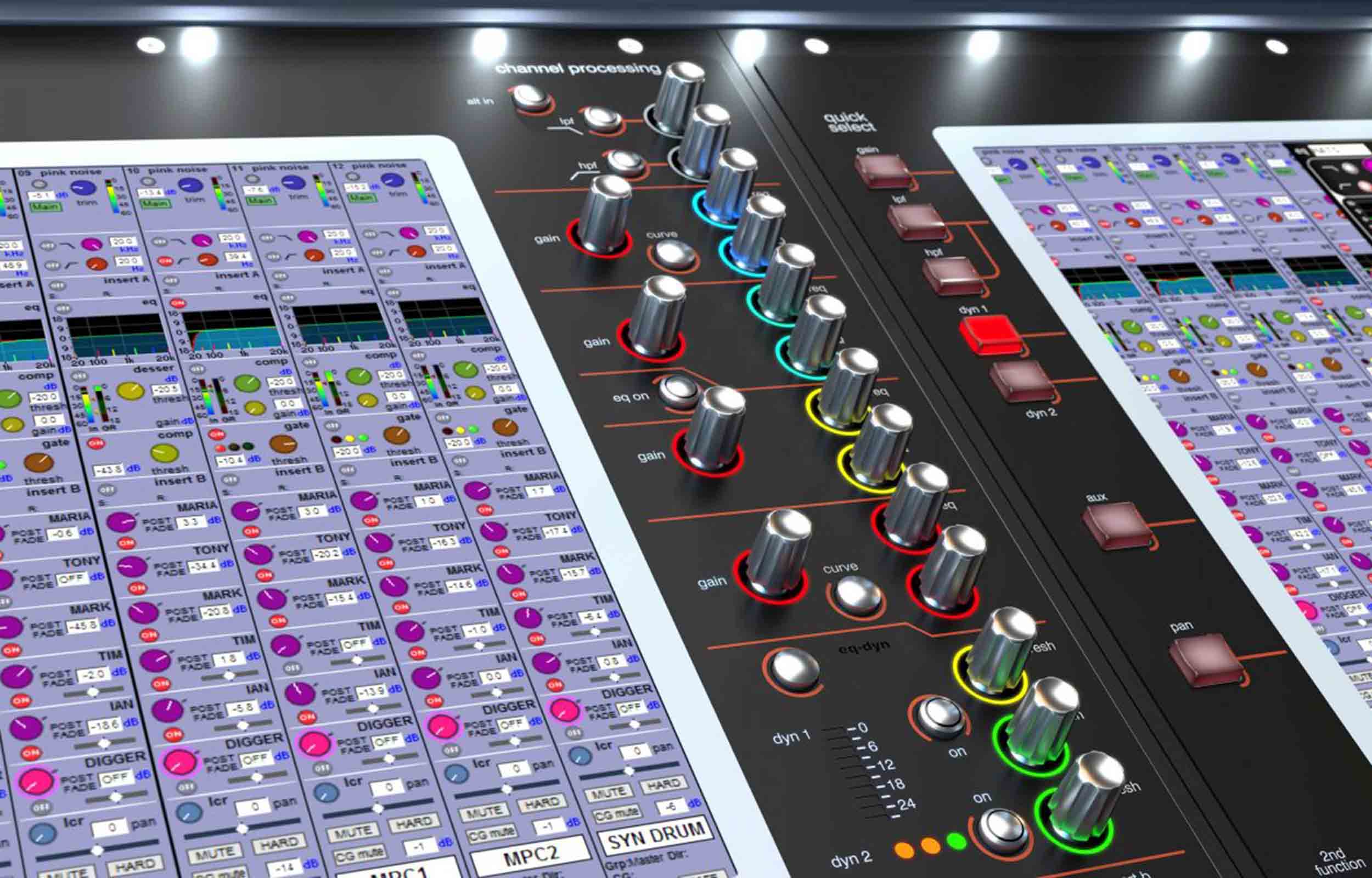

The SD12 96 boasts 96 channels at 48kHz/96kHz, delivering a wealth of functionality. Standard channel processing across both inputs and outputs includes Channel Delay, Single and Multi-Channel presets, Dual insert points Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).
On board are 155 Dynamic EQ processors which can be assigned to any of the input or output channels; 155 Multiband Compressors and 155 DiGiTuBes. All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 16 graphic EQs, 12 digital effects, and up to 12 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.

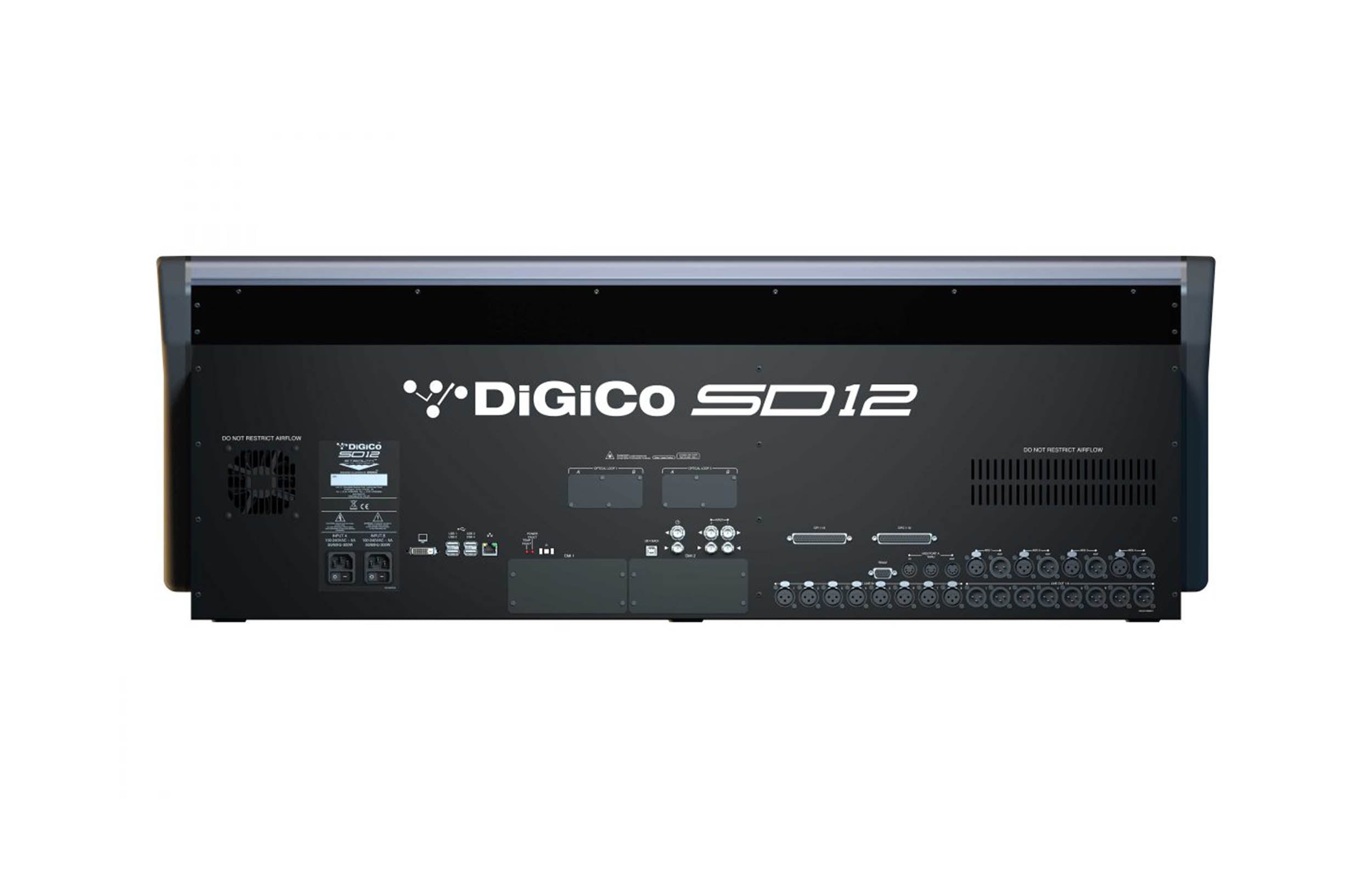

I/O

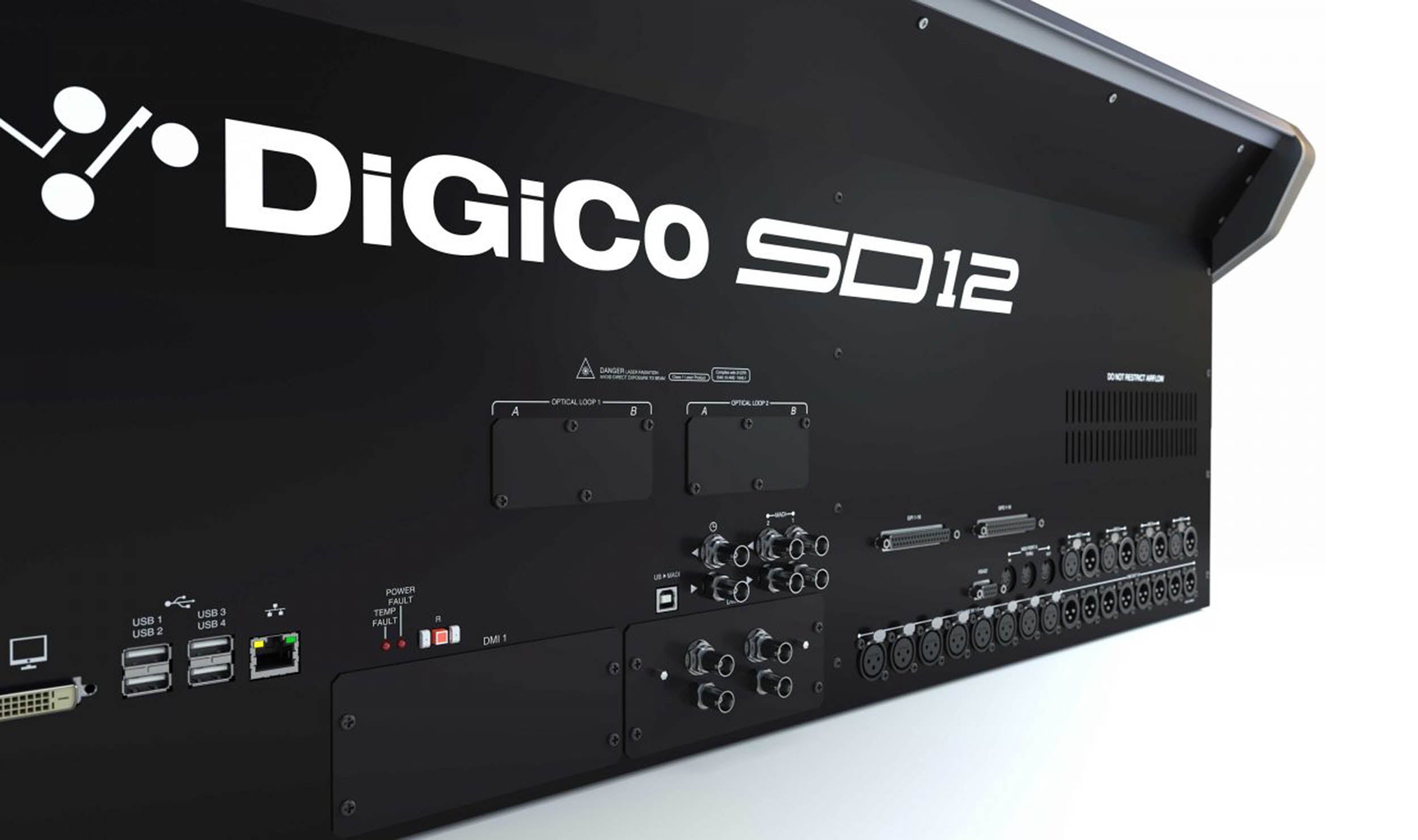

The SD12 96’s extensive local I/O section offers eight mic line inputs, eight-line outs, eight mono AES/EBU and dual MADI in/out. The SD12 96 comes complete with dual DMI (DiGiCo Multichannel Interface) option card slots, perfect for expandability with industry formats such as Analogue expansion, MADI, Dante, Waves SoundGrid, or Calrec’s Hydra 2 Network.
Users can also choose a factory-fit Optocore option which allows for connectivity to all DiGiCo racks and consoles in a redundant loop, and a DiGiCo SoundGrid DMI module giving instant access to 32 fully integrated low-latency Waves stereo multi-Rack.
What’s in the Box:
- X-S12-WS & X-D2-AN-M BNC MADI Rack 48/16
- DiGiCo D2 MADI Rack 48 In x 16 Analog Out (expandable to 32 Outputs)
- Dust Cover and 100M MADI cables x 4
- Connections: MADI x 2, UB-MADI, DMI Port x 2
- Connectors: BNC
Product Specifications:
Package Type: MQ Rack Package designed as an advanced modular I/O expansion solution.
Faders: 26 x 100 mm touch-sensitive, motorized faders.
Screens: 2 x 15" high-resolution LCD touchscreens.
Input Channels: 96.
Busses: 48 Aux/Group busses plus master busses with Mono, Stereo, and LCR processing.
Matrix: 12 input x 8 output matrix with full processing.
Control Groups: 12 selectable groups supporting VCA-style, moving fader, and mute group modes.
Graphic EQ: 16 x 32-band graphic equalizers with ±12 dB gain.
Internal Effects: 12 stereo effects including reverb, delay, chorus, pitch, and enhancer.
Local I/O: 8 x Mic/Line inputs and 8 x AES I/O.
MADI Interface: 2 x BNC MADI interfaces.
Optic Interface: Optional.
Sampling Rates: 48 kHz / 96 kHz.
GPIO: 2 x D-Sub 37 connectors.
DMI Slots: 2 x DiGiCo Multichannel Interface slots.
External Sync: Word Clock, MADI, and Optics.
Power Requirements: 90–260 VAC, 50–60 Hz, 150 VA (140 W).
Sample Rate: 48 kHz or 96 kHz.
Processing Delay: Typical 1 ms (SD-Rack input to stage output at 96 kHz).
Internal Processing: Up to 40-bit floating-point with 24-bit A/D and D/A converters.
Frequency Response: ±0.6 dB (20 Hz–20 kHz).
THD: <0.05% @ unity gain, 10 dB input @ 1 kHz.
Channel Separation: Better than 90 dB (40 Hz–15 kHz).
Microphone Input Noise: Better than -126 dB equivalent input noise.
Maximum Output Level: +22 dBu.
Channel Modes: Mono, Stereo, and Multi.
Input Routing: Main and Alternate input.
Analog Gain: -20 dB to +60 dB.
Digital Trim: -40 dB to +40 dB.
Phase: Normal or Reverse.
Delay: Greater than 1 second with coarse and fine adjustment.
DiGiTuBe: Drive 0.01–50.0, Bias 0–6.
Filters: HPF and LPF, 20 Hz–20 kHz, 24 dB/octave.
Equalization: 4-band Parametric/Dynamic EQ with ±18 dB gain.
Dynamic EQ: Adjustable Threshold, Attack, Release, Ratio, and Over/Under modes.
Dynamics 1: Single-band or 3-band multiband compressor with Auto Gain.
Dynamics 2: Gate, Ducker, and Compressor with full side-chain controls.
Insert Points: Insert A (Pre EQ/Dynamics) and Insert B (Post EQ/Dynamics).
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade with ±18 dB level adjustment.
Output Routing: Outputs, Insert A, Insert B, FX, and Direct outputs.
Mute Modes: Channel Mute and Hard Mute.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Buss, Directs, Outputs, and Full Safe.
Fader: 100 mm motorized, -∞ to +10 dB.
Product Weight: 96 lbs. (42 kg) console only
Flight CaseWeight: 287 lbs. (130 kg) with optional flight case.
Product Dimensions (L x W x H): 44.25" x 31.30" x 15.31"
Flight Case Dimensions (L x W x H): 50.00" x 22.44" x 45.28"
