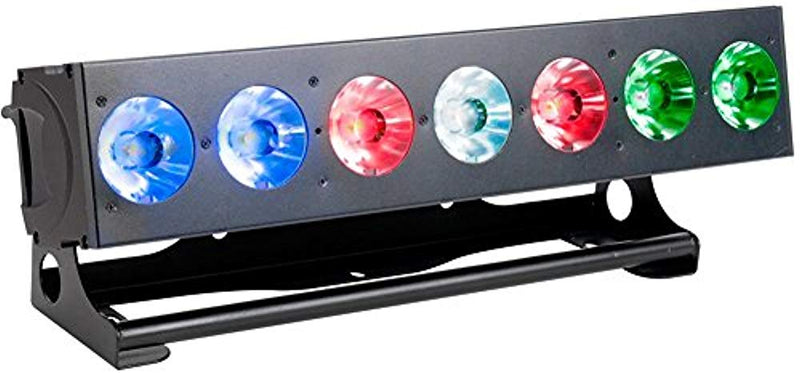

The new ACL BAR is a versatile bar luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include full individual pixel control strobe and selectable dimming curve effects DMX RDM KlingNET and Art-NET (DMX Over Ethernet) Support 3/5pin XLR powerCON and RJ45 Ethernet in/out connections (4) button control full color 180° reversible menu display 135W max power consumption a multi-voltage universal auto-switching power supply (100-240v) and included glare shield and frost filter. FEATURES Versatile 31° Beam Bar Luminaire New Advanced Collimator Lens (7) Pixel Controled RGBW 4-in1 LEDs Laser-Like Homogenized 4° Color Changing Beams Strobe and Selectable Dimming Curve Effects DMX RDM KlingNET and Art-NET (DMX Over Ethernet) Support Flicker Free Operation for Broadcast TV and FILM Glare Shield and Frost Filter Included SOURCE (7) 15W RGBW 4-in-1 LEDs 100000 Hour Average Lamp Life PHOTOMETRIC DATA (31° Full ON) 43380 LUX 4030 FC @3.3 (1m) 19330 LUX 1796 FC @6.6 (2m) 12180 LUX 1132 FC @9.8 (3m) 8575 LUX 797 FC @13.1 (4m) 6247 LUX 580 FC @16.4 (5m).
