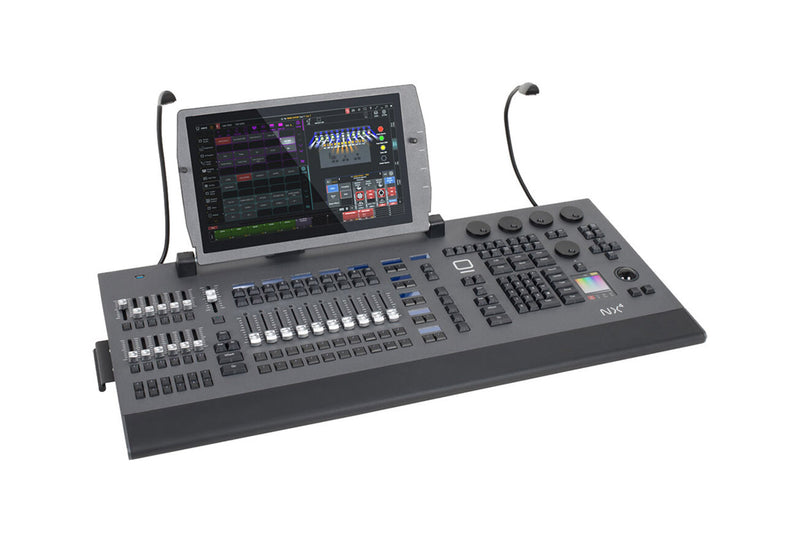

Elation NX4, 15.6-Inch FHD Multi Touch Screen 2x External 4K Touch Displays

The Elation NX4, 15.6-Inch FHD Multi Touch Screen 2x External 4K Touch Displays is a comprehensive feature packed control surface. With a well-arranged combination of motorized and manual faders as well as an array of playback button the NX4 offers 44 total playbacks in a compact yet extremely powerful package. As a member of the innovative ONYX platform from Obsidian Control Systems the NX4 is feature rich and never restricted in its capabilities. NX4 includes a high-brightness full HD multi-touch screen; 8 assignable parameter encoders; dedicated Intensity encoder; an assistive mini touch-screen; full keypad and command section and a dedicated grand master.

Two independent playback sections offer instant access. The main playback with 10 motorized faders plus 10 play-pairs allows for quick page changes while the sub playback with 12 faders and 12 button playbacks allows important cues to always be at the user’s fingertips.

Utilizing the latest in industrial components the NX4 contains a powerful new Intel Hexa-Core processor, high speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation and the ability to process 64 Universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor. The NX4 is ergonomic with its motorized playback faders, short depth, easy screen access, full ONYX command and keypad section and bright adjustable HD touch screen. It is always ready to run the largest shows and events at a moment’s notice.

With four DMX ports, Timecode, Midi and dual Gigabit ports for up to 64 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX4 has all the connectivity and power the ever-increasing sizes of shows demand. Two additional 4K touch monitors are supported for even more direct access at any time.

Product Specifications

Surface

10x 60 mm motorized playback faders, each with 4x function-assignable buttons, digital backlit labels

12x 45mm Sub Playback Fader with Flash keys

22x Playback Executors

14x customizable multi-function keys

Playback Select button

2x Master Go section with Go, Pause, Snap and Release

4x digital rotary encoders with push function and status LED for fixture parameter control

4x screen mounted digital rotary encoders with push

1x digital intensity Encoder with push

3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings

1x 60mm Grandmaster with Flash/DBO

Blind/Highlight/Last/Next buttons

Full numerical keypad and command keys

Industrial Trackball

Hardware

Industrial 15.6" TFT 16:9 touchscreen (1920x1080px)

250 GB NVMe M.2 storage drive

Industrial motherboard with Intel i5 Hexa-Core CPU

Quiet thermal design using advanced copper heat pipe coolers

16 GB DDR4 RAM

Integrated graphics processor

Windows 10 IoT Embedded Operating System

OS installation by USB 3.0 storage device

Supports Windows USB touchscreens

Connections

4x DMX / RDM Universe In/Out: 5pin locking XLR

External Display: 2x DisplayPort (up to 4k)

External Display Power: 12V, 2x Molex 8pin

Network: 2x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net

Storage and Peripherals: 3x USB 3.0, 3x USB 2.0

Audio Out, Mic In: 2x 6.3mm Jack

MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI timecode): 5pin DIN

SMPTE Timecode In/Out: 3pin XLR

Locking Power In

Desk Lamp: 2x RGB LED, integrated

Physical

Length: (18 in.)

Width: (38 in.)

Height: (7 in.)

Weight: (38 lbs.)

Electrical

100-240 V nominal, 50/60 Hz, 140W

Included Items

2x Integrated RGB Desk Lamp

Dust Cover

1.5 m power cable (EU or US version)

USB 3.0 Recovery stick
