Elation Professional Prisma Mini Bar 20 & Mini Linear Wash - 10

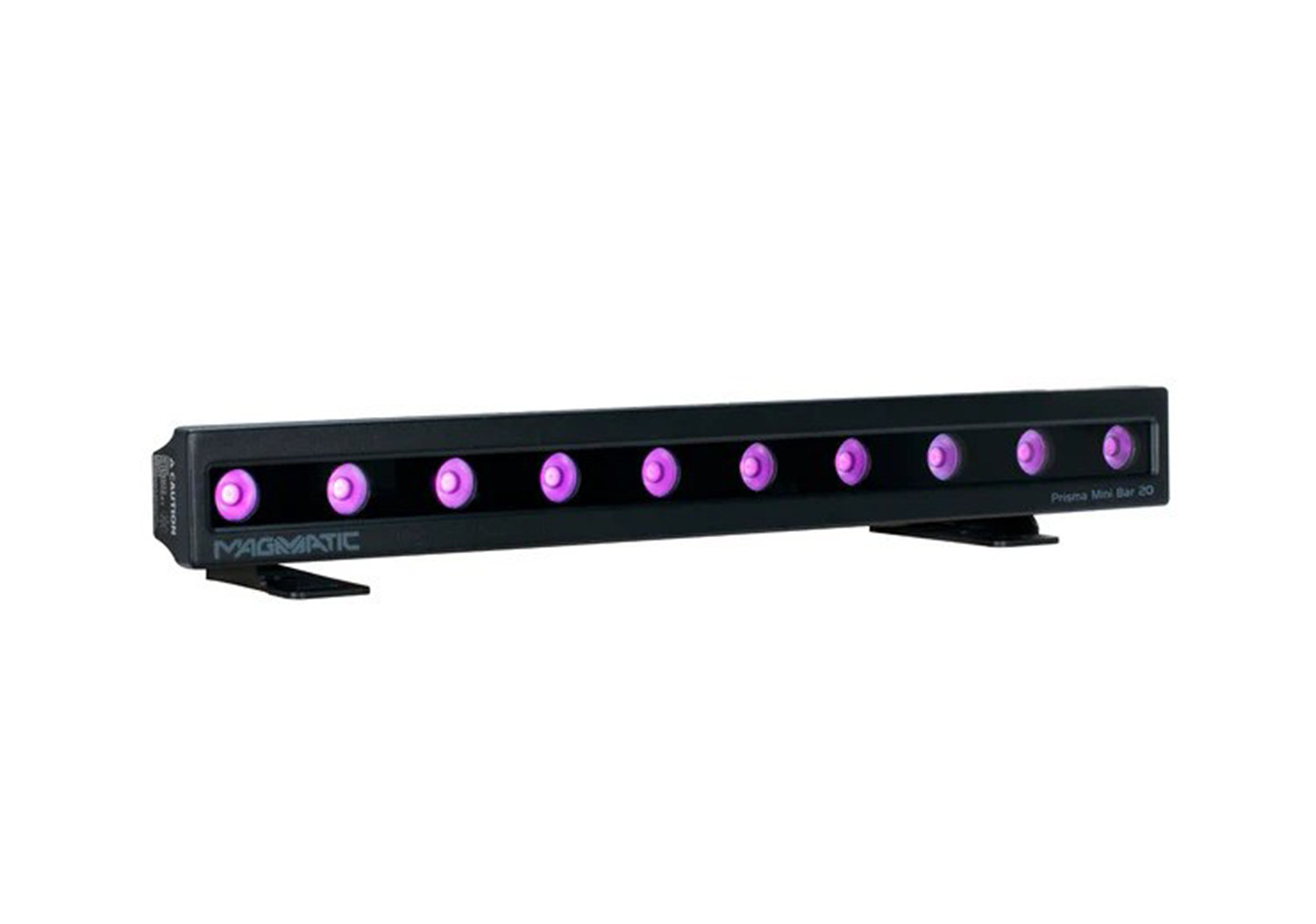

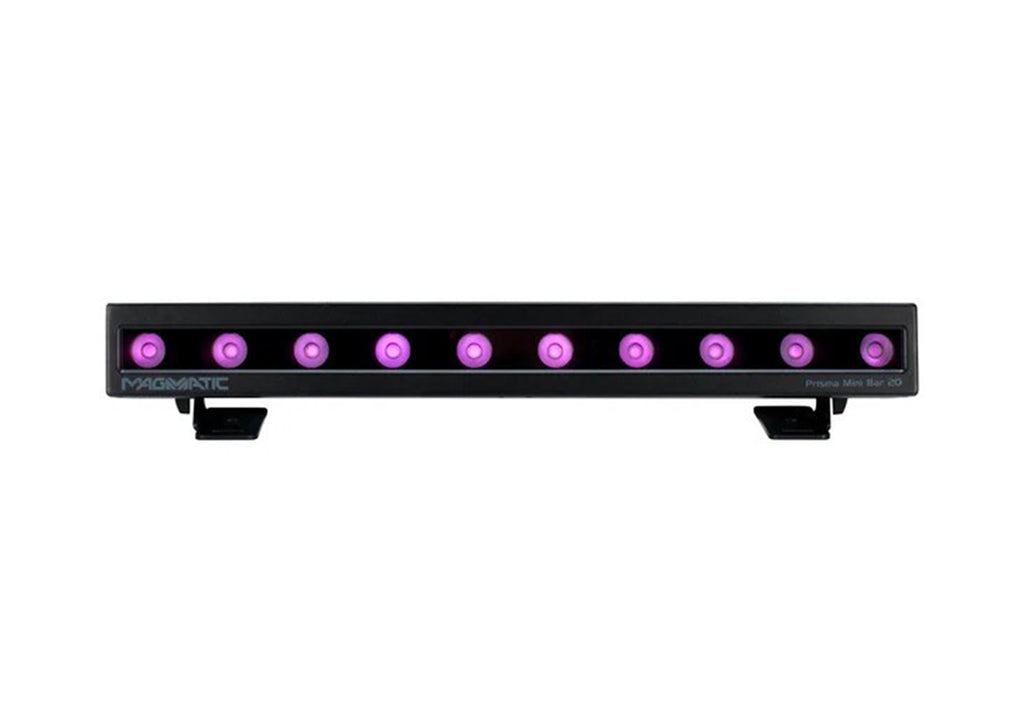

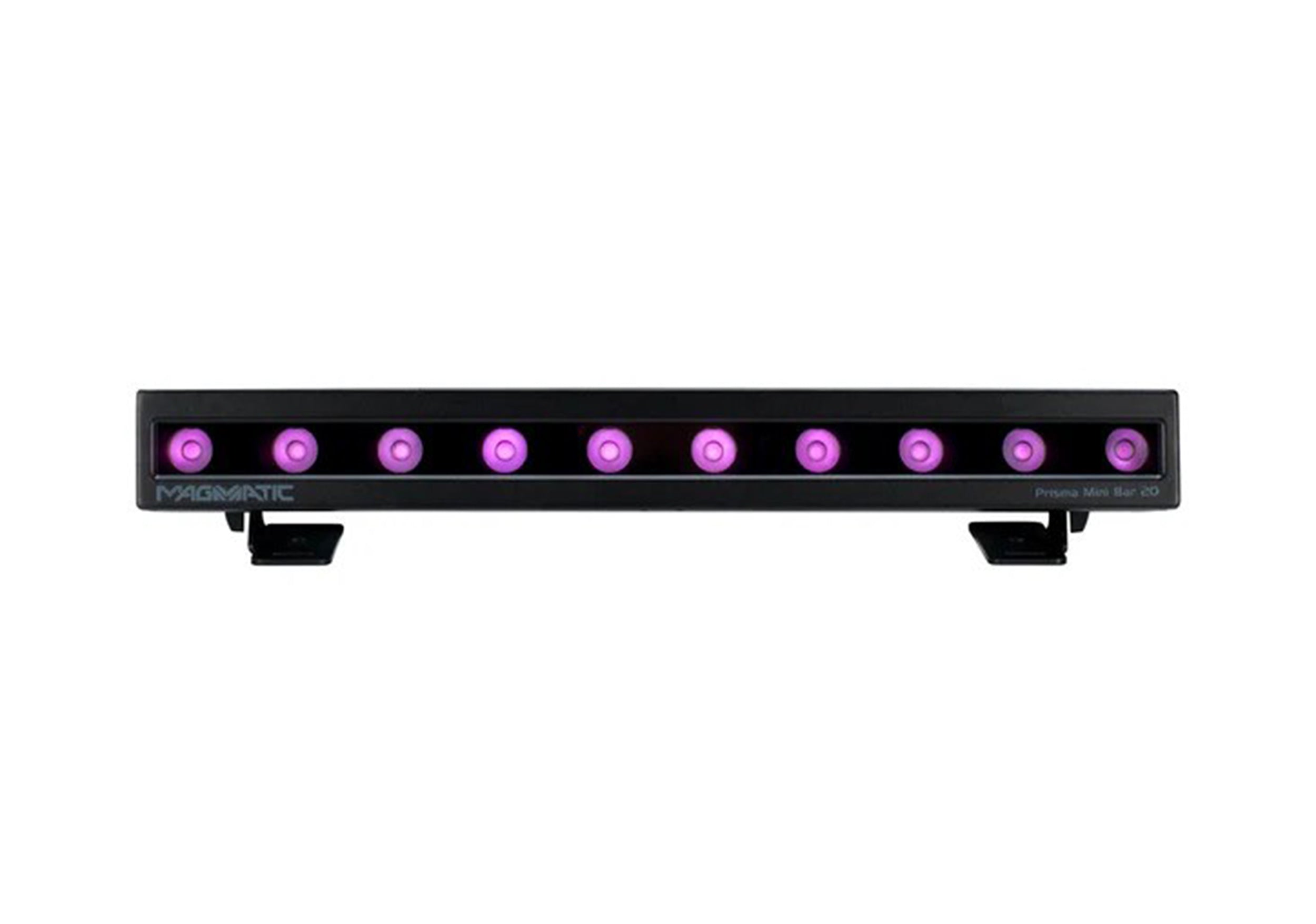

The Elation Professional Prisma Mini Bar 20, Mini Linear Wash Fixture - 10 x 2W is a compact, high-efficiency, IP65-rated exterior UV wash bar luminaire that produces a true 365nm ultraviolet output with zero visible light. Featuring a narrow 20° beam angle and 10 high-power 2W UV LEDs, this fixture is ideal for architectural, themed, or special effects lighting in outdoor or damp environments. It is powered by the PRISMA DRIVER 8 or PRISMA DRIVER 8IP (sold separately), offering DMX-512 and RDM control protocols. The rugged aluminum housing, adjustable mounting brackets, and long-range connectivity make it a versatile choice for professional installations.

PRISMA MINI BAR 20 is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20-degree beam angle.

Product Specifications:

Source:

(10) 2W High Power UV Diode LEDs

20,000 Hour Average LED Life

Photometric Data:

20 Degree Narrow Beam Angle

365nm True UV Peak Wavelength

Effects:

High Speed Electronic Strobe

Variable Dimming Curve Modes

Construction:

Rugged IP65 Rated Aluminum Housing

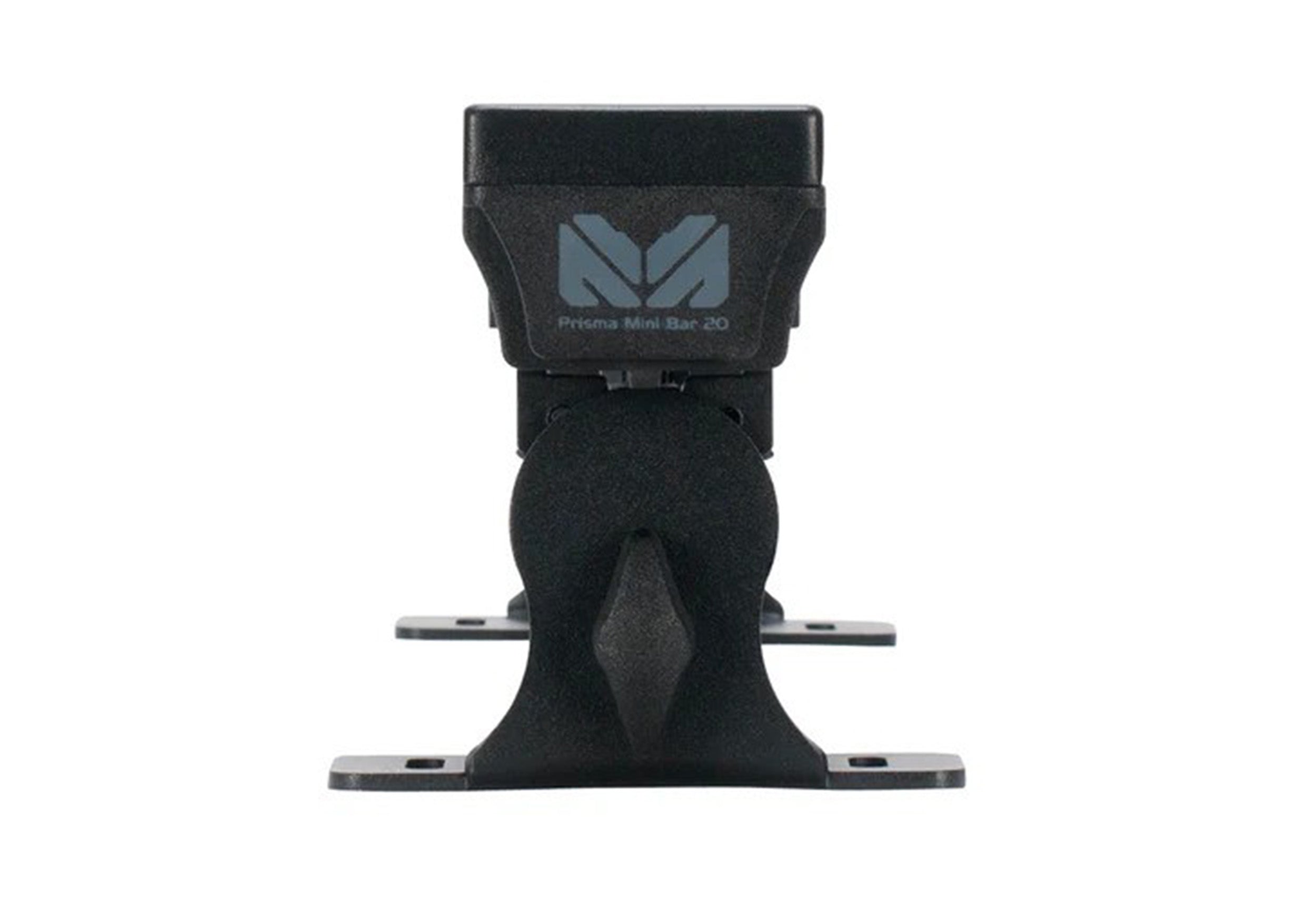

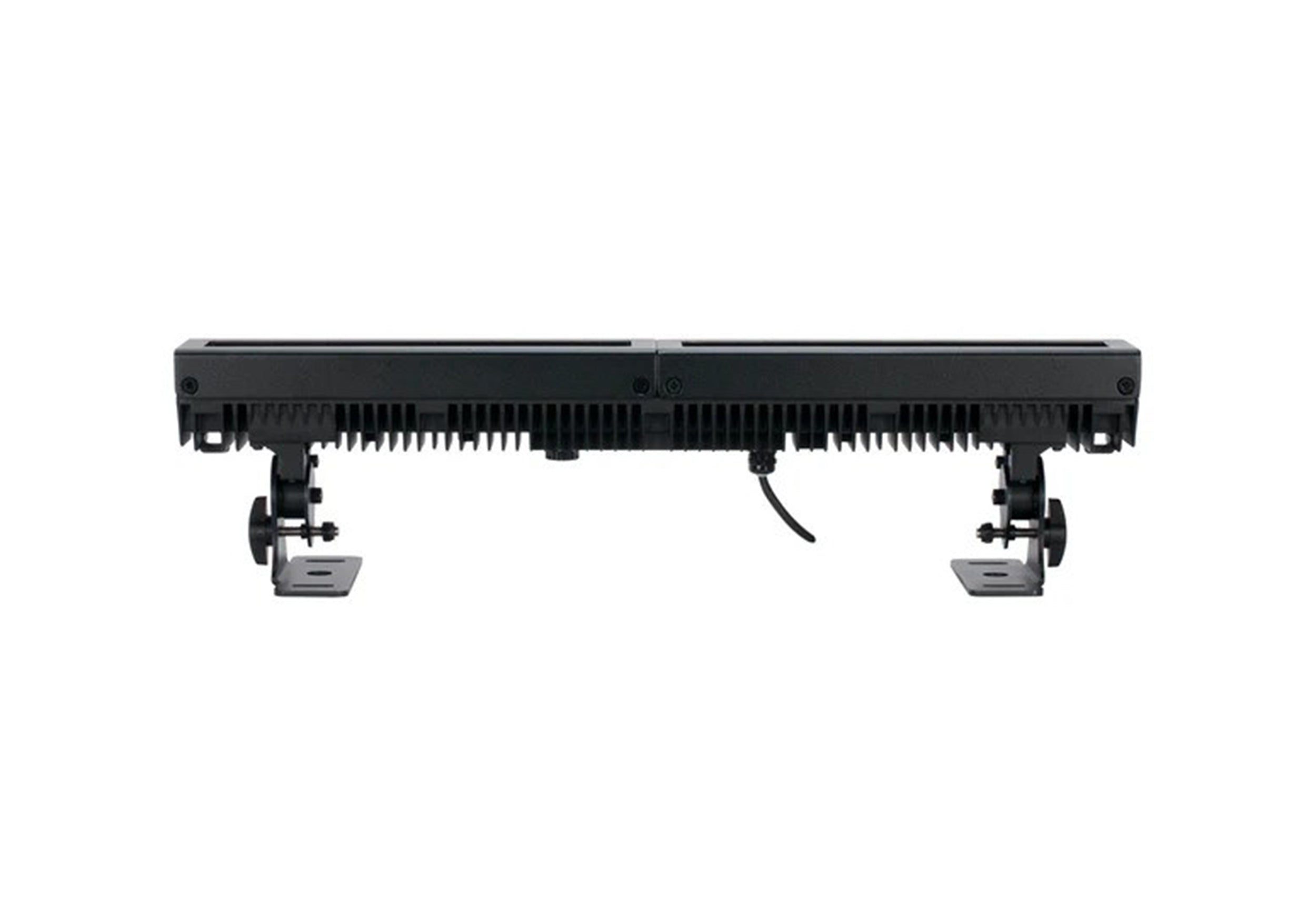

Adjustable Mounting Brackets (x2)

Control (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP):

Multiple DMX Channel Modes

DMX-512 and RDM Protocol Support

Connections:

19' 22 AWG 2 Conductor wire with Phoenix connector

Minimum Cable Requirement: 22 AWG

Maximum Distance from Driver to Fixture: 40'

Size / Weight:

Length: 3.97 in. (100mm)

Width: 18.9 in. (480mm)

Vertical Height: 4.19 in. (106.5mm)

Weight: 4.2 lbs. (1.90kg)

Electrical:

DC 36.7V (Via Pixel Driver 8)

24.3W Max Power Consumption

Thermal:

14°F to 113°F (-10°C to 45°C)

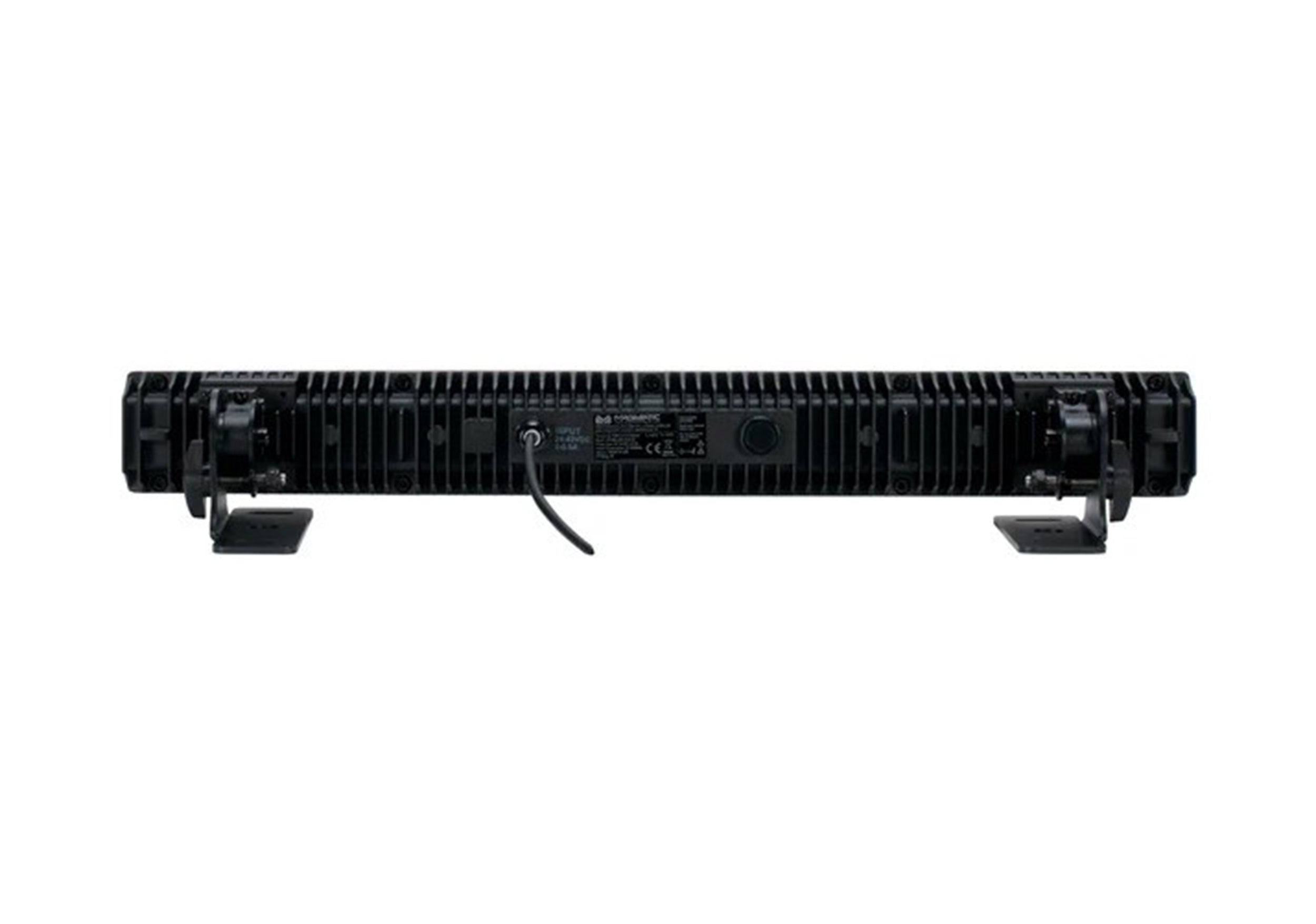

Air Cooled

Approvals / Ratings: CE | cETLus | IP65
