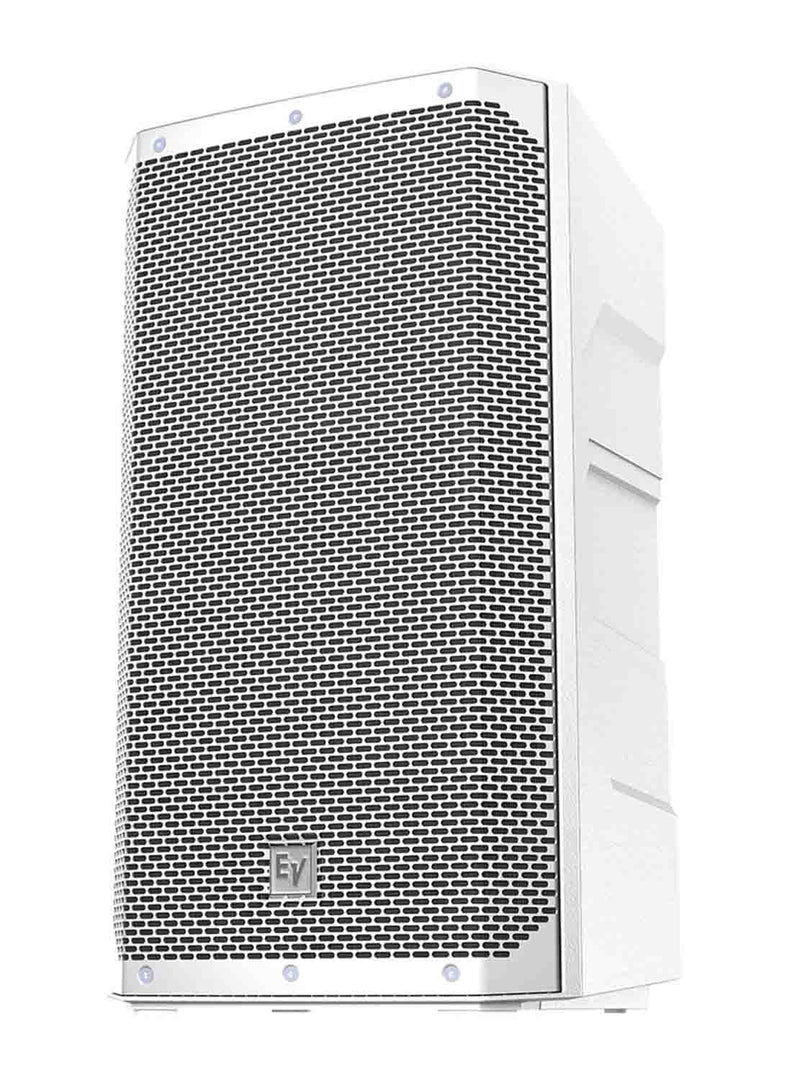

The Electro-Voice ELX200-12-W is a 12" 2-Way 1200W Passive Loudspeaker (White, Single). The ELX series is designed to deliver an unprecedented combination of sound quality, portability, and durability at its price point. All-new custom components tested to levels far exceeding the industry norm make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category. Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical, and mechanical components all work together seamlessly. The full-range models feature a low-profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear responses at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Product Specifications:
Suspension: (3) M10 suspension points
Minimum Impedance: 7.5Ω
HF Transducer: DH-1L 1-inch titanium compression driver
Speaker Type: Full-Range
Woofer Size: 12inch
Frequency Response (-3 dB)¹: 77 Hz - 17 kHz
Frequency Range (-10 dB)¹: 51 Hz - 20 kHz
Max. SPL/1m (calc)²: 128dB
Coverage (Nominal -6 dB) H: 90°
Coverage (Nominal -6 dB) V: 60°
LF Transducer: EVS-12M 300 (12 in)
Power Rating: 1200W
Crossover Frequency: 1.7 kHz
Connector Type: Dual NL4
Enclosure Material: Polypropylene composite
Grille: 18 AWG steel with Powdercoat
Height: 629mm (24.76")
Recommended High-Pass Frequency: 50 Hz
Width: 363mm (14.29")
Depth: 344mm (13.54")
Weight Net: 15.2kg (33.51 lbs)
Shipping Weight: 17.1kg (37.7 lbs)
Family: ELX200
Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
Power Handling (Continuous / Peak): 300W/1200W
Nominal Impedance: 8Ω
