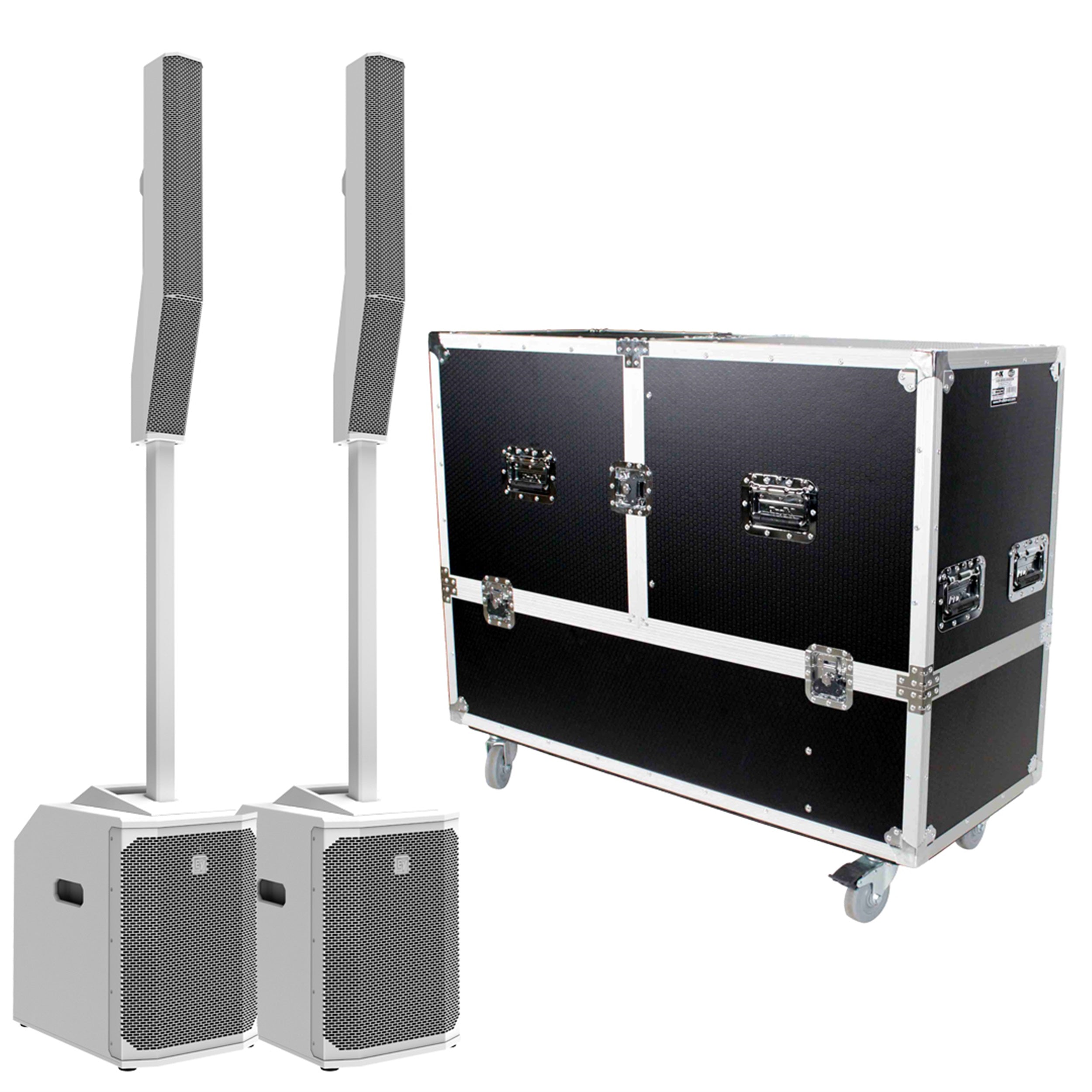

Electro-Voice EVOLVE 50M White Column Speaker Package Pair with Heavy Duty Road Case

This Speaker package includes the Electro-Voice EVOLVE50M-SW Portable Linear Column Array PA System (White) with onboard mixer, DSP, effects, and QuickSmart Link technology for professional performance; the Electro-Voice EVOLVE50-TW Portable Column Array PA System (White) powered by a 1000W Class-D amplifier delivering up to 127 dB SPL with wide coverage and easy setup; and the ProX X-EVO1250X2W ATA Flight Case, designed to fit and protect two EV Evolve 50 systems. Built with 3/8" laminated plywood, heavy-duty hardware, and smooth-rolling casters, this rugged road case ensures maximum protection and easy transport.

This Speaker Package Includes,

• 2 Electro-Voice EVOLVE50M-SW Subwoofer with Mixer - White
• 2 Electro-Voice EVOLVE50-TW, Column Array Speaker - White
• 1 ProX X-EVO1250X2W, ATA Flight Case for 2x RCF EVOX12 or EV Evolve 50 Compact Arrays Fits Two Speakers and Subwoofers

2 Electro-Voice EVOLVE50M-SW Subwoofer with Mixer - White

The Electro-Voice EVOLVE50M-SW, Portable Linear Column Array PA System - White features Electro Voice’s new Quick Smart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 formats. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

Product Specifications:

Column array: 8x 3.5” neodymium drivers

Subwoofer: 1x 12”

Frequency response (-3 dB): 43 Hz - 20 Khz

Frequency range (-10 dB): 37 Hz - 20 Khz

Maximum SPL: 127 dB

Coverage (H x V): 120° x 40°

Amplifier rating: 1000 W

LF channel rating: 500 W

HF channel rating: 500 W

Crossover frequency: 200 Hz

Connectors:

4x XLR/TRS combo jack line/mic input

2x XLR/TRS combo jack for stereo line input

1x 1/4” TRS Hi-Z input

1x stereo RCA input

1x 3.5 mm stereo input

1x wireless stereo Bluetooth audio input

1x 1/4” foot switch input

1x XLR mix out output

1x XLR aux out output

1x RJ45 Quick Smart Link connector

Pole: aluminum

Sub: 15 mm plywood

Grille: Steel with black or white powder coat

Colors: Black or white

Dimensions (HxWxD): 80.5 x 13.6 x 18.5

Net weight: 57.75

Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

2 Electro-Voice EVOLVE50-TW, Column Array Speaker - White

The Electro-Voice EVOLVE50-TW, Portable Column Array PA System is a three-component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice Quick Smart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Product Specifications:

Frequency response (-3 dB)1: 43 Hz-20 Khz

Frequency range (-10 dB)1: 37 Hz-20 Khz

Maximum SPL2: 127 dB

Coverage (H x V): 120° x 40°

Amplifier rating: 1000 W

LF channel rating: 500 W

HF channel rating: 500 W

Crossover frequency: 200 Hz

Connectors:

2x XLR/TRS Combo Jack Input

1x 3.5 mm Input

1x Stereo RCA Input

1x Wireless Bluetooth Audio Input

1x XLR THRU Output

1x XLR MIX OUT Output

Enclosure:

Sub: 15 mm plywood

Column: Composite

Pole: Aluminum

Grille: Steel with black or white powder coat

Color: Black or white

Dimensions (HxWxD):

Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)

Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)

Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)"

Net weight:

Sub: 44.66 lbs (20.3 kg)

Column: 10.34 lbs (4.7 kg)

Pole: 2.75 lbs (1.25 kg)

Sub cover: 0.9 lbs (0.4 kg)

Bag for column and pole: 1.87 (0.85 kg)

Shipping weight:

Sub box: 50.71 lbs (23 kg)

Column box: 18.30 lbs (8.3 kg)

Power consumption3: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

ProX X-EVO1250X2W, ATA Flight Case for 2x RCF EVOX12 or EV Evolve 50 Compact Arrays Fits Two Speakers and Subwoofers

The ProX X-EVO1250X2W, ATA Flight Case for 2x RCF EVOX12 or EV Evolve 50 Compact Arrays Fits Two Speakers and Subwoofers stores up to two subwoofer units plus two arrays inside the case.  This professional speaker case employs a 3/8" Honeycomb laminated plywood that has a hard shell with internal impact-resistant padding to provide the best protection for your investment. No matter where you take your speakers, you can have peace of mind, nothing will get damaged during transit or in storage.

This case rests on four ProX high-quality 4" casters designed for easy traveling, it also comes equipped with caster dishes on top to facilitate stacking with other flight cases. X-EVO1250X2W is the perfect case for AV production companies, touring bands, entertainment groups, mobile DJs, or anyone who owns 2x RCF EVOX12 or EV Evolve 50 C speakers.  Protect your investment with ProX Cases.

This ProX ATA 300 Style Road/Flight case is manufactured with the Honeycomb Digital laminated surface Design. Made with the super-sleek look of Honeycomb Digital hexagon grids on all shell surfaces, which gives the cases an almost alien look! Also as opposed to regular laminated plywood cases from other manufacturers, the ProX Honeycomb Digital design helps prevent minor to mild scratches.

All ProX cases use CNC technology, during the manufacturing process, to assure that cases are consistently built with strict specifications and tolerances that are required for the high-quality standards that ProX cases have been known for since 1984.

Product Specifications:

Dimensions: 35.00"H x 19.50"W x 49.00"L

Weight: 124.00 lbs

Shipping Dimensions: 37.00"H x 21.00"W x 51.00"L

Shipping Weight: 136.00 lbs
