Eliminator Lighting Dotz Tpar Sys Plus, LED Wash System with Wired Digital Communication Network

The Eliminator Lighting Dotz TPar Sys Plus, LED Wash System with Wired Digital Communication Network is with Remote, Stand and Cases and it  employs C.O.B. (Chip On Board) Tri-color LEDs to deliver seamless color mixing, without color shadows. From immersive wash lighting to captivating pixel mapping, pulse, and strobe effects, this system is designed for illuminating smaller size events such as live performances on stages, weddings and parties offering an unforgettable lighting experience.

Engineered for reliability and portability, the Dotz TPar Sys Plus is constructed with top-quality materials, boasting 50,000-hour rated LEDs, ensuring durability and flicker-free performance. It’s easy to set-up, operator and take down. This portable lighting system includes four adjustable COB LED Par Wash fixtures, a foot controller, lighting stand, RF remote control, stand bag, and a soft case for the entire system.

With versatile operation modes – auto run, sound active, color macro, dimmer, and full DMX control – it adapts to any scenario. Unleash your creativity effortlessly. Elevate your stage, nightclub, or mobile production to new heights.

Product Specifications:

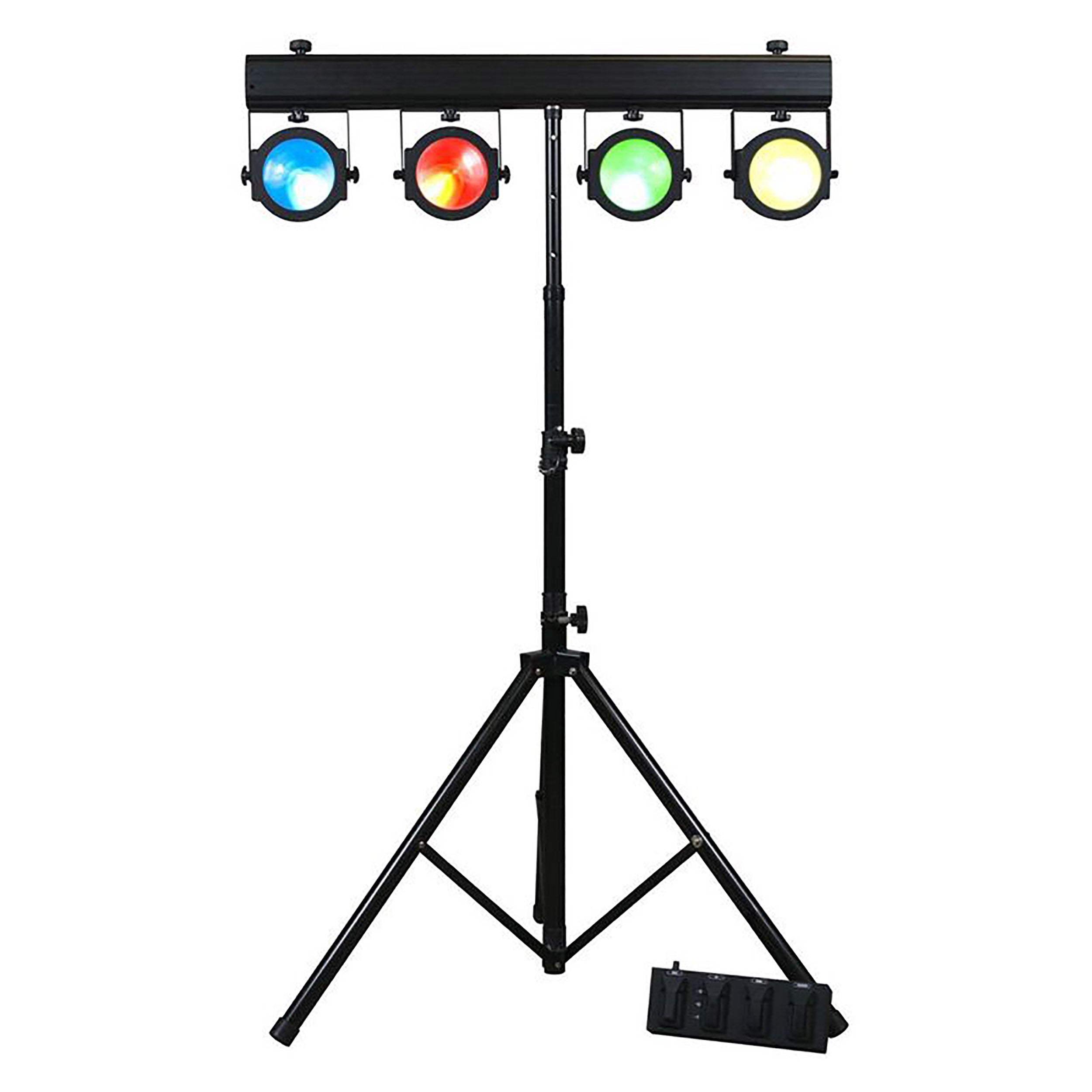

System Includes:

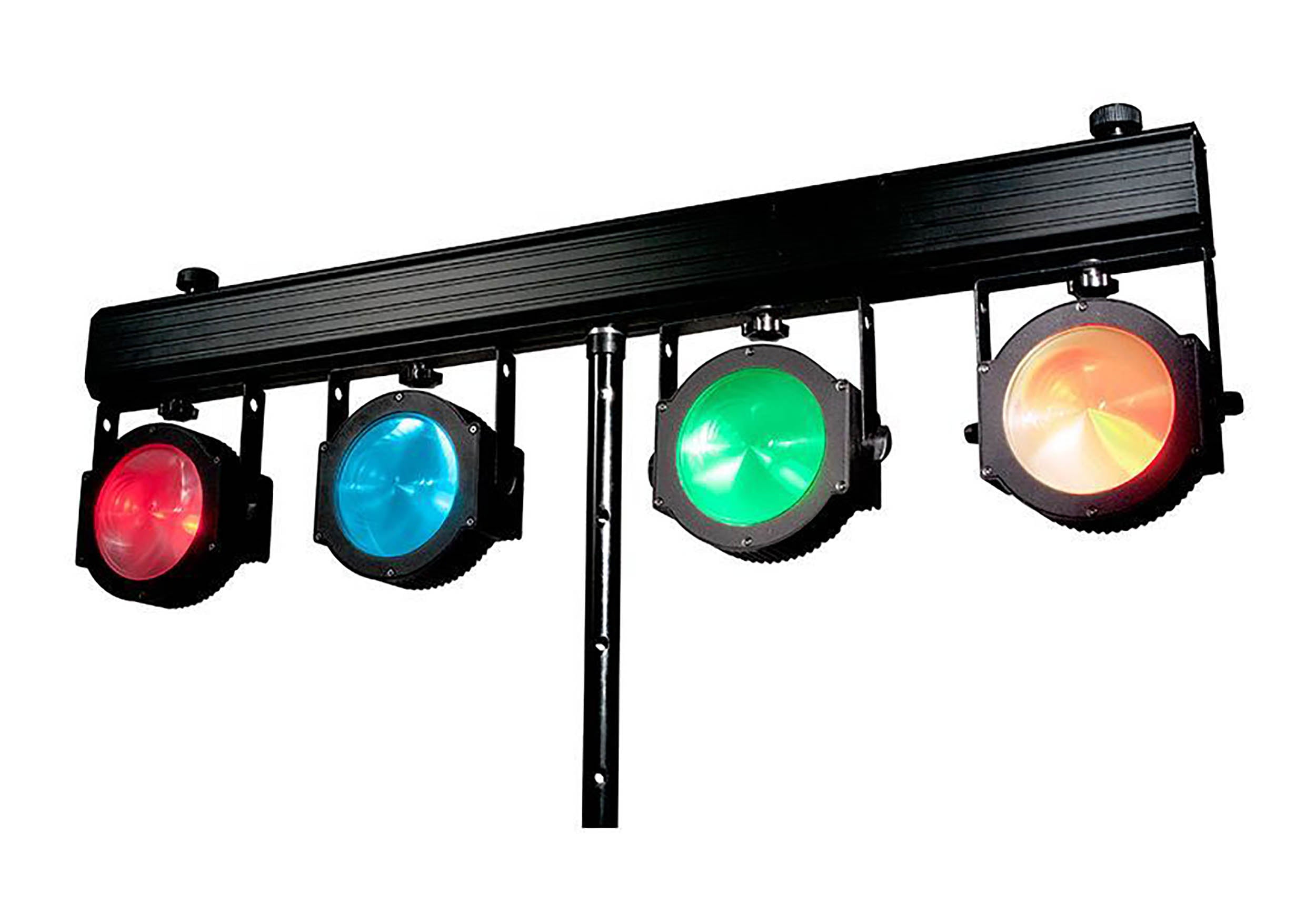

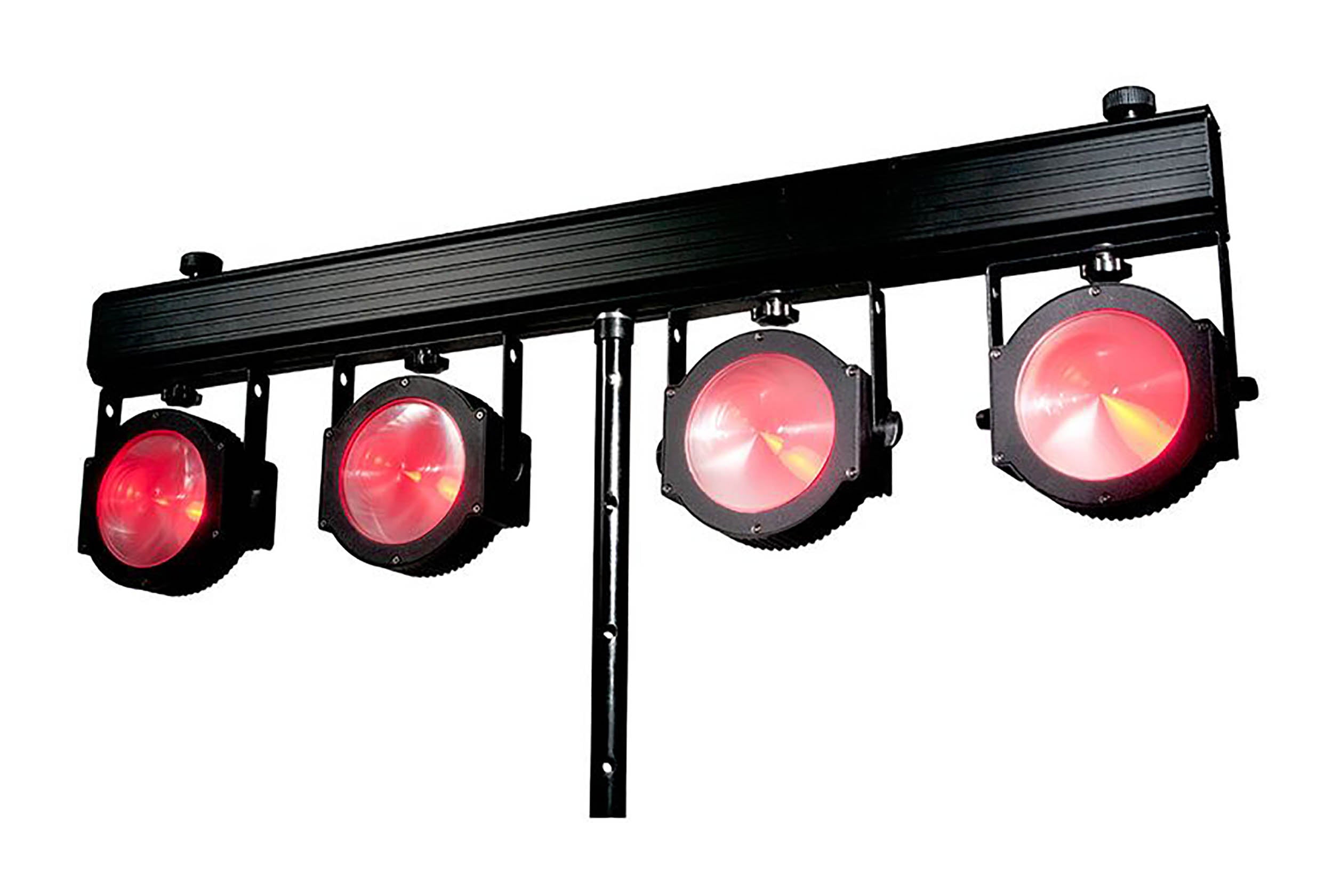

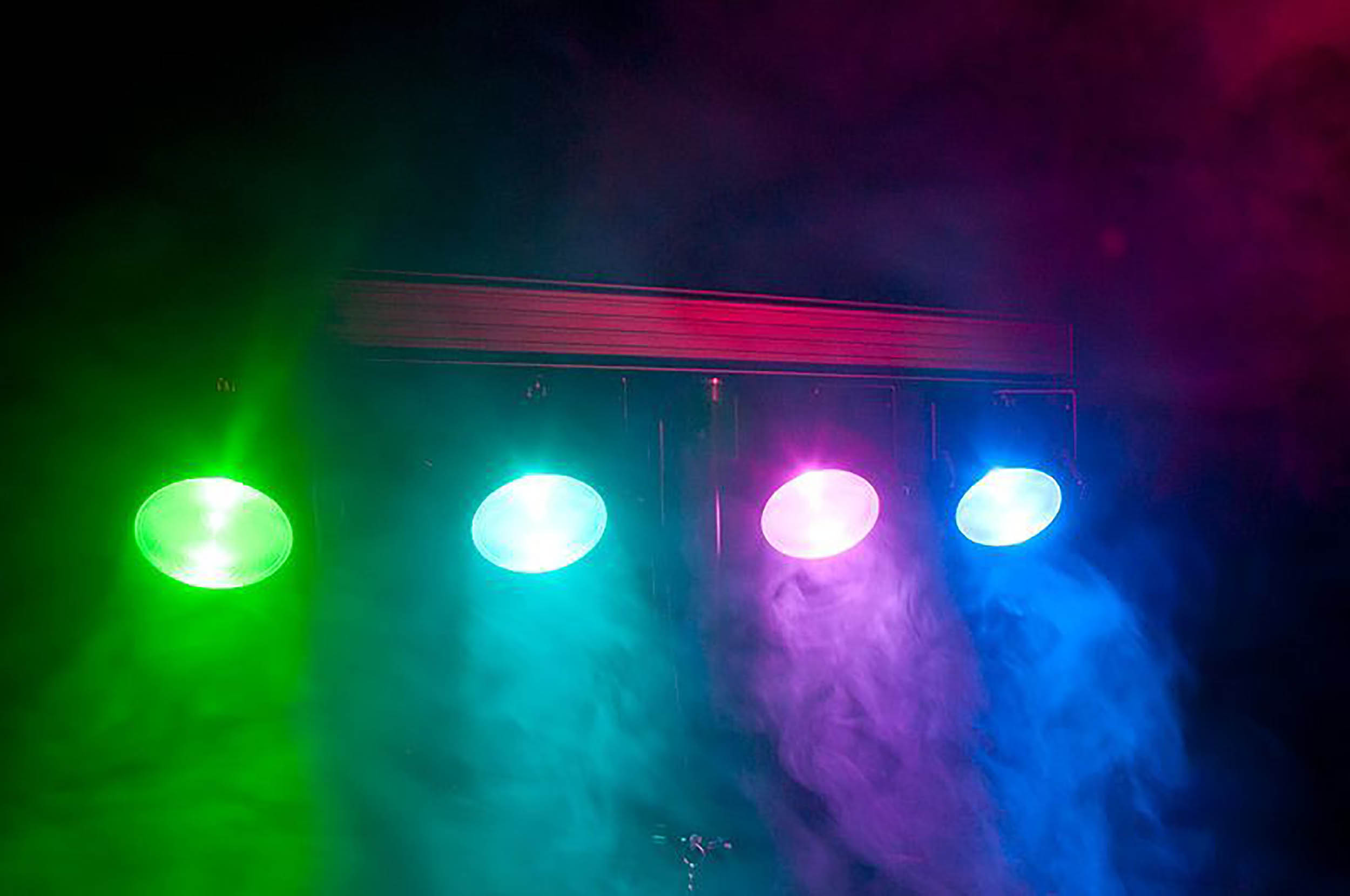

4x COB LED Par Wash Fixtures

1x Foot Controller

1x Lighting Stand

1x RF Remote Control

1x Stand Bag

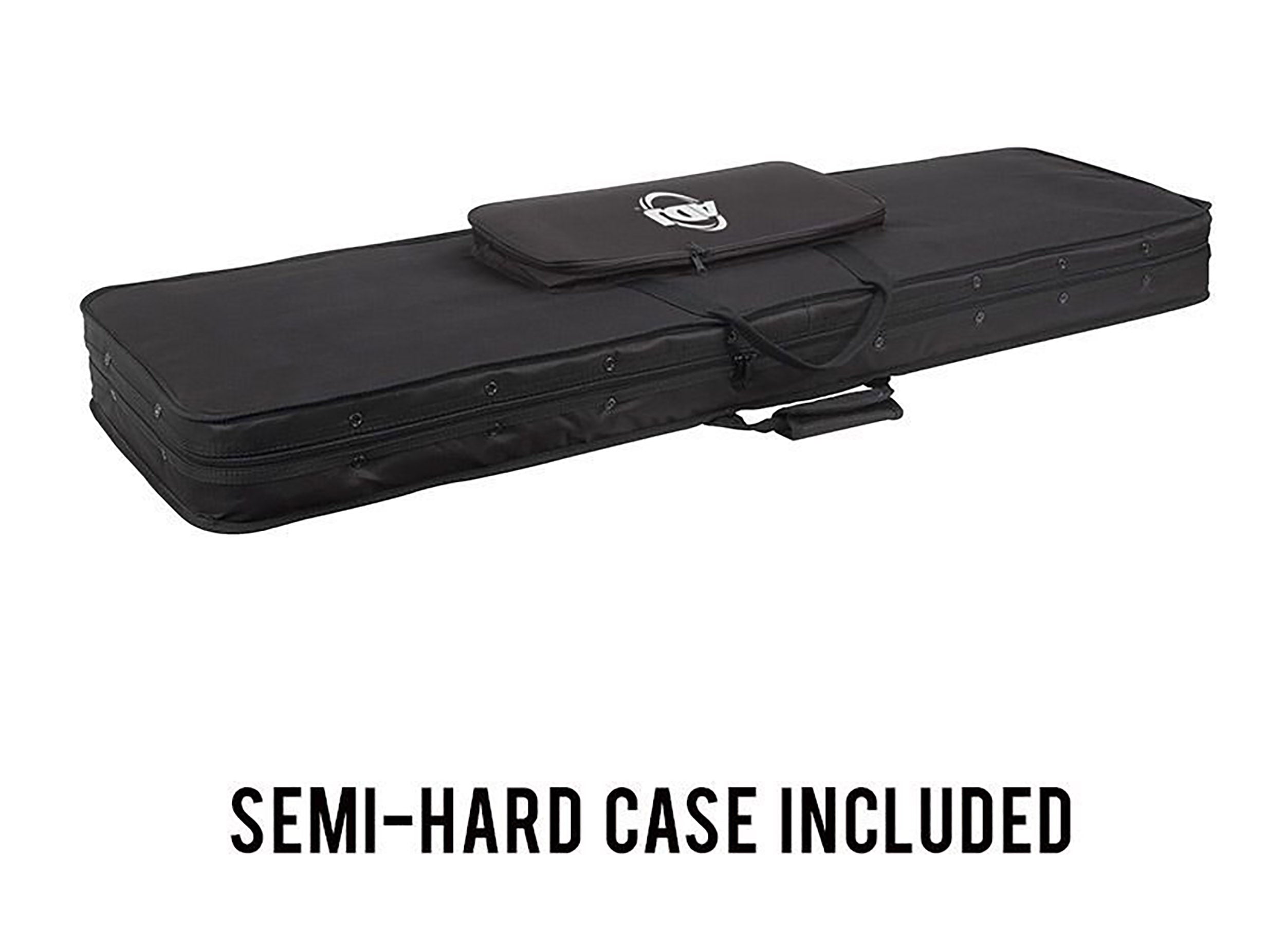

1x Soft case for lighting system

Source:

Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs

LUX @ 3M: 1345

Long Life LEDs (Rated at approximately 50,000 hrs.)

Beam Angle: 90-degree

Features:

COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color and no color shadows

Smooth RGB Color Mixing (fast or slow color change operation)

Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers

Emits less heat on performers on stage as opposed to conventional stage lighting

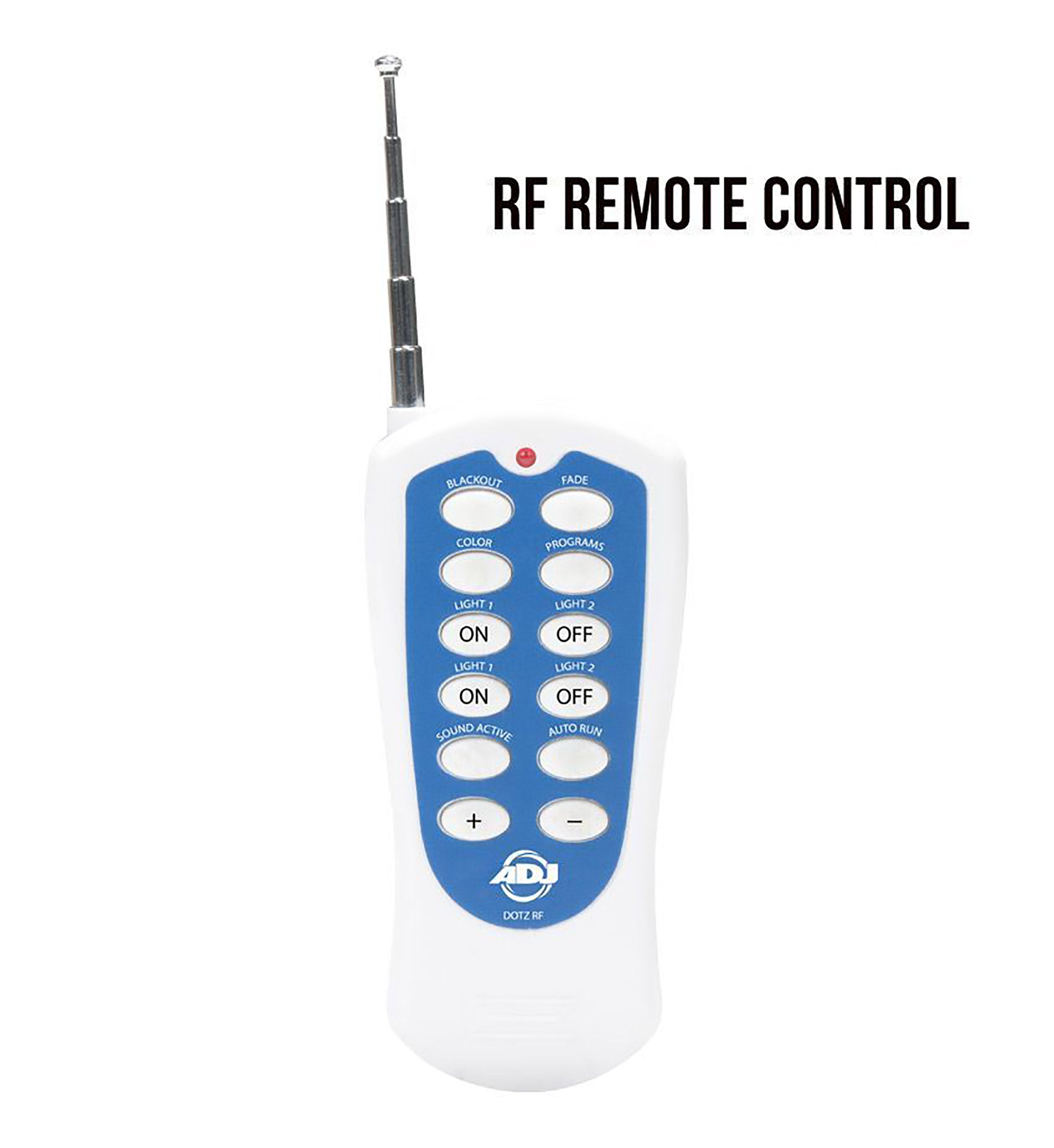

RF Remote Control up to 25 meters

Refresh Rate: 3.6KHz

Control:

Digital DMX Display with 4-button menu for easy navigation

4 Operational Modes: Sound Active, Auto Run, Built-In Programs, & DMX-512

Stand Alone or Primary/Secondary Configuration

Pixel Flip option changes pixel orientation

14 Built-in Programs

5 DMX Channel Modes: 3, 5, 9, 12 and 18 channels

Strobe & Pulse LED Effect

Electronic Dimming: 0-100%

5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

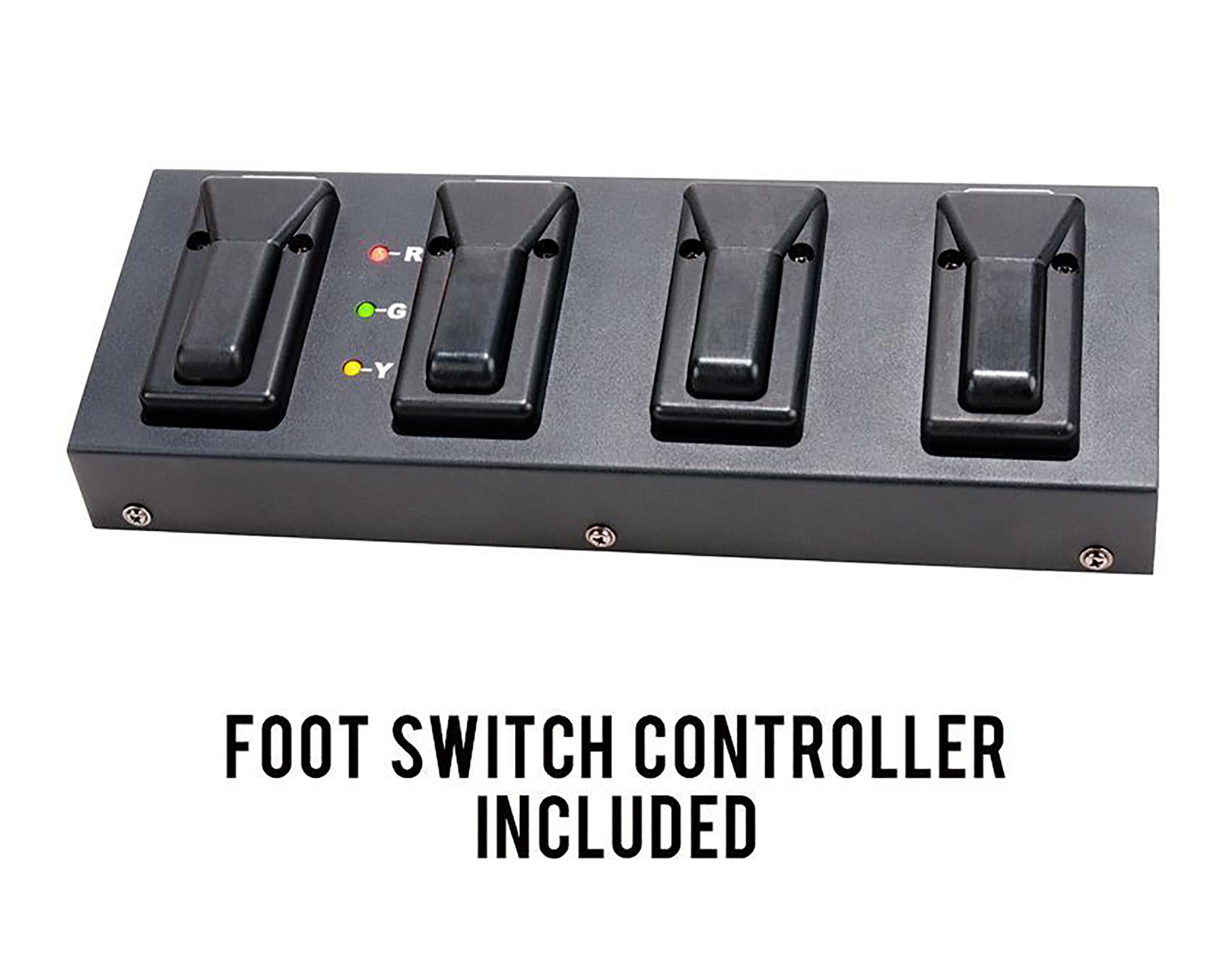

Foot Controller Features: Mode, Black Out and Program Change

With Wired Digital Communication Network

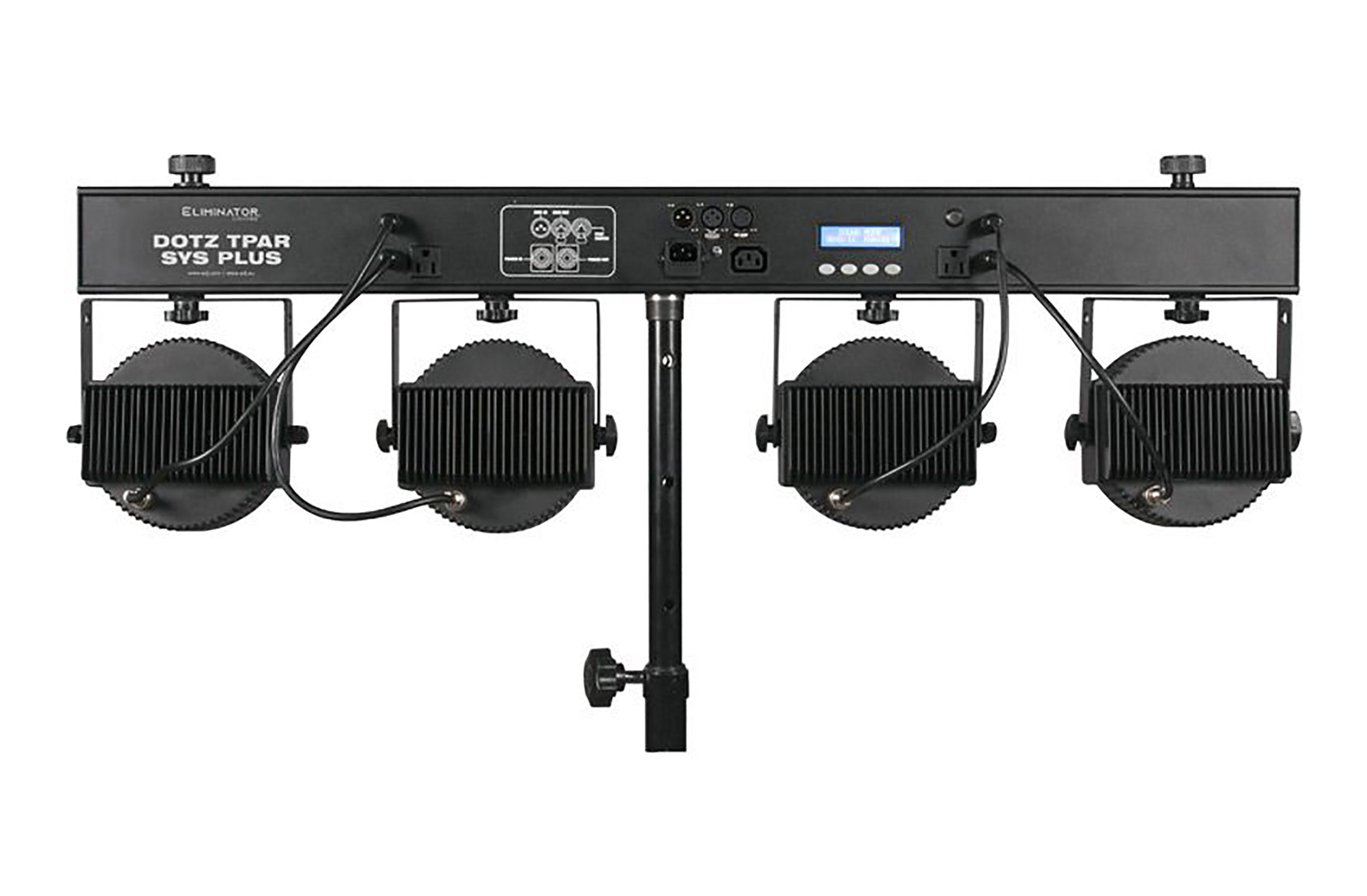

Connections:

3-Pin DMX In/Out

IEC In and IEC out to daisy chain power

2x power plugs on rear to plug in other lighting fixtures (120V = Edison, 230V = Shuko)

5-pin DMX In to connect the foot controller

Electrical:

Multi-Voltage Operation: AC 100V-240V 50/60Hz (IEC Input)

Power Draw: 144W Max (entire system)

What’s Included:

Includes 25-degree beam angle lens kit

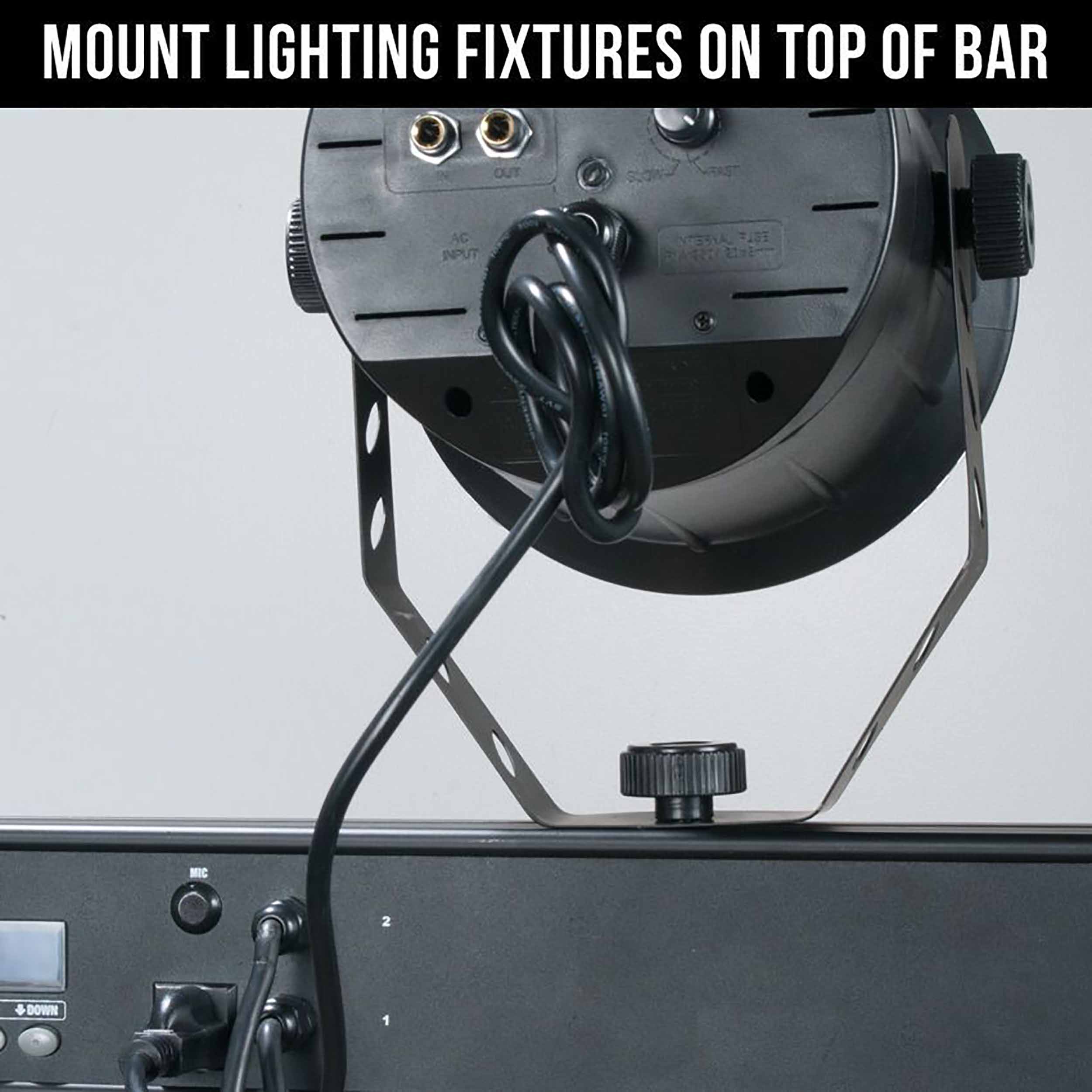

Includes hardware to mount two lighting fixtures on top of the light bar

5-pin DMX cable to connect the foot controller to rear of the light bar

Power Cord

Approvals / Ratings: CE Certified

Dimensions (LxWxH): 39.5” x 12.75”x 3.25”/ 1000 x 320 x 82mm

Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)

Maximum Stand Height: 9 feet
