HK Audio LINEAR-5-MK2-112-FA-U Compact 12" 1200W Bi-Amped Full-Range

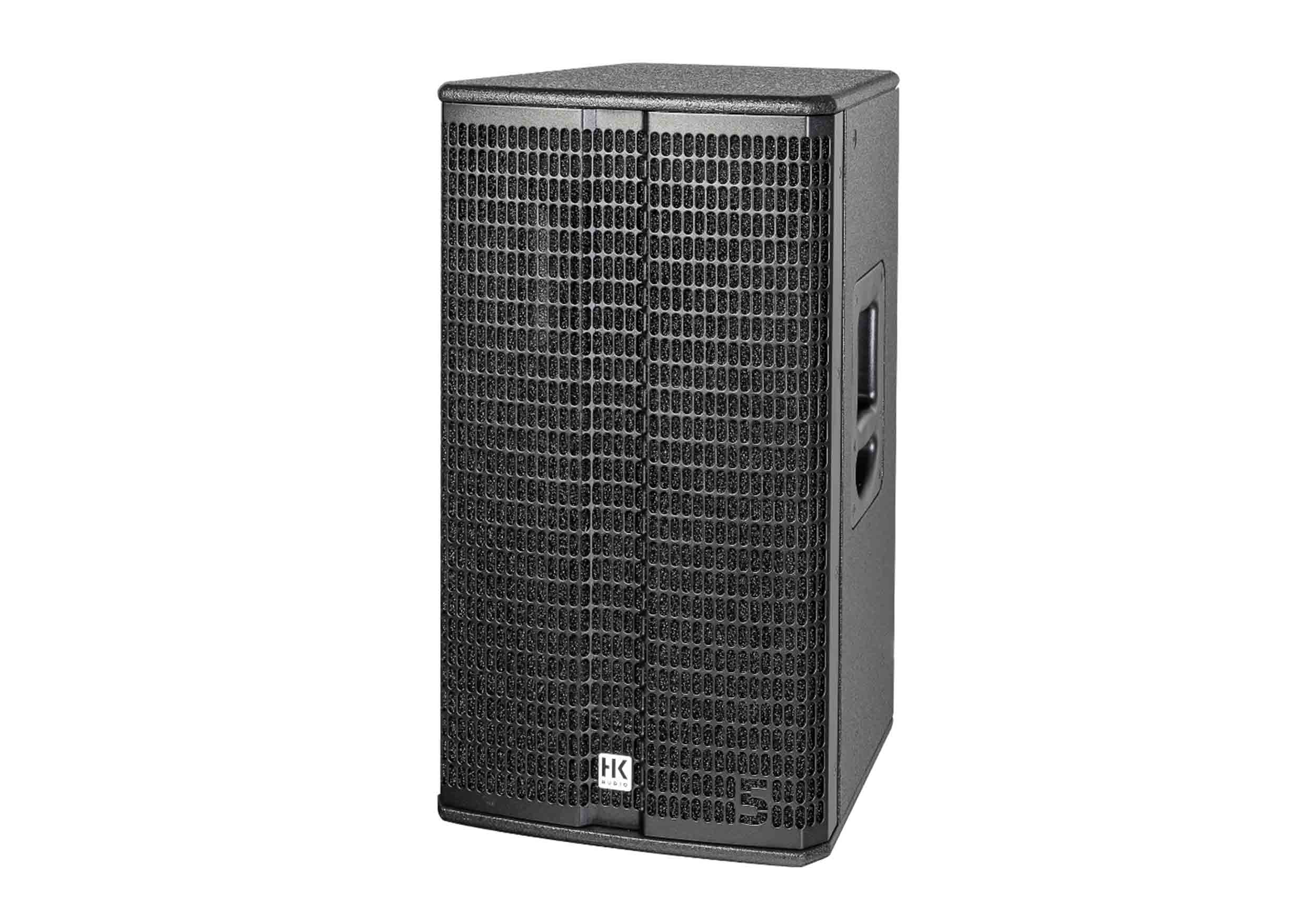

The HK Audio LINEAR 5 MK II 112 FA is a full-range mid/high unit with 12" woofer and a tweeter with 1.7" voice coil in a rotatable horn. The 60° x 40° dispersion pattern makes it easier to form speaker clusters. In addition to crystal-clear, assertive sound with an energetic bass, the LINEAR 5 MK II 112 FA achieves even greater throw distances thanks to its longer horn. The remote-controllable high-performance DSP with integrated, directly selectable presets offers a DSP Out that can route the processed signal from the mid/high unit to a non-networked speaker. The sturdy birch multiplex hybrid enclosure makes the LINEAR 5 MK II 112 FA a reliable partner for bands, DJs and sound technicians. Together with the LINEAR 5 MK II subwoofers, it provides a powerful system mid/ high unit. The increased power in the bass range ensures a powerful sound in system and full-range applications.

Product Specifications:

Maximum SPL: @10% THD (70 Hz – 12 kHz averaged): 128 dB (half-space)

Peak @10% THD: 135 dB (half-space)

Frequency Response:

±3 dB: 70 Hz – 12 kHz

-10 dB: 55 Hz – 19 kHz

Amplifier:

Type: Class D, bi-amped

Power Output (RMS/Peak): 600W / 1,200W

Drivers:

Low/Mid Speaker: 1 x 12" with 2.5" voice coil

HF Driver: 1" with 1.7" voice coil

Dispersion: 60° x 40° CD, rotatable

Type: FIR X-over with 72 dB/octave

Frequency: 1.6 kHz

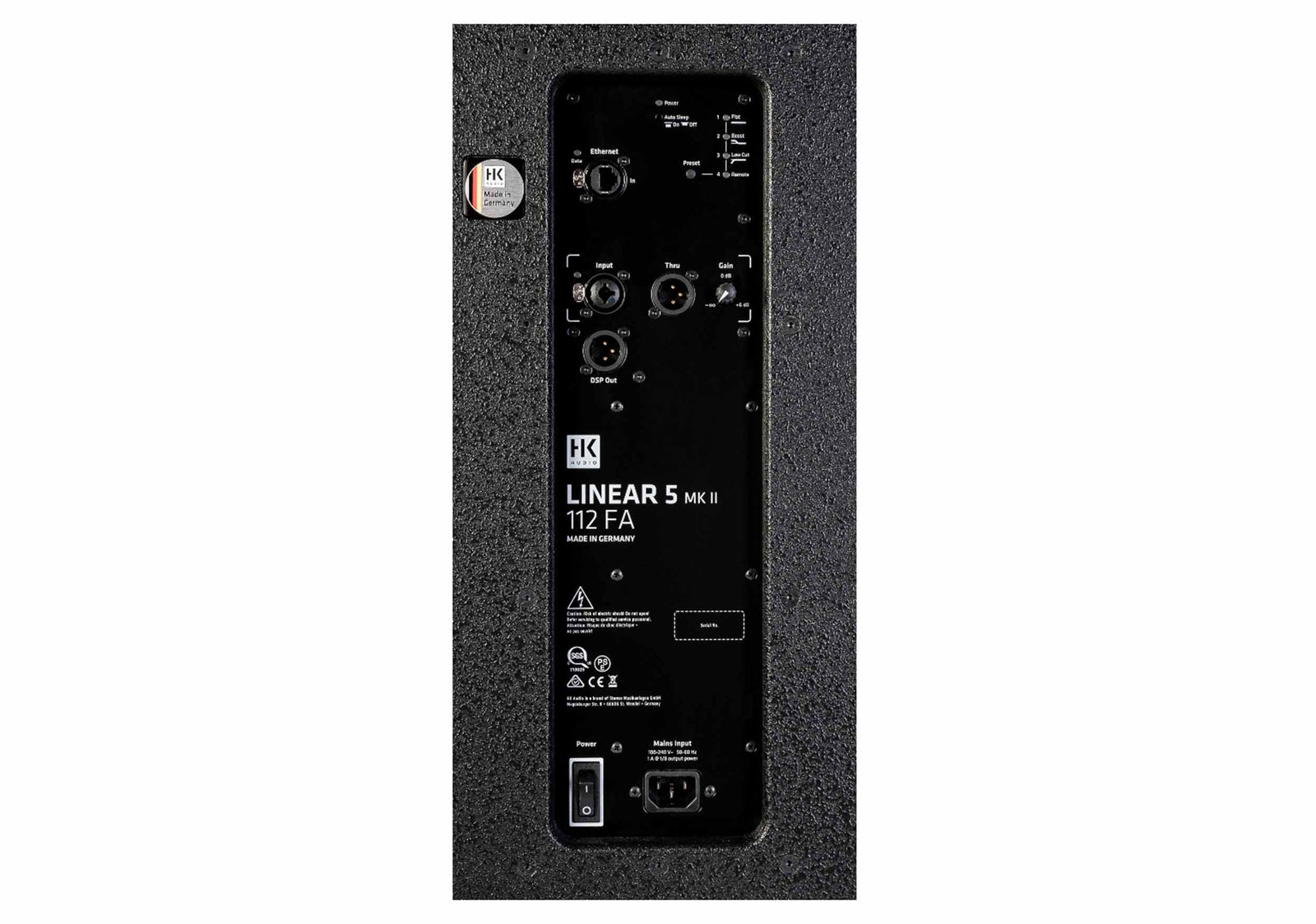

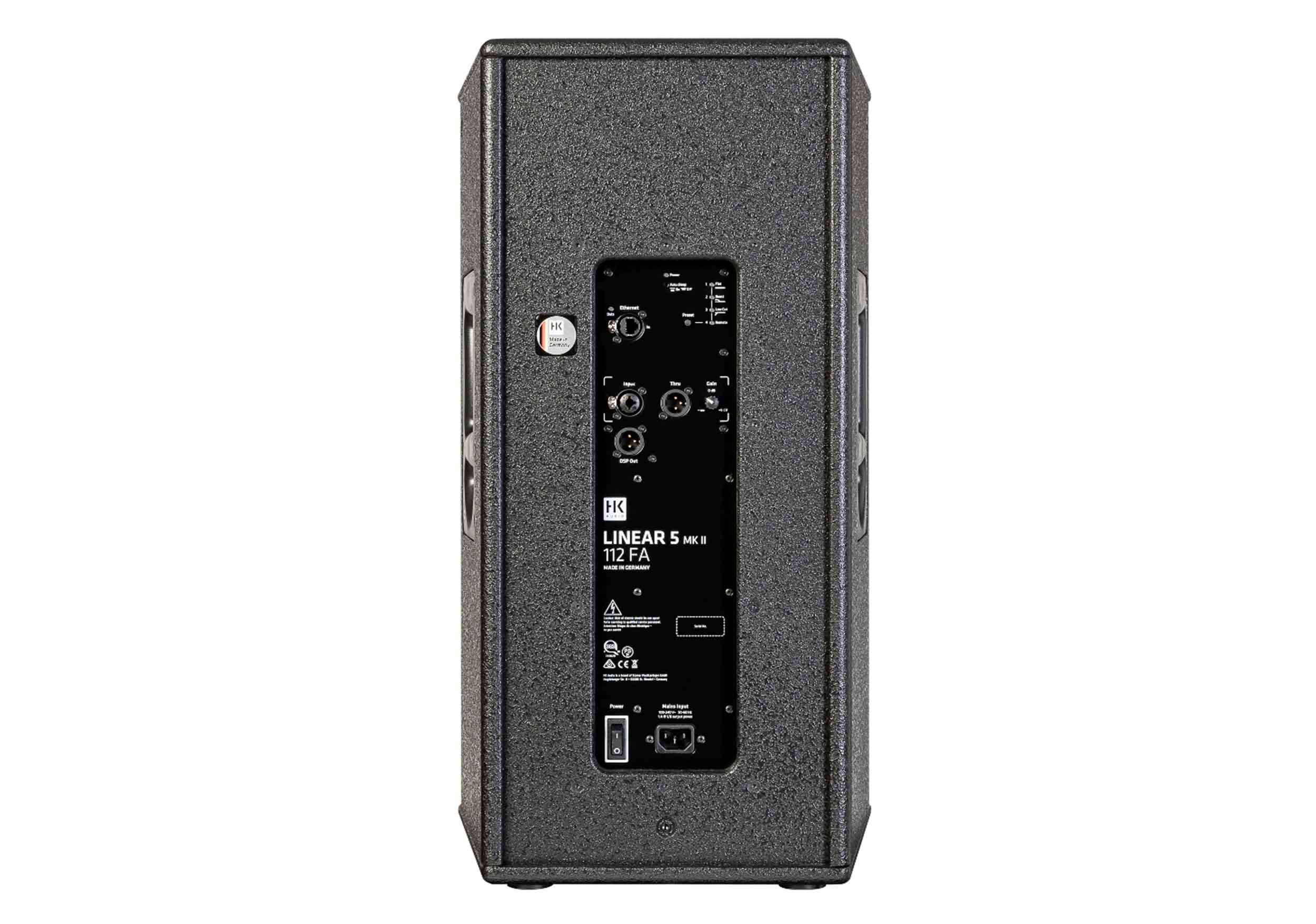

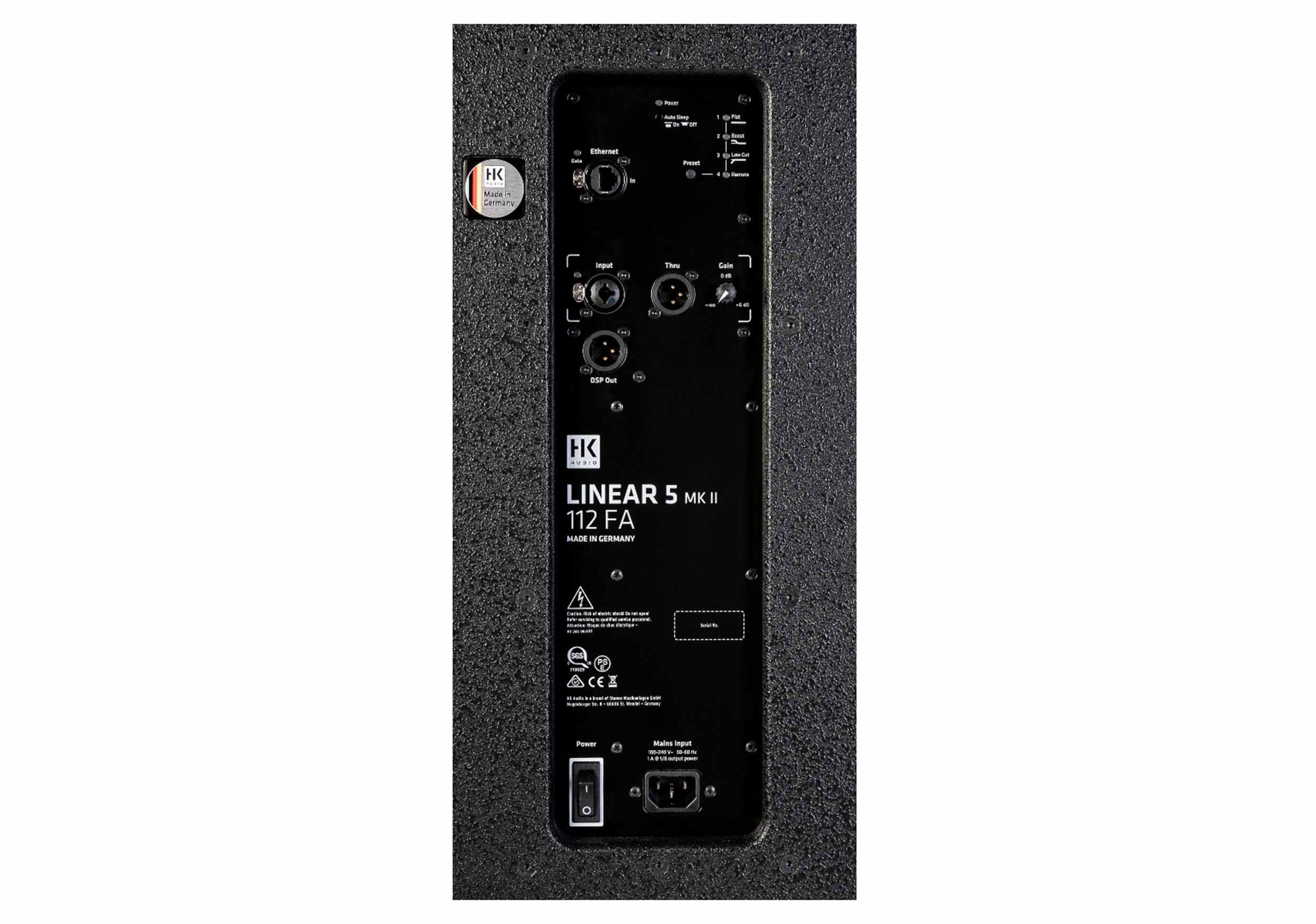

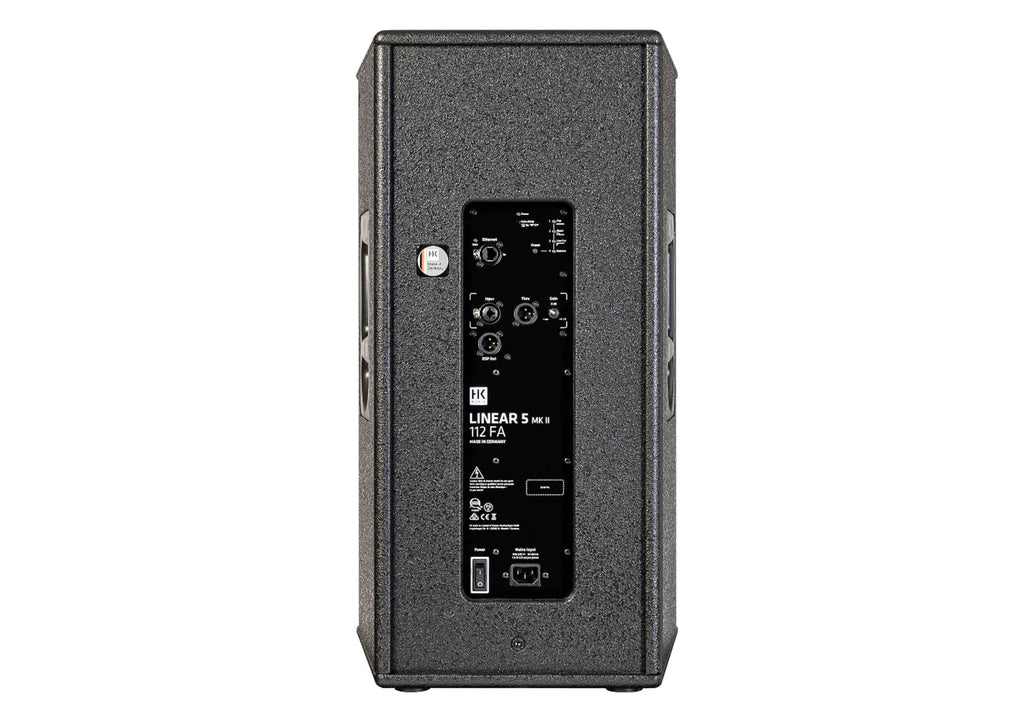

Inputs/Outputs:

Analogue Inputs: 1 x XLR Combo (balanced)

Analogue Thru: 1 x XLR (balanced)

DSP Out: 1 x XLR (balanced)

Presets: Flat, Boost, Low Cut, Remote

Functions: Fully parametric 10-band EQ, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

Remote Software: DSP CONTROL (Windows, macOS)

Sample Rate: 48 kHz

System Latency: <2 ms

Network Port: 1 x EtherCON RJ45 (In)

Mains: 1 x IEC connector with V-Lock (100–240 V)

Mounting & Handling:

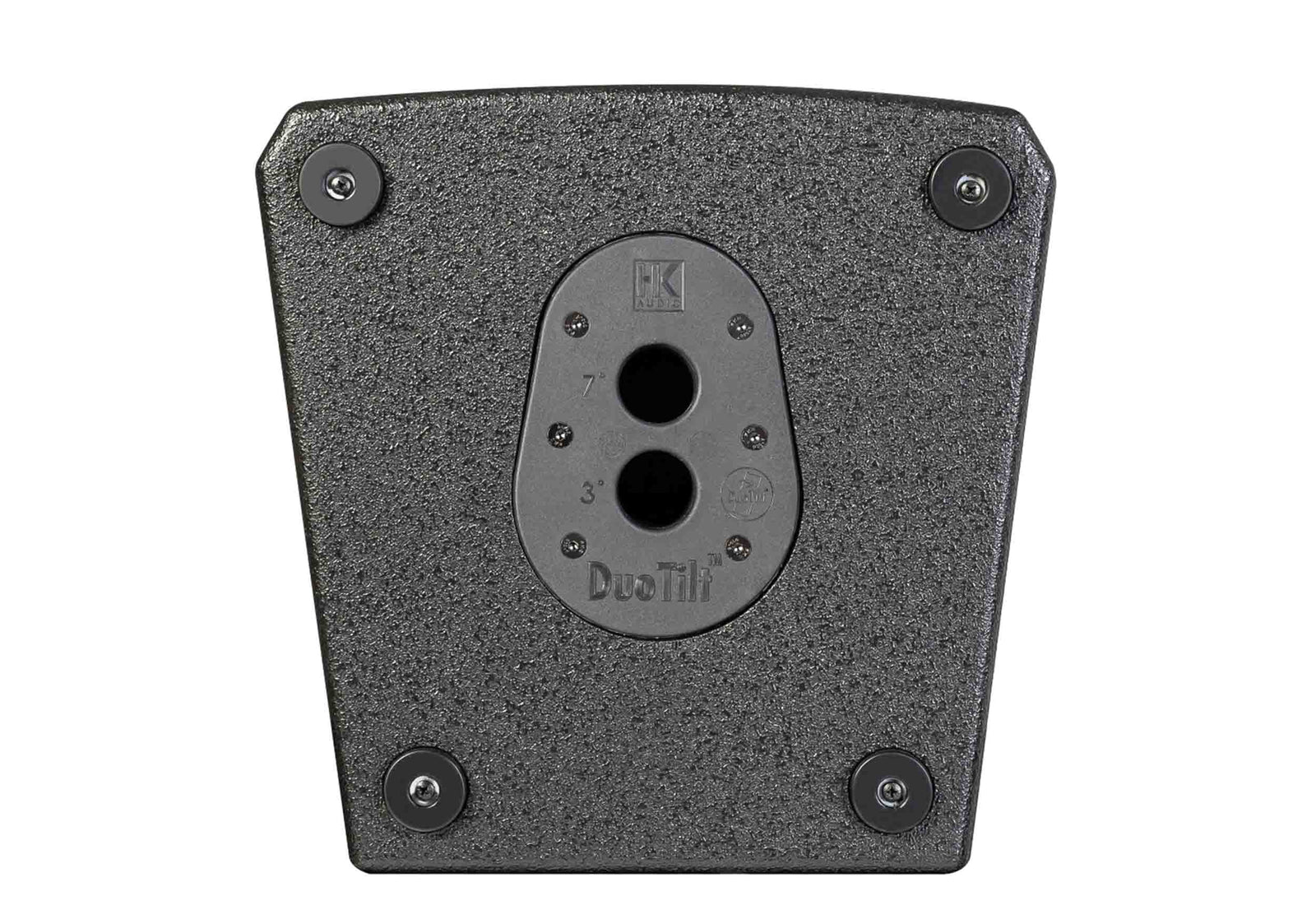

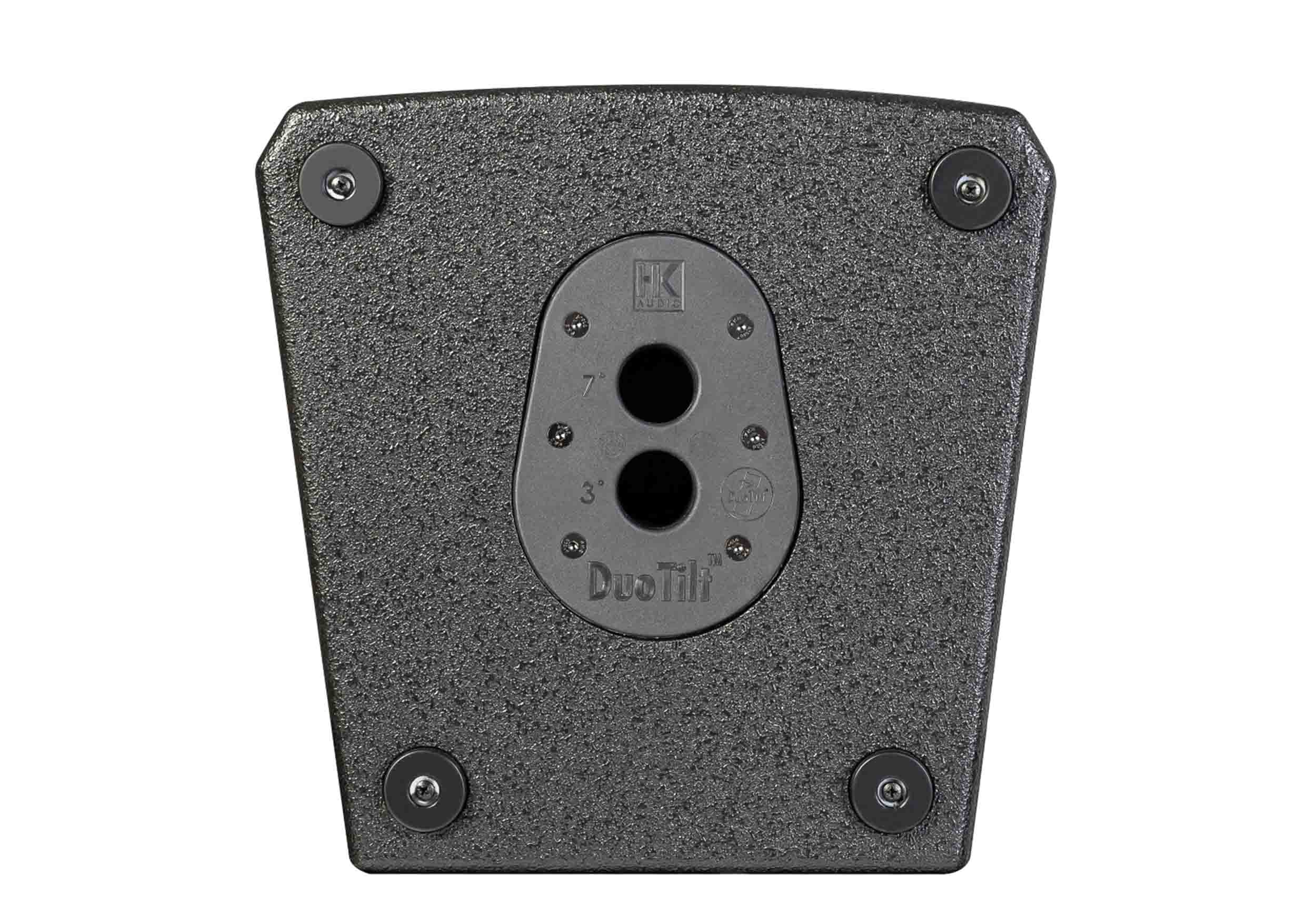

Pole Mount: DuoTilt (3°/7°)

Rigging Points: 3 x M8 (AP-8)

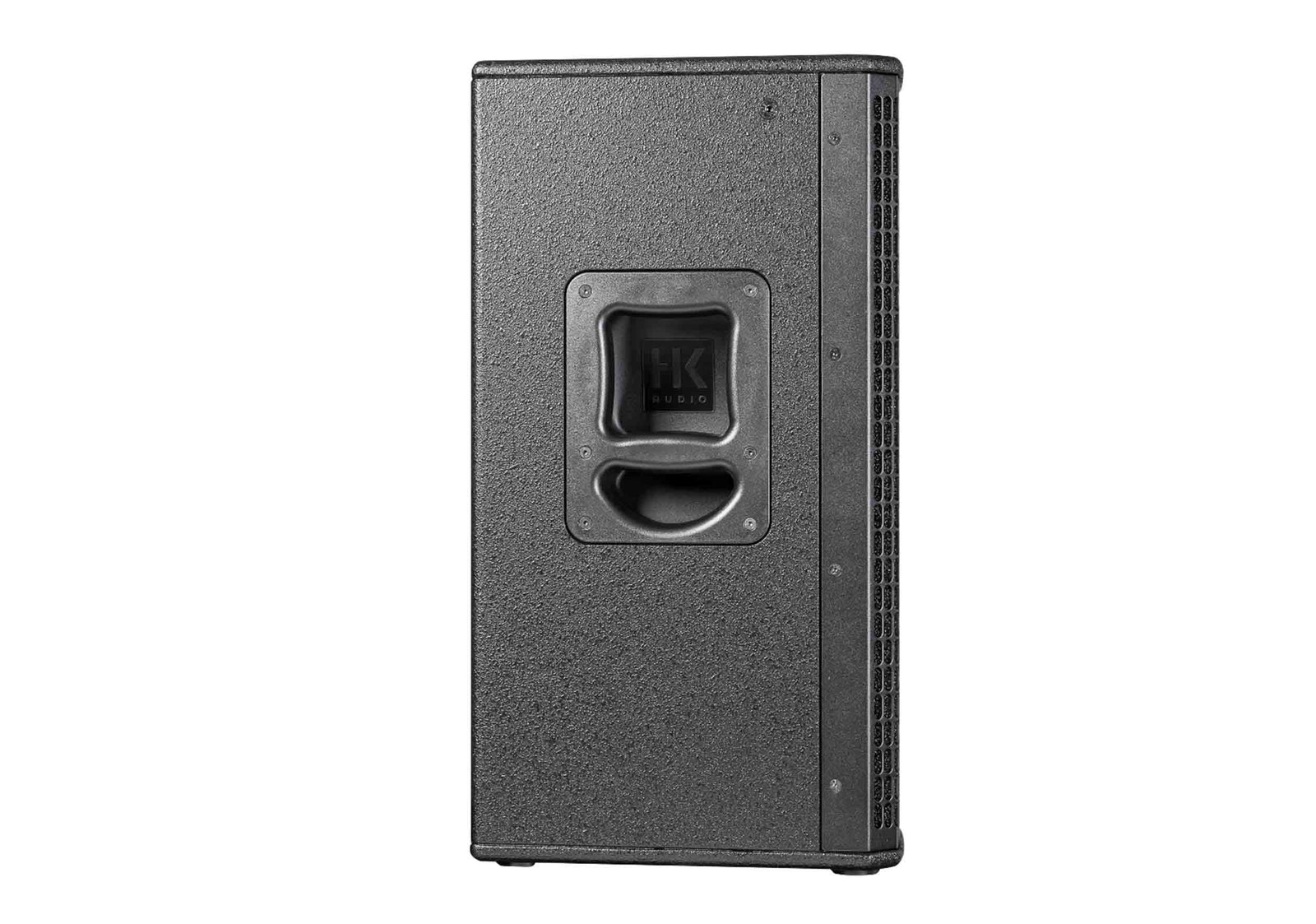

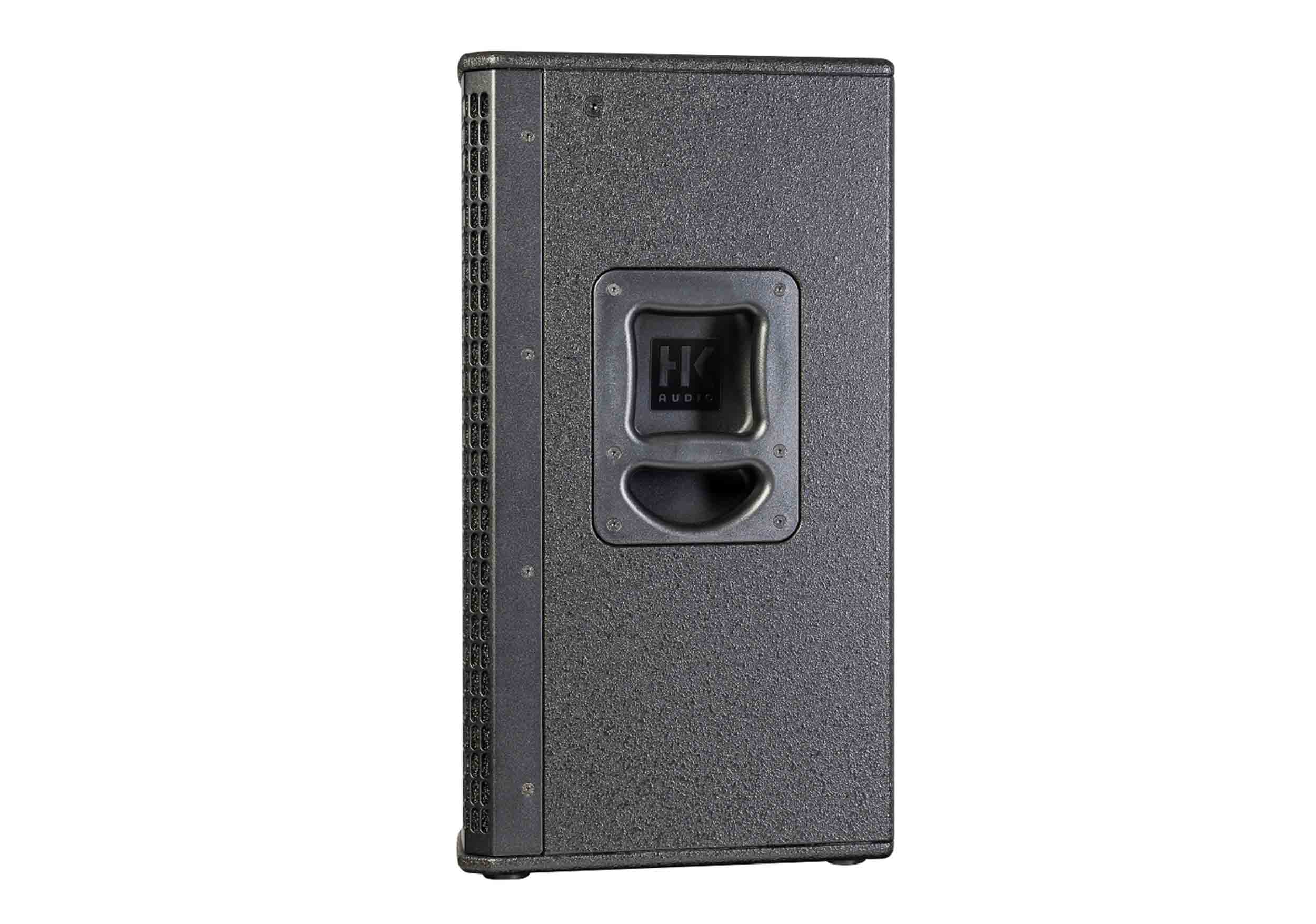

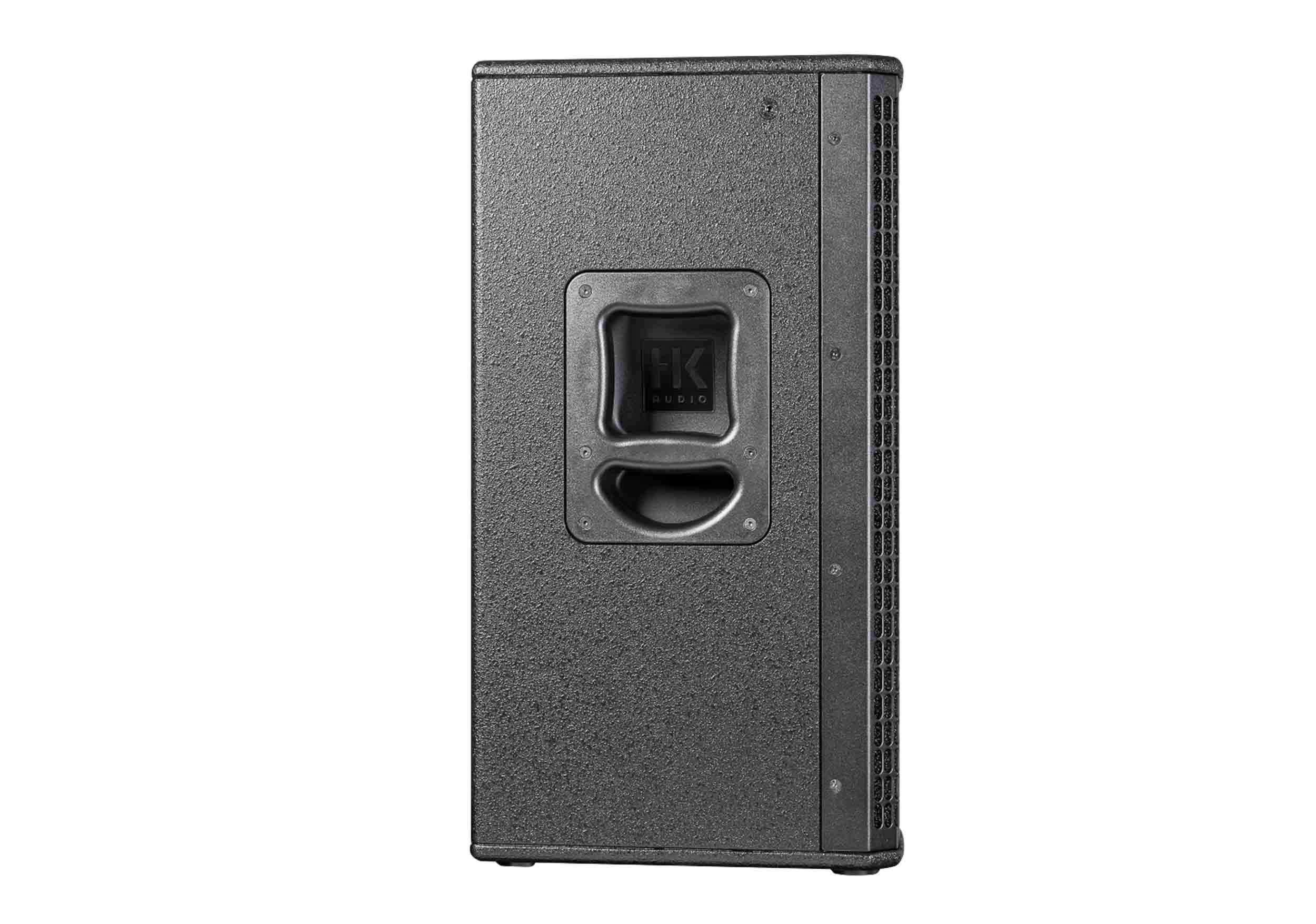

Handles: 2 x MultiGrip

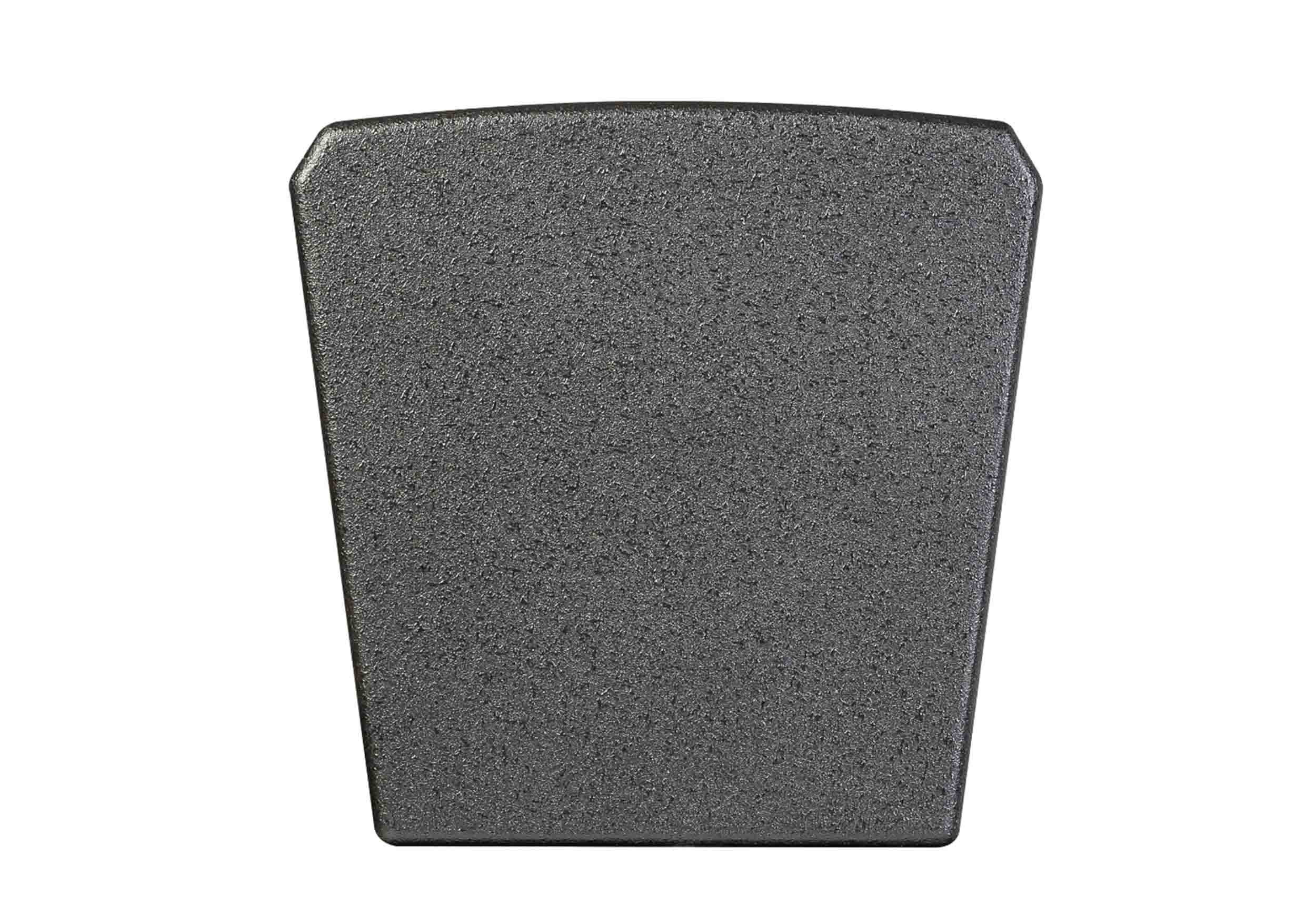

Material: Hybrid (birch multiplex/MDF)

Finish: Black acrylic enamel

Grille: 2 mm metal with black acoustic foam

Power & Consumption:

Nominal Power: 1A (100–240 V)

Shipping Weight: 55.58 lbs

Shipping Dimensions: 17.32" x 17.13" x 28.54"
