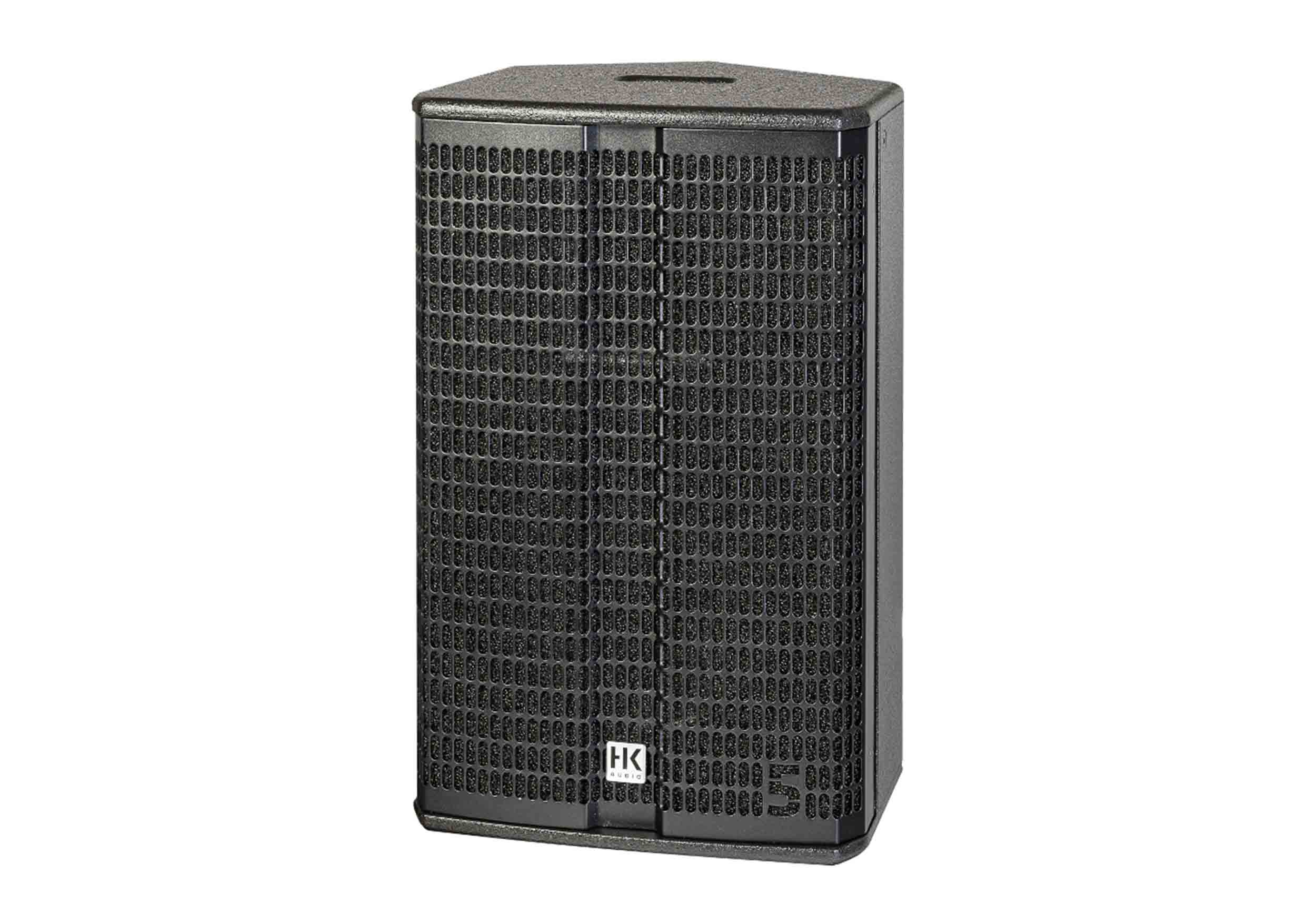

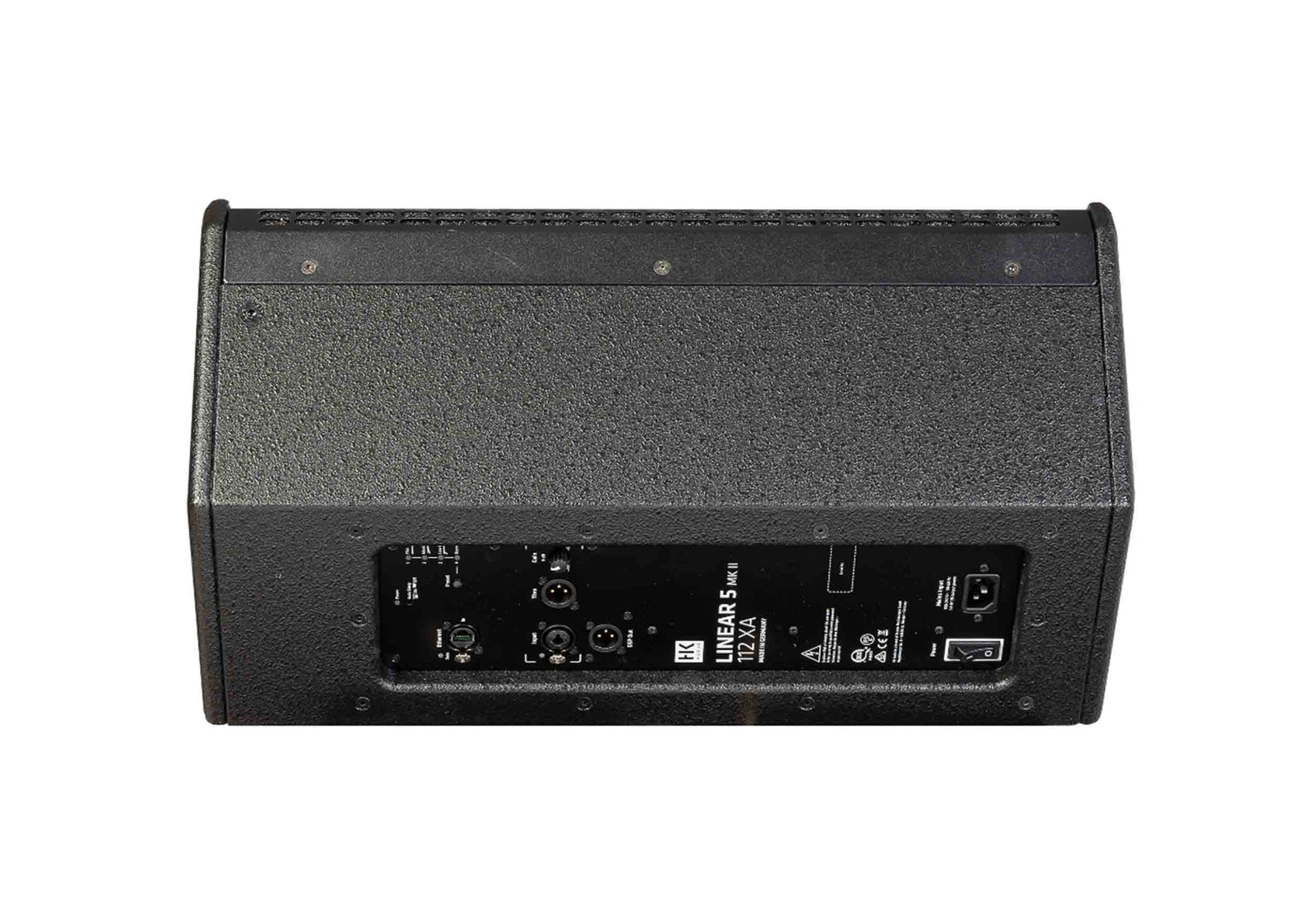

HK Audio LINEAR-5-MK2-112-XA, Full-Range Bi-Amped Powered Speaker with DSP Control - 12" Woofer, 1200W Peak Power

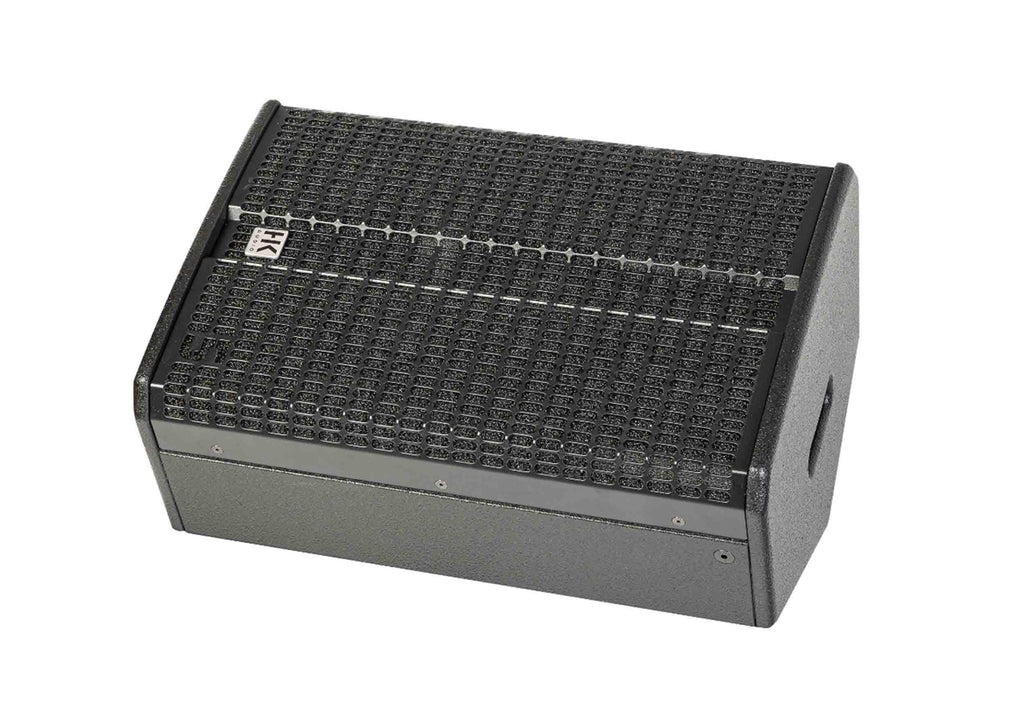

The HK Audio LINEAR 5 MK II 112 XA is a compact, flexible multifunctional mid/high unit with 12" woofer and tweeter with 1.7" voice coil. Its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60° make it a powerful solution for low feedback and directional monitor applications. Even on small stages and without turning the horn. The LINEAR 5 MK II 112 XA offers impressive range with transparent, assertive sound and includes a remote-controllable high-performance DSP with integrated, directly selectable presets. The DSP Out can transmit the processed signal from the speaker to a non-network[1]compatible speaker. The sturdy birch multiplex hybrid enclosure and a wide range of accessories make the LINEAR 5 MK II 112 XA a strong partner for bands and sound technicians, either as a transverse stage monitor or as a powerful system mid/high unit in conjunction with the LINEAR 5 MK II subwoofers.

Product Specifications:

Max. SPL:

128 dB (70 Hz – 12 kHz averaged, @ 10% THD, half space)

136 dB Peak (@ 10% THD, half space)

Frequency Response:

±3 dB: 73 Hz – 12 kHz

-10 dB: 67 Hz – 19 kHz

Amplifier:

Type: Class-D bi-amped

Output: 600W RMS / 1200W Peak

Drivers:

Woofer: 1 x 12", 2.5" voice coil

HF Driver: 1", 1.7" voice coil

Horn:

Dispersion: 80° x 60° CD horn, rotatable

Crossover:

Active X-over Frequency: 1.9 kHz FIR (72 dB/oct.)

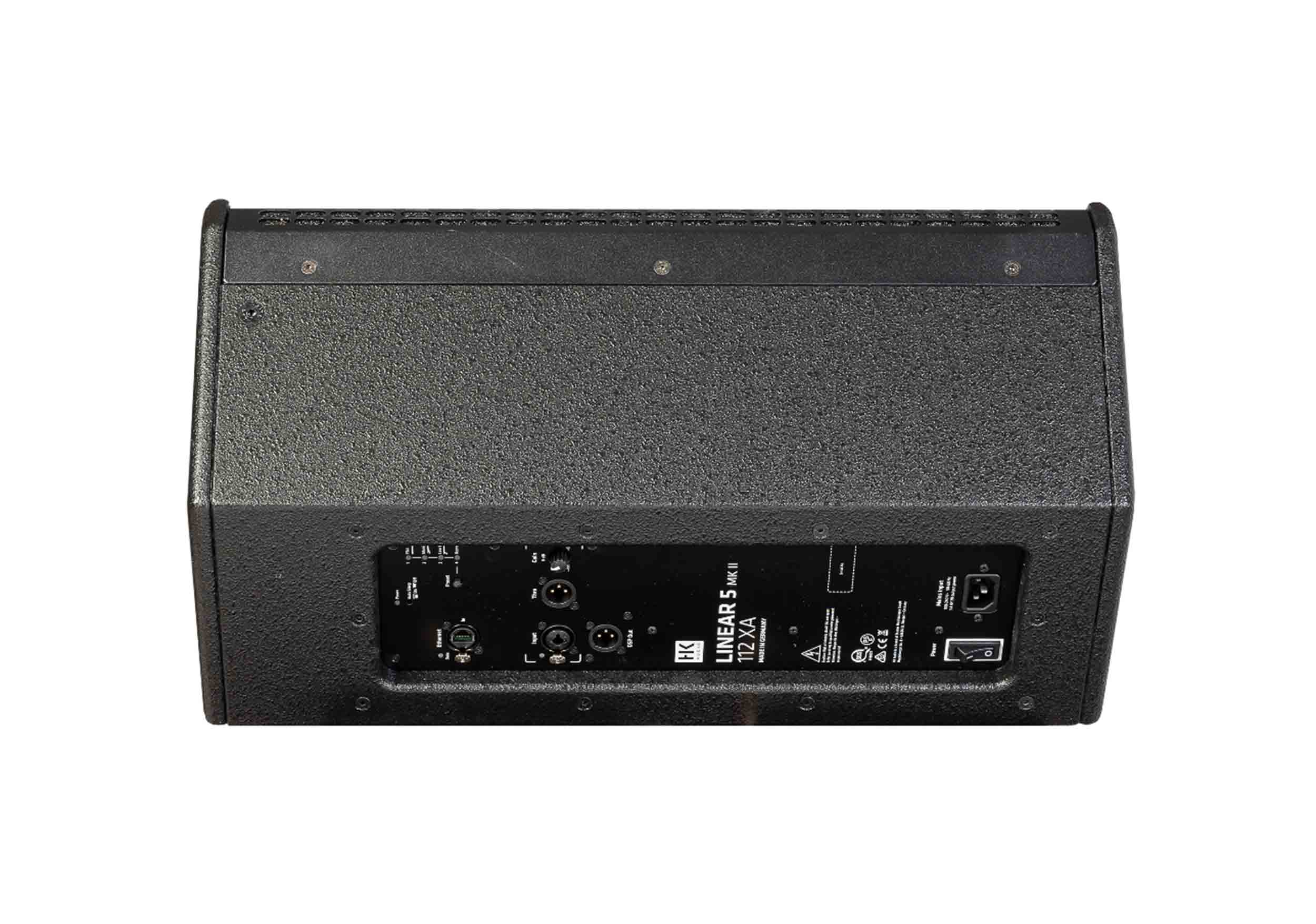

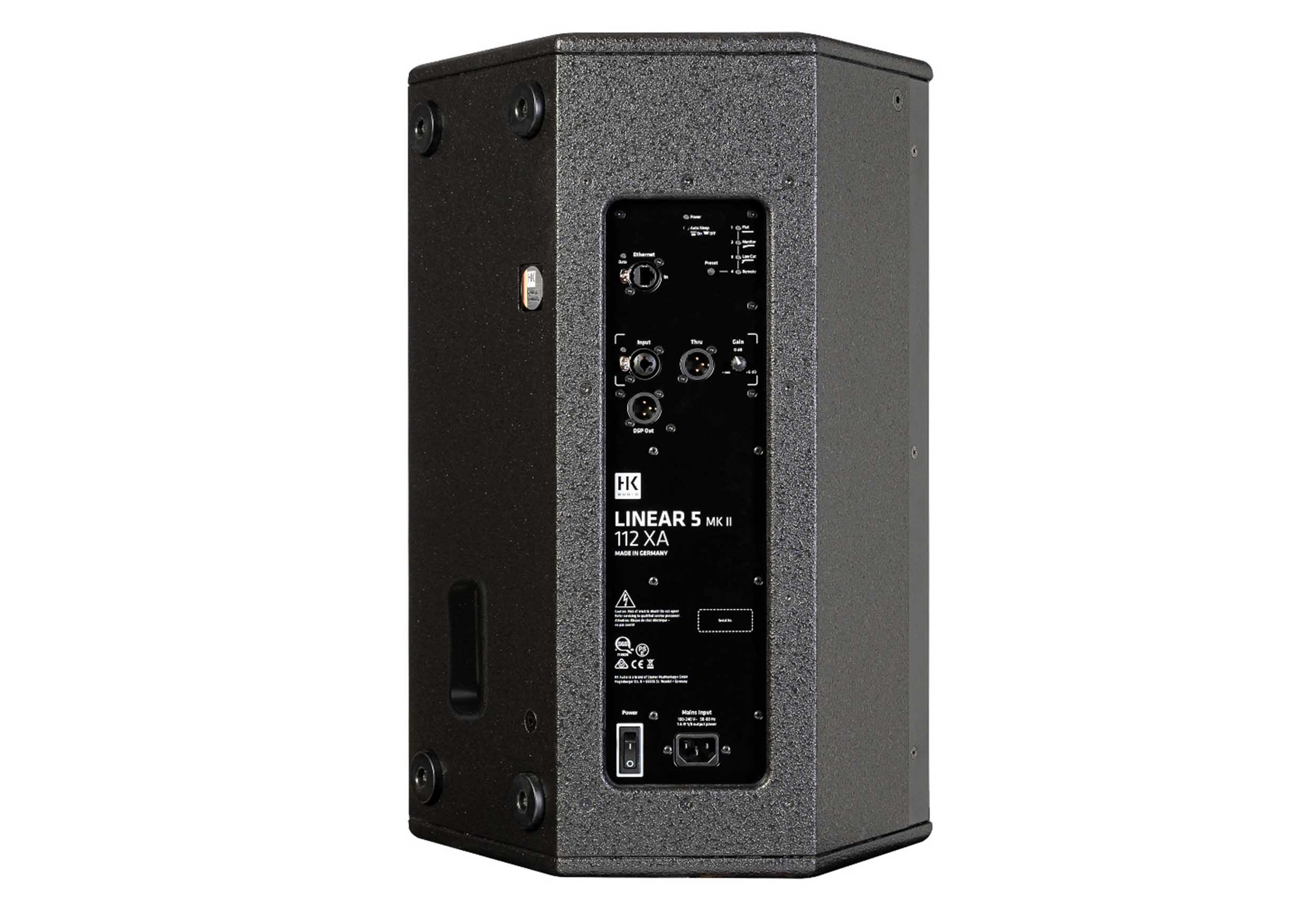

Inputs/Outputs:

Analog Input: 1 x XLR combo, balanced

Analog Thru: 1 x XLR, balanced

DSP Out: 1 x XLR, balanced

Network Port: EtherCON RJ45, 1 In

DSP Features:

Filter Presets: Flat, Monitor, Low Cut, Remote

Tools: Fully parametric 10-band EQ, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Remote Software: DSP CONTROL (Windows, macOS)

Performance:

Sample Rate: 48 kHz

System Latency: <2 ms

Power:

Mains Connection: 1 x IEC with V-Lock (100-240V)

Power Consumption: 1A (100–240V nominal, per EN 62368-1)

Mechanical:

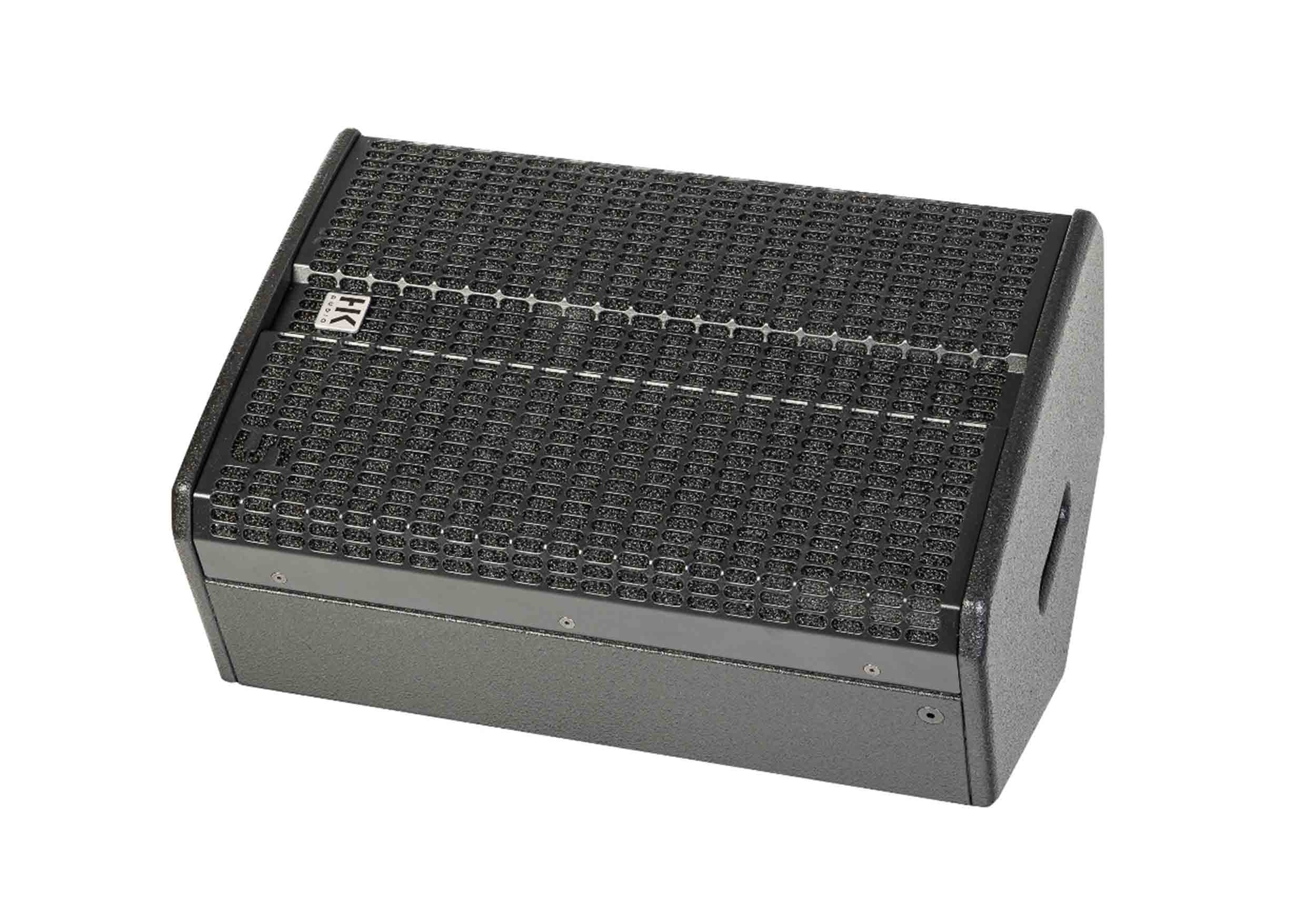

Monitor Angle: 31°

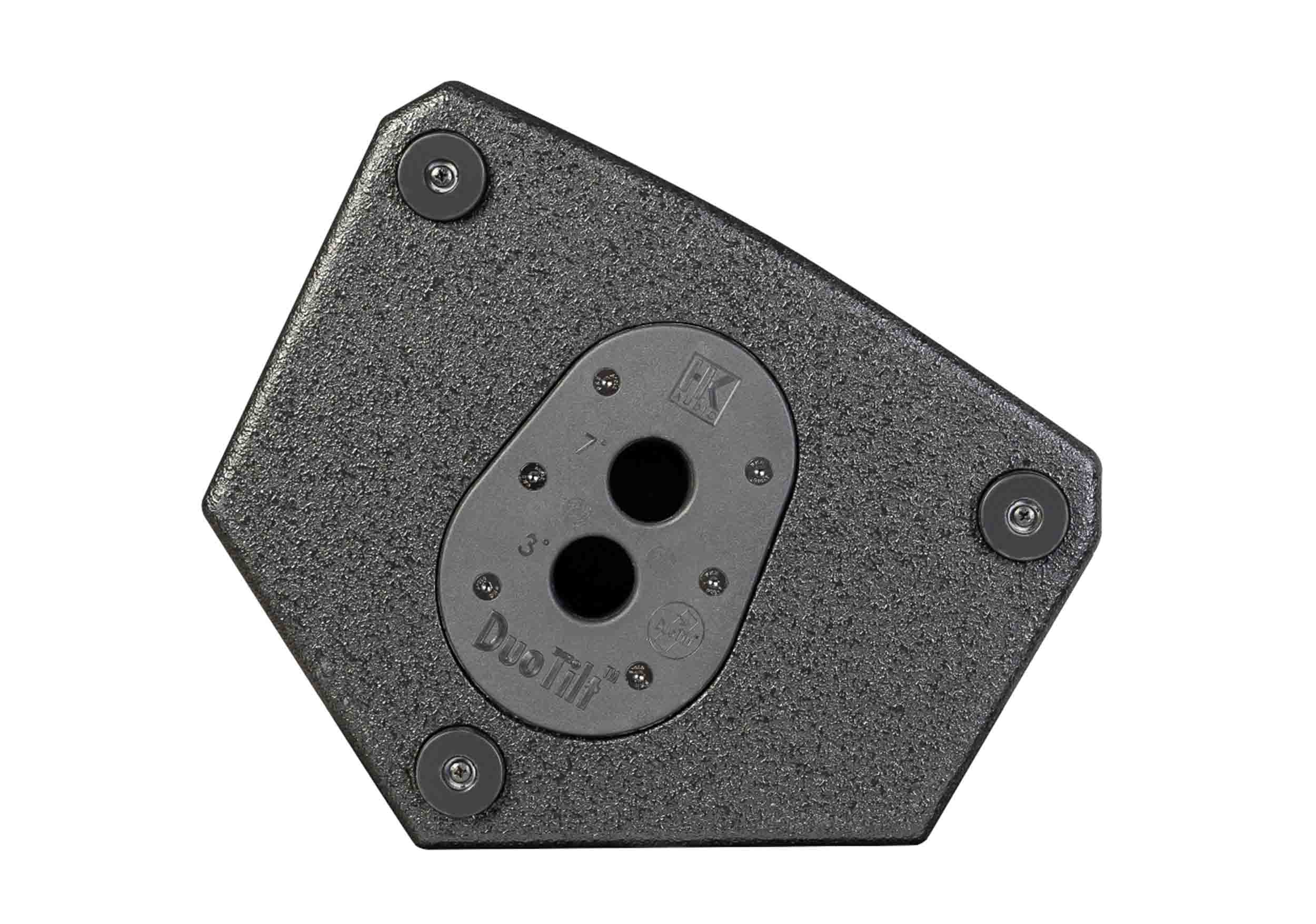

Pole Mount: DuoTilt 3°/7°

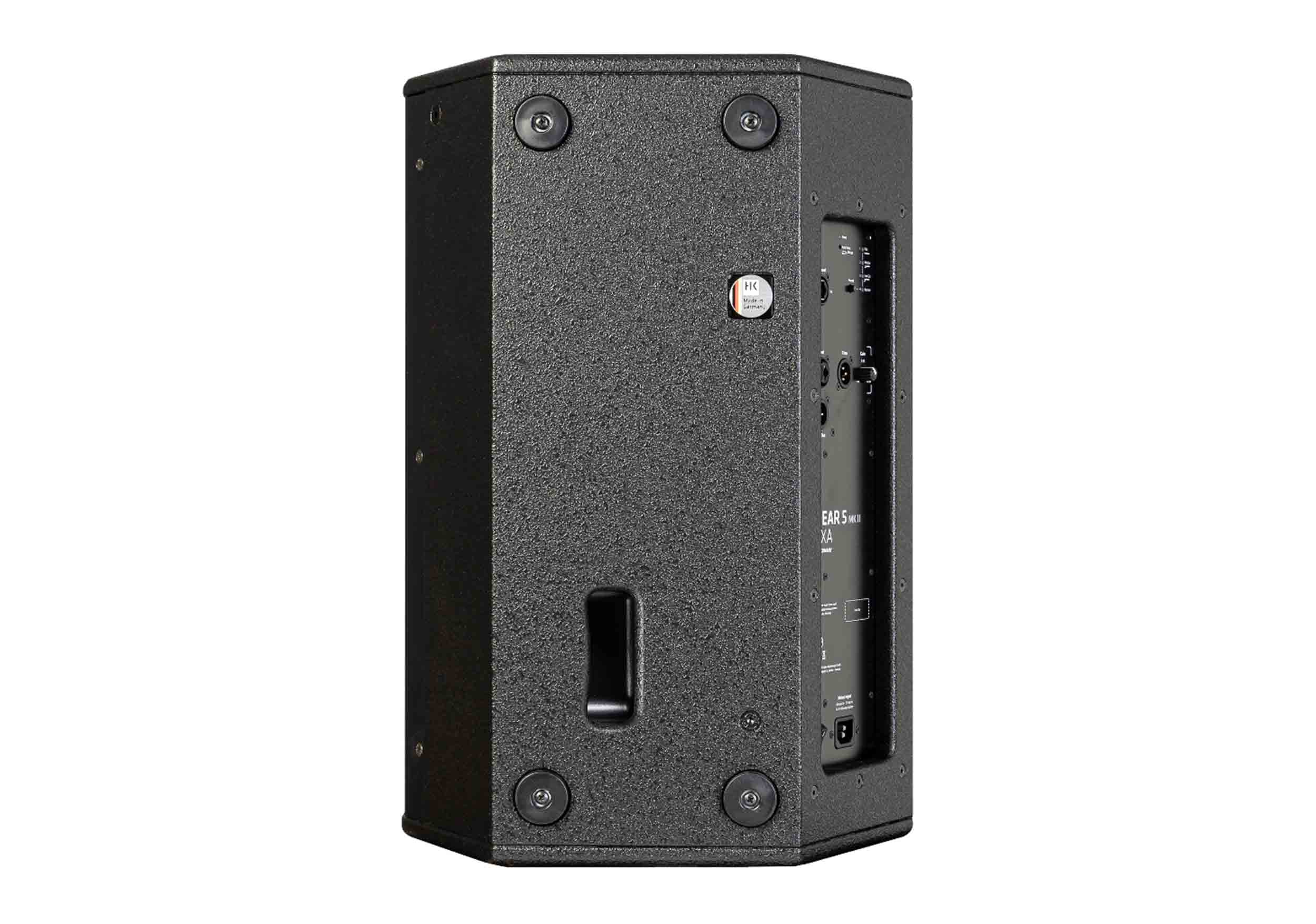

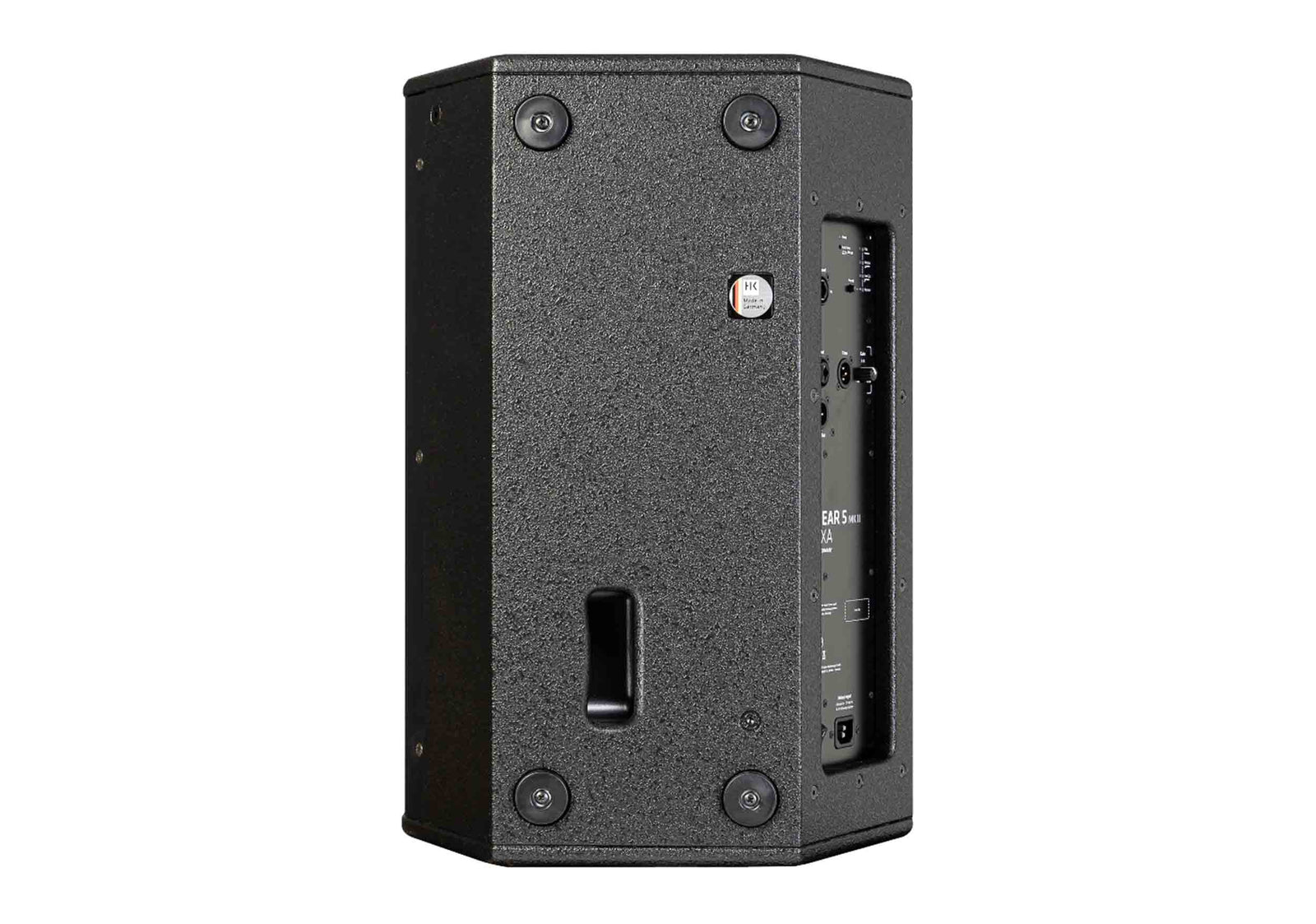

Rigging Points: 3 x M8 (AP-8)

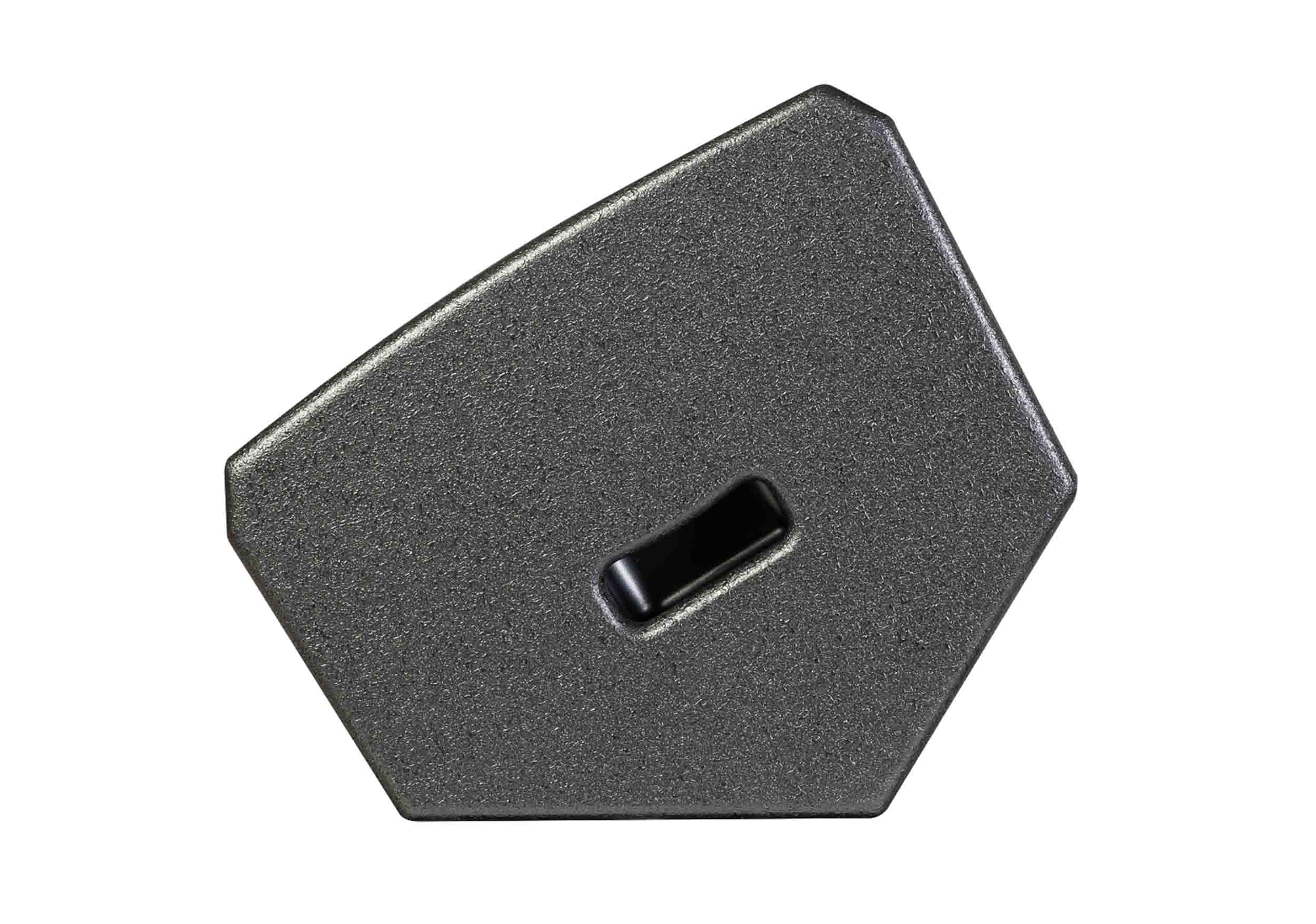

Handles: 2 x SingleGrip

Housing: Hybrid (birch multiplex/MDF)

Finish: Black acrylic enamel

Front Grille: 2 mm metal with black acoustic foam

Shipping Weight: 44.89 lbs

Shipping Dimensions: 16.54" x 15.16" x 25.2"
