HK Audio LINEAR-5-MK2-115-FA 15" Multifunctional Speaker DSP 1200W

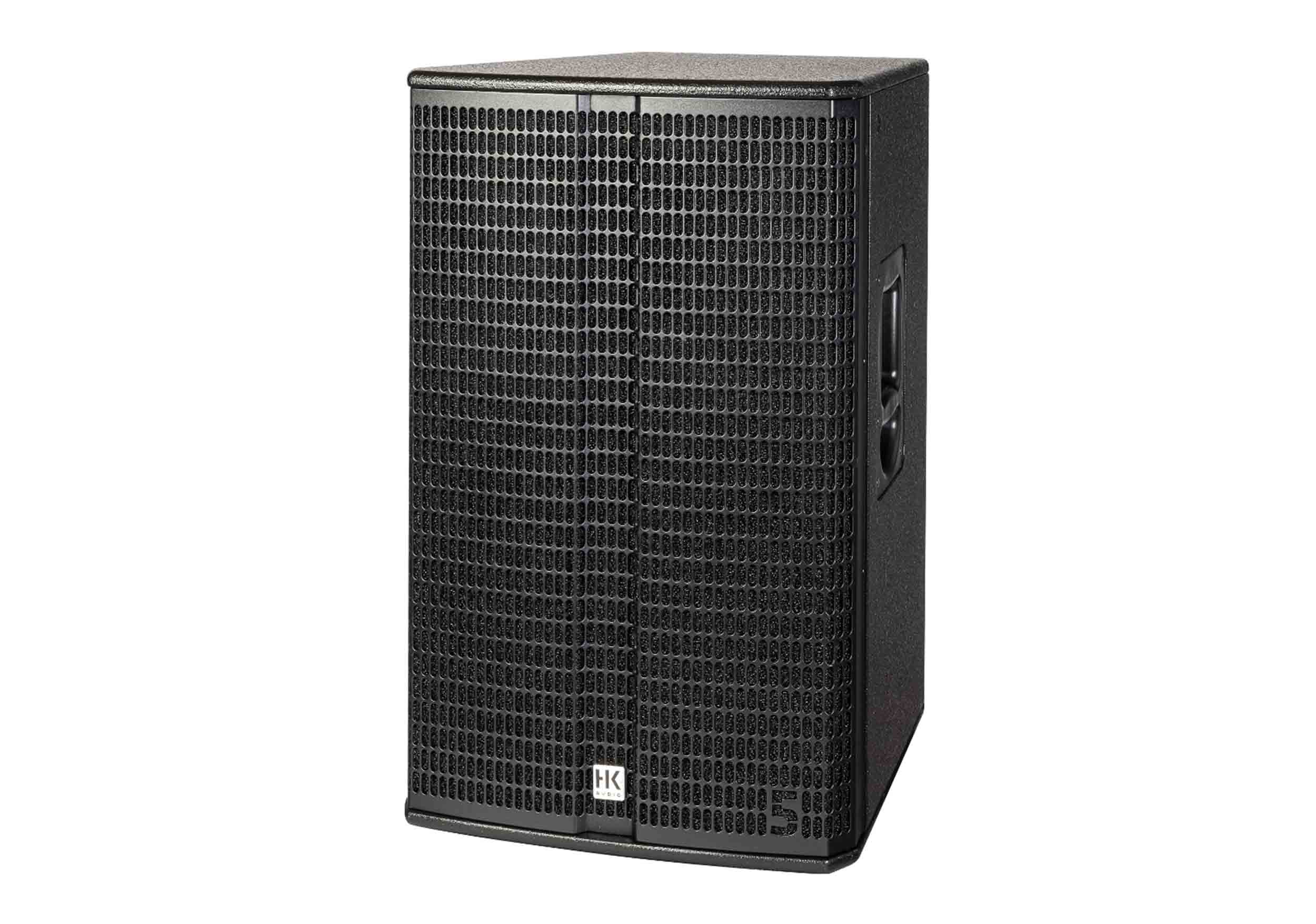

The HK Audio LINEAR 5 MK II 115 XA is a flexible multifunctional mid/high unit with a 15" woofer and a tweeter with 1.7" voice coil. Its multifunctional enclosure shape with slanted monitor edge and the rotatable horn with a dispersion pattern of 70° x 50° make it a powerful stage monitor with noticeable structure-borne sound. High volumes with impressive ranges and crystal-clear, assertive sound make the LINEAR 5 MK II 115 XA a powerful partner for bands and sound technicians. The enclosure is made of sturdy birch multiplex hybrid. The LINEAR 5 MK II 115 XA is a low feedback stage monitor or, in conjunction with the LINEAR 5 MK II subwoofers, a powerful system mid/high unit. The remote-controllable high-performance DSP with integrated, directly selectable presets offers a DSP Out that can route the processed signal from the speaker to a non-networked speaker. A wide range of accessories is available to ensure simple installation and straightforward and safe rigging.

Product Specifications:

Maximum SPL (10% THD): 130 dB (half space, 70 Hz – 12 kHz averaged)

Peak SPL (10% THD): 138 dB (half space)

Frequency Response:

±3 dB: 64 Hz – 12 kHz

-10 dB: 59 Hz – 19 kHz

Amplifier Output (RMS/Peak): 600 W / 1200 W

Amplifier Type: Class D, bi-amped

Drivers:

Low/Mid Speaker: 1 x 15", 3" voice coil

HF Driver: 1", 1.7" voice coil

Horn Characteristics: 70° x 50° rotatable CD horn

Crossover:

Active X-Over Frequency: 1.6 kHz (FIR X-over, 72 dB/oct.)

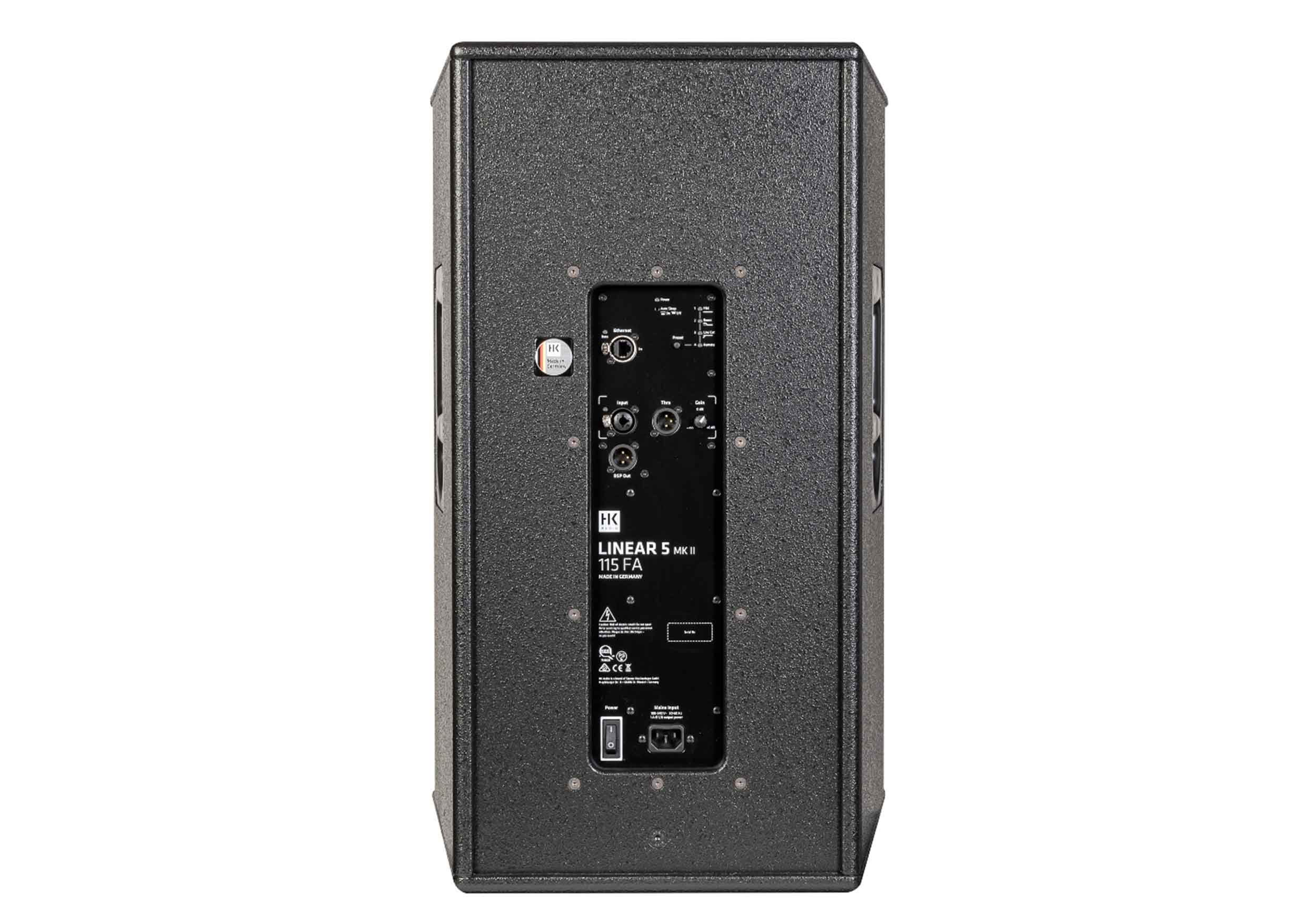

Inputs & Outputs:

Analog Inputs: 1 x XLR combo (balanced)

Analog Thru: 1 x XLR (balanced)

DSP Out: 1 x XLR (balanced)

Network Port: EtherCON RJ45 (1x In)

Filter Presets: Flat, Monitor, Low Cut, Remote

System Details:

Sample Rate: 48 kHz

System Latency: <2 ms

Remote Software: DSP CONTROL (Windows, macOS)

Power:

Mains Connection: 1 x IEC with V-Lock (100–240 V)

Power Consumption: 1 A (nominal, per EN 62368-1)

Design:

Set-Up Angle: 31° (Monitor Mode)

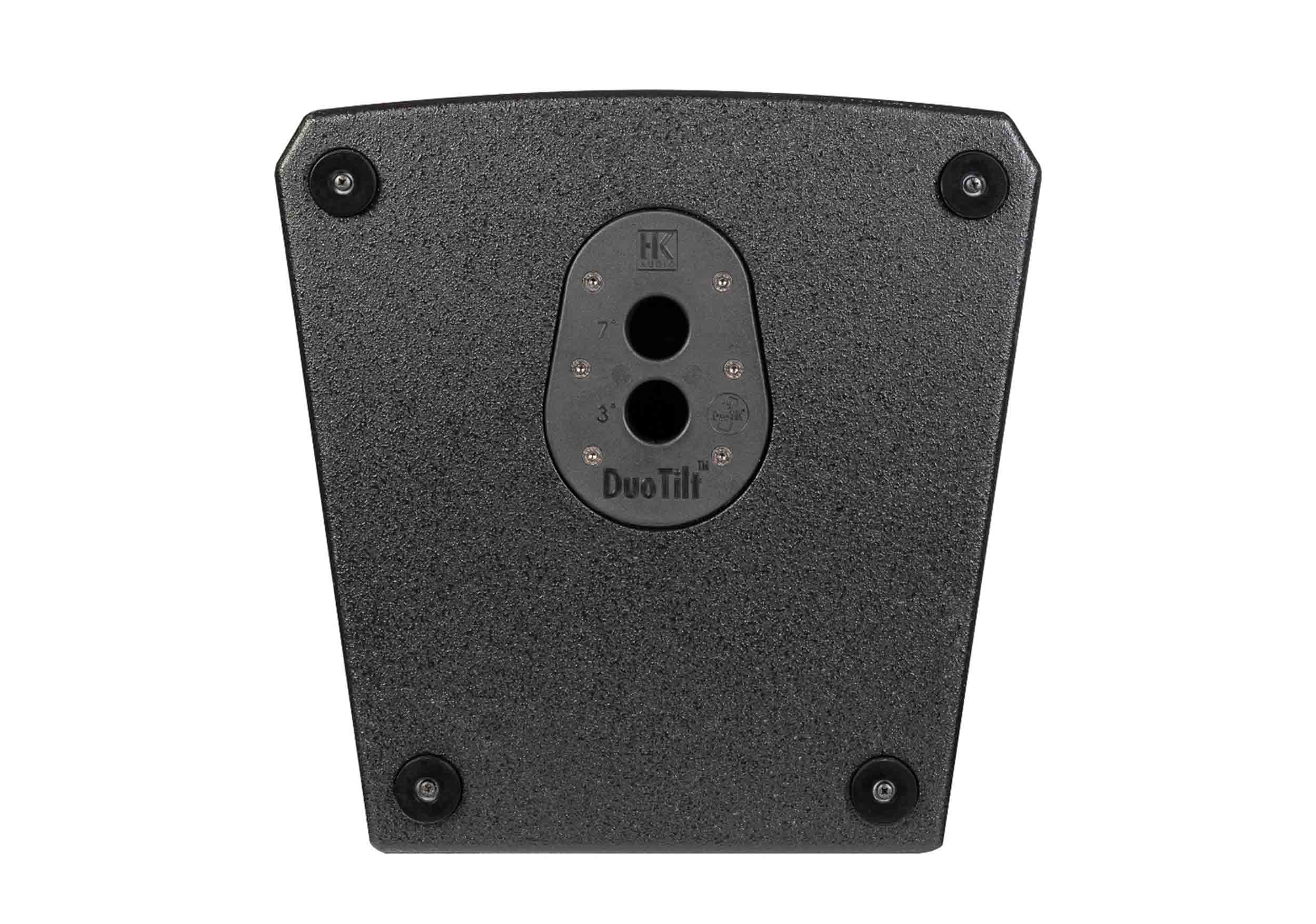

Pole Mount: DuoTilt 3°/7°

Rigging Points: 3 x M8 (AP-8)

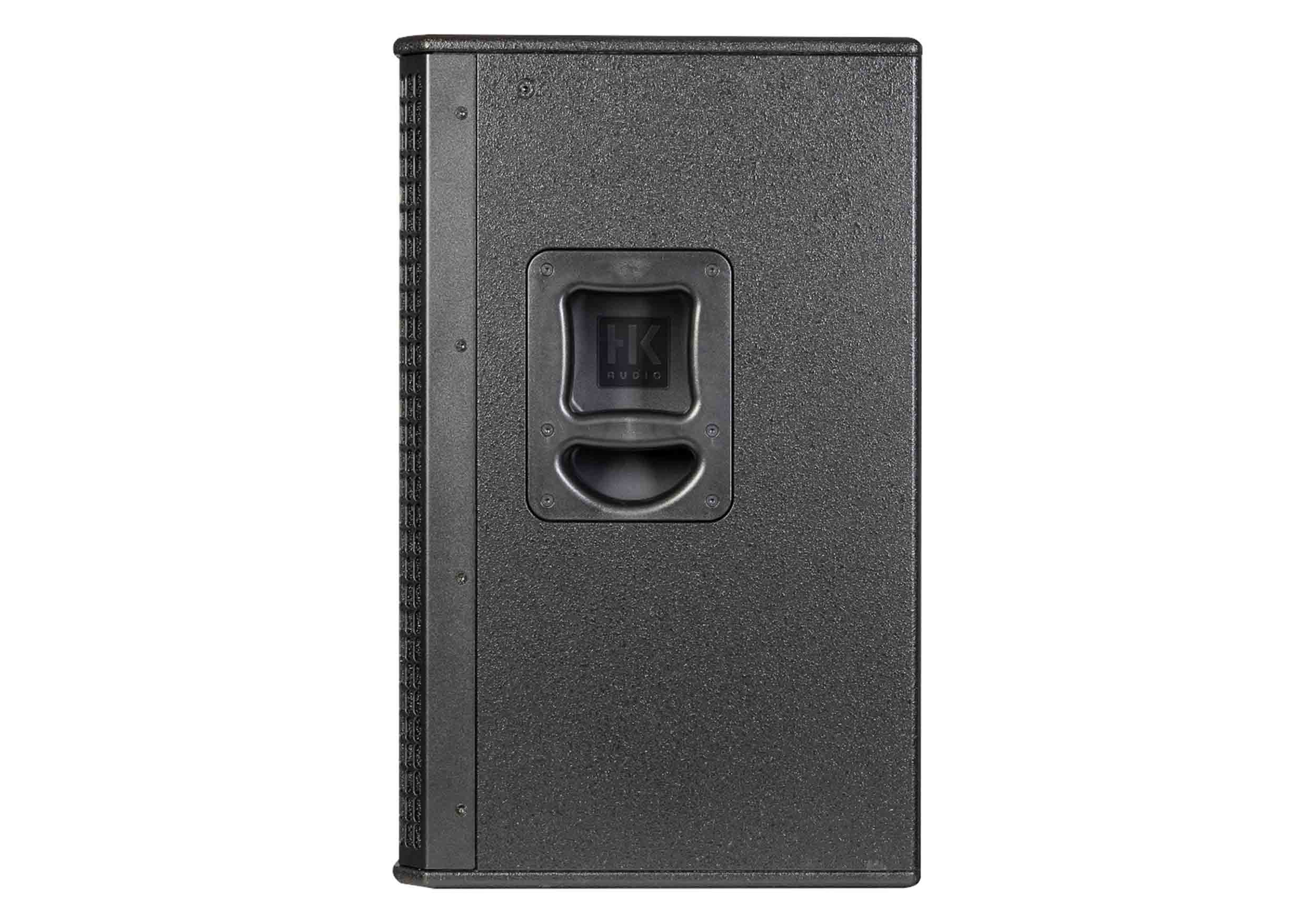

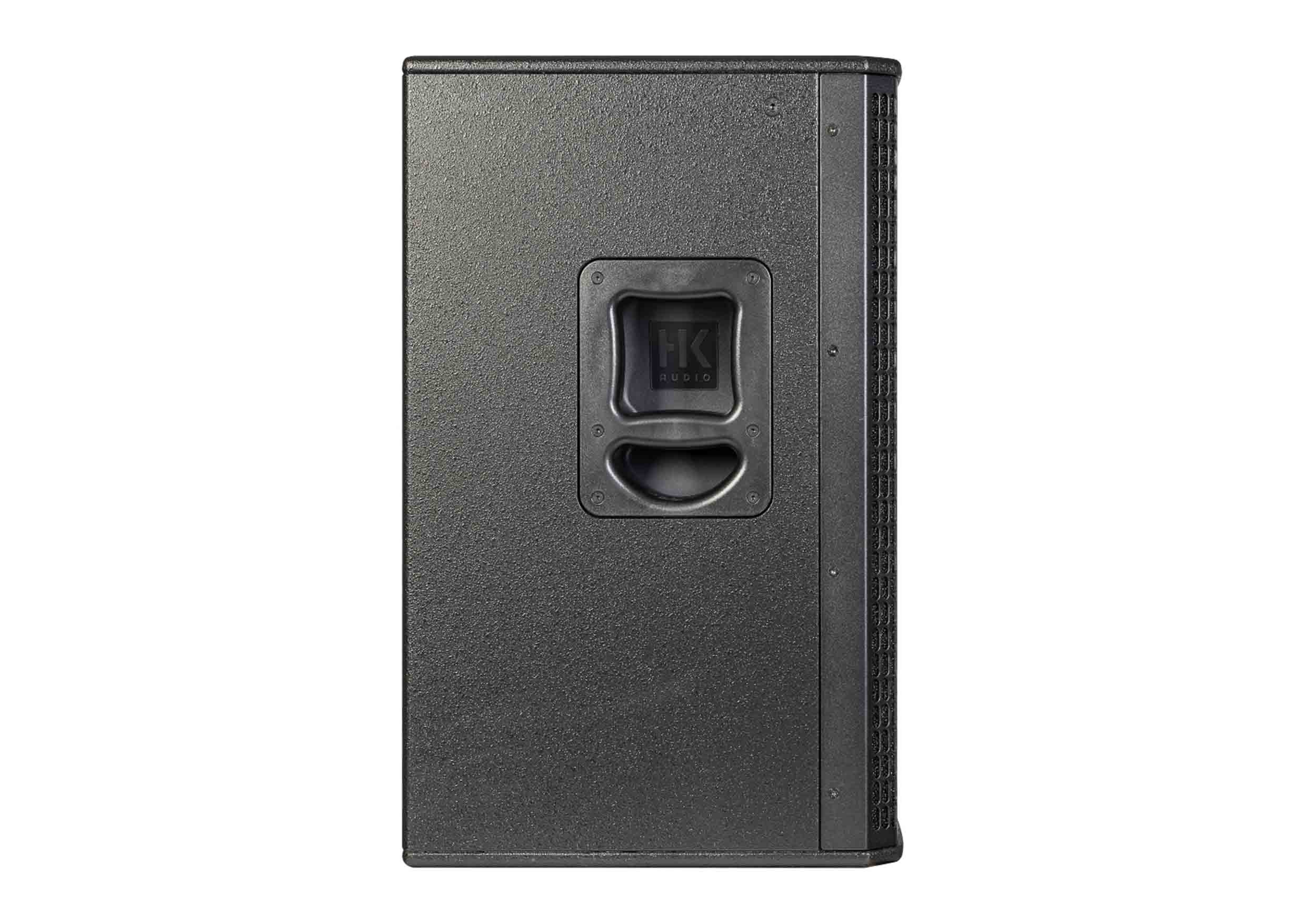

Handles: 2 x MultiGrip, 1 x SingleGrip

Housing Material: Hybrid (birch multiplex/MDF)

Surface Finish: Black acrylic enamel

Front Grille: 2 mm metal grille with black acoustic foam

Shipping Weight: 77.82 lbs

Shipping Dimensions: 20.67 x 21.26" x 29.13"
