Description

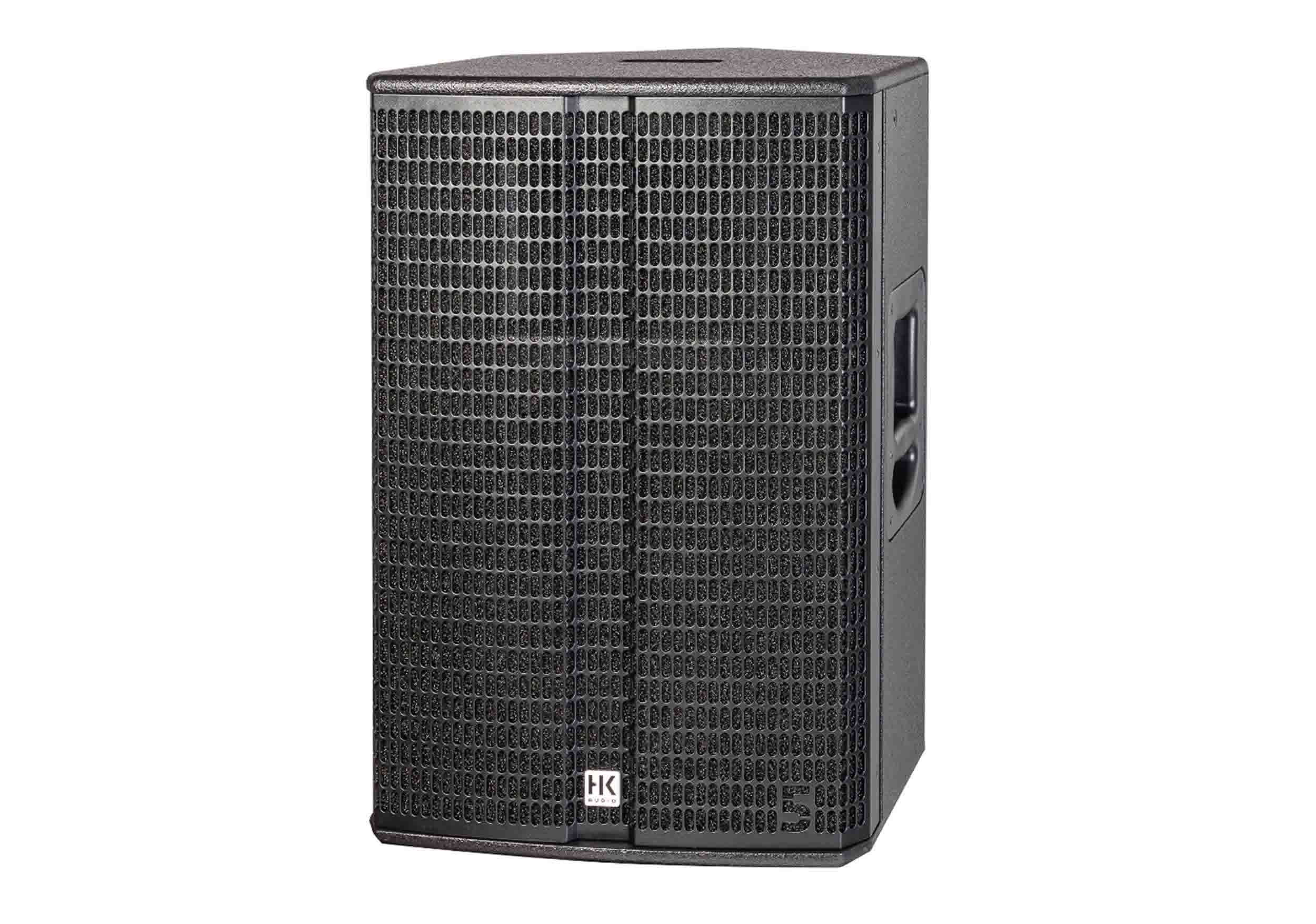

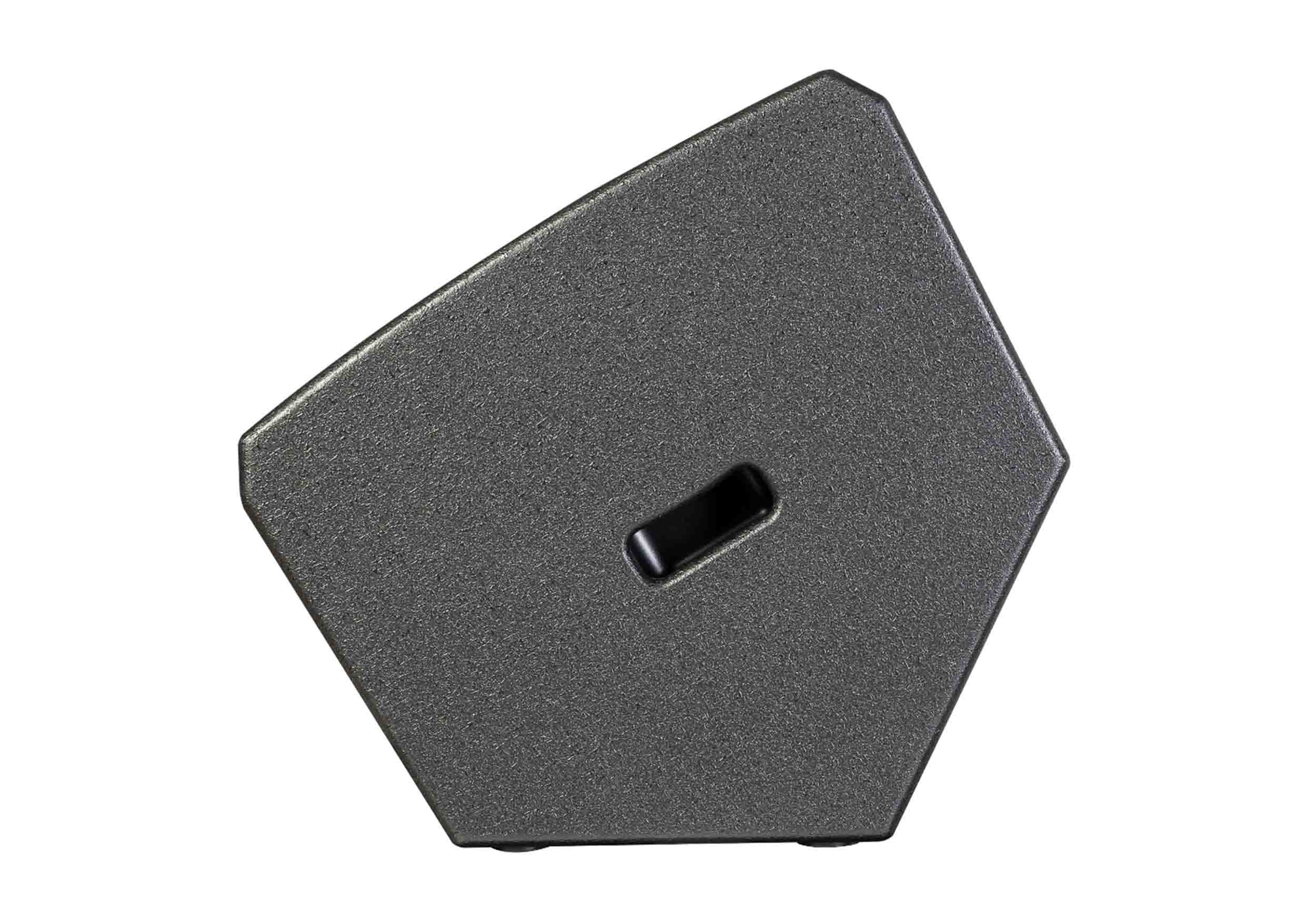

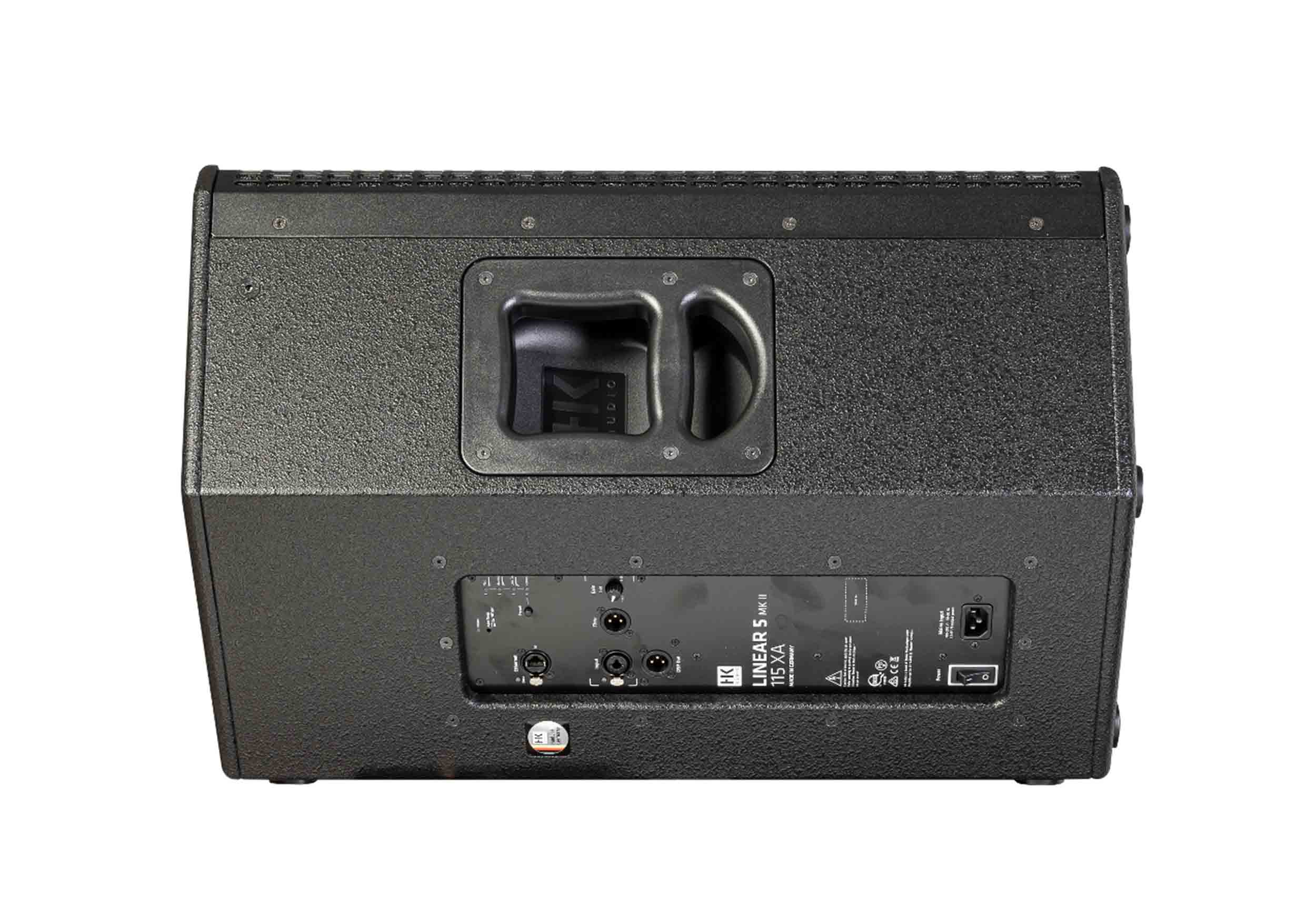

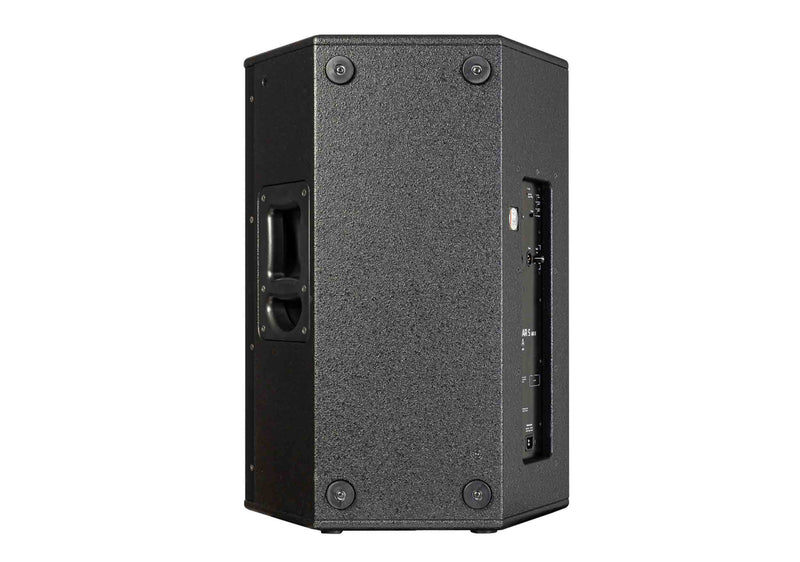

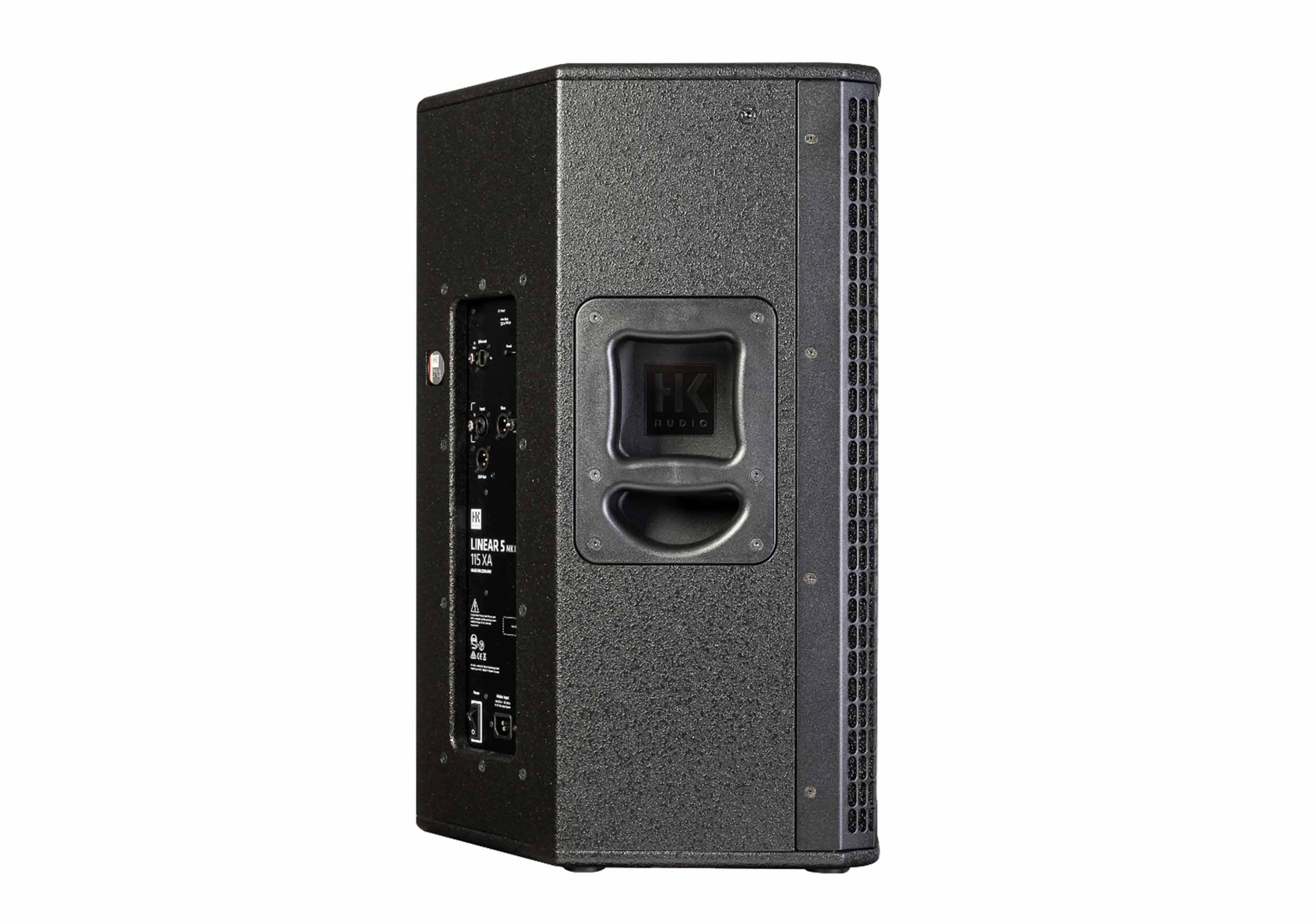

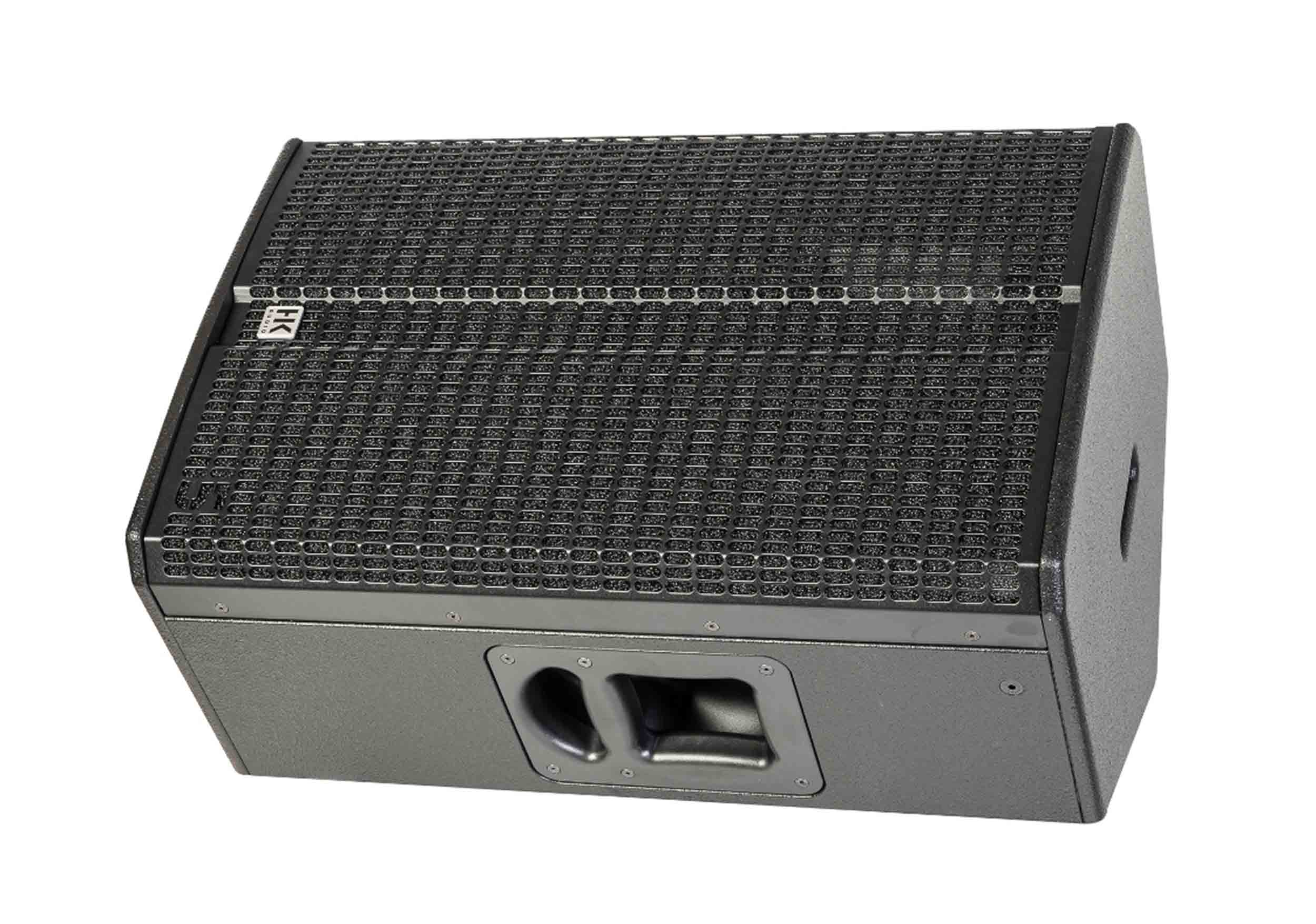

The HK Audio LINEAR 5 MK II 115 XA is a flexible multifunctional mid/high unit with a 15" woofer and a tweeter with 1.7" voice coil. Its multifunctional enclosure shape with slanted monitor edge and the rotatable horn with a dispersion pattern of 70° x 50° make it a powerful stage monitor with noticeable structure-borne sound. High volumes with impressive ranges and crystal-clear, assertive sound make the LINEAR 5 MK II 115 XA a powerful partner for bands and sound technicians. The enclosure is made of sturdy birch multiplex hybrid. The LINEAR 5 MK II 115 XA is a low feedback stage monitor or, in conjunction with the LINEAR 5 MK II subwoofers, a powerful system mid/high unit. The remote-controllable high-performance DSP with integrated, directly selectable presets offers a DSP Out that can route the processed signal from the speaker to a non-networked speaker. A wide range of accessories is available to ensure simple installation and straightforward and safe rigging.
Product Specifications:
Max SPL: 130 dB @ 10% THD (70 Hz – 12 kHz avg.), Peak 138 dB @ 10% THD
Frequency Response: ±3 dB: 64 Hz – 12 kHz, -10 dB: 59 Hz – 19 kHz
Power Output: 600 W RMS / 1,200 W Peak, Class D bi-amped
Drivers: 1 x 15" low/mid (3" voice coil), 1" HF driver (1.7" voice coil)
Horn: 70° x 50° rotatable CD horn
Crossover: 1.6 kHz FIR X-over, 72 dB/octave

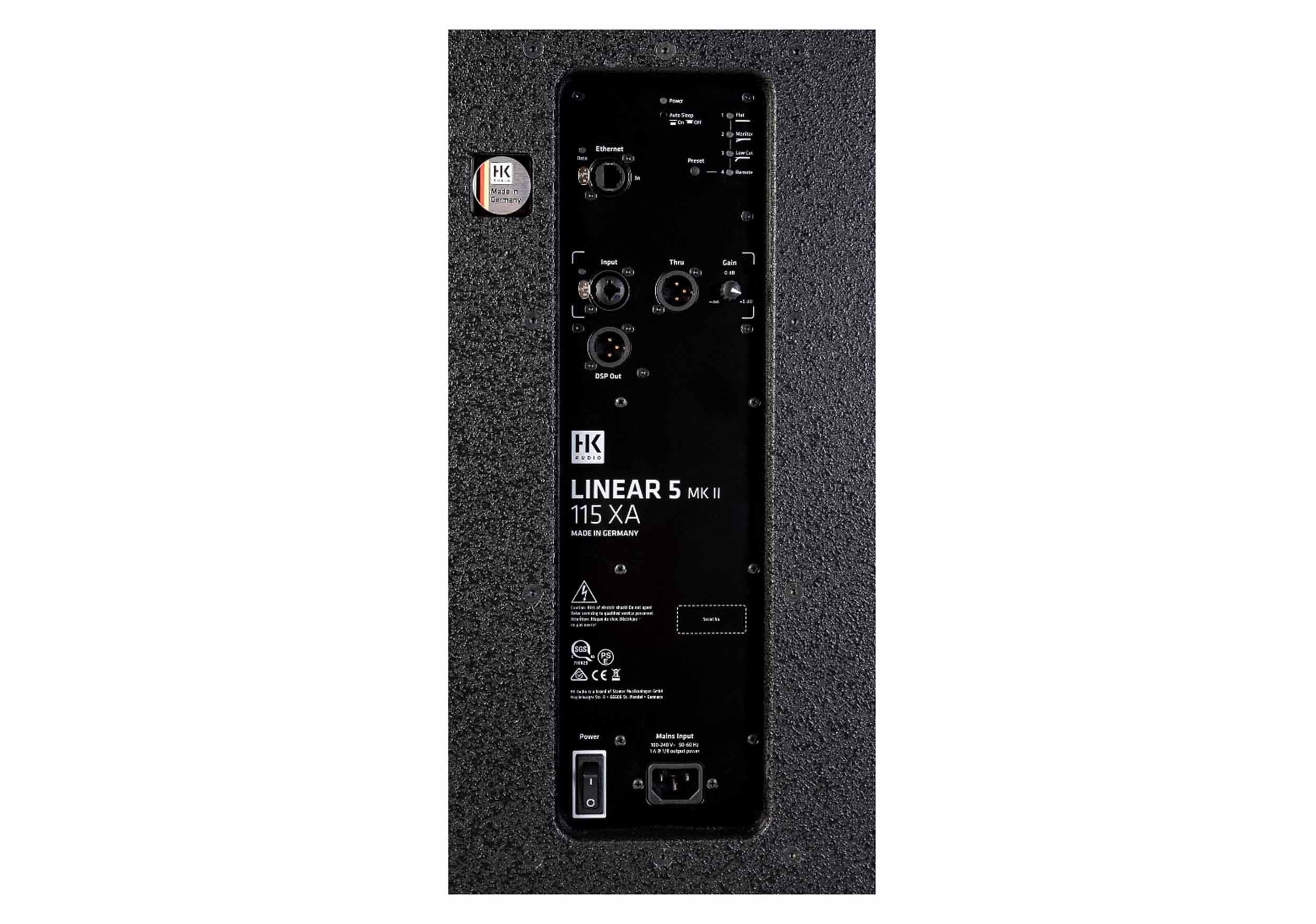

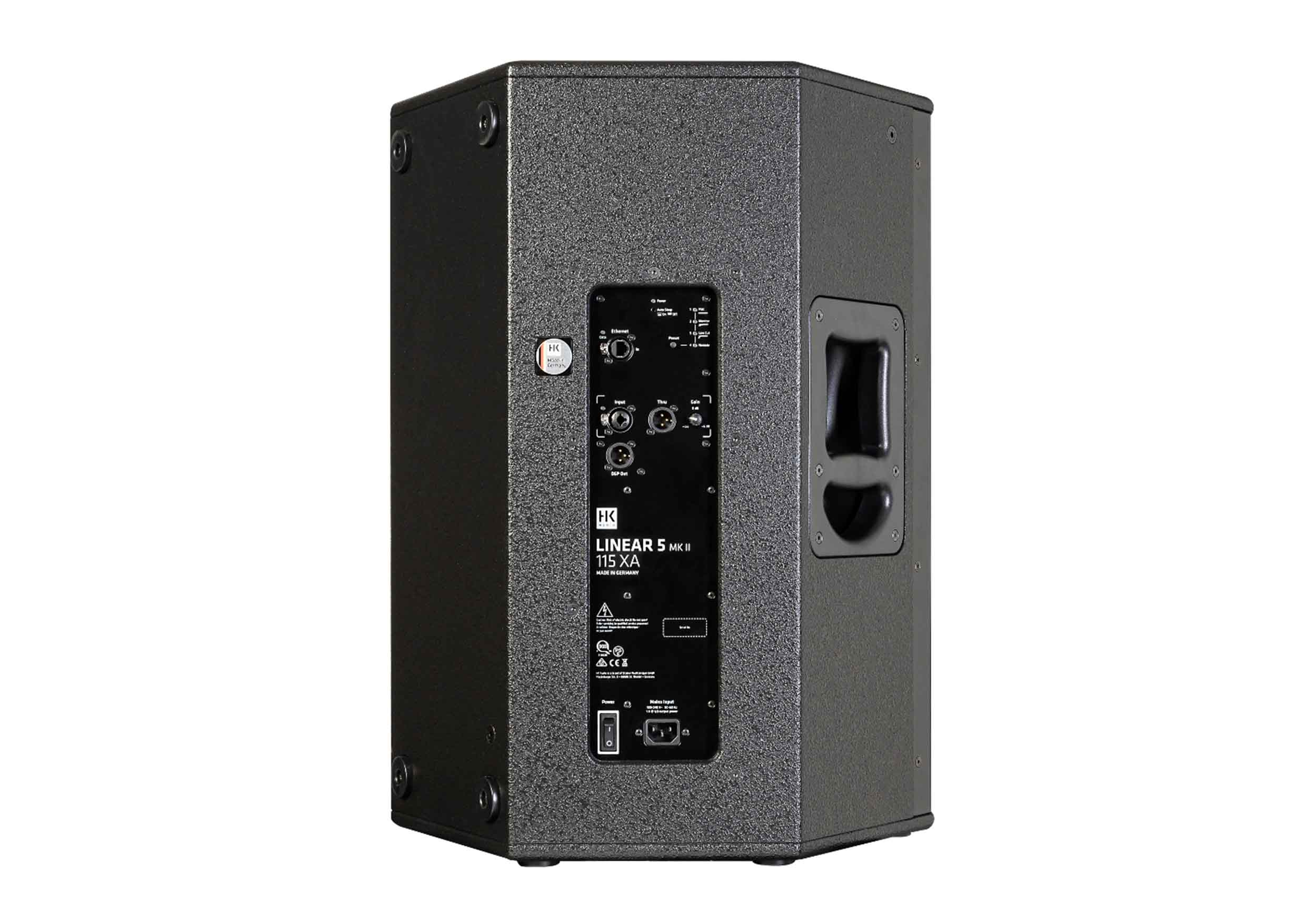

Inputs/Outputs: 1 x XLR combo balanced input, 1 x XLR thru, 1 x XLR DSP out
Network Port: EtherCON RJ45 (1 x In)
DSP: 10-band EQ, high/low-pass filters, polarity, delay, limiter, mute
Presets: Flat, Monitor, Low Cut, Remote
Control Software: DSP CONTROL (Windows, Mac OS)
Performance: 48 kHz sample rate, <2 ms latency
Power: IEC with V-Lock, 100-240 V, 1 A nominal (EN 62368-1)
Design: Hybrid birch multiplex/MDF housing, black acrylic enamel finish

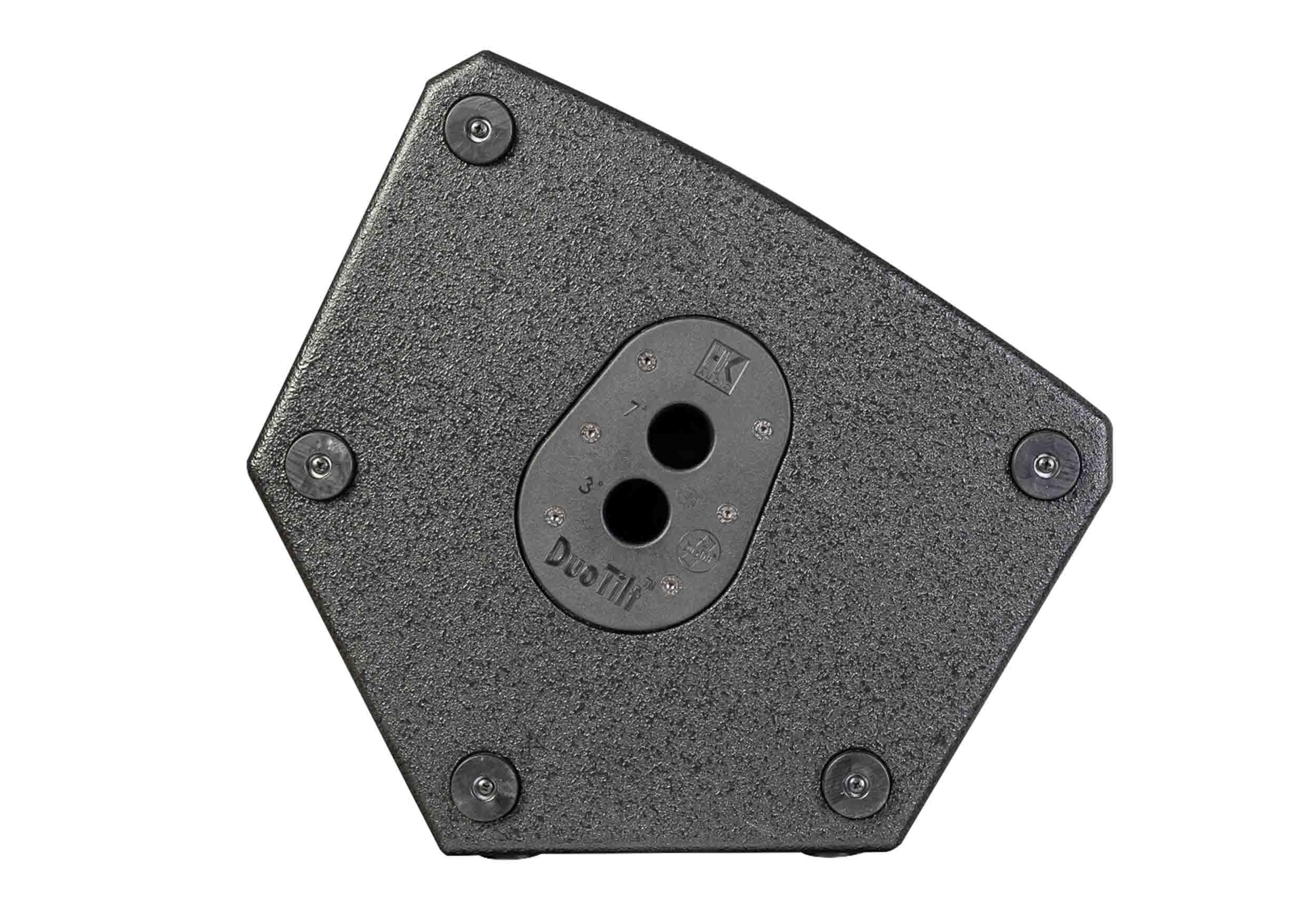

Mounting: DuoTilt 3°/7°, 3 x M8 rigging points

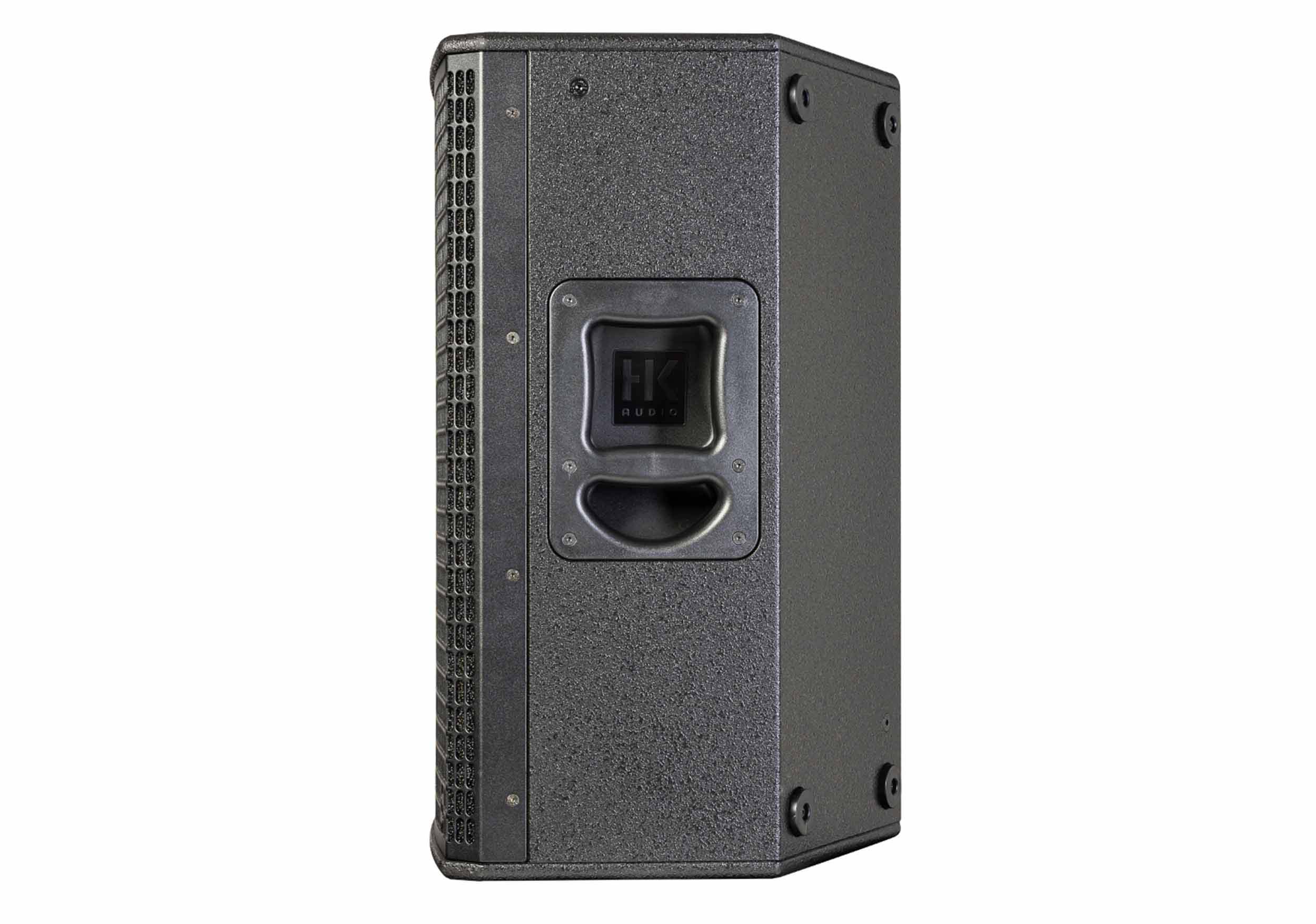

Handles: 2 x MultiGrip, 1 x SingleGrip
Grille: 2 mm metal with black acoustic foam backing
Dimensions: 45 x 68.5 x 42 cm (17-23/32" x 26-31/32" x 16-17/32")
Weight: 27.6 kg (60.85 lbs)
