HK Audio SONAR Series, Professional Active Speakers and Subwoofers

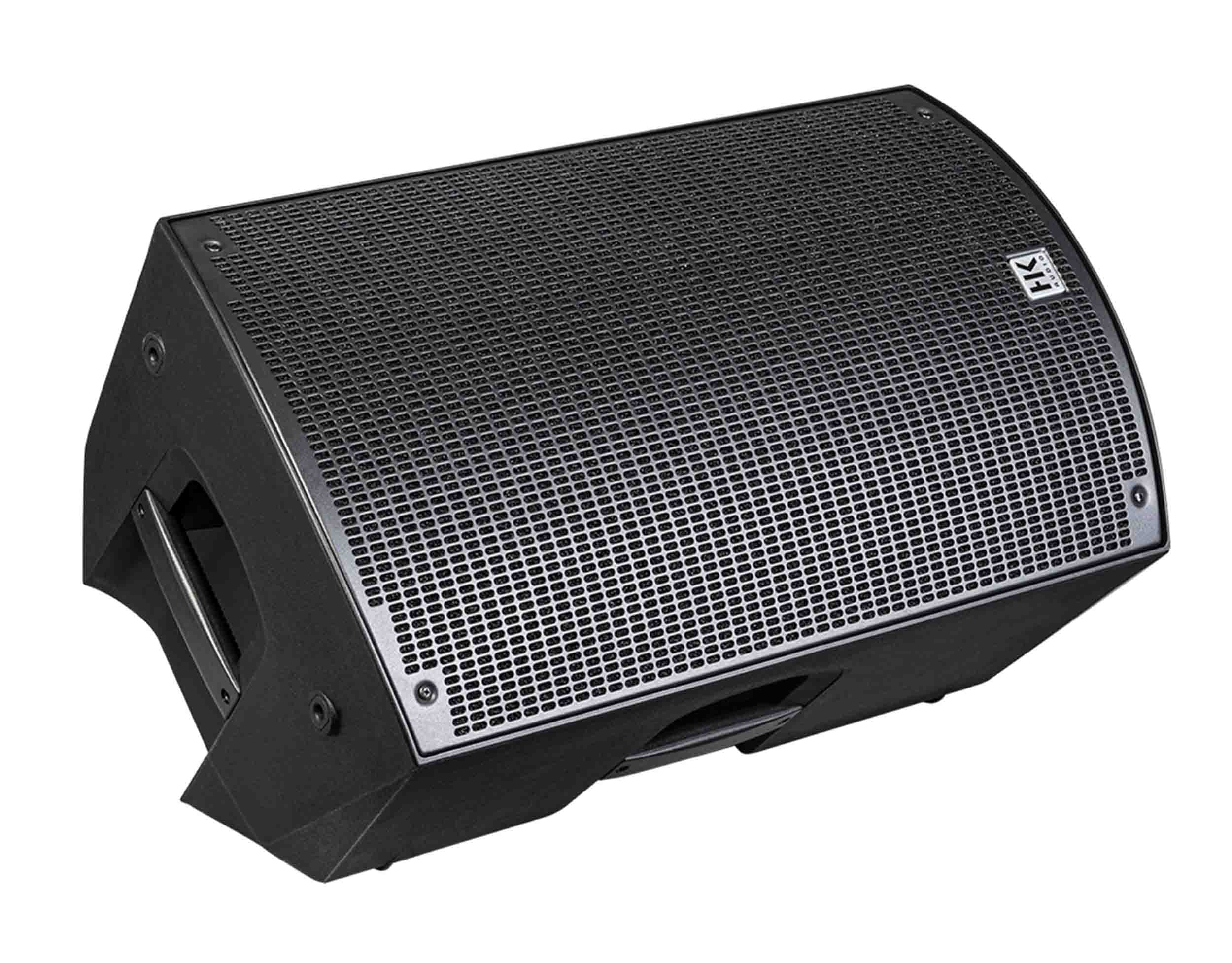

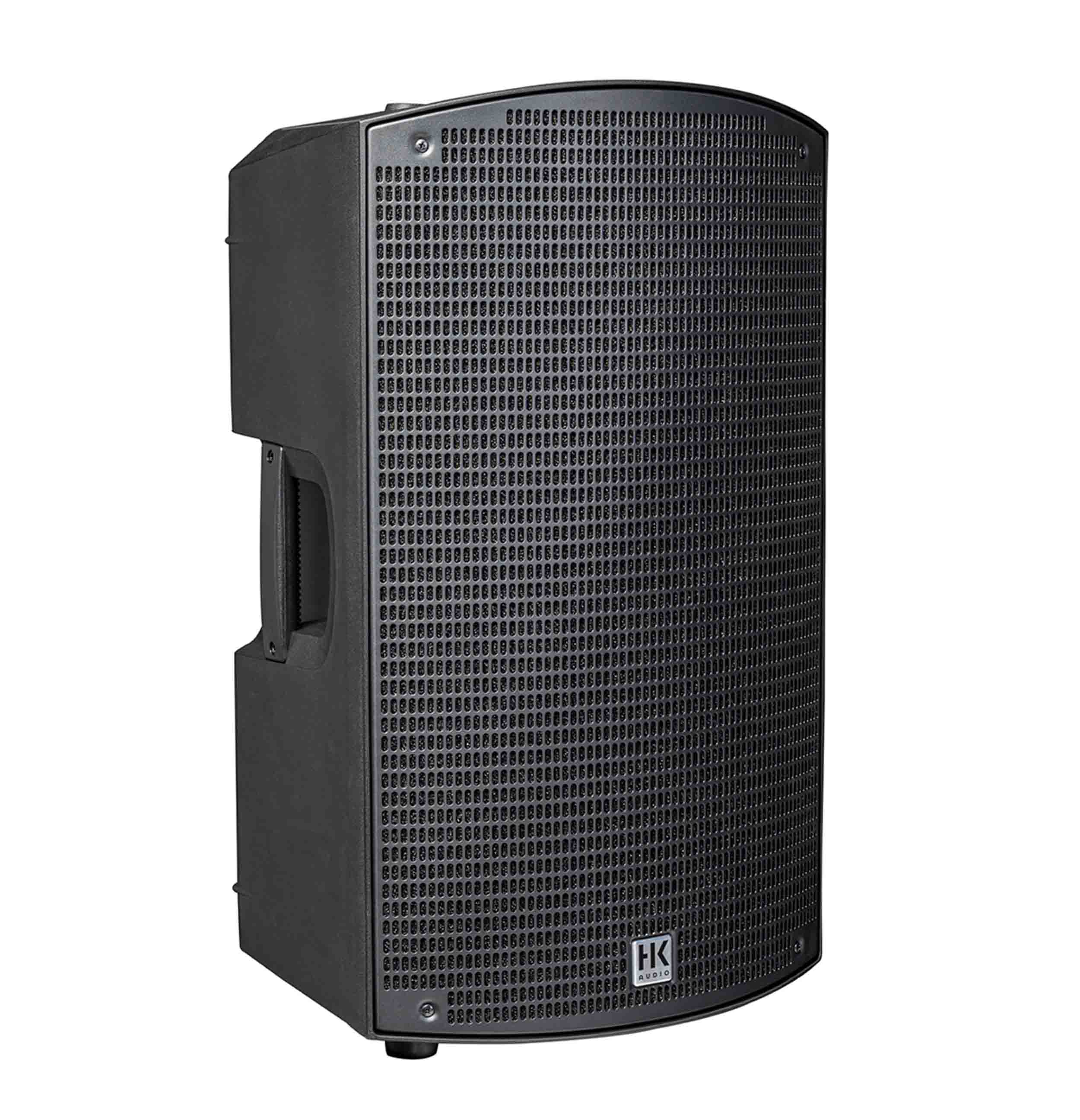

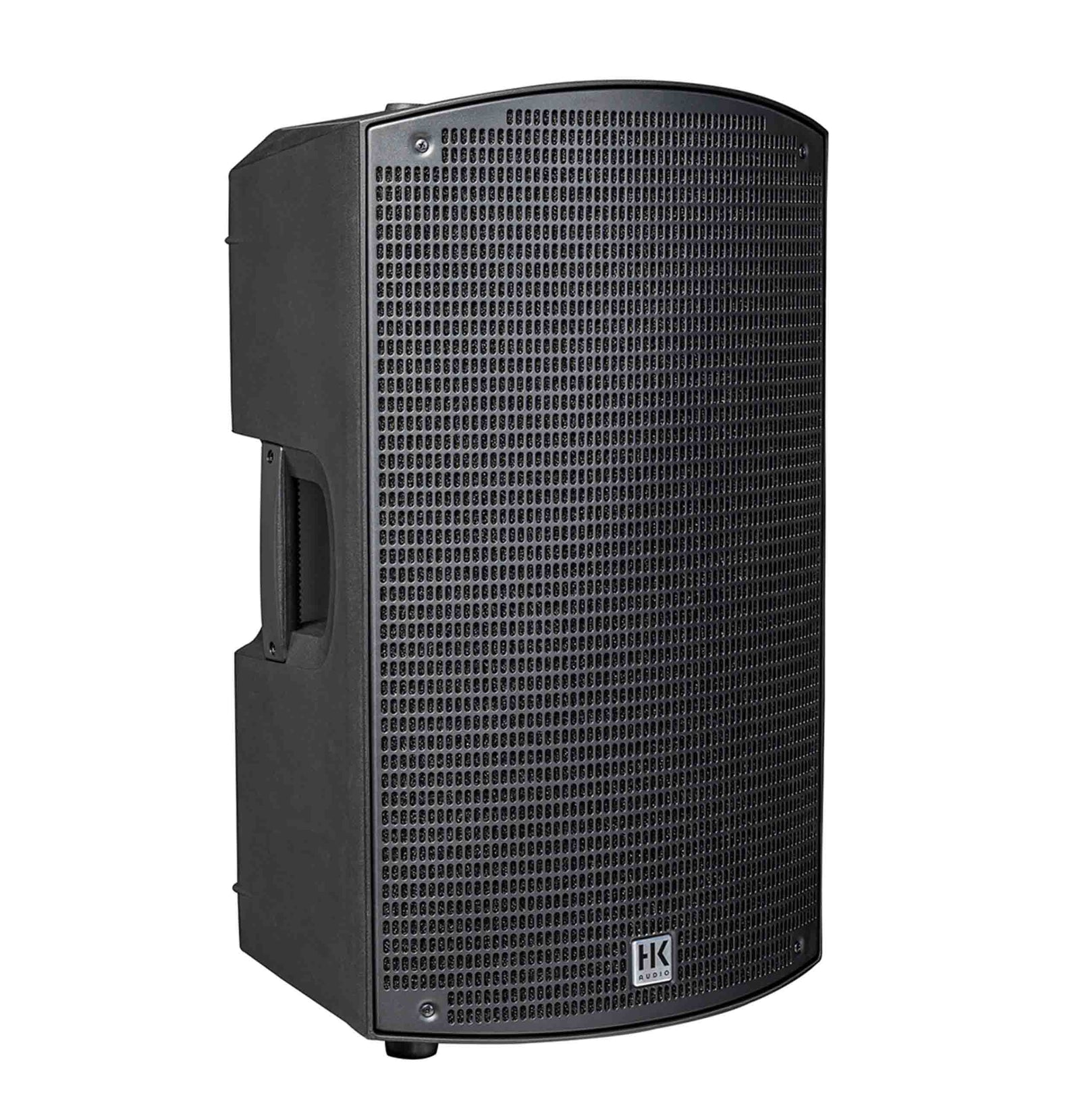

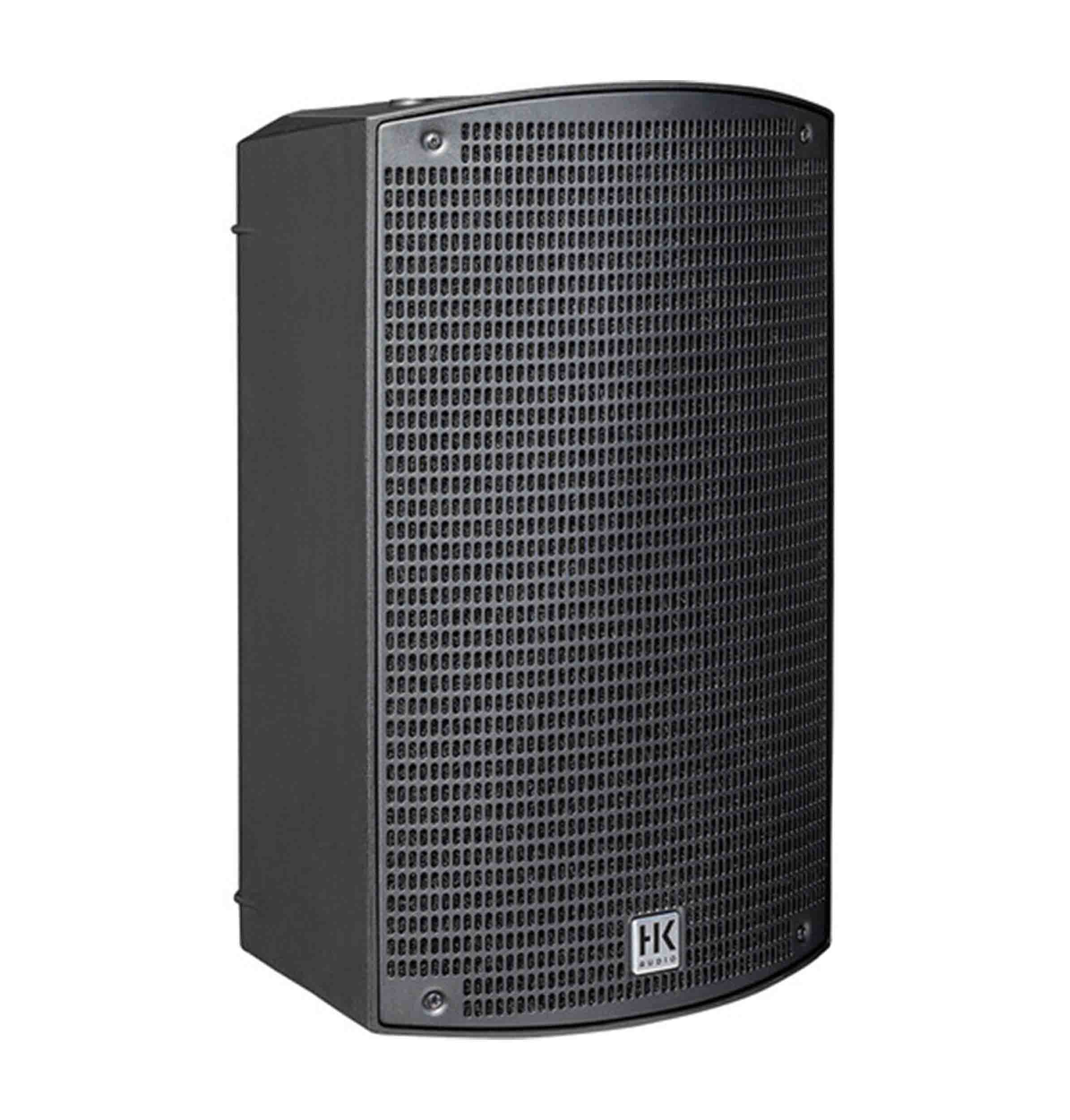

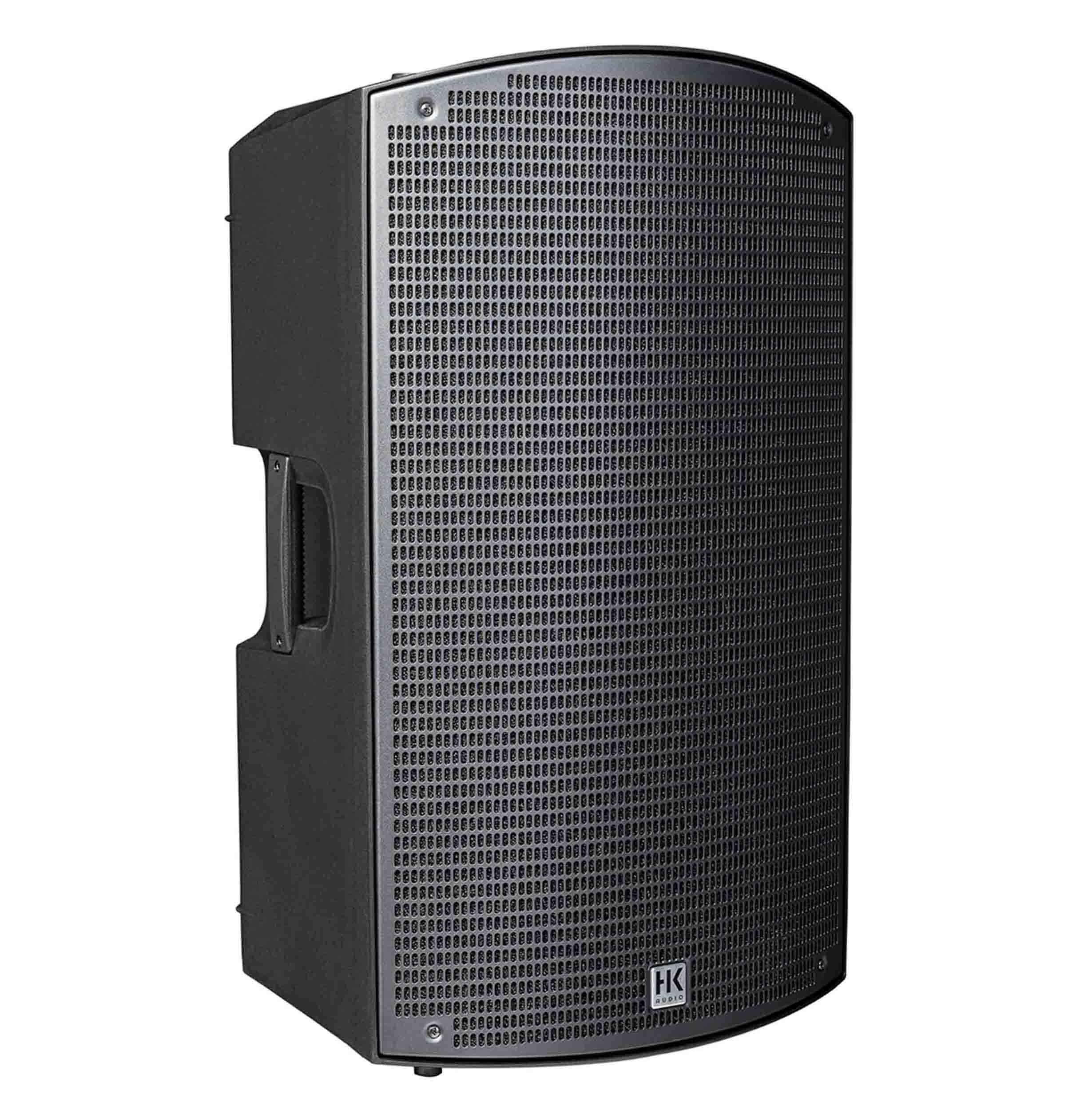

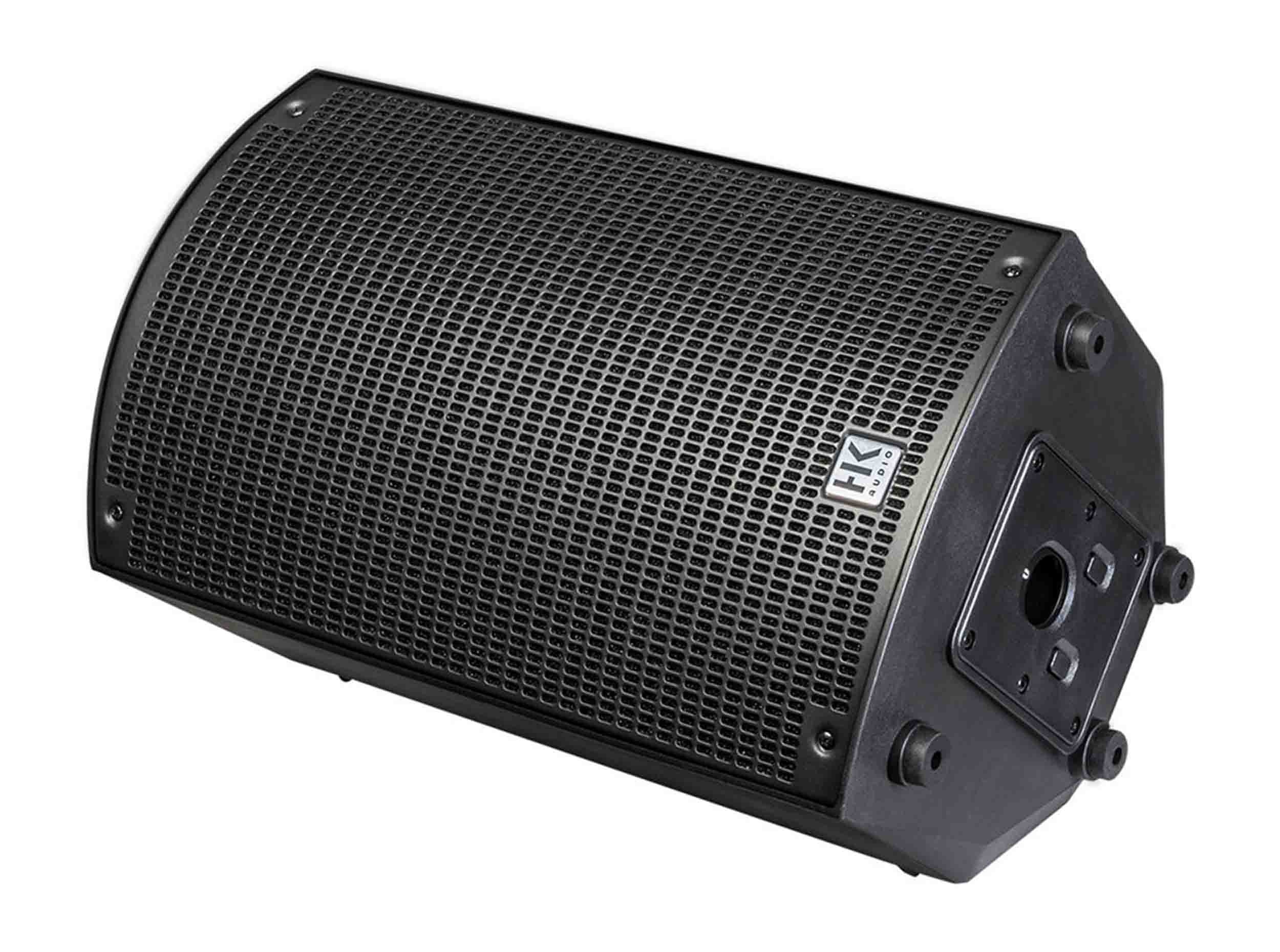

The HK Audio SONAR Series offers an exceptional range of professional-grade active loudspeakers and subwoofers, designed to deliver powerful, clear sound in various applications. Whether you're using the SONAR 110 Xi as a compact stage monitor, the SONAR 112 Xi as a full-range speaker, or the SONAR 115 Xi for robust sound reinforcement, each speaker offers outstanding performance. The SONAR 115 Sub D subwoofer extends the bass response, making it a perfect complement for all models in the series. With Bluetooth 5.0, True Wireless Stereo (TWS), and remote-control features, the SONAR Series provides flexibility and convenience in both small and large sound setups. These speakers and subwoofer are ideal for live performances, DJ setups, stage monitors, and even as a satellite for extended bass performance.

ACTIVE SPEAKER FOR ENTERTAINERS, DJS, BANDS, CLUBS, FITNESS AND PARTIES

Groundbreaking technology, state-of-the-art development tools and advanced production methods – combine all of these factors with decades of audio expertise, and very special things can happen. That’s exactly what happened with our new SONAR speaker family – it is the first of its kind to deliver high-quality sound and a whole catalogue of professional features at an affordable price point.

Boasting three elegant, multifunctional full-range models and a powerful subwoofer, the SONAR family delivers a wide range of expert solutions for a variety of applications – from easy-to-transport speech reinforcement to professional stage monitoring and powerful band PAs.

Intuitive control via colour display

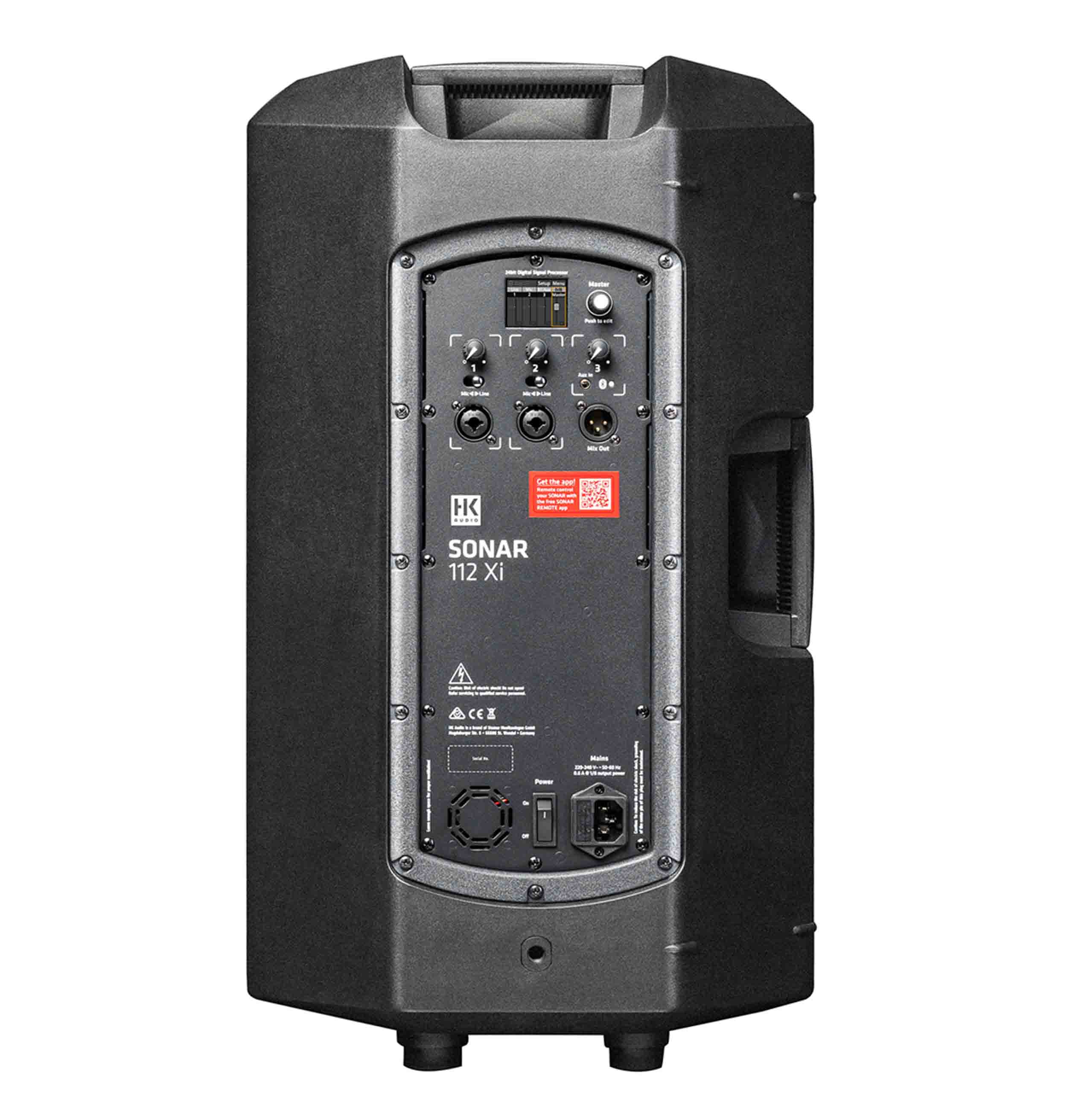

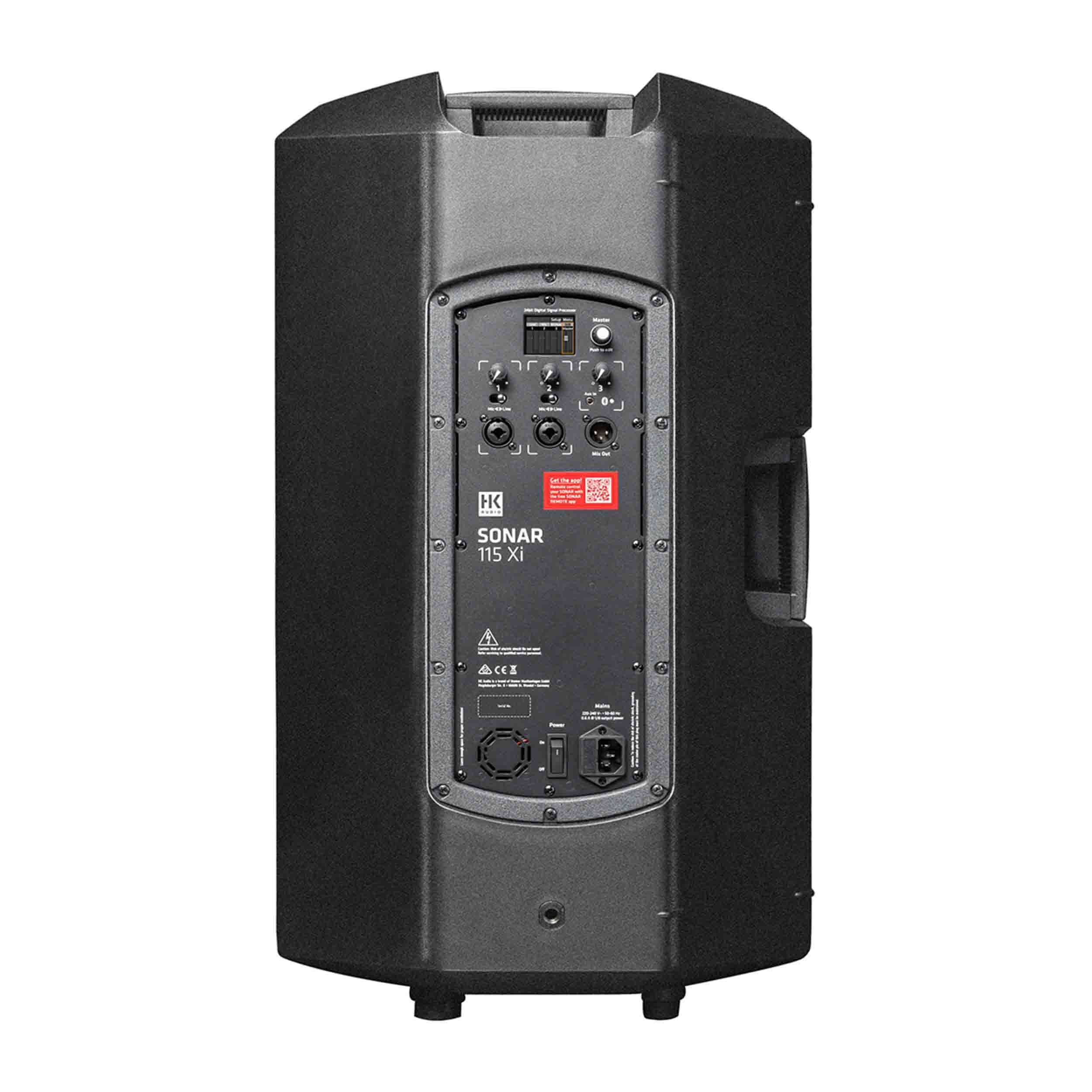

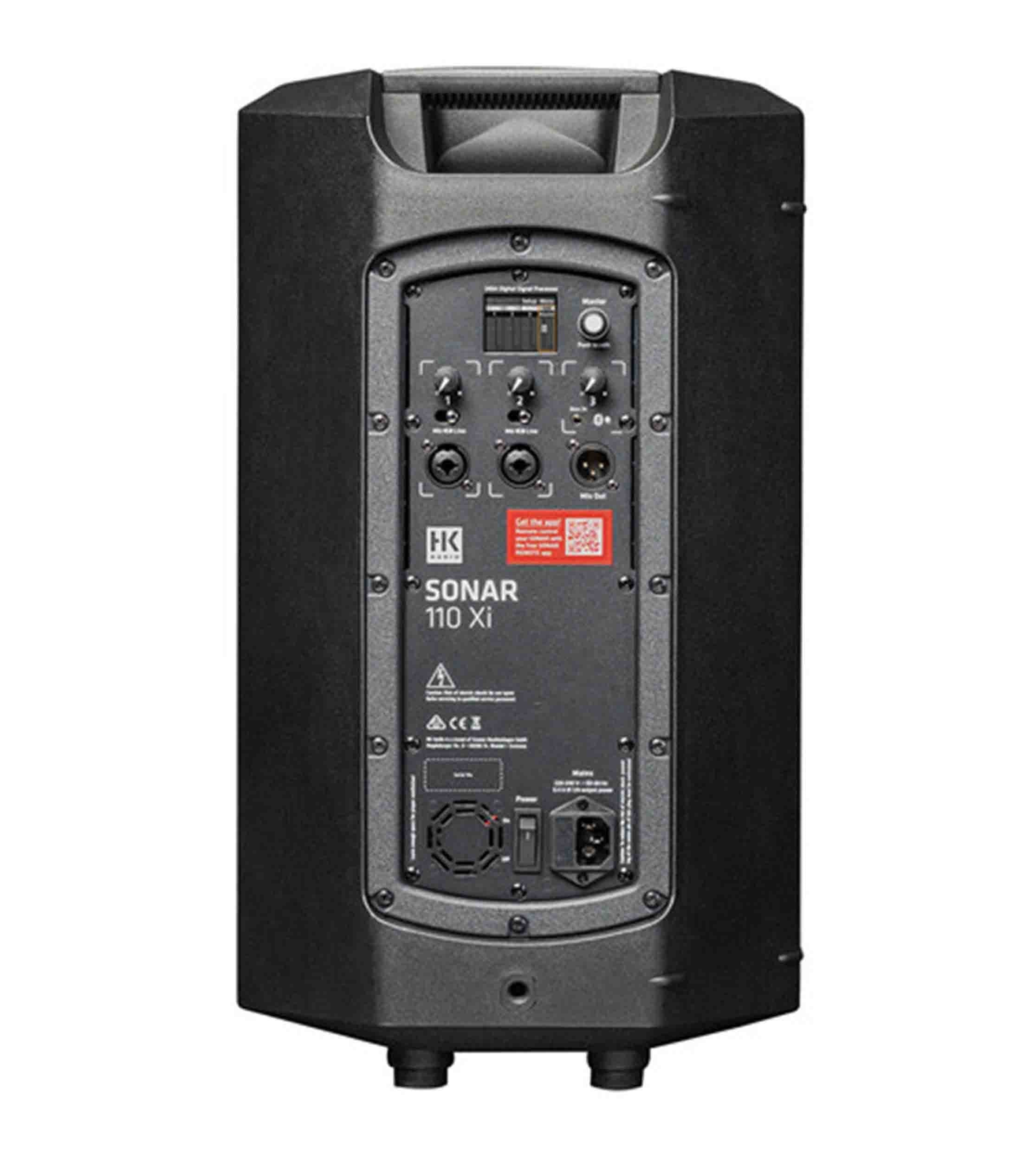

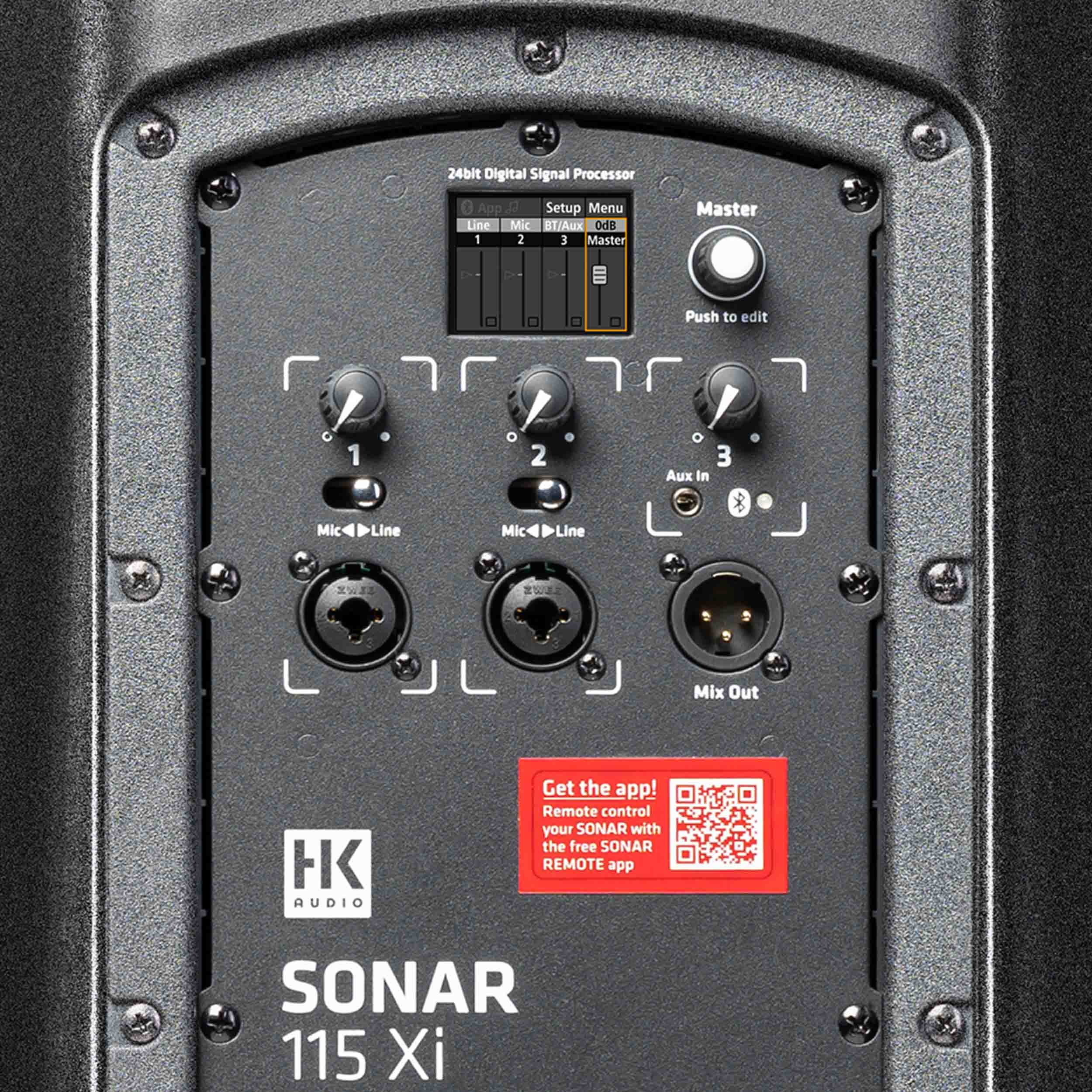

The built-in digital mixer on the Xi models offers two channels for microphone or line signals as well as an AUX channel for analogue and Bluetooth 5.0 signals. It can even receive both signals at the same time! The Mix Out is used to forward signals to additional speakers, or can be used as a source for live recording.

Each of the three channels has its own dedicated volume controller as well as a lavishly equipped 3-band EQ. What’s more, three sound modes are available (Live, DJ, Monitor) as well as a preset for using in combination with the SONAR subwoofer. The mixer is equipped with a master control to adjust the overall volume and operate the DSP menu.

Bluetooth TWS

With Bluetooth TWS (True Wireless Stereo), stereo audio streaming via two SONAR Xi models is a breeze. Two linked SONAR Xi speakers can even be controlled remotely at the same time via the Remote app.

SONAR REMOTE App

The SONAR REMOTE app for iOS and Android tablets and smartphones is so much more than just a remote control for the built-in digital mixer. It lets you control all settings and functions of the SONAR Xi models, including the parameters of the 3-band EQ for each channel. You can also save scenes to make regularly used presets available on demand, such as adjustments to frequently used microphones, modified SONAR Xi setups or basic configurations for different locations.

All settings that are changed in the app are simultaneously shown in the SONAR Xi speaker display, and vice versa! Both displays sync up in real time.

CARDIOID PRINCIPLE

The cardioid principle is all about cancelling out frequencies radiated to the rear. While medium and high frequencies can be radiated in directional patterns, low frequencies are spherical. This often leads to an unpleasant excess of low bass on and behind the stage. Organisers are also increasingly setting precise demands for sound distribution, for example in marquees and urban stages.

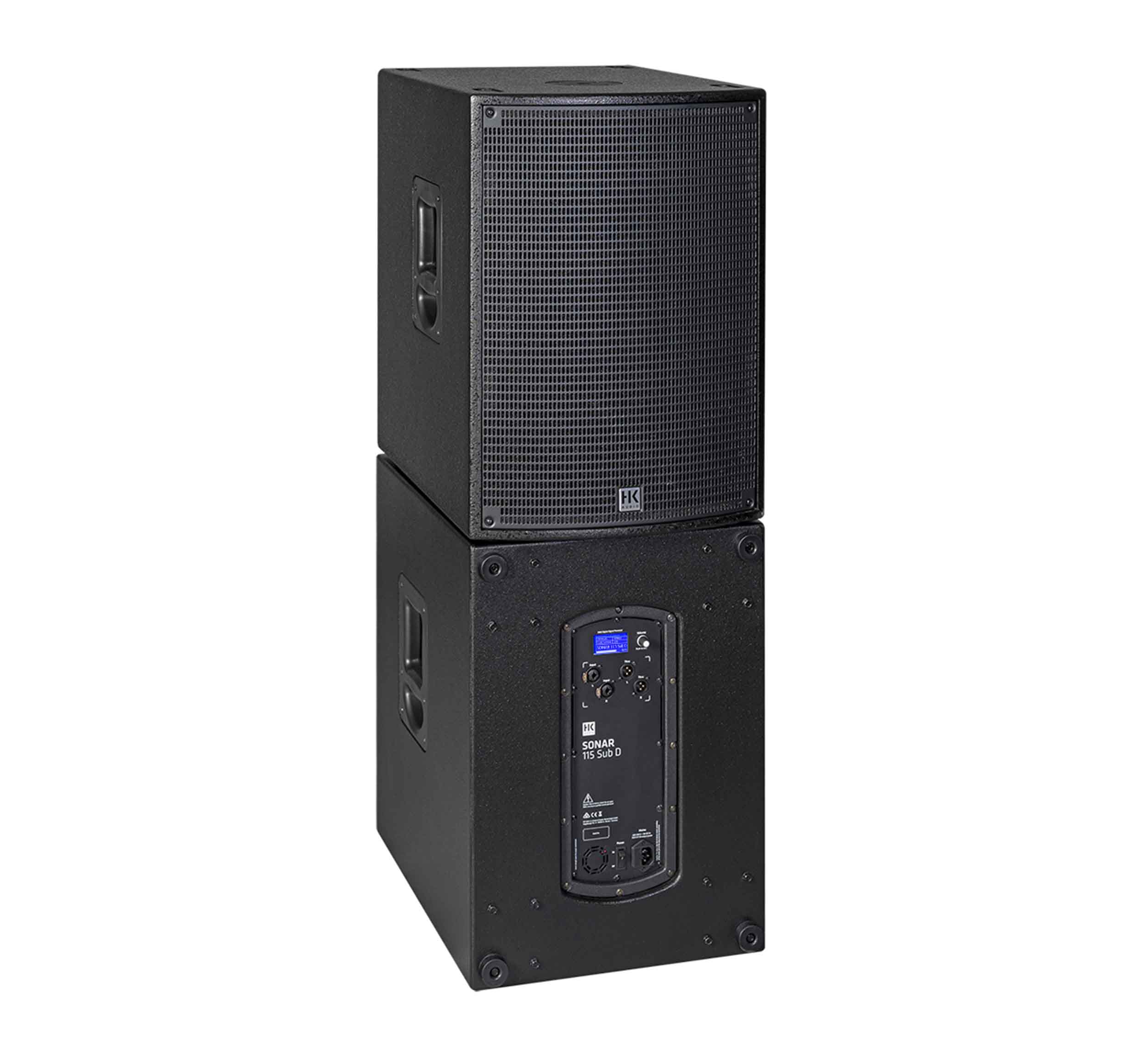

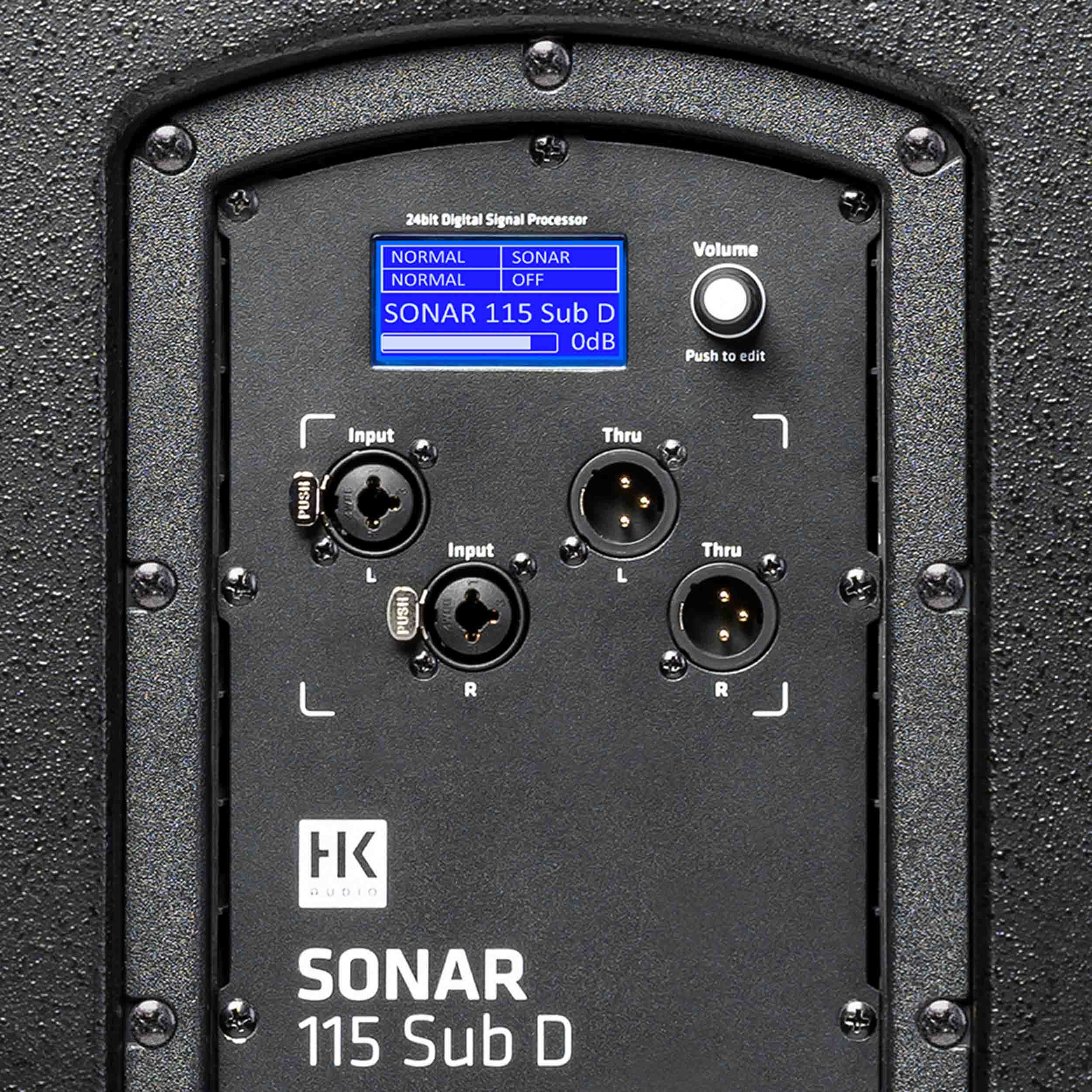

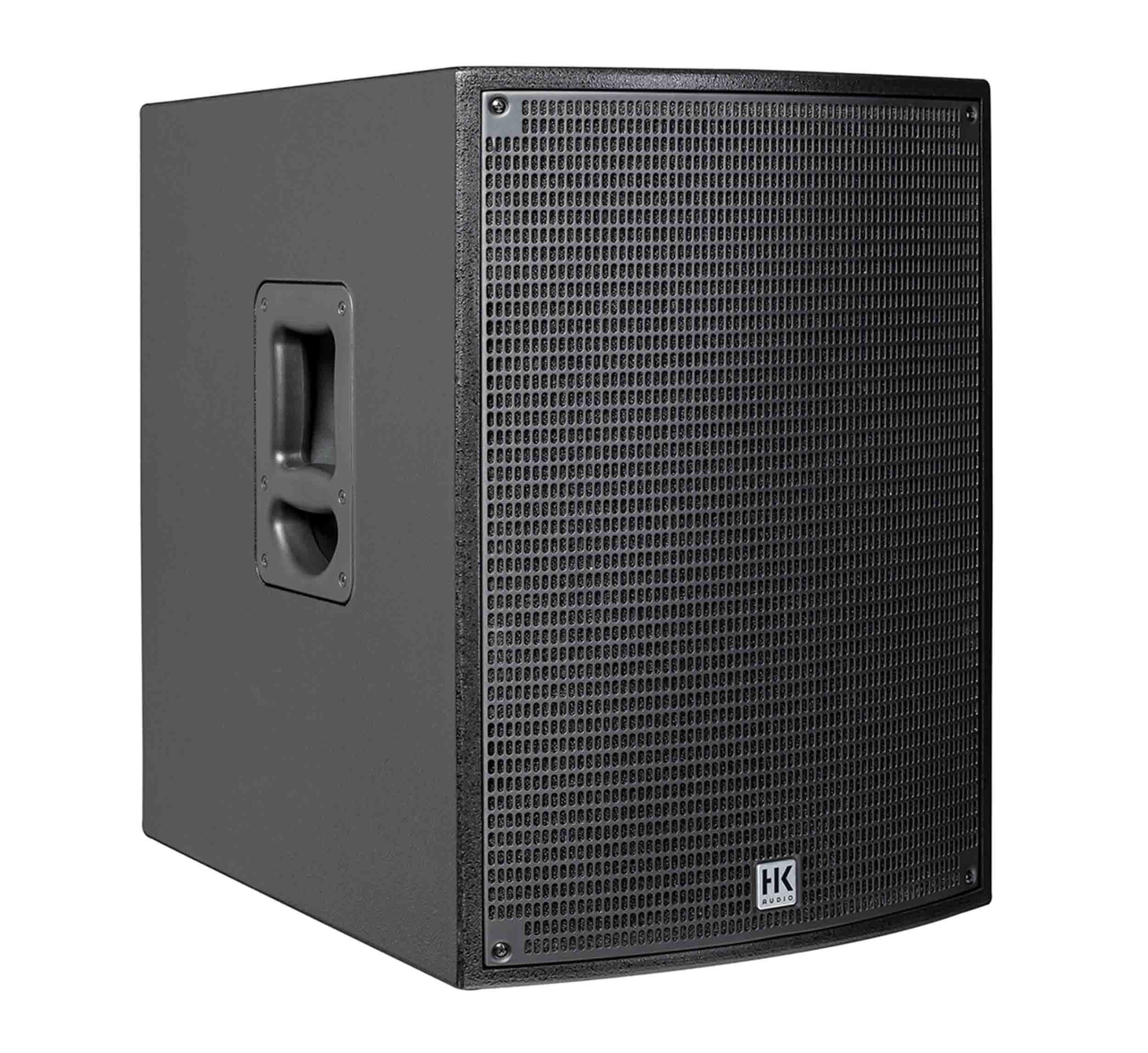

The SONAR 115 SUB D meets all the requirements, both mechanically and acoustically, to implement effective cardioid setups quickly and easily, reducing the low bass radiated to the rear by up to 30 dB! This not only makes performing on stage much more relaxed, it also results in a better sound, as microphones no longer pick up unwanted low frequencies.

A second SONAR 115 Sub D can be used to increase the sound pressure level in the bass range. The classic full-stack setup (shown on the left) with two subs projecting forward boosts the sound pressure by level 3 dB in all directions. But what makes the SONAR 115 Sub D so special are its cardioid capabilities. It has two special presets that allow you to configure a cardioid setup (shown on the right), where the lower sub projects to the rear, without the need for any complex calculations or time correction.

To do this, simply direct the lower SONAR sub to the rear and select the Cardioid Rear preset, and direct the upper sub to the front, selecting the Cardioid Front preset. Now both subs can play perfectly together without having to make any further adjustments.

Product Specifications:

Max SPL Peak (10% THD):

SONAR 110 Xi: 123 dB (half space)

SONAR 112 Xi: 127 dB (half space)

SONAR 115 Xi: 130 dB (half space)

SONAR 115 Sub D: 125 dB (half space)

Frequency Response (-10 dB):

SONAR 110 Xi: 59 Hz – 20 kHz

SONAR 112 Xi: 54 Hz – 20 kHz

SONAR 115 Xi: 50 Hz – 20 kHz

SONAR 115 Sub D: 36 Hz – X-over

Amplifier Output (Peak Power):

SONAR 110 Xi: 800 W

SONAR 112 Xi: 1200 W

SONAR 115 Xi: 1200 W

SONAR 115 Sub D: 1500 W

Low/Mid Speaker:

SONAR 110 Xi: 1 x 10", 2" voice coil

SONAR 112 Xi: 1 x 12", 2.5" voice coil

SONAR 115 Xi: 1 x 15", 2.5" voice coil

SONAR 115 Sub D: N/A (Subwoofer)

HF Driver:

SONAR 110 Xi: 1", 1" voice coil

SONAR 112 Xi: 1", 1.35" voice coil

SONAR 115 Xi: 1", 1.35" voice coil

SONAR 115 Sub D: N/A

Horn Characteristics:

SONAR 110 Xi: 90° x 60° CD horn

SONAR 112 Xi: 90° x 60° CD horn

SONAR 115 Xi: 90° x 60° CD horn

SONAR 115 Sub D: N/A

Display:

SONAR 110 Xi: Colour display

SONAR 112 Xi: Colour display

SONAR 115 Xi: Colour display

SONAR 115 Sub D: LCD

Audio Inputs:

SONAR 110 Xi: 2x XLR/jack combo balanced, 1x Aux In mini jack

SONAR 112 Xi: 2x XLR/jack combo balanced, 1x Aux In 3.5mm mini jack

SONAR 115 Xi: 2x XLR/jack combo balanced, 1x Aux In 3.5mm mini jack

SONAR 115 Sub D: 2x XLR/jack combo balanced

Audio Outputs:

SONAR 110 Xi: 1x XLR mix out balanced

SONAR 112 Xi: 1x XLR Mix Out balanced

SONAR 115 Xi: 1x XLR Mix Out balanced

SONAR 115 Sub D: 2x XLR thru out balanced

Bluetooth:

SONAR 110 Xi: Bluetooth 5.0

SONAR 112 Xi: Bluetooth 5.0 TWS (audio streaming + remote control)

SONAR 115 Xi: Bluetooth 5.0 TWS (audio streaming + remote control)

SONAR 115 Sub D: N/A

Sound Modes:

SONAR 110 Xi: Live/DJ/Monitor

SONAR 112 Xi: Live/DJ/Monitor

SONAR 115 Xi: Live/DJ/Monitor

SONAR 115 Sub D: Normal/Bass Boost

Setup Modes:

SONAR 110 Xi: External sub

SONAR 112 Xi: External sub

SONAR 115 Xi: External sub

SONAR 115 Sub D: SONAR, Cardioid Front, Cardioid Rear

Delay:

SONAR 110 Xi: 0-10 meter

SONAR 112 Xi: 0-10 meter

SONAR 115 Xi: 0-10 meter

SONAR 115 Sub D: 0-10 meter

Pole Mount:

SONAR 110 Xi: TiltUnit 0°/7.5°

SONAR 112 Xi: TiltUnit 0°/7.5°

SONAR 115 Xi: TiltUnit 0°/7.5°

SONAR 115 Sub D: 1x M20

Carrying Handles:

SONAR 110 Xi: 1 x SingleGrip

SONAR 112 Xi: 2 x SingleGrip

SONAR 115 Xi: 2 x SingleGrip

SONAR 115 Sub D: 2 x MultiGrip
