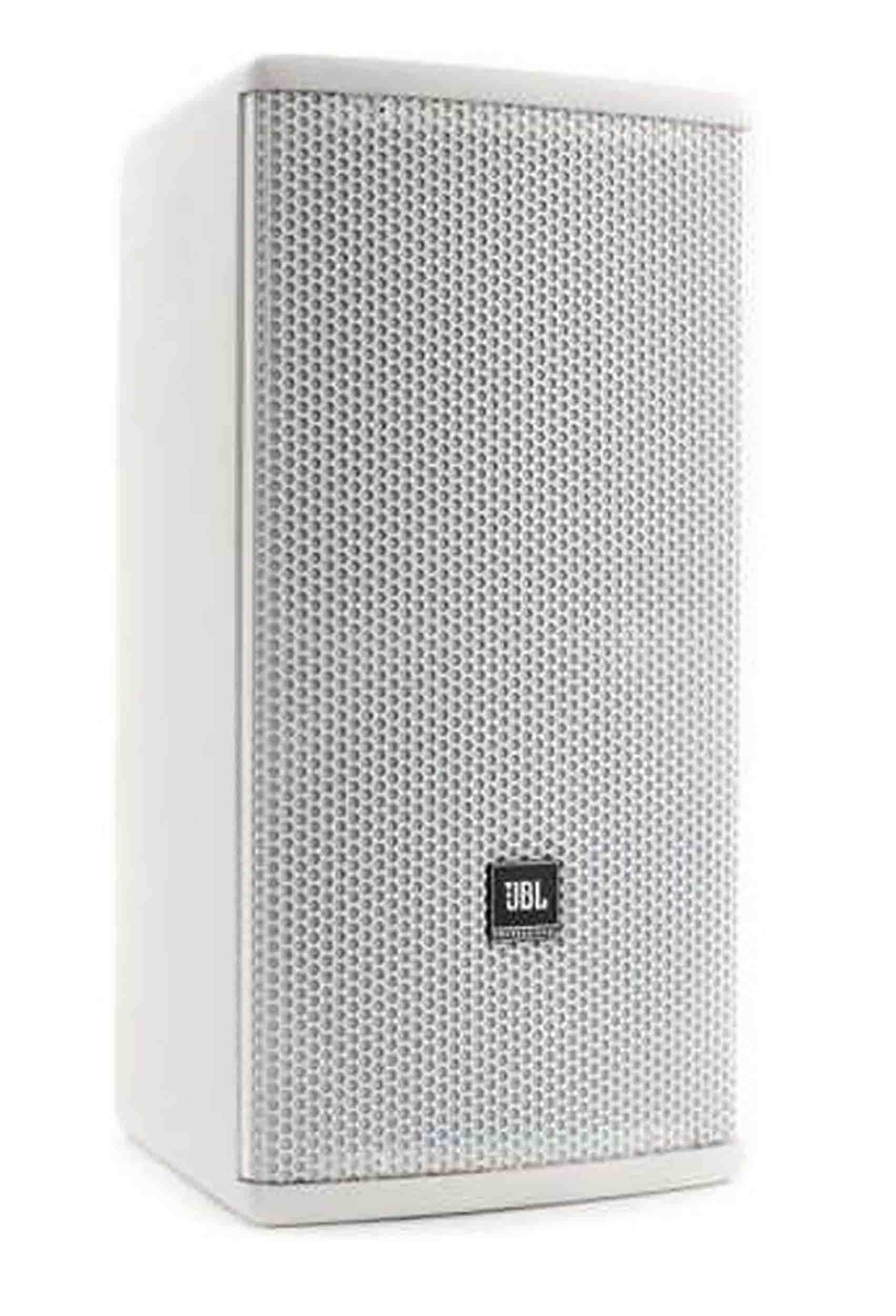

JBL AM7315/95-WH, High Power 3-Way Loudspeaker - White

The JBL AM7315/95-WH speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Product Specifications:

Frequency Range (-10dB): 38 Hz – 20 kHz

Frequency Response (±3 dB): 45 Hz – 18 kHz

Coverage Pattern: /64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide

Directivity Index (DI): 13 dB

Crossover Modes: Tri-amp/Bi-amp switchable

Crossover Frequencies: 300 Hz and 2.3 kHz

System Power Rating: LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs

System Sensitivity of Passive Sections (1W @ 1m): MF/HF Section in Bi-amp mode: 108 dB SPL

Nominal Impedance: 8 ohms

LF Driver: 1 x JBL 2265H 380 mm (15 in ) Differential Drive driver with 75 mm (3 in)

Sensitivity (1W @ 1m) (Low Frequency): 97 dB SPL

Sensitivity (1W @ 1m) (Midrange): 108 dB SPL

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity (1W @ 1m)(High Frequency): 115 dB SPL

Suspension Attachment: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish: White DuraFlex finish.

Grille: Powder coated 14 gauge perforated steel

Environmental: Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D): 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)

Net Weight (each): 45.8 kg (101 lb)

Nominal LF Driver Impedance: 8 ohms

Nominal MF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms
