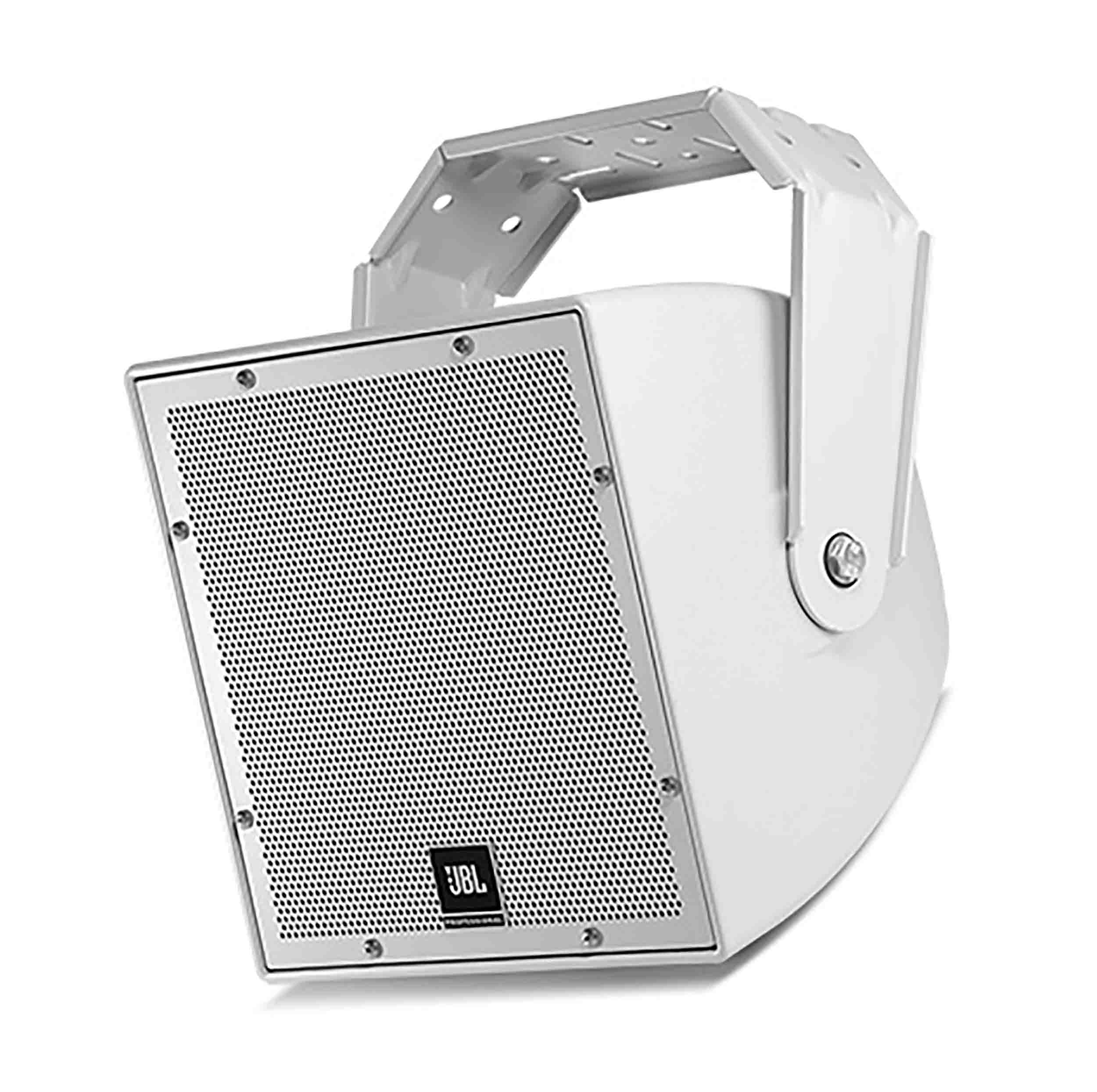

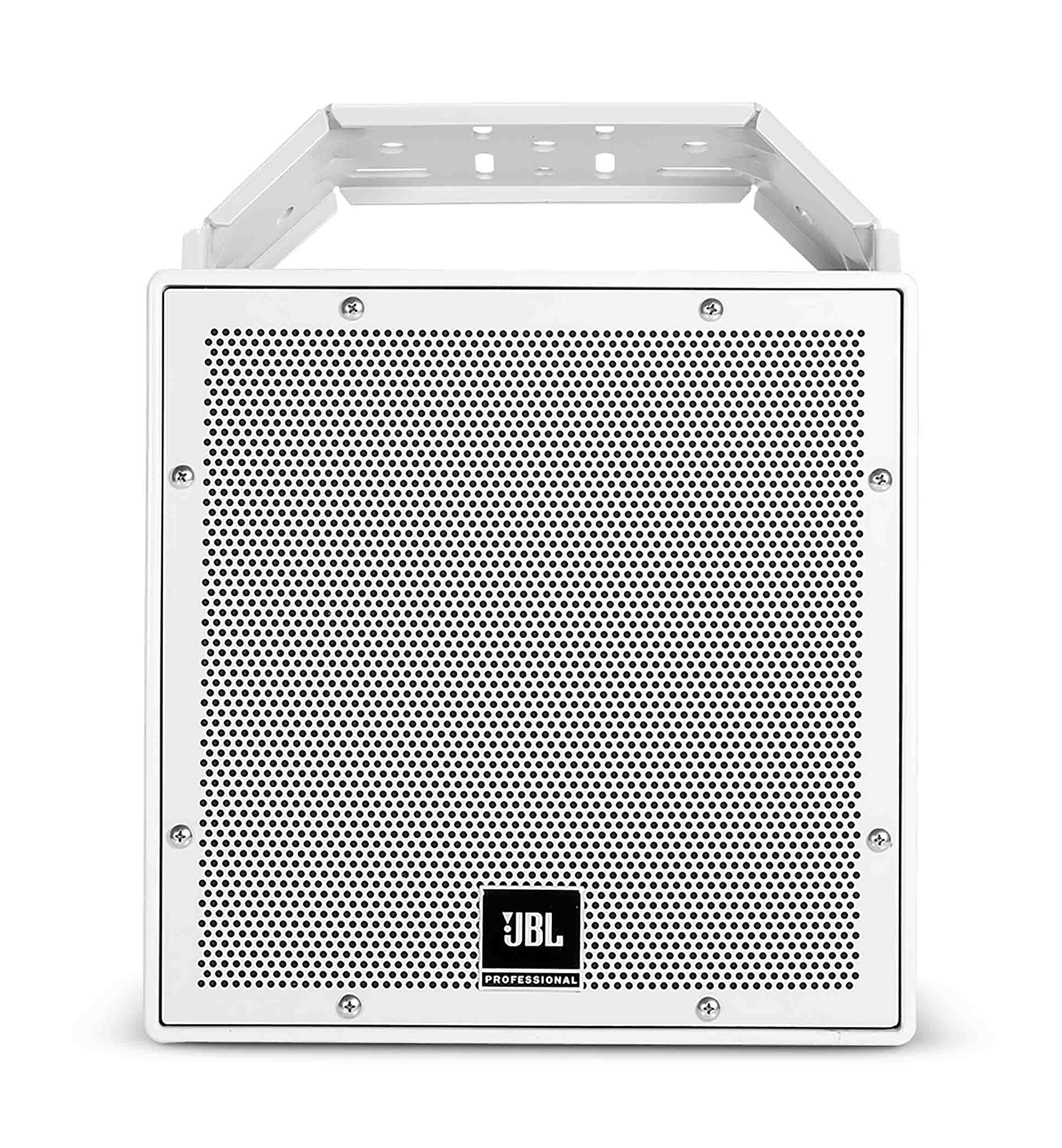

JBL AWC82 250 Watt Compact Loudspeaker with 8-Inch Woofer - Grey

The JBL AWC82-Grey is a single all-weather passive coaxial loudspeaker designed for high-output, full-range sound reinforcement in various indoor and outdoor applications such as sports facilities, stadiums, fairgrounds, cruise ships, and background music/paging systems.

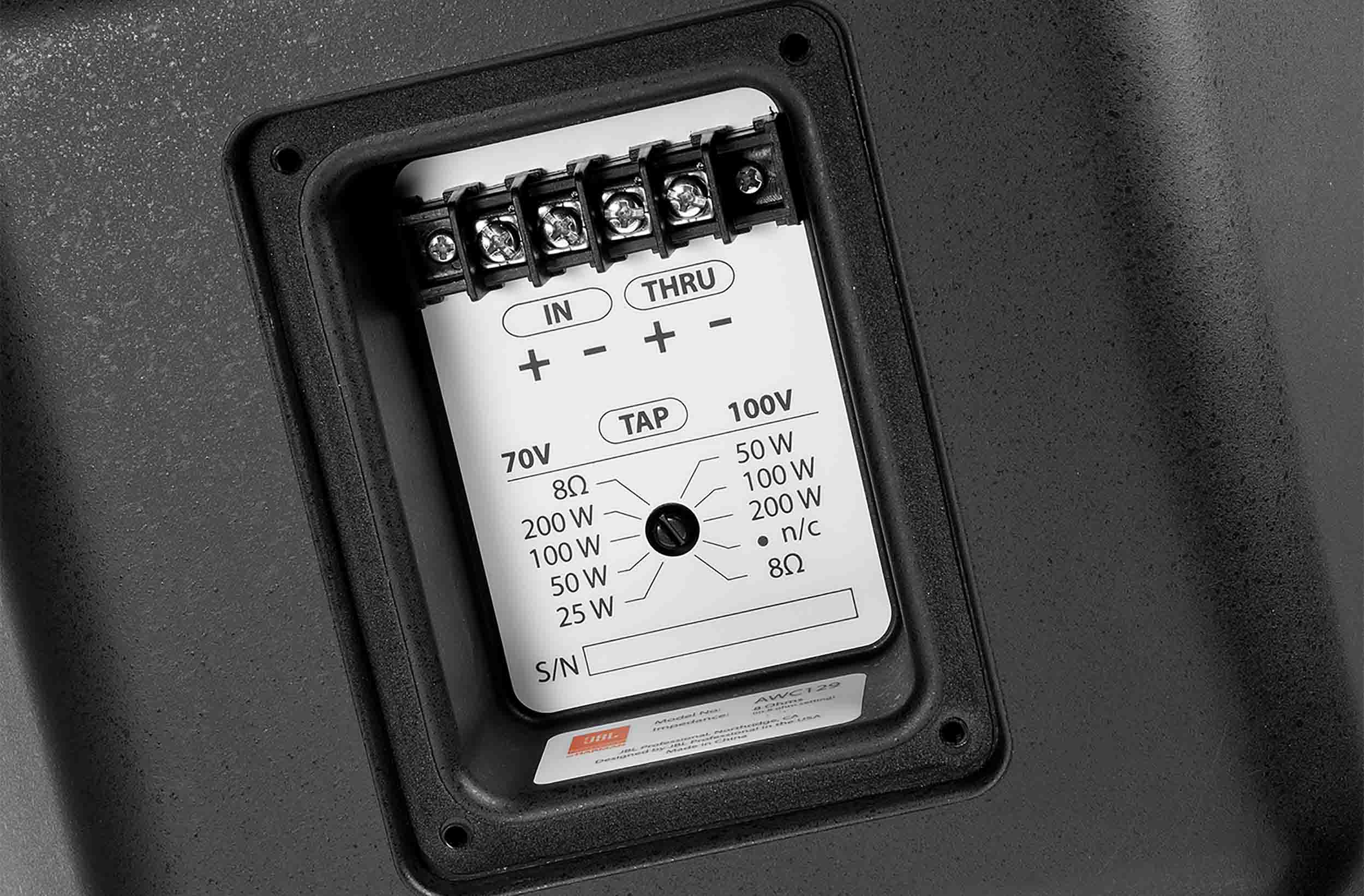

Capable of up to 250W long-term power handling, it incorporates an 8" Kevlar-reinforced woofer and a 1" fluid-cooled high-frequency driver to produce a high maximum peak SPL of 124 dB and a wide frequency response of 80 Hz to 20 kHz (-10 dB). The coaxial speaker configuration yields a 120 by 120° dispersion pattern for consistent coverage. The paintable ABS enclosure boasts an IP56 rating for effective weather resistance and a sturdy steel grille backed with open-cell foam for additional protection. An integrated multi-tap transformer - configurable via a rear-panel tap selector - allows operation in 70/100V systems or 8-ohm low-impedance setups. A color-matched U-bracket is included for ease of installation.

Product Specifications:

Color: Grey

Frequency Range (-10dB): 80 Hz – 20 kHz

Frequency Response (±3 dB): 100 Hz – 20 kHz

Coverage Pattern: 120° x 120°

Directivity Factor (Q): 8.1 (1 k – 16 kHz)

Directivity Index (DI): 8.4 dB (1 k – 16 kHz)

System Power Rating: 250 W 2 hrs. 200 W 100 hrs

Crossover Modes: Passive

Nominal LF Driver Impedance: 8 ohms

Dimensions: 12 x 11.8 x 11.8" / 30.48 x 29.97 x 29.97 cm

Net Weight (each): 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket

Shipping Weight: 14.1 kg (31.0 lb)
