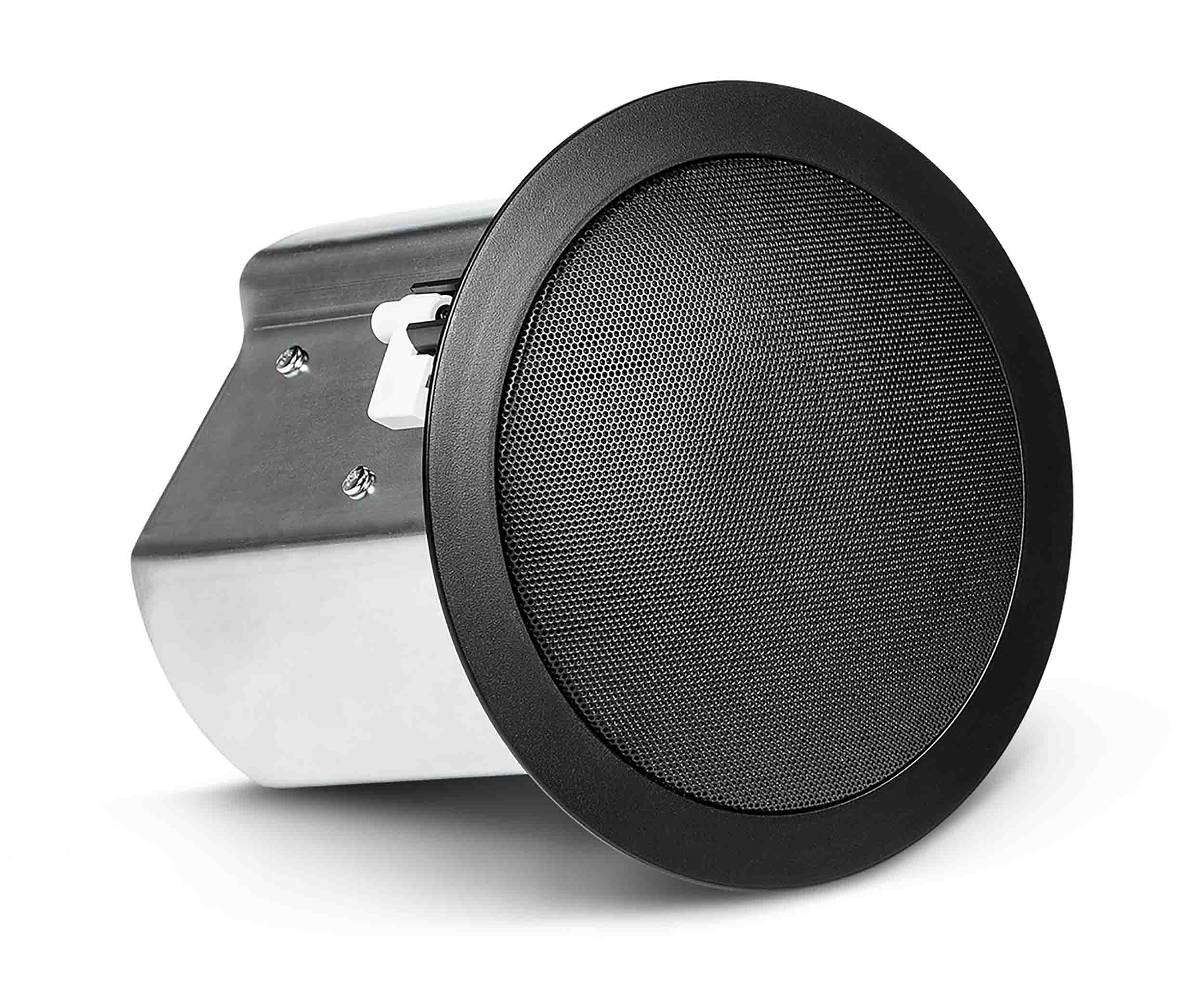

JBL CONTROL 14C/T-BK, Two-Way 4" Coaxial Ceiling Loudspeaker - Black

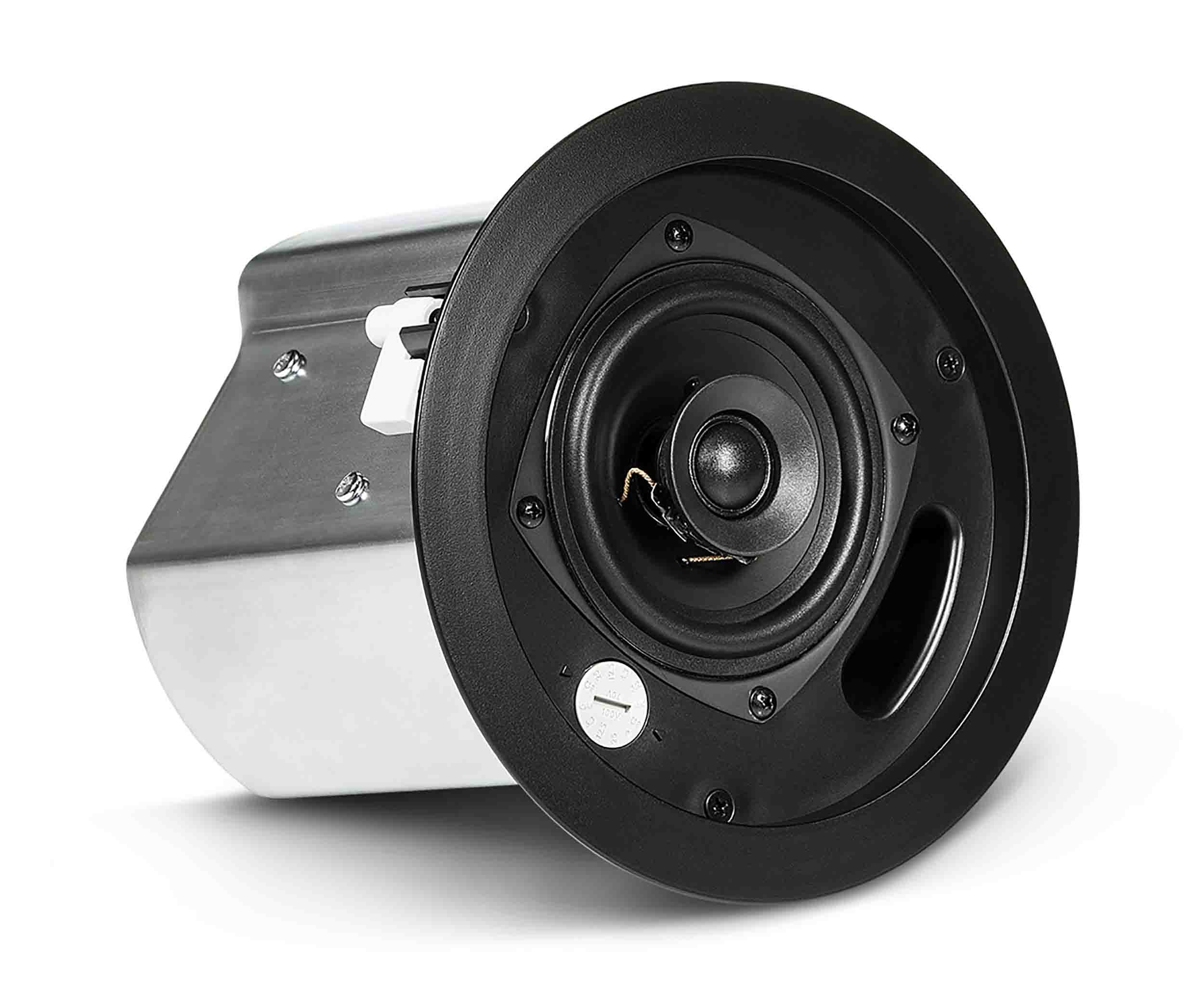

The JBL CONTROL 14C/T-BK is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.

Product Specifications:

Frequency Range (-10dB): 74 Hz – 20 kHz

Transformer Taps: 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)

Frequency Response (±3 dB): 100 Hz – 20 kHz

Sensitivity: 87 dB (1kHz - 16 kHz)

Coverage Angle: 120° conical

Directivity Factor (Q): 7.6

Directivity Index (DI): 8.1 dB

Maximum SPL (1m): 101 dB (low-impedance, 108 dB peak)

101 dB (top 70V/100V tap)

Impedance: 8 ohms (in direct/bypass 8Ω setting)

Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

Drivers: LF Driver: 100 mm (4.0 in)

HF Driver: 19 mm (3/4 in)

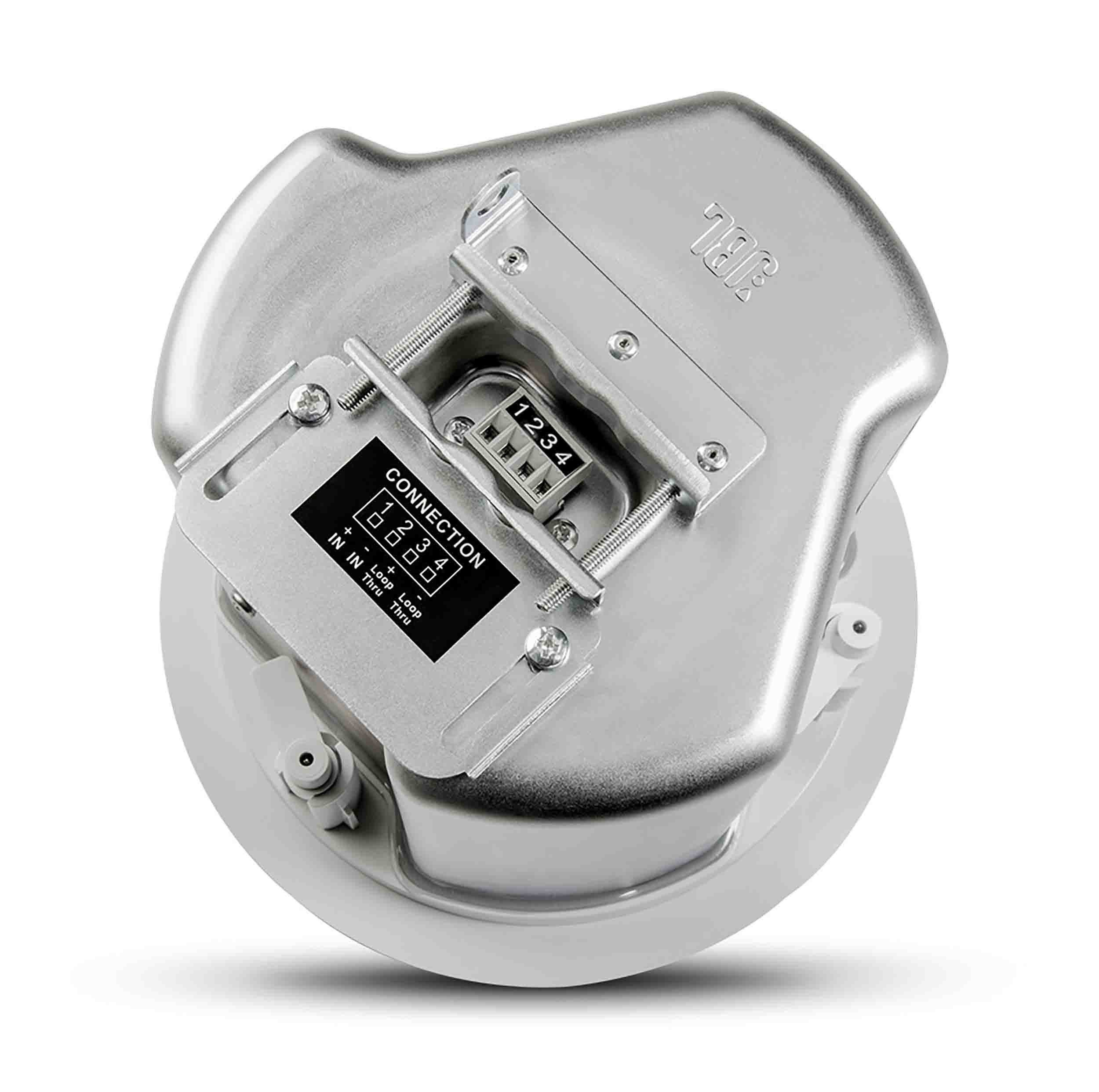

Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)

Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru

Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism

Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan

Dimensions: 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)

Ceiling Cutout Size: 170 mm (6.7 in) diameter (cardboard cutout template included)

Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses

Safety Seismic Attachment: One point, top surface

Weight: 2.2 kg (4.8 lbs, one speaker)

Color: Black

Backcan: formed steel (included "blind-mount")

Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.

Plenum Usage: Yes, backcan included
