Description

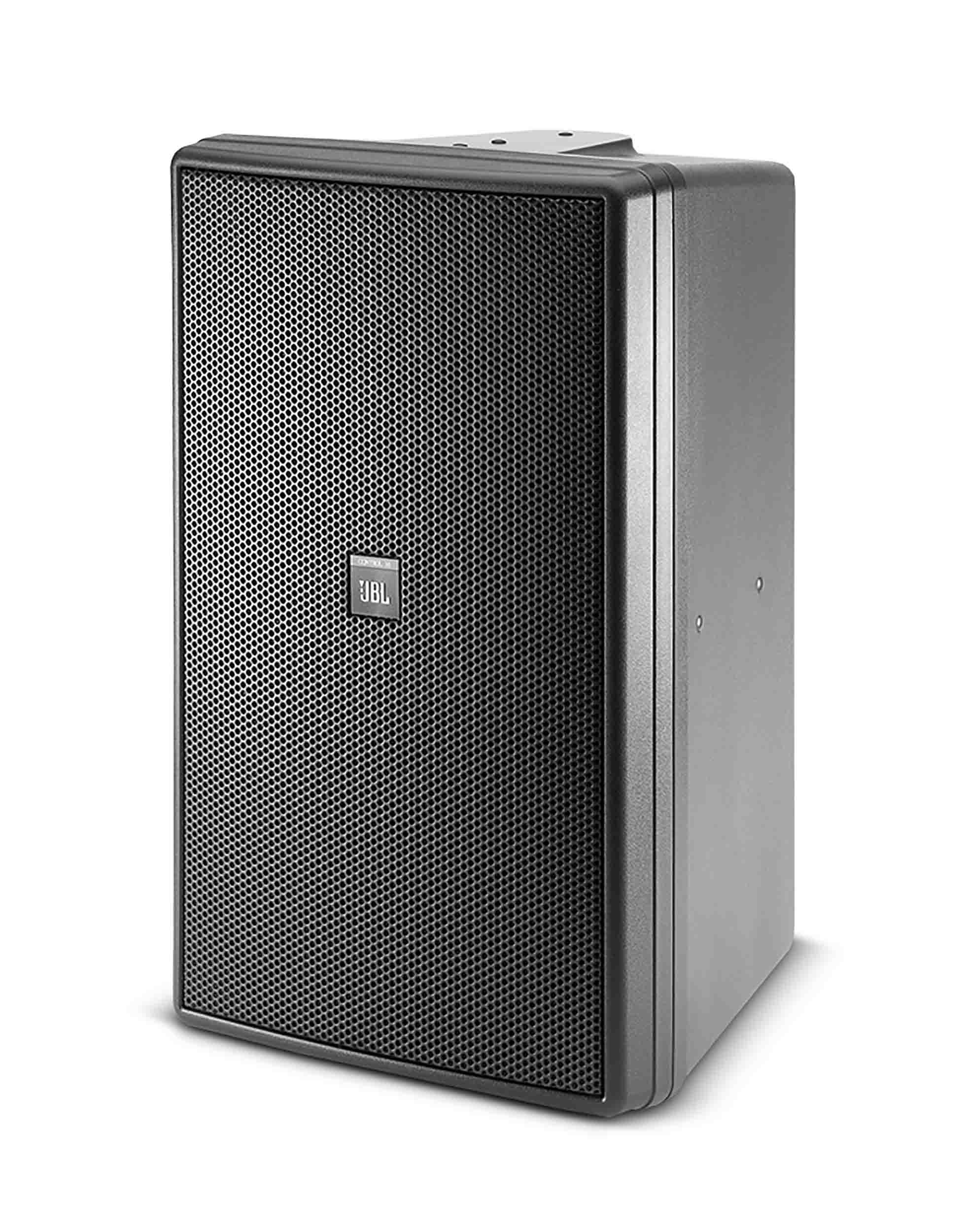

The JBL Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.
Product Specifications:
Frequency Range: 38 Hz – 17 kHz (-10 dB)
Power Capacity: 500 W Continuous Program Power; 250 W Continuous Pink Noise
Transformer Taps: 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 ohms nominal
Frequency Response: 40 Hz – 16 kHz ( ± 3 dB)
Maximum SPL (1m): Short-Term: 123 dB; Long-Term: 117 dB
Sensitivity: 93 dB, 1W @ 1m (3.3 ft)
Coverage Angle: 120°H x110°V
Directivity Factor (Q): 5.2 dB, averaged 500 Hz to 10 kHz
Directivity Index (DI): 7.1 dB, averaged 500 Hz to 10 kHz
Impedance: 4 ohms
Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
Safety Agency: Transformer is listed per UL1876

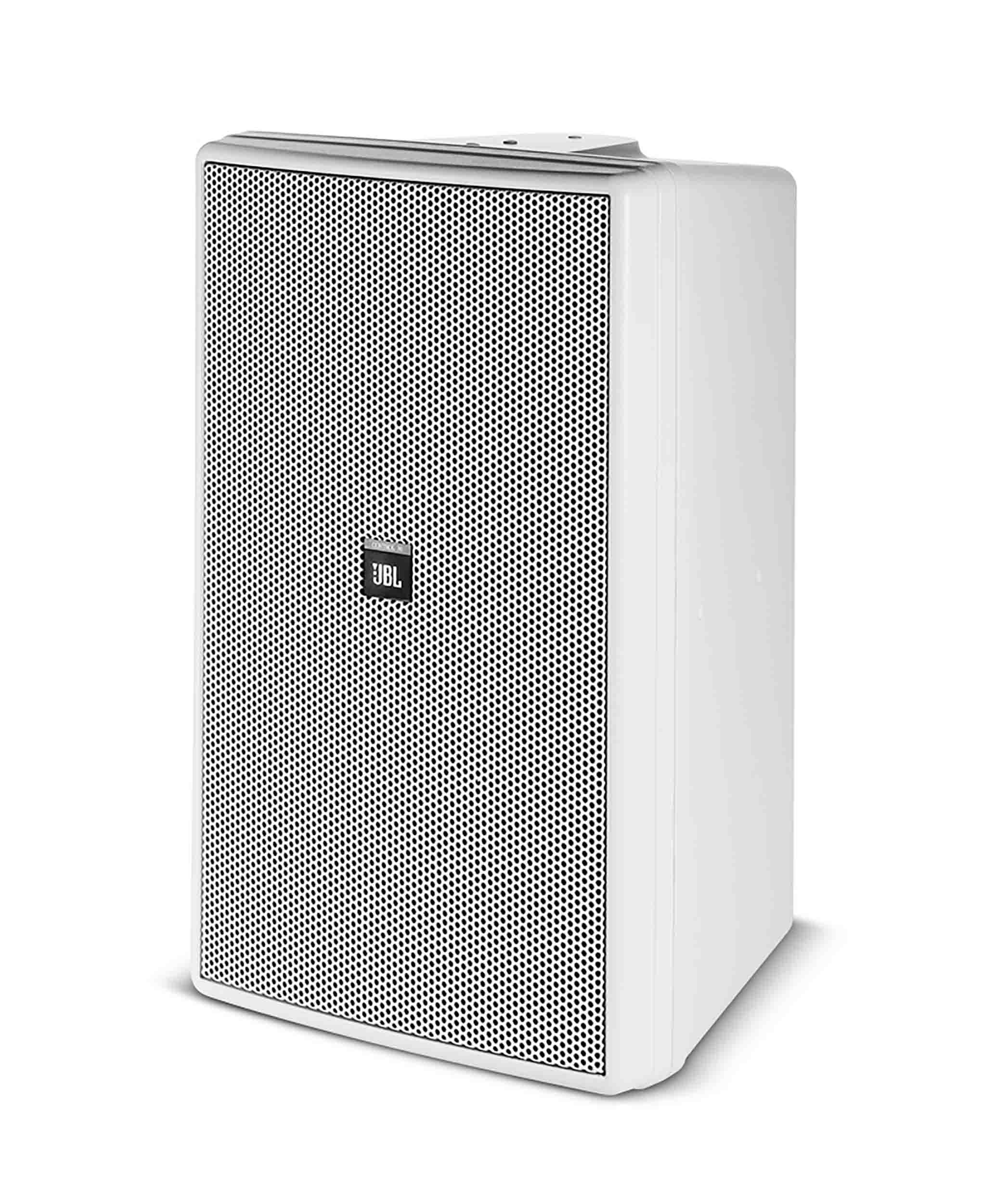

Colors: Black or white (-WH)
Dimensions (H x W x D): 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.)
Net Weight (each): 18.9 kg (42 lb)
Shipping Weight (ea): 20.3 kg (45 lb)
Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base
Optional Accessories: MTC-30CM (-WH) to install speaker down from the ceiling
Mounting Hardware: InvisiBall aimable wall-mounting system included. Optional U-bracket.
