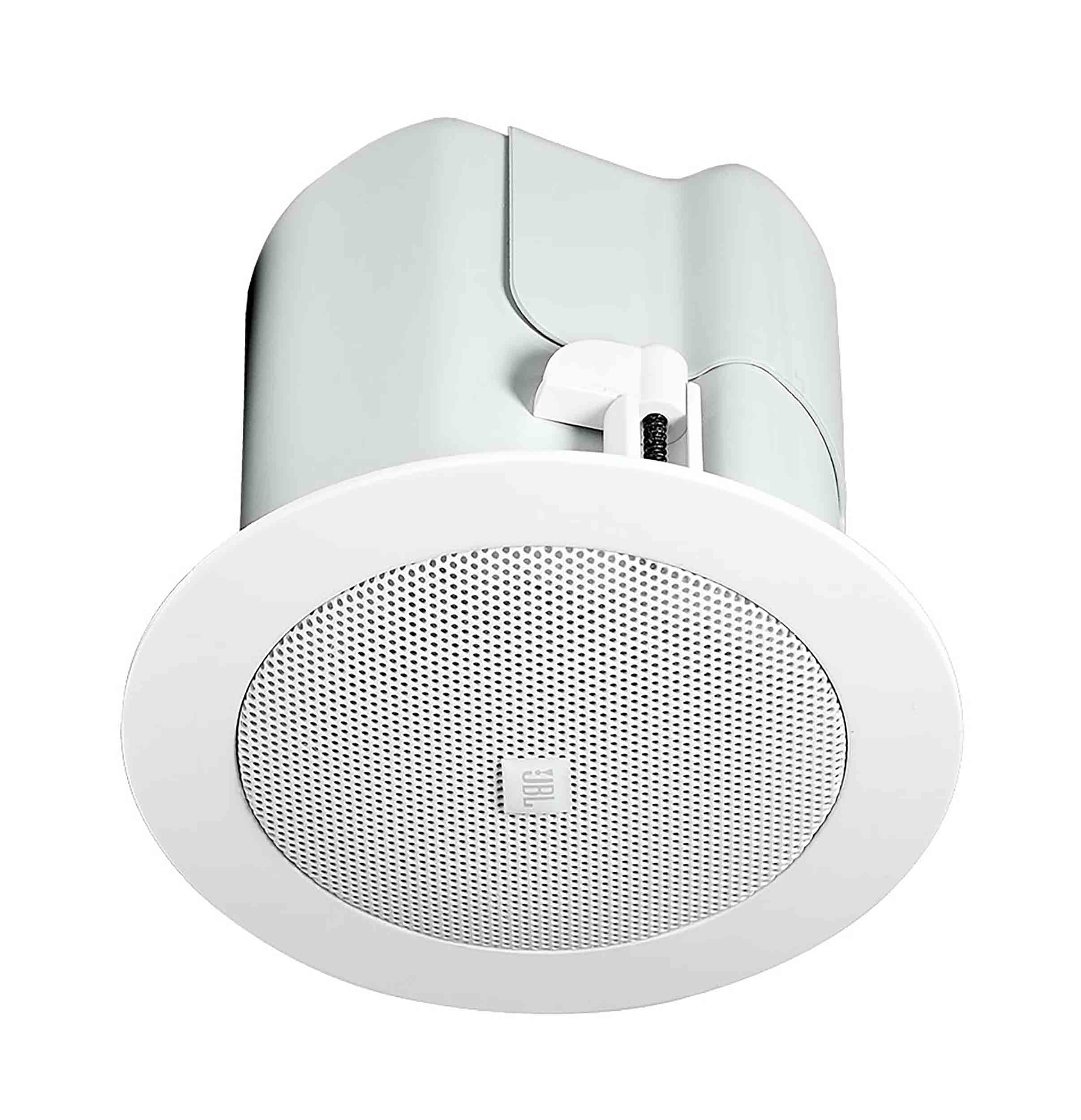

JBL CONTROL 42C, Compact In-Ceiling Satellite Loudspeaker

The JBL CONTROL 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Product Specifications:

Frequency Range: 140 Hz - 20 kHz

Sensitivity: 82 dB (1kHz - 16 kHz)

Drivers: 60 mm (2.5 in)

Coverage Angle: 160° conical

Impedance: 16 ohms

Input Connectors: Two removeable locking 2-pin connectors with screwdown terminals.

Included Accessories: C-ring support backing plate, knockout strain relief, cutout template, paint shield.

Dimensions (Diameter x Depth): 127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in)

Maximum SPL (1m): 94 dB @ 1 m (3.3 ft) average, 100 dB peak

Color: White

Backcan: formed steel (included "blind-mount")

Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.

Plenum Usage: Yes, backcan included
