Description

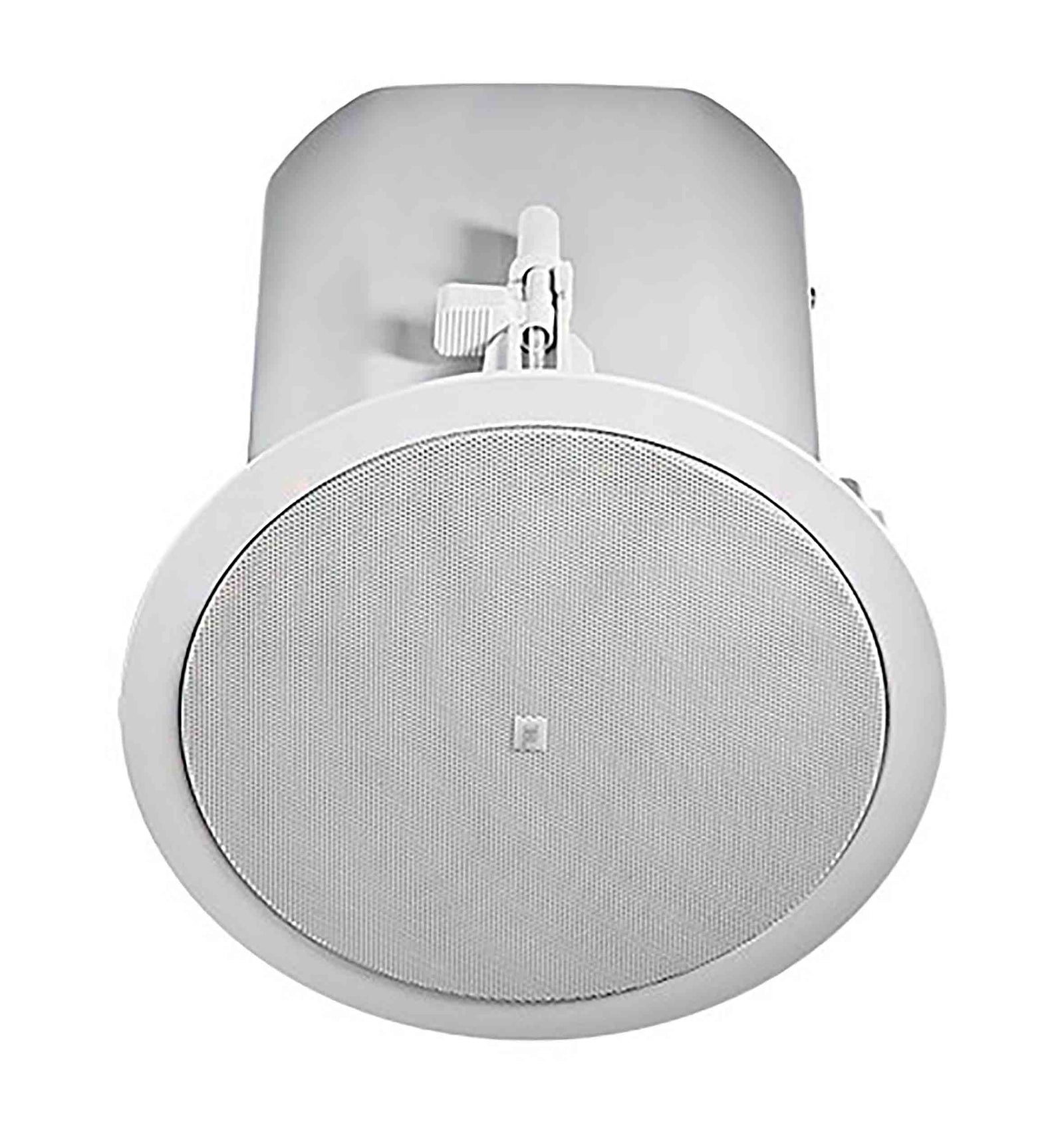

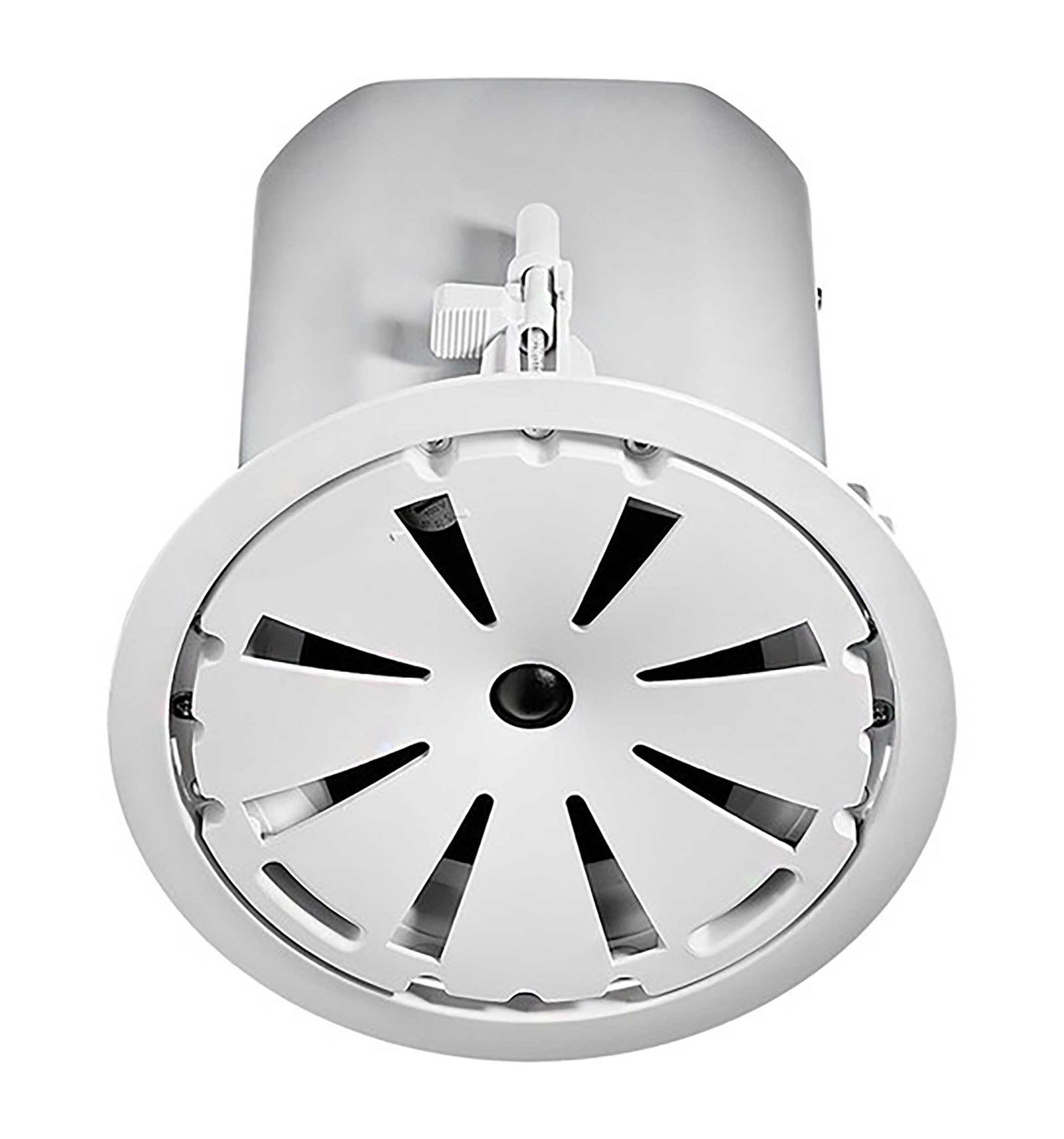

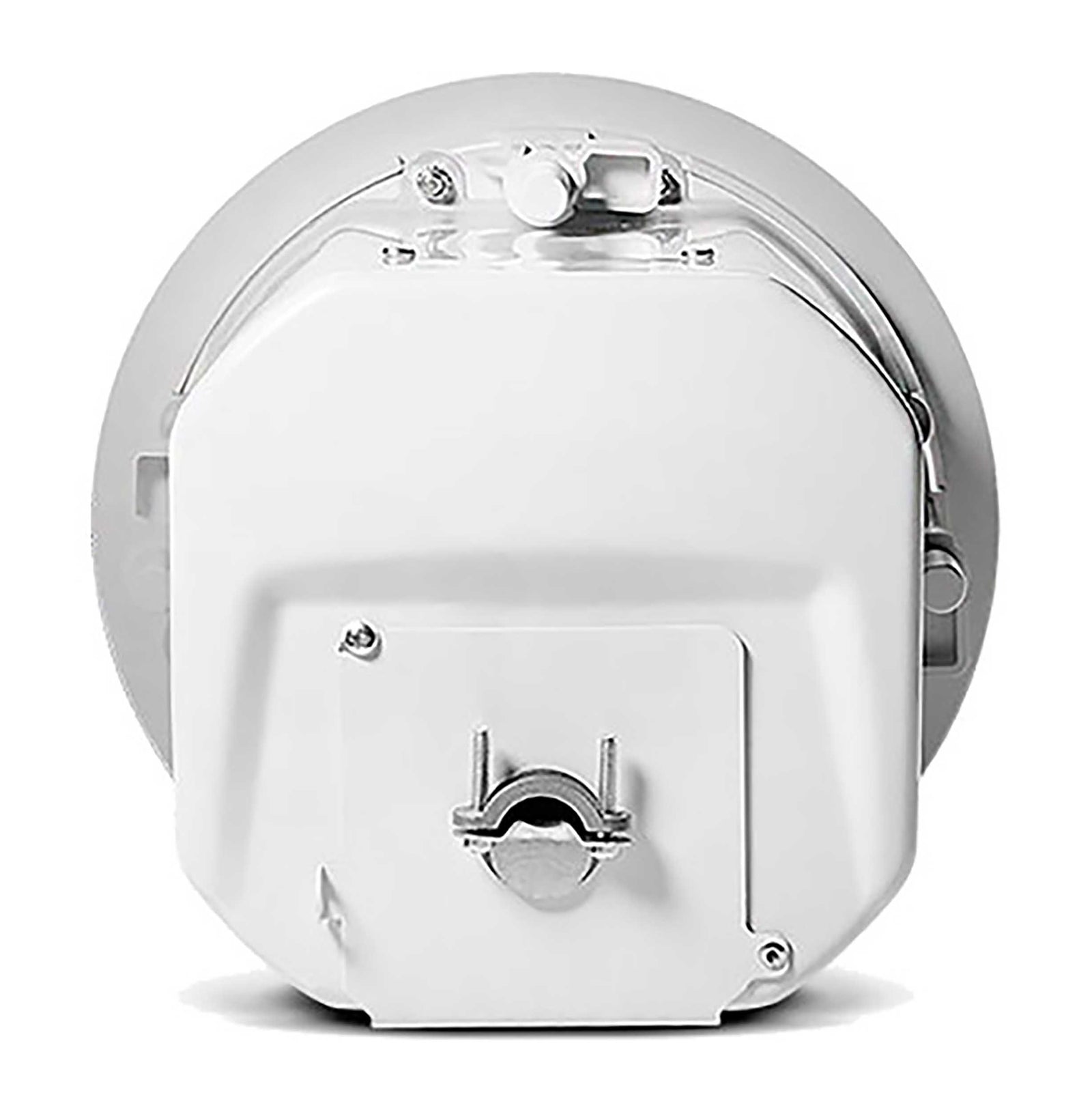

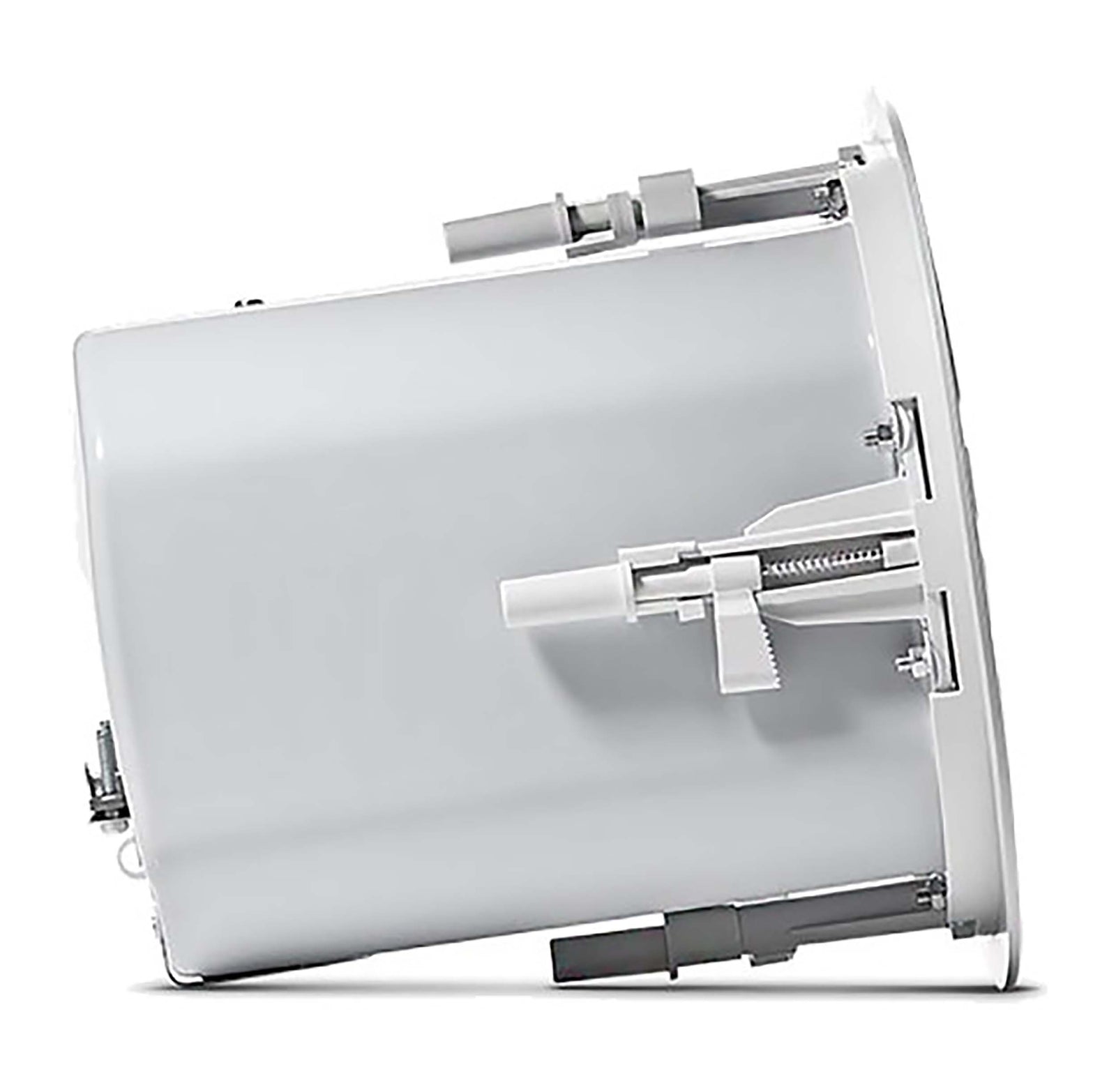

The JBL CONTROL 45C/T is a premium inceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.
Product Specifications:
Frequency Range (-10dB): 55 Hz – 20 kHz
Frequency Response (±3 dB): 80 Hz – 17 kHz
Sensitivity: 88 dB (1kHz - 16 kHz)
Coverage Angle: 120° conical, constant directivity
Directivity Factor (Q): 5.6
Directivity Index (DI): 7.3 dB
Impedance: 8 ohms (in bypass mode)
Transformer Taps: 60W, 30W, 15W, (& 7.5 W @ 70V), plus transformer bypass
Transformer Insertion Loss: 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
Drivers: LF Driver: 130 mm (5.25 in)
HF Driver: 20 mm (0.75 in)
Knockouts: Two (top, and side)
Dimensions: 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth
Ceiling Cutout Size: 220 mm (8.75 in)
Ceiling Thickness Range: Accommodates tiles / drywall up to 70 mm (2.75 in) thick
Net Weight: 3.9 kg (8.6 lb)
Shipping Weight: 8.6 kg (19.0 lb), pair pack
Optional Accessories: MTC-26NC New Construction Bracket MTC-26MR Mud Ring Construction Bracket
Color: White
Backcan: formed steel (included "blind-mount")
Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
Plenum Usage: Yes, backcan included
