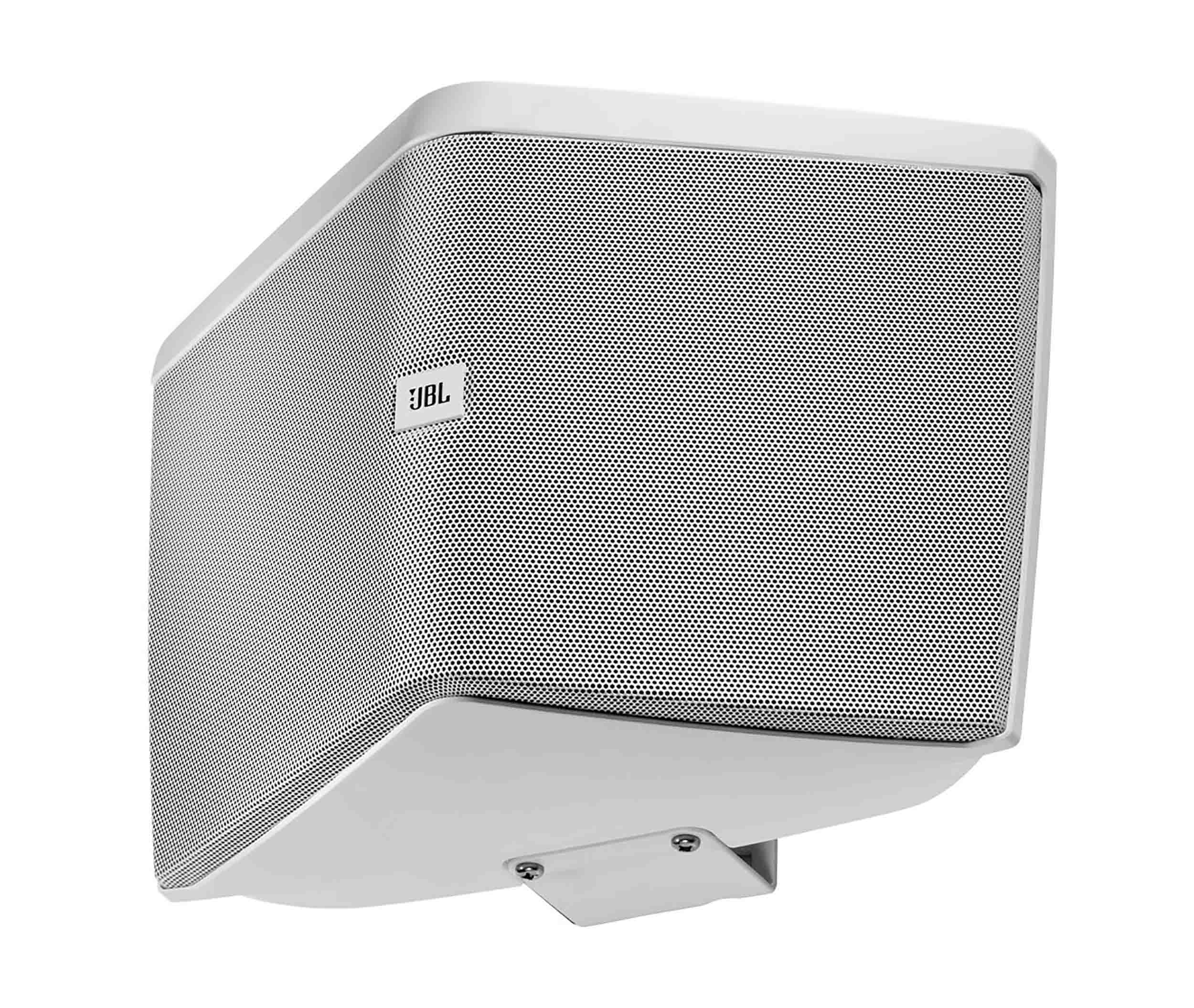

JBL CONTROL HST-WH 100W Two Way 5.25" Passive Wide Coverage Speaker - White

The JBL CONTROL HST-WH is a single two-way 100W passive wallmount speaker offering extremely wide coverage and a broad frequency response for music reproduction and paging applications in a variety of indoor and outdoor environments such as stores, restaurants, educational facilities, hotels, and lobbies.

The ABS enclosure features a wall-facing 5.25" woofer and dual horizontally splayed 0.75" fluid-cooled tweeters, enabling the Control HST to deliver a 160 x 150° pattern control while producing a 50 Hz to 20 kHz frequency range (-10 dB) devoid of the primary reflection that normally plagues wall-mounted speakers, making it ideal for reducing the number of speakers in a setup without sacrificing coverage area or fidelity. An integrated 60W multi-tap transformer allows the Control HST to be used in 70/100V, or 8-ohm system configurations at selectable wattage settings. Boasting IP54 and Mil-Std-810 ratings for resistance to water, humidity, and more, the Control HST is a capable speaker for a range of locations. It includes a color-matched U-bracket for simplified wallmount installation.

Product Specifications:

Frequency Range (-10dB): 50 Hz – 20 kHz

Frequency Response (±3 dB): 68 Hz – 18 kHz

Coverage Angle: 180°H x160°V

Directivity Factor (Q): 5.4 (1 k – 16 kHz)

Directivity Index (DI): 7.2 dB (1 k – 16 kHz)

System Power Rating (IEC): 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.

Sensitivity: 88 dB (Ave. 80 Hz – 20 kHz)

Maximum SPL (1m): Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W

Crossover Network: 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF

Impedance: 8 ohms

Transformer Taps: 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W

Enclosure: Fiberglass-reinforced ABS

Grille: Aluminum grille, painted to match cabinet color.

Dimensions (H x W x D): 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.

Colors: White

Net Weight (each): 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket

Mounting Hardware: Included wall-mount bracket.
