Description

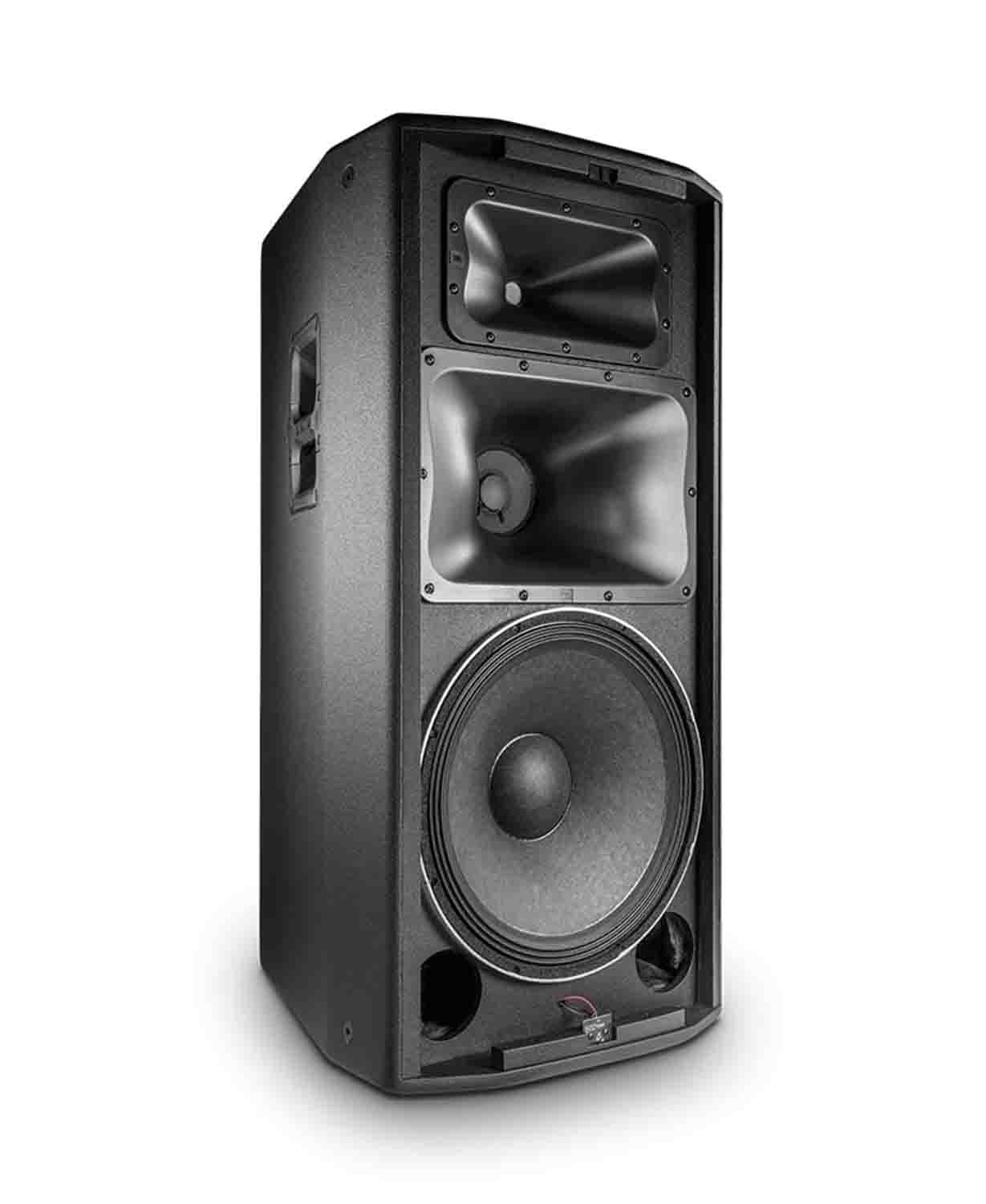

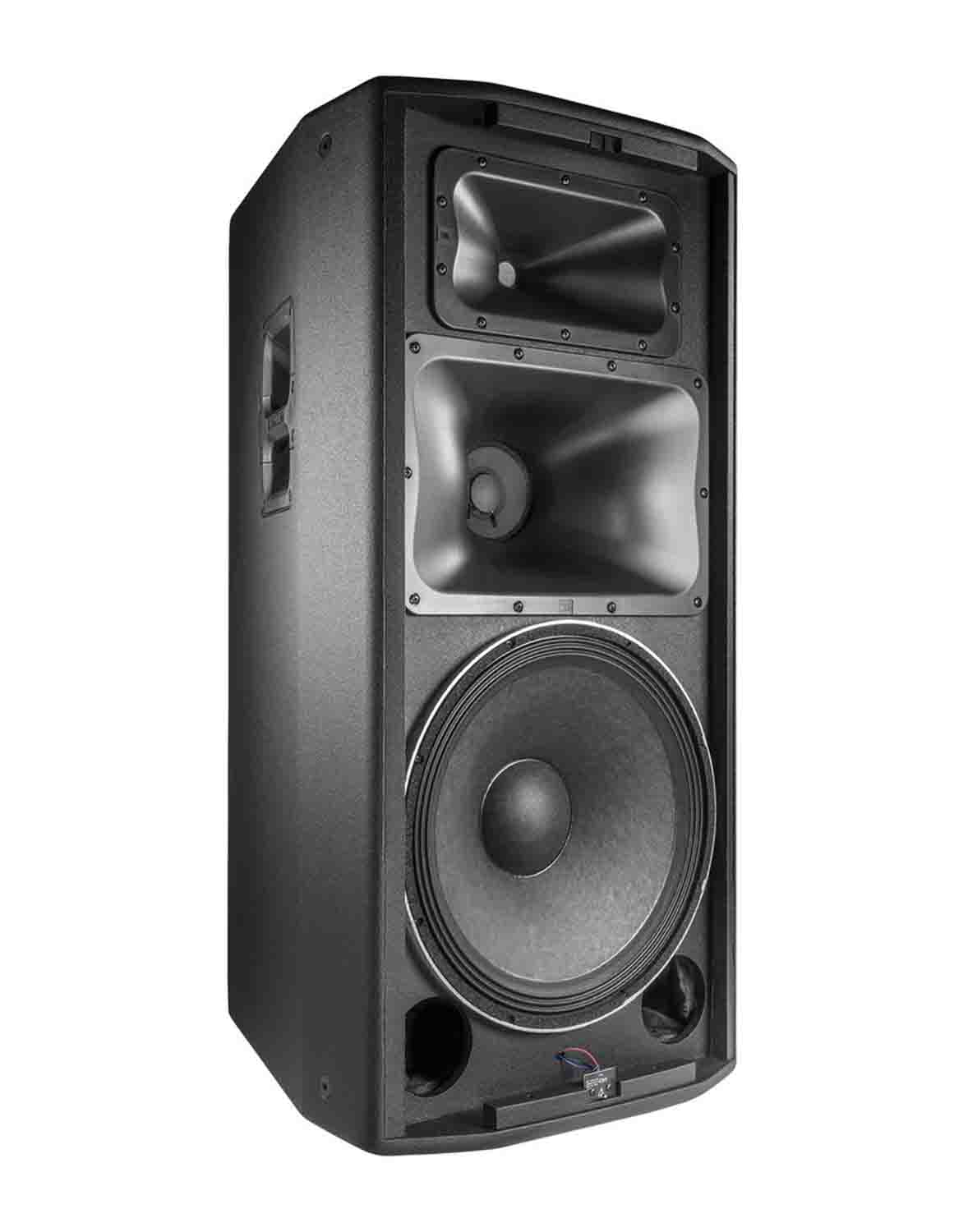

The JBL PRX835W is a 15" Three-Way Powered PA System with Wi-Fi Control. The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor. The speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer, 6.5" midrange driver, and 1.5" compression driver, which combine to offer a frequency range of 42 Hz to 20 kHz at 138 dB maximum SPL output, plenty of output to cover audiences of up to 400.

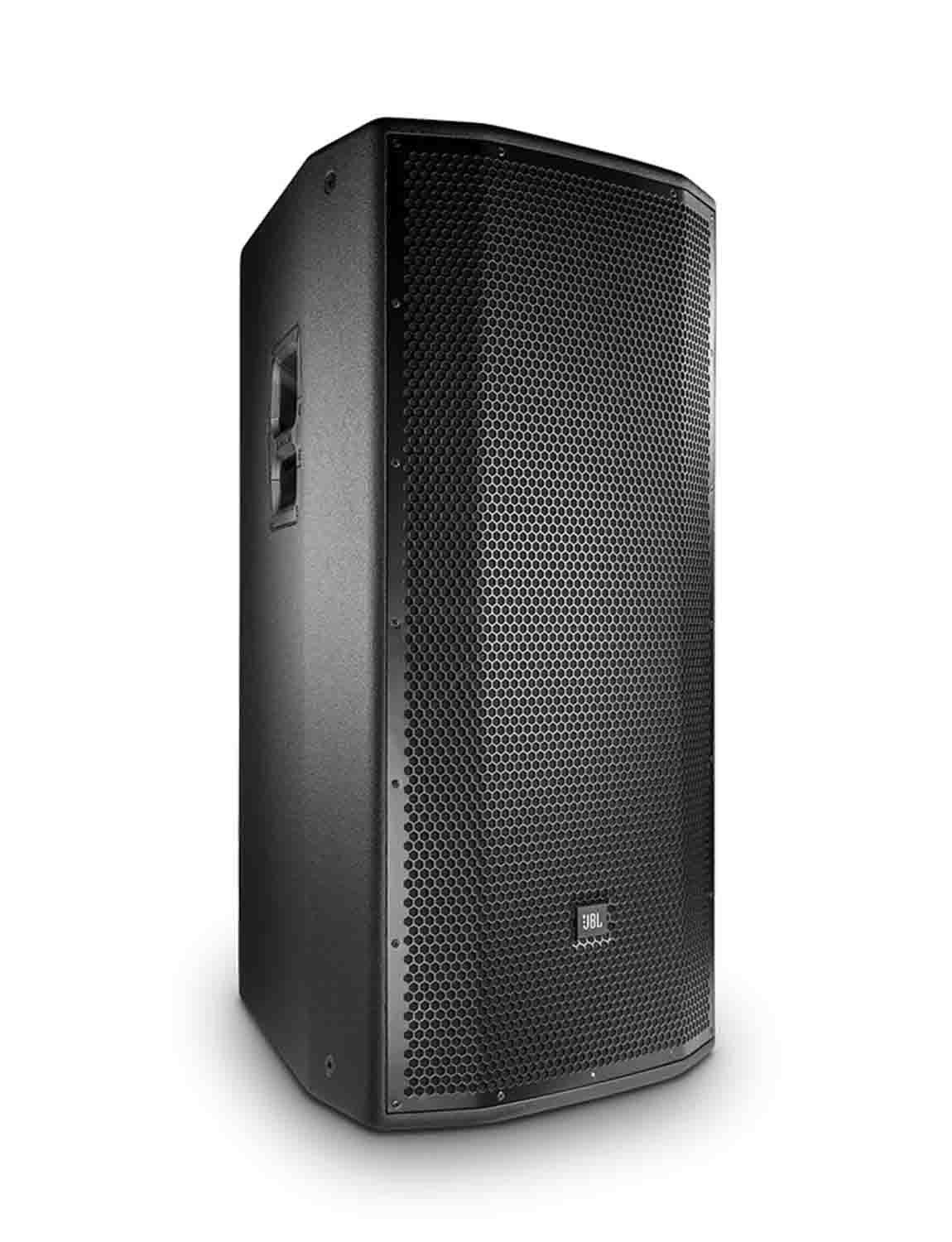

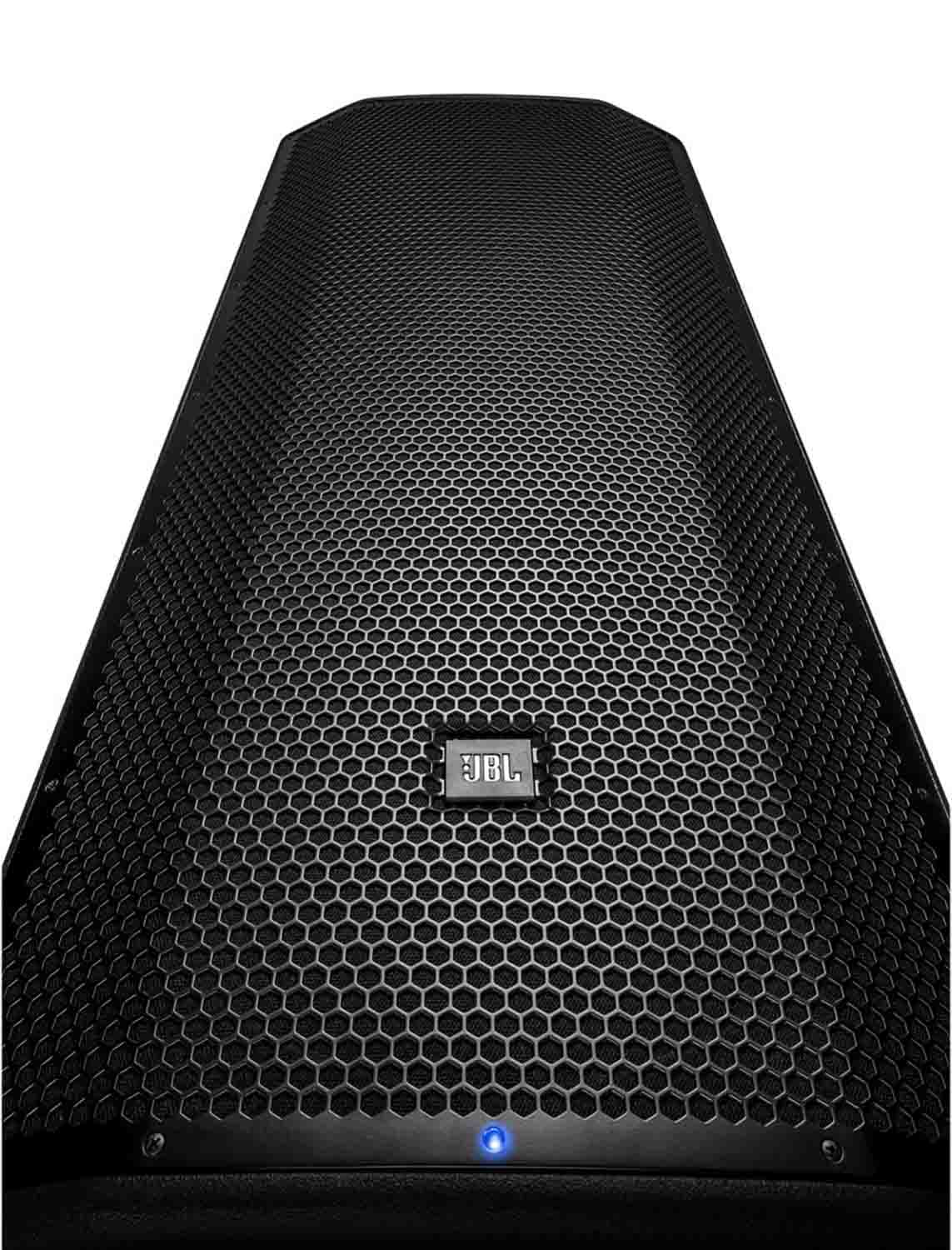

The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black cloth backing.
Product Specifications:
Powered: Yes
Power Configuration: Bi-amped
LF Driver Size: 15" woofer
Mid Driver Size: 6.5" midrange
HF Driver Size: 1.5" compression driver
LF Driver Power Amp: 750W
HF Driver Power Amp: 750W
Total Power: 1500W

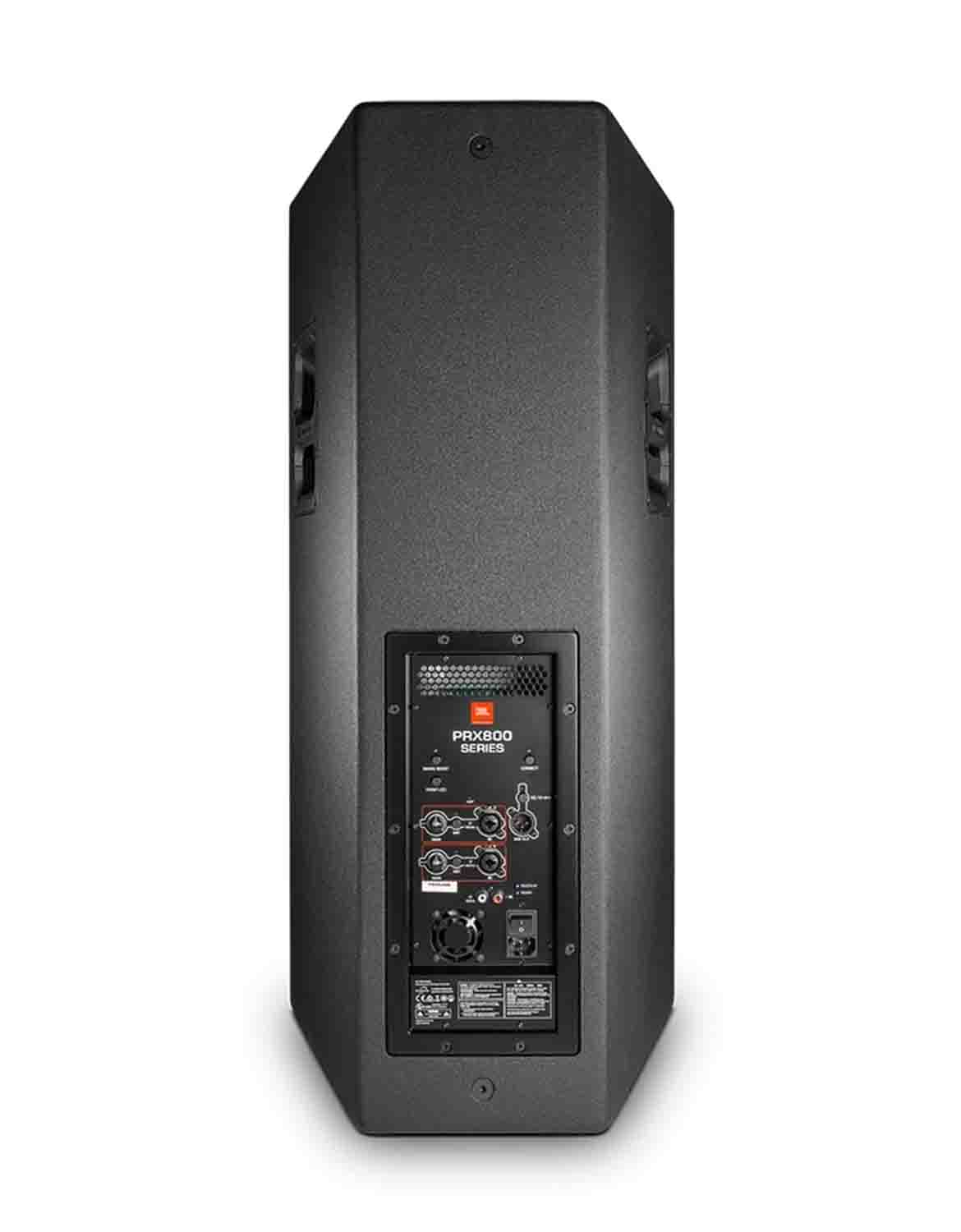

Inputs: 2 x XLR-1/4" combo (Mic/Line), 2 x RCA (stereo)
Outputs: 1 x XLR (mix out)
Wireless: Wi-Fi controllable features via PRX Connect App
Frequency Range: 41Hz-20khz (-10 dB)
Frequency Response: 50Hz-18.2kHz (±3 dB)
Crossover Frequency: 580Hz, 2.1kHz
Maximum Peak SPL: 138 dB SPL
Horizontal Coverage Angle: 90 Degrees
Vertical Coverage Angle: 50 Degrees
Signal Processing: EQ, dbx Type IV limiter
Enclosure Material: Birch/poplar

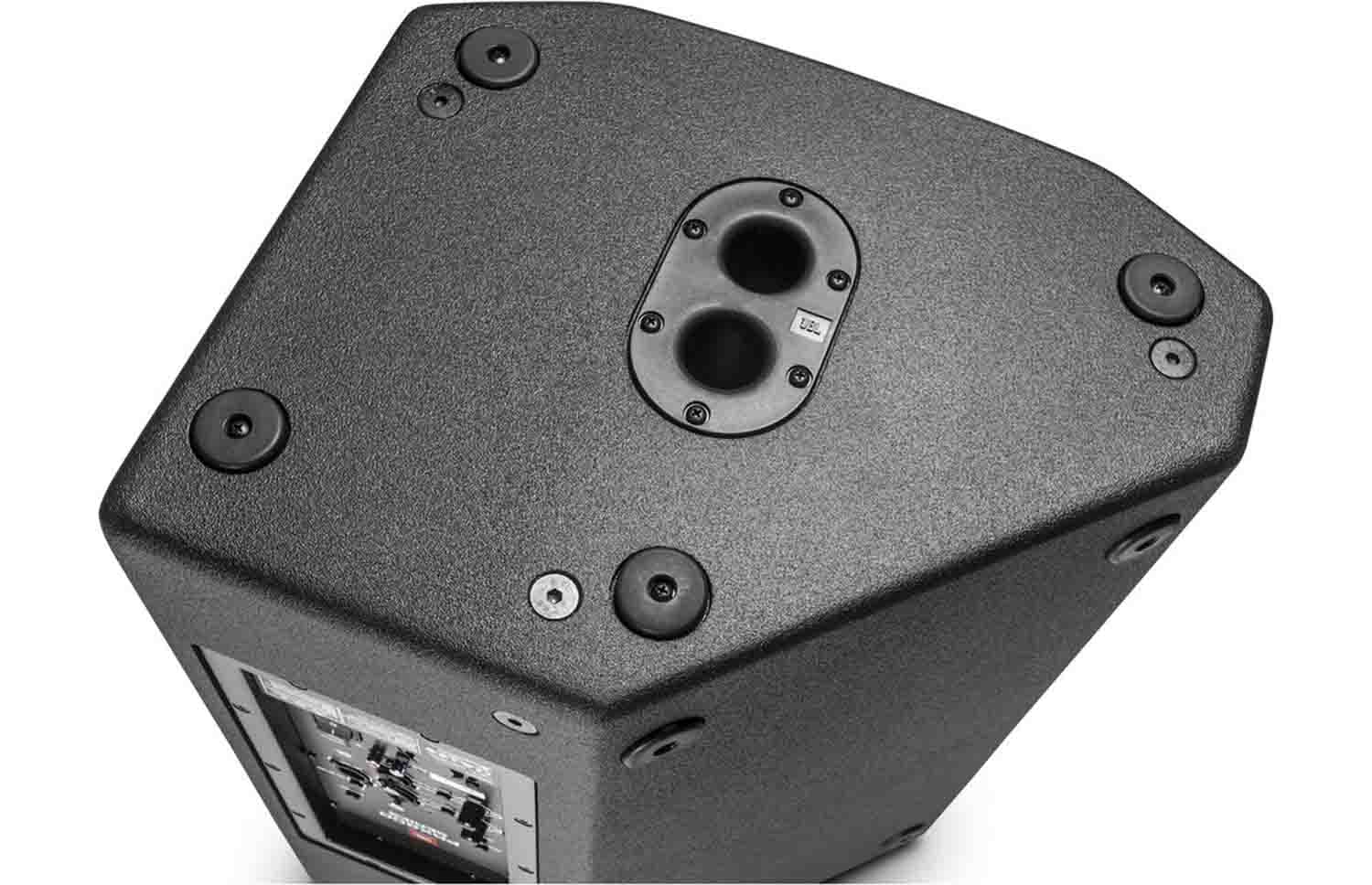

Mounting Options: 12 x M10 Fly Points
Dimensions (H x W x D): 36.9in x 17.5in x 21.2in
Weight: 71.4 lbs
